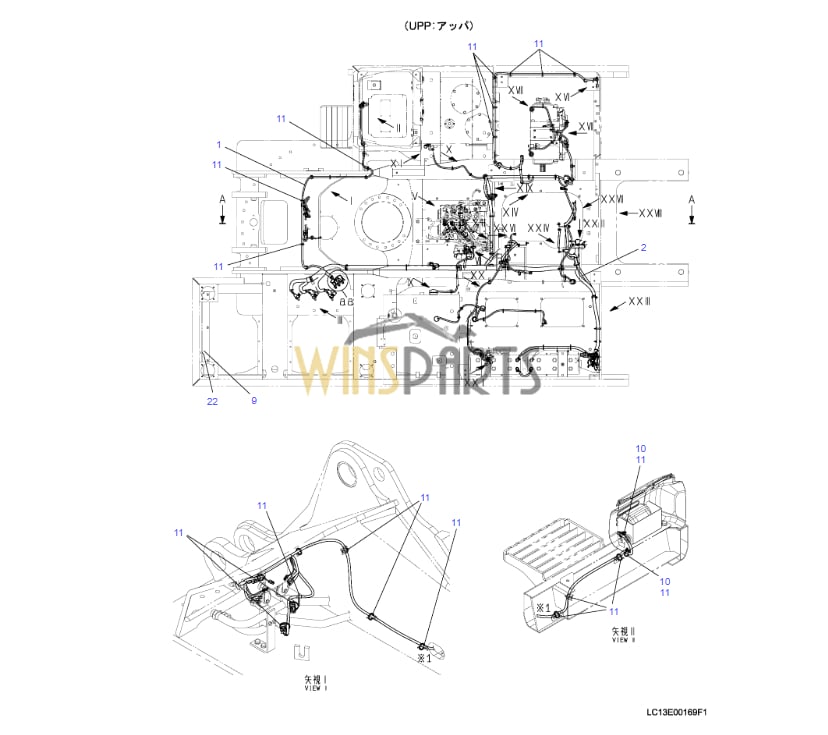

LC13E00169F1 LC13E01534P1 LC13E01649P1 HARNESS ASSY KOBELCO SK330-10 SK350LC-10

LC13E00169F1 LC13E01534P1 LC13E01649P1 HARNESS ASSY KOBELCO SK330-10 SK350LC-10
　 .
　 1 LC13E01534P1 HARNESS 1
　 1 LC13E01649P1 HARNESS 1
　 2 LC13E01549P1 CABLE 1
　 3 LC13E01535P1 CABLE 1
　 4 LC13E01577P1 CABLE 1
　 7 LC13E01177P1 CABLE 1
　 9 LE13E01006P1 CABLE 1
　 10 YN13E01375P1 CLIP 34
　 10 YN13E01375P1 CLIP 33
　 11 PY01P01043D3 CLIP 108
　 12 PY01P01043D5 CLIP 4
　 13 PY01P01043DA CLIP 7
　 13 PY01P01043DA CLIP 8
　 14 EW02E01015D4 CLIP 2
　 15 EW02E01015D6 CLIP 2
　 16 EW02E01015D8 CLIP 2
　 17 EW02E01015DA CLIP 2
　 18 LC13E01545P1 BRACKET 1
　 19 LQ13E01329P1 BRACKET 1
　 20 YN13E01625P1 BRACKET 1
　 21 ZM73C08016 SEMS-BOLT 1
　 22 ZM73C08020 SEMS-BOLT 19
　 23 ZM73C10016 SEMS-BOLT 3
　 24 LC13E01546P1 BRACKET 1
　 24 LC13E01546P2 BRACKET 1 LC14405023-
　 . YC14405070-
　 26 ZN18C08007 NUT 4
　 27 LQ13E01368P1 INSULATION 1
　 28 LC13E01561P1 INSULATION 1
　 30 ZW16P08000 WASHER 4
　 31 ZN18C12010 NUT 1
　 32 LC13E01557P1 PLATE 1
　 33 YN13E01365P1 PLATE 1
　 34 YN03E01001D4 CLIP 3
　 35 ZY26X02003 SPACER 1
　 36 ZM73C06016 SEMS-BOLT 1
　 37 YF13E01154P1 CAPSCREW 1
　 38 YF13E01155P1 LOCK WASHER 1
　 39 YF13E01156P1 WASHER 1

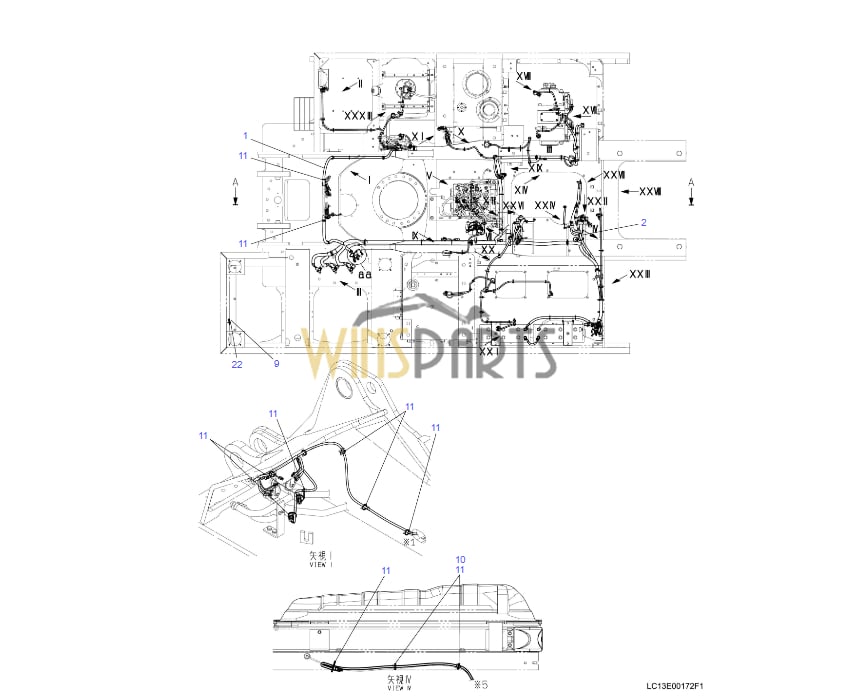

LC13E00172F1 LC13E01539P1 LC13E01539P2 LC13E01539P3 HARNESS ASSY KOBELCO SK350NLC-10 SK350DLC-10
　 .
　 1 LC13E01539P1 HARNESS 1 YC14-14001–14002
　 1 LC13E01539P2 HARNESS 1 YC14-14003–14053
　 1 LC13E01539P3 HARNESS 1 LC14-18001–18004
　 . YC14-14054–14076
　 1 LC13E01593P1 HARNESS 1 LC14-18005–18087
　 . YC14-14077–14527
　 1 LC13E01648P1 HARNESS 1 LC14-18088-
　 . YC14-14528-
　 2 LC13E01549P1 CABLE 1
　 3 LC13E01535P1 CABLE 1
　 4 LC13E01577P1 CABLE 1
　 7 LC13E01177P1 CABLE 1
　 9 LE13E01006P1 CABLE 1
　 10 YN13E01375P1 CLIP 40 LC14-18001–18004
　 . YC14-14001–14076
　 10 YN13E01375P1 CLIP 39 LC14-18005–18087
　 . YC14-14077–14527
　 10 YN13E01375P1 CLIP 38 LC14-18088-
　 . YC14-14528-
　 11 PY01P01043D3 CLIP 116 LC14-18001–18004
　 . YC14-14001–14076
　 11 PY01P01043D3 CLIP 115 LC14-18005–18014
　 . YC14-14077–14146
　 11 PY01P01043D3 CLIP 116 LC14-18015-
　 . YC14-14147-
　 12 PY01P01043D5 CLIP 2 YC14-14001–14002
　 12 PY01P01043D5 CLIP 4 LC14-18001-
　 . YC14-14003-
　 13 PY01P01043DA CLIP 9 LC14-18001–18087
　 . YC14-14001–14527
　 13 PY01P01043DA CLIP 10 LC14-18088-
　 . YC14-14528-
　 15 EW02E01015DF CLIP 2
　 16 EW02E01015D8 CLIP 2
　 17 EW02E01015DA CLIP 3
　 19 LQ13E01329P1 BRACKET 1
　 20 YN13E01625P1 BRACKET 1
　 21 ZM73C08016 SEMS-BOLT 3
　 22 ZM73C08020 SEMS-BOLT 18
　 23 ZM73C10016 SEMS-BOLT 3
　 24 LC13E01558P1 BRACKET 1 YC14-14001–14002
　 24 LC13E01558P2 BRACKET 1 LC14-18001-
　 . YC14-14003-
　 26 ZN18C08007 NUT 2
　 27 LQ13E01368P1 INSULATION 1
　 28 LC13E01561P1 INSULATION 1
　 29 ZW16P06000 WASHER 1
　 30 ZW16P08000 WASHER 2
　 31 ZM73C06016 SEMS-BOLT 1
　 32 LC13E01557P1 PLATE 1
　 33 LC13E01471P1 BRACKET 1
　 34 YN03E01001D4 CLIP 5
　 35 EW02E01015D4 CLIP 2
　 36 YF13E01154P1 CAPSCREW 1 LC14-18088-
　 . YC14-14528-
　 37 YF13E01155P1 LOCK WASHER 1 LC14-18088-
　 . YC14-14528-
　 38 YF13E01156P1 WASHER 1 LC14-18088-
　 . YC14-14528-
　 39 YF52S00015P1 SENSOR, TEMP 1 LC14-18088-
　 . YC14-14528-
　 40 YF22E01053P1 RESISTOR 1 LC14-18088-
　 . YC14-14528-

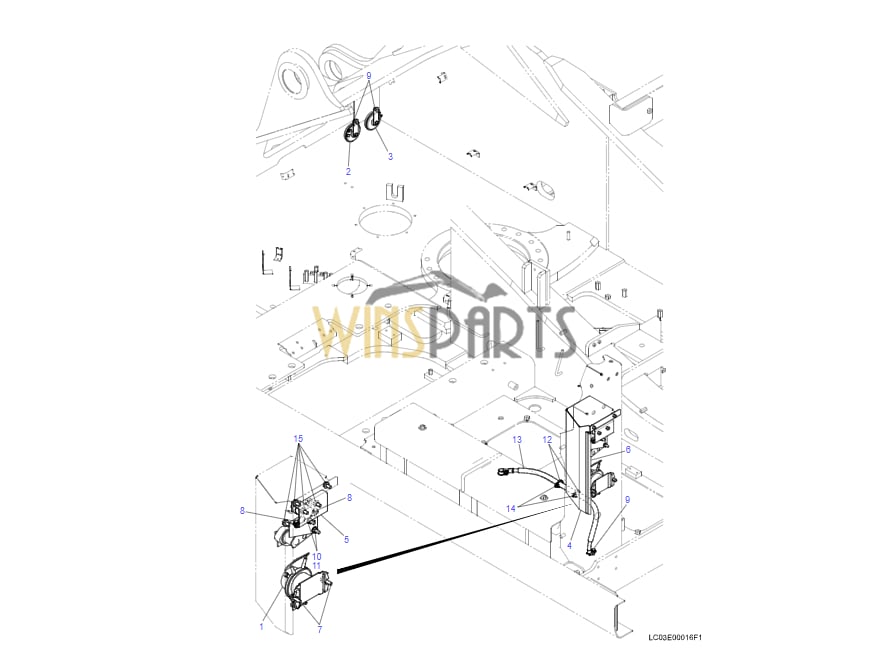

LC03E00016F1 LC03E00015F1 YN24S00008F1 ELEC ASSY, UPP RELAY, BATTERY KOBELCO SK330-10 SK350LC-10
　 1 YN24S00008F1 RELAY, BATTERY 1
　 2 LC53S00001D1 HORN 1
　 3 LC53S00001D2 HORN 1
　 4 LQ03E01023P1 COVER 1
　 5 LQ03E01021P1 BRACKET 1
　 6 2427P1836D25 STRIP, WEATHER 1
　 7 ZM73C08030 SEMS-BOLT 2
　 8 ZM73C06016 SEMS-BOLT 2
　 9 ZM73C08020 SEMS-BOLT 3
　 10 ZW16P08000 WASHER 2
　 11 ZN18C08007 NUT 2
　 12 PY01P01043D3 CLIP 2
　 13 LC13E01587P1 CABLE 1
　 14 YN13E01375P1 CLIP 2
　 15 ZM73C08016 SEMS-BOLT 5
　 1 YN24S00008F1 RELAY, BATTERY 1
　 2 LC53S00001D1 HORN 1
　 3 LC53S00001D2 HORN 1
　 4 LC03E01027P1 COVER 1
　 5 LQ03E01021P1 BRACKET 1
　 6 2427P1836D25 STRIP, WEATHER 1
　 7 ZM73C08030 SEMS-BOLT 2
　 8 ZM73C06016 SEMS-BOLT 2
　 9 ZM73C08020 SEMS-BOLT 5
　 10 ZW16P08000 WASHER 2
　 11 ZN18C08007 NUT 2
　 12 PY01P01043D3 CLIP 3
　 13 LC13E01536P1 CABLE 1
　 14 LQ13E01318P1 CABLE 1
　 15 ZM73C08016 SEMS-BOLT 5
　 16 LP50S00003P1 SWITCH 1
　 17 YN13E01375P1 CLIP 2

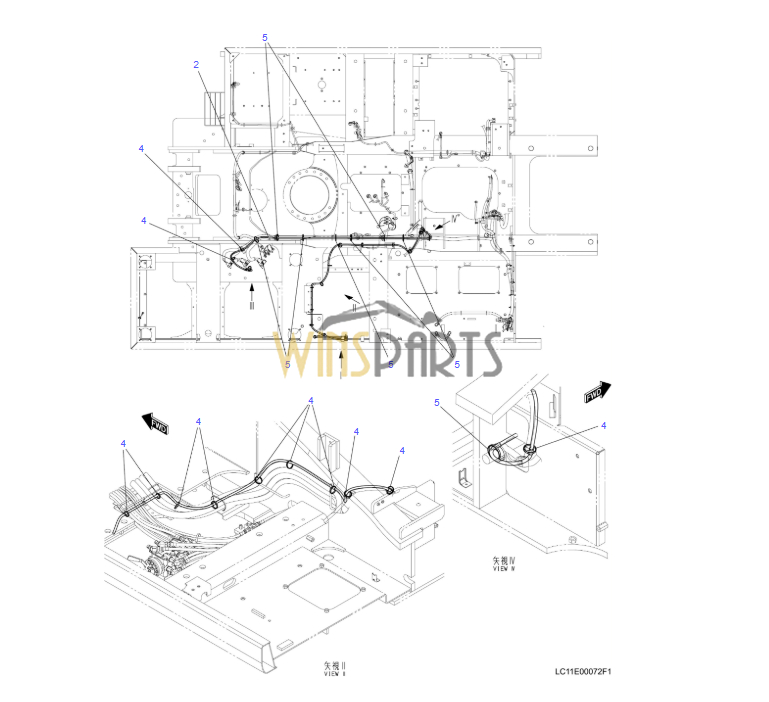

LC11E00072F1 LQ13E01361P1 LC11E01123P1 HARNESS ASSY
　 .
　 1 LQ13E01361P1 HARNESS 1
　 2 LC11E01123P1 HARNESS 1
　 3 YN13E01375P1 CLIP 5
　 4 PY01P01043D3 CLIP 19
　 5 PY01P01043D5 CLIP 14
　 6 PY01P01043DA CLIP 1
LC11E00089F1 HARNESS ASSY
　 1 LQ13E01361P1 HARNESS 1
　 2 LC11E01129P1 HARNESS 1
　 3 YN13E01375P1 CLIP 10
　 4 PY01P01043D3 CLIP 20
　 5 PY01P01043D5 CLIP 14
　 6 PY01P01043DA CLIP 2

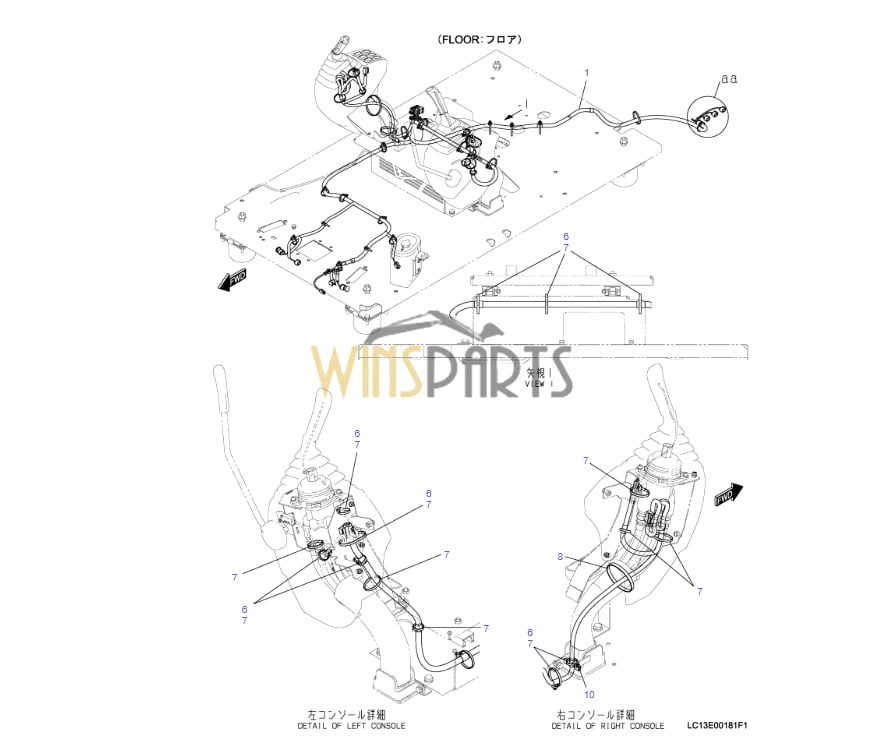

LC13E00181F1 LC13E01562P5 HARNESS ASSY, UPP
　 1 LC13E01562P5 HARNESS 1
　 2 LE13E01005P1 CABLE 1
　 3 ZW16P08000 WASHER 1
　 4 ZW26X08000 LOCK WASHER 1
　 5 ZN18C08007 NUT 1
　 6 YN13E01375P1 CLIP 21
　 7 PY01P01043D3 CLIP 28
　 8 PY01P01043D8 CLIP 1
　 9 PY01P01043DA CLIP 2
　 10 PM22C01020DR TRIM 1

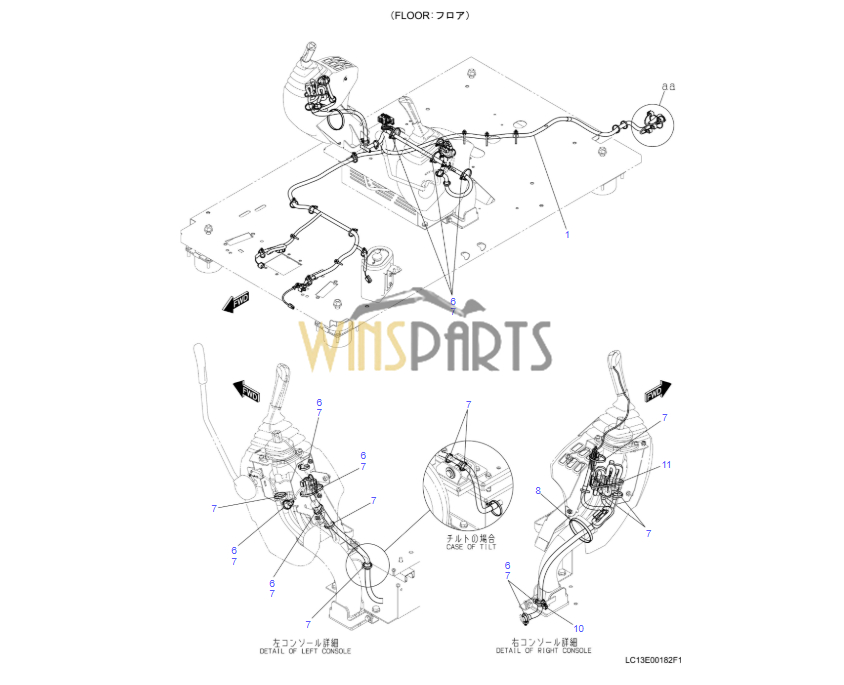

LC13E00182F1 LC13E01563P2 LC13E01563P3 FLOOR HARNESS ASSY, UPP KOBELCO SK350NLC-10 SK350DLC-10
　 1 LC13E01563P2 HARNESS 1
　 1 LC13E01563P3 HARNESS 1 LC14-18039-
　 . YC14-14308-
　 2 LE13E01005P1 CABLE 1
　 3 ZW16P08000 WASHER 1
　 4 ZW26X08000 LOCK WASHER 1
　 5 ZN18C08007 NUT 1
　 6 YN13E01375P1 CLIP 21
　 7 PY01P01043D3 CLIP 30 LC14-18001–18008
　 . YC14-14001–14103
　 7 PY01P01043D3 CLIP 31 LC14-18009-
　 . YC14-14104-
　 8 PY01P01043D8 CLIP 1
　 9 PY01P01043DA CLIP 3
　 10 PM22C01020DR TRIM 1
　 11 PY01P01043D5 CLIP 1

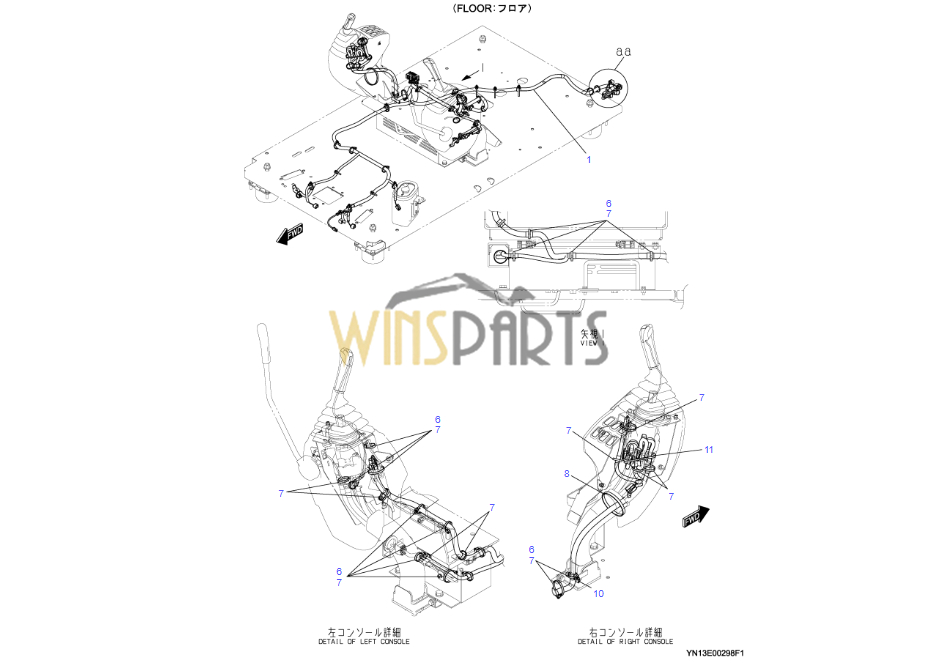

YN13E00298F1 YN13E02082P1 YN13E02082P5 YN13E02082P4 HARNESS ASSY KOBELCO SK330-10 SK350LC-10
　 1 YN13E02082P1 HARNESS 1 LC14-18028–18052
　 . YC14-14258–14383
　 1 YN13E02082P3 HARNESS 1 LC14-18053–18076
　 . YC14-14384–14466
　 1 YN13E02082P4 HARNESS 1 LC14-18077–18100
　 . YC14-14467–14628
　 1 YN13E02082P5 HARNESS 1 LC14-18101-
　 . YC14-14629-
　 2 LE13E01005P1 CABLE 1
　 3 ZW16P08000 WASHER 1
　 4 ZW26X08000 LOCK WASHER 1
　 5 ZN18C08007 NUT 1
　 6 YN13E01375P1 CLIP 25
　 7 PY01P01043D3 CLIP 37
　 8 PY01P01043D8 CLIP 1
　 9 PY01P01043DA CLIP 4
　 10 PM22C01020DR TRIM 1
　 11 PY01P01043D5 CLIP 1

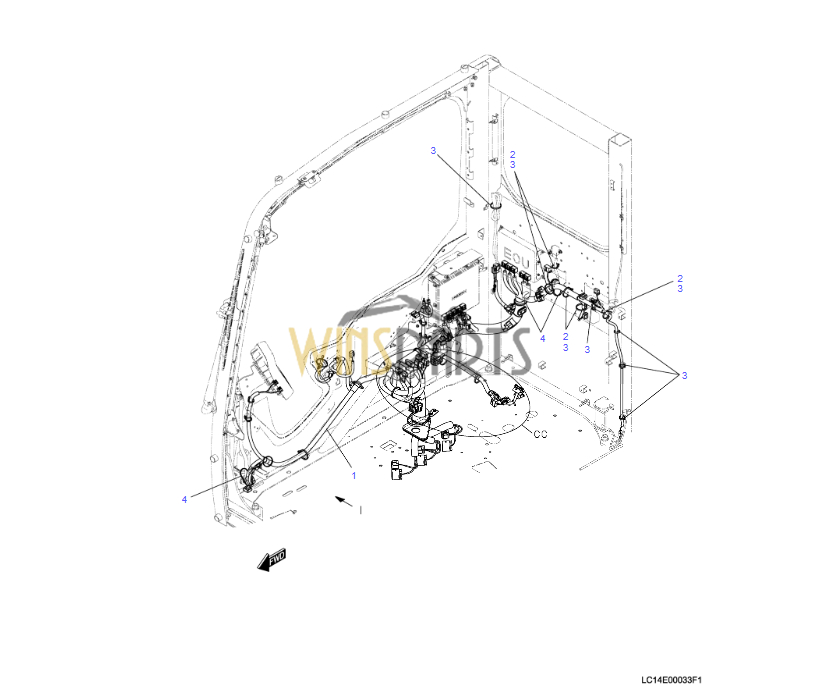

LC14E00033F1 LC14E01066P2 LC14E01066P3 LC14E01066P5 CAB HARNESS ASSY KOBELCO SK330-10 SK350LC-10
　 .
　 1 LC14E01066P2 HARNESS 1 LC14-T1101–T1213
　 . YC14-T1101–T1176
　 1 LC14E01066P3 HARNESS 1
　 1 LC14E01066P5 HARNESS 1 LC14405023-
　 . YC14405068-
　 2 YN13E01375P1 CLIP 11 LC14-T1101–T1213
　 . YC14-T1101–T1176
　 2 YN13E01375P1 CLIP 12 LC14-T1214-
　 . YC14-T1177-
　 3 PY01P01043D3 CLIP 22 LC14-T1101–T1213
　 . YC14-T1101–T1176
　 3 PY01P01043D3 CLIP 23 LC14-T1214-
　 . YC14-T1177-
　 4 PY01P01043D5 CLIP 8 LC14-T1101–T1213
　 . YC14-T1101–T1176
　 4 PY01P01043D5 CLIP 7 LC14-T1214-
　 . YC14-T1177-
　 5 PY01P01043D8 CLIP 1
　 6 LC13E01564P1 PLATE 1
　 7 LQ13E01366P1 GROMMET 1
　 8 ZM73C06016 SEMS-BOLT 4
　 9 LQ14E01037P1 HARNESS 1

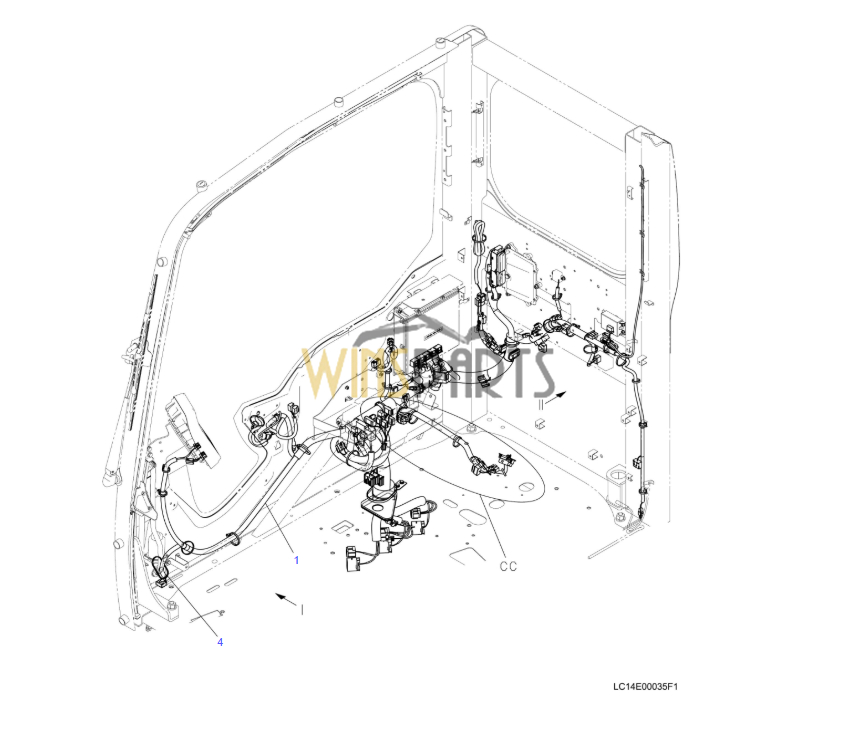

LC14E00035F1 YN14E01162P2 YN14E01162P1 LC14E01068P3 HARNESS ASSY, CAB KOBELCO SK350NLC-10 SK350DLC-10
　 .
　 1 LC14E01068P2 HARNESS 1 LC14-18001–18001
　 . YC14-14001–14055
　 1 LC14E01068P3 HARNESS 1 LC14-18002–18026
　 . YC14-14056–14245
　 1 YN14E01162P1 HARNESS 1 LC14-18027–18031
　 . YC14-14246–14280
　 1 YN14E01162P2 HARNESS 1 LC14-18032-
　 . YC14-14281-
　 2 YN13E01375P1 CLIP 14 LC14-18001–18031
　 . YC14-14001–14280
　 2 YN13E01375P1 CLIP 15 LC14-18032-
　 . YC14-14281-
　 3 PY01P01043D3 CLIP 25 LC14-18001–18031
　 . YC14-14001–14280
　 3 PY01P01043D3 CLIP 26 LC14-18032-
　 . YC14-14281-
　 4 PY01P01043D5 CLIP 8 LC14-18001–18031
　 . YC14-14001–14280
　 4 PY01P01043D5 CLIP 7 LC14-18032-
　 . YC14-14281-
　 5 PY01P01043D8 CLIP 1
　 6 LC13E01564P1 PLATE 1
　 7 LQ13E01366P1 GROMMET 1
　 8 ZM73C06016 SEMS-BOLT 4
　 10 LQ14E01037P1 HARNESS 1

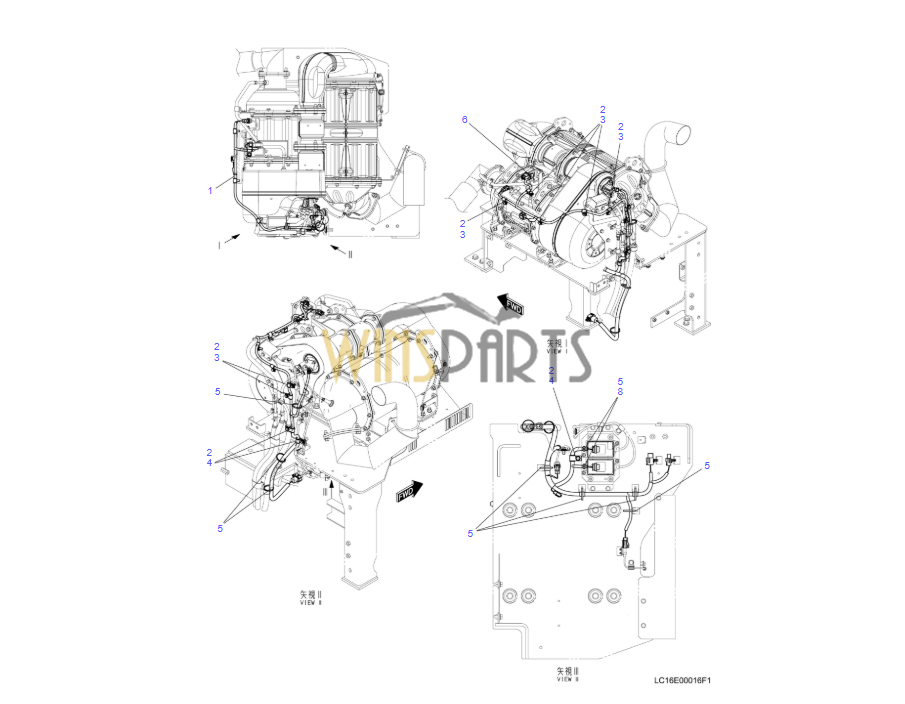

LC16E00016F1 LC16E01073P2 ENGINE HARNESS ASSY KOBELCO SK350NLC-10 SK350DLC-10
　 1 LC16E01073P2 HARNESS 1
　 2 ZM73C08020 SEMS-BOLT 10
　 3 EW02E01015D4 CLIP 7
　 4 EW02E01015D6 CLIP 3
　 5 PY01P01043D3 CLIP 9
　 6 PY01P01043DA CLIP 1
　 8 YN13E01375P1 CLIP 2
LC16E00019F1 HARNESS ASSY, ENGINE
　 1 LC16E01077P1 HARNESS 1
　 2 ZM73C08020 SEMS-BOLT 11
　 3 EW02E01015D4 CLIP 11
　 4 PY01P01043D3 CLIP 9
　 5 PY01P01043DA CLIP 1
　 6 YN13E01375P1 CLIP 2
　 7 LC16E01078P1 BRACKET 1
　 8 ZM73C08016 SEMS-BOLT 2

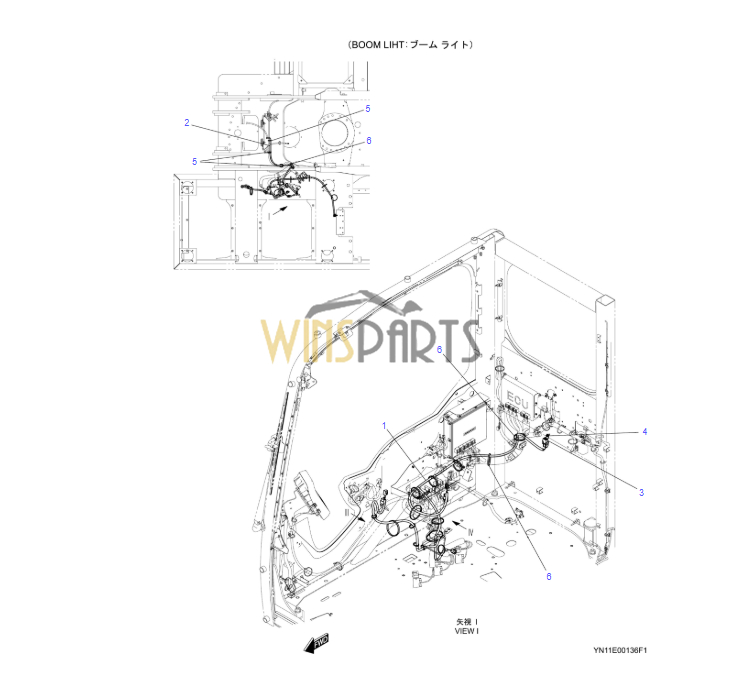

YN11E00136F1 YN11E01282P2 YN11E01283P1 HARNESS ASSY BOOM LIGHT
　 1 YN11E01282P2 HARNESS 1
　 2 YN11E01283P1 HARNESS 1
　 3 EN24S00008P1 RELAY 1
　 4 ZM61C06016 SEMS-BOLT 1
　 5 PY01P01043D3 CLIP 10
　 6 PY01P01043D5 CLIP 10
　 7 PY01P01043D8 CLIP 1

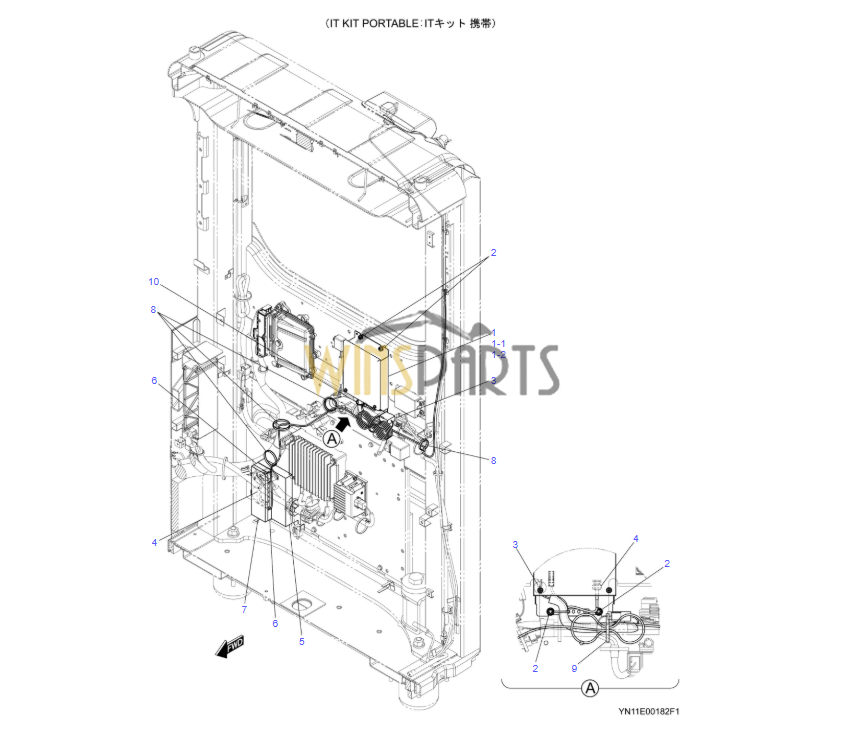

YN11E00182F1 YN22E00643FA YN22E00623F1 CONTROLLER HARNESS ASSY KOBELCO SK330-10 SK350LC-10
　 .
　 1 YN22E00643FA CONTROLLER 1
　 1-1 YN22E00623F1 CONTROLLER 1
　 1-2 YN22E00643S001 BATTERY 1
　 2 ZM61C06016 SEMS-BOLT 4
　 3 YN11E01273P2 HARNESS 1
　 4 YN54S00072P1 ANTENNA 1
　 5 YY22C01383P1 INSULATION 1
　 6 YN02C04710P1 INSULATION 2
　 7 YN02C04711P1 INSULATION 1
　 8 PY01P01043D3 CLIP 4
　 9 PY01P01043D5 CLIP 1
　 10 PY01P01043DA CLIP 1
LC11E00078F1 LC11E00137F1 HARNESS ASSY QUICK COUPPLER
　 1 YN11E01290P1 HARNESS 1
　 2 LC11E01127P1 HARNESS 1
　 3 PY01P01043D3 CLIP 16
　 4 PY01P01043D5 CLIP 13
　 5 PY01P01043D8 CLIP 1
LC11E00137F1 HARNESS ASSY
　 1 YN11E01290P1 HARNESS 1
　 2 LC11E01179P1 HARNESS 1
　 3 PY01P01043D3 CLIP 16
　 4 PY01P01043D5 CLIP 14
　 5 PY01P01043D8 CLIP 1
　 6 YN13E01375P1 CLIP 1
LC11E00061F1 HARNESS ASSY
　 .
　 1 LC55E01012P1 CABLE 1
　 2 LC55E01011P1 CABLE 1
　 3 PY01P01043D3 CLIP 15 LC14-18001–18052
　 . YC14-14001–14395
　 3 PY01P01043D3 CLIP 16 LC14-18053-
　 . YC14-14396-
　 4 PY01P01043D5 CLIP 4
　 5 YN13E01375P1 CLIP 2
　 6 LQ11E01075P1 GROMMET 1
YN11E00132F1 CONVERTERHARNESS ASSY HAND CONTROL PROPORTIONAL
　 1 YN11E01267P2 HARNESS 1
　 2 YN11E01268P1 HARNESS 1
　 3 YN13E01375P1 CLIP 4
　 4 PY01P01043D3 CLIP 20
　 5 PY01P01043D5 CLIP 8
　 6 PY01P01043D8 CLIP 2
YN11E00214F1 HARNESS ASSY
　 1 YN11E01377P1 HARNESS 1
　 2 YN11E01268P1 HARNESS 1
　 3 YN13E01375P1 CLIP 2
　 4 PY01P01043D3 CLIP 20
　 5 PY01P01043D5 CLIP 8
　 6 PY01P01043D8 CLIP 1
YN11E00131F1 HARNESS ASSY
　 1 YN11E01269P2 HARNESS 1
　 2 PY01P01043D3 CLIP 7
　 3 PY01P01043DA CLIP 2
YN11E00129F1 YN11E01272P2 YN11E01300P1 HARNESS ASSY
　 1 YN11E01272P2 HARNESS 1 YC14-14001–14042
　 1 YN11E01300P1 HARNESS 1 LC14-18001–18037
　 . YC14-14043–14301
　 1 YN11E01368P1 HARNESS 1 LC14-18038–18089
　 . YC14-14302–14559
　 1 YN11E01368P2 HARNESS 1 LC14-18090-
　 . YC14-14560-
　 2 YN13E01375P1 CLIP 2
　 3 PY01P01043D3 CLIP 2

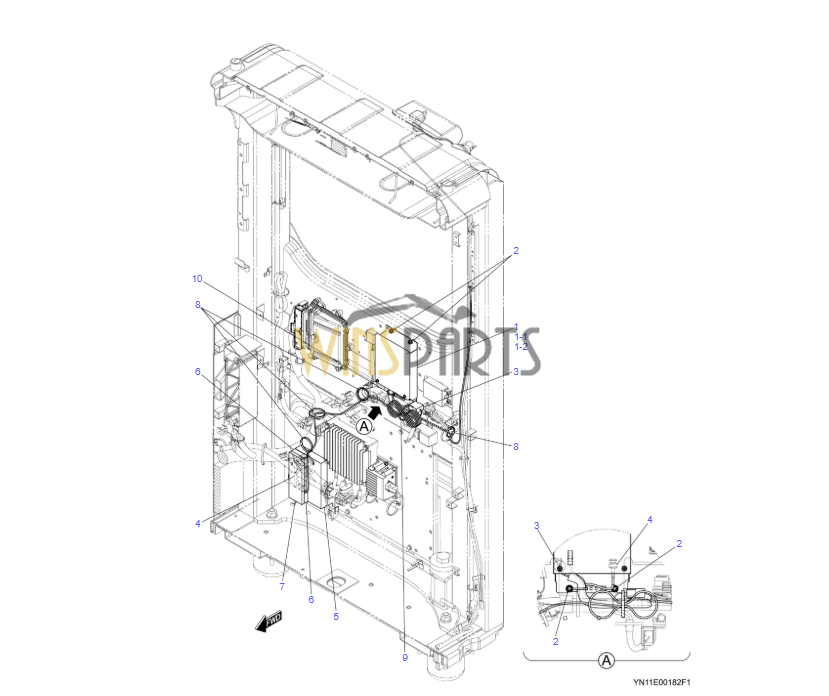

YN11E00182F1 YN22E00709F1 YN22E00623F1 YN22E00643F9 CONTROLLER HARNESS KOBELCO SK330-10 SK350LC-10
　 .
　 1 YN22E00709F1 CONTROLLER 1 LC14-18001–18027
　 . YC14-14001–14253
　 1-1 YN22E00623F1 CONTROLLER 1
　 1-2 YN22E00643S001 BATTERY 1
　 1 YN22E00643F7 CONTROLLER 1 LC14-18028–18037
　 . YC14-14254–14301
　 1-1 YN22E00623F1 CONTROLLER 1
　 1-2 YN22E00643S001 BATTERY 1
　 1 YN22E00643F8 CONTROLLER 1 LC14-18038–18040
　 . YC14-14302–14319
　 1-1 YN22E00623F1 CONTROLLER 1
　 1-2 YN22E00643S001 BATTERY 1
　 1 YN22E00643F9 CONTROLLER 1 LC14-18041–18052
　 . YC14-14320–14395
　 1-1 YN22E00623F1 CONTROLLER 1
　 1-2 YN22E00643S001 BATTERY 1
　 1 YN22E00643FA CONTROLLER 1 LC14-18053-
　 . YC14-14396-
　 1-1 YN22E00623F1 CONTROLLER 1
　 1-2 YN22E00643S001 BATTERY 1
　 2 ZM61C06016 SEMS-BOLT 4
　 3 YN11E01273P2 HARNESS 1
　 4 YN54S00072P1 ANTENNA 1
　 5 YY22C01383P1 INSULATION 1
　 6 YN02C04710P1 INSULATION 2
　 7 YN02C04711P1 INSULATION 1
　 8 PY01P01043D3 CLIP 4
　 9 PY01P01043D5 CLIP 1
　 10 PY01P01043DA CLIP 1
LC11E00083F1 HARNESS ASSY
　 1 YN55E01151P1 CABLE 1
　 2 PY01P01043D3 CLIP 23
　 3 PY01P01043D5 CLIP 1
　 4 YN13E01375P1 CLIP 1
　 5 LQ11E01075P1 GROMMET 1
　 6 YT11E01043P1 CLIP 5
LC11E00085F1 HARNESS ASSY
　 1 LC55E01032P1 CABLE 1
　 2 PY01P01043D3 CLIP 11
　 3 PY01P01043D5 CLIP 8
　 4 YT11E01043P1 CLIP 1
　 5 YY11E01216P1 HARNESS 1
YN11E00233F1 HARNESS ASSY
　 1 YN11E01265P1 HARNESS 1
　 2 PY01P01043D3 CLIP 5
　 3 PY01P01043D5 CLIP 4
