LC12B10122F1 LC12B00996F1 LC01V00055F3 BUCKET CYLINDER KOBELCO SK330-10 SK350LC-10

LC12B10122F1 LC12B00996F1 LC01V00055F3 BUCKET CYLINDER KOBELCO SK330-10 SK350LC-10

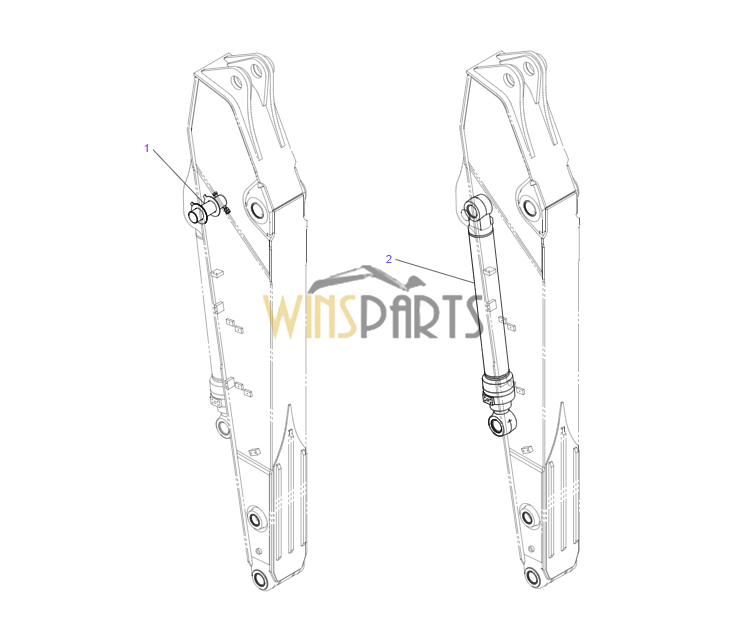

LC12B10002F1 CYLINDER INSTAL(BUCKET)
1 LC12B00996F1 CYLINDER INSTAL 1 P.730-01
2 LC01V00055F3 CYLINDER, BUCKET 1 HC
1 LC12B10003F1 BUCKET CYLINDER INSTAL 1 P.730-01
2 LC01V00055F4 CYLINDER, BUCKET 1 HC 730-00

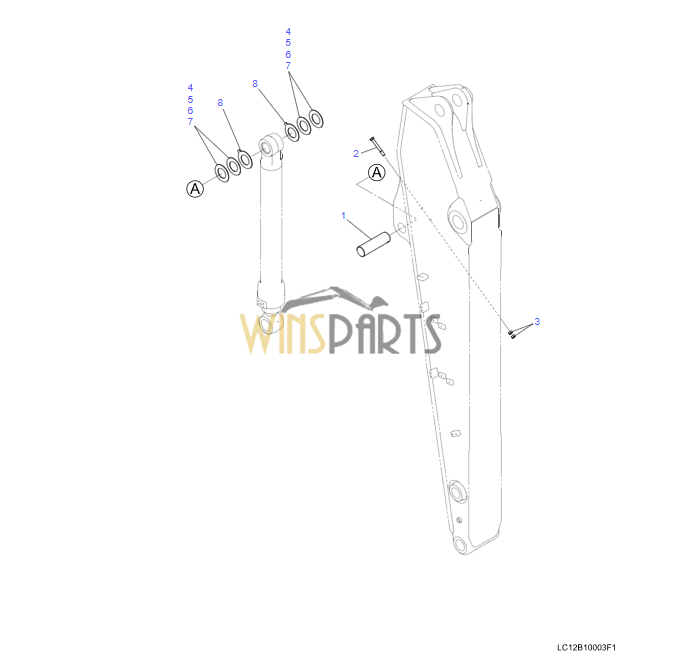

LC12B10003F1 LC01V00055F4 BUCKET CYLINDER KOBELCO SK350NLC-10 SK350DLC-10
LC12B00996F1 CYLINDER INSTAL
　 1 LC12B11009P1 PIN 1
　 2 HS18C20165G2 CAPSCREW 1
　 3 ZN18C20016 NUT 2
　 4 B16T0442D40 SHIM (0.9) 1
　 5 B16T0442D13 SHIM (1.2) 1
　 6 B16T0442D14 SHIM (1.6) 1
　 7 B16T0442D15 SHIM (2.3) 1
　 8 YN02B01414D1 SHIM (2.0) 2
　 1 LC12B02588P1 PIN 1
　 1 LC12B11402P1 PIN 1
　 2 HS18C20165G2 CAPSCREW 1
　 3 ZN18C20016 NUT 2
　 4 B16T0442D40 SHIM (0.9) 1
　 5 B16T0442D13 SHIM (1.2) 1
　 6 B16T0442D14 SHIM (1.6) 1
　 7 B16T0442D15 SHIM (2.3) 1
　 8 YN02B01414D1 SHIM (2.0) 2

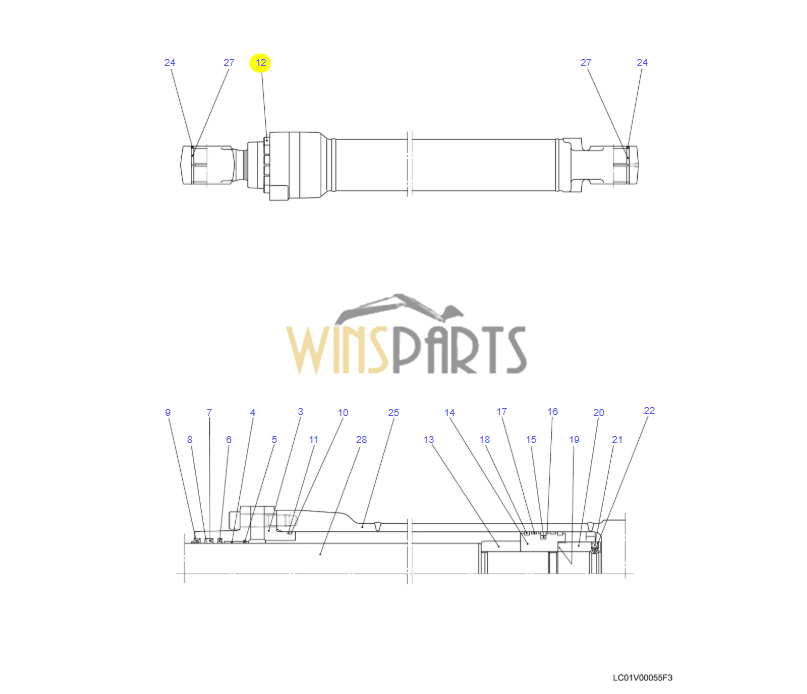

LC01V00055F3 LC01V00055R300 CYLINDER, BUCKET ASSY REPAIR KIT KOBELCO SK350NLC-10 SK350DLC-10
　 .
　 3 LC01V00055S003 CYLINDER HEAD 1
　 4 2438U1104S4 BUSHING 1
　 5 2438U1324S5 RING, SNAP 1
　 6 LC01V00044S006 RING, BUFFER 1 R1, R3
　 7 LC01V00044S007 RING 1 R1, R3
　 8 LQ01V00007S008 RING, BACK UP 1 R1, R3
　 9 2438U1172S37 RING, WIPER 1 R1, R3
　 10 ZD12G14500 O-RING 1 R1, R3
　 11 2438U1170S11 RING, BACK UP 1 R1, R3
　 12 LC01V00006S012 CAPSCREW 12
　 13 LC01V00055S013 RING 1
　 14 LC01V00006S014 PISTON 1
　 15 2438U1324S15 RING, SEAL 1 R2, R3
　 16 2438U1170S17 RING, BACK UP 2 R2, R3
　 17 LC01V00055S017 RING 2 R2, R3
　 18 2438U1324S17 RING 2 R2, R3
　 19 2438U953S19 SHIM 1 R2, R3
　 20 LB01V00007S021 NUT 1
　 21 2438U953S21 SETSCREW 1
　 22 2436R624S6 BALL 1
　 24 2438U1381S24 RING, WIPER 4 R4, R5
　 25 NO P/No TUBE ASSY 1 R4
　 27 LC01V00006S023 BUSHING 2 R4, R5
　 28 NO P/No ROD, PISTON 1 R5
　 .
　 LC01V00055R100 REPAIR KIT 1 RK1
　 . (6, 7, 8, 9, 10, 11)X1
　 .
　 LC01V00055R200 REPAIR KIT 1 RK2
　 . (15, 19)X1
　 . (16, 17, 18)X2
　 .
　 LC01V00055R300 REPAIR KIT 1 RK3
　 . (6, 7, 8, 9, 10, 11, 15, 19)X1
　 . (16, 17, 18)X2
　 .
　 LC01V00055R600 REPAIR KIT 1 RK4
　 . (25, 27)X1
　 . (24)X2
　 .
　 LC01V00055R800 REPAIR KIT 1 RK5
　 . (27, 28)X1
　 . (24)X2

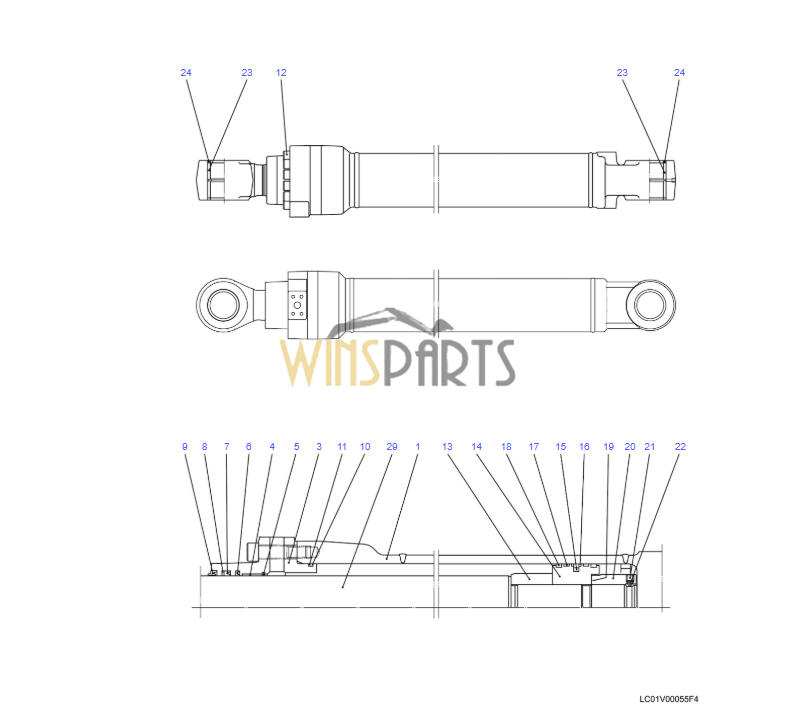

LC01V00055F4 LC01V00055R300 CYLINDER BUCKET KOBELCO SK330-10 SK350LC-10
　 .
　 1 NO P/No TUBE ASSY 1 R4
　 3 LC01V00055S003 CYLINDER HEAD 1
　 4 2438U1104S4 BUSHING 1
　 5 2438U1324S5 RING, SNAP 1
　 6 LC01V00044S006 RING, BUFFER 1 R1, R3
　 7 LC01V00044S007 RING 1 R1, R3
　 8 LQ01V00007S008 RING, BACK UP 1 R1, R3
　 9 2438U1172S37 RING, WIPER 1 R1, R3
　 10 ZD12G14500 O-RING 1 R1, R3
　 11 2438U1170S11 RING, BACK UP 1 R1, R3
　 12 LC01V00006S012 CAPSCREW 12
　 13 LC01V00055S013 RING 1
　 14 LC01V00006S014 PISTON 1
　 15 2438U1324S15 RING, SEAL 1 R2, R3
　 16 2438U1170S17 RING, BACK UP 2 R2, R3
　 17 LC01V00055S017 RING 2 R2, R3
　 18 2438U1324S17 RING 2 R2, R3
　 19 2438U953S19 SHIM 1 R2, R3
　 20 LB01V00007S021 NUT 1
　 21 2438U953S21 SETSCREW 1
　 22 2436R624S6 BALL 1
　 23 LC12B01494P1 BUSHING 4 R4, R5
　 24 2438U1381S24 RING, WIPER 4 R4, R5
　 29 NO P/No ROD, PISTON 1 R5
　 .
　 LC01V00055R100 REPAIR KIT 1 RK1
　 . (6, 7, 8, 9, 10, 11)X1
　 .
　 LC01V00055R200 REPAIR KIT 1 RK2
　 . (15, 19)X1
　 . (16, 17, 18)X2
　 .
　 LC01V00055R300 REPAIR KIT 1 RK3
　 . (6, 7, 8, 9, 10, 11, 15, 19)X1
　 . (16, 17, 18)X2
　 .
　 LC01V00055R400 REPAIR KIT 1 RK4
　 . (1)X1
　 . (23, 24)X2
　 .
　 LC01V00055R900 REPAIR KIT 1 RK5
　 . (29)X1
　 . (23, 24)X2
