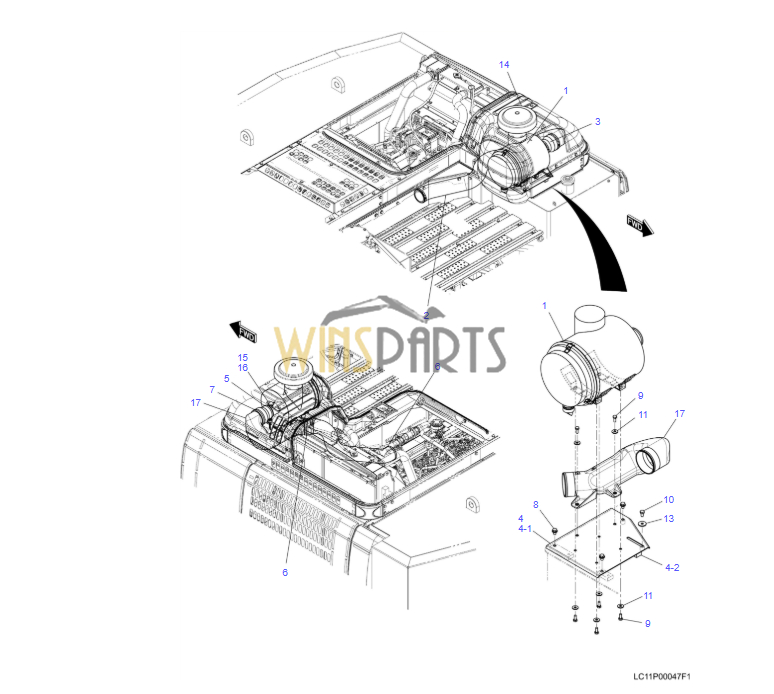

LC11P00047F1 LC11P00049F1 AIR CLEANER ASSY KOBELCO SK350NLC-10 SK350LC-10
.
1 LC11P00049F1 CLEANER, AIR 1 P.055-01
2 LC11P01109P1 HOSE, AIR 1
3 LC11P01110P1 HOSE, AIR 1
4 LC11P01118F1 BRACKET ASSY 1
4-1 LC11P01112P1 BRACKET 1
4-2 LC11P01119P1 INSULATION 1
5 ZC16X11000 CLIP 1
6 ZC16X12200 CLIP 2
7 ZC16X14800 CLIP 1
8 ZM73C12020 SEMS-BOLT 3
9 ZS18C10025 CAPSCREW 6
10 ZS18C12020 CAPSCREW 1
11 2418T12346 WASHER 6
13 HY25X12040G1 WASHER 1
14 YN11P01198F1 CAP, RAIN 1
15 YF11P00003P1 SENSOR,AIR FLOW 1
16 YF11P01008P1 CAPSCREW 2
17 LC11P01111P1 TUBE, INTAKE, AIR 1
.

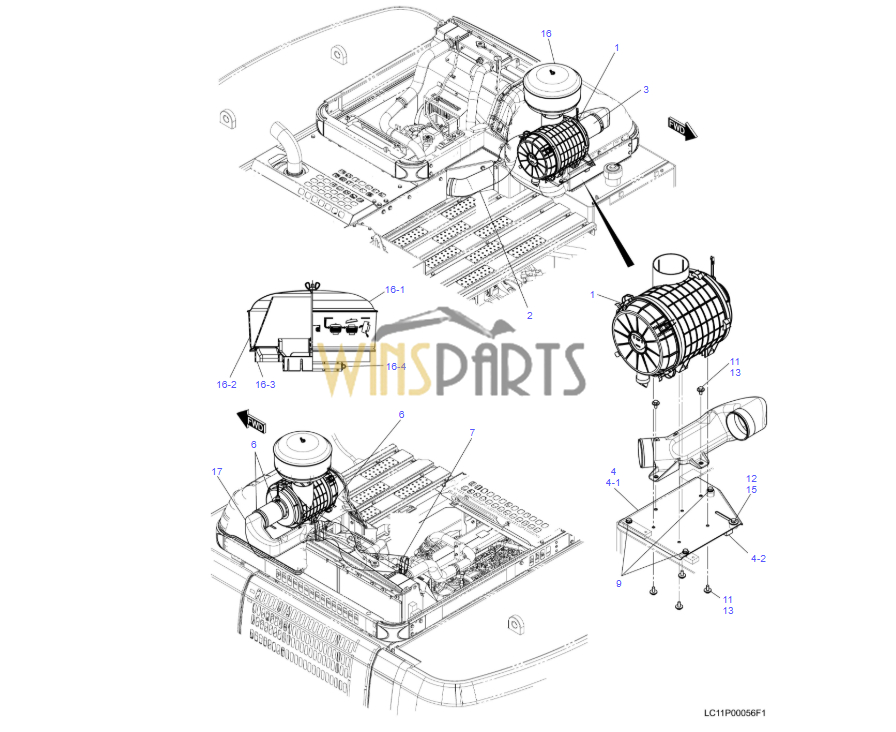

1 LC11P00052F1 CLEANER, AIR 1 P.056-01
2 LC11P01107P1 HOSE, AIR 1
3 LC11P01108P1 HOSE, AIR 1
4 LC11P01118F1 BRACKET ASSY 1
4-1 LC11P01112P1 BRACKET 1
4-2 LC11P01119P1 INSULATION 1
6 ZC16X14800 CLIP 3
7 ZC16X12200 CLIP 1
9 ZM73C12020 SEMS-BOLT 3
11 ZS18C10025 CAPSCREW 6
12 ZS18C12020 CAPSCREW 1
13 2418T12346 WASHER 6
15 HY25X12040G1 WASHER 1
16 LS11P00011F1 CLEANER, AIR 1
16-1 LS11P00011S001 COVER ASSY 1
16-2 LS11P00011S002 BODY 1
16-3 LS11P00011S003 SLEEVE ASSY 1
16-4 LS11P00011S004 CLAMP 1
17 LC11P01111P1 TUBE, INTAKE, AIR 1

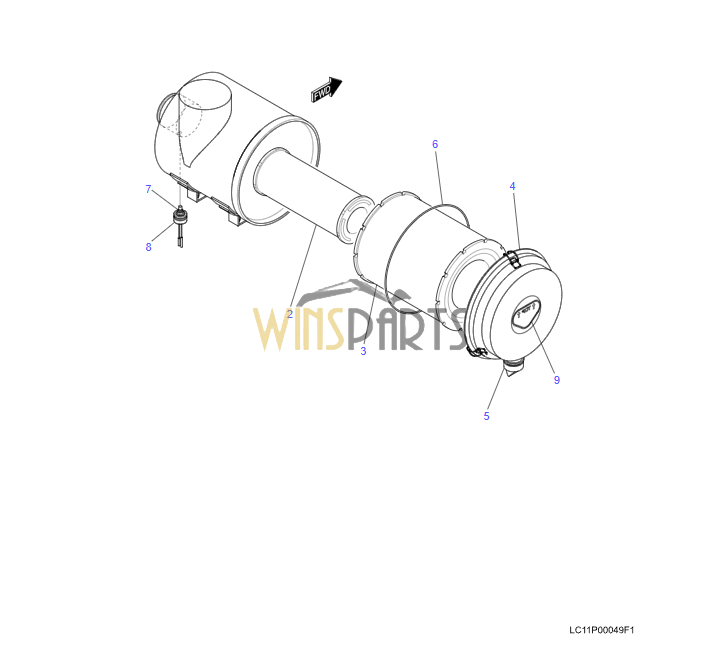

2 LC11P00018S002 ELEMENT, FILTER 1
3 LC11P00018S003 ELEMENT, FILTER 1
4 EB11P00001S004 COVER ASSY 1
5 EB11P00001S005 VALVE ASSY 1
6 EB11P00001S003 O-RING 1
7 EB11P00001S006 FILTER 1
8 YY11P01002F1 INDICATOR 1
9 EB11P00001S008 LABEL 1
1 LC11P00052S001 BODY 1
2 LC11P00052S002 COVER 1
3 LC11P00052S003 CLIP 4
4 LC11P00052S004 O-RING 1
5 LC11P00052S005 COVER 1
6 LC11P00052S006 ELEMENT, FILTER 1
7 LC11P00052S007 ELEMENT, FILTER 1
8 LC11P00052S008 BODY 1
9 LC11P00052S009 COVER 1
10 YN11P00032S006 INDICATOR 1
11 LC11P00052S011 O-RING 1
12 LC11P00052S012 BRACKET 1
13 LC11P00052S013 CLIP 1
14 YN11P00072S014 CONNECTOR 1
15 YN11P00072S016 CAPSCREW 4
16 YN11P00072S015 PIN
