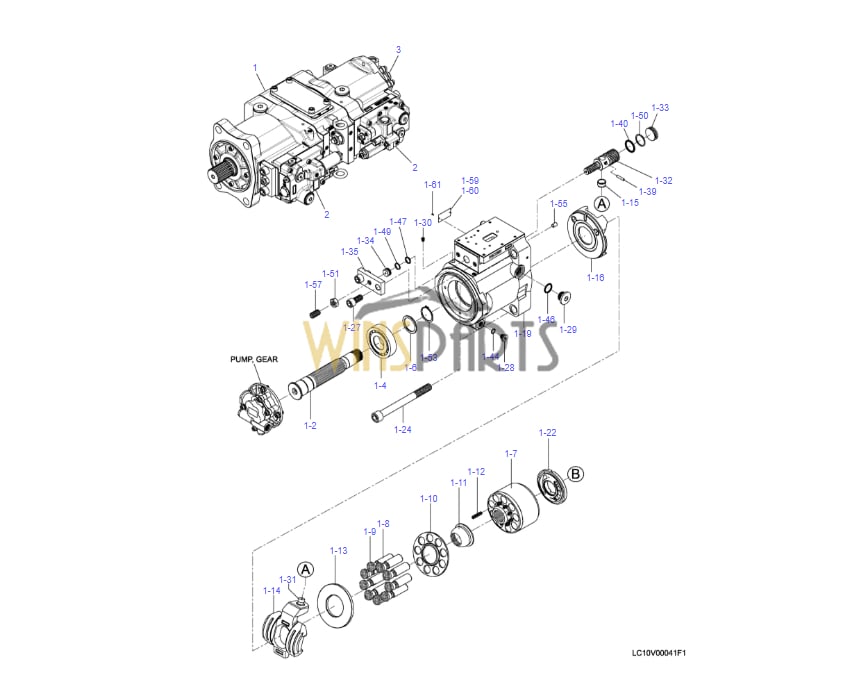

LC10V00041F1 LC10V00046F1 Hydraulic Pump ASSY KOBELCO SK350NLC-10 SK350LC-10

LC10V00041F1 LC10V00046F1 Hydraulic Pump ASSY KOBELCO SK350NLC-10 SK350LC-10
　 .
　 1 LC10V00046F1 PUMP, HYD 1
　 1-1 LQ10V00035S111 SHAFT 1
　 1-2 LQ10V00035S113 SHAFT 1
　 1-3 LQ10V00035S116 GEAR 1
　 1-4 2437U534S123 BEARING, ROLLER 2
　 1-5 LQ10V00035S124 BEARING 2
　 1-6 LQ10V00035S127 SPACER 2
　 1-7 NO P/No BLOCK 2 R2, R3
　 1-8 NO P/No PISTON 18 R1
　 1-9 NO P/No SHOE 18 R1
　 1-10 LQ10V00035S153 PLATE 2
　 1-11 LQ10V00035S156 BUSHING 2
　 1-12 2437U219S157 SPRING 18
　 1-13 LQ10V00035S211 PLATE 2
　 1-14 NO P/No PLATE 2 R4
　 1-15 NO P/No BUSHING 2 R6
　 1-16 LQ10V00035S251 PLATE 2
　 1-17 LQ10V00035S261 COVER 1
　 1-18 LQ10V00035S271 HOUSING 1
　 1-19 LQ10V00035S272 HOUSING 1
　 1-20 LQ10V00035S312 BLOCK 1
　 1-21 NO P/No PLATE 1 R2
　 1-22 NO P/No PLATE 1 R3
　 1-23 YN10V00023S009 COVER 1
　 1-24 2437U213S401 CAPSCREW 4
　 1-25 ZS23C08016 CAPSCREW 4
　 1-26 ZS23C10020 CAPSCREW 4
　 1-27 ZS23C16035 CAPSCREW 4
　 1-28 YW30V00001S157 PLUG 2
　 1-29 YN30V00001S154 PLUG 4
　 1-30 LV10V00006S059 PLUG 18
　 1-31 NO P/No PIN 2 R4
　 1-32 NO P/No PISTON 2 R6
　 1-33 2437U213S534 STOPPER 2
　 1-34 2437U213S535 STOPPER 2
　 1-35 LQ10V00035S537 COVER 2
　 1-36 NO P/No SEAT 4 R5
　 1-37 NO P/No STOPPER 4 R5
　 1-38 NO P/No BALL 4 R5
　 1-39 NO P/No PIN 2 R6
　 1-40 YN10V00003S702 O-RING 2
　 1-41 LS10V00002S012 O-RING 1
　 1-42 YX10V00003S012 O-RING 1
　 1-43 YN10V00067S718 O-RING 2
　 1-44 YT10V00003S710 O-RING 14
　 1-45 YY10V00014S724 RING 10
　 1-46 YN10V00020S015 O-RING 4
　 1-47 YT10V00003S708 O-RING 2
　 1-48 LC10V00033S774 OIL SEAL 1
　 1-49 ZD85P01800 RING, BACK-UP 2
　 1-50 ZD85G03500 RING, BACK-UP 2
　 1-51 ZN11C16010 NUT 2
　 1-52 ZN18C20012 NUT 2
　 1-53 ZR16X04500 RING, SNAP 2
　 1-54 LQ10V00035S885 PIN 4
　 1-55 2441U474S888 PIN 2
　 1-56 ZS91C01000 BOLT, EYE 2
　 1-57 2437U188S953 CAPSCREW 2
　 1-58 2437U213S954 SCREW 2
　 1-59 NO P/No NAME PLATE 1
　 1-60 NO P/No NAME PLATE 1
　 1-61 NO P/No RIVET 2
　 2 LC10V01009F1 REGULATOR 2
　 2-1 ZS28C06016 CAPSCREW 3
　 2-2 ZS23C08040 CAPSCREW 5
　 2-3 ZS23C08025 CAPSCREW 1
　 2-4 ZS23C05012 CAPSCREW 2
　 2-5 YW30V00001S157 PLUG 2
　 2-6 YW30V00001S155 PLUG 1
　 2-7 YN30V00001S158 PLUG 1
　 2-8 LV10V00006S059 PLUG 9
　 2-20 YM10V01002S708 O-RING 1
　 2-21 YN10V01001S727 O-RING 1
　 2-22 YT10V00003S708 O-RING 3
　 2-23 YX10V00003S015 O-RING 1
　 2-24 YT10V00003S710 O-RING 3
　 2-25 LQ10V01006S758 RING 10
　 2-26 ZN18C10008 NUT 1
　 2-31 EB15V01001S801 SETSCREW 1
　 2-32 YN35V00054F1 VALVE, SOLENOID 1
　 2-32F YN35V00004S361 O-RING 1
　 2-32G YN35V00004S362 O-RING 1
　 2-32H YN35V00004S363 O-RING 1
　 2-32K YN35V00018S802 NUT 1
　 2-32L ZD12P02000 O-RING 1
　 3 LQ10V00036F1 PUMP, GEAR 1
　 3-1 YN10V00012S010 POPPET 1 R7
　 3-2 YN10V00012S011 SEAT 1 R7
　 3-3 YN10V00014S012 RING 1
　 3-4 YN10V00014S013 SPRING 1
　 3-5 YN10V00014S014 SCREW 1
　 3-6 YN10V00006S312 LOCK NUT 1
　 3-7 NO P/No CASE 1
　 3-8 NO P/No GEAR 1
　 3-9 NO P/No GEAR 1
　 3-10 YN10V00006S355 FILTER 1
　 3-11 NO P/No CASE 1
　 3-12 LQ10V00036S433 BOLT 2
　 3-13 LS10V00003S433 BOLT 2
　 3-14 YN10V00014S435 BOLT 4
　 3-15 2441U667S466 PLUG 1
　 3-16 YN10V00006S700 RING 1
　 3-17 ZD12G10500 O-RING 1
　 3-18 ZD12P01100 O-RING 1
　 3-19 ZD12P01600 O-RING 1
　 3-20 ZR26X01800 RING, SNAP 1
　 3-21 LS10V00018S887 PIN 2
　 .
　 LC10V00046R100 REPAIR KIT 1 RK1
　 . (1-8, 1-9)X9
　 .
　 LC10V00046R200 REPAIR KIT 1 RK2
　 . (1-7, 1-21)X1
　 .
　 LC10V00046R300 REPAIR KIT 1 RK3
　 . (1-7, 1-22)X1
　 .
　 LQ10V00035R400 REPAIR KIT 1 RK4
　 . (1-14, 1-31)X1
　 .
　 WA10V01001R100 REPAIR KIT 1 RK5
　 . (1-36, 1-37, 1-38)X1
　 .
　 LQ10V00035R600 REPAIR KIT 1 RK6
　 . (1-15, 1-32, 1-39)X1
　 .
　 YY10V00015R300 REPAIR KIT 1 RK7
　 . (3-1, 3-2)X1

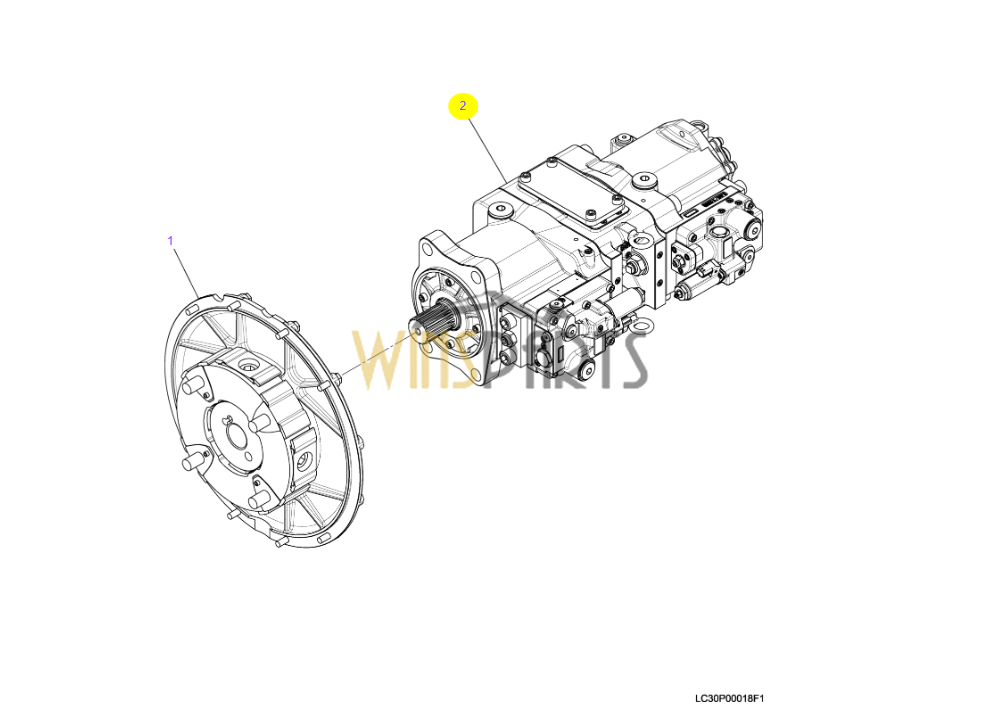

LC30P00018F1 LC30P00020F1 LC10V00041F1 Hydraulic Pump POWER TAKE-OFF ASSY
　 .
1 LC30P00020F1 POWER TAKE-OFF ASSY 1 P.085-01
2 LC10V00041F1 PUMP ASSY, HYD 1 HC 085-00 LC14-T1101–T1256
2 LC10V00041F3 PUMP ASSY, HYD 1 HC 085-00
2 LC10V00041F2 PUMP ASSY, HYD 1 HC 085-00 LC14-T1101–T1256
2 LC10V00041F4 PUMP ASSY, HYD 1 HC 085-00

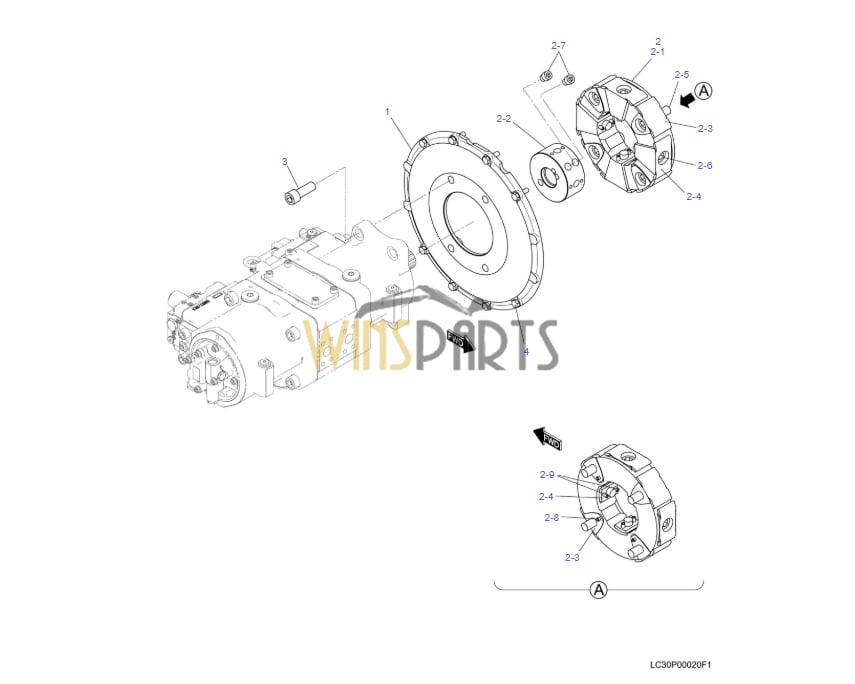

LC30P00020F1 LC30P01023F1 2418R605S1 Hydraulic Pump COUPLING ASSY
　 .
　 1 YN30P01029P1 BRACKET 1
　 2 LC30P01023F1 COUPLING 1
　 2-1 2418R605S1 RUBBER 1
　 2-2 LC30P01010S009 HUB 1
　 2-3 LC30P01023S003 INSERT 4
　 2-4 LC30P01023S004 INSERT 4
　 2-5 2418U153S4 CAPSCREW 4
　 2-6 2418U153S5 CAPSCREW 4
　 2-7 ZS73C20025 SETSCREW 2
　 2-8 2418R605S7 PIN, SPRING 4
　 2-9 ZP26D08016 PIN, SPRING 8
　 3 ZS28C20055 CAPSCREW 4
　 4 ZS18C10035 CAPSCREW 8

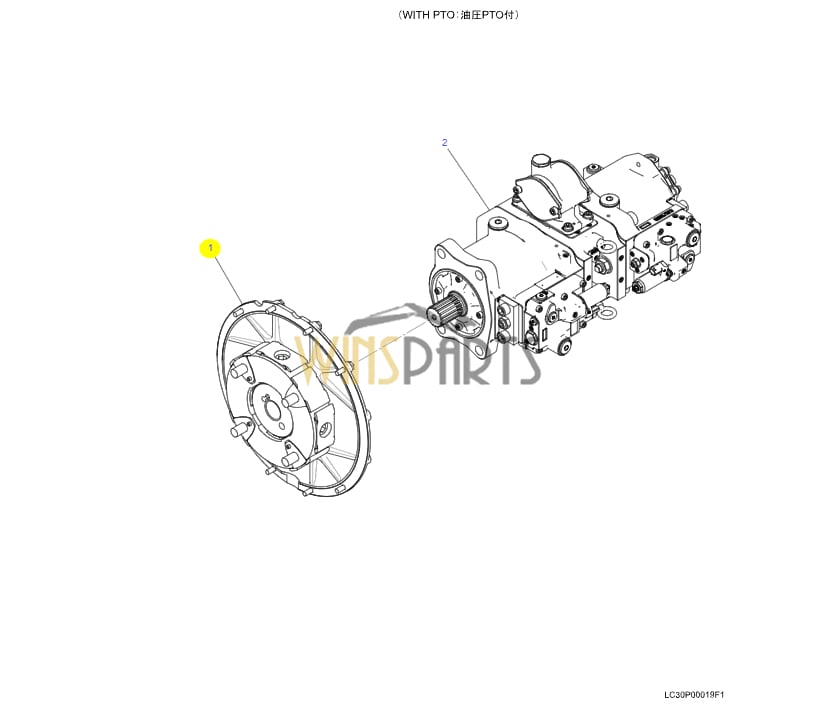

LC30P00019F1 LC10V00047F1 LC30P00020F1 POWER TAKE-OFF ASSY WITH PTO KOBELCO SK350NLC-10 SK350LC-10
1 LC30P00020F1 POWER TAKE-OFF ASSY 1 P.085-01
2 LC10V00047F1 PUMP ASSY, HYD 1 HC 085-00

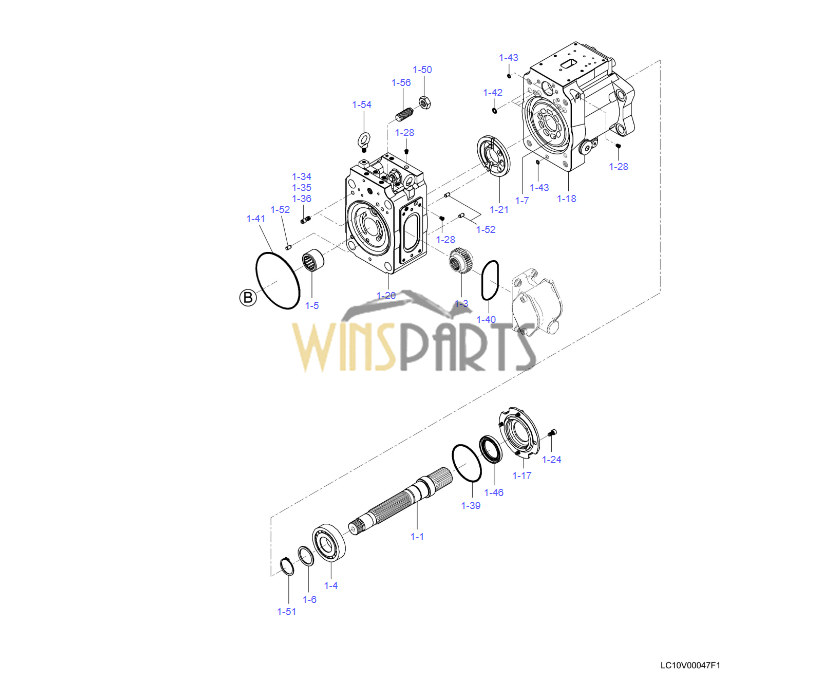

LC10V00047F1 HYD PUMP ASSY KOBELCO SK330-10 SK350LC-10
　 .
　 1 LC10V00049F1 PUMP, HYD 1
　 1-1 LQ10V00035S111 SHAFT 1
　 1-2 LQ10V00035S113 SHAFT 1
　 1-3 LQ10V00035S116 GEAR 1
　 1-4 2437U534S123 BEARING, ROLLER 2
　 1-5 LQ10V00035S124 BEARING 2
　 1-6 LQ10V00035S127 SPACER 2
　 1-7 NO P/No BLOCK 2 R2, R3
　 1-8 NO P/No PISTON 18 R1
　 1-9 NO P/No SHOE 18 R1
　 1-10 LQ10V00035S153 PLATE 2
　 1-11 LQ10V00035S156 BUSHING 2
　 1-12 2437U219S157 SPRING 18
　 1-13 LQ10V00035S211 PLATE 2
　 1-14 NO P/No PLATE 2 R4
　 1-15 NO P/No BUSHING 2 R6
　 1-16 LQ10V00035S251 PLATE 2
　 1-17 LQ10V00035S261 COVER 1
　 1-18 LQ10V00035S271 HOUSING 1
　 1-19 LQ10V00035S272 HOUSING 1
　 1-20 LQ10V00035S312 BLOCK 1
　 1-21 NO P/No PLATE 1 R2
　 1-22 NO P/No PLATE 1 R3
　 1-23 2437U213S401 CAPSCREW 4
　 1-24 ZS23C08016 CAPSCREW 4
　 1-25 ZS23C16035 CAPSCREW 4
　 1-26 YW30V00001S157 PLUG 2
　 1-27 YN30V00001S154 PLUG 4
　 1-28 LV10V00006S059 PLUG 18
　 1-29 NO P/No PIN 2 R4
　 1-30 NO P/No PISTON 2 R6
　 1-31 2437U213S534 STOPPER 2
　 1-32 2437U213S535 STOPPER 2
　 1-33 LQ10V00035S537 COVER 2
　 1-34 NO P/No SEAT 4 R5
　 1-35 NO P/No STOPPER 4 R5
　 1-36 NO P/No BALL 4 R5
　 1-37 NO P/No PIN 2 R6
　 1-38 YN10V00003S702 O-RING 2
　 1-39 LS10V00002S012 O-RING 1
　 1-40 YX10V00003S012 O-RING 1
　 1-41 YN10V00067S718 O-RING 2
　 1-42 YT10V00003S710 O-RING 14
　 1-43 YY10V00014S724 RING 10
　 1-44 YN10V00020S015 O-RING 4
　 1-45 YT10V00003S708 O-RING 2
　 1-46 LC10V00033S774 OIL SEAL 1
　 1-47 ZD85P01800 RING, BACK-UP 2
　 1-48 ZD85G03500 RING, BACK-UP 2
　 1-49 ZN11C16010 NUT 2
　 1-50 ZN18C20012 NUT 2
　 1-51 ZR16X04500 RING, SNAP 2
　 1-52 LQ10V00035S885 PIN 4
　 1-53 2441U474S888 PIN 2
　 1-54 ZS91C01000 BOLT, EYE 2
　 1-55 2437U188S953 CAPSCREW 2
　 1-56 2437U213S954 SCREW 2
　 1-57 NO P/No NAME PLATE 1
　 1-58 NO P/No NAME PLATE 1
　 1-59 NO P/No RIVET 2
　 2 LC10V01009F1 REGULATOR 2
　 2-1 ZS28C06016 CAPSCREW 3
　 2-2 ZS23C08040 CAPSCREW 5
　 2-3 ZS23C08025 CAPSCREW 1
　 2-4 ZS23C05012 BOLT 2
　 2-5 YW30V00001S157 PLUG 2
　 2-6 YW30V00001S155 PLUG 1
　 2-7 YN30V00001S158 PLUG 1
　 2-8 LV10V00006S059 PLUG 9
　 2-20 YM10V01002S708 O-RING 1
　 2-21 YN10V01001S727 O-RING 1
　 2-22 YT10V00003S708 O-RING 3
　 2-23 YX10V00003S015 O-RING 1
　 2-24 YT10V00003S710 O-RING 3
　 2-25 LQ10V01006S758 RING 10
　 2-26 ZN18C10008 NUT 1
　 2-31 EB15V01001S801 SETSCREW 1
　 2-32 YN35V00054F1 VALVE, SOLENOID 1
　 2-32F YN35V00004S361 O-RING 1
　 2-32G YN35V00004S362 O-RING 1
　 2-32H YN35V00004S363 O-RING 1
　 2-32K YN35V00018S802 NUT 1
　 2-32L ZD12P02000 O-RING 1
　 3 LQ10V00036F1 PUMP, GEAR 1
　 3-1 YN10V00012S010 POPPET 1 R7
　 3-2 YN10V00012S011 SEAT 1 R7
　 3-3 YN10V00014S012 RING 1
　 3-4 YN10V00014S013 SPRING 1
　 3-5 YN10V00014S014 SCREW 1
　 3-6 YN10V00006S312 LOCK NUT 1
　 3-7 NO P/No CASE 1
　 3-8 NO P/No GEAR 1
　 3-9 NO P/No GEAR 1
　 3-10 YN10V00006S355 FILTER 1
　 3-11 NO P/No CASE 1
　 3-12 LQ10V00036S433 BOLT 2
　 3-13 LS10V00003S433 BOLT 2
　 3-14 YN10V00014S435 BOLT 4
　 3-15 2441U667S466 PLUG 1
　 3-16 YN10V00006S700 RING 1
　 3-17 ZD12G10500 O-RING 1
　 3-18 ZD12P01100 O-RING 1
　 3-19 ZD12P01600 O-RING 1
　 3-20 ZR26X01800 RING, SNAP 1
　 3-21 LS10V00018S887 PIN 2
　 4 YN46W00001F2 CASE ASSY, GEAR 1
　 4-12 ZP26D04020 PIN, SPRING 1
　 4-414 ZS23C10020 CAPSCREW 4
　 4-435 YX46W00001S435 SOCKET 4
　 4-468 2441U436S469 PLUG 1
　 4-710 ZD12G08000 O-RING 1
　 4-711 ZD12G08500 O-RING 1
　 4-728 ZD12P02400 O-RING 1
　 .
　 LC10V00046R100 REPAIR KIT 1 RK1
　 . (1-8, 1-9)X9
　 .
　 LC10V00046R200 REPAIR KIT 1 RK2
　 . (1-7, 1-21)X1
　 .
　 LC10V00046R300 REPAIR KIT 1 RK3
　 . (1-7, 1-22)X1
　 .
　 LQ10V00035R400 REPAIR KIT 1 RK4
　 . (1-14, 1-29)X1
　 .
　 WA10V01001R100 REPAIR KIT 1 RK5
　 . (1-34 1-35, 1-36)X1
　 .
　 LQ10V00035R600 REPAIR KIT 1 RK6
　 . (1-15, 1-30, 1-37)X1
　 .
　 YY10V00015R300 REPAIR KIT 1 RK7
　 . (3-1, 3-2)X1

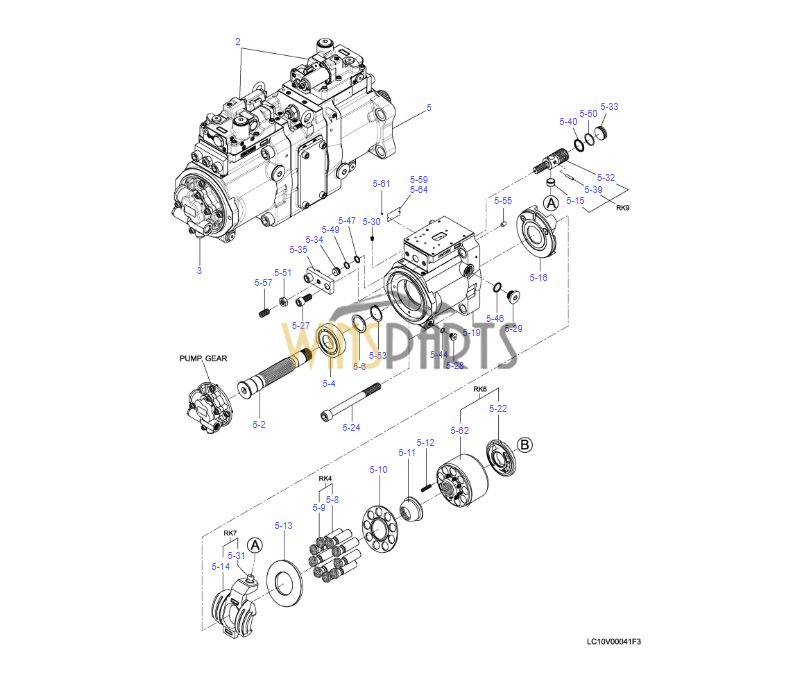

LC10V00041F3 PUMP ASSY, HYD LC10V01009F1 REGULATOR KOBELCO SK330-10 SK350LC-10
　 2 LC10V01009F1 REGULATOR 2
　 2-1 ZS28C06016 CAPSCREW 3
　 2-2 ZS23C08040 CAPSCREW 5
　 2-3 ZS23C08025 CAPSCREW 1
　 2-4 ZS23C05012 CAPSCREW 2
　 2-5 YW30V00001S157 PLUG 2
　 2-6 YW30V00001S155 PLUG 1
　 2-7 YN30V00001S158 PLUG 1
　 2-8 LV10V00006S059 PLUG 9
　 2-9 NO P/No CASE 1
　 2-10 NO P/No LEVER 1 R2
　 2-11 NO P/No PLUG 1
　 2-12 NO P/No PLUG 1
　 2-13 NO P/No SPOOL 1 R1
　 2-14 NO P/No SLEEVE 1 R1
　 2-15 NO P/No SEAT 1
　 2-16 NO P/No STEM 1
　 2-17 NO P/No SPRING 1
　 2-18 NO P/No COVER 1
　 2-19 NO P/No PLUG 1
　 2-20 YM10V01002S708 O-RING 1
　 2-21 YN10V01001S727 O-RING 1
　 2-22 YT10V00003S708 O-RING 3
　 2-23 YX10V00003S015 O-RING 1
　 2-24 YT10V00003S710 O-RING 3
　 2-25 LQ10V01006S758 RING 10
　 2-26 ZN18C10008 NUT 1
　 2-27 NO P/No PIN 1
　 2-28 NO P/No PIN 1 R2
　 2-29 NO P/No PIN 1
　 2-30 LQ10V01006S898 PISTON 1
　 2-31 EB15V01001S801 SETSCREW 1
　 2-32 YN35V00054F1 VALVE, SOLENOID 1
　 2-32F YN35V00004S361 O-RING 1
　 2-32G YN35V00004S362 O-RING 1
　 2-32H YN35V00004S363 O-RING 1
　 2-32K YN35V00018S802 NUT 1
　 2-32L ZD12P02000 O-RING 1

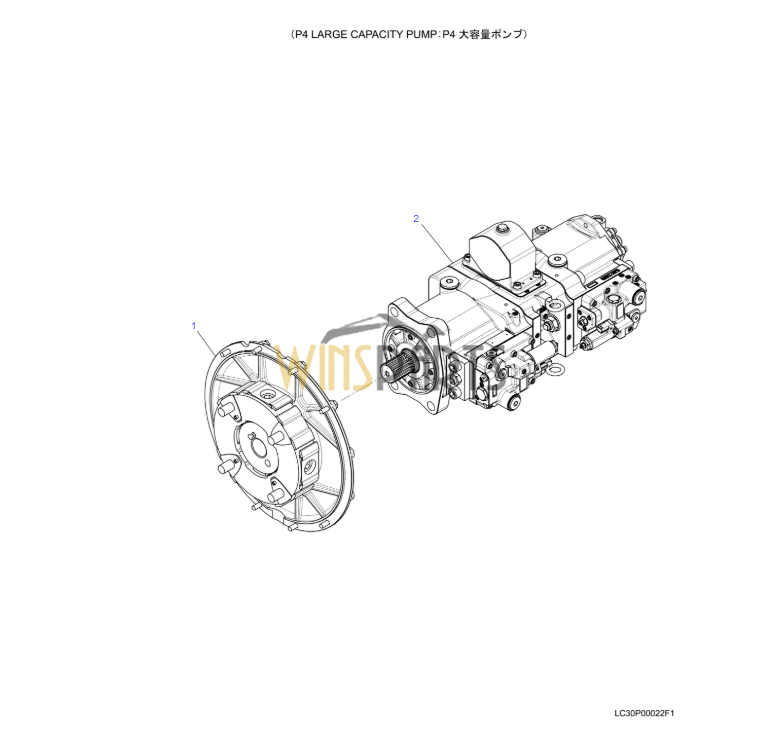

LC30P00022F1 LC30P00020F1 LC10V00050F1 POWER TAKE-OFF ASSY
1 LC30P00020F1 POWER TAKE-OFF ASSY 1 P.085-01
2 LC10V00050F1 PUMP ASSY, HYD 1 HC 085-00
LC30P00020F1 POWER TAKE-OFF ASSY
　 1 YN30P01029P1 BRACKET 1
　 2 LC30P01023F1 COUPLING 1
　 2-1 2418R605S1 RUBBER 1
　 2-2 LC30P01010S009 HUB 1
　 2-3 LC30P01023S003 INSERT 4
　 2-4 LC30P01023S004 INSERT 4
　 2-5 2418U153S4 CAPSCREW 4
　 2-6 2418U153S5 CAPSCREW 4
　 2-7 ZS73C20025 SETSCREW 2
　 2-8 2418R605S7 PIN, SPRING 4
　 2-9 ZP26D08016 PIN, SPRING 8
　 3 ZS28C20055 CAPSCREW 4
