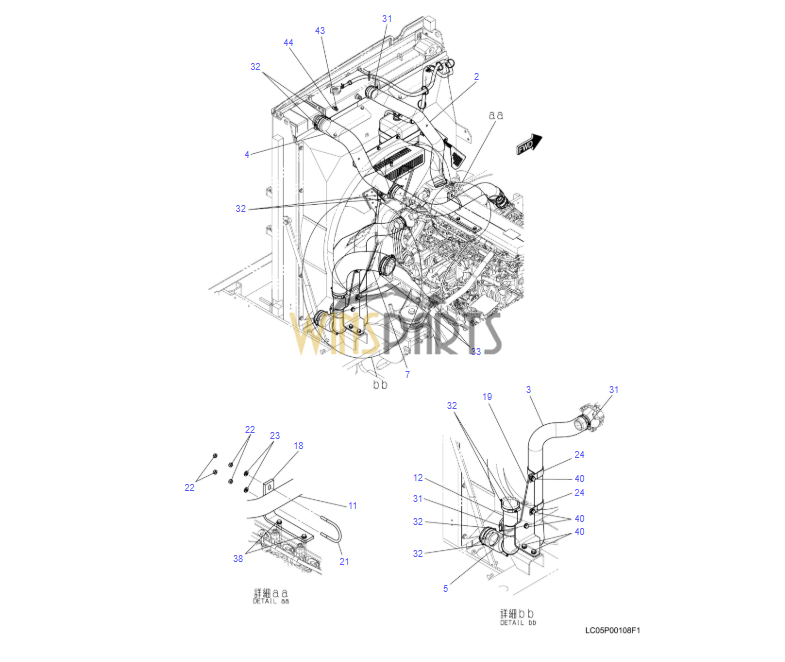

LC05P00108F1 RADIATOR GROUP KOBELCO SK350NLC-10 SK350LC-10

LC05P00108F1 RADIATOR GROUP KOBELCO SK350NLC-10 SK350LC-10
　 1 LC05P01774F1 TANK ASSY, WATER,SUB 1
　 1-1 LC05P01774S001 TANK, WATER 1
　 1-2 LC05P01774S002 CAP 1
　 1-3 2427U203S3 PLATE, CAUTION 2
　 2 LC05P01916P1 HOSE, RADIATOR 1
　 3 LC05P01848P1 HOSE, RADIATOR 1
　 4 LC05P01846P1 HOSE 1
　 5 LC05P01849P1 HOSE 1
　 6 LC05P01355P1 HOSE 1
　 7 LC05P01526P1 HOSE 1
　 9 HX11Y05088DX HOSE 1
　 11 LC05P01360P1 TUBE 1
　 12 LC05P01799P1 TUBE 1
　 14 HX81X13155DX TUBE 1
　 16 LC05P01802P1 GUARD 1
　 17 LC05P01892P1 GUARD 1
　 18 LC05P01523P1 PLATE 1
　 19 LC05P01808P1 BRACKET 1
　 20 LC05P01378F1 SUPPORT ASSY 1
　 20-1 LC05P01379P1 PLATE 1
　 20-2 2416R259D1 RUBBER, CUSHION 1
　 21 2420T2948D6 U-BOLT 1
　 22 ZN18C08007 NUT 4
　 23 ZW16H08000 WASHER 2
　 24 LC05P01376P1 CLIP 2
　 26 YN13E01375P1 CLIP 2
　 29 PY01P01043D3 CLIP 7
　 30 ZC16X05800 CLIP 1
　 31 ZC16X06100 CLIP 4
　 32 ZC16X07000 CLIP 12
　 33 ZC16X10000 CLIP 2
　 36 ZM73C08016 SEMS-BOLT 5
　 38 ZM73C08030 SEMS-BOLT 2
　 39 ZM73C08020 SEMS-BOLT 2
　 40 ZM73C10025 SEMS-BOLT 5
　 41 YN03E01001D4 CLIP 1
　 42 PH05P01088D6 CLIP 1
　 43 PH05P01088D4 CLIP 1
　 44 PU01P01023P1 CAP 1

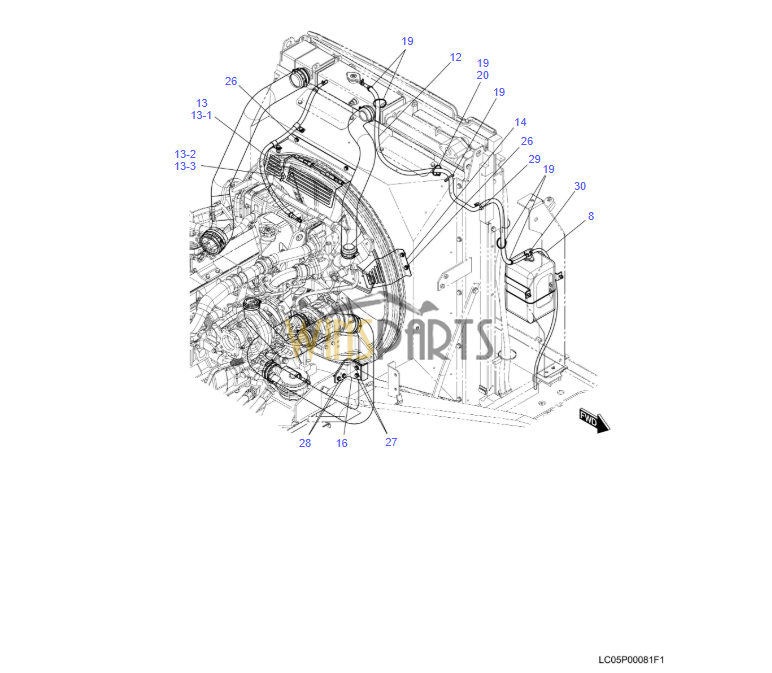

LC05P00081F1 LC05P01774F1RADIATOR KOBELCO SK330-10 SK350LC-10
　 1 LC05P01774F1 TANK ASSY, WATER,SUB 1
　 1-1 LC05P01774S001 TANK, WATER 1
　 1-2 LC05P01774S002 CAP 1
　 1-3 2427U203S3 PLATE, CAUTION 2
　 2 LC05P01919P1 HOSE, RADIATOR 1
　 3 LC05P01843P1 HOSE, RADIATOR 1
　 4 LC05P01844P1 HOSE 1
　 5 LC05P01819P1 HOSE 1
　 6 LC05P01907P1 HOSE 1
　 7 LC05P01845P1 HOSE 1
　 8 HX11Y05088DX HOSE 1
　 10 LC05P01825P1 TUBE 1
　 11 HX81X13072DX TUBE 1
　 12 HX81X13155DX TUBE 1
　 13 LC05P01920F1 GUARD ASSY 1
　 13-1 LC05P01921P1 GUARD 1
　 13-2 2420R747D27 BOLT, WING 1
　 13-3 ZN18C08007 NUT 2
　 14 LC05P01824P1 GUARD 1
　 15 LC05P01827P1 PLATE 1
　 16 LC05P01841P1 PLATE 1
　 17 LC05P01378F1 SUPPORT ASSY 1
　 17-1 LC05P01379P1 PLATE 1
　 17-2 2416R259D1 RUBBER, CUSHION 1
　 19 PY01P01043D3 CLIP 8
　 20 YN13E01375P1 CLIP 1
　 21 PH05P01088D5 CLIP 2
　 22 ZC16X06100 CLIP 4
　 23 ZC16X07000 CLIP 9
　 24 ZC16X10000 CLIP 2
　 25 ZC46X16011 CLIP 2
　 26 ZM73C08016 SEMS-BOLT 6
　 27 ZM73C08020 SEMS-BOLT 8
　 28 ZM73C08030 SEMS-BOLT 2
　 29 YN03E01001D4 CLIP 1
　 30 PH05P01088D6 CLIP 1

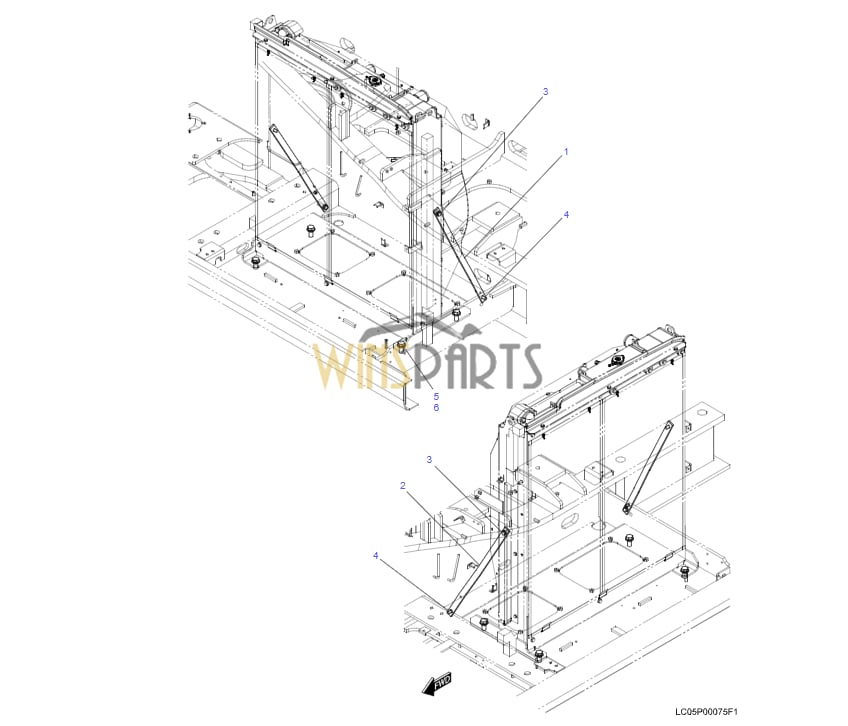

LC05P00075F1 LC05P00074F1 RADIATOR KOBELCO SK330-10 SK350LC-10
LC05P00074F1 RADIATOR INSTAL
LC05P00078F1 RADIATOR INSTAL
LC05P00079F1 RADIATOR ASSY
　 .
　 1 LC05P01839P1 STAY 1
　 2 LC05P01834P1 STAY 1
　 3 ZM73C12030 SEMS-BOLT 4
　 5 ZS18C20055 CAPSCREW 4
　 6 HY26Y21050G4 WASHER 4
　 1 LC05P01834P1 STAY 1
　 2 LC05P01839P1 STAY 1
　 3 ZM73C12030 SEMS-BOLT 2
　 4 ZM73C12035 SEMS-BOLT 2
　 5 ZS18C20045 CAPSCREW 4
　 6 ZW16H20000 WASHER 4
1 LC05P00079F1 RADIATOR INSTAL 1 P.050-01
2 LC05P00080F1 RADIATOR ASSY 1 P.050-02
1 LC05P00075F1 RADIATOR INSTAL 1 P.050-01
2 LC05P00076F1 RADIATOR ASSY 1 P.050-02
LC05P00076F1 LC05P00088F2 LC05P00088S023 RADIATOR ASSY KOBELCO SK350NLC-10 SK350LC-10
　 .
　 1 LC05P00088F2 RADIATOR ASSY 1
　 1-1 LC05P00088S023 RADIATOR ASSY 1
　 1-2 YN05P00088S032 CAP 1
　 1-3 2452U221S18 COCK, DRAIN 1
　 1-4 2452U416S6 HOSE 1
　 1-5 LC05P00088S002 INSULATION 4
　 1-6 LC05P00088S003 INSULATION 4
　 1-7 LC05P00088S004 COOLER, AIR 1
　 1-8 LC05P00088S005 COOLER, OIL 1
　 1-10 LC05P00088S007 INSULATION 2
　 1-11 LQ05P00096S006 INSULATION 2
　 1-12 LC05P00088S008 INSULATION 2
　 1-13 LC05P00056S018 RUBBER 2
　 1-14 YN05P00058S014 MOUNT, RUBBER 5
　 1-15 LQ05P00041S031 MOUNT, RUBBER 5
　 1-16 LQ05P00041S032 COLLAR 5
　 1-17 LS05P00039S024 WASHER 5
　 1-18 LC05P00043S015 BOLT ASSY 5
　 1-19 LQ05P00096S009 CAPSCREW 4
　 1-20 2452U400S7 HOSE 1
　 1-21 2452U267S8 CLIP 2
　 1-23 LC05P00088S010 PLATE 2
　 1-24 LC05P00088S011 PLATE 1
　 1-25 LB05P00018S028 BOLT ASSY 6
　 1-26 LC05P00088S012 INSULATION 1
　 1-27 LC05P00088S013 INSULATION 1
　 1-28 LC05P00088S014 INSULATION 1
　 1-29 LC05P00088S015 INSULATION 1
　 1-30 LC05P00088S016 INSULATION 2
　 1-31 LC05P00088S017 INSULATION 1
　 1-32 LC05P00088S018 INSULATION 1
　 1-33 LC05P00088S019 INSULATION 1
　 1-34 LC05P00088S020 INSULATION 1
　 1-35 LS05P00054S024 BOLT ASSY 9
　 1-38 2452U202S5 BOLT, WING 4
　 1-39 LC05P00088S024 FRAME 1
　 1-40 LC05P00088S025 SHROUD 1
　 1-41 LC05P00089S003 GUARD 1
　 1-42 LC05P00089S004 GUARD 1
　 1 LC05P00088F3 RADIATOR ASSY 1 LC14405049-
　 . YC14405212-
　 1-1 LC05P00088S023 RADIATOR ASSY 1
　 1-2 YN05P00088S032 CAP 1
　 1-3 2452U221S18 COCK, DRAIN 1
　 1-4 2452U416S6 HOSE 1
　 1-5 LC05P00088S002 INSULATION 4
　 1-6 LC05P00088S003 INSULATION 2
　 1-7 LC05P00088S004 COOLER, AIR 1
　 1-10 LC05P00088S007 INSULATION 2
　 1-11 LQ05P00096S006 INSULATION 2
　 1-12 LC05P00088S008 INSULATION 2
　 1-13 LC05P00056S018 RUBBER 2
　 1-14 YN05P00058S014 MOUNT, RUBBER 5
　 1-15 LQ05P00041S031 MOUNT, RUBBER 5
　 1-16 LQ05P00041S032 COLLAR 5
　 1-17 LS05P00039S024 WASHER 5
　 1-18 LC05P00043S015 BOLT ASSY 5
　 1-19 LQ05P00096S009 CAPSCREW 4
　 1-20 2452U400S7 HOSE 1
　 1-21 2452U267S8 CLIP 2
　 1-23 LC05P00088S010 PLATE 2
　 1-24 LC05P00088S011 PLATE 1
　 1-25 LB05P00018S028 BOLT ASSY 6
　 1-26 LC05P00088S012 INSULATION 1
　 1-27 LC05P00088S013 INSULATION 1
　 1-28 LC05P00088S014 INSULATION 1
　 1-29 LC05P00088S015 INSULATION 1
　 1-30 LC05P00088S016 INSULATION 2
　 1-31 LC05P00088S017 INSULATION 1
　 1-32 LC05P00088S018 INSULATION 1
　 1-33 LC05P00088S019 INSULATION 1
　 1-34 LC05P00088S020 INSULATION 1
　 1-35 LS05P00054S024 BOLT ASSY 9
　 1-38 2452U202S5 BOLT, WING 4
　 1-39 LC05P00088S024 FRAME 1
　 1-40 LC05P00088S025 SHROUD 1
　 1-41 LC05P00089S003 GUARD 1
　 1-42 LC05P00089S004 GUARD 1
　 1-43 YN05P00076S011 INSULATION 2
　 1-44 LC05P00088S027 COOLER, OIL 1
　 1-45 EE05P00004S013 BOLT ASSY 8
　 1-46 LC05P00088S029 BRACKET 1
　 1-47 LC05P00088S030 BRACKET 1
　 1-48 LC05P00088S031 BRACKET 1
　 1-49 LC05P00088S032 BRACKET 1
　 1-50 LC05P00088S033 RUBBER 2
　 1-51 LC05P00088S034 RUBBER 2
　 1-52 LC05P00088S035 INSULATION 1
　 1-53 LC05P00088S036 INSULATION 1
　 1-54 LC05P00088S037 INSULATION 4
　 2 LC05P01821F1 PLATE ASSY 1
　 2-1 LC05P01816P1 PLATE 1
　 2-2 YT21C01164DG STRIP, WEATHER 1
　 3 LC05P01893F1 PLATE ASSY 1
　 3-1 LC05P01895P1 PLATE 1
　 3-2 PH21C01136DT STRIP, WEATHER 1
　 3-3 PH21C01136DC STRIP, WEATHER 1
　 3-4 LC05P01896P1 INSULATION 1
　 4 LC05P01811P1 INSULATION 1
　 5 LC05P01813P1 INSULATION 1
　 6 LC05P01814P1 RUBBER 1
　 7 LC05P01926P1 RUBBER 1
　 8 YF05P01200P1 O-RING 1 LC14405007-
　 . YC14405019-
　 9 YF50S00001F1 SWITCH, LEVEL 1 LC14405007-
　 . YC14405019-
　 10 ZM73C08020 SEMS-BOLT 7

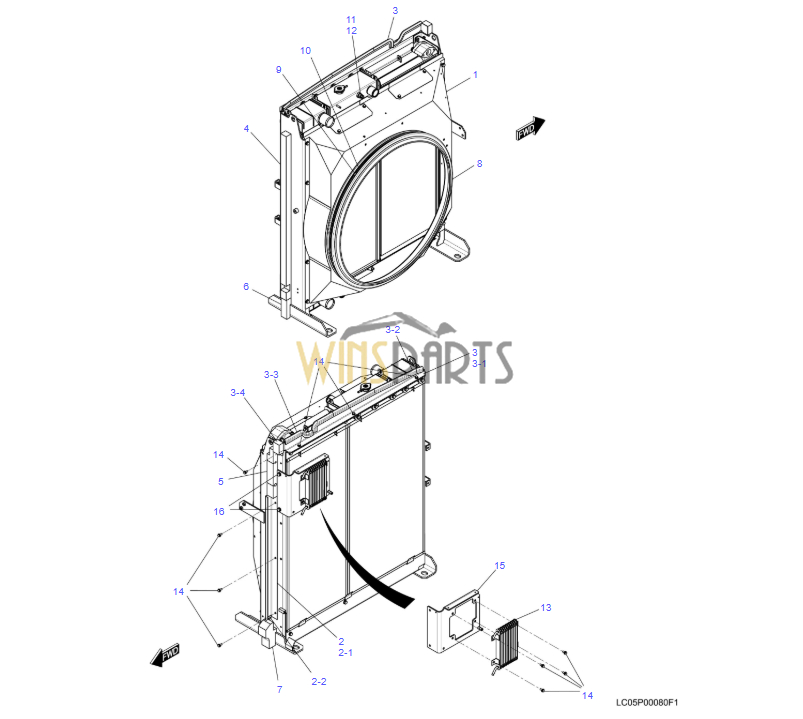

LC05P00080F1 LC05P00089F1 LC05P00088S004 RADIATOR ASSY KOBELCO SK330-10 SK350LC-10
　 .
　 1 LC05P00089F1 RADIATOR ASSY 1
　 1-1 LC05P00088S023 RADIATOR ASSY 1
　 1-2 YN05P00088S032 CAP 1
　 1-3 2452U221S18 COCK, DRAIN 1
　 1-4 2452U416S6 HOSE 1
　 1-5 LC05P00088S002 INSULATION 4
　 1-6 LC05P00088S003 INSULATION 4
　 1-7 LC05P00088S004 COOLER, AIR 1
　 1-8 LC05P00089S005 COOLER, OIL 1
　 1-9 LC05P00089S001 SUPPORT 1
　 1-10 LC05P00088S007 INSULATION 2
　 1-11 LQ05P00096S006 INSULATION 2
　 1-12 LC05P00088S008 INSULATION 2
　 1-13 LC05P00056S018 RUBBER 2
　 1-14 YN05P00058S014 MOUNT, RUBBER 5
　 1-15 LQ05P00041S031 MOUNT, RUBBER 5
　 1-16 LQ05P00041S032 COLLAR 5
　 1-17 LS05P00039S024 WASHER 5
　 1-18 LC05P00043S015 BOLT ASSY 5
　 1-19 LQ05P00096S009 CAPSCREW 4
　 1-20 2452U400S7 HOSE 1
　 1-21 2452U267S8 CLIP 2
　 1-22 LC05P00089S002 SHROUD 1
　 1-23 LC05P00088S010 PLATE 2
　 1-24 LC05P00088S011 PLATE 1
　 1-25 LB05P00018S028 BOLT ASSY 6
　 1-26 LC05P00088S012 INSULATION 1
　 1-27 LC05P00088S013 INSULATION 1
　 1-28 LC05P00088S014 INSULATION 1
　 1-29 LC05P00088S015 INSULATION 1
　 1-30 LC05P00088S016 INSULATION 2
　 1-31 LC05P00088S017 INSULATION 1
　 1-32 LC05P00088S018 INSULATION 1
　 1-33 LC05P00088S019 INSULATION 1
　 1-34 LC05P00088S020 INSULATION 1
　 1-35 LS05P00054S024 BOLT ASSY 9
　 1-36 LC05P00089S003 GUARD 1
　 1-37 LC05P00089S004 GUARD 1
　 1-38 2452U202S5 BOLT, WING 4
　 2 LC05P01821F1 PLATE ASSY 1
　 2-1 LC05P01816P1 PLATE 1
　 2-2 YT21C01164DG STRIP, WEATHER 1
　 3 LC05P01893F1 PLATE ASSY 1
　 3-1 LC05P01895P1 PLATE 1
　 3-2 PH21C01136DT STRIP, WEATHER 1
　 3-3 PH21C01136DC STRIP, WEATHER 1
　 3-4 LC05P01896P1 INSULATION 1
　 4 LC05P01811P1 INSULATION 1
　 5 LC05P01820P1 INSULATION 1
　 6 LC05P01814P1 RUBBER 1
　 7 LC05P01926P1 RUBBER 1
　 8 LC05P01642P1 RUBBER 1
　 9 LC05P01737P1 CLIP 1
　 10 LC05P01736P1 BAND 1
　 11 YF05P01200P1 O-RING 1
　 12 YF50S00001F1 SWITCH, LEVEL 1
　 13 LQ53V00006P1 COOLER, OIL 1
　 14 ZM73C08020 SEMS-BOLT 11
　 15 LC05P01911P1 BRACKET 1
　 16 ZM73C10025 SEMS-BOLT 2
