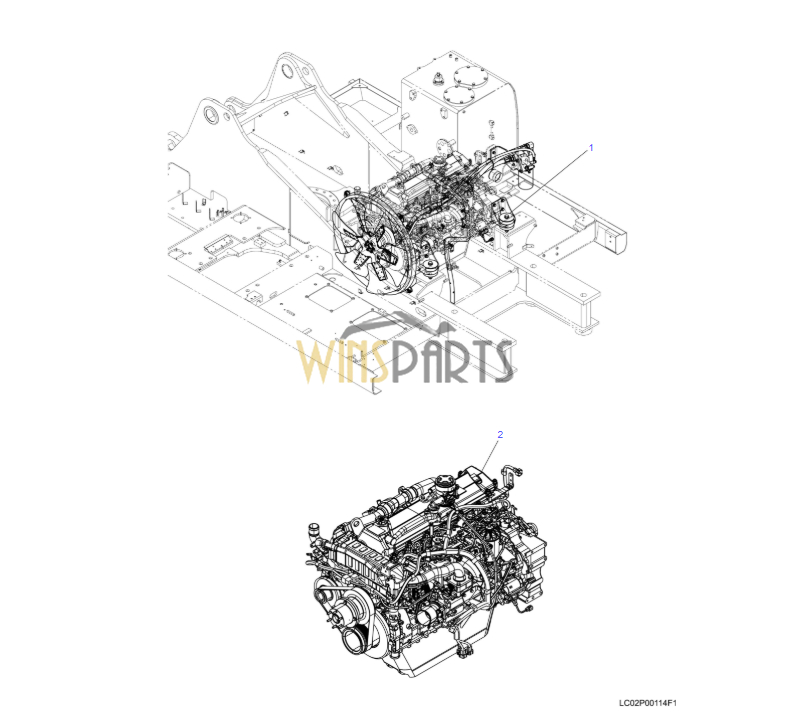

LC02P00114F1 LC02P00115F1 ENGINE ASSY KOBELCO SK330-10 SK350LC-10

LC02P00114F1 LC02P00115F1 ENGINE ASSY KOBELCO SK330-10 SK350LC-10
　 .
1 LC02P00115F1 ENGINE INSTAL
2 LC02P00117F1 ENGINE ASSY

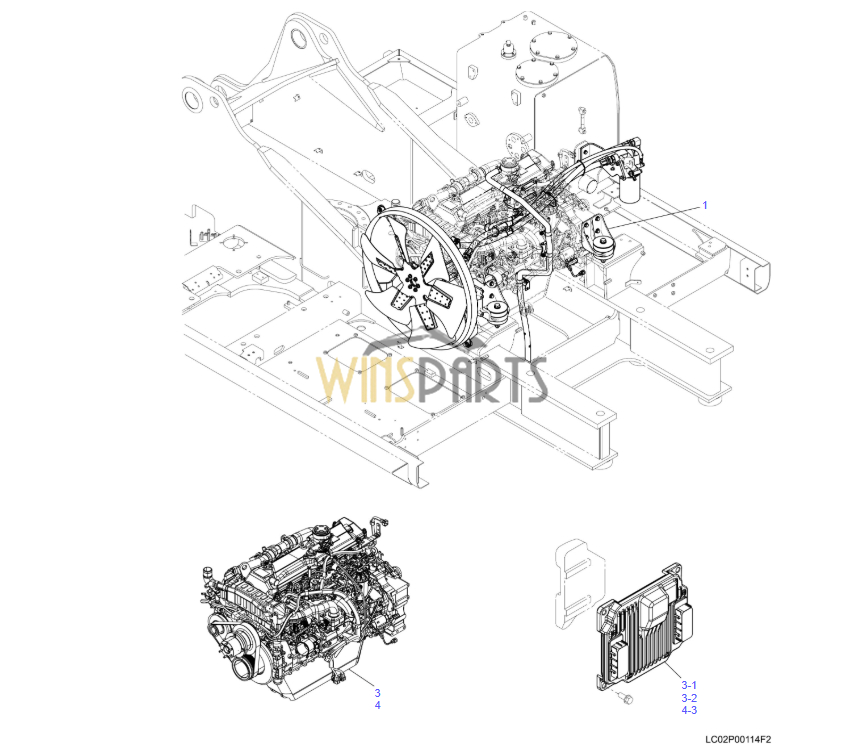

LC02P00114F2 LC02P00115F1 LC02P00117F2 ENGINE ASSY KOBELCO
.
1 LC02P00115F1 ENGINE INSTAL
3 LC02P00117F2 ENGINE ASSY
3月1日 LC22E00375F1 CONTROLLER
3 LC02P00117F3 ENGINE ASSY
3月2日 LC22E00376F1 CONTROLLER
4 LC02P00117F4 ENGINE ASSY
4月3日 LC22E00376F2 CONTROLLER

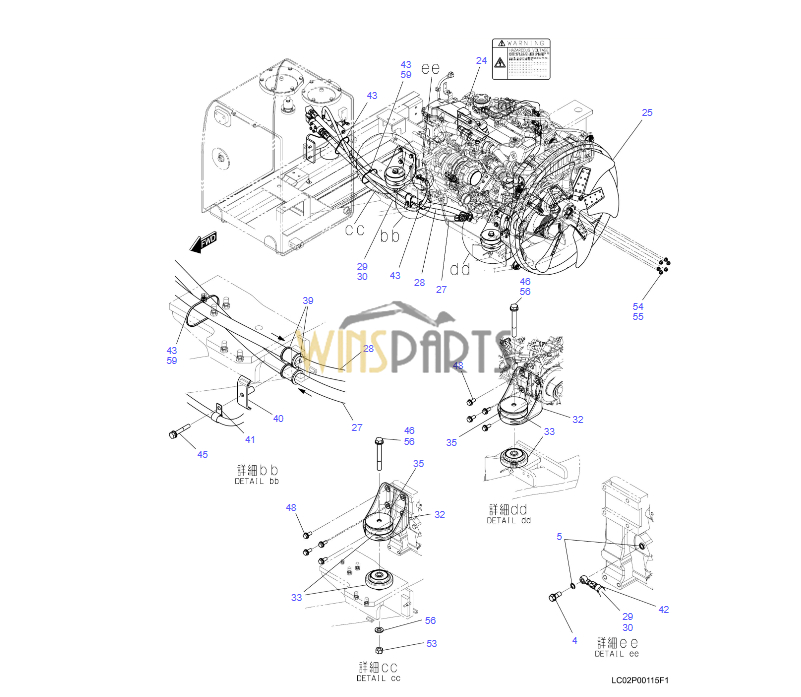

LC02P00115F1 JO8EVV-KSDK JO8EVV-KSUK ENGINE ASSY KOBELCO
.
1 YF02P00017F1 FILTER ASSY, OIL
2 YF02P01008P1 ELBOW
4 YF02P01024P1 JOINT
5 YF02P01010P1 WASHER
6 YF52S00009F1 SENSOR ASSY
7 YF02P01007P1 CAPSCREW
8 YF02P01009P1 O-RING
18 LC02P01196P1 HOSE
19 YF02P01014P1 CLIP
20 LC12P01380P1 CLIP
21 LC02P01195P1 NUT
22 LC02P01198P1 BRACKET
23 LC02P01197P1 CAPSCREW
24 YF02P01012P1 LABEL
25 LC75S00004P1 FAN
26 LC02P01168P1 BRACKET
27 LC02P01170P1 HOSE ASSY
28 LC02P01171P1 HOSE ASSY
29 LC02P01172P1 HOSE ASSY
30 HX81X15145DX TUBE
31 LC02P01162P1 BRACKET
32 LC02P01163P1 BRACKET
33 LC02P01164P1 MOUNT, RUBBER
34 LQ02P01097P1 CONNECTOR
35 YN02P01402P1 PLATE
36 LC02P01155P1 BRACKET
37 LC02P01141P1 BRACKET
39 YN02P01076P1 BUSHING
40 YN02P01125P1 CLAMP
41 ZC46X19011 CLIP
42 PY01P01043D2 CLIP
43 PY01P01043D6 CLIP
44 HS18C10140G1 CAPSCREW
45 ZM22C10065 SEMS-BOLT
46 ZS18C18150 CAPSCREW
47 ZS18C10040 CAPSCREW
48 ZM73C12030 SEMS-BOLT
49 ZM73C10030 SEMS-BOLT
50 ZM73C08035 SEMS-BOLT
51 ZM73C08025 SEMS-BOLT
52 ZM73C08020 SEMS-BOLT
53 ZN18C18015 NUT
54 ZN18F10008 NUT
55 ZW16H10000 WASHER
56 ZW16H18000 WASHER
57 ZW16P10000 WASHER
58 YB02P01017P1 ELBOW, 90
59 YN13E01375P1 CLIP

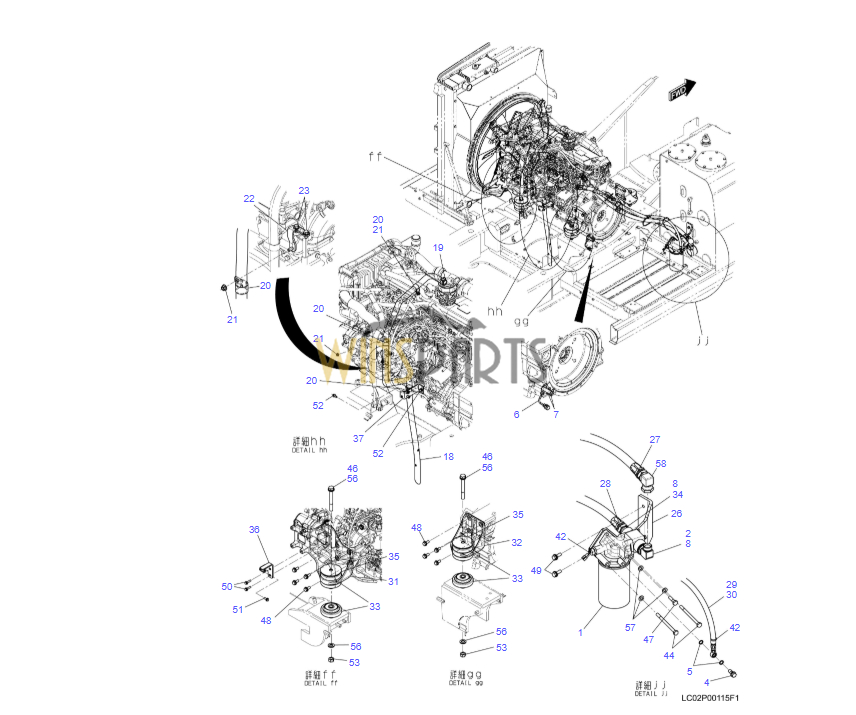

LC02P00117F4 LC22E00376F1 ENGINE ASSY CONTROLLER KOBELCO SK350NLC-10 SK350DLC-10
LC22E00376F1 CONTROLLER 4 LC02P00117F4 ENGINE ASSY LC22E00376F2 CONTROLLER

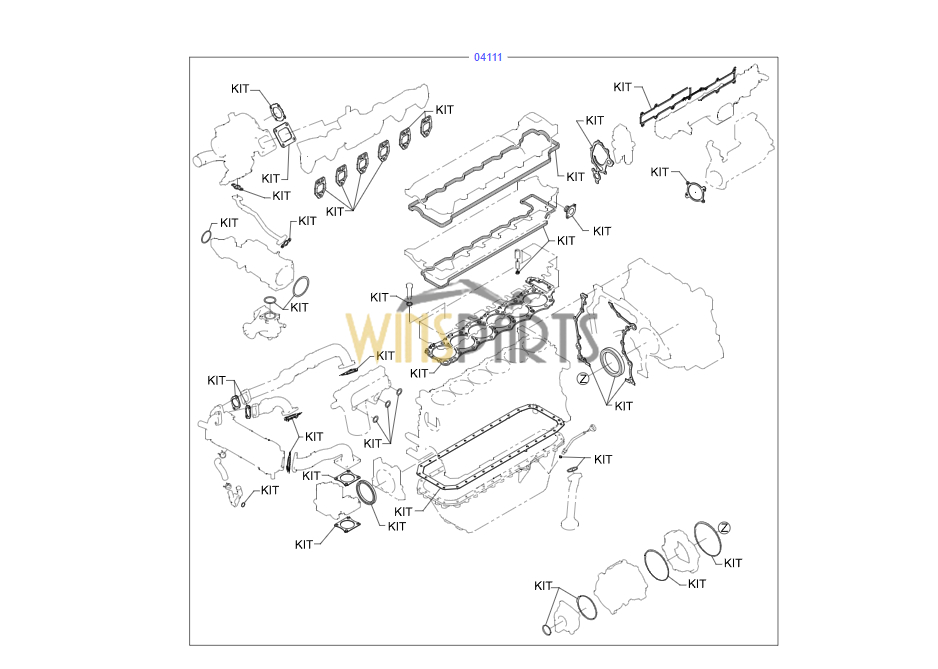

GASKET KIT ENGINE OVERHAUL KOBELCO SK330-10 SK350LC-10
　 04111 VH04111E1520 GENUINE HINO JO8EVV GASKET KIT, ENGINE OVERHAUL
　 04111 VH04111E1521 HINO J08EVV GASKET KIT, ENGINE OVERHAUL
　 04111 VH04111E1522 HINO ENGINE GASKET KIT, ENGINE OVERHAUL
　 04111 VH04111E3490 HINO JO8E J08EVV-KSUK GASKET KIT, ENGINE OVERHAUL
　 04111 VH04111E3491 HINO J08EVV DIESEL GASKET KIT, ENGINE OVERHAUL
　 04111 VH04111E3492 J08EVV-KSDK GASKET KIT, ENGINE OVERHAUL

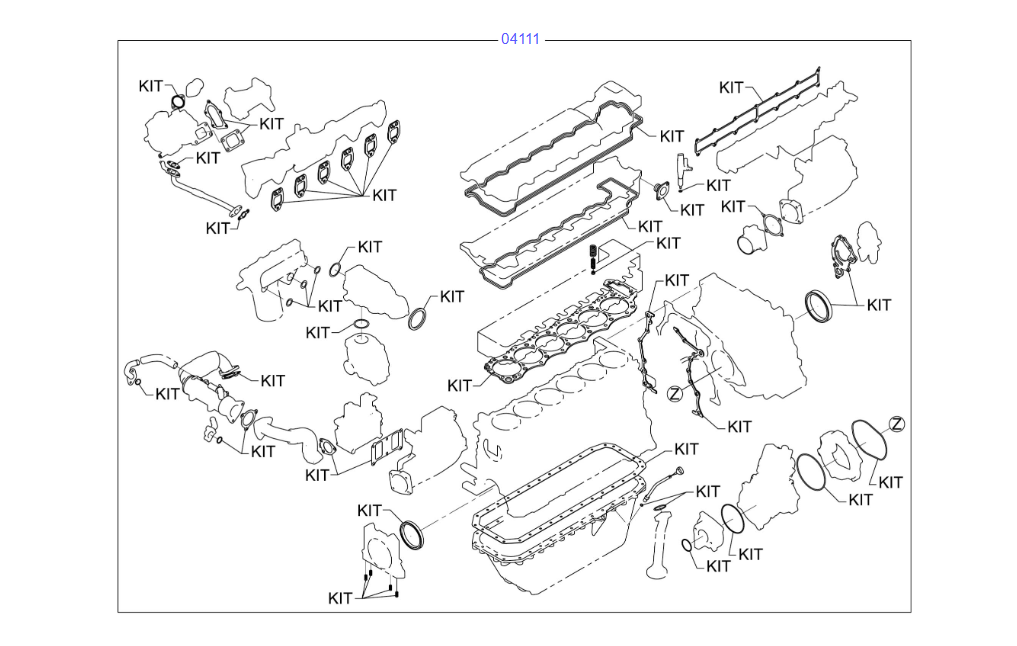

VH04111E2850 GASKET KIT, ENGINE OVERHAUL KOBELCO SK350NLC-10 SK350DLC-10
　 04111 VH04111E2851 GASKET KIT, ENGINE OVERHAUL 1 1703-1909
　 04111 VH04111E2852 GASKET KIT, ENGINE OVERHAUL 1 1909-2205
　 04111 VH04111E2853 GASKET KIT, ENGINE OVERHAUL 1

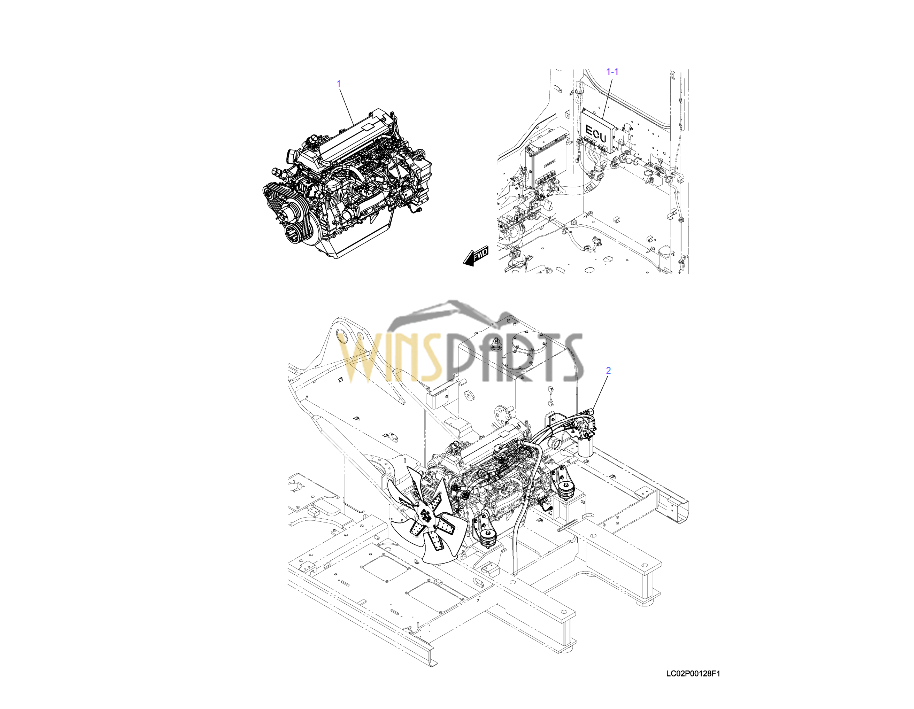

LC02P00128F1 LC02P00129F1 ENGINE KOBELCO SK330-10 SK350LC-10
　 .
1 LC02P00129F1 ENGINE ASSY 1 SEE E/G
1-1 LC22E00322F1 CONTROLLER 1
2 LC02P00112F1 ENGINE INSTAL 1 P.040-01

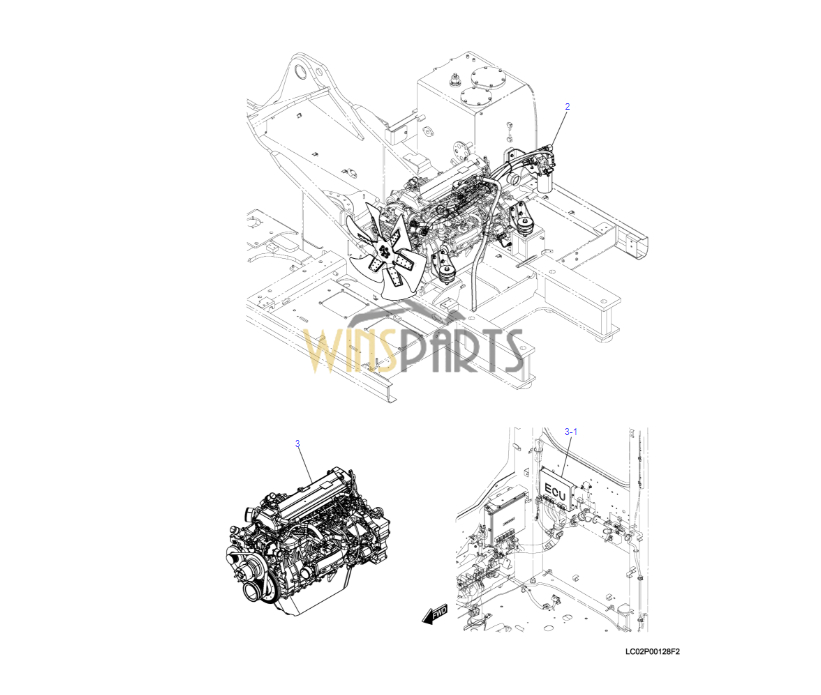

LC02P00128F2 LC02P00129F2 HINO DIESEL JO8EUN J08EUN J08E ENGINE
　 .
2 LC02P00112F1 ENGINE INSTAL 1 P.040-01
　 3 LC02P00129F2 ENGINE ASSY 1 SEE E/G
　 3-1 LC22E00374F1 CONTROLLER 1

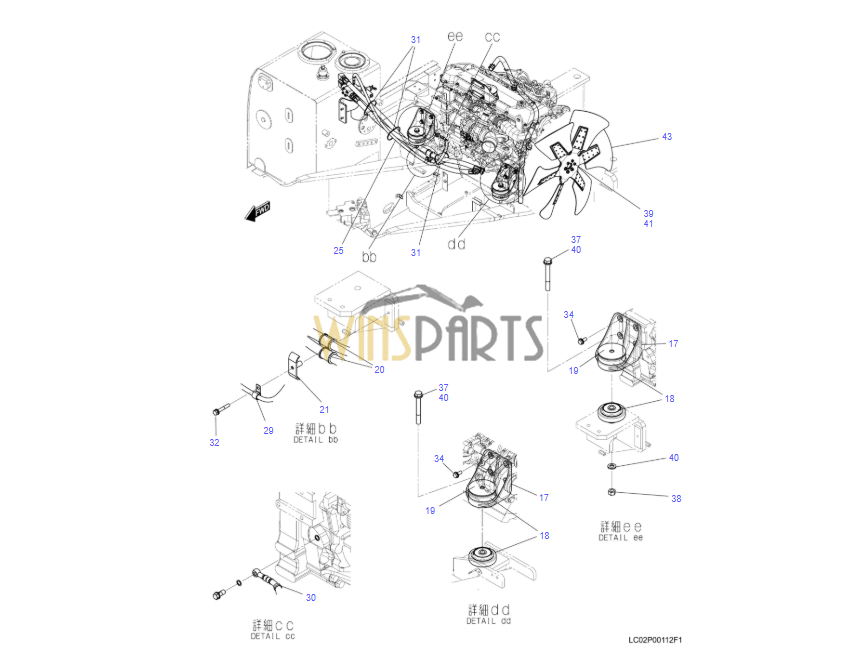

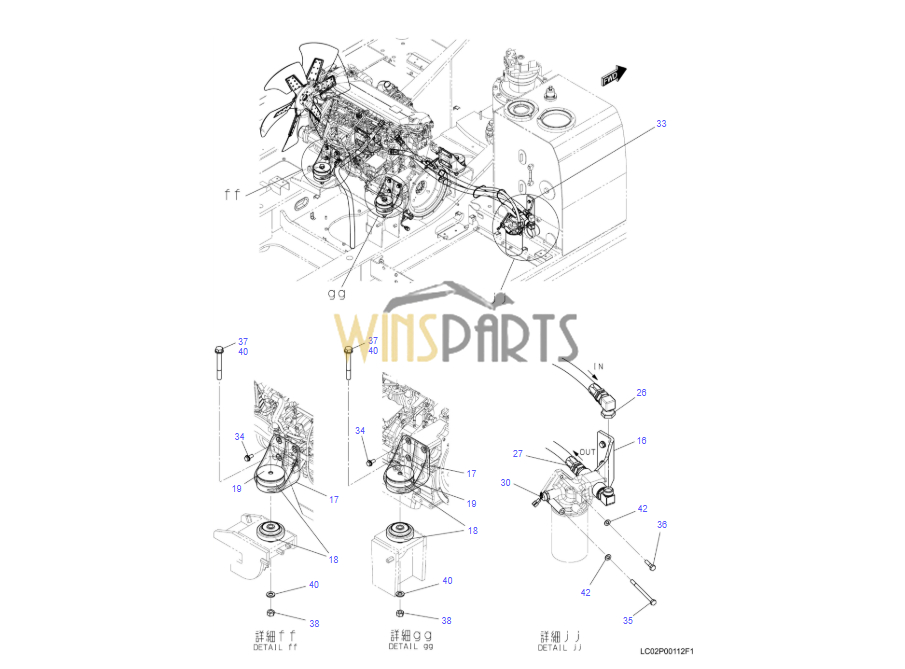

LC02P00112F1 HINO DIESEL JO8EUN J08EUN J08E ENGINE ASSY KOBELCO SK330-10 SK350LC-10
　 .
　 16 LC02P01168P1 BRACKET 1
　 17 LC02P01163P1 BRACKET 4
　 18 LC02P01164P1 MOUNT, RUBBER 8
　 19 YN02P01402P1 PLATE 4
　 20 YN02P01076P1 BUSHING 2
　 21 YN02P01125P1 CLAMP 1
　 25 HX81X15140DX TUBE 1
　 26 YB02P01017P1 ELBOW, 90 1
GENUINE HINO J08EUN-KSDN J08EUN-KSDS J08EUN-KSDZ ENGINE PARTS
　 27 LQ02P01097P1 CONNECTOR 1
　 29 ZC46X19011 CLIP 1
　 30 PY01P01043D2 CLIP 3
　 31 PY01P01043D6 CLIP 3
　 32 ZM22C10065 SEMS-BOLT 1
　 33 ZM73C10030 SEMS-BOLT 2
　 34 ZM73C12030 SEMS-BOLT 16
　 35 HS18C10140G1 CAPSCREW 2
　 36 ZS18C10040 CAPSCREW 1
　 37 ZS18C18150 CAPSCREW 4
　 38 ZN18C18015 NUT 3
　 39 ZN18F10008 NUT 6
　 40 ZW16H18000 WASHER 7
　 41 ZW16H10000 WASHER 6
　 42 ZW16P10000 WASHER 3
　 43 LC75S00004P1 FAN 1
