YN02B00363F1 BOOM PIN Kobelco SK200-8 SK210LC-8 . 1 YN02B01719P1 PIN 1 2 HS18C20175G2 CAPSCREW 1 YQ12T00874--T00944 2 YN02B02491P1 CAPSCREW 1…

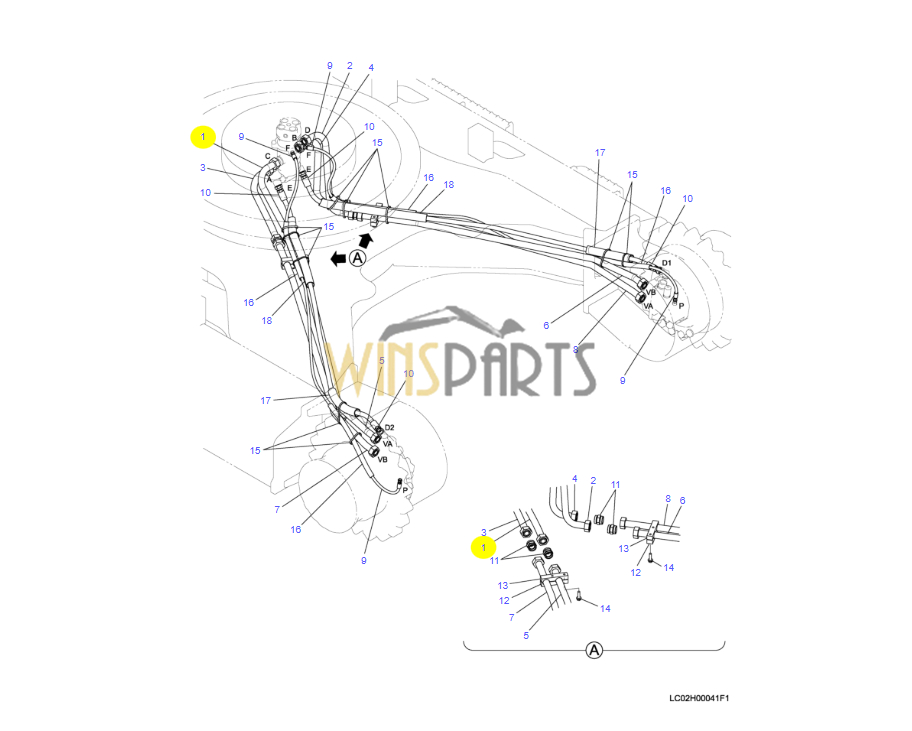

LC02H00041F1 LC02H01136P1 LC02H01137P1 TUBE HYD LINES, LOW
.
1 LC02H01136P1 TUBE 1
2 LC02H01137P1 TUBE 1
3 LC02H01138P1 TUBE 1
4 LC02H01139P1 TUBE 1
5 LC02H01140P1 TUBE 1
6 LC02H01141P1 TUBE 1
7 LC02H01142P1 TUBE 1
8 LC02H01143P1 TUBE 1
9 ZX23M04280 HOSE 2
10 ZX22M10230 HOSE 2
11 ZA23B35000 CONNECTOR 4
12 LC02H01117P1 CLAMP 2
13 LC02H01116P1 CLAMP 2
14 ZM73C12045 SEMS-BOLT 4
15 PY01P01043D5 CLIP 10
16 2420Z1224D9 HOSE 4
17 2414Z199D045 GUARD 2 LC14-T1101–T1129
17 2414Z199D45 GUARD 2 LC14-T1130-
18 2414Z199D085 GUARD 2 LC14-T1101–T1129
18 2414Z199D85 GUARD 2 LC14-T1130-
.

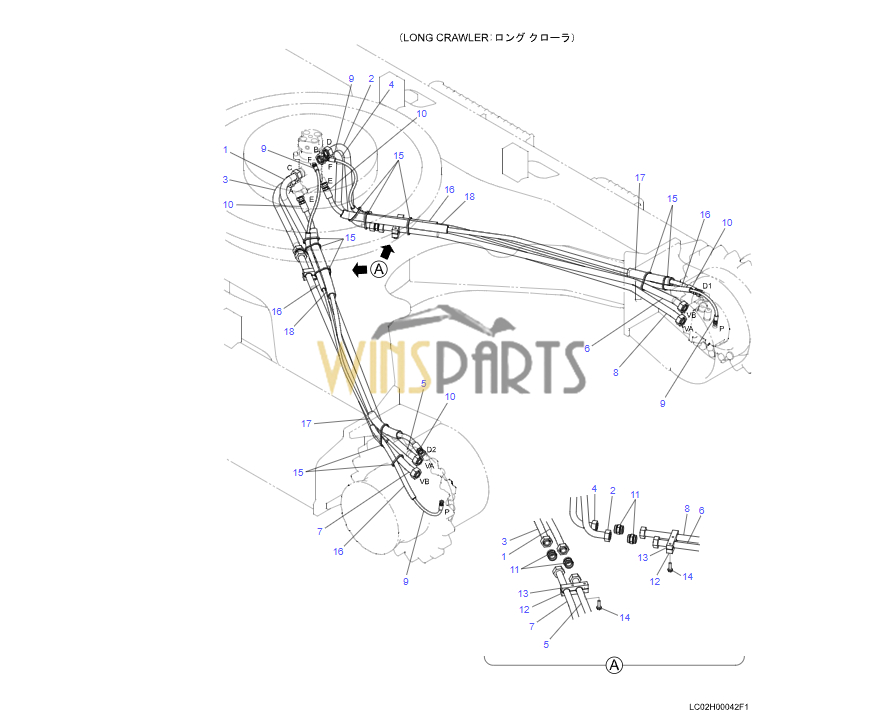

1 LC02H01136P1 TUBE 1
2 LC02H01137P1 TUBE 1
3 LC02H01138P1 TUBE 1
4 LC02H01139P1 TUBE 1
5 LC02H01232P1 TUBE 1
6 LC02H01233P1 TUBE 1
7 LC02H01234P1 TUBE 1
8 LC02H01235P1 TUBE 1
9 ZX23M04280 HOSE 2
10 ZX22M10230 HOSE 2
11 ZA23B35000 CONNECTOR 4
12 LC02H01117P1 CLAMP 2
13 LC02H01116P1 CLAMP 2
14 ZM73C12045 SEMS-BOLT 4
15 PY01P01043D5 CLIP 10
16 2420Z1224D9 HOSE 4
17 2414Z199D45 GUARD 2
18 2414Z199D85 GUARD 2

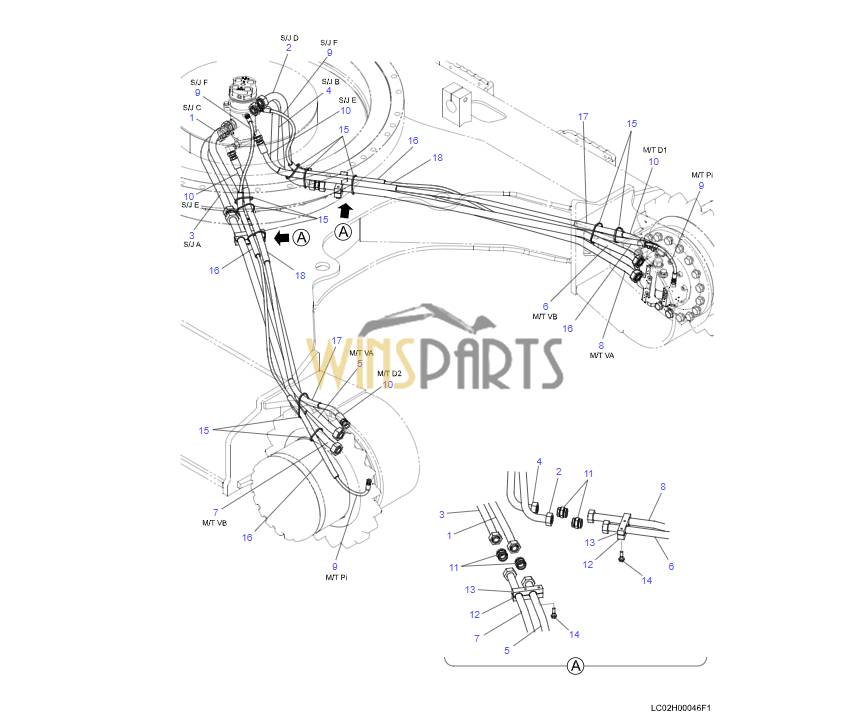

LC02H00047F1 HYD LINES, LOW Not Service .
1 LC02H01136P1 TUBE 1
2 LC02H01137P1 TUBE 1
3 LC02H01138P1 TUBE 1
4 LC02H01139P1 TUBE 1
5 LC02H01132P1 TUBE 1
6 LC02H01133P1 TUBE 1
7 LC02H01134P1 TUBE 1
8 LC02H01135P1 TUBE 1
9 ZX23M04290 HOSE 2
10 ZX22M10240 HOSE ASSY 2
11 ZA23B35000 CONNECTOR 4
12 LC02H01117P1 CLAMP 2
13 LC02H01116P1 CLAMP 2
14 ZM73C12045 SEMS-BOLT 4
15 PY01P01043D5 CLIP 10
16 2420Z1224D9 HOSE 4
17 2414Z199D045 GUARD 2 YC14-14001–14188
17 2414Z199D45 GUARD 2 YC14-14189-
18 2414Z199D085 GUARD 2 YC14-14001–14188
18 2414Z199D85 GUARD 2 YC14-14189-
.

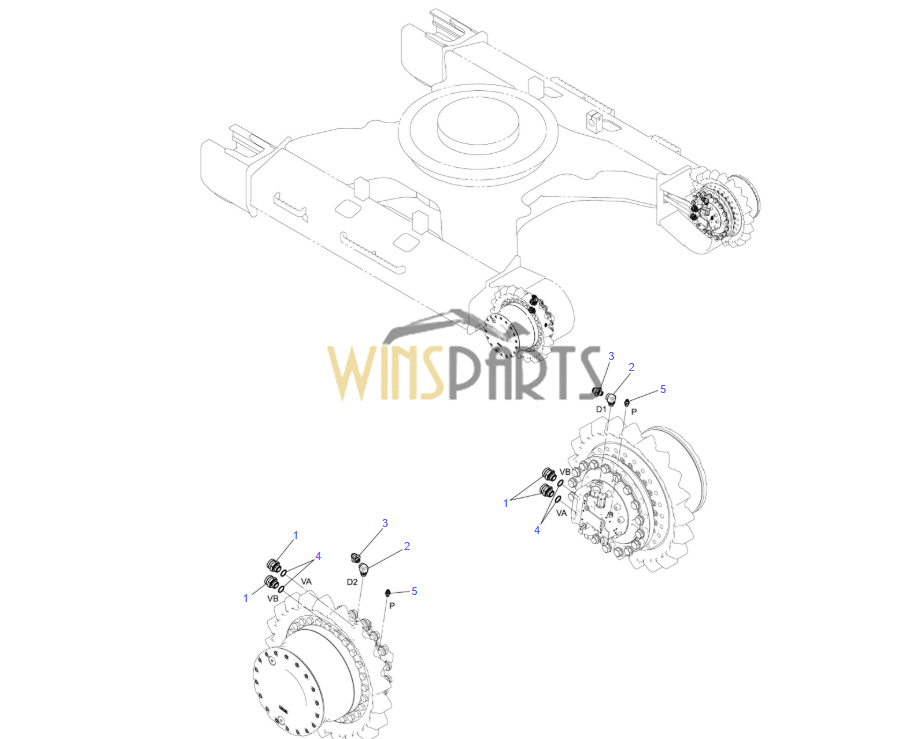

1 ZA23F35016 CONNECTOR 4
2 LC12H01003P1 ELBOW 2
3 2444Z3602 CONNECTOR 2
4 ZD12P02900 O-RING 4
5 ZH22X04000 CONNECTOR 2
LC19H00017F1 HYD LINES, SWIVEL Not Service
1 ZA23F35016 CONNECTOR 4
2 ZH22X04000 CONNECTOR 2
3 2444R399D3 ELBOW 2
4 ZD12P02900 O-RING 4
5 HH25R08008GB CONNECTOR 2
