LC02B00417F1 LC02B00405F1 LC01V00098F2 BOOM CYLINDER KOBELCO SK330-10 SK350LC-10

LC02B00417F1 LC02B00405F1 LC01V00098F2 BOOM CYLINDER KOBELCO SK330-10 SK350LC-10
　 .
1 LC02B00405F1 CYLINDER INSTAL 1 P.655-01
2 LC01V00098F2 CYLINDER, BOOM 2 HC 655-00

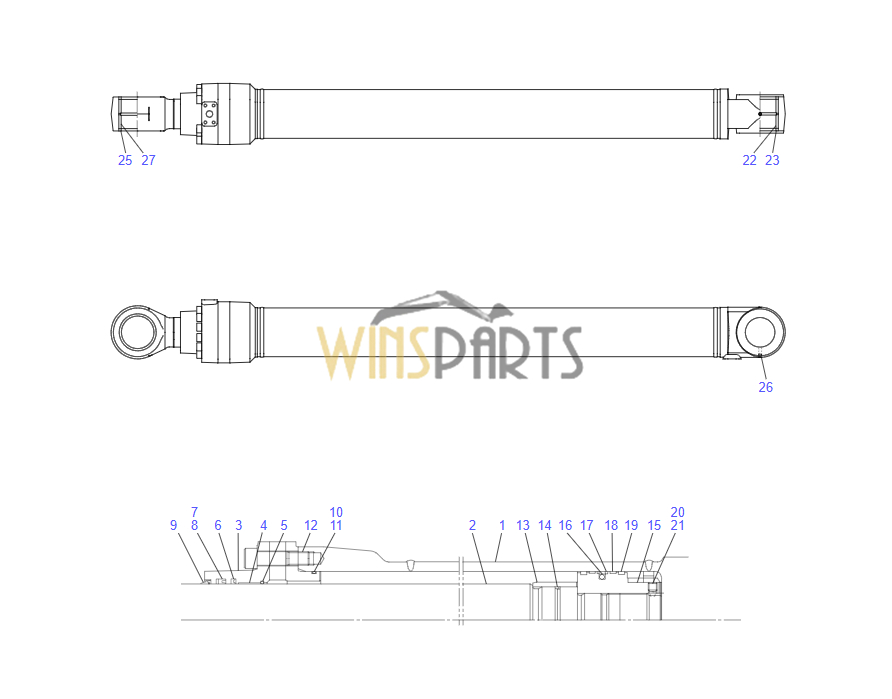

LC01V00098F2 LQ01V00012S003 BOOM CYLINDER KOBELCO SK350NLC-10 SK350DLC-10
　 .
　 1 NO P/No TUBE ASSY 1 R4
　 2 NO P/No ROD, PISTON 1 R5
　 3 LQ01V00012S003 CYLINDER HEAD 1
　 4 2438U1104S4 BUSHING 1
　 5 2438U1324S5 RING, SNAP 1
　 6 LC01V00044S006 RING, BUFFER 1 R1, R3
　 7 LC01V00044S007 RING 1 R1, R3
　 8 LQ01V00007S008 RING, BACK UP 1 R1, R3
　 9 2438U1172S37 RING, WIPER 1 R1, R3
　 10 ZD12G13500 O-RING 1 R1, R3
　 11 2438U1753S16 RING, BACK UP 1 R1, R3
　 12 ZS23C18080 CAPSCREW 12
　 13 LC01V00044S013 RING 1
　 14 LQ01V00007S034 SEAL 1 R2, R3
　 15 LC01V00044S015 PISTON 1
　 16 2438U999S16 RING, SEAL 1 R2, R3
　 17 LQ01V00003S017 RING, BACK UP 2 R2, R3
　 18 LC01V00044S018 RING 2 R2, R3
　 19 2438U999S18 RING 2 R2, R3
　 20 2438U953S21 SETSCREW 1
　 21 2436R624S6 BALL 1
　 22 LQ02B01481P1 BUSHING 2 R4
　 23 2438U1170S27 RING 2 R4
　 25 2438U1170S25 RING 2 R5
　 26 LC01V00044S026 PLUG 1
　 27 LC01V01055P1 BUSHING 1 R5
　 .
　 LC01V00098R100 REPAIR KIT 1 RK1
　 . (6, 7, 8, 9, 10, 11)X1
　 .
　 LC01V00044R200 REPAIR KIT 1 RK2
　 . (14, 16)X1
　 . (17, 18, 19)X2
　 .
　 LC01V00098R300 REPAIR KIT 1 RK3
　 . (6, 7, 8, 9, 10, 11, 14, 16)X1
　 . (17, 18, 19)X2
　 .
　 LC01V00098R400 REPAIR KIT 1 RK4
　 . (1)X1
　 . (22, 23)X2
　 .
　 LC01V00098R500 REPAIR KIT 1 RK5
　 . (2, 27)X1
　 . (25)X2

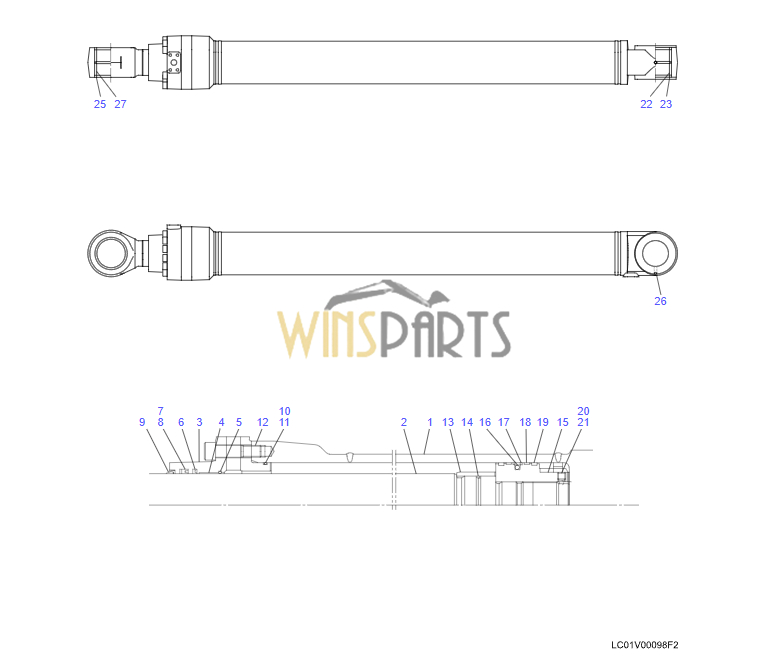

LC01V00098F2 LC01V00098R300 BOOM CYLINDER ASSY KOBELCO SK330-10 SK350LC-10
　 .
　 1 NO P/No TUBE ASSY 1 R4
　 2 NO P/No ROD, PISTON 1 R5
　 3 LQ01V00012S003 CYLINDER HEAD 1
　 4 2438U1104S4 BUSHING 1
　 5 2438U1324S5 RING, SNAP 1
　 6 LC01V00044S006 RING, BUFFER 1 R1, R3
　 7 LC01V00044S007 RING 1 R1, R3
　 8 LQ01V00007S008 RING, BACK UP 1 R1, R3
　 9 2438U1172S37 RING, WIPER 1 R1, R3
　 10 ZD12G13500 O-RING 1 R1, R3
　 11 2438U1753S16 RING, BACK UP 1 R1, R3
　 12 ZS23C18080 CAPSCREW 12
　 13 LC01V00044S013 RING 1
　 14 LQ01V00007S034 SEAL 1 R2, R3
　 15 LC01V00044S015 PISTON 1
　 16 2438U999S16 RING, SEAL 1 R2, R3
　 17 LQ01V00003S017 RING, BACK UP 2 R2, R3
　 18 LC01V00044S018 RING 2 R2, R3
　 19 2438U999S18 RING 2 R2, R3
　 20 2438U953S21 SETSCREW 1
　 21 2436R624S6 BALL 1
　 22 LQ02B01481P1 BUSHING 2 R4
　 23 2438U1170S27 RING 2 R4
　 25 2438U1170S25 RING 2 R5
　 26 LC01V00044S026 PLUG 1
　 27 LC01V01055P1 BUSHING 1 R5
　 .
　 LC01V00098R100 REPAIR KIT 1 RK1
　 . (6, 7, 8, 9, 10, 11)X1
　 .
　 LC01V00044R200 REPAIR KIT 1 RK2
　 . (14, 16)X1
　 . (17, 18, 19)X2
　 .
　 LC01V00098R300 REPAIR KIT 1 RK3
　 . (6, 7, 8, 9, 10, 11, 14, 16)X1
　 . (17, 18, 19)X2
　 .
　 LC01V00098R400 REPAIR KIT 1 RK4
　 . (1)X1
　 . (22, 23)X2
　 .
　 LC01V00098R500 REPAIR KIT 1 RK5
　 . (2, 27)X1
　 . (25)X2
