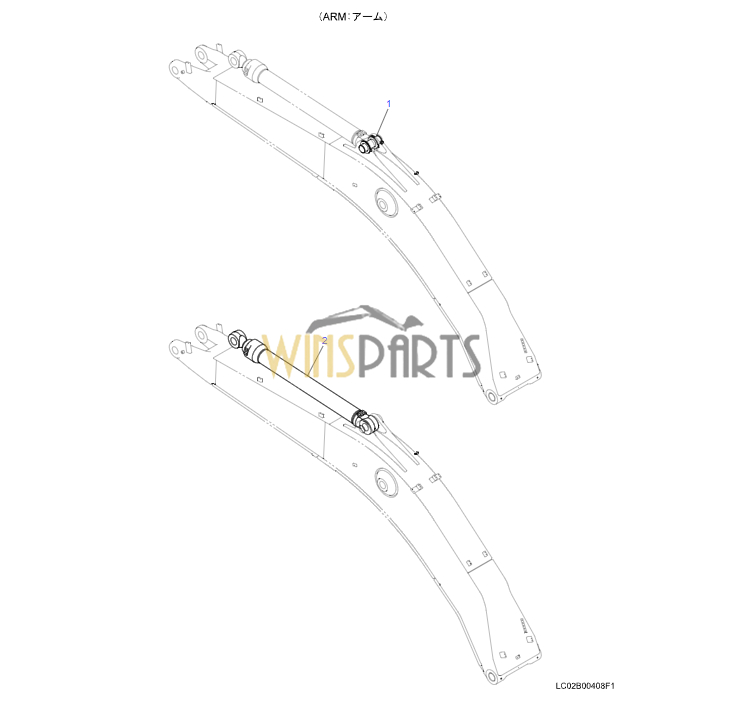

LC02B00408F1 LC02B00409F1 LC01V00100F1 ARM CYLINDER KOBELCO SK330-10 SK350LC-10

LC02B00408F1 LC02B00409F1 LC01V00100F1 ARM CYLINDER KOBELCO SK330-10 SK350LC-10
660-01_KCM-EUR_D0002121679_1 1 LC02B00409F1 CYLINDER INSTAL 1 P.660-01
HC660-00_KCM-EUR_D0002121678_1 2 LC01V00100F1 CYLINDER, ARM 1 HC 660-00
LC02B00465F1 CYLINDER INSTAL Not Service
1 LC02B00407F1 CYLINDER INSTAL 1 P.660-01
2 LC01V00054F2 CYLINDER, ARM 1 HC 661-00

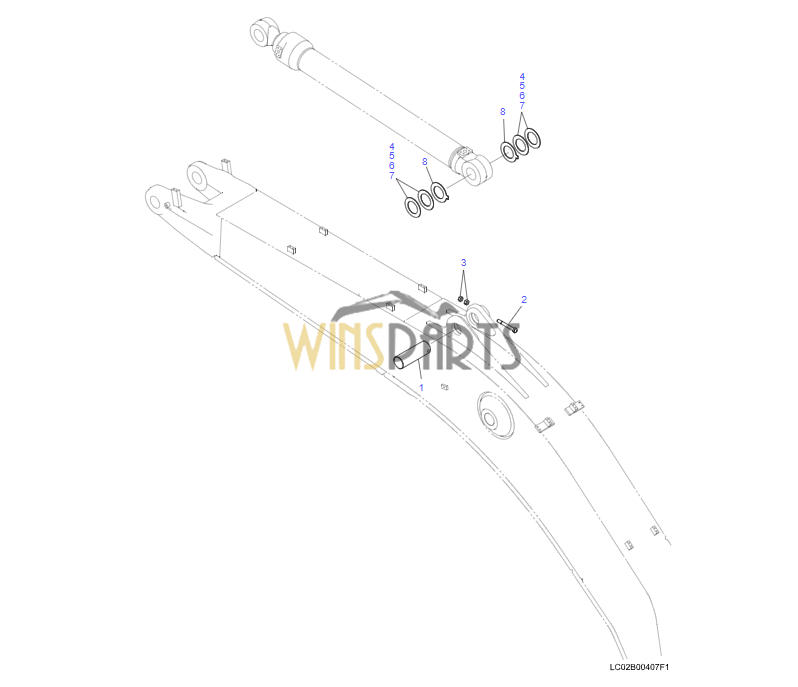

LC02B00407F1 LC02B00465F1 ARM CYLINDER KOBELCO SK350NLC-10 SK350DLC-10
　 .
　 1 LC02B01774P1 PIN 1
　 2 HS18C24190G1 CAPSCREW 1
　 3 ZN18C24019 NUT 2
　 4 2420T2747D16 SHIM (0.9) 1
　 5 2420T2747D7 SHIM (1.2) 1
　 6 2420T2747D8 SHIM (1.6) 1
　 7 2420T2747D9 SHIM (2.3) 1
　 8 LC02B01105D1 SHIM (2.0) 2

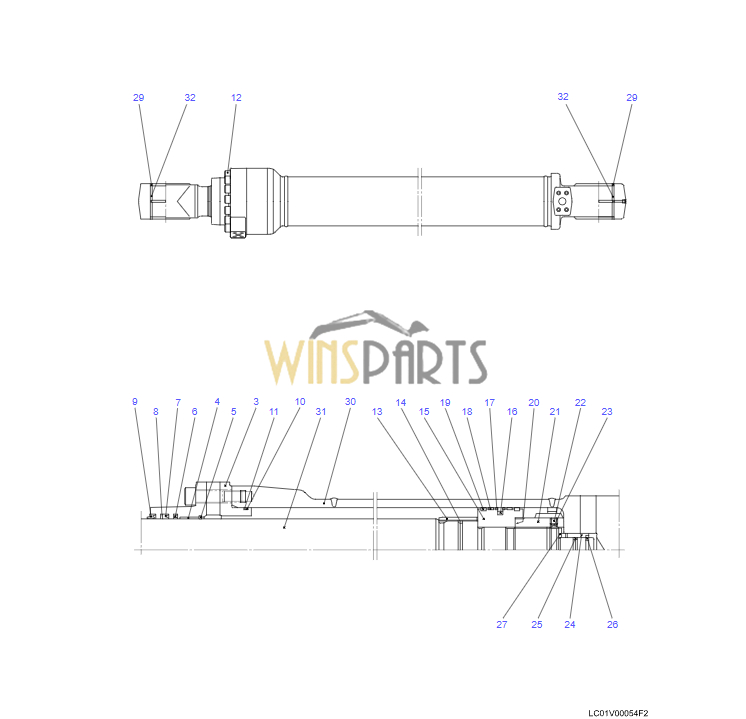

LC01V00054F2 LC01V00054R300 ARM CYLINDER KOBELCO SK330-10 SK350LC-10
　 .
　 3 LC01V00054S003 CYLINDER HEAD 1
　 4 2438U1171S4 BUSHING 1
　 5 2438U1171S5 RING 1
　 6 LC01V00054S006 RING, BUFFER 1 R1, R3
　 7 LC01V00054S007 RING 1 R1, R3
　 8 LC01V00054S008 RING, BACK UP 1 R1, R3
　 9 2438U1171S34 RING 1 R1, R3
　 10 ZD12G16000 O-RING 1 R1, R3
　 11 2438U1171S11 RING, BACK UP 1 R1, R3
　 12 LC01V00005S012 CAPSCREW 12
　 13 LC01V00054S013 RING 1
　 14 LC01V00054S014 SEAL 1 R2, R3
　 15 LC01V00054S015 PISTON 1 LC14-T1101–T1152
　 . YC14-T1101–T1158
　 15 LC01V00100S015 PISTON 1 LC14-T1153-
　 . YC14-T1159-
　 16 2438U1171S16 SEAL 1 R2, R3
　 17 2438U1171S17 RING, BACK UP 2 R2, R3
　 18 LC01V00054S018 RING 2 R2, R3
　 19 2438U1171S19 RING 2 R2, R3
　 20 LC01V00005S020 SHIM 1 R2, R3 LC14-T1101–T1152
　 . YC14-T1101–T1158
　 21 LC01V00054S021 NUT 1
　 22 2438U1171S22 SETSCREW 1
　 23 2436U330S27 BALL 1
　 24 LC01V00054S024 RING 1
　 25 LC01V00005S025 SEAL 1 R2, R3
　 26 2438U1137S26 STOPPER 2
　 27 2438U1171S27 RING 1
　 29 2438U1170S25 RING 4 R4, R5
　 30 NO P/No TUBE ASSY 1 R4
　 31 NO P/No ROD, PISTON 1 R5
　 32 2438U1171S28 BUSHING 2 R4, R5
　 .
　 LC01V00054R100 REPAIR KIT 1 RK1 LC14-T1101–T1152
　 . (6, 7, 8, 9, 10, 11)X1 YC14-T1101–T1158
　 .
　 LC01V00100R100 REPAIR KIT 1 RK1 LC14-T1153-
　 . (6, 7, 8, 9, 10, 11)X1 YC14-T1159-
　 .
　 LC01V00054R200 REPAIR KIT 1 RK2 LC14-T1101–T1152
　 . (14, 16, 20, 25)X1 YC14-T1101–T1158
　 . (17, 18, 19)X2
　 .
　 LC01V00100R200 REPAIR KIT 1 RK2 LC14-T1153-
　 . (14, 16, 25)X1 YC14-T1159-
　 . (17, 18, 19)X2
　 .
　 LC01V00054R300 REPAIR KIT 1 RK3 LC14-T1101–T1152
　 . (6, 7, 8, 9, 10, 11, 14, 16, 20, 25)X1 YC14-T1101–T1158
　 . (17, 18, 19)X2
　 .
　 LC01V00100R300 REPAIR KIT 1 RK3 LC14-T1153-
　 . (6, 7, 8, 9, 10, 11, 14, 16, 25)X1 YC14-T1159-
　 . (17, 18, 19)X2
　 .
　 LC01V00054R600 REPAIR KIT 1 RK4
　 . (30, 32)X1
　 . (29)X2
　 .
　 LC01V00054R700 REPAIR KIT 1 RK5
　 . (31, 32)X1
　 . (29)X2

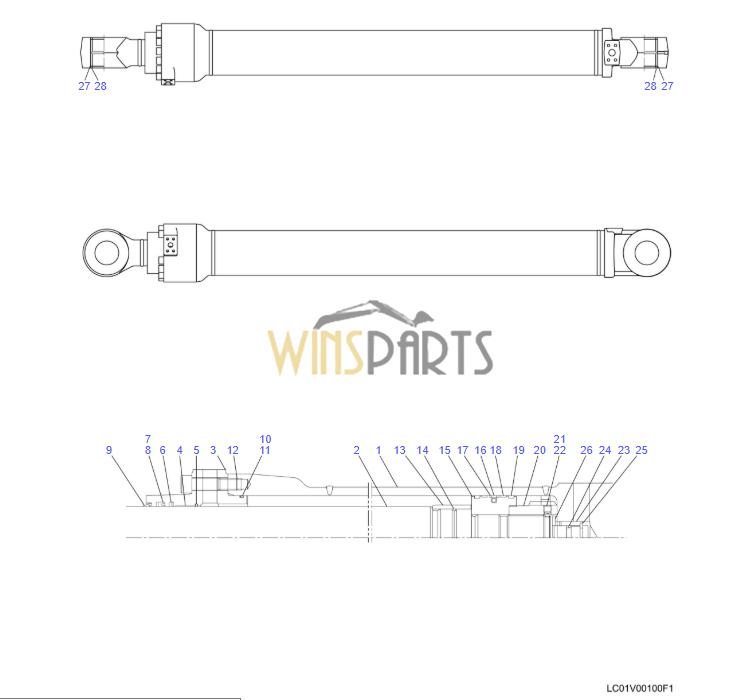

LC01V00100F1 LC01V00100R300 ARM CYLINDER REPAIR KIT KOBELCO SK350NLC-10 SK350DLC-10
　 .
　 1 NO P/No TUBE ASSY 1 R4
　 2 NO P/No ROD, PISTON 1 R5
　 3 LC01V00054S003 CYLINDER HEAD 1
　 4 2438U1171S4 BUSHING 1
　 5 2438U1171S5 RING 1
　 6 LC01V00054S006 RING, BUFFER 1 R1, R3
　 7 LC01V00054S007 RING 1 R1, R3
　 8 LC01V00054S008 RING, BACK UP 1 R1, R3
　 9 2438U1171S34 RING 1 R1, R3
　 10 ZD12G16000 O-RING 1 R1, R3
　 11 2438U1171S11 RING, BACK UP 1 R1, R3
　 12 LC01V00005S012 CAPSCREW 12
　 13 LC01V00054S013 RING 1
　 14 LC01V00054S014 SEAL 1 R2, R3
　 15 LC01V00100S015 PISTON 1
　 16 2438U1171S16 SEAL 1 R2, R3
　 17 2438U1171S17 RING, BACK UP 2 R2, R3
　 18 LC01V00054S018 RING 2 R2, R3
　 19 2438U1171S19 RING 2 R2, R3
　 20 LC01V00054S021 NUT 1
　 21 2438U1171S22 SETSCREW 1
　 22 2436U330S27 BALL 1
　 23 LC01V00054S024 RING 1
　 24 LC01V00005S025 SEAL 1
　 25 2438U1137S26 STOPPER 2
　 26 2438U1171S27 RING 1
　 27 LC01V01050P1 BUSHING 4 R4, R5
　 28 2438U1170S25 RING 4 R4, R5
　 .
　 LC01V00100R100 REPAIR KIT 1 RK1
　 . (6, 7, 8, 9, 10, 11)X1
　 .
　 LC01V00100R200 REPAIR KIT 1 RK2
　 . (14, 16)X1
　 . (17, 18, 19)X2
　 .
　 LC01V00100R300 REPAIR KIT 1 RK3
　 . (6, 7, 8, 9, 10, 11, 14, 16)X1
　 . (17, 18, 19)X2
　 .
　 LC01V00100R400 REPAIR KIT 1 RK4
　 . (1)X1
　 . (27, 28)X2
　 .
　 LC01V00100R500 REPAIR KIT 1 RK5
　 . (2)X1
　 . (27, 28)X2
