FRAME ASSY LOW UNDERCARRIAGE KOBELCO SK330-10 SK350LC-10

FRAME ASSY LOW UNDERCARRIAGE KOBELCO SK330-10 SK350LC-10
525-00 LC02F00205F1 FRAME ASSY, LOW
530-00 LC02F00208F1 FRAME ASSY, LOW(LONG CRAWLER)
535-00 LC01F00043F1 LOW GROUP
538-00 LC01F01038F1 BOLT ASSY
539-00 LC01F01039F1 BOLT ASSY(LONG CRAWLER)
545-00 LC53D00021F1 MOTOR INSTAL, PROPEL
546-00 LC53D00021F2 MOTOR INSTAL, PROPEL
HC545-00 LC15V00041F1 MOTOR ASSY, PROPEL
HC546-00 LC53D00027F1 MOTOR ASSY, PROPEL
550-00 LQ19H00012F1 JOINT INSTAL, SWIVEL
HC550-00 YN55V00059F1 JOINT, SWIVEL
555-00 LC40F00026F1 RING ASSY, SLEWING
560-00 LC52D00071F1 IDLER ASSY, CRAWLER
560-00 LC52D00114F1 IDLER ASSY, CRAWLER
565-00 LC64D00030F2 ROLLER ASSY, TRACK
570-00 LC64D00030F1 ROLLER ASSY, TRACK(LONG CRAWLER)
575-00 LC64D00003F1 ROLLER ASSY, UPP
580-00 LC60D00046F1 SHOE ASSY(600mm)
580-00 LC60D00079F1 SHOE ASSY(600mm t=11)
580-00 LC60D00046F3 SHOE ASSY(800mm t=13)
580-00 LC60D00079F3 SHOE ASSY(800mm t=13)
592-00 LC60D00048F3 SHOE ASSY(LONG CRAWLER 800mm t=13)
590-00 LC60D00081F1 SHOE ASSY(LONG CRAWLER 600mm t=11)
592-00 LC60D00081F3 SHOE ASSY(LONG CRAWLER 800mm t=13)
600-00 LC02H00041F1 HYD LINES, LOW
601-00 LC02H00046F1 HYD LINES, LOW
605-00 LC02H00042F1 HYD LINES, LOW(LONG CRAWLER)
605-00 LC02H00047F1 HYD LINES, LOW(LONG CRAWLER)
610-00 LC12H00005F1 HYD LINES, PROPEL
615-00 LC19H00017F1 HYD LINES, SWIVEL
530-00 LC02F00157F1 FRAME ASSY, LOW(LONG CRAWLER)
531-00 LC02F00183F1 FRAME ASSY, LOW(NARROW LONG CRAWLER)
535-00 LC01F00043F1 LOW GROUP
539-00 LC01F01039F1 BOLT ASSY(LONG CRAWLER)
541-00 YN41C00117F3 STEP INSTAL
542-00 YN41C00117F1 STEP INSTAL(w50mm)
543-00 YN41C00117F4 STEP INSTAL(w150mm)
545-00 LC53D00021F1 MOTOR INSTAL, PROPEL
HC545-00 LC15V00041F1 MOTOR ASSY, PROPEL
550-00 LQ19H00012F1 JOINT INSTAL, SWIVEL
HC550-00 YN55V00059F1 JOINT, SWIVEL
555-00 LC40F00026F1 RING ASSY, SLEWING
560-00 LC52D00098F1 IDLER ASSY, CRAWLER
570-00 LC64D00030F1 ROLLER ASSY, TRACK(LONG CRAWLER)
575-00 LC64D00003F1 ROLLER ASSY, UPP
591-00 LC60D00048F1 SHOE ASSY(LONG CRAWLER 600mm t=11)
592-00 LC60D00048F3 SHOE ASSY(LONG CRAWLER 800mm t=13)
593-00 LC60D00048F4 SHOE ASSY(LONG CRAWLER 700mm t=13)
594-00 LC60D00048F8 SHOE ASSY(LONG CRAWLER 900mm t=13)

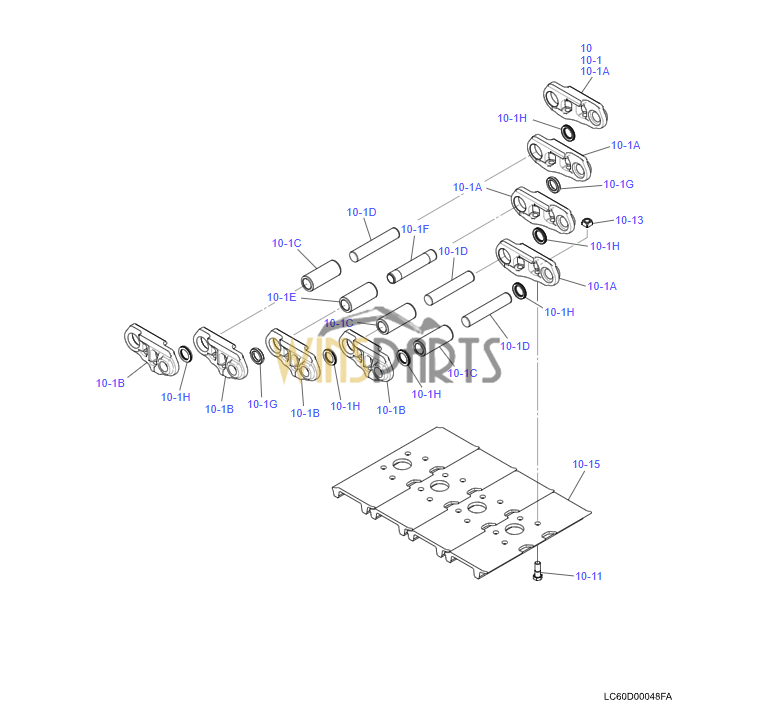

595-00 LC60D00048FA SHOE ASSY(LONG CRAWLER 600mm t=15.7)
605-00 LC02H00042F1 HYD LINES, LOW(LONG CRAWLER)
606-00 LC02H00043F1 HYD LINES, LOW(NARROW LONG CRAWLER)
610-00 LC12H00005F1 HYD LINES, PROPEL
615-00 LC19H00017F1 HYD LINES, SWIVEL
LC02F00205F1 LC02F00206P1 LC02F00209P1 LOW FRAME ASSY KOBELCO SK330-10 SK350LC-10
　 1 LC02F00206P1 FRAME, LOW 1
　 1-1Bb LC07F01204P1 SUPPORT 2
　 1-1Cb LC07F01204P1 SUPPORT 2
　 1-2 LC41C00113P1 STEP 2
　 1-3 LC41C00114P1 STEP 2
LC02F00208F1 LONG CRAWLER FRAME ASSY, LOW
　 1 LC02F00209P1 FRAME, LOW 1
　 1-1Bb LC07F01204P1 SUPPORT 2
　 1-1Cb LC07F01204P1 SUPPORT 2
　 1-2 LC41C00113P1 STEP 2
　 1-3 LC41C00114P1 STEP 2

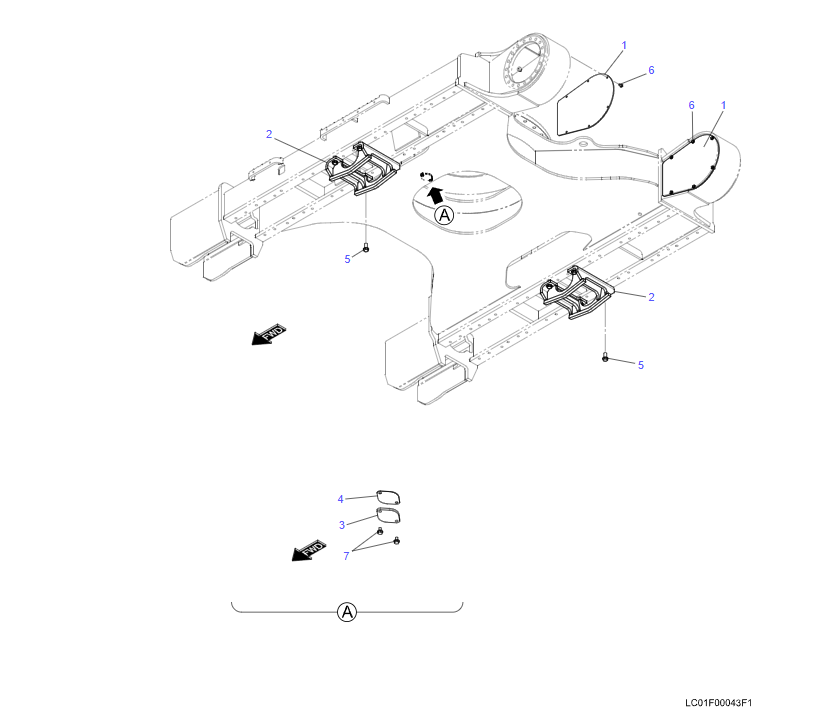

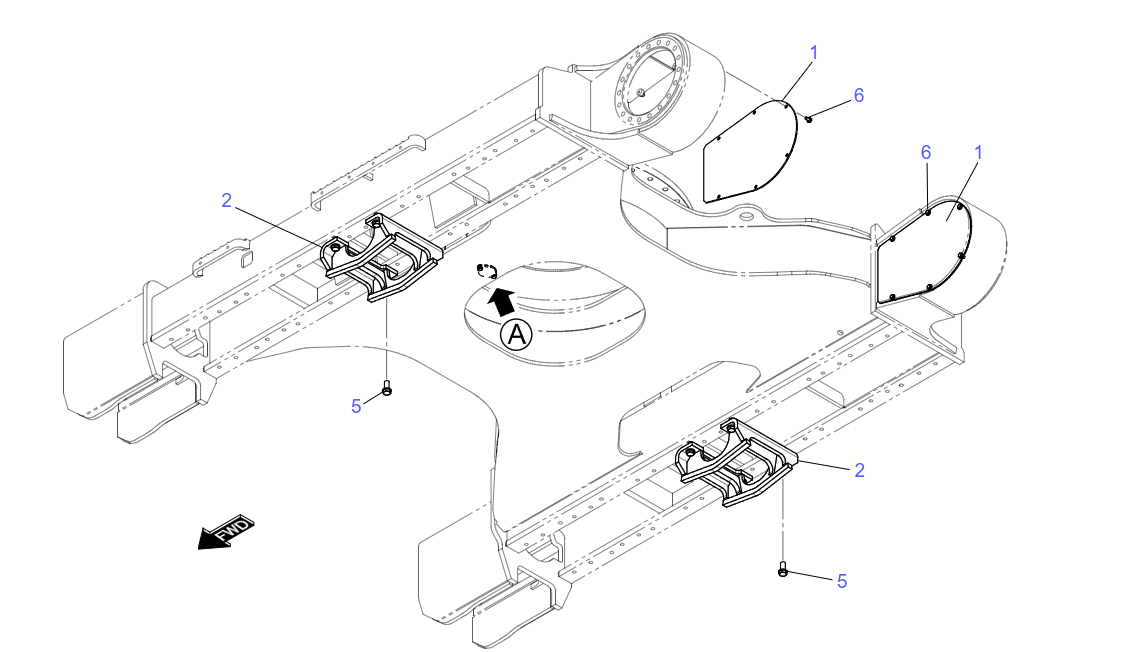

LC01F00043F1 LC63D00006P1 LOW GROUP GUIDE, TRACK KOBELCO SK350NLC-10 SK350DLC-10
　 .
　 1 LC01F01113P1 COVER 2
　 2 LC63D00006P1 GUIDE, TRACK 2
　 3 YN01F01088P2 PLATE 1
　 4 YN01F01089P2 PACKING 1
　 5 2420P1613D9 CAPSCREW 8
　 6 ZM73C12025 SEMS-BOLT 12
　 7 ZM73C10020 SEMS-BOLT 2
LC01F01039F1 BOLT ASSY
　 1 ZS13C24035 CAPSCREW 16
　 2 ZW13H24000 WASHER 16

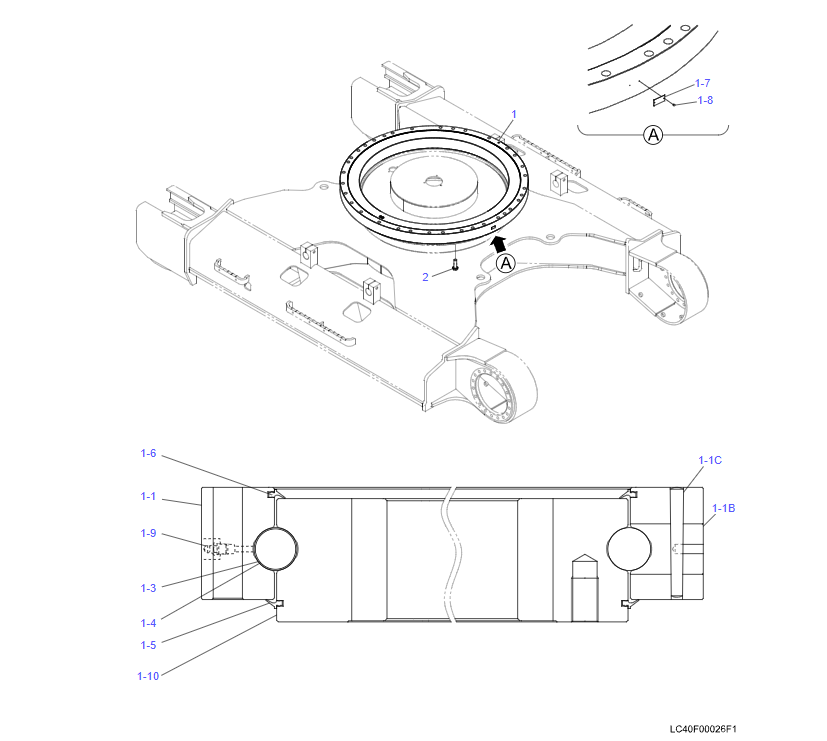

LC40F00026F1 LC40F00027F1 RING ASSY SLEWING ASSY KOBELCO SK330-10 SK350LC-10
　 .
　 1 LC40F00027F1 RING, SLEWING 1
　 1-1 LC40F01015P1 RACE, OUTER 1
　 1-1B LC40F01016P1 PLUG 1
　 1-1C 2419T1964D3 PIN, TAPER 1
　 1-3 2425T261 BALL 110
　 1-4 LB40F01005P1 RETAINER 110
　 1-5 YN40F01024D3 SEAL 1
　 1-6 YN40F01024D4 SEAL 1
　 1-7 YN22T00194P1 NAME PLATE 1
　 1-8 2420Z1036D3 CLEVIS 2
　 1-9 ZG91S02000 NIPPLE, GREASE 1
　 1-10 LC40F01018P1 RACE, INNER 1
　 2 2420P1619D2 CAPSCREW 36
LQ19H00012F1 YN55V00059F1 SWIVEL JOINT INSTAL KOBELCO SK350NLC-10 SK350DLC-10
1 YN55V00059F1 JOINT, SWIVEL 1 HC 550-00
　 2 ZM73C12025 SEMS-BOLT 3
　 2 ZM73C12030 SEMS-BOLT 3

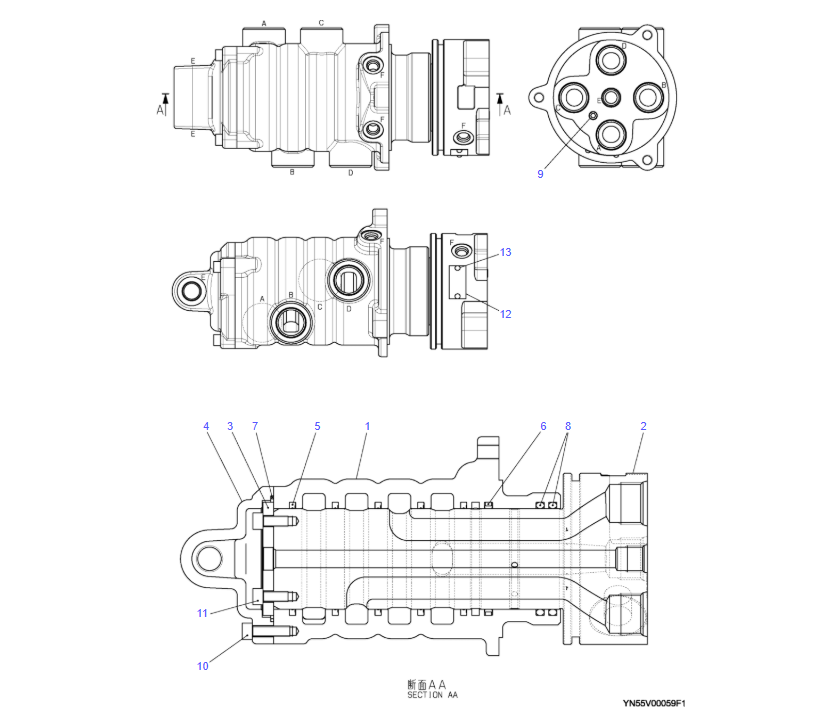

YN55V00059F1 JOINT, SWIVEL KOBELCO SK330-10 SK350LC-10
　 1 YN55V01100P1 BODY 1
　 2 YN55V01118P1 STEM 1
　 3 YN55V01115P1 PLATE 1
　 4 YN55V01102P1 COVER 1
　 5 YN55V01057P1 SEAL 5
　 6 YN55V01049P1 SEAL 1
　 7 ZD11G09500 O-RING 1
　 8 ZD12P08000 O-RING 2
　 9 PV52D01007P1 PLUG 1
　 10 ZS23C08030 CAPSCREW 3
　 11 ZS23C08020 CAPSCREW 2
　 12 YN22T00194P1 NAME PLATE 1
　 13 2420Z1036D3 CLEVIS 2

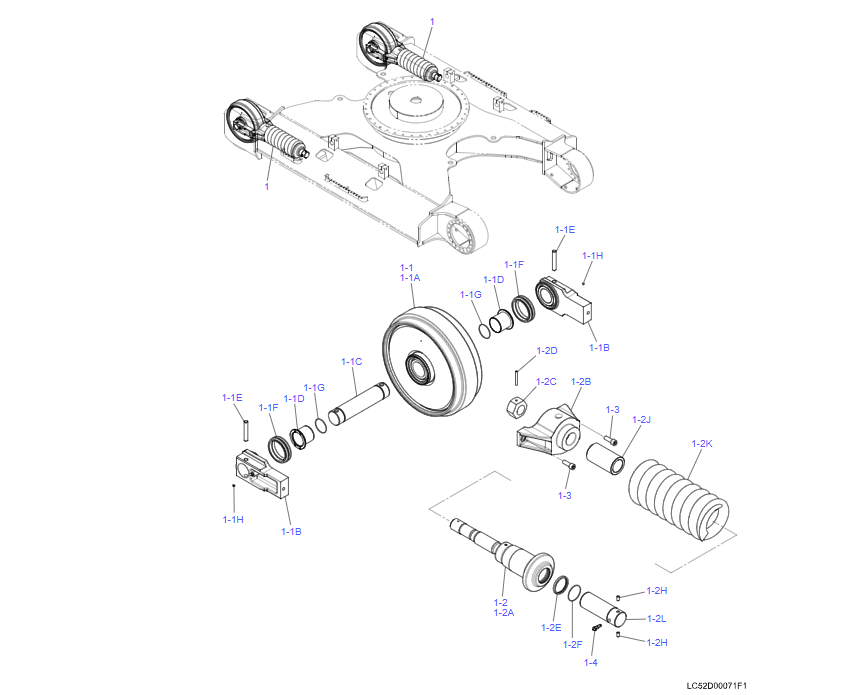

LC52D00071F1 LC52D00089F1 LC52D00096F1 LC54D00020F1 CRAWLER IDLER ASSY KOBELCO SK330-10 SK350LC-10
　 .
　 1 LC52D00096F1 IDLER ASSY, CRAWLER 2
　 1-1 LC52D00089F1 IDLER ASSY 1
　 1-1A LC52D00033P2 IDLER 1
　 1-1B LC52D01017P3 COLLAR 2
　 1-1C LC52D01031P2 SHAFT 1
　 1-1D LC52D01019P1 BUSHING 2
　 1-1E LC52D01004P1 PIN 2
　 1-1F LC52D01021P1 SEAL, FLOATING 2
　 1-1G ZD11G08000 O-RING 2
　 1-1H ZE82T02000 PLUG 2
　 1-2 LC54D00020F1 IDLER ADJUST ASSY 1
　 1-2A LC70V00004P2 CYLINDER, GREASE 1
　 1-2B LC54D01036P1 BRACKET 1
　 1-2C LC54D01003P1 NUT 1
　 1-2D ZP26D10090 SPRING PIN 1
　 1-2E 2445Z1034 U-PACKING 1
　 1-2F ZD12G09000 O-RING 1
　 1-2H LQ54D01037P1 PIN 2
　 1-2J LC54D01035P1 COLLAR 1
　 1-2K LC54D01047P1 SPRING 1
　 1-2L LQ01V01045P1 PISTON 1
　 1-3 ZS23C20055 CAPSCREW 2
　 1-4 2444P803 NIPPLE 1

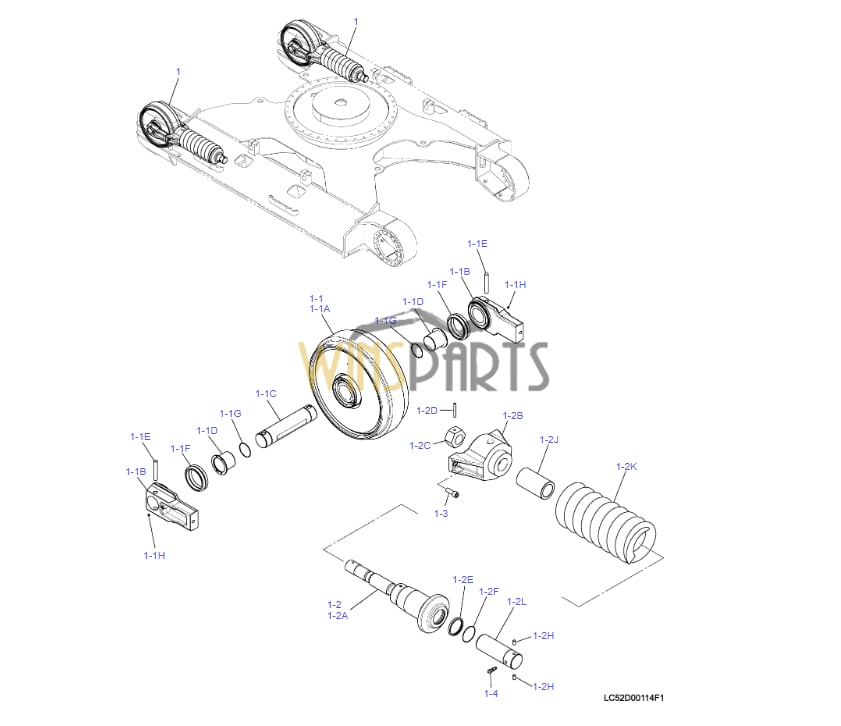

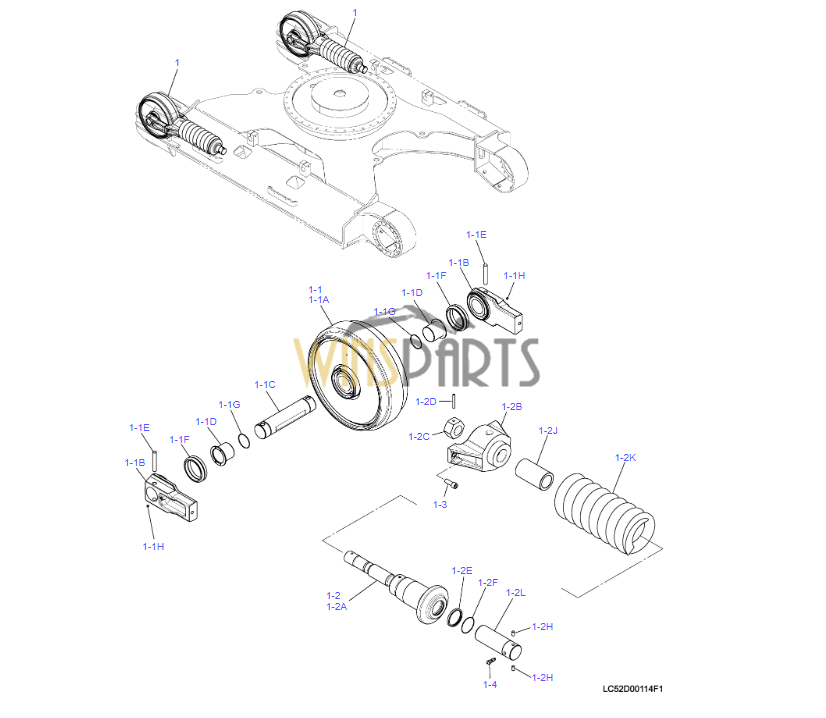

LC52D00114F1 LC52D00115F1 LC52D00116F1 IDLER ASSY, CRAWLER
　 .
　 1 LC52D00115F1 IDLER ASSY, CRAWLER 2
　 1-1 LC52D00116F1 IDLER ASSY 1
　 1-1A LC52D00117P1 IDLER 1
　 1-1B LC52D01040P1 COLLAR 2
　 1-1C LC52D01041P1 SHAFT 1
　 1-1D LC52D01019P1 BUSHING 2
　 1-1E LC52D01004P1 PIN 2
　 1-1F LC52D01021P1 SEAL, FLOATING 2
　 1-1G ZD11G08000 O-RING 2
　 1-1H ZE82T02000 PLUG 2
　 1-2 LC54D00020F1 IDLER ADJUST ASSY 1
　 1-2A LC70V00004P2 CYLINDER, GREASE 1
　 1-2B LC54D01036P1 BRACKET 1
　 1-2C LC54D01003P1 NUT 1
　 1-2D ZP26D10090 SPRING PIN 1
　 1-2E 2445Z1034 U-PACKING 1
　 1-2F ZD12G09000 O-RING 1
　 1-2H LQ54D01037P1 PIN 2
　 1-2J LC54D01035P1 COLLAR 1
　 1-2K LC54D01047P1 SPRING 1
　 1-2L LQ01V01045P1 PISTON 1
　 1-3 ZS23C20055 CAPSCREW 2
　 1-4 2444P803 NIPPLE 1
LC52D00098F1 LC52D00101F1 LC52D00089F1 IDLER ASSY, CRAWLER
　 1 LC52D00101F1 IDLER ASSY, CRAWLER YC14-14029-
　 1-1 LC52D00089F1 IDLER ASSY 1
　 1-1A LC52D00033P2 IDLER 1
　 1-1B LC52D01017P3 COLLAR 2
　 1-1C LC52D01031P2 SHAFT 1
　 1-1D LC52D01019P1 BUSHING 2
　 1-1E LC52D01004P1 PIN 2
　 1-1F LC52D01021P1 SEAL, FLOATING 2
　 1-1G ZD11G08000 O-RING 2
　 1-1H ZE82T02000 PLUG 2
　 1 LC52D00099F1 IDLER ASSY, CRAWLER 2 YC14-14001–14028
　 1-1 LC52D00053F1 IDLER ASSY 1
　 1-1A LC52D00033P1 IDLER 1
　 1-1B LC52D01017P2 COLLAR 2
　 1-1C LC52D01031P1 SHAFT 1
　 1-1D LC52D01019P1 BUSHING 2
　 1-1E LC52D01004P1 PIN 2
　 1-1F LC52D01021P1 SEAL, FLOATING 2
　 1-1G ZD11G08000 O-RING 2
　 1-1H ZE82T02000 PLUG 2
　 1-2 LC54D00020F2 IDLER ADJUST ASSY 1
　 1-2A LC70V00004P2 CYLINDER, GREASE 1
　 1-2B LC54D01036P1 BRACKET 1
　 1-2C LC54D01003P1 NUT 1
　 1-2D ZP26D10090 SPRING PIN 1
　 1-2E 2445Z1034 U-PACKING 1
　 1-2F ZD12G09000 O-RING 1
　 1-2H LQ54D01037P1 PIN 2
　 1-2J LC54D01035P1 COLLAR 1
　 1-2L LQ01V01045P1 PISTON 1
　 1-2M LC54D01063P1 SPRING 1
　 1-3 ZS23C20055 CAPSCREW 2
　 1-4 2444P803 NIPPLE 1

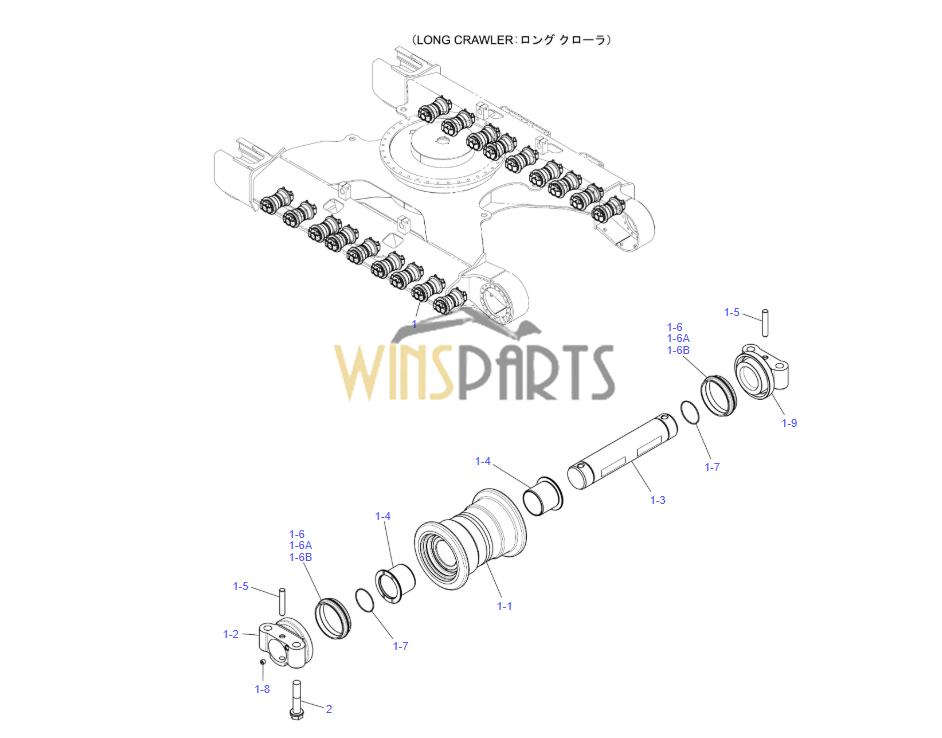

LC64D00030F1 LC64D00032F1 LC64D01029P1 LOW ROLLER ASSY, TRACK KOBELCO SK330-10 SK350LC-10
　 1 LC64D00032F1 ROLLER, TRACK, LOW 18
　 1-1 LC64D01029P1 ROLLER 1
　 1-2 LC64D01031P1 COLLAR 1
　 1-3 LC64D01030P1 SHAFT 1
　 1-4 LC64D01033P1 BUSHING 2
　 1-5 LC64D01034P1 PIN 2
　 1-6 2445R442F1 SEAL, FLOATING 2
　 1-6A 2445R442S1 SEAL 2
　 1-6B 2445R442S2 O-RING 2
　 1-7 ZD11G07000 O-RING 2
　 1-8 YN55V01090P1 PLUG 1
　 1-9 LC64D01032P1 COLLAR 1
　 2 2420P1615D7 CAPSCREW 72

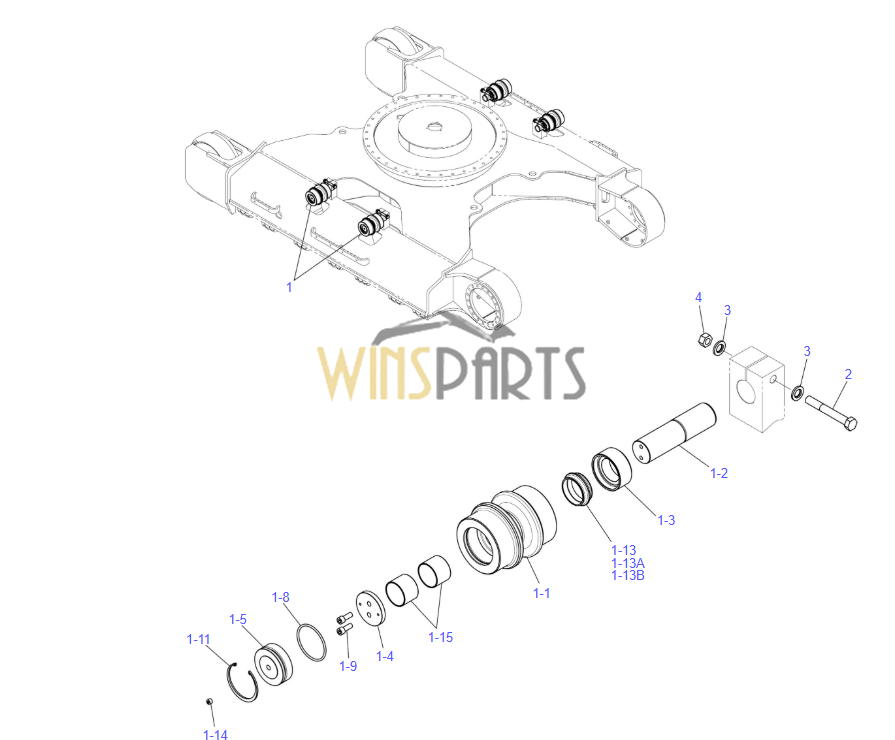

LC64D00003F1 24100N7035F3 UPP ROLLER ASSY KOBELCO SK350NLC-10 SK350DLC-10
　 .
　 1 24100N7035F3 ROLLER ASSY 4
　 1-1 2413N490 ROLLER 1
　 1-2 2410P815 SHAFT 1
　 1-3 2418P25285 COLLAR 1
　 1-4 2418T22934 PLATE 1
　 1-5 2414P10930 COVER 1
　 1-8 ZD11P09500 O-RING 1
　 1-9 ZS23C12030 CAPSCREW 2
　 1-11 ZR26X10500 RING, SNAP 1
　 1-13 2445R440F1 SEAL, FLOATING 1
　 1-13A 2445R440S1 SEAL 2
　 1-13B 2445R440S2 O-RING 2
　 1-14 YN55V01090P1 PLUG 1
　 1-15 LS64D01012P1 BUSHING 2
　 2 ZS13C20150 CAPSCREW 4
　 3 ZW13H20000 WASHER 8
　 4 ZN13C20016 NUT 4

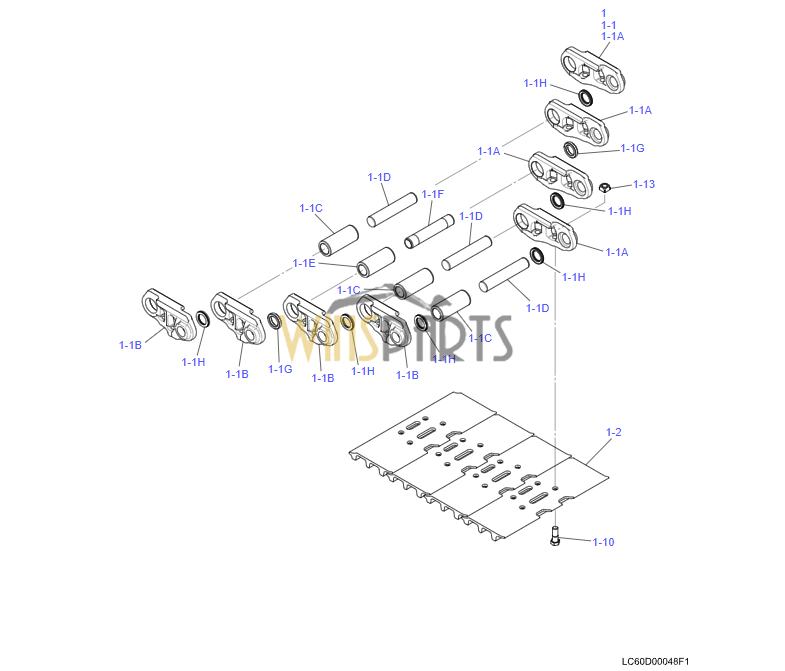

LC60D00048F1 LC60D00049F1 CRAWLER SHOE TRACK LINK ASSY KOBELCO SK330-10 SK350LC-10
　 1 LC60D00049F1 SHOE ASSY 2 YC14-14001–14314
　 1-1 LC62D00013F2 TRACK LINK ASSY 1
　 1-1A LC62D00002P1 LINK 48
　 1-1B LC62D00003P1 LINK 48
　 1-1C LC62D01004P1 BUSHING 46
　 1-1D LC62D01030P1 PIN 46
　 1-1E 2405P520 BUSHING 2
　 1-1F LC62D01027P1 PIN 2
　 1-1G 2418T23160 COLLAR 4
　 1-1H LC62D01005P1 SEAL 92
　 1-2 2424N222 SHOE 48
　 1-10 LC60D01001P1 BOLT 192
　 1-13 2420Z1414 NUT 192
　 1 LC60D00076F1 SHOE ASSY 2 YC14-14315-
　 1-1 LC62D00013F2 TRACK LINK ASSY 1
　 1-1A LC62D00002P1 LINK 48
　 1-1B LC62D00003P1 LINK 48
　 1-1C LC62D01004P1 BUSHING 46
　 1-1D LC62D01030P1 PIN 46
　 1-1E 2405P520 BUSHING 2
　 1-1F LC62D01027P1 PIN 2
　 1-1G 2418T23160 COLLAR 4
　 1-1H LC62D01005P1 SEAL 92
　 1-2 2424N222 SHOE 48
　 1-10 LC60D01026P1 BOLT 192
　 1-13 2420Z1414 NUT 192

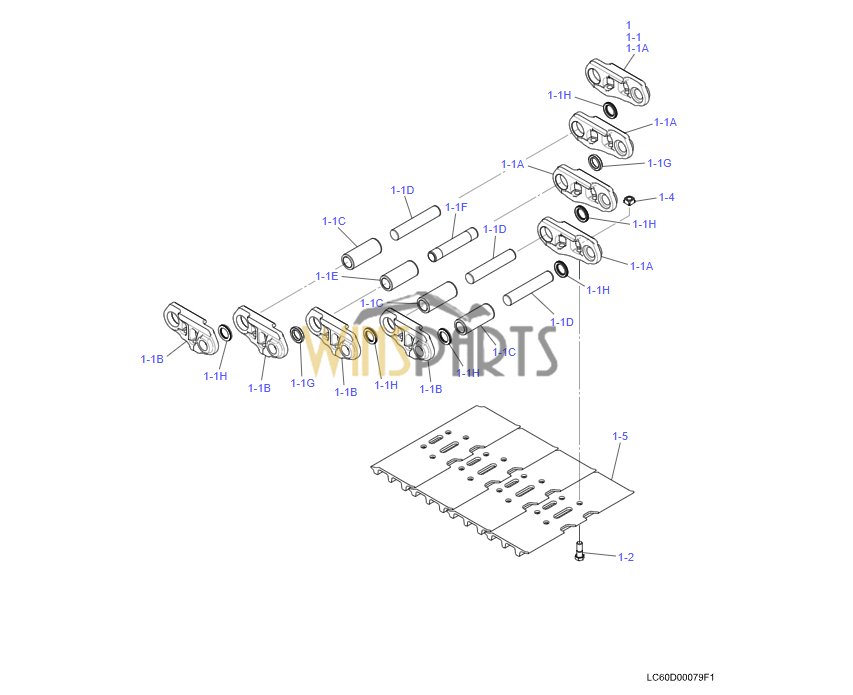

LC60D00079F1 LC62D00014F1 LC60D00080F1 SHOE ASSY 600mm t=11
　 1 LC60D00080F1 SHOE ASSY 2
　 1-1 LC62D00014F1 TRACK LINK ASSY 1
　 1-1A LC62D00002P1 LINK 45
　 1-1B LC62D00003P1 LINK 45
　 1-1C LC62D01004P1 BUSHING 44
　 1-1D LC62D01030P1 PIN 44
　 1-1E 2405P520 BUSHING 1
　 1-1F LC62D01027P1 PIN 1
　 1-1G 2418T23160 COLLAR 2
　 1-1H LC62D01005P1 SEAL 88
　 1-2 LC60D01026P1 BOLT 180
　 1-4 2420Z1414 NUT 180
　 1-5 2424N222 SHOE 45

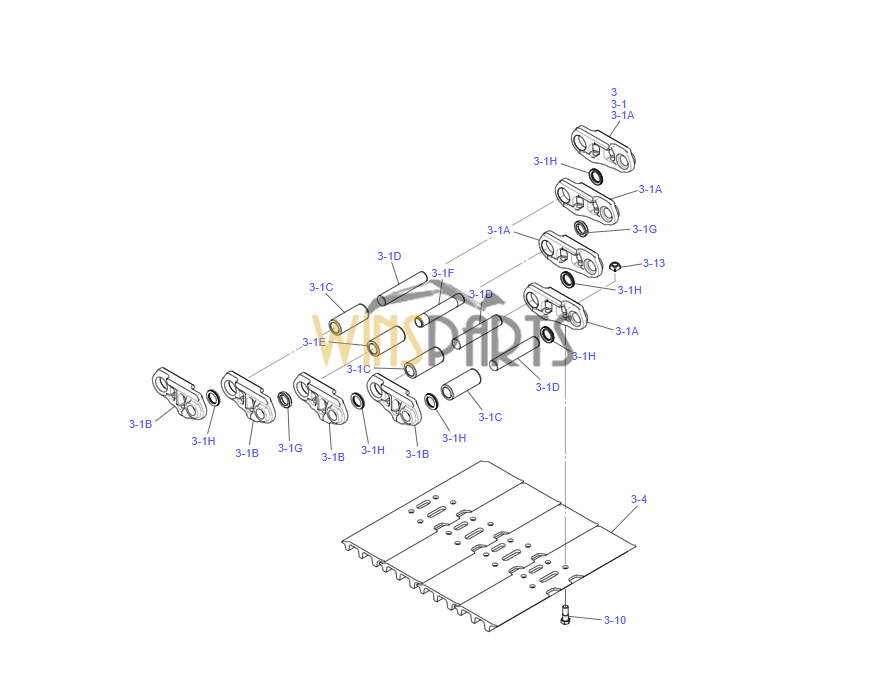

LC60D00046F1 LC60D00047F1 LC60D00049F3 SHOE ASSY
　 1 LC60D00047F1 SHOE ASSY 2 LC14-T1101–T1256
　 . LC14405001–05017
　 1-1 LC62D00013F1 TRACK LINK ASSY 1
　 1-1A LC62D00002P1 LINK 45
　 1-1B LC62D00003P1 LINK 45
　 1-1C LC62D01004P1 BUSHING 43
　 1-1D LC62D01030P1 PIN 43
　 1-1E 2405P520 BUSHING 2
　 1-1F LC62D01027P1 PIN 2
　 1-1G 2418T23160 COLLAR 4
　 1-1H LC62D01005P1 SEAL 86
　 1-2 2424N222 SHOE 45
　 1-3 LC60D01001P1 BOLT 180
　 1-4 2420Z1414 NUT 180
　 1 LC60D00075F1 SHOE ASSY 2 LC14405018-
　 1-1 LC62D00013F1 TRACK LINK ASSY 1

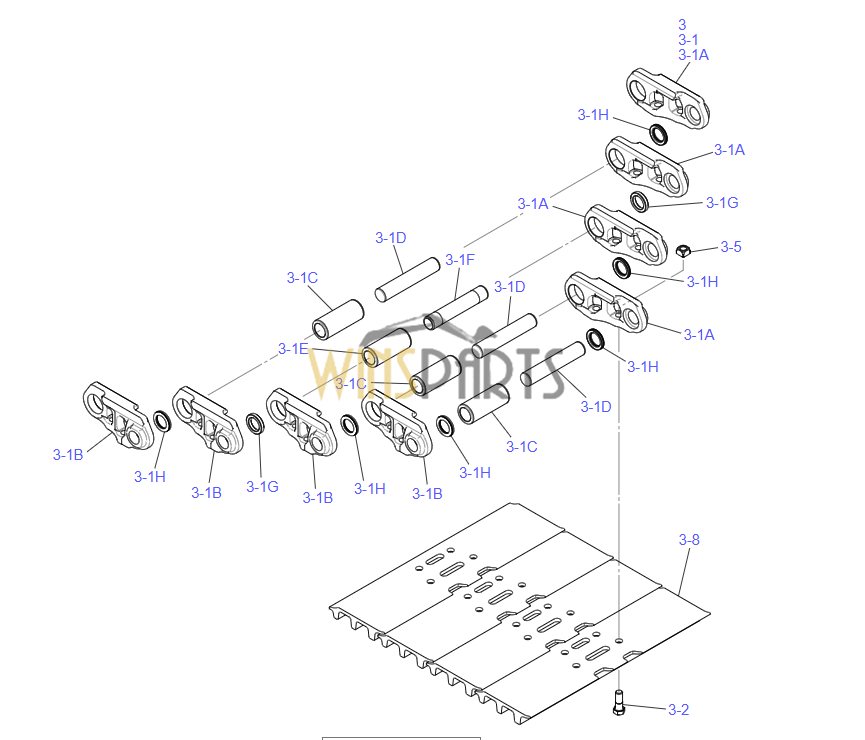

LC60D00048F3 SHOE ASSY Not Service
　 . (LONG CRAWLER 800mm t=13)
　 .
　 3 LC60D00049F3 SHOE ASSY 2 YC14-14001–14405
　 3-1 LC62D00013F2 TRACK LINK ASSY 1
　 3-1A LC62D00002P1 LINK 48
　 3-1B LC62D00003P1 LINK 48
　 3-1C LC62D01004P1 BUSHING 46
　 3-1D LC62D01030P1 PIN 46
　 3-1E 2405P520 BUSHING 2
　 3-1F LC62D01027P1 PIN 2
　 3-1G 2418T23160 COLLAR 4
　 3-1H LC62D01005P1 SEAL 92
　 3-4 2424N223 SHOE 48
　 3-10 LC60D01001P1 BOLT 192
　 3-13 2420Z1414 NUT 192
　 3 LC60D00076F3 SHOE ASSY 2 YC14-14406-
　 3-1 LC62D00013F2 TRACK LINK ASSY 1
　 3-1A LC62D00002P1 LINK 48
　 3-1B LC62D00003P1 LINK 48
　 3-1C LC62D01004P1 BUSHING 46
　 3-1D LC62D01030P1 PIN 46
　 3-1E 2405P520 BUSHING 2
　 3-1F LC62D01027P1 PIN 2
　 3-1G 2418T23160 COLLAR 4
　 3-1H LC62D01005P1 SEAL 92
　 3-4 2424N223 SHOE 48
　 3-10 LC60D01026P1 BOLT 192
　 3-13 2420Z1414 NUT 192

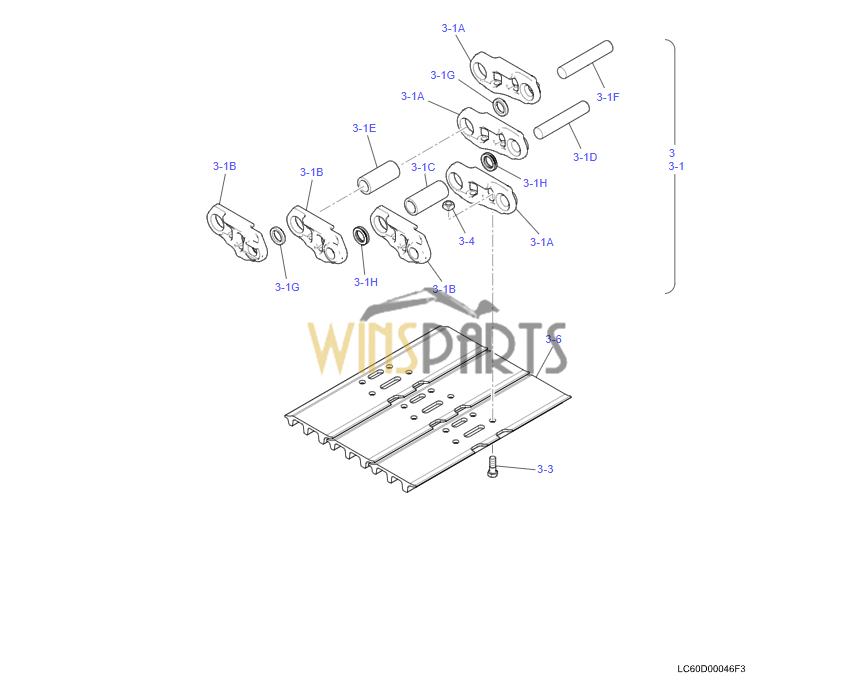

LC60D00046F3 LC60D00049F4 LC60D00049F8 SHOE ASSY KOBELCO SK330-10 SK350LC-10
　 3 LC60D00047F3 SHOE ASSY 2 LC14-T1101–T1256
　 3-1 LC62D00013F1 TRACK LINK ASSY 1
　 3-1A LC62D00002P1 LINK 45
　 3-1B LC62D00003P1 LINK 45
　 3-1C LC62D01004P1 BUSHING 43
　 3-1D LC62D01030P1 PIN 43
　 3-1E 2405P520 BUSHING 2
　 3-1F LC62D01027P1 PIN 2
　 3-1G 2418T23160 COLLAR 4
　 3-1H LC62D01005P1 SEAL 86
　 3-3 LC60D01001P1 BOLT 180
　 3-4 2420Z1414 NUT 180
　 3-6 2424N223 SHOE 45
　 3 LC60D00075F3 SHOE ASSY 2 LC14405001-
　 3-1 LC62D00013F1 TRACK LINK ASSY 1
　 3-1A LC62D00002P1 LINK 45
　 3-1B LC62D00003P1 LINK 45
　 3-1C LC62D01004P1 BUSHING 43
　 3-1D LC62D01030P1 PIN 43
　 3-1E 2405P520 BUSHING 2
　 3-1F LC62D01027P1 PIN 2
　 3-1G 2418T23160 COLLAR 4
　 3-1H LC62D01005P1 SEAL 86
　 3-3 LC60D01026P1 BOLT 180
　 3-4 2420Z1414 NUT 180
　 3-6 2424N223 SHOE 45
LC60D00048F8 SHOE ASSY
　 8 LC60D00049F8 SHOE ASSY 2 YC14-14001–14354
　 8-1 LC62D00013F2 TRACK LINK ASSY 1
　 8-1A LC62D00002P1 LINK 48
　 8-1B LC62D00003P1 LINK 48
　 8-1C LC62D01004P1 BUSHING 46
　 8-1D LC62D01030P1 PIN 46
　 8-1E 2405P520 BUSHING 2
　 8-1F LC62D01027P1 PIN 2
　 8-1G 2418T23160 COLLAR 4
　 8-1H LC62D01005P1 SEAL 92
　 8-9 LC60D00006P1 SHOE 48
　 8-10 LC60D01001P1 BOLT 192
　 8-13 2420Z1414 NUT 192
　 8 LC60D00076F8 SHOE ASSY 2 YC14-14355-
　 8-1 LC62D00013F2 TRACK LINK ASSY 1
　 8-1A LC62D00002P1 LINK 48
　 8-1B LC62D00003P1 LINK 48
　 8-1C LC62D01004P1 BUSHING 46
　 8-1D LC62D01030P1 PIN 46
　 8-1E 2405P520 BUSHING 2
　 8-1F LC62D01027P1 PIN 2
　 8-1G 2418T23160 COLLAR 4
　 8-1H LC62D01005P1 SEAL 92
　 8-9 LC60D00006P1 SHOE 48
　 8-10 LC60D01026P1 BOLT 192
　 8-13 2420Z1414 NUT 192
LC60D00048F4 SHOE ASSY
　 4 LC60D00049F4 SHOE ASSY 2 YC14-14001–14420
　 4-1 LC62D00013F2 TRACK LINK ASSY 1
　 4-1A LC62D00002P1 LINK 48
　 4-1B LC62D00003P1 LINK 48
　 4-1C LC62D01004P1 BUSHING 46
　 4-1D LC62D01030P1 PIN 46
　 4-1E 2405P520 BUSHING 2
　 4-1F LC62D01027P1 PIN 2
　 4-1G 2418T23160 COLLAR 4
　 4-1H LC62D01005P1 SEAL 92
　 4-5 LC60D00018P1 SHOE 48
　 4-10 LC60D01001P1 BOLT 192
　 4-13 2420Z1414 NUT 192
　 4 LC60D00076F4 SHOE ASSY 2 YC14-14421-
　 4-1 LC62D00013F2 TRACK LINK ASSY 1
　 4-1A LC62D00002P1 LINK 48
　 4-1B LC62D00003P1 LINK 48
　 4-1C LC62D01004P1 BUSHING 46
　 4-1D LC62D01030P1 PIN 46
　 4-1E 2405P520 BUSHING 2
　 4-1F LC62D01027P1 PIN 2
　 4-1G 2418T23160 COLLAR 4
　 4-1H LC62D01005P1 SEAL 92
　 4-5 LC60D00018P1 SHOE 48
　 4-10 LC60D01026P1 BOLT 192
　 4-13 2420Z1414 NUT 192
LC60D00081F3 TRACK LINK ASSY LONG CRAWLER 800mm KOBELCO SK350NLC-10 SK350DLC-10
　 3 LC60D00082F3 SHOE ASSY 2
　 3-1 LC62D00014F2 TRACK LINK ASSY 1
　 3-1A LC62D00002P1 LINK 48
　 3-1B LC62D00003P1 LINK 48
　 3-1C LC62D01004P1 BUSHING 47
　 3-1D LC62D01030P1 PIN 47
　 3-1E 2405P520 BUSHING 1
　 3-1F LC62D01027P1 PIN 1
　 3-1G 2418T23160 COLLAR 2
　 3-1H LC62D01005P1 SEAL 94
　 3-2 LC60D01026P1 BOLT 192
　 3-5 2420Z1414 NUT 192
　 3-8 2424N223 SHOE 48
LC60D00048FA LC60D00049FA LC62D00013F2 LC60D00076FA SHOE ASSY Not Service
　 . (LONG CRAWLER 600mm t=15.7)
　 .
　 10 LC60D00049FA SHOE ASSY 2 YC14-14001–14420
　 10-1 LC62D00013F2 TRACK LINK ASSY 1
　 10-1A LC62D00002P1 LINK 48
　 10-1B LC62D00003P1 LINK 48
　 10-1C LC62D01004P1 BUSHING 46
　 10-1D LC62D01030P1 PIN 46
　 10-1E 2405P520 BUSHING 2
　 10-1F LC62D01027P1 PIN 2
　 10-1G 2418T23160 COLLAR 4
　 10-1H LC62D01005P1 SEAL 92
　 10-11 LC60D01003P1 BOLT 192
　 10-13 2420Z1414 NUT 192
　 10-15 LC60D00009P1 SHOE 48
　 10 LC60D00076FA SHOE ASSY 2 YC14-14421-
　 10-1 LC62D00013F2 TRACK LINK ASSY 1
　 10-1A LC62D00002P1 LINK 48
　 10-1B LC62D00003P1 LINK 48
　 10-1C LC62D01004P1 BUSHING 46
　 10-1D LC62D01030P1 PIN 46
　 10-1E 2405P520 BUSHING 2
　 10-1F LC62D01027P1 PIN 2
　 10-1G 2418T23160 COLLAR 4
　 10-1H LC62D01005P1 SEAL 92
　 10-11 LC60D01027P1 BOLT 192
　 10-13 2420Z1414 NUT 192
　 10-15 LC60D00009P1 SHOE 48

Related Posts
