YN02B00363F1 BOOM PIN Kobelco SK200-8 SK210LC-8 . 1 YN02B01719P1 PIN 1 2 HS18C20175G2 CAPSCREW 1 YQ12T00874--T00944 2 YN02B02491P1 CAPSCREW 1…
ATTACHMENTS KOBELCO SK130LC-11 SK140LC-11 SK125SR-5 SK130SR-7
635-00 LP02B00099F1 BOOM, HOE 4.68M
635-00 LP02B00147F1 BOOM, HOE 4.68M(NIBBLER & BREAKER, ELECTROMAGNETIC RELIEF)
635-00 LP02B00167F1 BOOM, HOE 4.68M(NIBBLER & BREAKER, ELECTROMAGNETIC RELIEF)
640-00 LP02B00119F1 BOOM GROUP
640-00 LP02B00125F1 BOOM GROUP

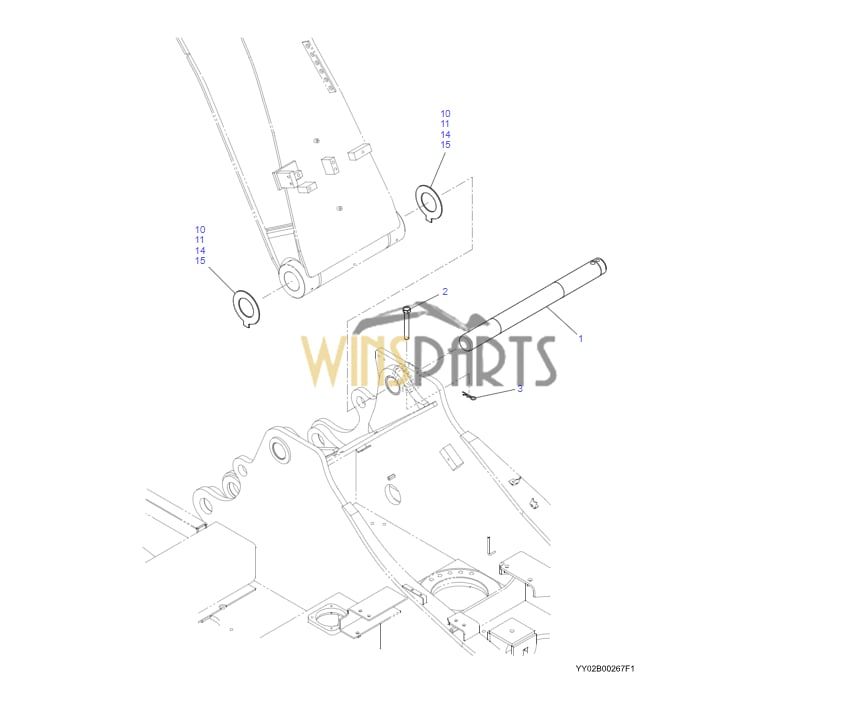

645-00 YY02B00267F1 BOOM INSTAL
655-00 LP02B00097F1 CYLINDER INSTAL(BOOM)
655-01 LP02B00064F1 CYLINDER INSTAL
HC655-00 YY01V00102F1 CYLINDER, BOOM
655-00 YY02B00488F1 CYLINDER INSTAL(ARM)
660-01 YY02B00397F1 CYLINDER INSTAL
HC660-00 YY01V00103F1 CYLINDER, ARM
665-00 LP42H00094F1 HYD LINES, BOOM 4.68M(NIBBLER & BREAKER)
665-00 LP42H00142F1 HYD LINES, BOOM 4.68M(NIBBLER & BREAKER)
665-00 LP42H00159F1 HYD LINES, BOOM 4.68M(NIBBLER & BREAKER)
665-01 LP42H00095F1 HYD LINES, BOOM
665-01 LP42H00143F1 HYD LINES, BOOM
665-01 LP42H00160F1 HYD LINES, BOOM
665-02 LP42H00096F1 HYD LINES, BOOM
665-00 LP42H00106F1 HYD LINES, BOOM 4.68M(ROTARY)
665-01 LP42H00099F1 HYD LINES, BOOM
665-02 LP42H00107F1 HYD LINES, BOOM
675-00 YY42H00662F1 HYD LINES, CYLINDER(BOOM)
675-01 YY42H00646F1 HYD LINES, CYLINDER
675-02 YY42H00443F1 HYD LINES, CYLINDER
676-03 YY42H00131F1 HYD LINES, CYLINDER
675-00 YY42H00663F1 HYD LINES, CYLINDER(ARM)
680-01 YY42H00142F1 HYD LINES, CYLINDER
675-02 YY42H00672F1 HYD LINES, CYLINDER
675-03 YY02B02089F1 CAP ASSY
685-00 LP15E00009F1 HARNESS ASSY, BOOM(2LED LIGHT)
685-00 LP15E00014F1 HARNESS ASSY, BOOM
690-00 LP80E00005F1 LIGHT INSTAL, BOOM(2LED LIGHT)
695-00 YY12B00933F1 ARM, 2.38M(NIBBLER & BREAKER)
695-00 YY12B00937F1 ARM, 2.38M(ROTARY NIBBLER & BREAKER)
695-00 YY12B00940F1 ARM, LONG 2.84M(NIBBLER & BREAKER + ROTARY)
695-00 YY12B00925F1 ARM, LONG 2.84M
715-00 YY12B00602F1 ARM GROUP(NIBBLER & BREAKER)
715-00 YY12B00987F1 ARM GROUP
720-00 YY12B00620F1 ARM INSTAL
720-01 YY12B00621F1 ARM INSTAL
720-02 YY12B00616F1 ARM INSTAL
730-00 YY12B00864F1 CYLINDER INSTAL(BUCKET)
730-01 YY12B00238F1 CYLINDER INSTAL
HC730-00 YY01V00104F1 CYLINDER, BUCKET
735-00 YY43H00300F1 HYD LINES, CYLINDER(BUCKET)
740-00 YY43H00087F1 HYD LINES, ARM 2.38M(BUCKET)
740-00 YY43H00336F1 HYD LINES, ARM 2.38M(NIBBLER & BREAKER)
740-00 YY43H00347F1 HYD LINES, ARM 2.38M(ROTARY NIBBLER & BREAKER)
741-02 YY43H00341F1 HYD LINES, ARM
740-00 YY43H00117F1 HYD LINES, ARM 2.84M(BUCKET)
740-00 YY43H00335F1 HYD LINES, ARM 2.84M(NIBBLER & BREAKER)
740-00 YY43H00348F1 HYD LINES, ARM 2.84M(NIBBLER & BREAKER + ROTARY)
742-02 YY43H00342F1 HYD LINES, ARM
761-00 LP61B00008F1 BUCKET INSTAL
635-00 YY02B00569F1 BOOM, HOE 4.05M(SHORT BOOM)
635-00 YY02B00562F1 BOOM, HOE 4.68M(NIBBLER & BREAKER, 1 LIGHT)
636-00 YY02B00548F1 BOOM, HOE 6.9M(40FT LONG RANGE)
640-00 YY02B00568F1 BOOM GROUP(SHORT BOOM)
640-00 YY02B00589F1 BOOM GROUP
641-00 YY02B00588F1 BOOM GROUP(40FT LONG RANGE)
645-00 YY02B00395F1 BOOM INSTAL
650-00 YY02B02138F1 CAP ASSY
650-00 YY02B02195F1 CAP ASSY(HAND HOLD LESS)
655-00 YY02B00496F1 CYLINDER INSTAL(BOOM)
655-01 YY02B00433F1 CYLINDER INSTAL
655-00 YY02B00505F1 CYLINDER INSTAL(BOOM FOR LIFTING)
655-01 YY02B00532F1 CYLINDER INSTAL
660-00 YY02B00530F1 CYLINDER INSTAL(ARM, HD)
HC660-00 YY01V00106F1 CYLINDER, ARM
660-00 YY02B00294F1 CYLINDER INSTAL(LONG RANGE)
660-01 YY02B00054F2 CYLINDER INSTAL
HC660-00 YY01V00003F5 CYLINDER, ARM
665-00 YY42H00699F1 HYD LINES, BOOM 4.05M(SHORT BOOM NIBBLER & BREAKER)
665-01 YY42H00700F1 HYD LINES, BOOM
665-02 YY42H00701F1 HYD LINES, BOOM
665-00 YY42H00673F1 HYD LINES, BOOM 4.68M
665-01 YY42H00653F1 HYD LINES, BOOM
667-01 YY42H00376F1 HYD LINES, BOOM
665-00 YY42H00652F1 HYD LINES, BOOM 4.68M(NIBBLER & BREAKER)
665-02 YY42H00654F1 HYD LINES, BOOM
665-00 YY42H00674F1 HYD LINES, BOOM 4.68M(ROTARY)
665-01 YY42H00656F1 HYD LINES, BOOM
665-02 YY42H00675F1 HYD LINES, BOOM
667-00 YY42H00755F1 HYD LINES, BOOM 6.9M(40FT LONG RANGE)
675-00 YY42H00705F1 HYD LINES, CYLINDER(BOOM SAFETY)
675-03 YY42H00647F1 HYD LINES, CYLINDER
HC675-03 YB28V00011F2 VALVE ASSY, HOLDING
HC675-03 YY28V00008F2 VALVE ASSY, HOLDING
682-00 YY42H00694F1 HYD LINES, CYLINDER[ARM(SHORT BOOM)]
682-01 YY42H00283F1 HYD LINES, CYLINDER
682-02 YY42H00695F1 HYD LINES, CYLINDER
675-00 YY42H00651F1 HYD LINES, CYLINDER(HIGH REACH BOOM SAFETY)
676-02 YY42H00604F1 HYD LINES, CYLINDER
676-00 YY42H00758F1 HYD LINES, CYLINDER(40FT LONG RANGE, ARM, SAFETY)
682-01 YY42H00176F1 HYD LINES, CYLINDER
676-02 YY42H00759F1 HYD LINES, CYLINDER
HC680-02 YB28V00010F2 VALVE ASSY, HOLDING
685-00 YY15E00144F1 HARNESS ASSY, BOOM(SHORT BOOM)
685-00 YY15E00142F1 HARNESS ASSY, BOOM(1LED LIGHT)
686-00 YY15E00149F1 HARNESS ASSY, BOOM(40FT LONG RANGE, 1LED LIGHT)
686-00 YY15E00150F1 HARNESS ASSY, BOOM(40FT LONG RANGE, HIGH REACH, SENSOR)
690-00 LP80E00006F1 LIGHT INSTAL, BOOM(1LED LIGHT)
690-00 YY52S00031F1 SENSOR, ANGLE(BOOM)
690-00 YY52S00070F1 SENSOR, ANGLE(ARM)
695-00 YY12B00929F1 ARM, SHORT 1.9M(SUPER SHORT)
695-00 YY12B00901F1 ARM, 2.38M
695-00 YY12B00947F1 ARM, 2.38M(HD, ROTARY NIBBLER & BREAKER)
695-00 YY12B00878F1 ARM, 2.38M(ROTARY NIBBLER & BREAKER)
696-00 YY12B00983F1 ARM, 4.85M(40FT LONG RANGE)
701-00 YY12B00894F1 ARM, LONG 2.84M(DEMOLITION)
700-00 YY12B00958F1 ARM, LONG 2.84M(NIBBLER & BREAKER)
701-00 YY12B00945F1 ARM, LONG 2.84M(GD, ROTARY NIBBLER & BREAKER)
716-00 YY12B00765F1 ARM GROUP(SUPER SHORT)
716-00 YY12B00633F1 ARM GROUP
717-00 YY12B00702F1 ARM GROUP(DEMOLITION)
718-00 YY12B00979F1 ARM GROUP(40FT LONG RANGE)
718-01 YY12B00980F1 ARM GROUP
718-02 YY12B00789F1 ARM GROUP
721-00 YY12B00248F1 ARM INSTAL(SUPER SHORT)
721-01 YY12B00237F1 ARM INSTAL
721-02 YY12B00249F1 ARM INSTAL
721-03 YY12B00250F1 ARM INSTAL
720-00 YY12B00461F1 ARM INSTAL(40FT LONG RANGE, HIGH REACH)
720-02 YY12B00460F1 ARM INSTAL
726-00 YY12B02400F1 CAP ASSY(SUPER SHORT)
725-00 YN12B02301F1 CAP ASSY(ANGLE SENSOR LESS)
725-00 YY12B02494F1 CAP ASSY(ROTARY, DRAIN LESS)
726-00 YY12B01820F1 CAP ASSY
728-00 YY12B01909F1 CAP ASSY(NIBBLER & BREAKER LESS)
725-00 YY12B02493F1 CAP ASSY(LONG ARM)
730-00 YY12B00942F1 CYLINDER INSTAL(BUCKET, HD)
HC730-00 YY01V00107F1 CYLINDER, BUCKET
730-00 YY12B00487F1 CYLINDER INSTAL(LONG RANGE)
730-01 YT12B00005F1 CYLINDER INSTAL
HC730-00 YY01V00070F1 CYLINDER, BUCKET
735-00 YY43H00337F1 HYD LINES, CYLINDER(SUPER SHORT)
735-00 YY43H00351F1 HYD LINES, CYLINDER(REINFORCED BUCKET)
742-00 YY43H00175F1 HYD LINES, ARM 1.9M(BUCKET)
743-00 YY43H00339F1 HYD LINES, ARM 1.9M(NIBBLER & BREAKER)
743-00 YY43H00027F2 HYD LINES, ARM 4.85M(40FT LONG RANGE)
762-00 YR61B00005F1 BUCKET INSTAL(LONG RANGE)
765-00 YY61B00174F1 BUCKET ASSY, 0.45M3
765-00 YY61B00158F1 BUCKET ASSY, 0.5M3
765-00 YY61B00183F1 BUCKET ASSY, 0.5M3(DEMOLITION)
765-00 YY61B00087F1 BUCKET ASSY, 0.7M3
766-00 YT61B00058F1 BUCKET ASSY, 0.22M3(40FT LONG RANGE)
.

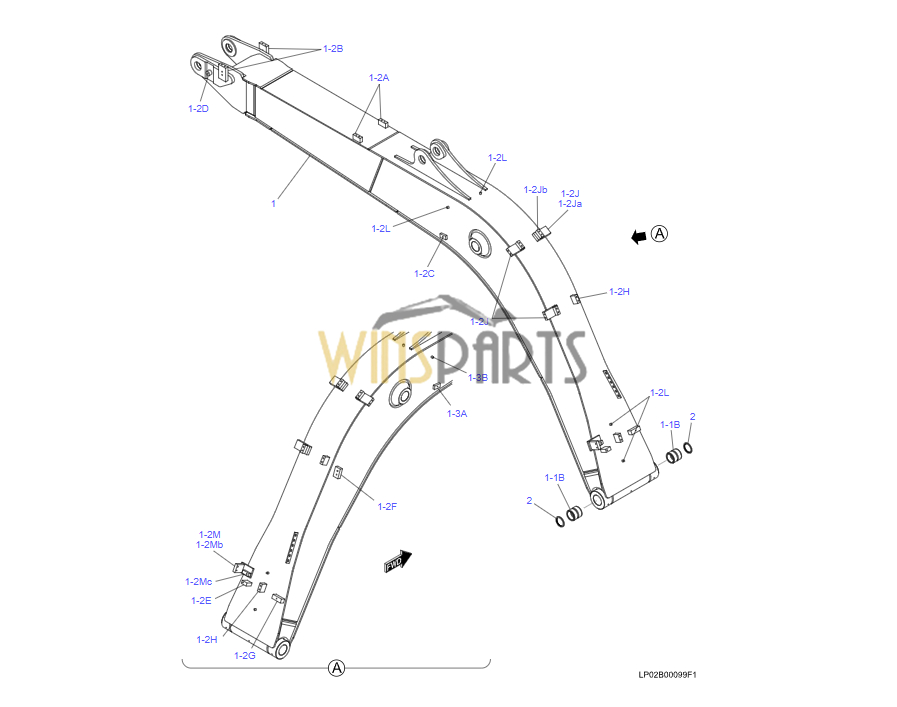

1 LP02B00105F1 BOOM, HOE 1
1-1B YY12B01449P2 BUSHING 2
1-2A YN02B01619P1 BLOCK, TAPPED 2
1-2B YN02B01622P1 BLOCK, TAPPED 2
1-2C 2416T9878 BLOCK, TAPPED 1
1-2D YN02B02302P1 BLOCK, TAPPED 1
1-2E LP02B01163P1 BLOCK, TAPPED 1
1-2F LP02B01108P1 BLOCK, TAPPED 1
1-2G LP02B01160P1 BLOCK, TAPPED 1
1-2H YY02B01525P1 BLOCK, TAPPED 2
1-2J YY02B01313P1 BRACKET 3
1-2Ja LC12B01835P1 BLOCK, TAPPED 1
1-2Jb YF02B01067P1 BLOCK, TAPPED 1
1-2L YT02B01505P1 BLOCK, TAPPED 4
1-2M LP02B01168P1 BRACKET 1
1-2Mb LP02B01170P1 BLOCK, TAPPED 1
1-2Mc LP02B01171P1 BLOCK, TAPPED 1
1-3A 2416T9878 BLOCK, TAPPED 1
1-3B YT02B01505P1 BLOCK, TAPPED 1
2 2445R138D6 SEAL, DUST 2

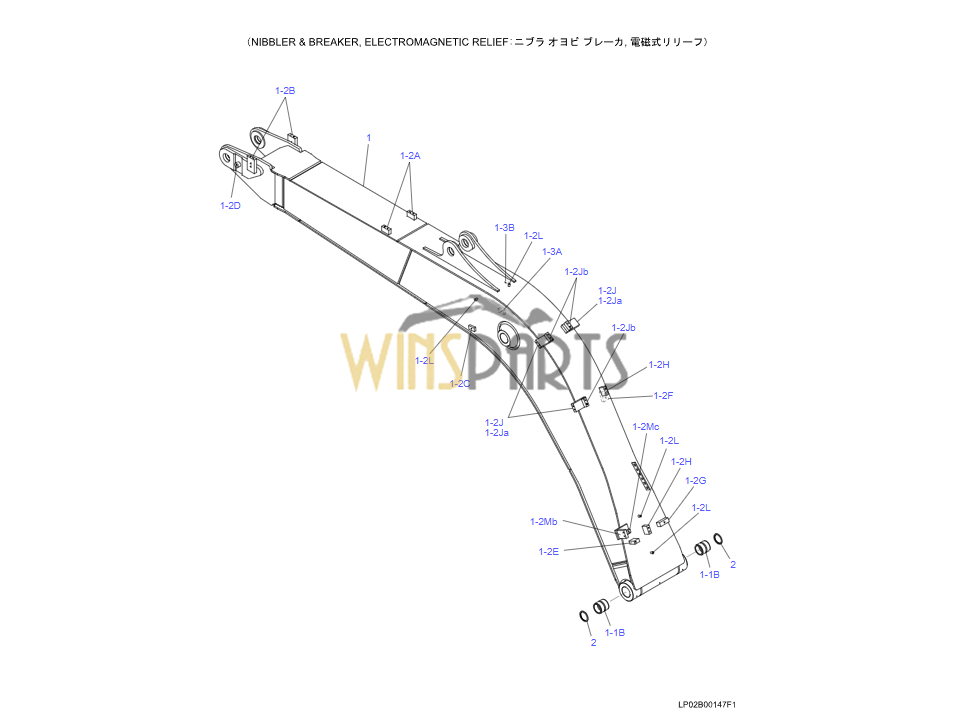

1 LP02B00148F1 BOOM, HOE 1
1-1B YY12B01449P2 BUSHING 2
1-2A YN02B01619P1 BLOCK, TAPPED 2
1-2B YN02B01622P1 BLOCK, TAPPED 2
1-2C 2416T9878 BLOCK, TAPPED 1
1-2D YN02B02302P1 BLOCK, TAPPED 1
1-2E LP02B01163P1 BLOCK, TAPPED 1
1-2F LP02B01108P1 BLOCK, TAPPED 1
1-2G LP02B01160P1 BLOCK, TAPPED 1
1-2H YY02B01525P1 BLOCK, TAPPED 2
1-2J YY02B01313P1 BRACKET 3
1-2Ja LC12B01835P1 BLOCK, TAPPED 1
1-2Jb YF02B01067P1 BLOCK, TAPPED 1
1-2L YT02B01518P1 BLOCK, TAPPED 4
1-2Mb LP02B01170P1 BLOCK, TAPPED 1
1-2Mc LP02B01171P1 BLOCK, TAPPED 1
1-3A 2416T9878 BLOCK, TAPPED 1
1-3B YT02B01518P1 BLOCK, TAPPED 1
2 2445R138D6 SEAL, DUST 2
.

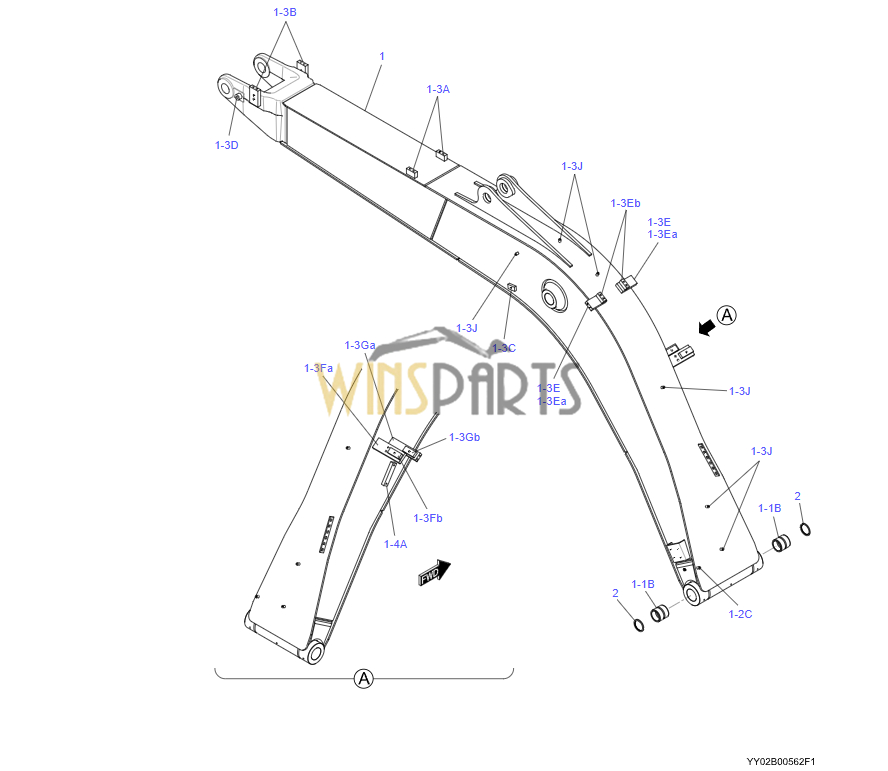

1 YY02B00563F1 BOOM, HOE 1
1-1B YY12B01449P2 BUSHING 2
1-2C YT02B01518P1 BLOCK, TAPPED 1
1-3A YN02B01619P1 BLOCK, TAPPED 2
1-3B YN02B01622P1 BLOCK, TAPPED 2
1-3C 2416T9878 BLOCK, TAPPED 1
1-3D YN02B02302P1 BLOCK, TAPPED 1
1-3E YY02B01313P1 BRACKET 2
1-3Ea LC12B01835P1 BLOCK, TAPPED 1
1-3Eb YF02B01067P1 BLOCK, TAPPED 1
1-3Fa YY02B02076P1 BLOCK, TAPPED 1
1-3Fb YT02B01357P1 BLOCK, TAPPED 1
1-3Ga YY02B02077P1 BLOCK, TAPPED 1
1-3Gb 2416T13325D1 BLOCK, TAPPED 1
1-3J YT02B01518P1 BLOCK, TAPPED 6
1-4A 2416T27178 BLOCK, TAPPED 1
2 2445R138D6 SEAL, DUST 2 LP02B00167F1 BOOM, HOE 4.68M Not Service
1 LP02B00168F1 BOOM, HOE 1
1-1B YY12B01449P2 BUSHING 2
1-2A YN02B01619P1 BLOCK, TAPPED 2
1-2B YN02B01622P1 BLOCK, TAPPED 2
1-2C 2416T9878 BLOCK, TAPPED 1
1-2D YN02B02302P1 BLOCK, TAPPED 1
1-2E LP02B01163P1 BLOCK, TAPPED 1
1-2F LP02B01108P1 BLOCK, TAPPED 1
1-2G LP02B01160P1 BLOCK, TAPPED 1
1-2H YY02B01525P1 BLOCK, TAPPED 2
1-2J YY02B01313P1 BRACKET 3
1-2Ja LC12B01835P1 BLOCK, TAPPED 1
1-2Jb YF02B01067P1 BLOCK, TAPPED 1
1-2L YT02B01518P1 BLOCK, TAPPED 4
1-2Mb LP02B01170P1 BLOCK, TAPPED 1
1-2Mc LP02B01171P1 BLOCK, TAPPED 1
1-3A 2416T9878 BLOCK, TAPPED 1
1-3B YT02B01518P1 BLOCK, TAPPED 1
2 2445R138D6 SEAL, DUST 2
.

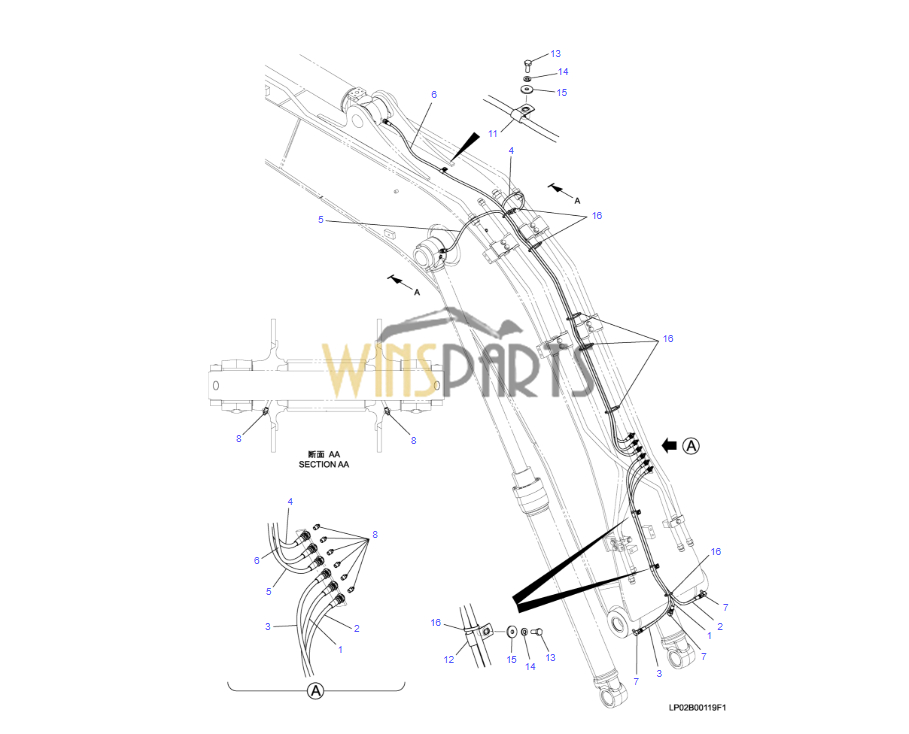

1 2444R1117D090 HOSE 1
2 2444R1117D104 HOSE 1
3 2444R1117D110 HOSE 1
4 2444R1117D190 HOSE 1
5 2444R1117D200 HOSE 1
6 2444R1117D240 HOSE 1
7 ZH32Z04002 ELBOW, 90 3
8 ZG91S02000 NIPPLE, GREASE 8
11 ZC46X10009 CLIP 1
12 ZC48X10009 CLIP 2
13 ZS18C06016 CAPSCREW 3
14 ZW26X06000 LOCK WASHER 3
15 YN20M01702P1 WASHER 3
16 PY01P01043D3 CLIP 8
LP02B00125F1 BOOM GROUP Not Service
.
1 2444R1117D090 HOSE 1
2 2444R1117D104 HOSE 1
3 2444R1117D110 HOSE 1
4 2444R1117D190 HOSE 1
5 2444R1117D200 HOSE 1
6 2444R1117D240 HOSE 1
7 ZH32Z04002 ELBOW, 90 3
8 ZG91S02000 NIPPLE, GREASE 8
9 ZC46X10009 CLIP 1
10 ZC48X10009 CLIP 2
11 PY01P01043D3 CLIP 8
12 YT02C01888P2 SEMS-BOLT 3
.

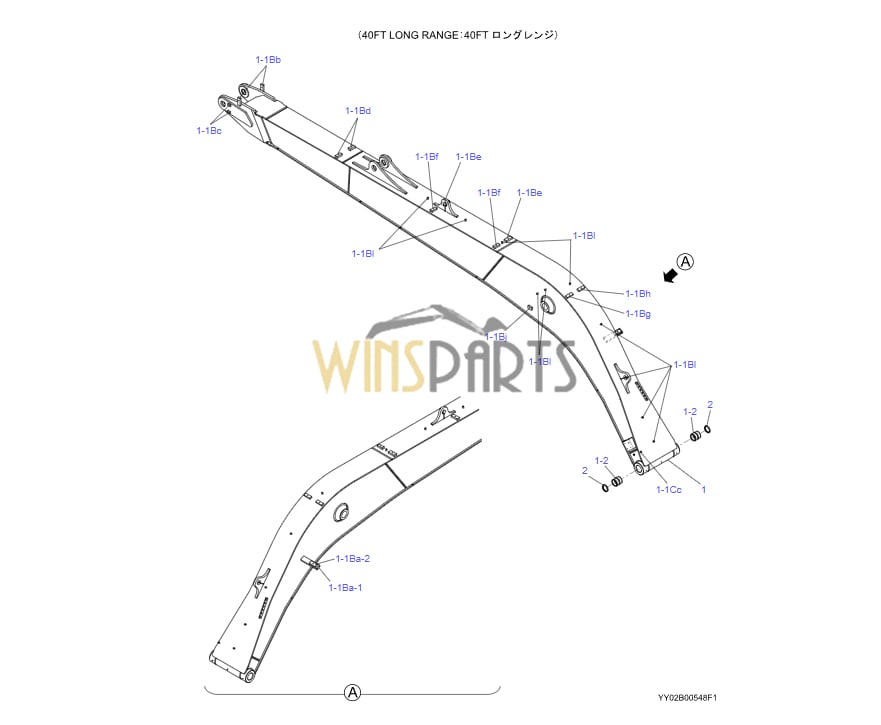

1 YY02B00549F1 BOOM, HOE 1
1-1Ba-1 YY02B02077P1 BLOCK, TAPPED 1
1-1Ba-2 2416T13325D1 BLOCK, TAPPED 1
1-1Bb 2416T23452D2 BLOCK, TAPPED 2
1-1Bc 2416T12922 BLOCK, TAPPED 2
1-1Bd 2416T7510 BLOCK, TAPPED 2
1-1Be 2416T13325D1 BLOCK, TAPPED 2
1-1Bf 2416T4723 BLOCK, TAPPED 2
1-1Bg 2416T21120D1 BLOCK, TAPPED 1
1-1Bh 2416T21120D2 BLOCK, TAPPED 1
1-1Bj 2416T9878 BLOCK, TAPPED 1
1-1Bl YT02B01518P1 BLOCK, TAPPED 10
1-1Cc YT02B01518P1 BLOCK, TAPPED 1
1-2 YY12B01449P2 BUSHING 2
2 2445R138D6 SEAL, DUST 2
.
1 2444R1117D090 HOSE 1
2 2444R1117D104 HOSE 1
3 2444R1117D110 HOSE 1
4 2444R1117D190 HOSE 1
5 2444R1117D200 HOSE 1
6 2444R1117D235 HOSE 1
7 ZH32Z04002 ELBOW, 90 3
8 ZG91S02000 NIPPLE, GREASE 8
9 ZC46X10009 CLIP 1
10 ZC48X10009 CLIP 4
11 YT02C01888P2 SEMS-BOLT 5
12 PY01P01043D3 CLIP 7
YY02B00588F1 BOOM GROUP Not Service
. (40FT LONG RANGE)
.
1 2444R1117D090 HOSE 1
2 2444R1117D104 HOSE 1
3 2444R1117D110 HOSE 1
4 2444R1117D200 HOSE 1
5 2444R1117D210 HOSE 1
6 2444R1117D445 HOSE 1
7 ZH32Z04002 ELBOW, 90 3
8 ZG91S02000 NIPPLE, GREASE 6
9 ZC48X10009 CLIP 5
10 ZC46X10009 CLIP 3
11 YT02C01888P2 SEMS-BOLT 8
12 PY01P01043D3 CLIP 8
13 YY02B01027P1 LINK 1
14 2419T4696 PIN 2
15 2419T3095 PIN 2
1 YY02B01719P1 PIN 1 .
1 YY02B01590P1 PIN 1
2 YX02B01003P2 PIN 1
3 YX02B01024P1 PIN 1
10 YY02B02031D1 SHIM (2.9) 2
11 YY02B02031D2 SHIM (3.4) 2
14 YY02B02031D5 SHIM (1.9) 2
15 YY02B02031D6 SHIM (2.4) 2
