ATTACHMENTS BOOM GROUP KOBELCO SK330-10 SK350LC-10
635-00 LC02B00447F1 BOOM, HOE 6.5M
636-00 LC02B00513F1 BOOM, HOE 6.5M(ARM SAFETY)
640-00 LC02B00411F1 BOOM GROUP
640-00 LC02B00525F1 BOOM GROUP
645-00 LC02B00403F1 BOOM INSTAL
655-00 LC02B00417F1 CYLINDER INSTAL(BOOM)
655-01 LC02B00405F1 CYLINDER INSTAL
HC655-00 LC01V00098F2 CYLINDER, BOOM
660-00 LC02B00408F1 CYLINDER INSTAL(ARM)
660-01 LC02B00409F1 CYLINDER INSTAL
HC660-00 LC01V00100F1 CYLINDER, ARM
666-00 LC42H00466F1 HYD LINES, BOOM 6.5M(NIBBLER & BREAKER)
665-01 LC42H00460F1 HYD LINES, BOOM
665-01 LC42H00654F1 HYD LINES, BOOM
666-02 LC42H00546F1 HYD LINES, BOOM
667-00 LC42H00544F1 HYD LINES, BOOM 6.5M(QUICK HITCH)
668-00 LC42H00545F1 HYD LINES, BOOM 6.5M(EXTRA + QUICK HITCH)
675-00 LC42H00505F1 HYD LINES, CYLINDER(BOOM SAFETY)
675-01 LC42H00503F1 HYD LINES, CYLINDER
675-02 LC42H00504F1 HYD LINES, CYLINDER
675-03 LC42H00513F1 HYD LINES, CYLINDER
HC675-03 YN28V00023F1 VALVE ASSY, HOLDING
680-00 LC42H00525F1 HYD LINES, CYLINDER(ARM SAFETY)
680-01 LC42H00542F1 HYD LINES, CYLINDER
HC680-02 YN28V00020F1 VALVE ASSY, HOLDING
680-02 LC42H00492F1 HYD LINES, CYLINDER
685-00 LC15E00071F1 HARNESS ASSY, BOOM
690-00 YN80E00088F1 LIGHT INSTAL, BOOM
695-00 LC12B10050F1 ARM, 3.3M
696-00 LC12B10063F1 ARM, SHORT 2.6M
715-00 LC12B10047F1 ARM GROUP(OBJECT HANDLING)
716-00 LC12B10070F1 ARM GROUP(SHORT ARM)
715-00 LC12B10047F1 ARM GROUP(OBJECT HANDLING)
715-02 LC12B00350F1 ARM GROUP
720-00 LC12B00997F1 ARM INSTAL
720-01 LC12B00998F1 ARM INSTAL
720-02 LC12B00999F1 ARM INSTAL
725-00 LQ12B11096F1 CAP ASSY(SHORT ARM)
725-00 YN12B02301F1 CAP ASSY(ARM)
727-00 YN12B11016F1 CAP ASSY(ROTARY, EXTRA )
730-00 LC12B10002F1 CYLINDER INSTAL(BUCKET)
730-01 LC12B10003F1 CYLINDER INSTAL
HC730-00 LC01V00055F4 CYLINDER, BUCKET
735-00 LC43H00277F1 HYD LINES, CYLINDER(BUCKET)
740-00 LC43H00276F1 HYD LINES, ARM 3.3M
741-00 LC43H00288F1 HYD LINES, ARM 3.3M(EXTRA + NIBBLER & BREAKER)
741-01 LC43H00273F1 HYD LINES, ARM
HC741-01 YN25V00015F1 VALVE, STOP
741-02 LC43H00295F1 HYD LINES, ARM
741-02 LC43H00307F1 HYD LINES, ARM
742-03 LC43H01313F1 PLUG ASSY
742-00 LC43H00289F1 HYD LINES, ARM 3.3M(QUICK HITCH)
740-00 LC43H00294F1 HYD LINES, ARM 2.6M
742-00 LC43H00301F1 HYD LINES, ARM 2.6M(EXTRA + NIBBLER & BREAKER)
745-01 LC43H00293F1 HYD LINES, ARM
HC741-01 YN25V00015F1 VALVE, STOP
745-02 LC43H00302F1 HYD LINES, ARM
742-03 LC43H01313F1 PLUG ASSY
742-00 LC43H00305F1 HYD LINES, ARM 2.6M(QUICK HITCH)
755-00 YN43H01646F1 CONNECTOR ASSY(NIBBLER & BREAKER)
760-00 LC61B00088F1 BUCKET INSTAL
635-00 LC02B00388F1 BOOM, HOE 6.5M
635-00 LC02B00509F1 BOOM, HOE 6.5M
635-00 LC02B00568F1 BOOM, HOE 6.5M
635-00 LC02B00605F1 BOOM, HOE 6.5M
640-00 LC02B00411F1 BOOM GROUP
640-00 LC02B00525F1 BOOM GROUP

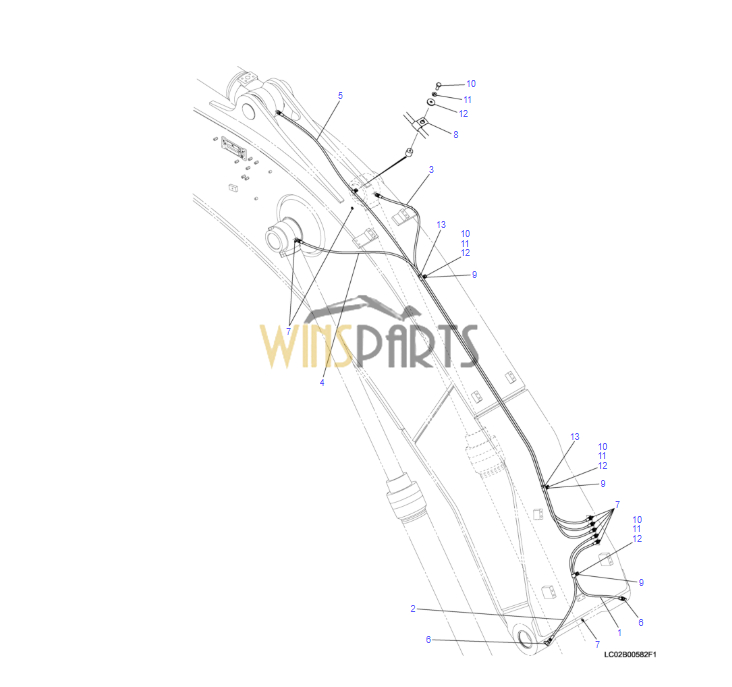

640-00 LC02B00582F1 BOOM GROUP
640-00 LC02B00607F1 BOOM GROUP
645-00 LC02B00403F1 BOOM INSTAL
645-00 LC02B00554F1 BOOM INSTAL
655-00 LC02B00417F1 CYLINDER INSTAL(BOOM)
655-01 LC02B00405F1 CYLINDER INSTAL
HC655-00 LC01V00098F2 CYLINDER, BOOM
660-00 LC02B00465F1 CYLINDER INSTAL(ARM)
660-01 LC02B00407F1 CYLINDER INSTAL
HC661-00 LC01V00054F2 CYLINDER, ARM
665-00 LC42H00459F1 HYD LINES, BOOM 6.5M
665-01 LC42H00460F1 HYD LINES, BOOM
665-01 LC42H00654F1 HYD LINES, BOOM
665-02 LC42H00461F1 HYD LINES, BOOM
666-00 LC42H00466F1 HYD LINES, BOOM 6.5M(NIBBLER & BREAKER)
665-01 LC42H00460F1 HYD LINES, BOOM
665-01 LC42H00654F1 HYD LINES, BOOM
665-02 LC42H00546F1 HYD LINES, BOOM
676-00 LC42H00502F1 HYD LINES, CYLINDER(BOOM)
675-01 LC42H00503F1 HYD LINES, CYLINDER
675-02 LC42H00504F1 HYD LINES, CYLINDER
676-03 LC42H00508F1 HYD LINES, CYLINDER
681-00 LC42H00491F1 HYD LINES, CYLINDER(ARM)
681-01 LC42H00185F1 HYD LINES, CYLINDER
680-02 LC42H00492F1 HYD LINES, CYLINDER
681-02 LC42H00682F1 HYD LINES, CYLINDER
685-00 LC15E00071F1 HARNESS ASSY, BOOM(2 LIGHT)
685-00 LC15E00147F1 HARNESS ASSY, BOOM
685-00 LC15E00157F1 HARNESS ASSY, BOOM(2 LIGHT)
685-00 YN15E00012F1 HARNESS ASSY, BOOM(BOOM CYLINDER)
686-00 YN15E00067F1 HARNESS ASSY, BOOM(BOOM CYLINDER)
690-00 LC80E00037F1 LIGHT INSTAL, BOOM
690-00 LC80E00038F1 LIGHT INSTAL
695-00 LC12B00980F1 ARM, 3.3M
695-00 LC12B10084F1 ARM, SHORT 2.6M
695-00 LC12B10171F1 ARM, SHORT 2.25M
715-00 LC12B10124F1 ARM GROUP
715-00 LC12B10123F1 ARM GROUP(ARM, SHORT 2.6M)
715-00 LC12B10124F1 ARM GROUP
715-02 LC12B00350F1 ARM GROUP
715-00 LC12B10135F1 ARM GROUP(ARM, SHORT 2.25M)
715-00 LC12B10124F1 ARM GROUP
717-01 LC12B00378F1 ARM GROUP
715-02 LC12B10182F1 ARM GROUP
720-00 LC12B00991F1 ARM INSTAL
720-01 LC12B00998F1 ARM INSTAL
720-02 LC12B00993F1 ARM INSTAL
725-00 YN12B02300F1 CAP ASSY(NIBBLER & BREAKER LESS)
725-00 YN12B02331F1 CAP ASSY(SHORT ARM, NIBBLER & BREAKER LESS)
730-00 LC12B10122F1 CYLINDER INSTAL(BUCKET)
730-01 LC12B00996F1 CYLINDER INSTAL
HC731-00 LC01V00055F3 CYLINDER, BUCKET
735-00 LC43H00277F1 HYD LINES, CYLINDER(BUCKET)
740-00 LC43H00276F1 HYD LINES, ARM 3.3M
743-00 LC43H00272F1 HYD LINES, ARM 3.3M(NIBBLER & BREAKER)
741-01 LC43H00273F1 HYD LINES, ARM
HC741-01 YN25V00015F1 VALVE, STOP
741-02 LQ43H00263F1 HYD LINES, ARM
740-00 LC43H00294F1 HYD LINES, ARM 2.6M(BUCKET)
745-00 LC43H00120F1 HYD LINES, ARM 2.25M(BUCKET)
755-00 YN43H01646F1 CONNECTOR ASSY(NIBBLER & BREAKER)
760-00 LC61B00088F1 BUCKET INSTAL
765-00 LC61B00192F1 BUCKET ASSY, 1.4M3

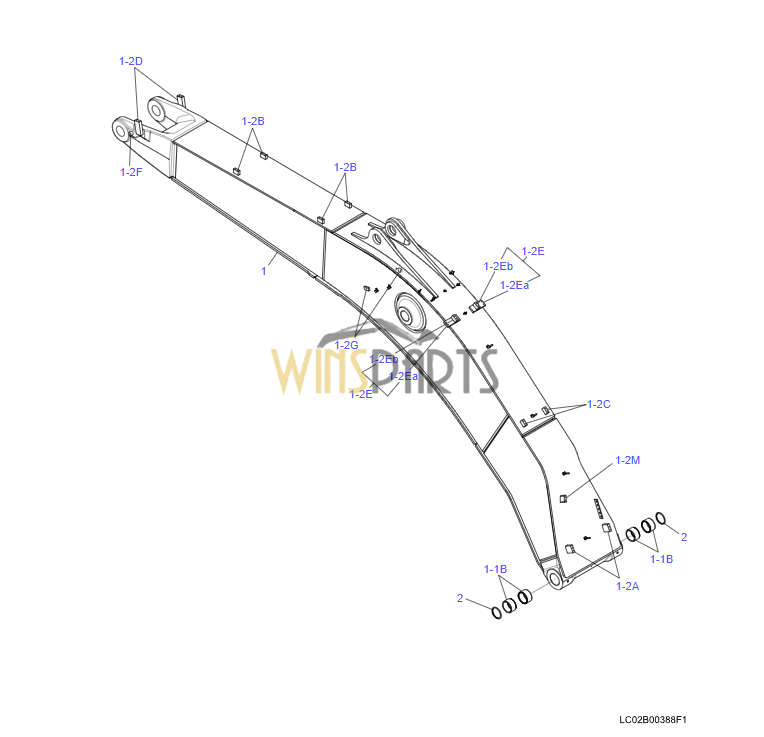

1 LC02B00389F1 BOOM, HOE 1 LC14-T1101–T1140
. YC14-T1101–T1142
1-1B LC02B01877P1 BUSHING 4
1-2A LC02B01878P1 BLOCK, TAPPED 2
1-2B LC02B01846P1 BLOCK, TAPPED 4
1-2C LQ02B01785P1 BLOCK, TAPPED 2
1-2D LC02B01881P1 BLOCK, TAPPED 2
1-2E LC02B01864P1 BRACKET 2
1-2Ea LC02B01910P1 BLOCK, TAPPED 1
1-2Eb LQ02B01785P1 BLOCK, TAPPED 1
1-2F LC02B01914P1 BLOCK, TAPPED 1
1-2G 2416T9878 BLOCK, TAPPED 2
1 LC02B00487F1 BOOM, HOE 1 LC14-T1141-
. YC14-T1143-
1-1B LC02B01877P1 BUSHING 4
1-2A LC02B01878P1 BLOCK, TAPPED 2
1-2B LC02B01846P1 BLOCK, TAPPED 4
1-2C LQ02B01785P1 BLOCK, TAPPED 2
1-2D LC02B01881P1 BLOCK, TAPPED 2
1-2E LC02B01864P1 BRACKET 2
1-2Ea LC02B01910P1 BLOCK, TAPPED 1
1-2Eb LQ02B01785P1 BLOCK, TAPPED 1
1-2F LC02B01914P1 BLOCK, TAPPED 1
1-2G 2416T9878 BLOCK, TAPPED 2
1-2M YN02B02596P1 BLOCK, TAPPED 1
2 2445R138D26 SEAL, DUST 2
.

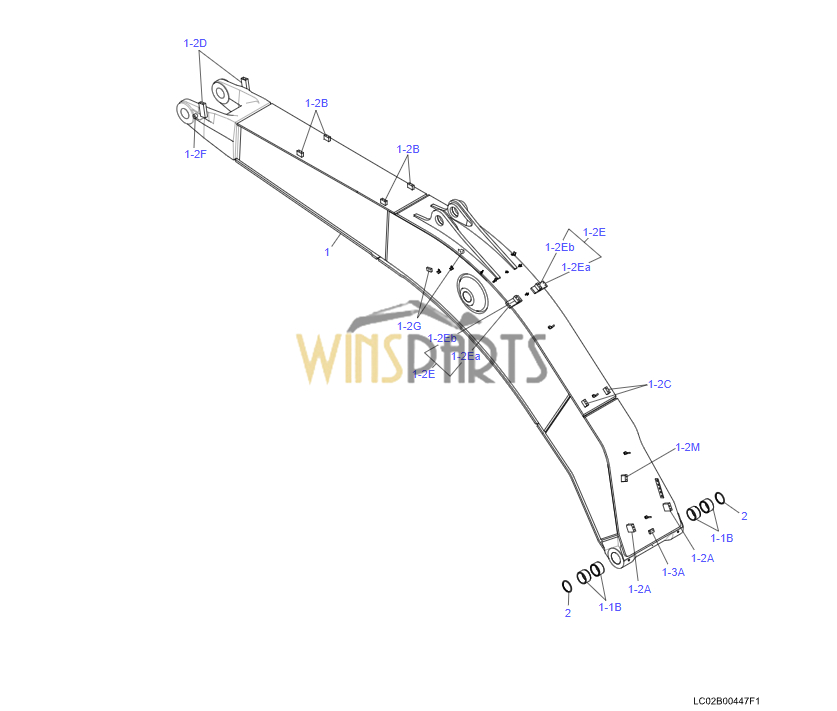

1 LC02B00448F1 BOOM, HOE 1 LC14-18001–18038
. YC14-14001–14307
1-1B LC02B01877P1 BUSHING 4
1-2A LC02B01878P1 BLOCK, TAPPED 2
1-2B LC02B01846P1 BLOCK, TAPPED 4
1-2C LQ02B01785P1 BLOCK, TAPPED 2
1-2D LC02B01881P1 BLOCK, TAPPED 2
1-2E LC02B01864P1 BRACKET 2
1-2Ea LC02B01910P1 BLOCK, TAPPED 1
1-2Eb LQ02B01785P1 BLOCK, TAPPED 1
1-2F LC02B01914P1 BLOCK, TAPPED 1
1-2G 2416T9878 BLOCK, TAPPED 2
1-3A 2416T10127 BLOCK, TAPPED 1
1 LC02B00489F1 BOOM, HOE 1
1-1B LC02B01877P1 BUSHING 4
1-2A LC02B01878P1 BLOCK, TAPPED 2
1-2B LC02B01846P1 BLOCK, TAPPED 4
1-2C LQ02B01785P1 BLOCK, TAPPED 2
1-2D LC02B01881P1 BLOCK, TAPPED 2
1-2E LC02B01864P1 BRACKET 2
1-2Ea LC02B01910P1 BLOCK, TAPPED 1
1-2Eb LQ02B01785P1 BLOCK, TAPPED 1
1-2F LC02B01914P1 BLOCK, TAPPED 1
1-2G 2416T9878 BLOCK, TAPPED 2
1-2M YN02B02596P1 BLOCK, TAPPED 1
1-3A 2416T10127 BLOCK, TAPPED 1
2 2445R138D26 SEAL, DUST 2

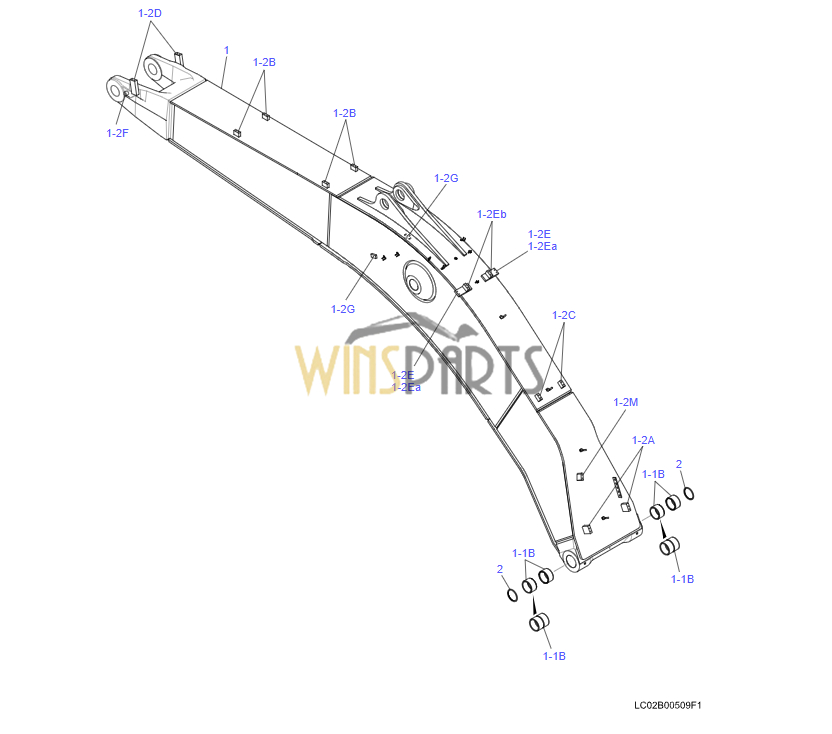

1 LC02B00510F1 BOOM, HOE 1
1-1B LC02B01877P1 BUSHING 4
1-2A LC02B01878P1 BLOCK, TAPPED 2
1-2B LC02B01846P1 BLOCK, TAPPED 4
1-2C LQ02B01785P1 BLOCK, TAPPED 2
1-2D LC02B01881P1 BLOCK, TAPPED 2
1-2E LC02B01864P1 BRACKET 2
1-2Ea LC02B01910P1 BLOCK, TAPPED 1
1-2Eb LQ02B01785P1 BLOCK, TAPPED 1
1-2F LC02B01914P1 BLOCK, TAPPED 1
1-2G 2416T9878 BLOCK, TAPPED 2
1-2M YN02B02596P1 BLOCK, TAPPED 1
1 LC02B00543F1 BOOM, HOE 1
1-1B LC02B01343P1 BUSHING 2
1-2A LC02B01878P1 BLOCK, TAPPED 2
1-2B LC02B01846P1 BLOCK, TAPPED 4
1-2C LQ02B01785P1 BLOCK, TAPPED 2
1-2D LC02B01881P1 BLOCK, TAPPED 2
1-2E LC02B01864P1 BRACKET 2
1-2Ea LC02B01910P1 BLOCK, TAPPED 1
1-2Eb LQ02B01785P1 BLOCK, TAPPED 1
1-2F LC02B01914P1 BLOCK, TAPPED 1
1-2G 2416T9878 BLOCK, TAPPED 2
1-2M YN02B02596P1 BLOCK, TAPPED 1
2 2445R138D26 SEAL, DUST 2

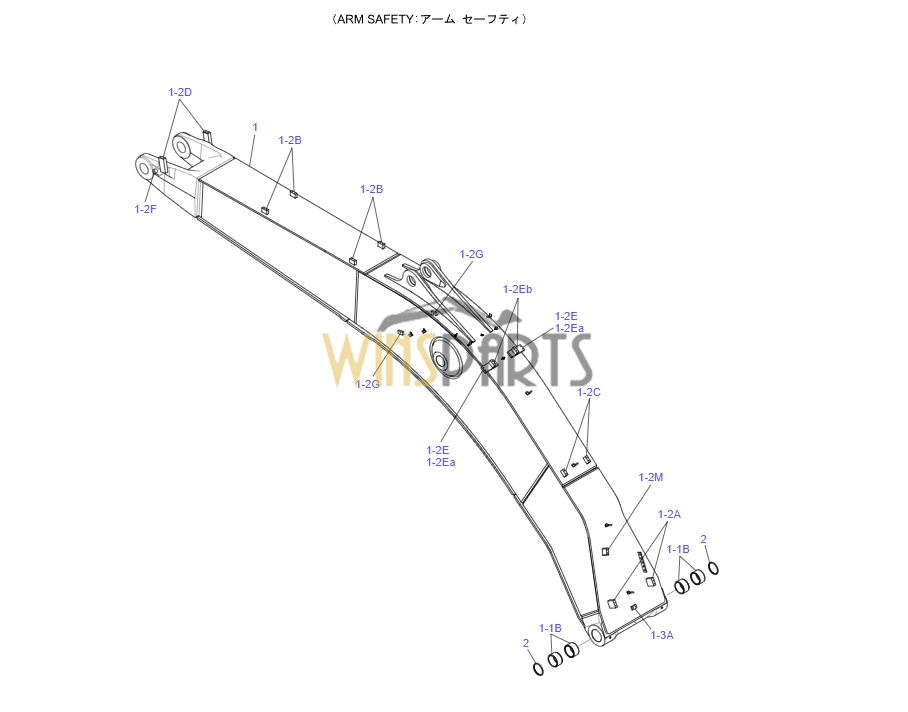

1 LC02B00514F1 BOOM, HOE 1
1-1B LC02B01877P1 BUSHING 4
1-2A LC02B01878P1 BLOCK, TAPPED 2
1-2B LC02B01846P1 BLOCK, TAPPED 4
1-2C LQ02B01785P1 BLOCK, TAPPED 2
1-2D LC02B01881P1 BLOCK, TAPPED 2
1-2E LC02B01864P1 BRACKET 2
1-2Ea LC02B01910P1 BLOCK, TAPPED 1
1-2Eb LQ02B01785P1 BLOCK, TAPPED 1
1-2F LC02B01914P1 BLOCK, TAPPED 1
1-2G 2416T9878 BLOCK, TAPPED 2
1-2M YN02B02596P1 BLOCK, TAPPED 1
1-3A 2416T10127 BLOCK, TAPPED 1
2 2445R138D26 SEAL, DUST 2
1 LC02B00575F1 BOOM, HOE 1
1-1B LC02B01343P1 BUSHING 2
1-2A LC02B01878P1 BLOCK, TAPPED 2
1-2B LC02B01846P1 BLOCK, TAPPED 4
1-2C LQ02B01785P1 BLOCK, TAPPED 2
1-2D LC02B01881P1 BLOCK, TAPPED 2
1-2E LC02B01864P1 BRACKET 2
1-2Ea LC02B01910P1 BLOCK, TAPPED 1
1-2Eb LQ02B01785P1 BLOCK, TAPPED 1
1-2F LC02B01914P1 BLOCK, TAPPED 1
1-2G 2416T9878 BLOCK, TAPPED 2
1-2J YT02B01505P1 BLOCK, TAPPED 8
1-2K YN02B02596P1 BLOCK, TAPPED 1
2 2445R138D26 SEAL, DUST 2

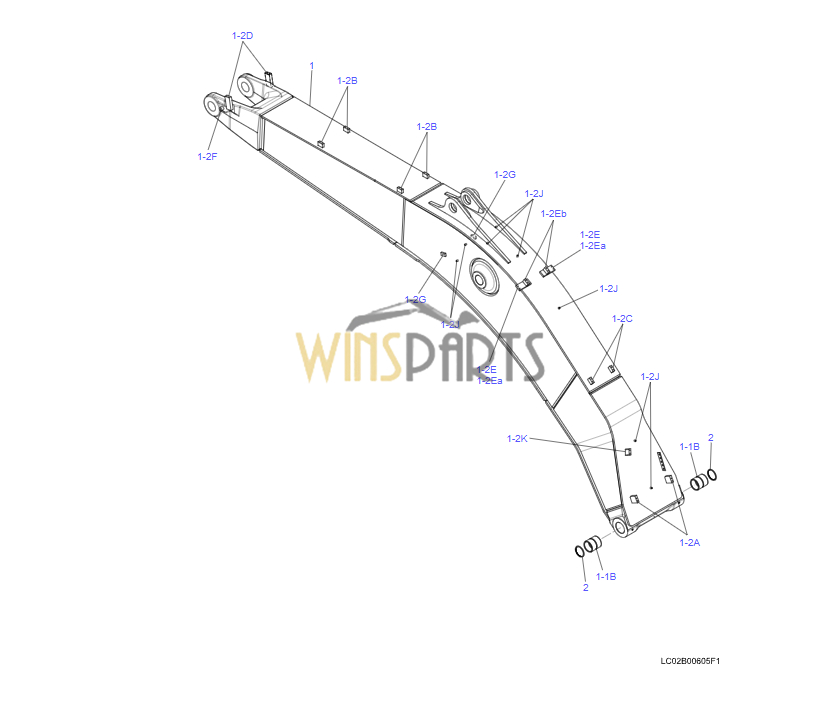

LC02B00605F1 BOOM, HOE 6.5M
1 LC02B00606F1 BOOM, HOE 1
1-1B LC02B01343P1 BUSHING 2
1-2A LC02B01878P1 BLOCK, TAPPED 2
1-2B LC02B01846P1 BLOCK, TAPPED 4
1-2C LQ02B01785P1 BLOCK, TAPPED 2
1-2D LC02B01881P1 BLOCK, TAPPED 2
1-2E LC02B01864P1 BRACKET 2
1-2Ea LC02B01910P1 BLOCK, TAPPED 1
1-2Eb LQ02B01785P1 BLOCK, TAPPED 1
1-2F LC02B01914P1 BLOCK, TAPPED 1
1-2G 2416T9878 BLOCK, TAPPED 2
1-2J YT02B01518P1 BLOCK, TAPPED 8
1-2K YN02B02596P1 BLOCK, TAPPED 1
2 2445R138D26 SEAL, DUST 2
1 2444R1117D082 HOSE 1
2 2444R1117D085 HOSE 1
3 2444R1117D300 HOSE 1
4 2444R1117D310 HOSE 1
5 2444R1117D355 HOSE 1
6 ZH32Z04000 ELBOW 2
7 ZG91S02000 NIPPLE, GREASE 8
8 ZC46X10009 CLIP 1
9 ZC48X10009 CLIP 3
10 ZS18C06016 CAPSCREW 4
11 ZW26X06000 LOCK WASHER 4
12 YN20M01702P1 WASHER 4
13 PY01P01043D3 CLIP 2
LC02B00607F1 BOOM GROUP Not Service
.
1 2444R1117D082 HOSE 1
2 2444R1117D085 HOSE 1
3 2444R1117D300 HOSE 1
4 2444R1117D310 HOSE 1
5 2444R1117D355 HOSE 1
6 ZH32Z04000 ELBOW 2
7 ZG91S02000 NIPPLE, GREASE 8
8 ZC46X10009 CLIP 1
9 ZC48X10009 CLIP 3
10 PY01P01043D3 CLIP 2
11 YT02C01888P2 SEMS-BOLT 4
LC02B00411F1 LC02B00525F1 BOOM GROUP
1 2444R1117D082 HOSE 1
2 2444R1117D085 HOSE 1
3 2444R1117D300 HOSE 1
4 2444R1117D310 HOSE 1
5 2444R1117D355 HOSE 1
6 ZH32Z04000 ELBOW 2
7 ZG91S02000 NIPPLE, GREASE 6
LC02B00525F1 BOOM GROUP
LC02B00411F1 BOOM GROUP
.
1 2444R1117D082 HOSE 1
2 2444R1117D085 HOSE 1
3 2444R1117D300 HOSE 1
4 2444R1117D310 HOSE 1
5 2444R1117D355 HOSE 1
6 ZH32Z04000 ELBOW 2
7 ZG91S02000 NIPPLE, GREASE 6
. YC14-14147-
LC02B00403F1 BOOM INSTAL Not Service
.
1 LC02B01912P1 PIN 1
2 LC02B01875P1 PLATE 1
3 ZS18C20050 CAPSCREW 2
4 ZW16H20000 WASHER 2
10 LC02B01902D1 SHIM (2.9) 2
11 LC02B01902D2 SHIM (3.4) 2
14 LC02B01902D5 SHIM (1.9) 2
15 LC02B01902D6 SHIM (2.4) 2

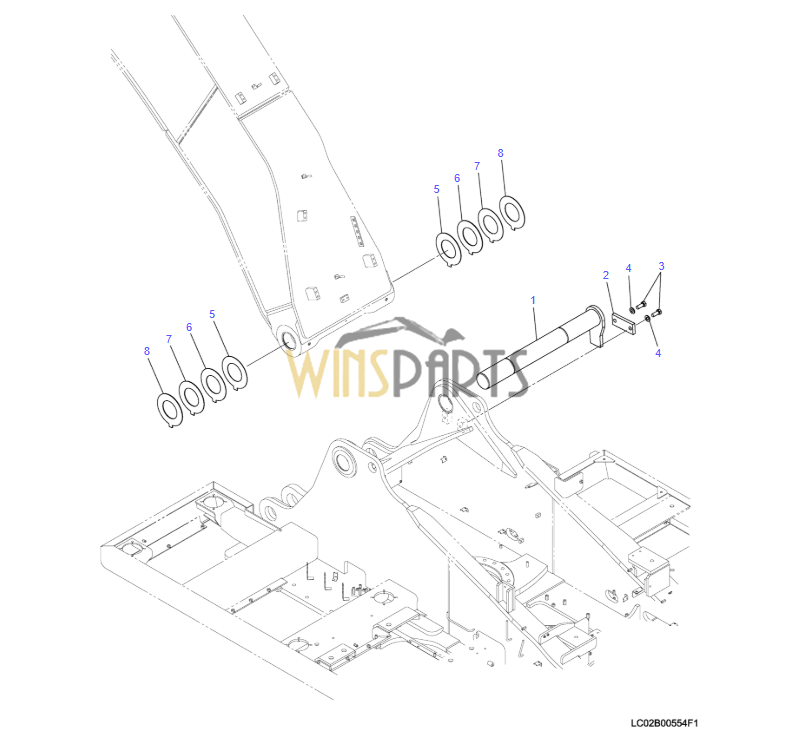

LC02B00554F1 BOOM INSTAL
1 LC02B01976P1 PIN 1
2 LC02B01875P1 PLATE 1
3 ZS18C20050 CAPSCREW 2
4 ZW16H20000 WASHER 2
5 LC02B01902D1 SHIM (2.9) 2
6 LC02B01902D2 SHIM (3.4) 2
7 LC02B01902D5 SHIM (1.9) 2
8 LC02B01902D6 SHIM (2.4) 2
