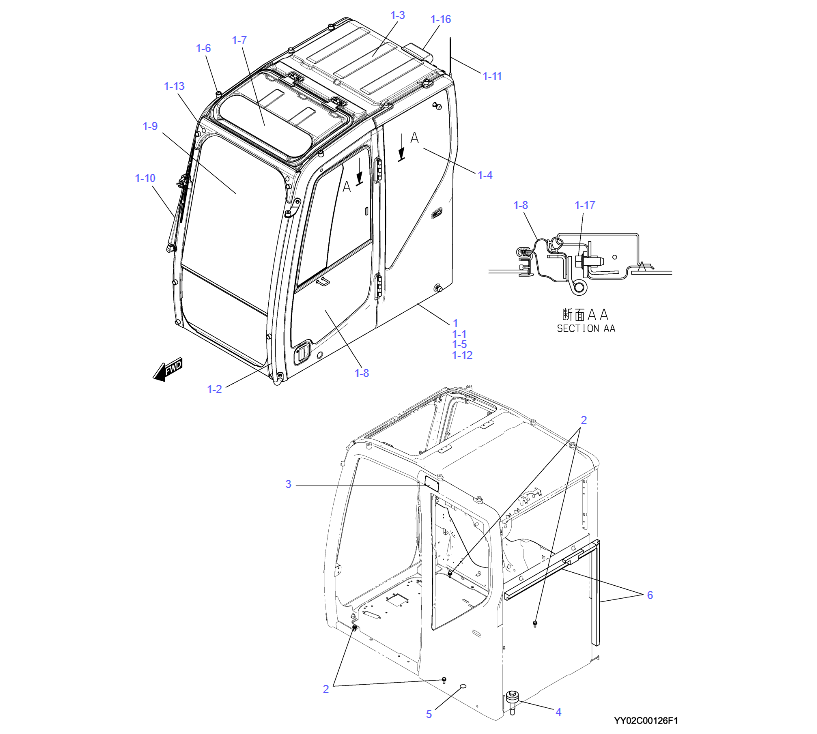

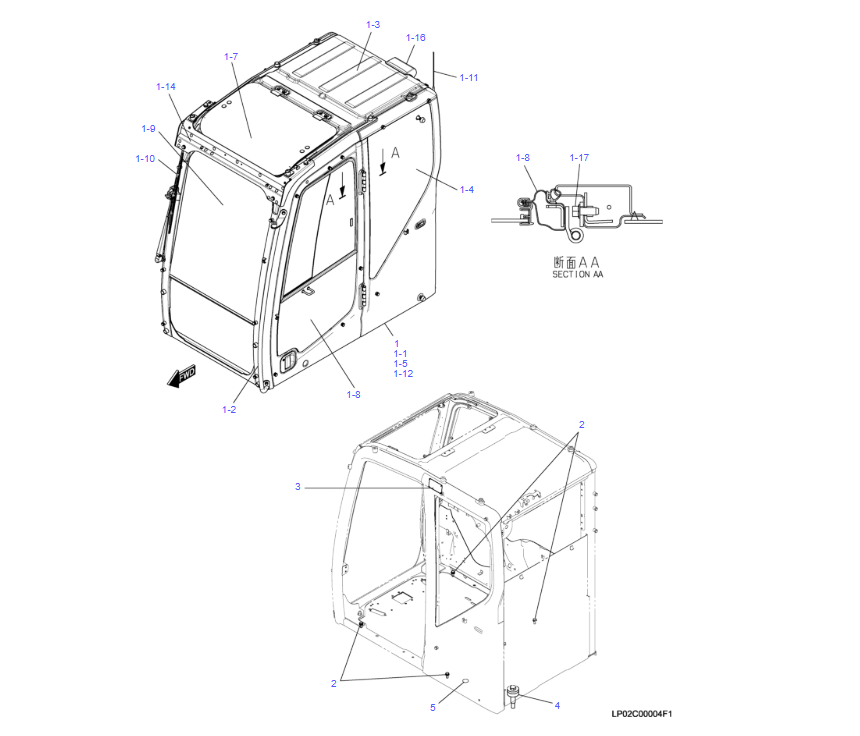

YY02C00149F1 YY02C00160F1 YY02C00157P1 LP02C00004F1 CAB ASSY KOBELCO SK130LC-11 SK140LC-11 SK125SR-5
.
1 YY02C00149F1 CAB ASSY 1 Not Service LP10030001–30009
1-1 YY02C00157P1 CAB ASSY 1
1-2 YY02C00160F1 CAB ASSY 1 P.320-01
1-3 YY02C00162F1 CAB ASSY 1 P.320-02
1-4 YY02C01242F1 GLASS 1 P.320-03
1-5 YY14E00052F1 HARNESS ASSY, CAB 1 P.320-04
320-11_LQ02C01304F1_KCMU_D0003591614_1 1-7 LQ02C01304F1 WINDOW, ROOF 1 P.320-11
320-10_YT51C00004F2_NA-01_D0003591596_1 1-8 YT51C00004F2 DOOR ASSY, CAB 1 P.320-10
320-05_YY50C00001F1_NA_D0003591657_1 1-9 YY50C00001F1 WINDOW ASSY, FR. 1 P.320-05
320-09_YT53C00015F1_CKCM-01_D0003591635_1 1-10 YT53C00015F1 WIPER INSTAL 1 P.320-09
320-06_YY54S00005F1_NA-01_D0003591655_1 1-11 YY54S00005F1 RADIO 1 P.320-06
320-11_YT02C01877F1_KCM-EUR-01_D0003591618_1 1-12 YT02C01877F1 SEAL ASSY 1 P.320-11
320-07_YY02C01243F1_NA_X_D0003591620_1 1-14 YY02C01243F1 SUPPORT 1 P.320-07
320-08_YY11E00132F1_NA-02_D0003591628_1 1-16 YY11E00132F1 HARNESS ASSY 1 P.320-08
1-17 LQ50C00001S014 BOLT 6
1 YY02C00167F1 CAB ASSY 1 Not Service LP10030010–30813
1-1 YY02C00157P1 CAB ASSY 1
320-01_YY02C00160F1_NA_D0003591667_1 1-2 YY02C00160F1 CAB ASSY 1 P.320-01
320-02_YY02C00162F1_NA_D0003591625_1 1-3 YY02C00162F1 CAB ASSY 1 P.320-02
320-03_YY02C01242F1_NA-01_D0003591670_1 1-4 YY02C01242F1 GLASS 1 P.320-03
320-04_YY14E00052F1_NA_D0003591641_1 1-5 YY14E00052F1 HARNESS ASSY, CAB 1 P.320-04
320-11_LQ02C01304F1_KCMU_D0003591614_1 1-7 LQ02C01304F1 WINDOW, ROOF 1 P.320-11
320-10_YT51C00004F2_NA-01_D0003591596_1 1-8 YT51C00004F2 DOOR ASSY, CAB 1 P.320-10
320-05_YY50C00001F1_NA_D0003591657_1 1-9 YY50C00001F1 WINDOW ASSY, FR. 1 P.320-05
320-09_YT53C00015F1_CKCM-01_D0003591635_1 1-10 YT53C00015F1 WIPER INSTAL 1 P.320-09
320-06_YY54S00005F1_NA-01_D0003591655_1 1-11 YY54S00005F1 RADIO 1 P.320-06
320-11_YT02C01877F1_KCM-EUR-01_D0003591618_1 1-12 YT02C01877F1 SEAL ASSY 1 P.320-11
320-07_YY02C01252F1_ANZ-01_D0003895203_1 1-14 YY02C01252F1 SUPPORT 1 P.320-07
320-08_YY11E00132F1_NA-02_D0003591628_1 1-16 YY11E00132F1 HARNESS ASSY 1 P.320-08
1-17 LQ50C00001S014 BOLT 6
1 YY02C00192F1 CAB ASSY 1 Not Service LP10030814-
1-1 YY02C00191P1 CAB ASSY 1
320-01_YY02C00160F1_NA_D0003591667_1 1-2 YY02C00160F1 CAB ASSY 1 P.320-01
320-02_YY02C00162F1_NA_D0003591625_1 1-3 YY02C00162F1 CAB ASSY 1 P.320-02
320-03_YY02C01242F1_NA-01_D0003591670_1 1-4 YY02C01242F1 GLASS 1 P.320-03
320-04_YY14E00052F1_NA_D0003591641_1 1-5 YY14E00052F1 HARNESS ASSY, CAB 1 P.320-04
320-11_LQ02C01304F1_KCMU_D0003591614_1 1-7 LQ02C01304F1 WINDOW, ROOF 1 P.320-11
320-10_YT51C00004F2_NA-01_D0003591596_1 1-8 YT51C00004F2 DOOR ASSY, CAB 1 P.320-10
320-05_YY50C00001F1_NA_D0003591657_1 1-9 YY50C00001F1 WINDOW ASSY, FR. 1 P.320-05
320-09_YT53C00015F1_CKCM-01_D0003591635_1 1-10 YT53C00015F1 WIPER INSTAL 1 P.320-09
320-06_YY54S00005F1_NA-01_D0003591655_1 1-11 YY54S00005F1 RADIO 1 P.320-06
320-11_YT02C01877F1_KCM-EUR-01_D0003591618_1 1-12 YT02C01877F1 SEAL ASSY 1 P.320-11
320-07_YY02C01252F1_ANZ-01_D0003895203_1 1-14 YY02C01252F1 SUPPORT 1 P.320-07
320-08_YY11E00132F1_NA-02_D0003591628_1 1-16 YY11E00132F1 HARNESS ASSY 1 P.320-08
1-17 LQ50C00001S014 BOLT 6
320-13_YT02C00157F1_KCM-EUR-02_D0003591617_1 2 YT02C00157F1 CAB INSTAL 1 P.320-13
320-14_YT02C00158F1_KCM-EUR-02_D0003591661_1 3 YT02C00158F1 CAB INSTAL 1 P.320-14
320-09_YY02C00148F1_NA_D0003591621_1 4 YY02C00148F1 CAB INSTAL 1 P.320-09
320-15_YY02C01239F1_NA_D0003591597_1 5 YY02C01239F1 SEAL ASSY 1 P.320-15
.
1 YY02C00127F1 CAB ASSY 1 YV09020001–20363
. YY09045001–48945
1-1 YY02C00156P1 CAB ASSY 1 Not Service
1 YY02C00193F1 CAB ASSY 1 YV09020364-
. YY09048946-
1-1 YY02C00190P1 CAB ASSY 1 Not Service
320-01_YY02C00160F1_NA_D0003588458_1 1-2 YY02C00160F1 CAB ASSY 1 P.320-01
320-02_YY02C00161F1_JP_D0003588963_1 1-3 YY02C00161F1 CAB ASSY 1 P.320-02
320-03_YY02C01242F1_NA-04_D0003588661_1 1-4 YY02C01242F1 GLASS 1 P.320-03
320-04_YY14E00052F1_NA_D0003588671_1 1-5 YY14E00052F1 HARNESS ASSY, CAB 1 P.320-04
320-05_LQ02C01303F1_CKCM_D0003589022_1 1-6 LQ02C01303F1 SEAL ASSY 1 P.320-05
320-12_YT02C01714F1_JP_D0003588987_1 1-7 YT02C01714F1 WINDOW, ROOF 1 P.320-12
320-10_YT51C00004F1_JP-03_D0003588975_1 1-8 YT51C00004F1 DOOR ASSY, CAB 1 P.320-10
320-05_YY50C00001F1_NA_D0003588719_1 1-9 YY50C00001F1 WINDOW ASSY, FR. 1 P.320-05
320-09_YT53C00015F1_CKCM-01_D0003588831_1 1-10 YT53C00015F1 WIPER INSTAL 1 P.320-09
320-06_YY54S00005F1_NA-03_D0003588698_1 1-11 YY54S00005F1 RADIO 1 P.320-06
320-11_YT02C01877F1_KCM-EUR-03_D0003588821_1 1-12 YT02C01877F1 SEAL ASSY 1 P.320-11
320-12_LQ80E00031F1_CKCM_D0003588998_1 1-13 LQ80E00031F1 LIGHT INSTAL 1 P.320-12
320-08_YY11E00132F1_NA-03_D0003588666_1 1-16 YY11E00132F1 HARNESS ASSY 1 P.320-08
1-17 LQ50C00001S014 BOLT 6
320-13_YT02C00157F1_KCM-EUR-06_D0003588814_1 2 YT02C00157F1 CAB INSTAL 1 P.320-13
320-14_YT02C00158F1_KCM-EUR-05_D0003588810_1 3 YT02C00158F1 CAB INSTAL 1 P.320-14
320-09_YY02C00148F1_NA_D0003588457_1 4 YY02C00148F1 CAB INSTAL 1 P.320-09
320-15_YY02C01239F1_NA_D0003588697_1 5 YY02C01239F1 SEAL ASSY 1 P.320-15
320-16_YY26C00012F1_NA-01_D0003588692_1 6 YY26C00012F1 INSULATION INSTAL 1 P.320-16
.

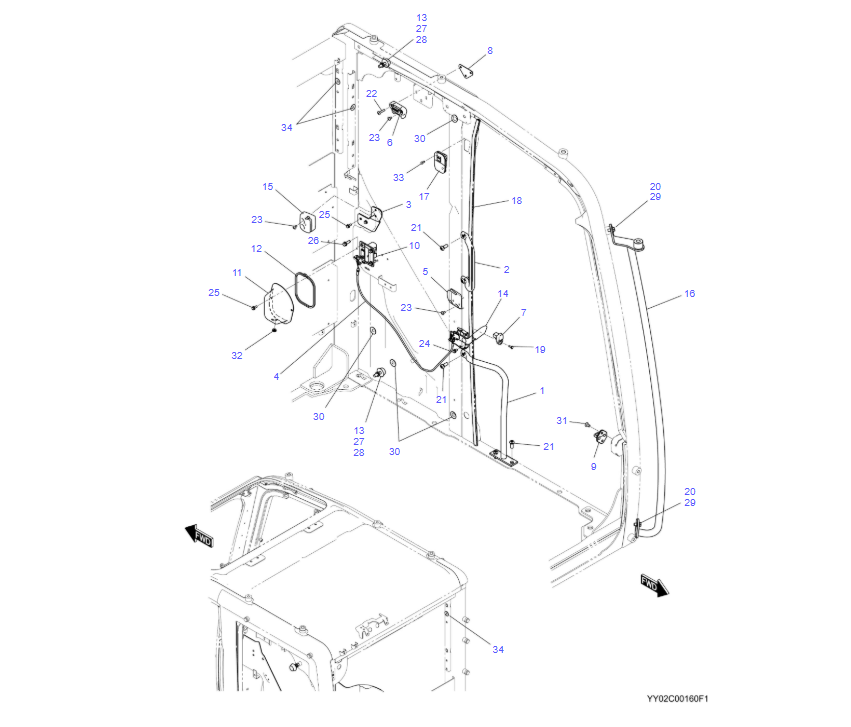

1 YT02C00160S002 HANDLE 1
2 YT02C00160S015 HANDLE 1
3 YT02C00160S016 BRACKET 1
4 LQ02C00031S006 CABLE ASSY 1
5 LQ02C00031S011 HOLDER 1
6 LQ02C00031S012 HOLDER 1
7 YT02C00160S007 SWITCH, LIMIT 1
8 LQ02C00031S013 HOLDER 1
9 YT02C00160S009 STRIKER 1
10 LQ02C00113S014 CATCH ASSY, DOOR 1
11 LQ02C00031S016 COVER 1
12 LQ02C00031S017 SEAL 1
13 LQ02C01481P1 STOPPER 2
14 YT02C00125S003 LEVER ASSY 1
15 YT02C00160S017 HOLDER 1
16 LQ02C00031S001 HANDLE 1
17 YT02C00160S003 LIGHT, ROOM 1
18 LQ02C00031S009 TRIM 1
19 YT02C00160S018 BOLT 1
20 LQ02C00031S025 BOLT 2
21 LQ02C00031S026 BOLT 5
22 LQ02C00031S033 SCREW 2
23 LQ02C00031S030 SCREW 5
24 LQ02C00031S031 BOLT 2
25 LQ02C00031S032 BOLT 4
26 LQ02C00031S035 BOLT 4
27 LQ02C00031S024 NUT 2
28 LQ02C00031S022 WASHER 2
29 LQ02C00031S023 WASHER 2
30 2414R282D1 COVER 4
31 YT02C00160S022 SCREW 2
32 LQ02C00031S018 GROMMET 1
33 LQ02C00031S037 SCREW, TAPPING 2
34 LQ02C01303S002 SEAL 3
.

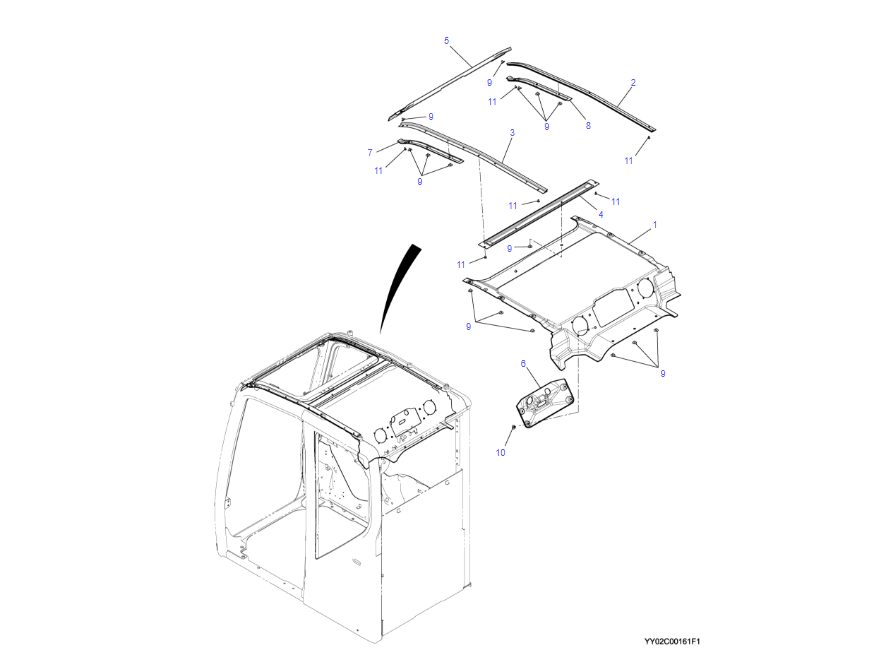

1 YY02C00161S001 PAD 1
2 LQ02C00032S006 RAIL 1
3 LQ02C00032S008 RAIL 1
4 LQ02C00032S001 PANEL 1
5 LQ55C00004P1 SUN VISOR 1
6 LQ02C00032S010 COVER 1
7 LQ02C00032S011 COVER 1
8 LQ02C00032S005 PAD 1
9 LQ02C00032S004 PAD 1
10 LQ02C00032S012 HANDLE 2
11 LQ02C00032S014 CLIP 19
12 LQ02C00032S015 CLIP 4
13 LQ02C00032S013 SCREW 6
.

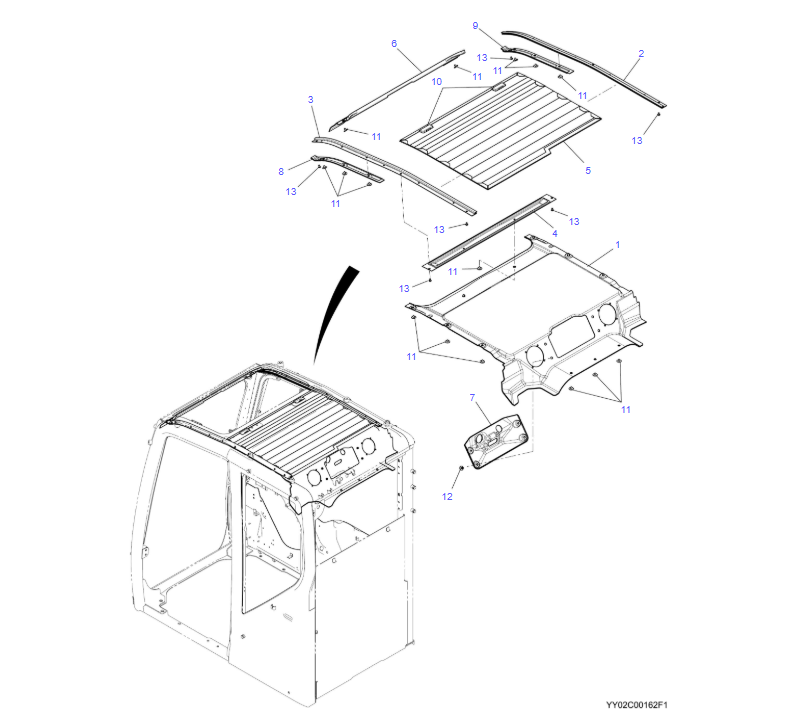

1 YY02C00161S001 PAD 1
2 LQ02C01323S001 COVER ASSY 1
3 LQ02C01323S002 COVER ASSY 1
4 LQ02C00032S001 PANEL 1
5 LQ02C00032S010 COVER 1
6 LQ02C00032S011 COVER 1
7 LQ02C00032S005 PAD 1
8 LQ02C00032S004 PAD 1
9 LQ02C00032S014 CLIP 19
10 LQ02C00032S015 CLIP 4
11 LQ02C00032S013 SCREW 6
.

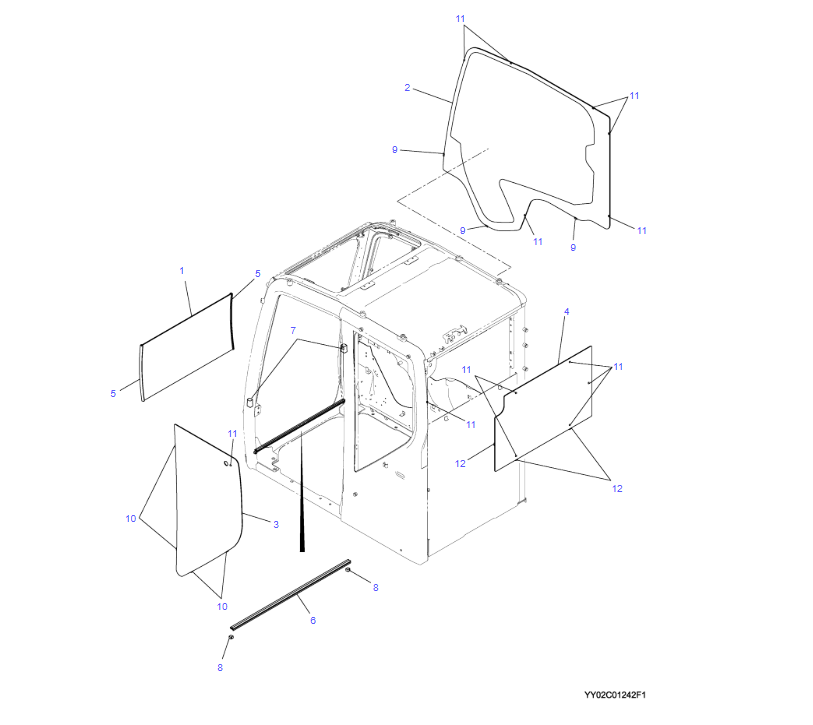

1 LQ02C01301S001 GLASS 1
2 YY02C01242S002 GLASS 1
3 LQ02C01301S003 GLASS 1
4 YY02C01242S004 GLASS 1
5 LQ02C01301S006 SEAL 2 LP10030001–30009
5 YY02C01242S005 SEAL 2 LP10030010-
6 LQ02C01301S005 STRIP, WEATHER 1
7 LQ02C01555S011 SEAL 2
8 LQ02C01301S007 STOPPER 2
9 LQ02C01301S008 SPACER 3
10 LQ02C01301S009 SPACER 4
11 LQ02C01301S010 SPACER 13
12 YT02C01864S011 SPACER 3
.

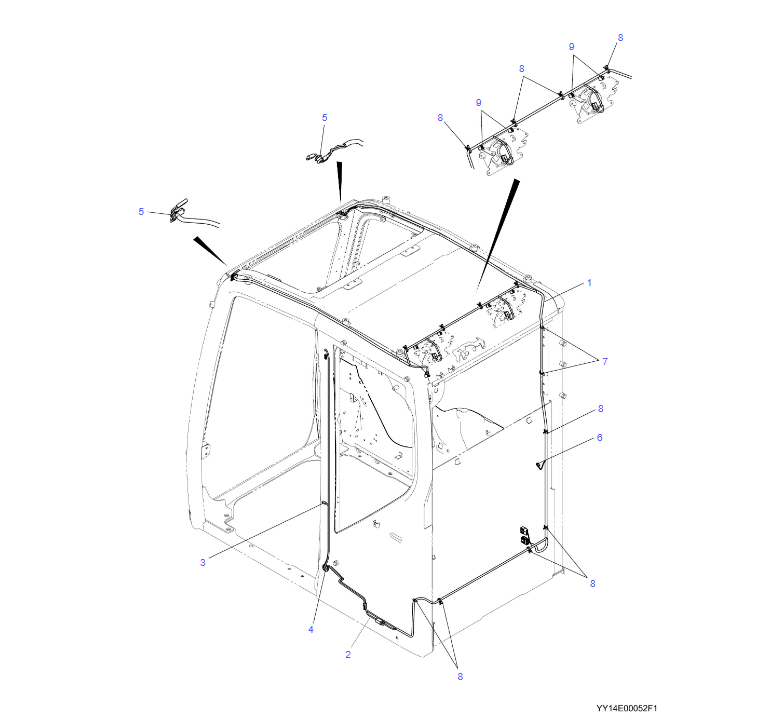

1 YT14E00041S001 HARNESS 1
2 YT14E00041S003 HARNESS 1
3 YT14E00041S002 HARNESS 1
4 LQ14E00014S007 GROMMET 1
5 LQ14E00014S004 GROMMET 2
6 LQ50C00001S013 BOLT 1
7 LQ14E00014S006 CLIP 2
8 LQ14E00014S005 CLIP 9
9 YT14E00041S011 TRIM 4
.

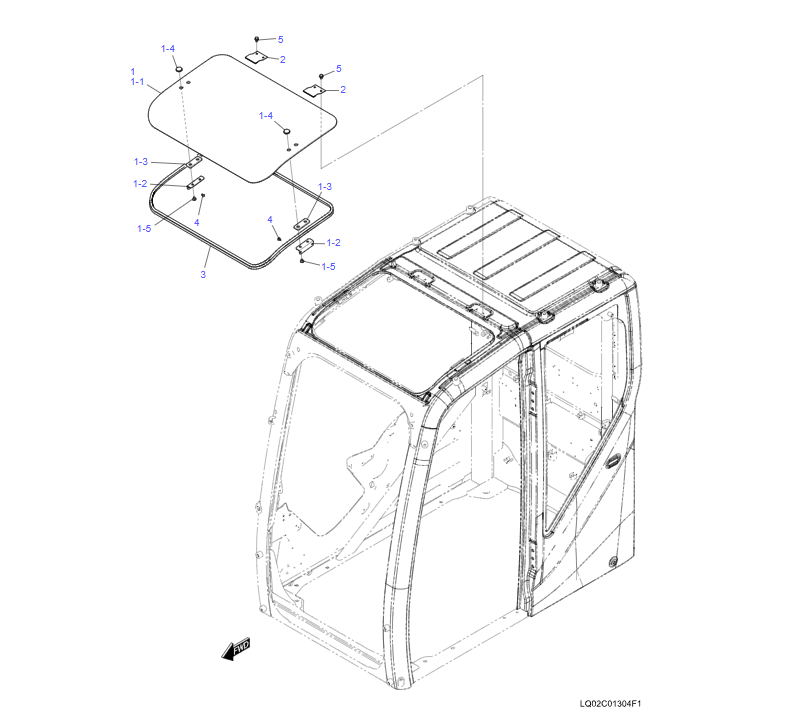

1 LQ02C01314F1 WINDOW, ROOF 1
1-1 LQ02C01314S001 GLASS 1
1-2 LQ02C01476P1 BRACKET 2
1-3 LQ02C01442P1 PACKING 4
1-4 LQ02C01314S004 RETAINER 4
1-5 YT02C01874S005 BOLT 4
2 LQ02C01304S002 BRACKET ASSY 2
3 LQ02C01304S003 RUBBER 1
4 LQ50C00001S013 BOLT 4
5 LQ02C01304S005 BOLT 4
.

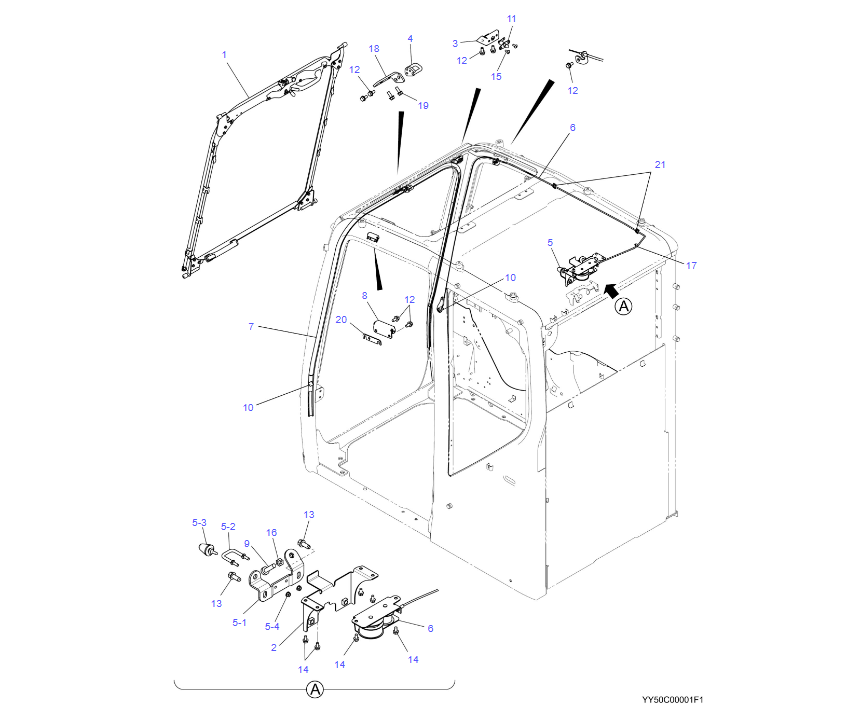

1 YY50C00002F1 WINDOW ASSY, FR. 1
1-1 YY50C00002S001 FRAME ASSY 1
1-2 LQ50C00002S002 GLASS 1
1-3 LQ50C00002S009 COVER 1
1-4 LQ50C00002S005 BRACKET ASSY 1
1-5 LQ50C00002S006 BRACKET ASSY 1
1-6 LQ50C00009S018 BRACKET ASSY 1
1-7 LQ50C00009S019 BRACKET ASSY 1
1-8 LQ50C00002S010 LOCK ASSY 1
1-9 LQ50C00002S013 RUBBER 1
1-10 LQ50C00002S008 ROLLER 3
1-11 LQ50C00002S007 ROLLER 1
1-12 LQ50C00002S014 STOPPER 2
1-13 LQ50C00002S015 SPACER 1
1-14 LQ50C00002S011 HANDLE 2
1-15 LQ50C00001S013 BOLT 19
1-16 LQ50C00002S018 SCREW 2
1-17 YN02C00009S333 SETSCREW 2
2 LQ50C00008S003 BRACKET ASSY 1
3 LQ50C00001S004 BRACKET ASSY 1
4 LQ50C00001S005 STRIKER 1
5 LQ02C01316F1 STRIKER 1
5-1 LQ02C01316S001 BRACKET 1
5-2 LQ02C01316S002 HOOK 1
5-3 LQ02C01316S003 STOPPER 1
5-4 LQ02C01316S004 NUT 2
6 LQ50C00001S007 CABLE ASSY 1
7 LQ50C00001S008 SEAL 1
8 LQ50C00001S009 STOPPER 1
9 LQ50C00001S010 STOPPER 1
10 LQ50C00001S011 STOPPER 2
11 LQ50C00001S012 SWITCH 1
12 LQ50C00001S013 BOLT 7
13 LQ50C00001S014 BOLT 2
14 LQ02C00031S031 BOLT 6
15 LQ50C00001S016 SCREW 2
16 LQ50C00001S017 NUT 1
17 LQ50C00001S018 HOLDER 1
18 LQ50C00001S019 BRACKET 1
19 LQ50C00001S020 BOLT 2
20 LQ50C00001S021 SHIM 1
21 LQ50C00001S022 CLIP 2
.

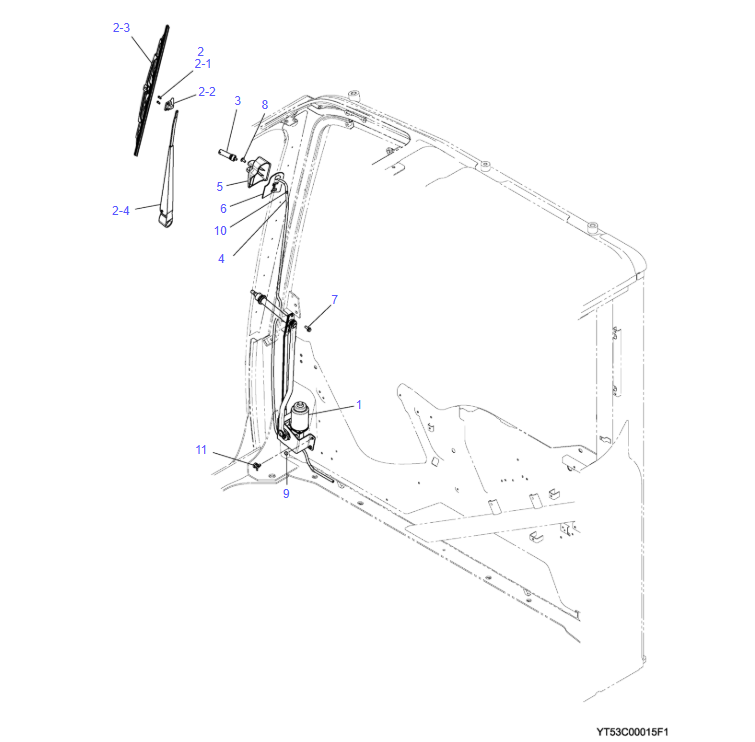

1 LQ53C00003S001 MOTOR, WIPER 1
2 LQ53C01001F1 ARM ASSY 1
2-1 LQ53C01001S001 SEMS-BOLT 2
2-2 LQ53C01001S002 GUIDE 1
2-3 LQ53C01001S003 BLADE, WIPER 1
2-4 LQ53C01001S004 ARM ASSY 1
3 LQ53C00003S003 NOZZLE 1
4 YT53C00015S004 TUBE 1
5 LQ53C00003S005 HOLDER 1
6 LQ53C00003S006 PACKING 1
7 LQ02C00031S032 BOLT 2
8 LQ02C00031S030 SCREW 1
9 LQ53C00003S009 NUT 4
10 LQ53C00003S012 CONNECTOR 1
11 LQ14E00014S005 CLIP 1
YY54S00005F1 RADIO Not Service
.
1 LQ54S00003S001 BRACKET 2
2 LQ54S00003S002 SPEAKER 2
3 LQ54S00003S010 GRILLE 2
4 LQ54S00003S009 WASHER 2
5 LQ02C00031S031 BOLT 8
6 LQ54S00003S006 SCREW 2
7 LQ54S00003S007 SCREW, TAPPING 8
8 YY54S00005S008 BUSHING 1
9 YT54S00022S009 COVER 1
10 YT54S00025S011 ANTENNA 1
11 YT02C01567D3 PLATE 1
12 LQ14E00014S006 CLIP 1
.

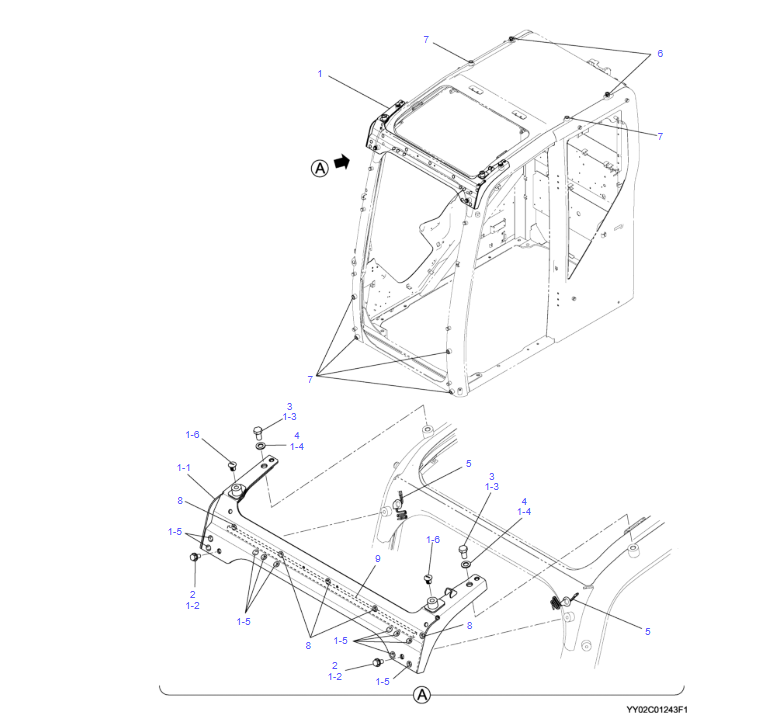

1 YY02C01240F1 SUPPORT ASSY 1
1-1 YY02C01227P1 GUARD 1
1-2 ZM73C12025 SEMS-BOLT 2
1-3 ZS18C16030 CAPSCREW 2
1-4 ZW16P16000 WASHER 2
1-5 YR03M01319D1 SEAL 10
1-6 LQ02C01303S001 CAP 2
2 ZM73C12025 SEMS-BOLT 2
3 ZS18C16030 CAPSCREW 2
4 ZW16P16000 WASHER 2
5 LQ80E01019P2 HARNESS 2
6 LQ02C01303S001 CAP 2
7 LQ02C01303S002 SEAL 6
8 YR03M01319D1 SEAL 5
9 YT53C00017S026 RUBBER 1
YY02C01252F1 SUPPORT Not Service
.
1 YY02C01249F1 SUPPORT ASSY 1
1-1 YY02C01250P1 GUARD 1
1-2 ZM73C12025 SEMS-BOLT 2
1-3 ZS18C16030 CAPSCREW 2
1-4 ZW16P16000 WASHER 2
1-5 YR03M01319D1 SEAL 8
1-6 LQ02C01303S001 CAP 2
1-7 YT02C01887P1 RUBBER 1
2 ZM73C12025 SEMS-BOLT 2
3 ZS18C16030 CAPSCREW 2
4 ZW16P16000 WASHER 2
5 LQ80E01055P1 HARNESS 2
6 LQ02C01303S001 CAP 2
7 LQ02C01303S002 SEAL 6
8 YR03M01319D1 SEAL 5
9 YT53C00017S026 RUBBER 1
YY02C00148F1 CAB INSTAL Not Service
.
1 ZS18C24160 CAPSCREW 1
2 LQ02C01523P1 PLATE 1
3 LP02C01001P1 COLLAR 1
4 LQ02C01525P2 INSULATION 1
YT02C00157F1 CAB INSTAL Not Service
.
1 ZM73C12030 SEMS-BOLT 4 YY09045001–45002
1 ZM73C12030 SEMS-BOLT 3 LH04006024-
. LK09006001-
. YV09020001-
. YY09045003-
2 ZS18C12030 CAPSCREW 1 LH04006024–06070
. LK09006001–06007
. YV09020001–20040
. YY09045003–46751
2 ZS18C12035 CAPSCREW 1 LH04006071-
. LK09006008-
. YV09020041-
. YY09046752-
3 LS12P01461P1 WASHER 1 LH04006024-
.

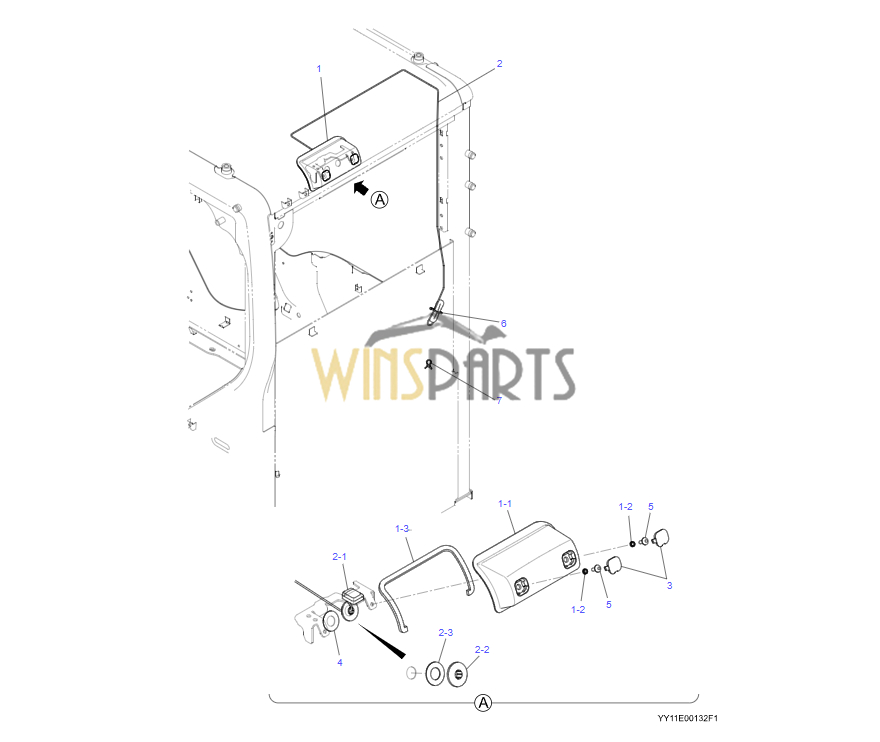

1 LQ02C01566F1 COVER ASSY 1 LP10030001–30519
1-1 LQ02C01567P1 COVER 1
1-2 YN02C04700P1 COLLAR 2
1-3 LQ02C01570P1 INSULATION 1
1 LQ02C01807F1 COVER ASSY 1 LP10030520-
1-1 LQ02C01808P1 COVER 1
1-2 YN02C04700P1 COLLAR 2
1-3 LQ02C01570P1 INSULATION 1
2 LQ11E01102F1 CONNECTOR ASSY 1
2-1 YN54S00052P1 ANTENNA 1
2-2 YN11E01236P1 GROMMET 1
2-3 YN11E01237P1 SEAL 1 LP10030001–30902
2-3 YN11E01237P2 SEAL 1 LP10030903-
3 YN02C04473P1 CAP 2
4 YT02C01261D3 PLATE 1
5 LQ11E00034S005 SCREW 2
6 LQ14E00014S006 CLIP 1
7 LQ14E00014S005 CLIP 1
YT02C01806F1 GUARD ASSY Not Service
.
1 YT02C01809P2 GUARD 1
2 LQ02C01677P1 SUPPORT 1 LP10030001–30055
2-7 LQ02C01684P1 HINGE 2
2 LQ02C01677P2 SUPPORT 1 LP10030056-
2-7 LQ02C01684P1 HINGE 2
3 LQ50C00002S010 LOCK ASSY 1
4 LQ02C01726P1 STRIKER 1
5 LQ02C01372P1 STAY 1
6 HY25X10027G1 WASHER 1
7 2419R9D2 PIN 1
8 YN21C01178P1 CLIP 1
9 YN03M01252P1 SEMS-BOLT 1
10 ZM73C08020 SEMS-BOLT 2
11 ZM73C06020 SEMS-BOLT 3
12 ZM73C12025 SEMS-BOLT 4
13 ZW16P10000 WASHER 1
14 ZN18F10008 NUT 3
16 YT02C01861P1 STOPPER 3
17 ZW16H12000 WASHER 2
18 ZN18C12010 NUT 2
19 LQ02C01303S001 CAP 3
20 YR03M01319D1 SEAL 2
21 YY20T01399P2 PLATE, NUMBER 1 Not Service LP10030001–30535
21 YY20T01399P3 PLATE, NUMBER 1 Not Service LP10030536–30675
21 YY20T01399P4 PLATE, NUMBER 1 Not Service LP10030676-
22 4020Z64 RIVET 4
LQ02C01408F1 GUARD ASSY Not Service. [LOW GUARD(ONE TOUCH)]
.
1 LQ02C01409P2 GUARD 1
2 ZM73C12025 SEMS-BOLT 4
LQ02C01777F1 GUARD ASSY Not Service
. (ROOF GUARD)
.
1 LQ02C01425P2 GUARD 1
1-9 LQ02C01360P1 HINGE 2
1-10 ZS12C12025 CAPSCREW 2
2 ZW16H12000 WASHER 2
3 ZN18C12010 NUT 2
4 LQ02C01775P1 SUPPORT 1
5 ZM73C12040 SEMS-BOLT 2
6 LQ50C00002S010 LOCK ASSY 2
7 ZM73C06016 SEMS-BOLT 8
8 YT02C01066P1 STOPPER 2
9 ZW16P10000 WASHER 2
10 ZN18F10008 NUT 2
11 YN76S00006P1 MOTOR, WIPER 1
12 YN53C00009P1 ARM, WIPER 1
13 YT53C00007P1 BLADE, WIPER 1
14 YT54C00001P1 WASHER ASSY, WINDOW 1
15 ZS32T40012 CROSS TAPPING SCREW 2
16 LQ02C01439P1 STRIKER 2
17 LQ02C01441P1 PLATE 2
18 ZM73C08025 SEMS-BOLT 4
19 LQ02C01372P1 STAY 1
20 HY25X10027G1 WASHER 1
21 2419R9D2 PIN 1
22 YN21C01178P1 CLIP 1
23 YN03M01252P1 SEMS-BOLT 1
24 LQ02C01773P1 COVER 1
25 YT02C01126DR TUBE 1
26 YT02C01282P1 CONNECTOR 1
27 LQ02C01310P1 PLATE 2
28 YY20T01399P2 PLATE, NUMBER 1 Not Service LH04006001–06074
. YY09045002–46902
28 YY20T01399P3 PLATE, NUMBER 1 Not Service LH04006075-
. YY09046903–48132
28 YY20T01399P4 PLATE, NUMBER 1 YY09048133-
29 LQ02C01480P1 RIVET 4
30 PY01P01043D3 CLIP 1
31 PX05P01205P1 RUBBER 1
YY54C00008F1 TANK ASSY, WASHER Not Service
.
1 2427U900 TANK 1
2 YY54C01014P1 BRACKET 1 LH04006001–06075
. LK09006001–06007
. YV09020001–20068
. YY09045001–46956
2 YN54C01030P1 BRACKET 1 LH04006076-
. LK09006008-
. YV09020069-
. YY09046957-
3 ZM73C10016 SEMS-BOLT 2
4 ZM66C06016 SEMS-BOLT 2
5 YT02C01126DP TUBE 1
6 YN03M01159P1 GROMMET 1
7 YT02C01282P1 CONNECTOR 1
8 PY01P01043D3 CLIP 4 YY09045001–45007
8 PY01P01043D3 CLIP 5 LH04006001-
. LK09006001-
. YV09020001-
. YY09045008-
9 YN13E01375P1 CLIP 3
10 LP54C01003P1 GROMMET

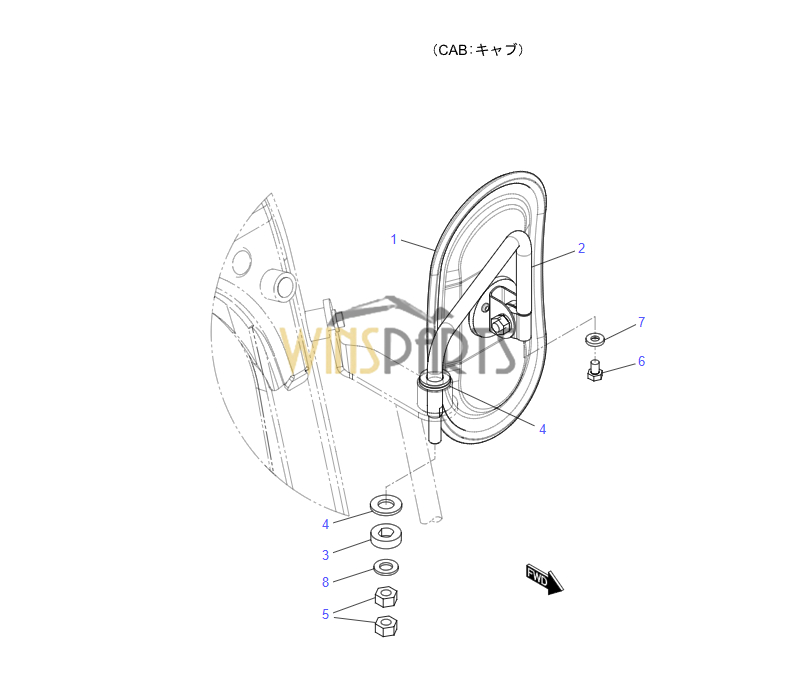

. (CAB)
.
1 PY02C01079P1 MIRROR ASSY, BACK 1
2 LQ52C01026P1 STAY 1
3 LQ52C01025P1 WASHER 1
4 LQ52C01021P1 WASHER 2
5 ZN18C12010 NUT 2
6 ZS18C08012 CAPSCREW 1
7 ZW16H08000 WASHER 1
8 ZW16P12000 WASHER 1
.

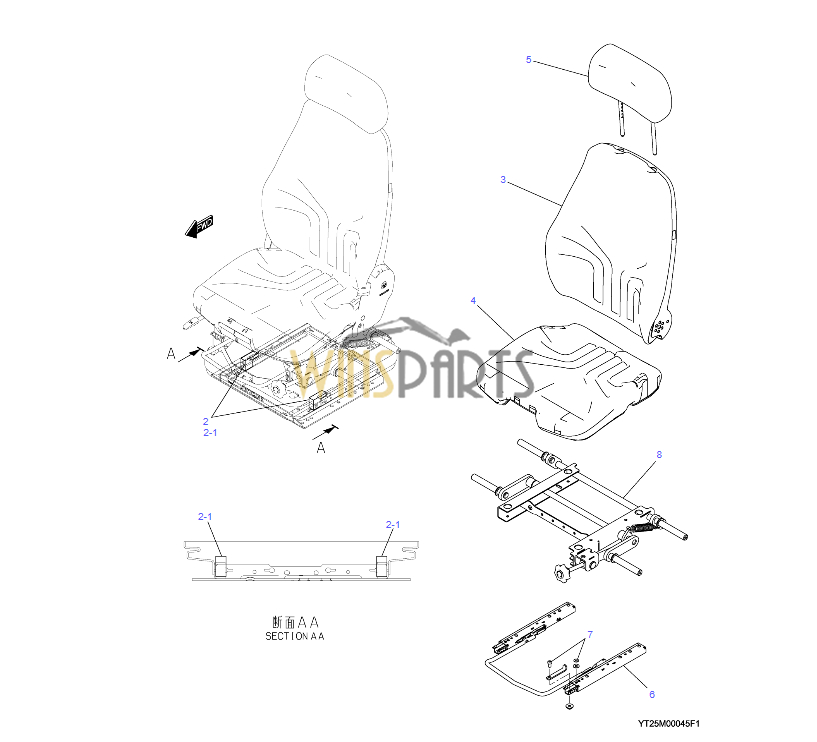

2 YT25M01136F1 SPACER ASSY 1 LP10030001–30398
2-1 YT25M01135P2 RUBBER 2 LP10030001–30398
3 YT25M00045S001 SEAT ASSY 1 LP10030001–30793
4 YT25M00045S002 SEAT ASSY 1 LP10030001–30793
5 YT25M00045S003 SEAT ASSY 1 LP10030001–30793
6 YT25M00045S023 RAIL 1 LP10030760–30793
7 YT25M00045S024 RAIL 1 LP10030760–30793
8 YT25M00045S047 SEAT ASSY 1 LP10030001–30793
YT25M00044F1 SEAT INSTAL Not Service
.
1 ZM73C08020 SEMS-BOLT 4
YT25M00051F1 BELT ASSY, SEAT Not Service
.
1 YT25M00050F1 BELT ASSY, SEAT 1
2 YN25M01290P1 SPACER 2
YT25M00040F1 SEAT INSTAL Not Service
.
1 YT25M01092P1 BRACKET 1
2 YT25M01095P1 PLATE 1
3 ZS28C08016 CAPSCREW 4
4 ZW26K08000 LOCK WASHER 4
5 ZM73C08020 SEMS-BOLT 6
LP25M00001F1 SEAT INSTAL Not Service
. (SUSPENSION AND HEIGHTRISER)
.
350-01_LP25M00002F1_KCM-EUR_D0003588808_1 1 LP25M00002F1 SEAT INSTAL 1 P.350-01
2 LP25M00003F1 SEAT ASSY 1
350-03_YT03M01758F1_NA_X_D0003894411_1 3 YT03M01758F1 STOPPER ASSY 1 P.350-03
YT25M01117F1 ARM REST
. [WITH SUSPENSION AND HEIGHTRISER SEAT(WITH SLIDE REGULATION)]
.
1 YT25M01098P1 ARM REST 1
2 YT25M01099P1 ARM REST 1
3 YT25M01128F1 ARM REST 1
3-1 YT25M01132P2 BRACKET 1
3-2 LP25M01011P1 BRACKET 1
3-3 LP25M01031P1 PIN 1
3-4 YT25M01108F1 CLAMP 1
3-5 ZS68C08035 CAPSCREW 2
3-6 ZS28C08016 CAPSCREW 1
4 YT25M01119F1 ARM REST 1
4-1 YT25M01120P1 BRACKET 1
4-2 LP25M01031P1 PIN 1
4-3 YT25M01108F1 CLAMP 1
4-4 ZS28C08016 CAPSCREW 1
5 ZM73C08020 SEMS-BOLT 2
6 ZS68C08018 CAPSCREW 4
7 ZM73C08016 SEMS-BOLT 3
