YN60D00157F2 YN60D00156F2 YN62D00038F1 TRACK LINK SHOE ASSY KOBELCO
. (800mm t=10.0)
.

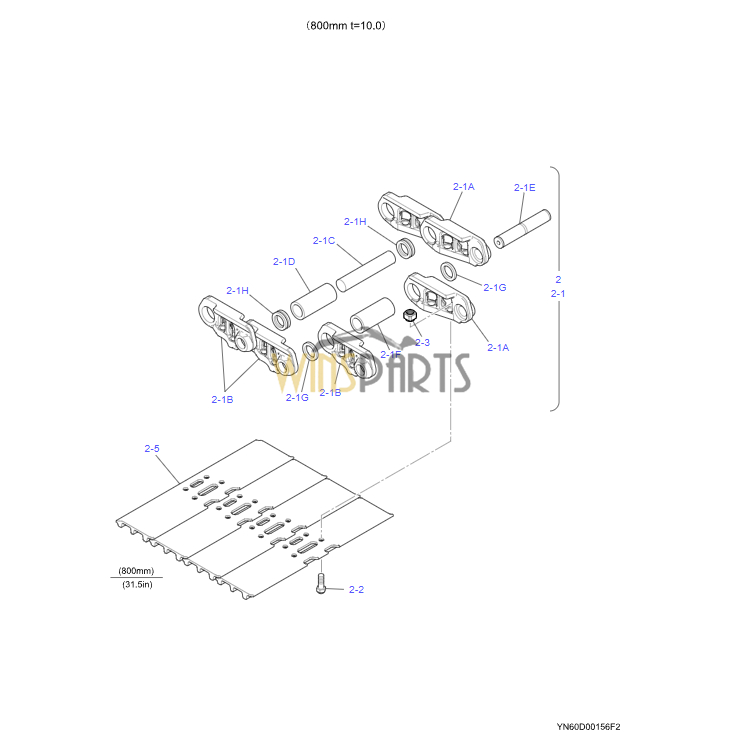

2 YN60D00157F2 SHOE ASSY 2
2-1 YN62D00038F1 TRACK LINK ASSY 1
2-1A YN62D01070P1 LINK 46
2-1B YN62D01071P1 LINK 46
2-1C YN62D01072P1 PIN 45
2-1D YN62D01073P1 BUSHING 45
2-1E YN62D01074P1 PIN 1
2-1F YN62D01075P1 BUSHING 1
2-1G YN62D01076P1 COLLAR 2
2-1H YN62D01077P1 SEAL 90
2-2 2420Z1292 BOLT 184
2-3 YN60D01006P1 NUT 184
2-5 2424N196D3 SHOE 46
. (800mm t=10.0)
.

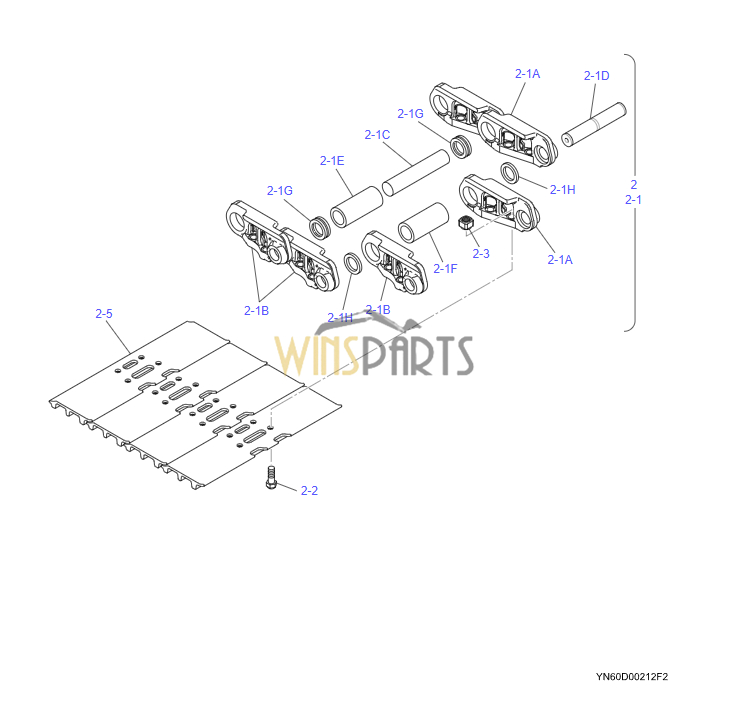

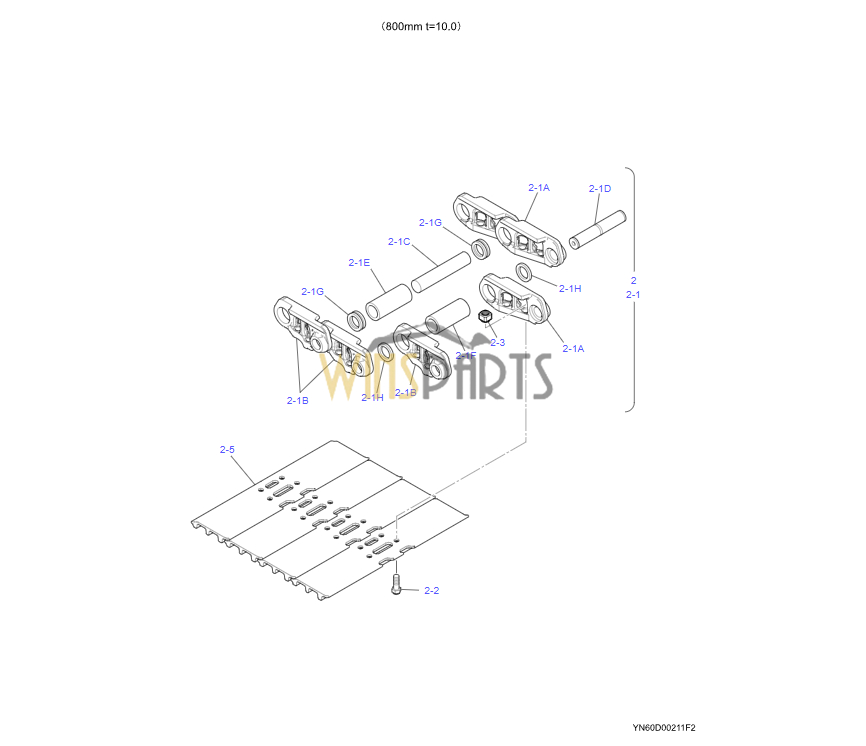

2 YN60D00205F2 SHOE ASSY 2
2-1 YN62D00058F1 TRACK LINK ASSY 1
2-1A YN62D01103P1 LINK 46
2-1B YN62D01104P1 LINK 46
2-1C YN62D01087P1 PIN 45
2-1D YN62D01088P1 PIN 1
2-1E YN62D01111P1 BUSHING 45
2-1F YN62D01112P1 BUSHING 1
2-1G YN62D01091P1 SEAL 90
2-1H YN62D01092P1 COLLAR 2
2-2 YN60D01021P1 BOLT 184
2-3 YN60D01022P1 NUT 184
2-5 YN60D00208P1 SHOE 46
. (700mm t=10.0)
.
3 YN60D00157F3 SHOE ASSY 2
3-1 YN62D00038F1 TRACK LINK ASSY 1
3-1A YN62D01070P1 LINK 46
3-1B YN62D01071P1 LINK 46
3-1C YN62D01072P1 PIN 45
3-1D YN62D01073P1 BUSHING 45
3-1E YN62D01074P1 PIN 1
3-1F YN62D01075P1 BUSHING 1
3-1G YN62D01076P1 COLLAR 2
3-1H YN62D01077P1 SEAL 90
3-2 2420Z1292 BOLT 184
3-3 YN60D01006P1 NUT 184
3-6 2424N196D2 SHOE 46
. (700mm t=10.0)
.
3 YN60D00205F3 SHOE ASSY 2
3-1 YN62D00058F1 TRACK LINK ASSY 1
3-1A YN62D01103P1 LINK 46
3-1B YN62D01104P1 LINK 46
3-1C YN62D01087P1 PIN 45
3-1D YN62D01088P1 PIN 1
3-1E YN62D01111P1 BUSHING 45
3-1F YN62D01112P1 BUSHING 1
3-1G YN62D01091P1 SEAL 90
3-1H YN62D01092P1 COLLAR 2
3-2 YN60D01021P1 BOLT 184
3-3 YN60D01022P1 NUT 184
3-6 YN60D00218P1 SHOE 46
. (600mm t=10.0)
.

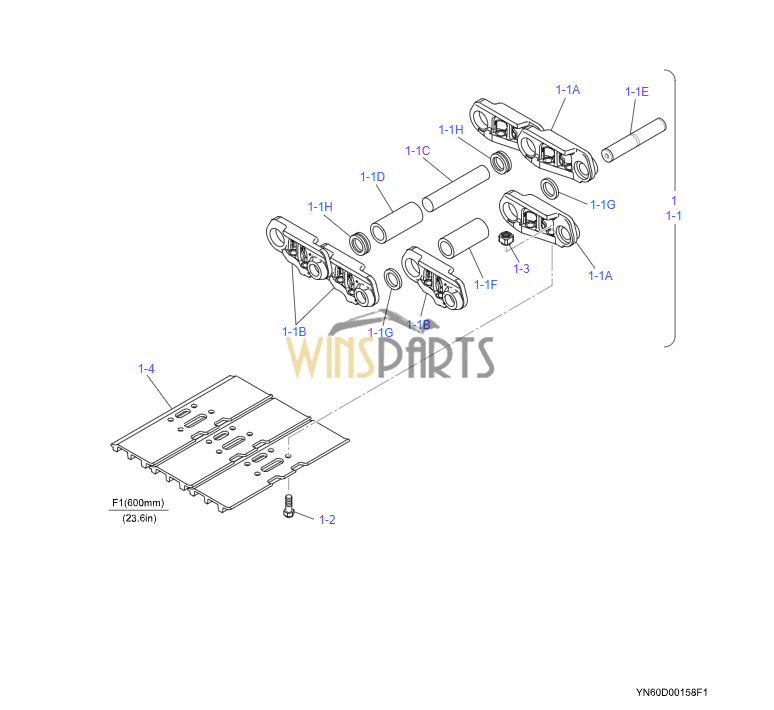

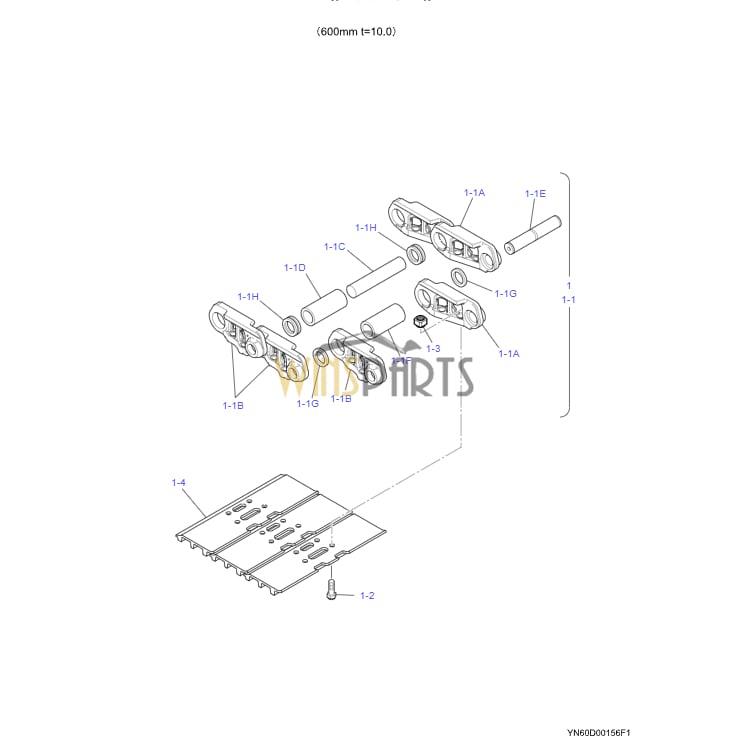

1 YN60D00157F1 SHOE ASSY 2
1-1 YN62D00038F1 TRACK LINK ASSY 1
1-1A YN62D01070P1 LINK 46
1-1B YN62D01071P1 LINK 46
1-1C YN62D01072P1 PIN 45
1-1D YN62D01073P1 BUSHING 45
1-1E YN62D01074P1 PIN 1
1-1F YN62D01075P1 BUSHING 1
1-1G YN62D01076P1 COLLAR 2
1-1H YN62D01077P1 SEAL 90
1-2 2420Z1292 BOLT 184
1-3 YN60D01006P1 NUT 184
1-4 2424N196D1 SHOE 46
. (600mm t=10.0)
.
1 YN60D00205F1 SHOE ASSY 2
1-1 YN62D00058F1 TRACK LINK ASSY 1
1-1A YN62D01103P1 LINK 46
1-1B YN62D01104P1 LINK 46
1-1C YN62D01087P1 PIN 45
1-1D YN62D01088P1 PIN 1
1-1E YN62D01111P1 BUSHING 45
1-1F YN62D01112P1 BUSHING 1
1-1G YN62D01091P1 SEAL 90
1-1H YN62D01092P1 COLLAR 2
1-2 YN60D01021P1 BOLT 184
1-3 YN60D01022P1 NUT 184
1-4 YN60D00207P1 SHOE 46
.

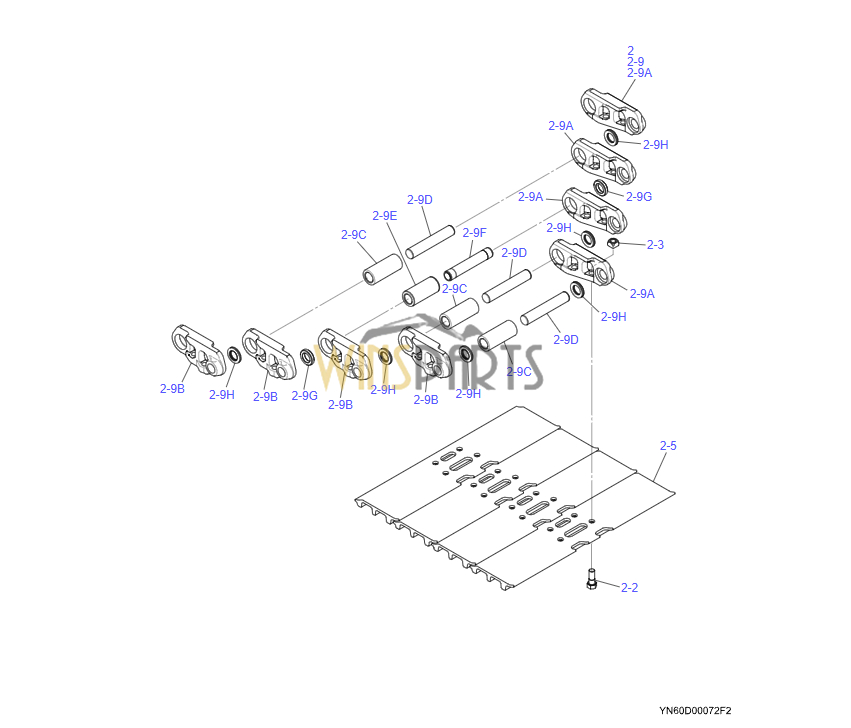

2 YN60D00073F2 SHOE ASSY 2
2-2 YN60D01011P1 BOLT 196
2-3 YN60D01006P1 NUT 196
2-5 2424N196D3 SHOE 49
2-9 YN62D00034F2 TRACK LINK ASSY 1
2-9A 2424J170D1 TRACK LINK 49
2-9B 2424J170D2 TRACK LINK 49
2-9C 2405P694 BUSHING 48
2-9D YN62D01064P1 PIN 48
2-9E 2405P392 BUSHING 1
2-9F YN62D01017P1 PIN 1
2-9G 2418T25964 COLLAR 2
2-9H YN62D01028P1 SEAL 96
2 YN60D00159F2 SHOE ASSY 2
2-1 YN62D00038F2 TRACK LINK ASSY 1
2-1A YN62D01070P1 LINK 49
2-1B YN62D01071P1 LINK 49
2-1C YN62D01072P1 PIN 48
2-1D YN62D01073P1 BUSHING 48
2-1E YN62D01074P1 PIN 1
2-1F YN62D01075P1 BUSHING 1
2-1G YN62D01076P1 COLLAR 2
2-1H YN62D01077P1 SEAL 96
2-2 2420Z1292 BOLT 196
2-3 YN60D01006P1 NUT 196
2-5 2424N196D3 SHOE 49
2 YN60D00206F2 SHOE ASSY 2
2-1 YN62D00058F2 TRACK LINK ASSY 1
2-1A YN62D01103P1 LINK 49
2-1B YN62D01104P1 LINK 49
2-1C YN62D01087P1 PIN 48
2-1D YN62D01088P1 PIN 1
2-1E YN62D01111P1 BUSHING 48
2-1F YN62D01112P1 BUSHING 1
2-1G YN62D01091P1 SEAL 96
2-1H YN62D01092P1 COLLAR 2
2-2 YN60D01021P1 BOLT 196
2-3 YN60D01022P1 NUT 196
2-5 YN60D00208P1 SHOE 49
. (LONG CRAWLER, 600mm t=10.0)
.
1 YN60D00159F1 SHOE ASSY 2
1-1 YN62D00038F2 TRACK LINK ASSY 1
1-1A YN62D01070P1 LINK 49
1-1B YN62D01071P1 LINK 49
1-1C YN62D01072P1 PIN 48
1-1D YN62D01073P1 BUSHING 48
1-1E YN62D01074P1 PIN 1
1-1F YN62D01075P1 BUSHING 1
1-1G YN62D01076P1 COLLAR 2
1-1H YN62D01077P1 SEAL 96
1-2 2420Z1292 BOLT 196
1-3 YN60D01006P1 NUT 196
1-4 2424N196D1 SHOE 49
