YN12B00907F1 YN12B00908F1 BUCKET CYLINDER INSTAL Kobelco (BUCKET/SHORT) 1 YN12B00908F1 CYLINDER INSTAL 1 1-1 YN12B02413P1 PIN 1 1-2 HS18C16140G2 CAPSCREW 1 …

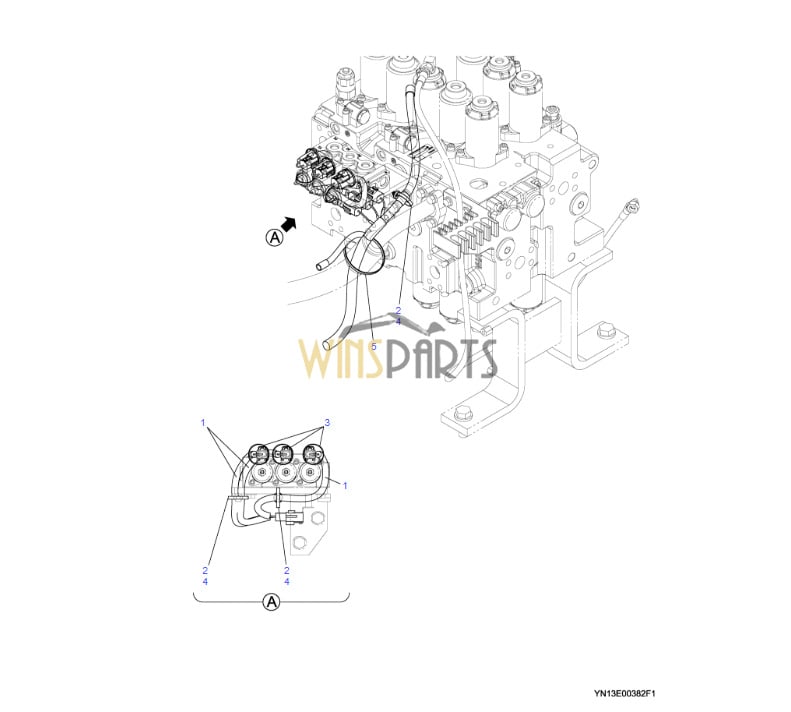

YN13E00382F1 HARNESS ASSY, UPP
.
1 YT13E01444P1 HARNESS 3
2 YN13E01375P1 CLIP 3
3 PY01P01043DA CLIP 3
4 PY01P01043D3 CLIP 5
5 PY01P01043D5 CLIP 1
.
270-01 YN62H00047F1 KCMU-04 D0001918756 1 1 YN62H00047F1 CONTROL LINES,PROPEL 1 P.270-01
270-02 LQ62H00035F1 CHN-01 D0001921006 1 2 LQ62H00035F1 CONTROL LINES,PROPEL 1 P.270-02
270-03 KCMU D0001918793 1 3 LQ64H00457F1 VALVE INSTAL 1 P.270-03

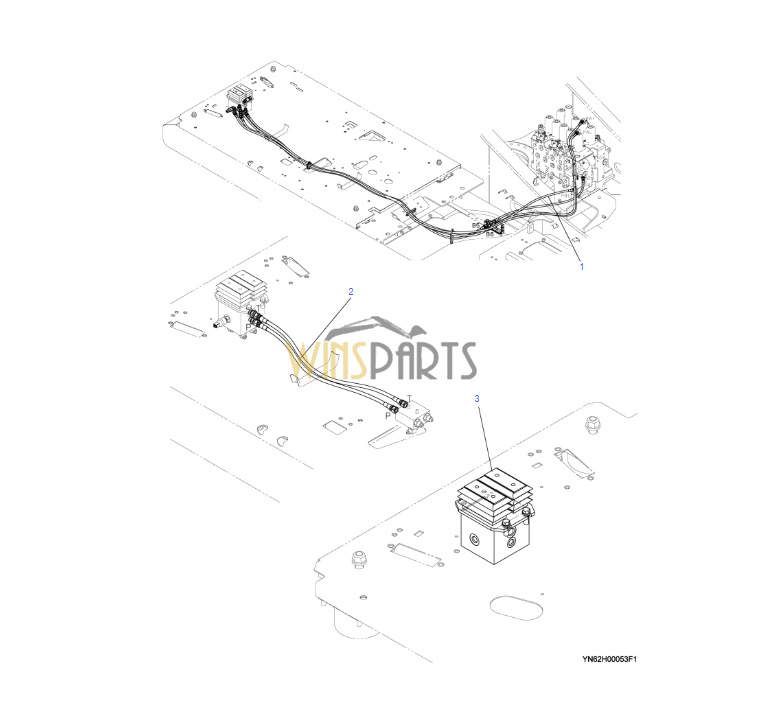

YN62H00054F1 CONTROL LINES,PROPEL Not Service
.
270-01 YN62H00049F1 CKCM-05 D0002495063 1 1 YN62H00049F1 CONTROL LINES,PROPEL 1 P.270-01
270-02 LQ62H00034F1 CKCM-01 D0002495064 1 2 LQ62H00034F1 CONTROL LINES,PROPEL 1 P.270-02
270-03 CKCM X D0002495066 1 3 LQ64H00454F1 VALVE INSTAL 1 P.270-03

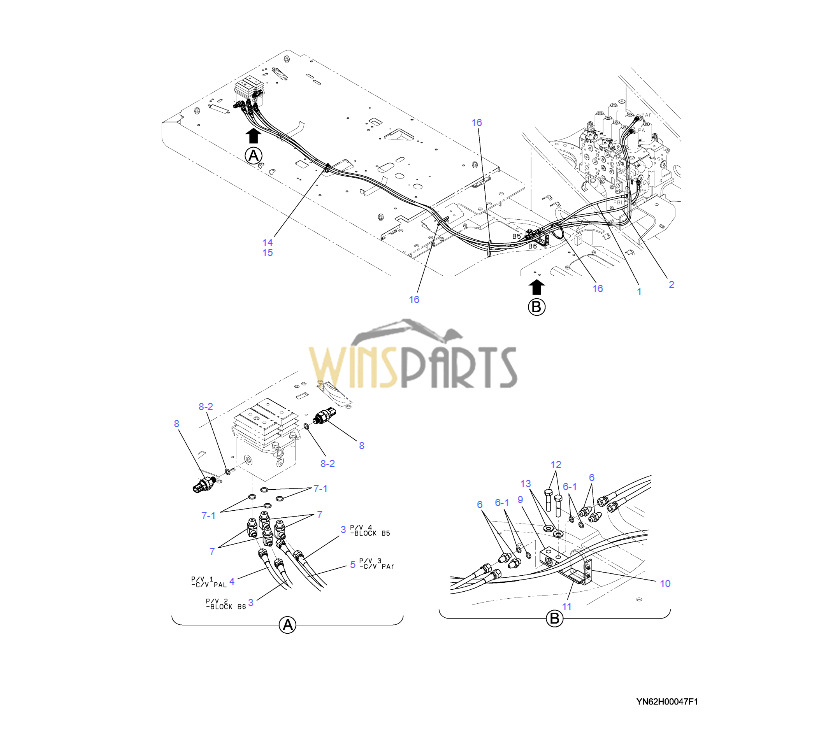

YN62H00049F1 CONTROL LINES,PROPEL
1 2420R349D060 HOSE 1
2 2420R349D078 HOSE 1
3 2420R349D220 HOSE 2
4 2420R349D350 HOSE 1
5 2420R349D365 HOSE 1
6 ZH22X04000 CONNECTOR 4
6-1 ZD12P01100 O-RING 1
7 ZH32X04006 ELBOW 4
7-1 ZD12P01400 O-RING 1
8 LC52S00019P1 SENSOR, PRESS 2 YN15T17101–17209
. YQ15-T3101–T3107
8-2 ZD12P01100 O-RING 1
8 YN52S00102P1 SENSOR, PRESS 2 YN15T17210-
. YQ15-T3108-
8-2 ZD12P01100 O-RING 1
9 LQ64H01125P1 BLOCK 1
10 LC64H01214P1 SUPPORT 1
11 LQ64H01118P1 RUBBER 1
12 ZS18C10050 CAPSCREW 2
13 ZW16H10000 WASHER 2
14 YN13E01375P1 CLIP 1
15 PY01P01043D3 CLIP 1
16 PY01P01043D8 CLIP 2 YN15T17101–17226
. YQ15-T3101–T3109
16 PY01P01043D8 CLIP 3 YN15T17227-

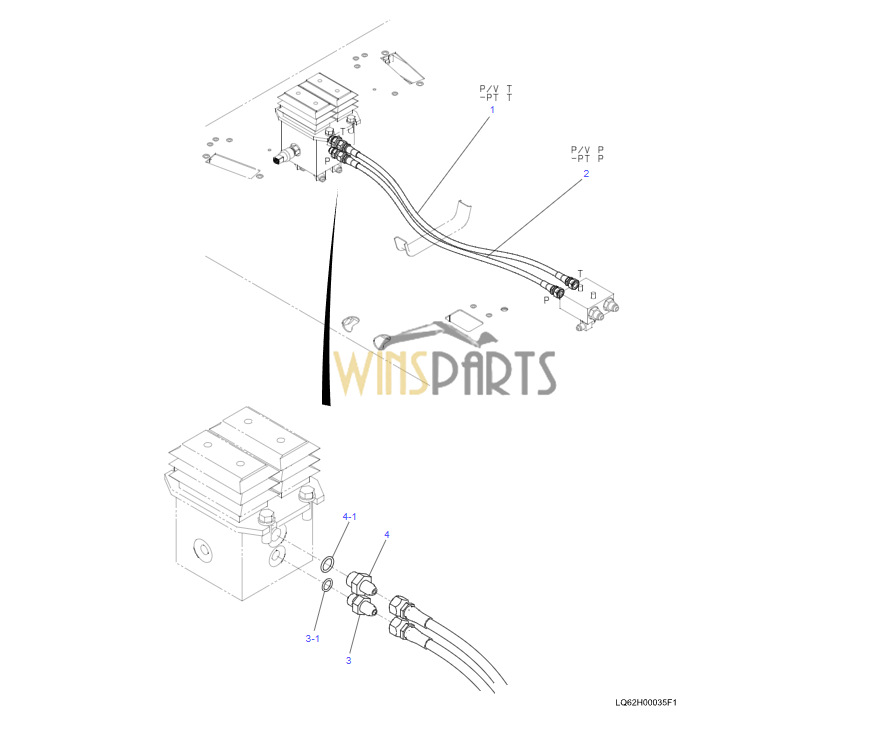

LQ62H00034F1 CONTROL LINES,PROPEL .
1 2420R349D070 HOSE 1
2 HX23L04070CD HOSE 1
3 HH25X04004G2 CONNECTOR 1
3-1 ZD12P01100 O-RING 1
4 ZH22X04006 CONNECTOR 1
4-1 ZD12P01400 O-RING
