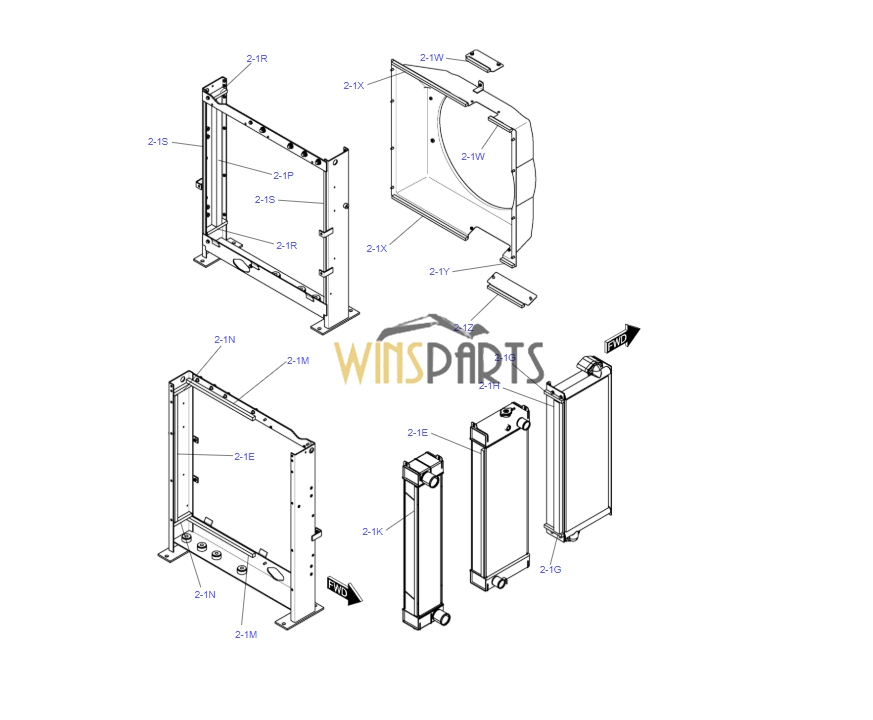

YN05P00118F1 YN05P00046F1 RADIATOR ASSY Kobelco SK210-8 SK210LC-8
.
1 YN05P00046F1 RADIATOR INSTAL 1
1-1 YN05P01292P1 STAY 2
1-2 ZM73C12035 SEMS-BOLT 5
1-3 ZM73C12030 SEMS-BOLT 3

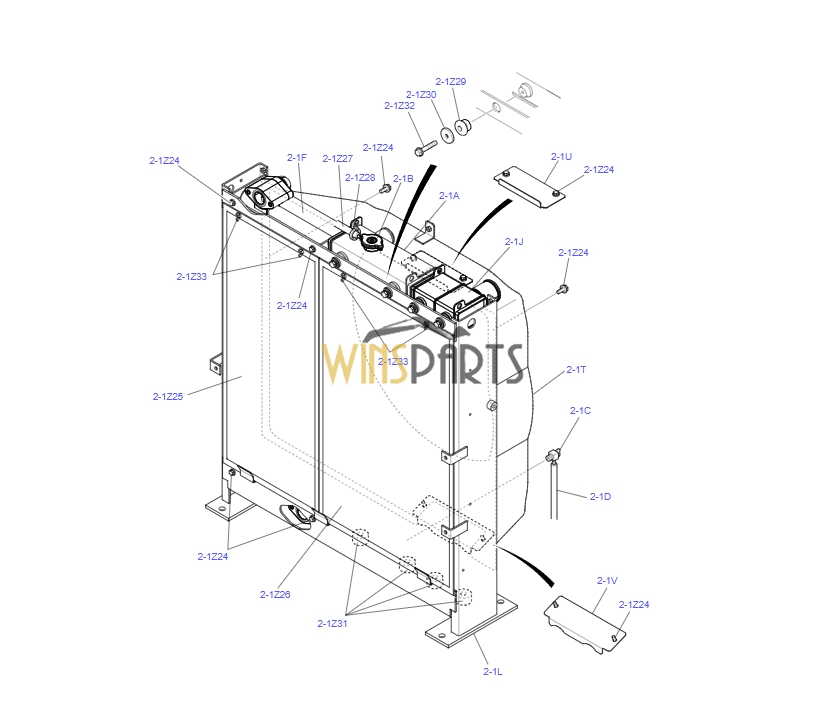

2 YN05P00119F1 RADIATOR ASSY 1
2-1 YN05P00117F1 RADIATOR ASSY 1

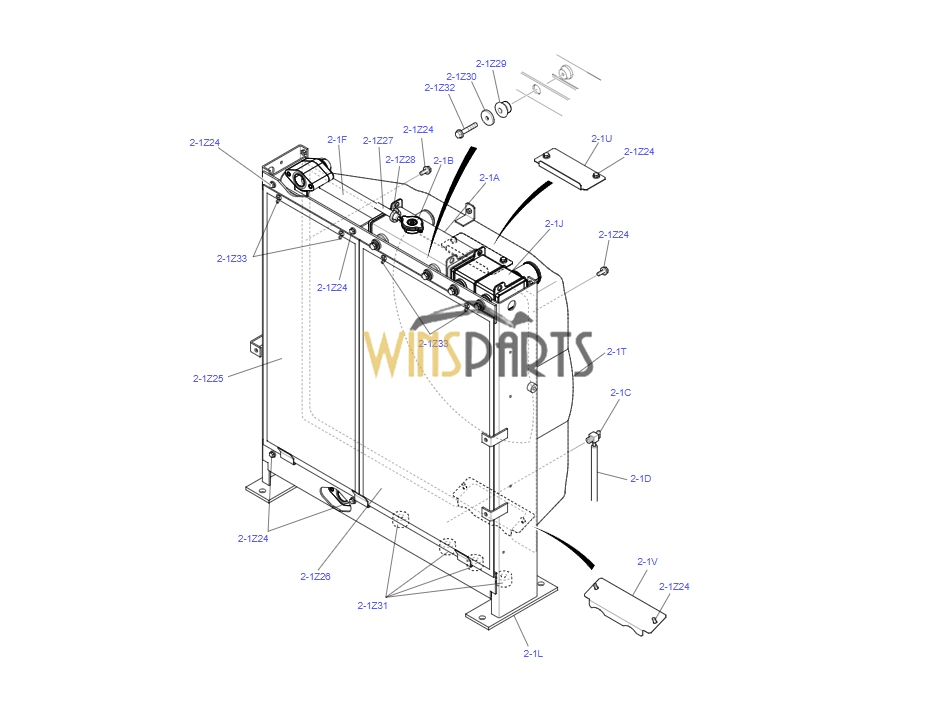

2-1A YN05P00058S038 RADIATOR ASSY 1
2-1B YN05P00088S032 CAP 1
2-1C 2452U221S18 COCK, DRAIN 1
2-1D 2452U416S6 HOSE 1
2-1E YB05P00001S022 INSULATION 2
2-1F YN05P00058S037 COOLER, OIL 1
2-1G YN05P00058S019 INSULATION 2
2-1H YN05P00058S023 INSULATION 1
2-1J YN05P00058S003 COOLER, AIR 1
2-1K YN05P00058S022 INSULATION 1
2-1L YN05P00058S004 SUPPORT 1
2-1M YN05P00058S018 INSULATION 2
2-1N YN05P00058S020 INSULATION 2
2-1P YN05P00058S024 INSULATION 1
2-1R YN05P00058S031 INSULATION 2
2-1S YN05P00058S032 RUBBER 2
2-1T YN05P00117S017 SHROUD 1
2-1U YN05P00117S018 PLATE 1
2-1V YN05P00088S019 PLATE 1
2-1W YN05P00117S020 RUBBER 2
2-1X YN05P00058S035 RUBBER 2
2-1Y YN05P00058S033 RUBBER 1
2-1Z YN05P00058S034 RUBBER 1
2-1Z24 LS05P00062S052 CAPSCREW 16
2-1Z25 YN05P00058S005 GUARD 1
2-1Z26 YN05P00058S006 GUARD 1
2-1Z27 LC05P00011S026 HOSE 1
2-1Z28 2452U267S8 CLIP 2
2-1Z29 YN05P00058S012 COLLAR 4
2-1Z30 YN05P00058S013 MOUNT, RUBBER 4
2-1Z31 YN05P00058S014 MOUNT, RUBBER 4
2-1Z32 EE05P00004S027 SEMS-BOLT 4
2-1Z33 2452U202S5 BOLT, WING 4
2-1Z34v YN05P00058S019 INSULATION 1
2-1Z34z YN05P00058S023 INSULATION 1
2-3 YN05P01322P2 INSULATION 1
2-4 YN05P01355P1 O-RING 2
2-6 ZM73C08020 SEMS-BOLT 4
2-7 YN05P01989F1 PLATE ASSY 1
2-7A YN05P01971P1 PLATE 1
2-7B YN05P01461P1 INSULATION 1
2-7C YN05P01994P1 INSULATION 1
2-7D YN05P01995P1 INSULATION 1
2-7E YN05P01463P1 INSULATION 3
2-7F LQ21C01041D5 TRIM 1
2-8 YN05P01464P1 INSULATION 1
2-9 YN05P01465P1 INSULATION 2
2-10 YN05P01520P1 INSULATION 1
2-11 YN05P01521P1 INSULATION 1
.
YN05P00058R101 REPAIR KIT 1
. (2-1F, 2-1G, 2-1H)X1
