YN61B00331F1 YN61B00312F1 0.8M3 BUCKET ASSY Kobelco SK200-8 SK210LC-8 (SIDE TYPE PIN) 1 YN61B00331F1 BUCKET ASSY 1 1-1 YN61B00328P1 BUCKET 1 …
YN02B00795F1 YN02B00796F1 BOOM ASSY ATTACHMENT KOBELCO
YN02B00960F1 BOOM, HOE 5.65M
1 YN02B00796F1 BOOM, HOE 1 YN15T17101–18636
. YQ15-T3101–T3175
1-1B LB01V01009P1 BUSHING 4
1-2A YN02B02285P1 BLOCK, TAPPED 2
1-2B LQ02B01785P1 BLOCK, TAPPED 6
1-2C LQ02B01870P2 BLOCK, TAPPED 2
1-2D 2416T9878 BLOCK, TAPPED 2
1-2E LC52F02262P1 BLOCK, TAPPED 1
1-2F YN02B01882P1 BLOCK, TAPPED 2
1 YN02B00942F1 BOOM, HOE 1 YN15T18637-
. YQ15-T3176-
1-1B LB01V01009P1 BUSHING 4
1-2A YN02B02285P1 BLOCK, TAPPED 2
1-2B LQ02B01785P1 BLOCK, TAPPED 6
1-2C LQ02B01870P2 BLOCK, TAPPED 2
1-2D 2416T9878 BLOCK, TAPPED 2
1-2E LC52F02262P1 BLOCK, TAPPED 1
1-2F YN02B01882P1 BLOCK, TAPPED 2
1-2K YN02B02596P1 BLOCK, TAPPED 1
2 2445R138D8 SEAL, DUST 2
YN02B10079F1 BOOM, HOE 5.65M
YN02B00869F1 BOOM, HOE 5.65M Not Service
YN02B00972F1 BOOM, HOE 5.65M Not Service

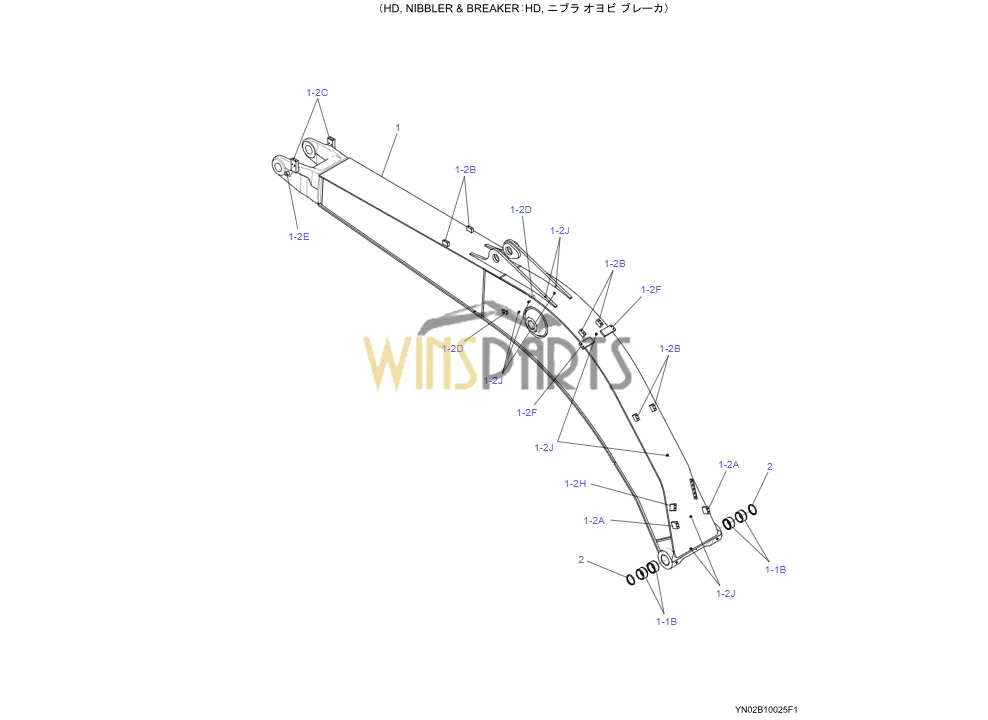

. (SHD, NIBBLER & BREAKER)
.
1 YN02B00973F1 BOOM, HOE 1
.
1 YN02B00870F1 BOOM, HOE
1 YN02B10080F1 BOOM, HOE 1
1 YN02B10026F1 BOOM, HOE 1
1-1B LB01V01009P1 BUSHING 4
1-2A YN02B02285P1 BLOCK, TAPPED 2
1-2B LQ02B01785P1 BLOCK, TAPPED 6
1-2C LQ02B01870P2 BLOCK, TAPPED 2
1-2D 2416T9878 BLOCK, TAPPED 2
1-2E LC52F02262P1 BLOCK, TAPPED 1
1-2F YN02B01882P1 BLOCK, TAPPED 2
1-2H YN02B02596P1 BLOCK, TAPPED 1
1-2J YT02B01505P1 BLOCK, TAPPED 9
2 2445R138D8 SEAL, DUST 2

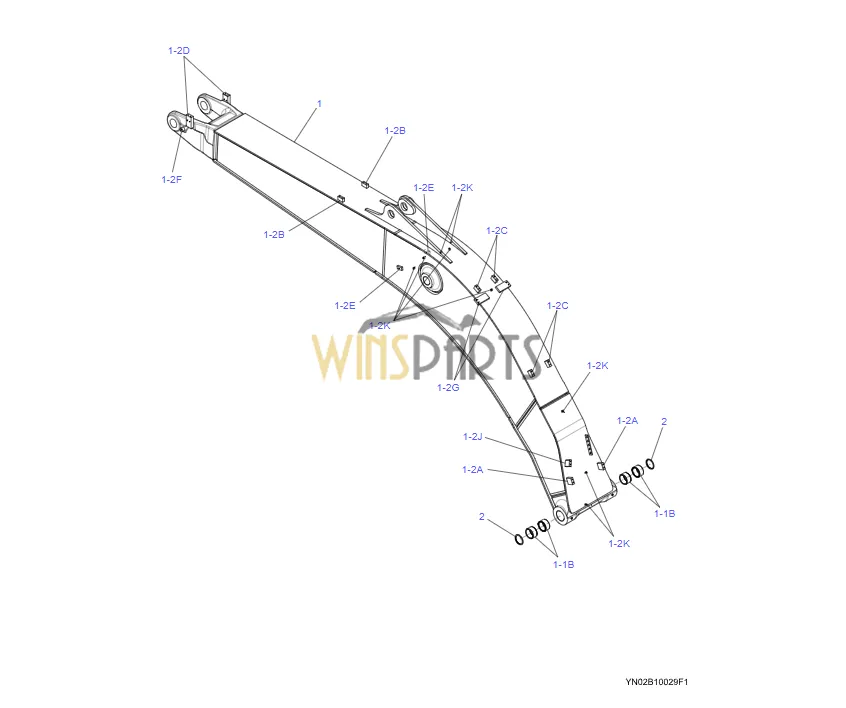

YN02B10083F1 BOOM, HOE 5.65M Not Service
YN02B00889F1 BOOM, HOE 8.75M Not Service
1 YN02B00890F1 BOOM, HOE 1
1 YN02B10084F1 BOOM, HOE
1 YN02B10030F1 BOOM, HOE 1
YN02B00976F1 BOOM GROUP Not Service
YN02B10022F1 BOOM GROUP
1 2444R1117D076 HOSE 1
2 2444R1117D080 HOSE 1
3 2444R1117D252 HOSE 1
4 2444R1117D263 HOSE 1
5 2444R1117D305 HOSE 1
6 ZH32Z04000 ELBOW 2
7 ZG91S02000 NIPPLE, GREASE 6
1 2444R1117D076 HOSE 1
2 2444R1117D080 HOSE 1
3 2444R1117D255 HOSE 1
4 2444R1117D263 HOSE 1
5 2444R1117D305 HOSE 1
6 ZH32Z04000 ELBOW 2
7 ZG91S02000 NIPPLE, GREASE 8
8 ZC48X10009 CLIP 3
9 PY01P01043D3 CLIP 2
10 ZC46X10009 CLIP 1
11 ZS18C06016 CAPSCREW 4
12 ZW26X06000 LOCK WASHER 4
13 YN20M01702P1 WASHER 4

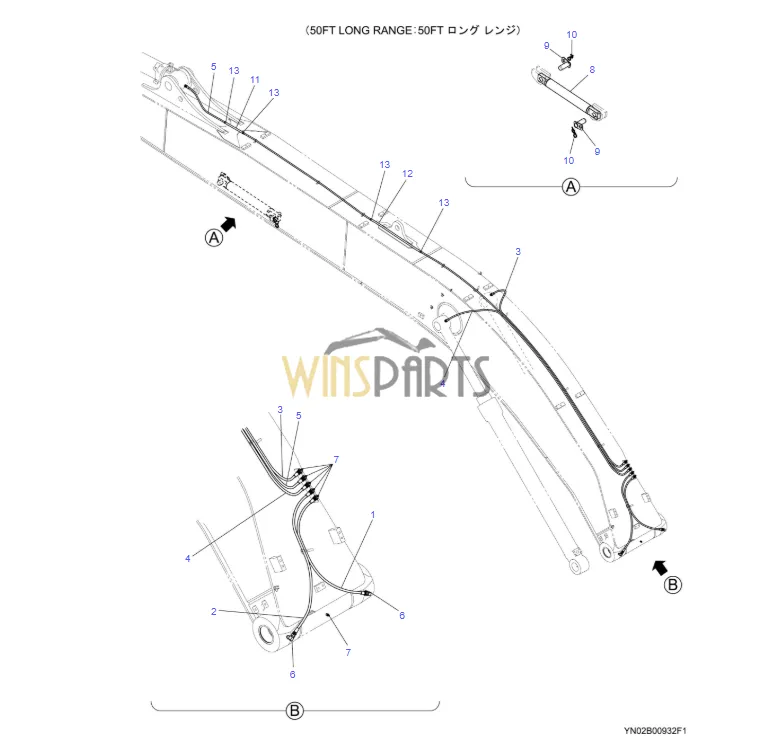

YN02B00932F1 BOOM GROUP
1 2444R1117D075 HOSE 1
2 2444R1117D080 HOSE 1
3 2444R1117D255 HOSE 1
4 2444R1117D263 HOSE 1
5 2444R1117D305 HOSE 1
6 ZH32Z04000 ELBOW 2
7 ZG91S02000 NIPPLE, GREASE 8
8 ZC48X10009 CLIP 3
9 ZC46X10009 CLIP 1
10 PY01P01043D3 CLIP 2
11 YT02C01888P2 SEMS-BOLT 4
.

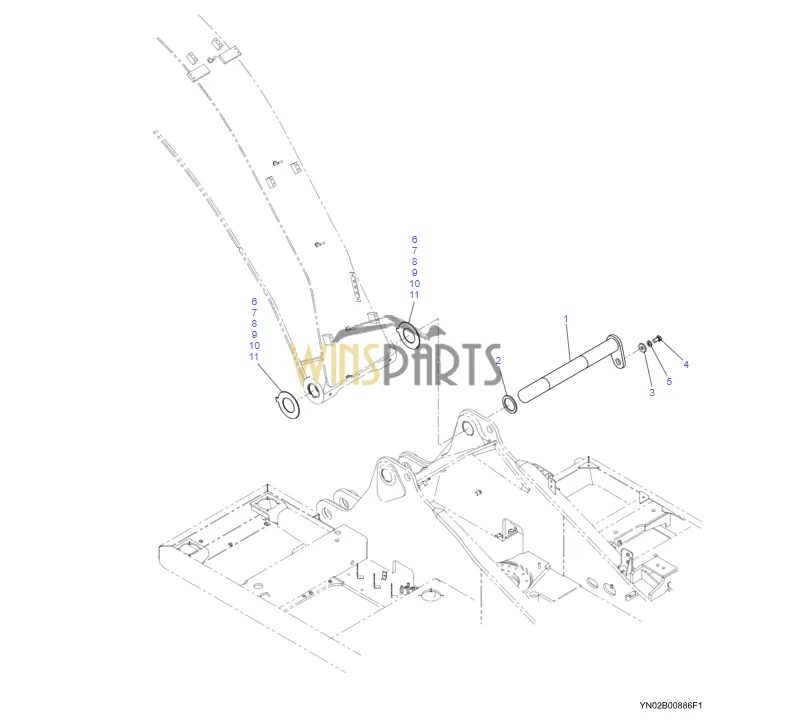

1 YN02B02541P1 PIN 1
2 YN02B02507P1 PLATE 1
3 YN12B11678P1 PLATE 1
4 ZS18C20040 CAPSCREW 1
5 ZW16H20000 WASHER 1
6 YN02B02515D1 SHIM (2.9) 2
7 YN02B02515D2 SHIM (3.4) 2
8 YN02B02515D3 SHIM (3.9) 2
9 YN02B02515D4 SHIM (4.4) 1
10 YN02B02515D5 SHIM (1.9) 2
11 YN02B02515D6 SHIM (2.4) 2
