YANMAR 4TNV98 ENGINE KOBELCO SK75SR-7 SK75SR-7F SK85CS-7 SK85MSR-7
.
129E3201560 BLOCK ASSY, CYLINDER 129E3201560 1 VV129E3201560 1
129900-01250 PLUG, 55 12990001250 4 VV12990001250 1
171051-01921 PLUG, NPTF1 17105101921 5 VV17105101921 1
129900-02020 BOLT, METAL CAP 12990002020 6 VV12990002020 10
129900-02410 BUSH, CAMSHAFT 12990002410 9 VV12990002410 1
272413-00000 PLUG 30 27241300000 10 VV27241300000 8
223510-60012 PIN, SPRING 6.0X12 22351060012 11 VV22351060012 2
238760-30000 PLUG, R03 23876030000 12 VV23876030000 1
238760-30000 PLUG, R03 23876030000 13 VV23876030000 1
238760-30000 PLUG, R03 23876030000 14 VV23876030000 1
238760-30000 PLUG, R03 23876030000 15 VV23876030000 1
129927-02930 BEARING ASSY, THRUST 12992702930 25 VV12992702930 2
129900-01200 BOLT, CYLINDER HEAD 12990001200 28 VV12990001200 18
129E0001330 GASKET, HEAD 129E0001330 29 VV129E0001330 1
729927-02800 BEARING ASSY, MAIN 72992702800 30 VV72992702800 5
129927-02340 BEARING ASSY,MAIN US 12992702340 33 VV12992702340 5
129927-02940 BEARING,THRUST0.25OS 12992702940 36 VV12992702940 2
119309-01810 PLUG 11930901810 39 VV11930901810 1
.

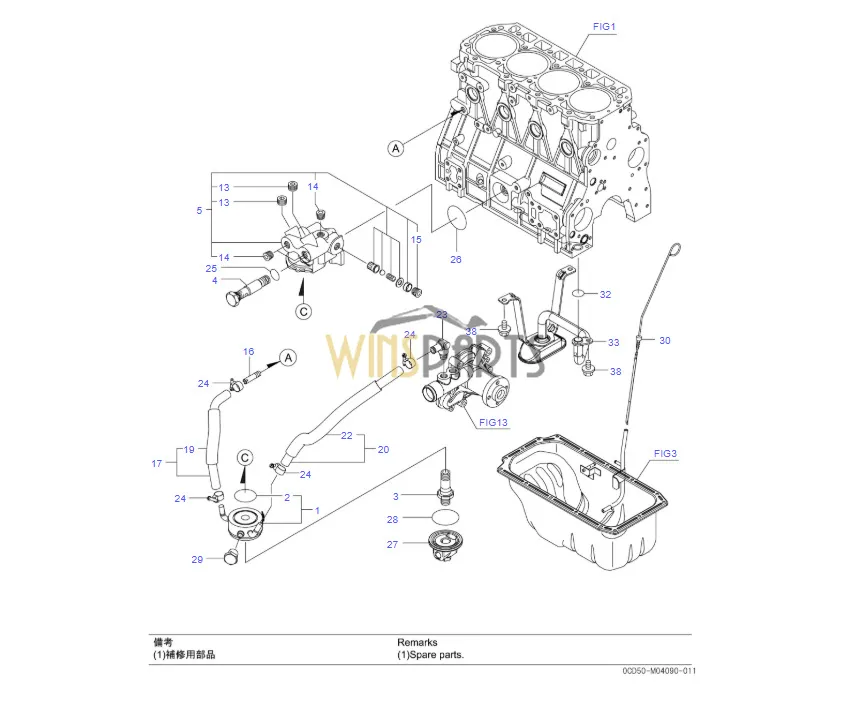

129E0101500 CASE, GEAR 129E0101500 1 VV129E0101500 1
129100-01580 PIN, PARALLEL 8X16 12910001580 2 VV12910001580 4
129900-32030 O-RING, P20 12990032030 3 VV12990032030 1
129900-32040 O-RING, P14 12990032040 4 VV12990032040 1
129908-32060 PUMP ASSY, OIL 12990832060 5 VV12990832060 1
129927-42140 GASKET, PUMP OUTLET 12992742140 6 VV12992742140 1
243110-00070 O-RING, 1AP7.0 24311000070 7 VV24311000070 1
261060-80162 BOLT, M8X 16 PLATED 26106080162 8 VV26106080162 4
261060-80452 BOLT, M8X 45 PLATED 26106080452 9 VV26106080452 3
124160-01751 CAP, FILLER 12416001751 10 VV12416001751 1
243110-00320 O-RING, 1AP32.0 24311000320 11 VV24311000320 1
129E0001580 COVER ASSY, CASE 129E0001580 12 VV129E0001580 1
129916-01800 SEAL, OIL 12991601800 14 VV12991601800 1
129E0001850 COVER ASSY, CASE 129E0001850 15 VV129E0001850 1
124240-01871 COVER,HYDRAULIC PUMP 12424001871 17 VV12424001871 1
261060-80162 BOLT, M8X 16 PLATED 26106080162 18 VV26106080162 2
261060-80162 BOLT, M8X 16 PLATED 26106080162 19 VV26106080162 4
261060-80402 BOLT, M8X 40 PLATED 26106080402 20 VV26106080402 10
261060-80702 BOLT, M8X 70 PLATED 26106080702 21 VV26106080702 7
.

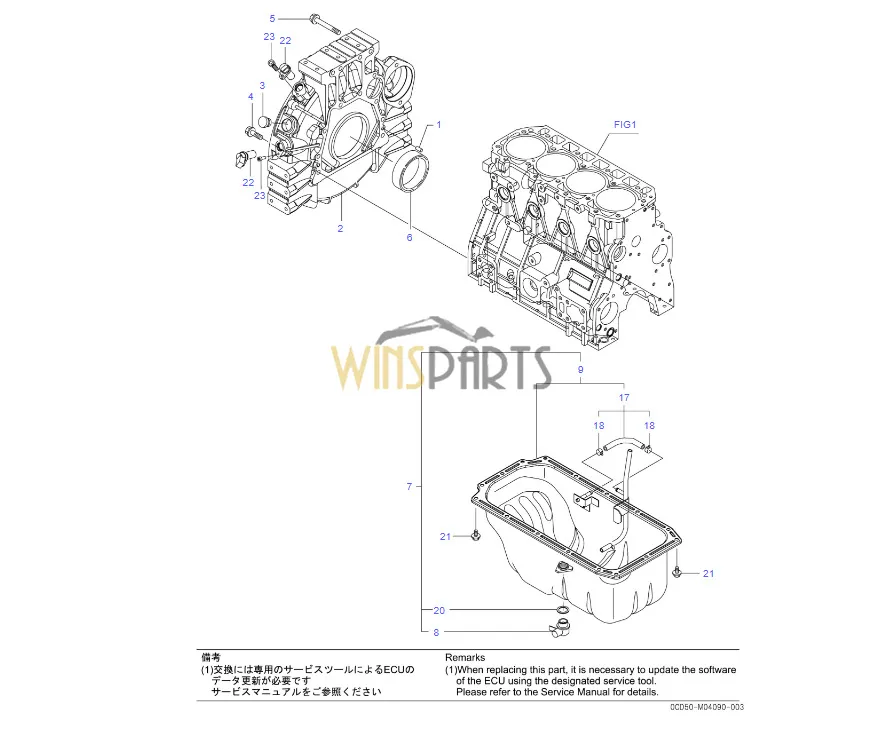

129100-01580 PIN, PARALLEL 8X16 12910001580 1 VV12910001580 2
129E3001620 HOUSING, FLYWHEEL 129E3001620 2 VV129E3001620 1
119620-01750 CAP, WHEEL COVER 11962001750 3 VV11962001750 1
262061-00352 BOLT, M10X 35 PLATED 26206100352 4 VV26206100352 9
262061-00952 BOLT, M10X 95 PLATED 26206100952 5 VV26206100952 4
129916-01790 SEAL, D115/95XT11 12991601790 6 VV12991601790 1
129E3001720 OIL PAN ASSY 129E3001720 7 VV129E3001720 1
129E3001630 COCK, OIL DRAIN 129E3001630 8 VV129E3001630 1
129E3001700 OIL PAN ASSY 129E3001700 9 VV129E3001700 1
129E2059500 HOSE ASSY 129E2059500 17 VV129E2059500 1
124766-59050 CLAMP, HOSE 11.5 12476659050 18 VV12476659050 2
221902-20002 WASHER, SEAL 22 22190220002 20 VV22190220002 1
261060-80122 BOLT, M8X 12 PLATED 26106080122 21 VV26106080122 16
129A0021710 SENSOR, FLYWHEEL 129A0021710 22 VV129A0021710 2 -1
264500-60162 BOLT, M6X 16 26450060162 23 VV26450060162 2
.

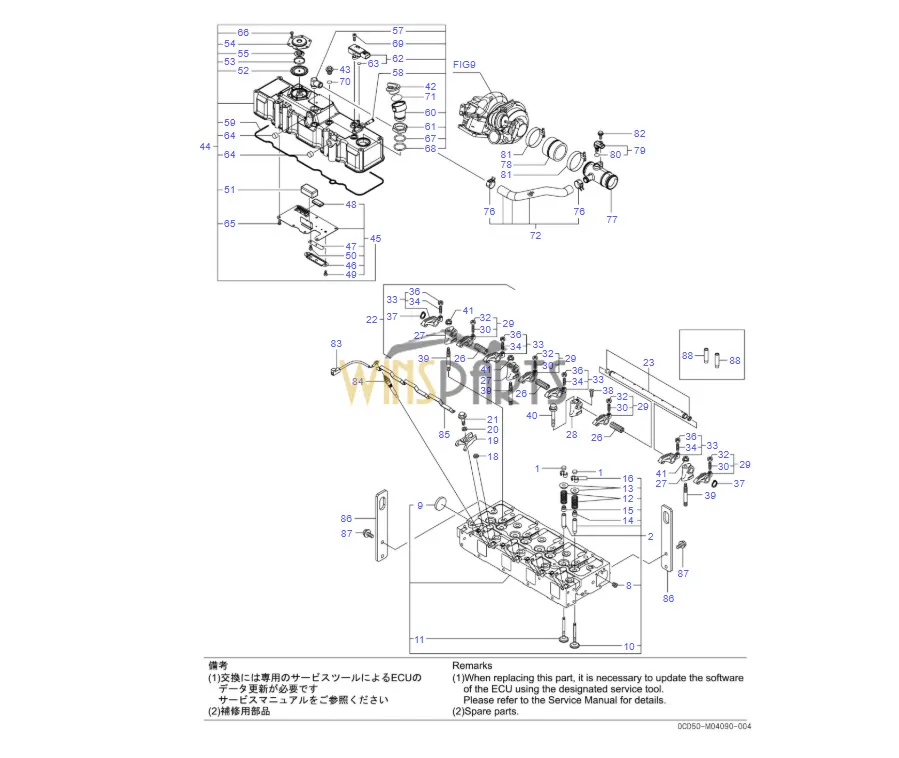

129150-11370 CAP, VALVE 12915011370 1 VV12915011370 8
129E0111710 HEAD ASSY, CYLINDER 129E0111710 2 VV129E0111710 1
238760-05000 PLUG, R005 23876005000 8 VV23876005000 1
272414-00000 PLUG, 40 27241400000 9 VV27241400000 1
129E0011100 VALVE, INTAKE 129E0011100 10 VV129E0011100 4
129900-11110 VALVE, EXHAUST 12990011110 11 VV12990011110 4
129900-11120 SPRING, VALVE 12990011120 12 VV12990011120 8
129795-11180 RETAINER, SPRING 12979511180 13 VV12979511180 8
124460-11340 SEAL, VALVE STEM 12446011340 14 VV12446011340 4
129A0011340 SEAL, VALVE STEM 129A0011340 15 VV129A0011340 4
273100-80001 COTTER, 8 27310080001 16 VV27310080001 8
129978-11871 GASKET, INJECTOR 12997811871 18 VV12997811871 4
129E0011900 RETAINER, INJECTOR 129E0011900 19 VV129E0011900 4
120270-54410 WASHER, INJECTOR 12027054410 20 VV12027054410 4
261060-80352 BOLT, M8X 35 PLATED 26106080352 21 VV26106080352 4
129900-11200 SUPPORT ASSY, ROCKER 12990011200 22 VV12990011200 1
129900-11240 SHAFT ASSY, ROCKER 12990011240 23 VV12990011240 1
129900-11280 SPRING, SHAFT 12990011280 26 VV12990011280 3
129900-11510 SUPPORT, ROCKER A 12990011510 27 VV12990011510 3
129900-11520 SUPPORT, ROCKER B 12990011520 28 VV12990011520 1
129900-11650 ARM ASSY, ROCKER INT 12990011650 29 VV12990011650 4
129150-11230 SCREW, VALVE ADJUST 12915011230 30 VV12915011230 4
129150-11750 NUT, M8XP1.0 12915011750 32 VV12915011750 4
129900-11660 ARM ASSY, ROCKER EXH 12990011660 33 VV12990011660 4
129150-11230 SCREW, VALVE ADJUST 12915011230 34 VV12915011230 4
129150-11750 NUT, M8XP1.0 12915011750 36 VV12915011750 4
222420-00180 RING, 18 22242000180 37 VV22242000180 2
265770-40162 SCREW, M4X16 26577040162 38 VV26577040162 1
129900-11530 BOLT, SUPPORT 12990011530 39 VV12990011530 3
261061-00652 BOLT, M10X 65 PLATED 26106100652 40 VV26106100652 1
263061-00002 NUT, M10 26306100002 41 VV26306100002 3
124160-01751 CAP, FILLER 12416001751 42 VV12416001751 1
124160-11360 KNOB, BONNET 12416011360 43 VV12416011360 3
129E3011350 BONNET ASSY 129E3011350 44 VV129E3011350 1
129E0003010 PLATE, BAFFLE 129E0003010 45 VV129E0003010 1
129E0003020 COVER, PLATE SPRING 129E0003020 46 VV129E0003020 1
129978-03030 SPRING, PLATE 12997803030 47 VV12997803030 1
129907-03061 BAFFLE, BREATHER 12990703061 48 VV12990703061 1
265570-50082 SCREW, M5X 8 26557050082 49 VV26557050082 2
265870-50102 SCREW, M5X10 26587050102 50 VV26587050102 1
129907-03070 BAFFLE, BREATHER 12990703070 51 VV12990703070 1
123907-03100 DIAPHRAGM, BREATHER 12390703100 52 VV12390703100 1
123907-03110 PLATE, CENTER 12390703110 53 VV12390703110 1
123907-03120 PLATE, BREATHER 12390703120 54 VV12390703120 1
123907-03140 SPRING, DIAPHRAGM 12390703140 55 VV12390703140 1
119100-11330 ELBOW, BREATHER 11910011330 57 VV11910011330 1
129A0011330 JOINT 129A0011330 58 VV129A0011330 1
129E0011330 GASKET, BONNET 129E0011330 59 VV129E0011330 1
119225-11740 ADAPTER, OIL FILLER 11922511740 60 VV11922511740 1
119225-11750 NUT 11922511750 61 VV11922511750 1
129978-12700 SENSOR, PRESSURE 12997812700 62 VV12997812700 1 -1
129A0012780 O-RING, EGR SENSOR 129A0012780 63 VV129A0012780 2
119640-61400 PLUG 11964061400 64 VV11964061400 2
228575-00100 SCREW, 5X10 22857500100 65 VV22857500100 7
228575-00100 SCREW, 5X10 22857500100 66 VV22857500100 6
243110-00300 O-RING, 1AP30.0 24311000300 67 VV24311000300 1
243110-00320 O-RING, 1AP32.0 24311000320 68 VV24311000320 1
264500-60162 BOLT, M6X 16 26450060162 69 VV26450060162 2
243110-00120 O-RING, 1AP12.0 24311000120 70 VV24311000120 3
243110-00320 O-RING, 1AP32.0 24311000320 71 VV24311000320 1
129E0103020 HOSE ASSY, BREATHER 129E0103020 72 VV129E0103020 1
129410-03990 CLAMP, HOSE 21.5 12941003990 76 VV12941003990 2
129C0103060 JOINT, BREATHER 129C0103060 77 VV129C0103060 1
129E3012060 HOSE, AIR INTAKE 129E3012060 78 VV129E3012060 1
129A0012711 SENSOR, TEMPERATURE 129A0012711 79 VV129A0012711 1
129A0012790 O-RING, TEMP SENSOR 129A0012790 80 VV129A0012790 1
230010-60000 CLAMP, HOSE 60 23001060000 81 VV23001060000 2
261060-60162 BOLT, M6X 16 PLATED 26106060162 82 VV26106060162 1
119803-77830 HARNESS, WIRE 11980377830 83 VV11980377830 1
129E2077800 PLUG, GLOW 24V 129E2077800 84 VV129E2077800 4
129E0077820 CONNECTOR, GLOW PLUG 129E0077820 85 VV129E0077820 1
129944-07910 LIFTER 12994407910 86 VV12994407910 2
261060-80162 BOLT, M8X 16 PLATED 26106080162 87 VV26106080162 4
129150-11810 GUIDE, VALVE 12915011810 88 VV12915011810 8 -2
.

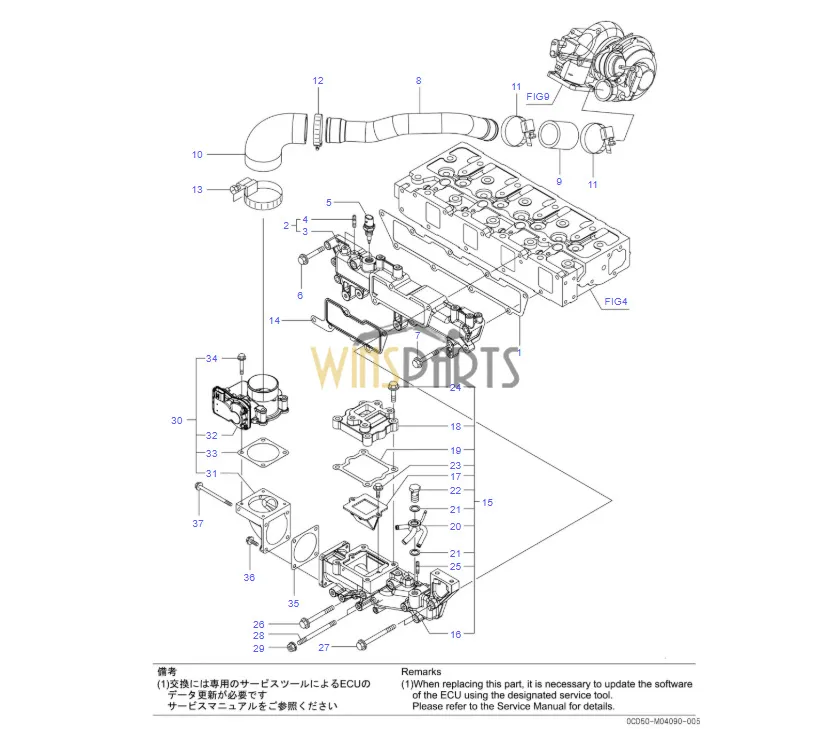

129E0012110 GASKET, MANIFOLD 129E0012110 1 VV129E0012110 1
129E0112150 MANIFOLD ASSY,INTAKE 129E0112150 2 VV129E0112150 1
129E0112100 MANIFOLD, INTAKE 129E0112100 3 VV129E0112100 1
262160-60202 STUD, M6X 20 26216060202 4 VV26216060202 2
129A0012721 SENSOR,AIR TEMP 129A0012721 5 VV129A0012721 1 -1
261060-80452 BOLT, M8X 45 PLATED 26106080452 6 VV26106080452 1
261060-80552 BOLT, M8X 55 PLATED 26106080552 7 VV26106080552 4
129E0118200 DUCT, INTAKE 129E0118200 8 VV129E0118200 1
129E0118220 JOINT, HOSE 129E0118220 9 VV129E0118220 1
129A0118210 JOINT, RUBBER 129A0118210 10 VV129A0118210 1
230000-54000 CLAMP, 54 23000054000 11 VV23000054000 2
230000-60000 CLAMP, 60 23000060000 12 VV23000060000 1
230000-75000 CLAMP, 75 23000075000 13 VV23000075000 1
129E0012810 GASKET, COLLECTOR 129E0012810 14 VV129E0012810 1
129E3012850 COLLECTOR ASSY 129E3012850 15 VV129E3012850 1
129E0112800 COLLECTOR 129E0112800 16 VV129E0112800 1
129E0113700 VALVE, REED 129E0113700 17 VV129E0113700 1
129E0013710 SPACER, EGR VALVE 129E0013710 18 VV129E0013710 1
129E0013720 GASKET, EGR-V SPACER 129E0013720 19 VV129E0013720 1
129E3059120 JOINT, HOSE 14 129E3059120 20 VV129E3059120 1
221901-40002 WASHER, SEAL 14 22190140002 21 VV22190140002 2
238570-80000 BOLT, JOINT 8 23857080000 22 VV23857080000 1
261060-60142 BOLT, M6X 14 PLATED 26106060142 23 VV26106060142 2
261060-80352 BOLT, M8X 35 PLATED 26106080352 24 VV26106080352 4
262160-60202 STUD, M6X 20 26216060202 25 VV26216060202 2
261060-80752 BOLT, M8X 75 PLATED 26106080752 26 VV26106080752 1
261060-80902 BOLT, M8X 90 PLATED 26106080902 27 VV26106080902 2
262160-81002 STUD, M8X100 26216081002 28 VV26216081002 2
263060-80002 NUT, M8 26306080002 29 VV26306080002 2
129E3012900 THROTTLE ASSY, INT 129E3012900 30 VV129E3012900 1
129A0012820 BEND, INTAKE 129A0012820 31 VV129A0012820 1
129G0112900 THROTTLE, INT 129G0112900 32 VV129G0112900 1 -1
129A0012910 GASKET, THROTTLE 129A0012910 33 VV129A0012910 1
261060-60452 BOLT, M6X 45 PLATED 26106060452 34 VV26106060452 4
129A0012910 GASKET, THROTTLE 129A0012910 35 VV129A0012910 1
261060-60202 BOLT, M6X 20 PLATED 26106060202 36 VV26106060202 2
261060-60902 BOLT, M6X 90 PLATED 26106060902 37 VV26106060902 2
.

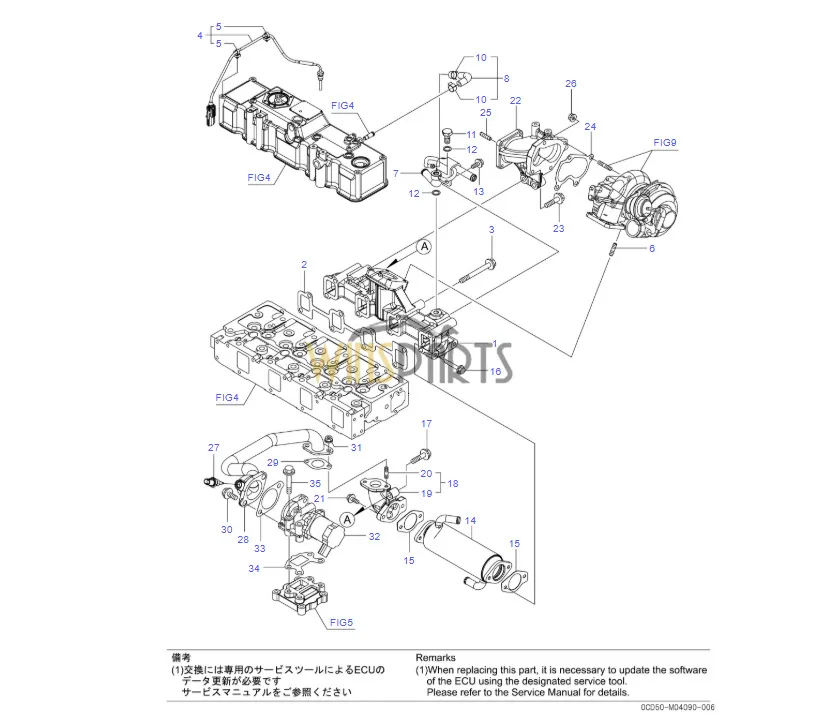

129E0113101 MANIFOLD, EXHAUST 129E0113101 1 VV129E0113101 1
129E0013110 GASKET, MANIFOLD 129E0013110 2 VV129E0013110 1
129F0113610 BOLT, M10X95 10.9T 129F0113610 3 VV129F0113610 8
129E0013770 SENSOR, TEMPERATURE 129E0013770 4 VV129E0013770 1 -1
129A0091200 CLIP, BAND 129A0091200 5 VV129A0091200 2
129418-18320 STUD, M8X20 12941818320 6 VV12941818320 4
129E0113300 PIPE, PRESSURE 129E0113300 7 VV129E0113300 1
129978-13330 HOSE ASSY, PRESSURE 12997813330 8 VV12997813330 1
129A0013380 CLIP, HOSE 14 129A0013380 10 VV129A0013380 2
129A0013350 BOLT, PIPE JOINT 129A0013350 11 VV129A0013350 1
234141-20000 GASKET, 12X1.0 23414120000 12 VV23414120000 2
261060-80162 BOLT, M8X 16 PLATED 26106080162 13 VV26106080162 2
129E0013400 COOLER, EGR 129E0013400 14 VV129E0013400 1
129978-13411 GASKET, EGR COOLER 12997813411 15 VV12997813411 2
129E0013610 BOLT, M8X50 10.9 129E0013610 16 VV129E0013610 2
129F0113650 BOLT, M10X40 10.9T 129F0113650 17 VV129F0113650 1
129E0013851 BEND, COOLER OUTLET 129E0013851 18 VV129E0013851 1
129E0013861 BEND, COOLER OUTLET 129E0013861 19 VV129E0013861 1
129418-18320 STUD, M8X20 12941818320 20 VV12941818320 2
261060-80202 BOLT, M8X 20 PLATED 26106080202 21 VV26106080202 2
129E3013350 PIPE, EXHAUST 129E3013350 22 VV129E3013350 1
129F0113650 BOLT, M10X40 10.9T 129F0113650 23 VV129F0113650 2
123901-18080 GASKET, TURBINE OUT 12390118080 24 VV12390118080 1
119131-18320 STUD, M8X22 11913118320 25 VV11913118320 4
263060-80002 NUT, M8 26306080002 26 VV26306080002 4
129A0013752 SENSOR,EGR GAS TEMP 129A0013752 27 VV129A0013752 1 -1
129E0013800 PIPE ASSY, EGR 129E0013800 28 VV129E0013800 1
129927-13810 GASKET, EGR PIPE 12992713810 29 VV12992713810 1
261061-00252 BOLT, M10X 25 PLATED 26106100252 30 VV26106100252 2
263060-80002 NUT, M8 26306080002 31 VV26306080002 2
129E0013960 VALVE, EGR 24V IDENT 129E0013960 32 VV129E0013960 1 -1
129E0013910 GASKET, EGR-V INLET 129E0013910 33 VV129E0013910 1
129E0013920 GASKET, EGR-V OUTLET 129E0013920 34 VV129E0013920 1
261061-00602 BOLT, M10X 60 PLATED 26106100602 35 VV26106100602 4
.

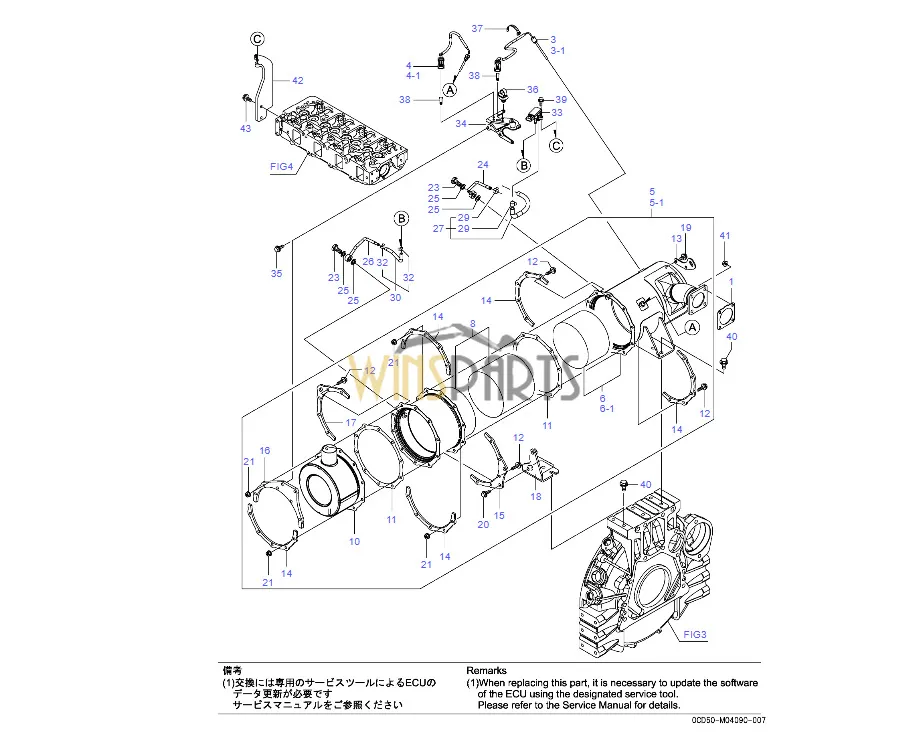

129930-13201 GASKET, SILENCER 12993013201 1 VV12993013201 1
129C0013940 SENSOR, TEMPERATURE 129C0013940 3 VV129C0013940 1 -1
29C0013860 SENSOR, ATD TEMP.DS+ 29C0013860 3月1日 VV29C0013860 1 -1
129C0013950 SENSOR, TEMPERATURE 129C0013950 4 VV129C0013950 1 -1
129C0013870 SENSOR, ATD TEMP.DS+ 129C0013870 4月1日 VV129C0013870 1 -1
129E3016010 DPF ASSY 129E3016010 5 VV129E3016010 1 -1
129E3016050 DPF ASSY 129E3016050 5月1日 VV129E3016050 1 -1
129E0116201 CASE, DOC 129E0116201 6 VV129E0116201 1 -1
129E0116230 CASE, DOC 129E0116230 6月1日 VV129E0116230 1 -1
129C0116400 CASE, SOOT FILTER 129C0116400 8 VV129C0116400 1 -1
129E2016550 SILENCER, DPF 129E2016550 10 VV129E2016550 1
129E0016600 GASKET, DPF 129E0016600 11 VV129E0016600 2
129A0016610 BOLT, M8X28 10.9T 129A0016610 12 VV129A0016610 20
129C0116680 LIFTER, DPF 129C0116680 13 VV129C0116680 1
129C0116700 STIFFENER, DPF A 129C0116700 14 VV129C0116700 5
129C0116710 STIFFENER, DPF B 129C0116710 15 VV129C0116710 1
129C0116730 STIFFENER, DPF C 129C0116730 16 VV129C0116730 1
129C0116740 STIFFENER, DPF C 129C0116740 17 VV129C0116740 1
129E0016801 STAY, DPF 129E0016801 18 VV129E0016801 1
261060-80142 BOLT, M8X 14 PLATED 26106080142 19 VV26106080142 2
261061-00222 BOLT, M10X 22 PLATED 26106100222 20 VV26106100222 2
263060-80002 NUT, M8 26306080002 21 VV26306080002 20
129A0013350 BOLT, PIPE JOINT 129A0013350 23 VV129A0013350 2
129E0017300 PIPE ASSY, PRESSURE 129E0017300 24 VV129E0017300 1
129A0017311 GASKET, SENSOR 129A0017311 25 VV129A0017311 4
129E0017350 PIPE ASSY, PRESSURE 129E0017350 26 VV129E0017350 1
129978-17600 HOSE ASSY,PRES EXH 12997817600 27 VV12997817600 1
129A0017520 CLIP, HOSE 129A0017520 29 VV129A0017520 2
129A0017660 HOSE ASSY, PRESSURE 129A0017660 30 VV129A0017660 1
129A0017570 CLIP, HOSE 129A0017570 32 VV129A0017570 2
129978-17700 SENSOR, PRESSURE 12997817700 33 VV12997817700 1 -1
129A0017760 BRACKET, SENSOR 129A0017760 34 VV129A0017760 1
261060-80202 BOLT, M8X 20 PLATED 26106080202 35 VV26106080202 2
129A0091200 CLIP, BAND 129A0091200 36 VV129A0091200 1
129C0091200 BAND 129C0091200 37 VV129C0091200 1
129A0091430 CLIP, CONNECTOR 129A0091430 38 VV129A0091430 2
261060-60162 BOLT, M6X 16 PLATED 26106060162 39 VV26106060162 2
261061-00202 BOLT, M10X 20 PLATED 26106100202 40 VV26106100202 4
263060-80002 NUT, M8 26306080002 41 VV26306080002 4
129C3517760 BRACKET, PRES SENSOR 129C3517760 42 VV129C3517760 1
261060-80202 BOLT, M8X 20 PLATED 26106080202 43 VV26106080202 2
.

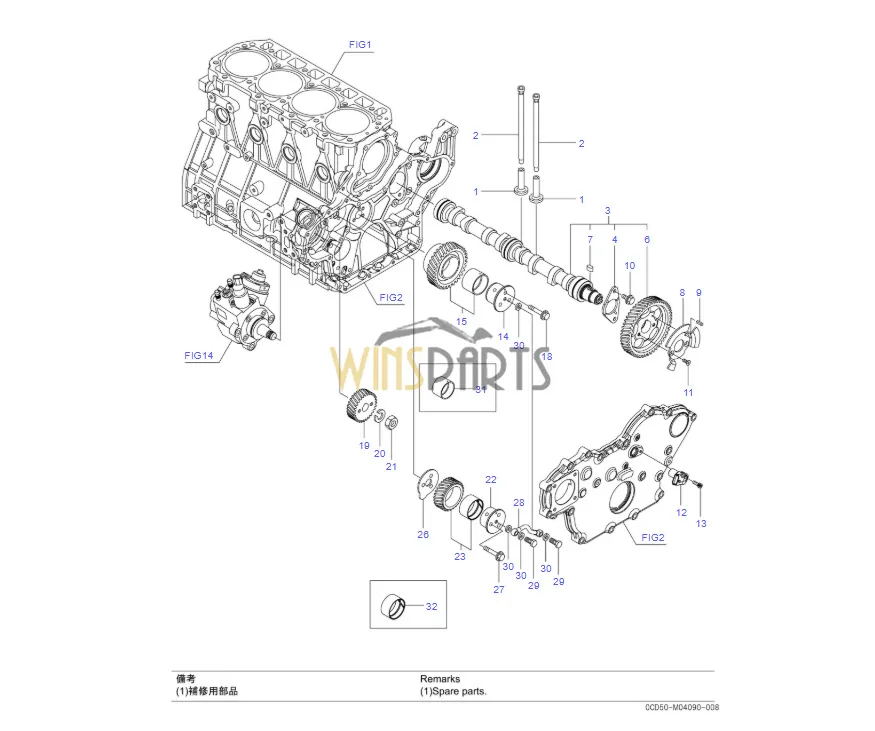

129150-14200 TAPPET 12915014200 1 VV12915014200 8
129900-14400 ROD, PUSH 12990014400 2 VV12990014400 8
129E0014581 CAMSHAFT ASSY 129E0014581 3 VV129E0014581 1
129150-02450 METAL, THRUST 12915002450 4 VV12915002450 1
129E0014101 GEAR, CAMSHAFT 129E0014101 6 VV129E0014101 1
225120-70140 KEY, 7X 14 22512070140 7 VV22512070140 1
129E0014700 PULSER, CAM GEAR 129E0014700 8 VV129E0014700 1
223510-30010 PIN, SPRING 3.0X10 22351030010 9 VV22351030010 1
261060-80142 BOLT, M8X 14 PLATED 26106080142 10 VV26106080142 2
265770-60122 SCREW, M6X12 26577060122 11 VV26577060122 2
129A0014710 SENSOR, ROTATION 129A0014710 12 VV129A0014710 1
264500-60162 BOLT, M6X 16 26450060162 13 VV26450060162 1
129E0025050 SHAFT, IDLE GEAR A 129E0025050 14 VV129E0025050 1
129927-25110 GEAR ASSY, IDLE 12992725110 15 VV12992725110 1
261060-80502 BOLT, M8X 50 PLATED 26106080502 18 VV26106080502 3
129E0025902 GEAR, SUPPLY PUMP 129E0025902 19 VV129E0025902 1
222171-80000 WASHER, SPRING 18 22217180000 20 VV22217180000 1
267761-80002 NUT, LOCK M18 26776180002 21 VV26776180002 1
129E0025060 SHAFT, IDLE GEAR B 129E0025060 22 VV129E0025060 1
129E0025121 GEAR ASSY, IDLE B 129E0025121 23 VV129E0025121 1
129E0025200 PLATE, IDLE SHAFT B 129E0025200 26 VV129E0025200 1
261060-80452 BOLT, M8X 45 PLATED 26106080452 27 VV26106080452 3
129E0025400 PIPE ASSY, OIL 129E0025400 28 VV129E0025400 1
105010-39140 BOLT, PIPE JOINT M8 10501039140 29 VV10501039140 2
221900-80002 WASHER, SEAL 8 22190080002 30 VV22190080002 4
129927-25920 BUSH, IDLE GEAR 12992725920 31 VV12992725920 1 -1
129E0025080 BUSH, IDLE GEAR B 129E0025080 32 VV129E0025080 1 -1
.

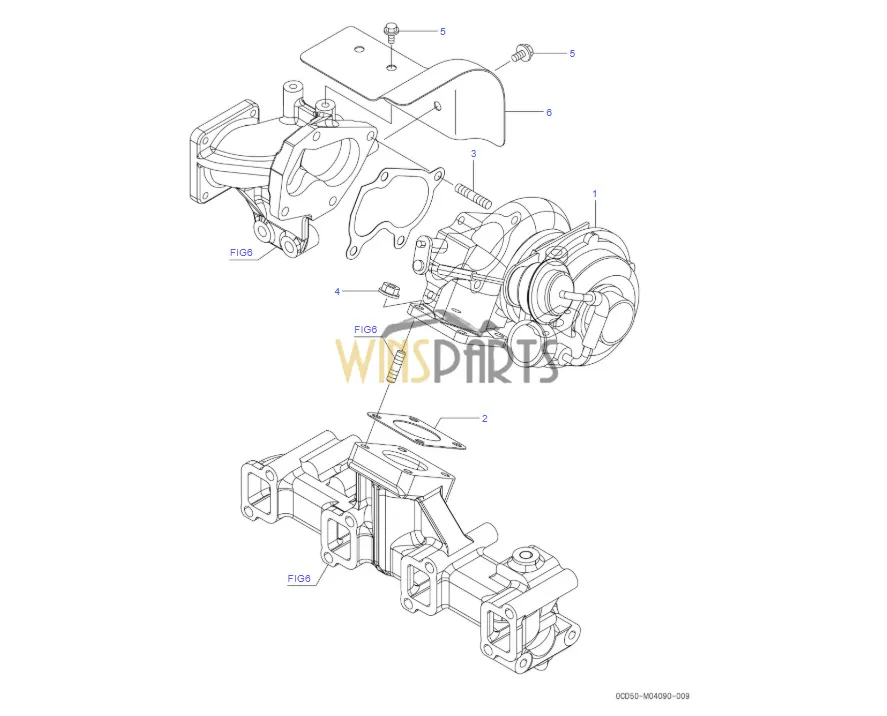

129E0118011 TURBOCHARGER,RHF5 129E0118011 1 VV129E0118011 1
129472-18090 GASKET, TURBINE IN 12947218090 2 VV12947218090 1
119131-18320 STUD, M8X22 11913118320 3 VV11913118320 4
263060-80002 NUT, M8 26306080002 4 VV26306080002 4
119802-13801 BOLT, M8X14 10.9T 11980213801 5 VV11980213801 4
129E3018020 COVER, TURBO CHARGER 129E3018020 6 VV129E3018020 1
.

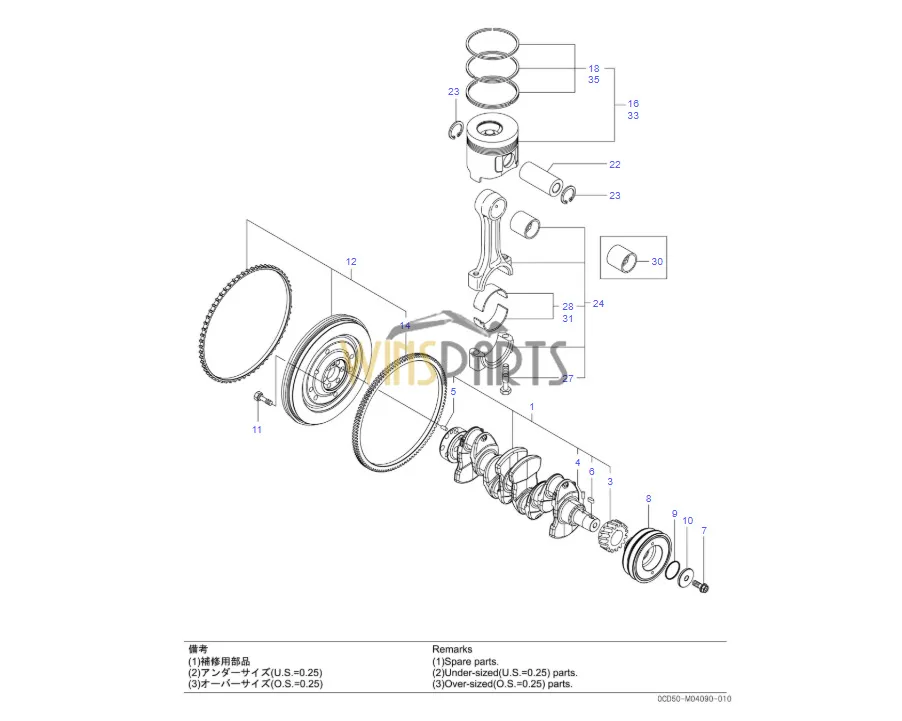

129908-21100 CRANKSHAFT ASSY 12990821100 1 VV12990821100 1
129900-21220 GEAR, CRANKSHAFT 12990021220 3 VV12990021220 1
121850-21290 PIN, CRANK GEAR 12185021290 4 VV12185021290 1
121850-21920 PIN, PARALLEL 10X22 12185021920 5 VV12185021920 1
225120-70140 KEY, 7X 14 22512070140 6 VV22512070140 1
129916-21610 BOLT, V-PULLEY 12991621610 7 VV12991621610 1
129E3021600 V-PULLEY, CRANKSHAFT 129E3021600 8 VV129E3021600 1
129960-21930 GASKET, WASHER 12996021930 9 VV12996021930 1
129960-21940 WASHER, V-PULLEY 12996021940 10 VV12996021940 1
121850-21130 BOLT, FLYWHEEL 12185021130 11 VV12185021130 6
129E3021560 FLYWHEEL ASSY 129E3021560 12 VV129E3021560 1
129900-21600 GEAR, RING 12990021600 14 VV12990021600 1
129E0122080 PISTON ASSY 129E0122080 16 VV129E0122080 4
129E0022050 RING SET, PISTON 129E0022050 18 VV129E0022050 4
120130-22301 PIN, PISTON 12013022301 22 VV12013022301 4
222520-00300 RING, 30 22252000300 23 VV22252000300 8
129900-23001 ROD ASSY, CONNECTING 12990023001 24 VV12990023001 4
129900-23200 BOLT, CONNECTING ROD 12990023200 27 VV12990023200 8
129927-23600 BEARING ASSY, PIN 12992723600 28 VV12992723600 4
129900-23911 METAL, PISTON PIN 12990023911 30 VV12990023911 4 -1
129927-23610 BEARING ASSY, PIN US 12992723610 31 VV12992723610 4 -2
129E0122900 PISTON ASSY, 0.25 OS 129E0122900 33 VV129E0122900 4 -3
129E0022950 RING SET, PISTON .25 129E0022950 35 VV129E0022950 4 -3
.
129949-33010 COOLER ASSY, OIL 12994933010 1 VV12994933010 1
123912-33050 O-RING 12391233050 2 VV12391233050 1
123910-33100 BOLT, CENTER 12391033100 3 VV12391033100 1
129956-33110 BOLT 12995633110 4 VV12995633110 1
129E3035100 BRACKET ASSY, FILTER 129E3035100 5 VV129E3035100 1
238750-40000 PLUG, R04 23875040000 13 VV23875040000 2
238760-40000 PLUG, R04 23876040000 14 VV23876040000 3
238760-60000 PLUG, R06 23876060000 15 VV23876060000 1
129122-44480 JOINT, PT1/4 12912244480 16 VV12912244480 1
129949-49110 PIPE ASSY, WATER 12994949110 17 VV12994949110 1
129956-49190 TUBE, CORRUGATED 12995649190 19 VV12995649190 1
129956-49210 PIPE ASSY, WATER 12995649210 20 VV12995649210 1
129956-49230 TUBE, CORRUGATED 12995649230 22 VV12995649230 1
129466-49300 ELBOW, PT3/8 12946649300 23 VV12946649300 1
230000-25000 CLAMP, 25 23000025000 24 VV23000025000 4
243140-00200 O-RING, 4CP20.0 24314000200 25 VV24314000200 1
243210-00600 O-RING, 1AG60.0 24321000600 26 VV24321000600 1
129238-35111 PLUG 12923835111 27 VV12923835111 1
243210-00600 O-RING, 1AG60.0 24321000600 28 VV24321000600 1
171056-49120 PLUG, DRAIN R1/4 17105649120 29 VV17105649120 1
129E2034871 DIPSTICK, OIL 129E2034871 30 VV129E2034871 1
129900-32030 O-RING, P20 12990032030 32 VV12990032030 1
129E2335001 PIPE ASSY, OIL INLET 129E2335001 33 VV129E2335001 1
261060-80122 BOLT, M8X 12 PLATED 26106080122 38 VV26106080122 3
LUB. OIL PIPE .
.
124298-39450 SWITCH, HYDRAULIC 12429839450 1 VY12429839450 1
221900-80002 WASHER, SEAL 8 22190080002 2 VY22190080002 1
261060-80122 BOLT, M8X 12 PLATED 26106080122 3 VY26106080122 1
121252-39150 BOLT, JOINT M10X1.5 12125239150 4 VY12125239150 1
129E0139450 PIPE ASSY, OIL 129E0139450 5 VY129E0139450 1
124223-39900 RETAINER 12422339900 6 VY12422339900 2
129005-59830 BOLT ASSY, JOINT M8 12900559830 7 VY12900559830 1
129198-59540 BOLT, PIPE JOINT M8 12919859540 7月1日 VY12919859540 1
221900-80002 WASHER, SEAL 8 22190080002 8 VY22190080002 1
238570-30000 BOLT, JOINT 3 23857030000 9 VY23857030000 1
221900-80002 WASHER, SEAL 8 22190080002 10 VY22190080002 2
234141-00000 GASKET, 10X1.0 23414100000 11 VY23414100000 2
261060-80122 BOLT, M8X 12 PLATED 26106080122 12 VY26106080122 2
124070-13300 ELBOW, PT3/8 12407013300 13 VY12407013300 1
129E0139600 PIPE, OIL RETURN 129E0139600 14 VY129E0139600 1
129E0139620 PIPE, LO RETURN T/C 129E0139620 1月14日 VY129E0139620 1
129908-39690 GASKET, RETURN PIPE 12990839690 15 VY12990839690 1
123901-39820 HOSE, OIL RETURN 12390139820 16 VY12390139820 1
129974-39830 HOSE, LO RETURN 12997439830 1月16日 VY12997439830 1
230000-25000 CLAMP, 25 23000025000 17 VY23000025000 2
261060-60162 BOLT, M6X 16 PLATED 26106060162 18 VY26106060162 2
129908-39410 VALVE ASSY, CHECK 12990839410 19 VY12990839410 4
119000-39650 NOZZLE, COOLING 11900039650 25 VY11900039650 4
223510-30010 PIN, SPRING 3.0X10 22351030010 26 VY22351030010 4
.

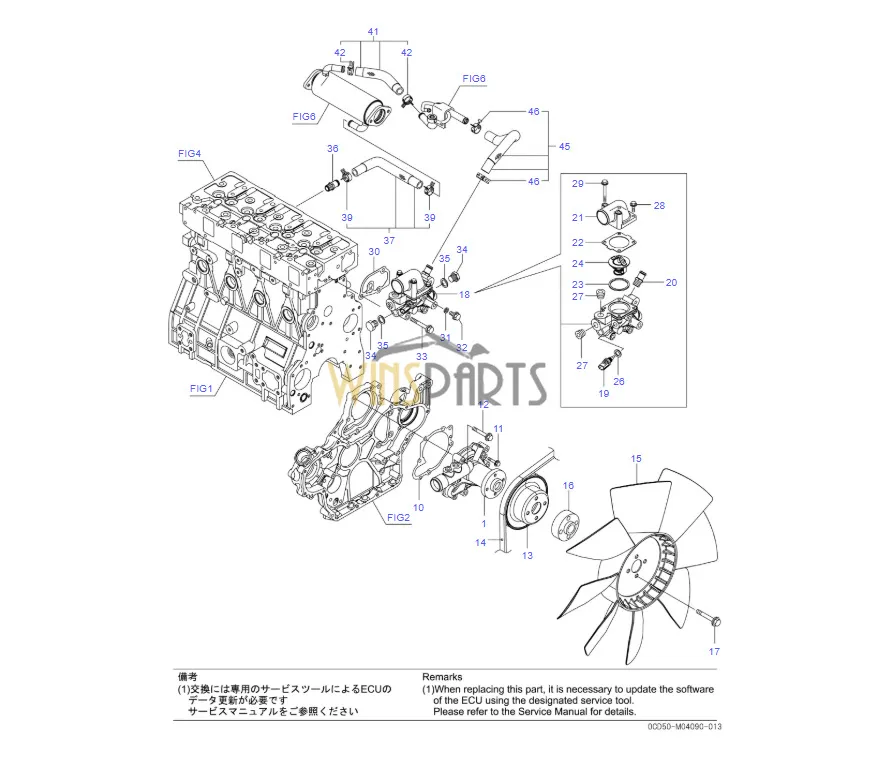

129932-42120 PUMP ASSY, WATER 12993242120 1 VV12993242120 1
129900-42020 GASKET, WATER PUMP 12990042020 10 VV12990042020 1
261060-60302 BOLT, M6X 30 PLATED 26106060302 11 VV26106060302 2
261060-80552 BOLT, M8X 55 PLATED 26106080552 12 VV26106080552 5
123900-42471 V-PULLEY, PUMP 12390042471 13 VV12390042471 1 4TNV98CT-L2VYB
123900-42450 V-PULLEY, PUMP 12390042450 13 VV12390042450 1 4TNV98CT-L2VYBD
129E3042200 V-BELT, B45.5 129E3042200 14 VV129E3042200 1 4TNV98CT-L2VYB
129979-42310 V-BELT, B46.0 12997942310 14 VV12997942310 1 4TNV98CT-L2VYBD
123945-44751 FAN, COOLING D=500 12394544751 15 VV12394544751 1
123910-44771 SPACER, FAN 50MM 12391044771 16 VV12391044771 1
261061-00702 BOLT, M10X 70 PLATED 26106100702 17 VV26106100702 4
129E3249800 CASE ASSY,THERMOSTAT 129E3249800 18 VV129E3249800 1
129927-44900 SENSOR, TEMPERATURE 12992744900 19 VV12992744900 1 -1
129928-49420 JOINT 12992849420 20 VV12992849420 1
129980-49530 COVER, THERMOSTAT 12998049530 21 VV12998049530 1
121850-49540 GASKET, THERMOSTAT 12185049540 22 VV12185049540 1
121850-49550 GASKET, THERMOSTAT 12185049550 23 VV12185049550 1
121850-49811 THERMOSTAT, 71C 12185049811 24 VV12185049811 1
221901-20002 WASHER, SEAL 12 22190120002 26 VV22190120002 1
238750-30000 PLUG, R03 23875030000 27 VV23875030000 2
261060-60202 BOLT, M6X 20 PLATED 26106060202 28 VV26106060202 2
261060-60552 BOLT, M6X 55 PLATED 26106060552 29 VV26106060552 2
129900-49870 GASKET, THERMOSTAT 12990049870 30 VV12990049870 1
234140-80000 GASKET, 8X1.0 23414080000 31 VV23414080000 1
261060-80122 BOLT, M8X 12 PLATED 26106080122 32 VV26106080122 1
261060-80602 BOLT, M8X 60 PLATED 26106080602 33 VV26106080602 3
121450-42450 PLUG, M16 12145042450 34 VV12145042450 2
124465-44950 GASKET, 16 12446544950 35 VV12446544950 2
129928-49420 JOINT 12992849420 36 VV12992849420 1
129E0049610 HOSE, COOLER INLET 129E0049610 37 VV129E0049610 1
129960-03990 CLAMP, HOSE 19.8 12996003990 39 VV12996003990 2
129E0049640 HOSE, COOLER OUT A 129E0049640 41 VV129E0049640 1
129960-03990 CLAMP, HOSE 19.8 12996003990 42 VV12996003990 2
129E2349631 HOSE, COOLER OUT B 129E2349631 45 VV129E2349631 1
129960-03990 CLAMP, HOSE 19.8 12996003990 46 VV12996003990 2
.

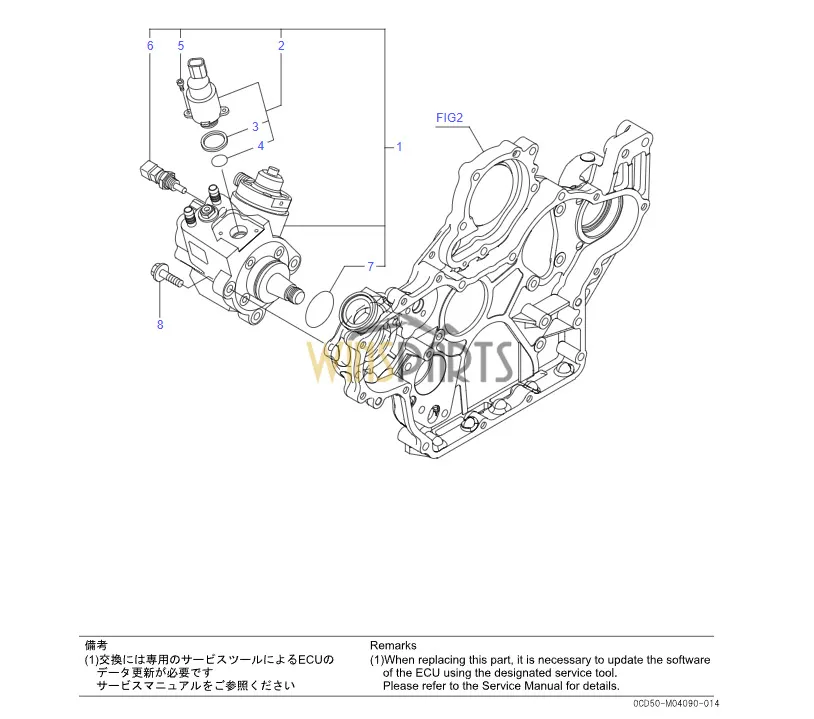

129A0051000 PUMP ASSY, FUEL 129A0051000 1 VV129A0051000 1 -1
129A0051100 VALVE ASSY 129A0051100 2 VV129A0051100 1 -1
129A0051110 RING, SEAL 129A0051110 3 VV129A0051110 1
129A0051120 O-RING, MPROP 129A0051120 4 VV129A0051120 1
129A0051130 BOLT, MPROP 129A0051130 5 VV129A0051130 2
129A0051200 SENSOR, TEMPERATURE 129A0051200 6 VV129A0051200 1 -1
129A0051900 O-RING, FUEL PUMP 129A0051900 7 VV129A0051900 1
261060-80302 BOLT, M8X 30 PLATED 26106080302 8 VV26106080302 3
.

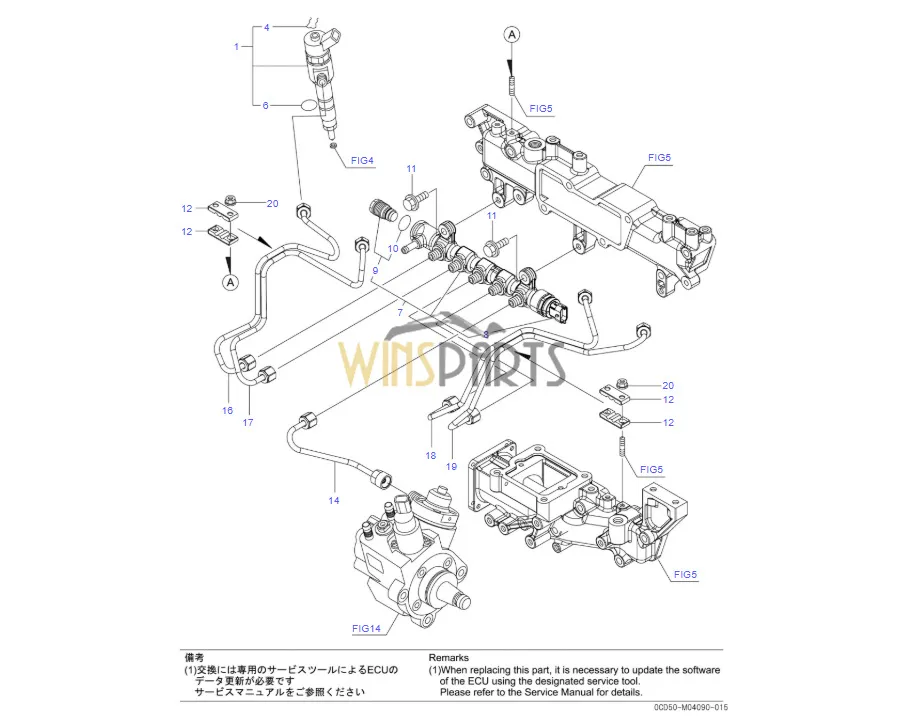

129E0153100 INJECTOR, CR 129E0153100 1 VV129E0153100 4 -1
129A0053200 RING, RETAINING 129A0053200 4 VV129A0053200 4
129C2853300 O-RING 129C2853300 6 VV129C2853300 4
129C0057000 COMMON RAIL ASSY 129C0057000 7 VV129C0057000 1 -1
129A0057100 SENSOR, PRESSURE 129A0057100 8 VV129A0057100 1 -1
129A0057200 VALVE ASSY, PLV4 129A0057200 9 VV129A0057200 1 -1
129A0057210 O-RING, PLV4 129A0057210 10 VV129A0057210 1
261060-80252 BOLT, M8X 25 PLATED 26106080252 11 VV26106080252 2
122780-59100 RETAINER, PIPE 12278059100 12 VV12278059100 4
129E0059700 PIPE ASSY, RAIL IN 129E0059700 14 VV129E0059700 1
129E0059810 PIPE, INJECTION NO.1 129E0059810 16 VV129E0059810 1
129E0059820 PIPE, INJECTION NO.2 129E0059820 17 VV129E0059820 1
129E0059830 PIPE, INJECTION NO.3 129E0059830 18 VV129E0059830 1
129E0059840 PIPE, INJECTION NO.4 129E0059840 19 VV129E0059840 1
263660-60002 NUT, M6 26366060002 20 VV26366060002 4
FUEL PIPE .
.
129E0159500 PIPE ASSY, FO RETURN 129E0159500 1 VV129E0159500 1
230800-07000 CLAMP, 7 23080007000 4 VV23080007000 1
129E0059020 HOSE ASSY, RETURN 129E0059020 5 VV129E0059020 1
230800-15000 CLAMP, 15 23080015000 8 VV23080015000 2
129E0059030 HOSE ASSY, RETURN 129E0059030 9 VV129E0059030 1
114270-59010 CLAMP, HOSE 12 11427059010 10 VV11427059010 2
129A0091200 CLIP, BAND 129A0091200 13 VV129A0091200 1
.

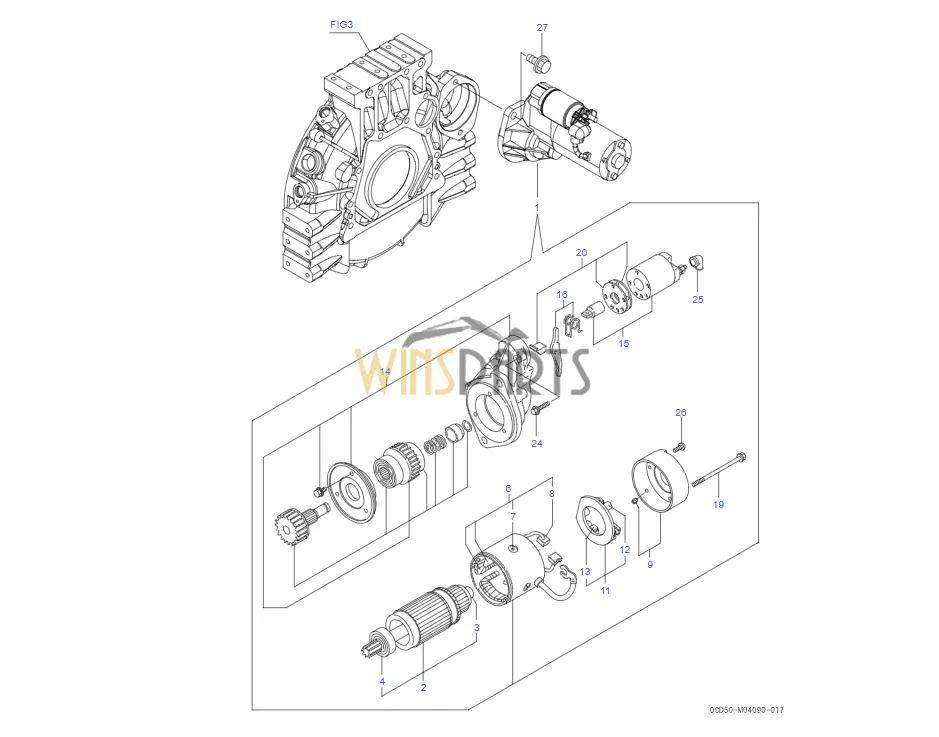

119131-77011 STARTER ASSY, 3.5KW 11913177011 1 VV11913177011 1
119131-77400 ARMATURE ASSY 11913177400 2 VV11913177400 1
171008-77410 BEARING, BALL 1 17100877410 3 VV17100877410 1
119131-77420 BEARING, BALL 2 11913177420 4 VV11913177420 1
119131-77440 COIL ASSY, FIELD 11913177440 6 VV11913177440 1
119260-77070 SCREW, CORE SET 11926077070 7 VV11926077070 4
119131-77450 BRUSH, + 11913177450 8 VV11913177450 2
119131-77460 COVER ASSY, REAR 11913177460 9 VV11913177460 1
119131-77480 HOLDER ASSY, BRUSH 11913177480 11 VV11913177480 1
119131-77490 SPRING, BRUSH 11913177490 12 VV11913177490 4
119131-77500 BRUSH 11913177500 13 VV11913177500 2
119131-77510 CLUTCH ASSY, PINION 11913177510 14 VV11913177510 1
119131-77590 SWITCH, MAGNET 11913177590 15 VV11913177590 1
119131-77620 LEVER SET, SHIFT 11913177620 16 VV11913177620 1
129400-77640 BOLT, THROUGH 12940077640 19 VV12940077640 2
119131-77650 COVER KIT, DUST 11913177650 20 VV11913177650 1
119131-77690 BOLT, M6X37 11913177690 24 VV11913177690 2
121254-77810 COVER, TERMINAL M 12125477810 25 VV12125477810 1
265570-40102 SCREW, M4X10 26557040102 26 VV26557040102 2
261061-20252 BOLT, M12X 25 PLATED 26106120252 27 VV26106120252 2
.

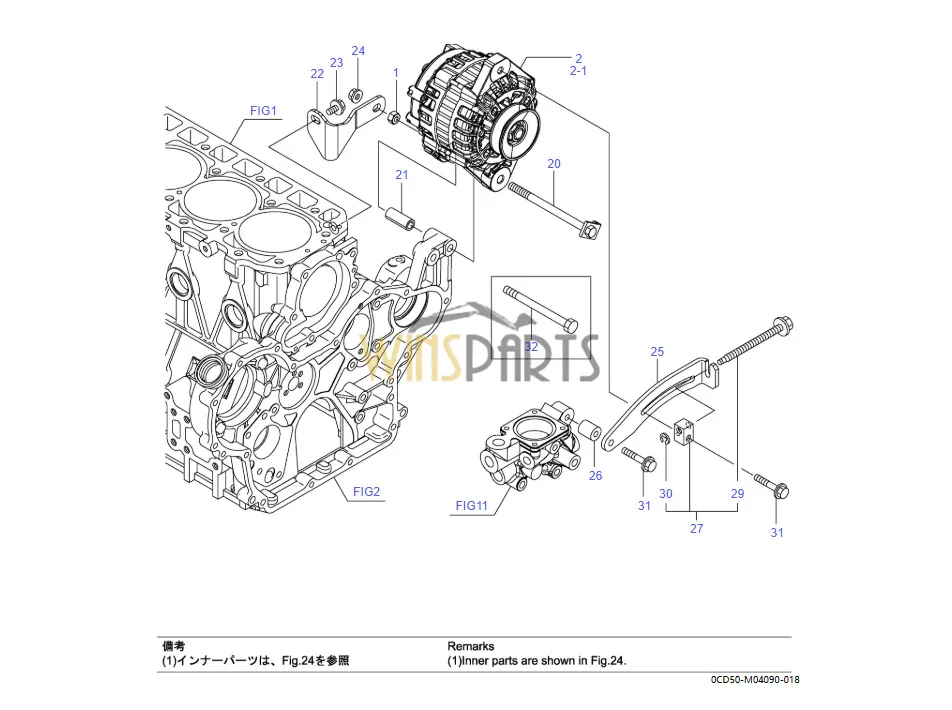

129E3077121 NUT, SPACER 129E3077121 1 VY129E3077121 1
129E2077201 ALTERNATOR 129E2077201 2 VY129E2077201 1
129908-77280 ALTERNATOR, 24V-60A 12990877280 2月1日 VY12990877280 1 -1
129923-77250 BOLT, STOPPER M10 12992377250 20 VY12992377250 1
129470-77340 PIECE, DISTANCE 12947077340 21 VY12947077340 1
129923-77370 STAY, ALTERNATOR 12992377370 22 VY12992377370 1
261060-80142 BOLT, M8X 14 PLATED 26106080142 23 VY26106080142 1
263061-00002 NUT, M10 26306100002 24 VY26306100002 1
129923-77300 ADJUSTER, BELT 12992377300 25 VY12992377300 1
129E2077340 PIECE, DISTANCE 129E2077340 26 VY129E2077340 1
129630-77350 BLOCK ASSY, ADJUSTER 12963077350 27 VY12963077350 1
129630-77380 BOLT, M8X100 12963077380 29 VY12963077380 1
222720-00050 RING, E- 5 22272000050 30 VY22272000050 1
261060-80452 BOLT, M8X 45 PLATED 26106080452 31 VY26106080452 2
129E3077200 BOLT, M10X146 129E3077200 32 VY129E3077200 1
.

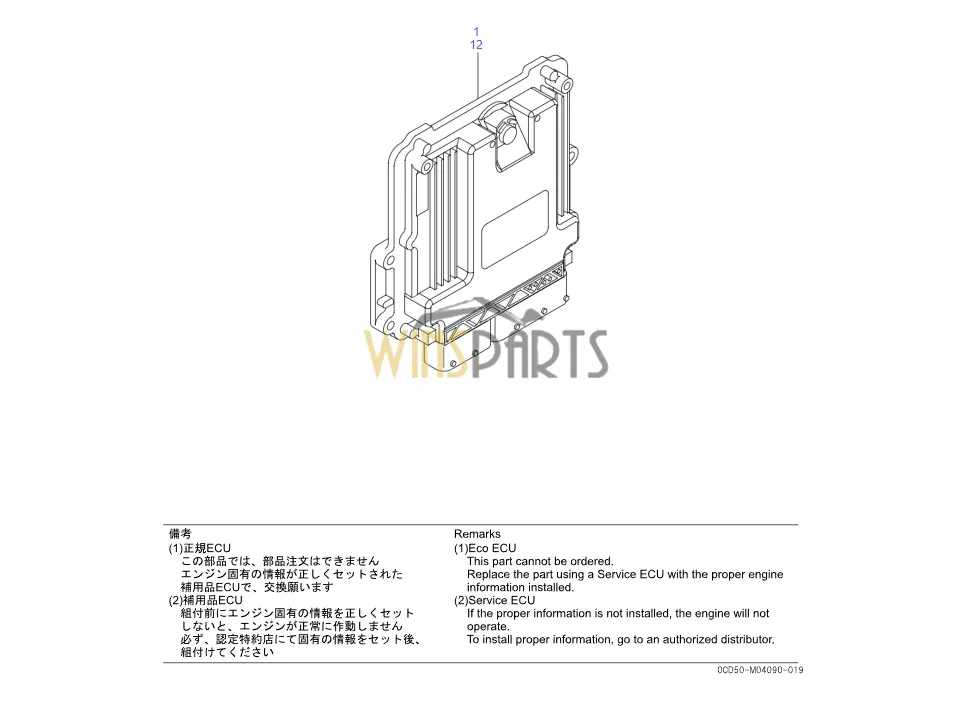

129E3075041 YANMAR 4TNV98CT 4TNV98CT-L2VYB ENGINE ECU ASSY,98CT-L2VYB 129E3075041 1 VV129E3075041 1 -1
129A0075980 YANMAR 4TNV98CT 4TNV98CT-L2VYB ENGINE ECU ASSY,SERVICE YMR 129A0075980 12 VV129A0075980 1 -2
ELECTRIC PARTS .
.
129E0011390 BRACKET, HARNESS 129E0011390 1 VV129E0011390 2
129E0077910 BRACKET, CONNECTOR 129E0077910 2 VV129E0077910 1
129E3091230 HARNESS,B ECO ENGINE 129E3091230 3 VV129E3091230 1
129E0091231 HARNESS, C T4 129E0091231 12 VV129E0091231 1
129A0091600 BRACKET, HARNESS 129A0091600 17 VV129A0091600 1
129E0091600 BRACKET, HARNESS 129E0091600 18 VV129E0091600 1
129E0191610 BRACKET, HARNESS 129E0191610 19 VV129E0191610 1
261060-60122 BOLT, M6X 12 PLATED 26106060122 20 VV26106060122 4
261060-80122 BOLT, M8X 12 PLATED 26106080122 21 VV26106080122 2
261060-80122 BOLT, M8X 12 PLATED 26106080122 22 VV26106080122 2
261060-80122 BOLT, M8X 12 PLATED 26106080122 23 VV26106080122 2
261060-80122 BOLT, M8X 12 PLATED 26106080122 24 VV26106080122 2
296212-00000 BAND 29621200000 25 VV29621200000 1
.

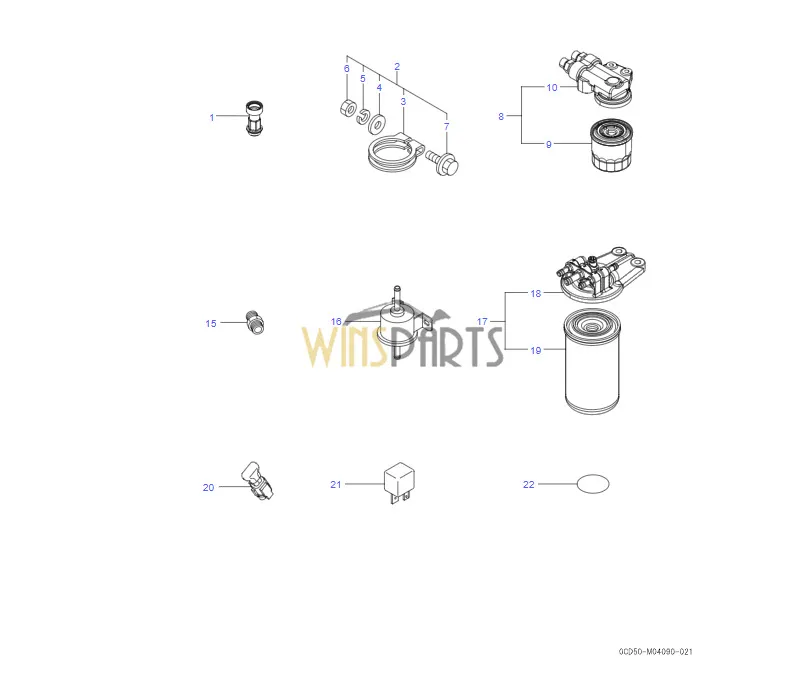

171031-11741 PIPE, FILLER 17103111741 1 VY17103111741 1
129640-13590 CLAMP ASSY 12964013590 2 VY12964013590 1
129640-13580 CLAMP 12964013580 3 VY12964013580 1
221171-00000 WASHER, 10 22117100000 4 VY22117100000 1
222171-00000 WASHER, SPRING 10 22217100000 5 VY22217100000 1
261061-00652 BOLT, M10X 65 PLATED 26106100652 6 VY26106100652 1
267061-00002 NUT, M10 26706100002 7 VY26706100002 1
129E3035120 BRACKET ASSY,LO FILT 129E3035120 8 VY129E3035120 1
129E3035121 BRACKET ASSY,LO FILT 129E3035121 8月1日 VY129E3035121 1
129150-35153 FILTER ASSY, D80X80L 12915035153 9 VY12915035153 1
129C2235310 BRACKET ASSY, FILTER 129C2235310 10 VY129C2235310 1
129E3035330 BRACKET ASSY,LO FILT 129E3035330 10月1日 VY129E3035330 1
129953-39500 ADAPTER, R-G1/2 12995339500 15 VY12995339500 2
129953-39501 ADAPTER 12995339501 1月15日 VY12995339501 2
129907-52100 PUMP, FUEL FEED 12990752100 16 VY12990752100 1
129A0055600 FILTER ASSY, FUEL 129A0055600 17 VY129A0055600 1
129A0055610 BRACKET ASSY, FILTER 129A0055610 18 VY129A0055610 1
129A0055800 FILTER, FUEL 129A0055800 19 VY129A0055800 1
129C0177300 RESISTOR, 3K OHM 1W 129C0177300 20 VY129C0177300 1
129G0177900 RELAY, 24V20A.ISO-HI 129G0177900 21 VY129G0177900 3
243110-00320 O-RING, 1AP32.0 24311000320 22 VY24311000320 1
.
129E3092610 GASKET SET 129E3092610 1 VV129E3092610 1 -1
129E0001330 GASKET, HEAD 129E0001330 2 VV129E0001330 1
129E0011310 GASKET, BONNET 129E0011310 3 VV129E0011310 1
124460-11340 SEAL, VALVE STEM 12446011340 4 VV12446011340 4
129A0011340 SEAL, VALVE STEM 129A0011340 5 VV129A0011340 4
129978-11871 GASKET, INJECTOR 12997811871 6 VV12997811871 4
129E0012110 GASKET, MANIFOLD 129E0012110 7 VV129E0012110 1
129A0012780 O-RING, EGR SENSOR 129A0012780 8 VV129A0012780 2
129A0012790 O-RING, TEMP SENSOR 129A0012790 9 VV129A0012790 1
129E0012810 GASKET, COLLECTOR 129E0012810 10 VV129E0012810 1
129A0012910 GASKET, THROTTLE 129A0012910 11 VV129A0012910 2
129E0013110 GASKET, MANIFOLD 129E0013110 12 VV129E0013110 1
129930-13201 GASKET, SILENCER 12993013201 13 VV12993013201 1
129978-13411 GASKET, EGR COOLER 12997813411 14 VV12997813411 2
129E0013720 GASKET, EGR-V SPACER 129E0013720 15 VV129E0013720 1
129927-13810 GASKET, EGR PIPE 12992713810 16 VV12992713810 1
129E0013910 GASKET, EGR-V INLET 129E0013910 17 VV129E0013910 1
129E0013920 GASKET, EGR-V OUTLET 129E0013920 18 VV129E0013920 1
129E0016600 GASKET, DPF 129E0016600 19 VV129E0016600 2
129A0017311 GASKET, SENSOR 129A0017311 20 VV129A0017311 4
123901-18080 GASKET, TURBINE OUT 12390118080 21 VV12390118080 1
129472-18090 GASKET, TURBINE IN 12947218090 22 VV12947218090 1
129960-21930 GASKET, WASHER 12996021930 23 VV12996021930 1
129900-32030 O-RING, P20 12990032030 24 VV12990032030 2
129900-32040 O-RING, P14 12990032040 25 VV12990032040 1
123912-33050 O-RING 12391233050 26 VV12391233050 1
129908-39690 GASKET, RETURN PIPE 12990839690 27 VV12990839690 1
129900-42020 GASKET, WATER PUMP 12990042020 28 VV12990042020 1
124465-44950 GASKET, 16 12446544950 29 VV12446544950 2
121850-49540 GASKET, THERMOSTAT 12185049540 30 VV12185049540 1
121850-49550 GASKET, THERMOSTAT 12185049550 31 VV12185049550 1
129900-49870 GASKET, THERMOSTAT 12990049870 32 VV12990049870 1
129A0051900 O-RING, FUEL PUMP 129A0051900 33 VV129A0051900 1
221900-80002 WASHER, SEAL 8 22190080002 34 VV22190080002 7
221901-20002 WASHER, SEAL 12 22190120002 35 VV22190120002 1
221901-40002 WASHER, SEAL 14 22190140002 36 VV22190140002 2
221902-20002 WASHER, SEAL 22 22190220002 37 VV22190220002 1
234140-80000 GASKET, 8X1.0 23414080000 38 VV23414080000 1
234141-00000 GASKET, 10X1.0 23414100000 39 VV23414100000 2
234141-20000 GASKET, 12X1.0 23414120000 40 VV23414120000 2
243110-00070 O-RING, 1AP7.0 24311000070 41 VV24311000070 1
243110-00120 O-RING, 1AP12.0 24311000120 42 VV24311000120 3
243110-00320 O-RING, 1AP32.0 24311000320 43 VV24311000320 3
243210-00600 O-RING, 1AG60.0 24321000600 44 VV24321000600 1
