UNDERCARRIAGE KOBELCO SK470-10 SK500LC-10 SK500DLC-10 SK550DLC-10

UNDERCARRIAGE KOBELCO SK470-10 SK500LC-10 SK500DLC-10 SK550DLC-10
　
LS02F00109F1 KOBELCO SK470-10 SK500LC-10 SK500DLC-10 SK550DLC-10 FRAME ASSY, LOW
LS02F00115F1 KOBELCO SK470-10 SK500LC-10 SK500DLC-10 SK550DLC-10 FRAME ASSY, LOW(HD)
LS02F00103F1 KOBELCO SK470-10 SK500LC-10 SK500DLC-10 SK550DLC-10 FRAME ASSY, LOW(LONG CRAWLER)
LS02F00112F1 KOBELCO SK470-10 SK500LC-10 SK500DLC-10 SK550DLC-10 FRAME ASSY, LOW(HD LONG CRAWLER)
LS02F00123P1 KOBELCO SK470-10 SK500LC-10 SK500DLC-10 SK550DLC-10 FRAME, LOW
LS01F00052F1 KOBELCO SK470-10 SK500LC-10 SK500DLC-10 SK550DLC-10 LOW GROUP(TRACK GUIDE)
LS01F00055F1 KOBELCO SK470-10 SK500LC-10 SK500DLC-10 SK550DLC-10 LOW GROUP
LS01F00051F1 KOBELCO SK470-10 SK500LC-10 SK500DLC-10 SK550DLC-10 LOW GROUP(LONG CRAWLER + TRACK GUIDE)
LS01F00056F1 KOBELCO SK470-10 SK500LC-10 SK500DLC-10 SK550DLC-10 LOW GROUP(LONG CRAWLER)
LS01F00022F1 KOBELCO SK470-10 SK500LC-10 SK500DLC-10 SK550DLC-10 LOW GROUP(HD)
LS63D00041F1 KOBELCO SK470-10 SK500LC-10 SK500DLC-10 SK550DLC-10 GUIDE ASSY, TRACK
LS63D00054F1 KOBELCO SK470-10 SK500LC-10 SK500DLC-10 SK550DLC-10 GUIDE ASSY, TRACK(HD)
LS63D00026F1 KOBELCO SK470-10 SK500LC-10 SK500DLC-10 SK550DLC-10 GUIDE ASSY, TRACK(LONG CRAWLER)
LS01F01139F1 KOBELCO SK470-10 SK500LC-10 SK500DLC-10 SK550DLC-10 BOLT ASSY
LS01F01137F1 KOBELCO SK470-10 SK500LC-10 SK500DLC-10 SK550DLC-10 BOLT ASSY(LONG CRAWLER)
LS24C00017F1 KOBELCO SK470-10 SK500LC-10 SK500DLC-10 SK550DLC-10 COVER ASSY, UNDER
LS02F01317P1 KOBELCO SK470-10 SK500LC-10 SK500DLC-10 SK550DLC-10 BLOCK INSTAL
LS53D00005F1 KOBELCO SK470-10 SK500LC-10 SK500DLC-10 SK550DLC-10 MOTOR INSTAL, PROPEL
LS15V00020F4 KOBELCO SK470-10 SK500LC-10 SK500DLC-10 SK550DLC-10 MOTOR ASSY, PROPEL
LS19H00018F1 KOBELCO SK470-10 SK500LC-10 SK500DLC-10 SK550DLC-10 JOINT INSTAL, SWIVEL
LS55V00008F1 KOBELCO SK470-10 SK500LC-10 SK500DLC-10 SK550DLC-10 JOINT, SWIVEL
LS40F00009F1 KOBELCO SK470-10 SK500LC-10 SK500DLC-10 SK550DLC-10 RING ASSY, SLEWING
LS52D00081F1 KOBELCO SK470-10 SK500LC-10 SK500DLC-10 SK550DLC-10 IDLER ASSY, CRAWLER
LS64D00011F1 KOBELCO SK470-10 SK500LC-10 SK500DLC-10 SK550DLC-10 ROLLER ASSY, TRACK
LS64D00011F2 KOBELCO SK470-10 SK500LC-10 SK500DLC-10 SK550DLC-10 ROLLER ASSY, TRACK(LONG CRAWLER)
LC64D00003F1 KOBELCO SK470-10 SK500LC-10 SK500DLC-10 SK550DLC-10 ROLLER ASSY, UPP
LS60D00011F1 KOBELCO SK470-10 SK500LC-10 SK500DLC-10 SK550DLC-10 SHOE ASSY(600mm 3G)
LS60D00036F2 KOBELCO SK470-10 SK500LC-10 SK500DLC-10 SK550DLC-10 SHOE ASSY(600mm 3G)
LS60D00011F2 KOBELCO SK470-10 SK500LC-10 SK500DLC-10 SK550DLC-10 SHOE ASSY(HD 600mm 3G)
LS60D00036F1 KOBELCO SK470-10 SK500LC-10 SK500DLC-10 SK550DLC-10 SHOE ASSY(HD 600mm 3G)
LS60D00010F1 KOBELCO SK470-10 SK500LC-10 SK500DLC-10 SK550DLC-10 SHOE ASSY(LONG CRAWLER 600mm 3G)
LS60D00033F3 KOBELCO SK470-10 SK500LC-10 SK500DLC-10 SK550DLC-10 SHOE ASSY(LONG CRAWLER 600mm 3G)
LS60D00010F2 KOBELCO SK470-10 SK500LC-10 SK500DLC-10 SK550DLC-10 SHOE ASSY(HD LONG CRAWLER 600mm 3G)
LS60D00033F1 KOBELCO SK470-10 SK500LC-10 SK500DLC-10 SK550DLC-10 SHOE ASSY(HD LONG CRAWLER 600mm 3G)
LS02H00025F1 KOBELCO SK470-10 SK500LC-10 SK500DLC-10 SK550DLC-10 HYD LINES, LOW
LS02H00021F1 KOBELCO SK470-10 SK500LC-10 SK500DLC-10 SK550DLC-10 HYD LINES, LOW(LONG CRAWLER)
LS12H00006F1 KOBELCO SK470-10 SK500LC-10 SK500DLC-10 SK550DLC-10 HYD LINES, PROPEL
LS19H00007F1 KOBELCO SK470-10 SK500LC-10 SK500DLC-10 SK550DLC-10 HYD LINES, SWIVEL

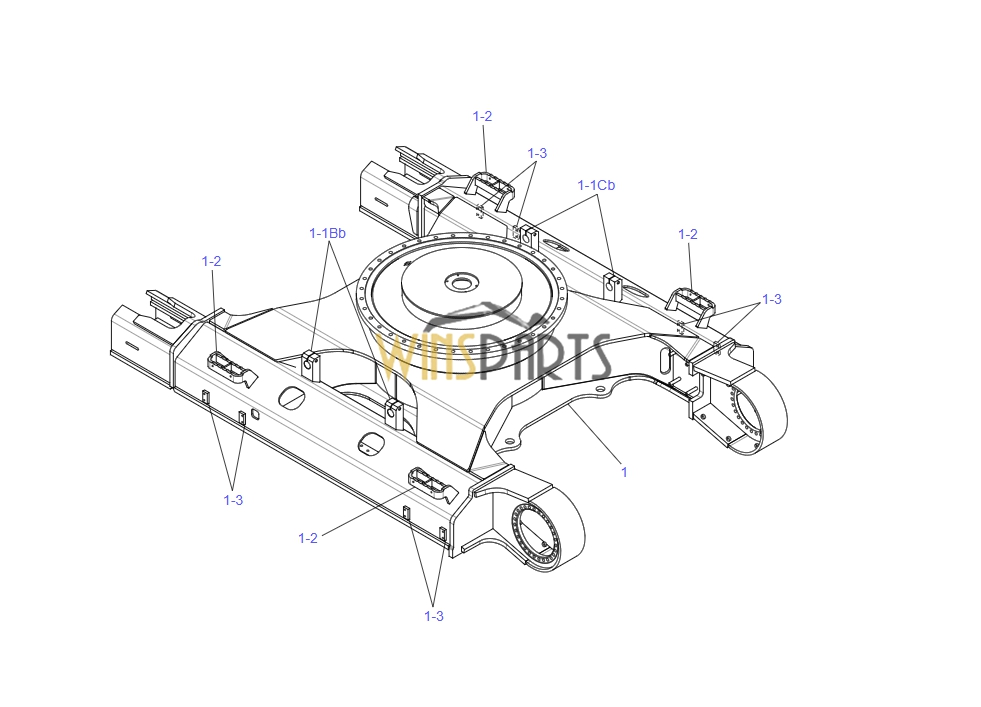

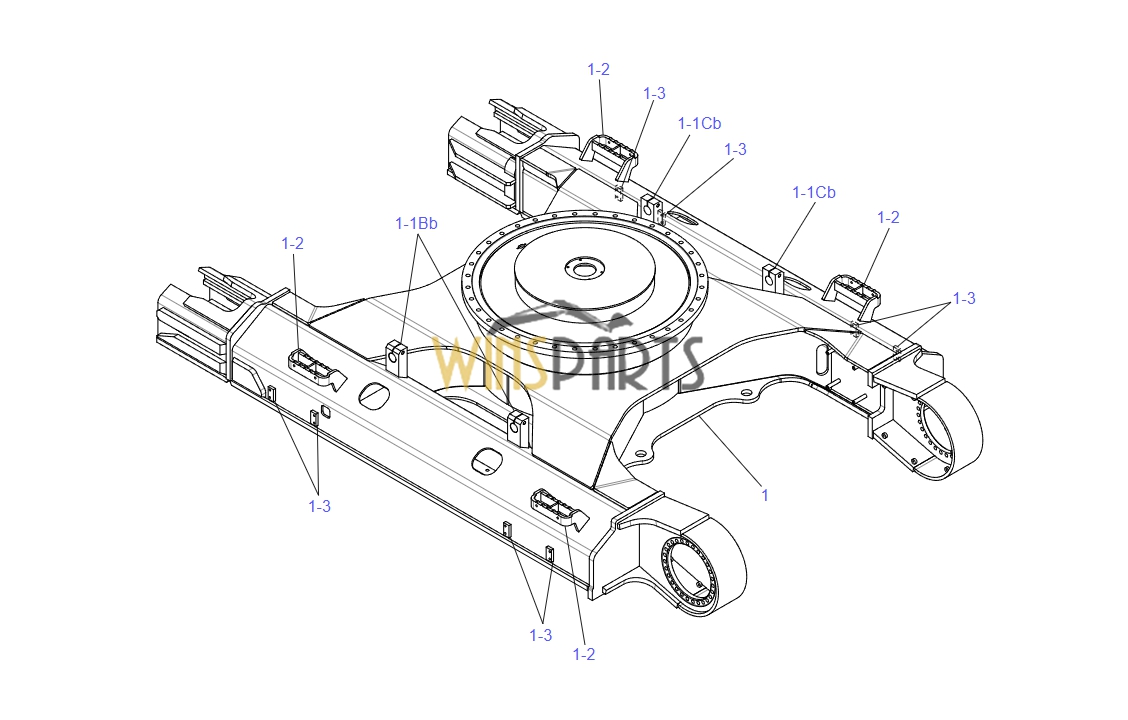

LS02F00110P1 LS02F00109F1 FRAME ASSY, LOW KOBELCO SK470-10 SK500LC-10 SK500DLC-10 SK550DLC-10
　 .
　 1 LS02F00110P1 FRAME, LOW 1
　 1-1Bb LS07F01205P1 SUPPORT 2
　 1-1Cb LS07F01205P1 SUPPORT 2
　 1-2 LS41C00017P1 STEP 4
　 1-3 LS07F01343P1 BLOCK, TAPPED 8

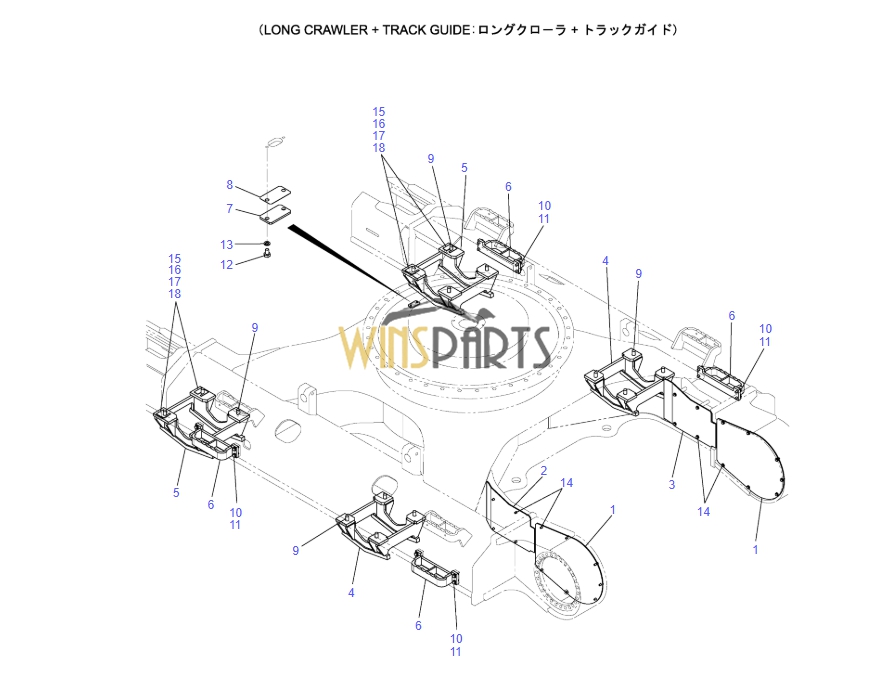

LS01F00051F1 LS63D00001P1 LS63D00002P1 LONG CRAWLER TRACK GUIDE KOBELCO SK470-10 SK500LC-10
　 . (LONG CRAWLER TRACK GUIDE)
　 .
　 1 LS01F01234P1 COVER 2
　 2 LS01F01229P1 COVER 1
　 3 LS01F01230P1 COVER 1
　 4 LS63D00001P1 GUIDE, TRACK 2
　 5 LS63D00002P1 GUIDE, TRACK 2
　 6 LS41C00015P1 STEP 4
　 7 2422T556 PLATE 1
　 8 2418T12274 PACKING 1
　 9 2420P1613D3 CAPSCREW 16
　 10 ZW16H16000 WASHER 16
　 11 ZS18C16040 CAPSCREW 16
　 12 ZS18C10016 CAPSCREW 2
　 13 ZW26X10000 LOCK WASHER 2
　 14 ZM73C12025 SEMS-BOLT 22
　 15 LS01F01223D1 SHIM (1.2) 4
　 16 LS01F01223D2 SHIM (1.6) 4
　 17 LS01F01223D3 SHIM (2.0) 4
　 18 LS01F01223D4 SHIM (2.3) 4
　 LS01F00055F1 LOW GROUP Not Service
　 .
　 1 LS01F01234P1 COVER 2
　 2 LS01F01235P1 COVER 1
　 3 LS01F01236P1 COVER 1
　 4 LS41C00015P1 STEP 4
　 5 2422T556 PLATE 1
　 6 2418T12274 PACKING 1
　 7 ZW16H16000 WASHER 16
　 8 ZS18C16040 CAPSCREW 16
　 9 ZS18C10016 CAPSCREW 2
　 10 ZW26X10000 LOCK WASHER 2
　 11 ZM73C12025 SEMS-BOLT 22
　 LS01F00022F1 LOW GROUP Not Service
　 . (HD)
　 .
　 1 LS63D00001P1 GUIDE, TRACK 4
　 2 2420P1613D3 CAPSCREW 16

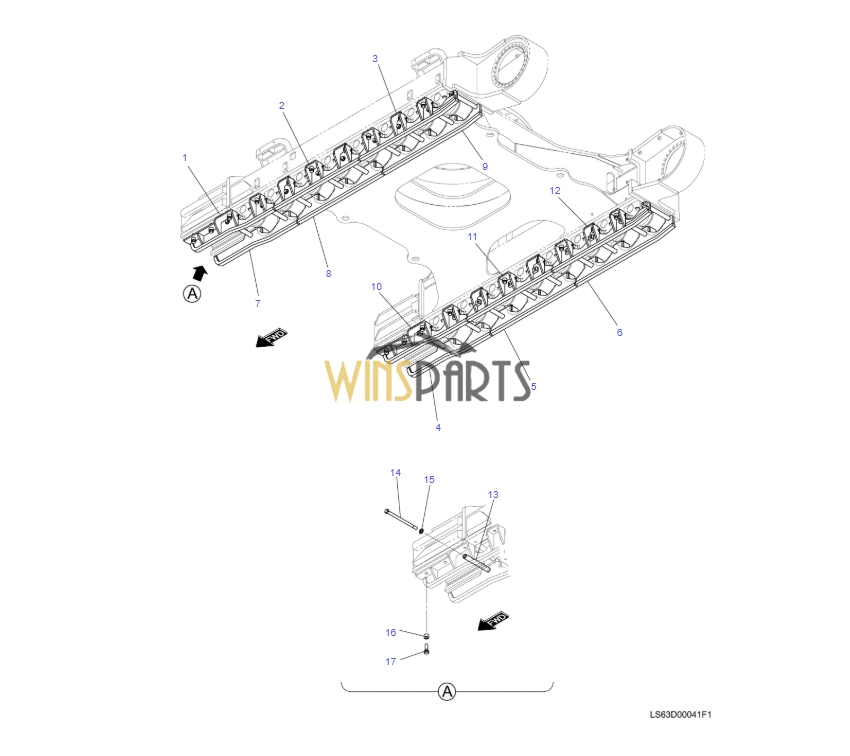

LS63D00041F1 LS63D00027P1 GUIDE ASSY, TRACK KOBELCO SK470-10 SK500LC-10
　 .
　 1 LS63D00027P1 GUIDE, TRACK 1
　 2 LS63D00043P1 GUIDE, TRACK 1
　 3 LS63D00044P1 GUIDE, TRACK 1
　 4 LS63D00028P1 GUIDE, TRACK 1
　 5 LS63D00049P1 GUIDE, TRACK 1
　 6 LS63D00050P1 GUIDE, TRACK 1
　 7 LS63D00030P1 GUIDE, TRACK 1
　 8 LS63D00046P1 GUIDE, TRACK 1
　 9 LS63D00047P1 GUIDE, TRACK 1
　 10 LS63D00029P1 GUIDE, TRACK 1
　 11 LS63D00052P1 GUIDE, TRACK 1
　 12 LS63D00053P1 GUIDE, TRACK 1
　 13 LS63D01047P1 SPACER 20
　 14 LS63D01075P1 CAPSCREW 20
　 15 ZW13H24000 WASHER 20
　 16 LS63D01048P1 SPACER 40
　 17 2420P1613D6 CAPSCREW 40
