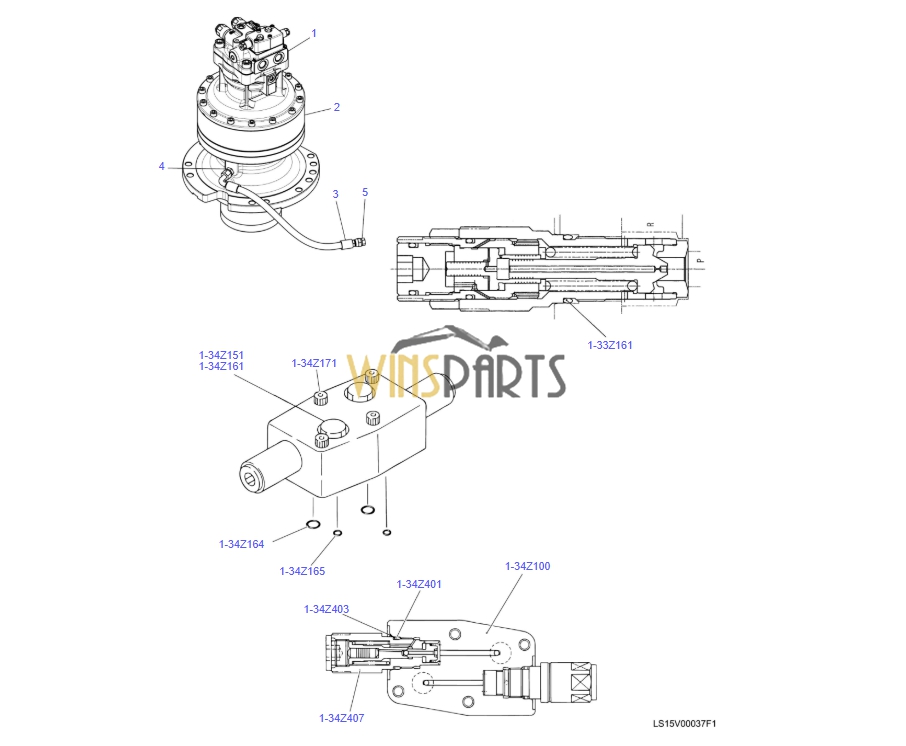

LS15V00037F1 LS15V00038F1 LS15V00041F1 SWING MOTOR ASSY KOBELCO SK470-10 SK500LC-10
LS15V00037F1 MOTOR ASSY, SWING
.
1 LS15V00041F1 MOTOR ASSY, HYD 1
LS15V00038F1 MOTOR ASSY, SWING
.
1 LS15V00041F1 MOTOR ASSY, HYD 1
1-1 YN15V00025S101 SHAFT 1
.
HC090-00-A_LS15V00037F1_KCMU_D0002346069_1 1 LS15V00037F1 MOTOR ASSY, SWING 1 HC 090-00-A
HC090-00-B_LS15V00038F1_KCMU_D0002346068_1 2 LS15V00038F1 MOTOR ASSY, SWING 1 HC 090-00-B

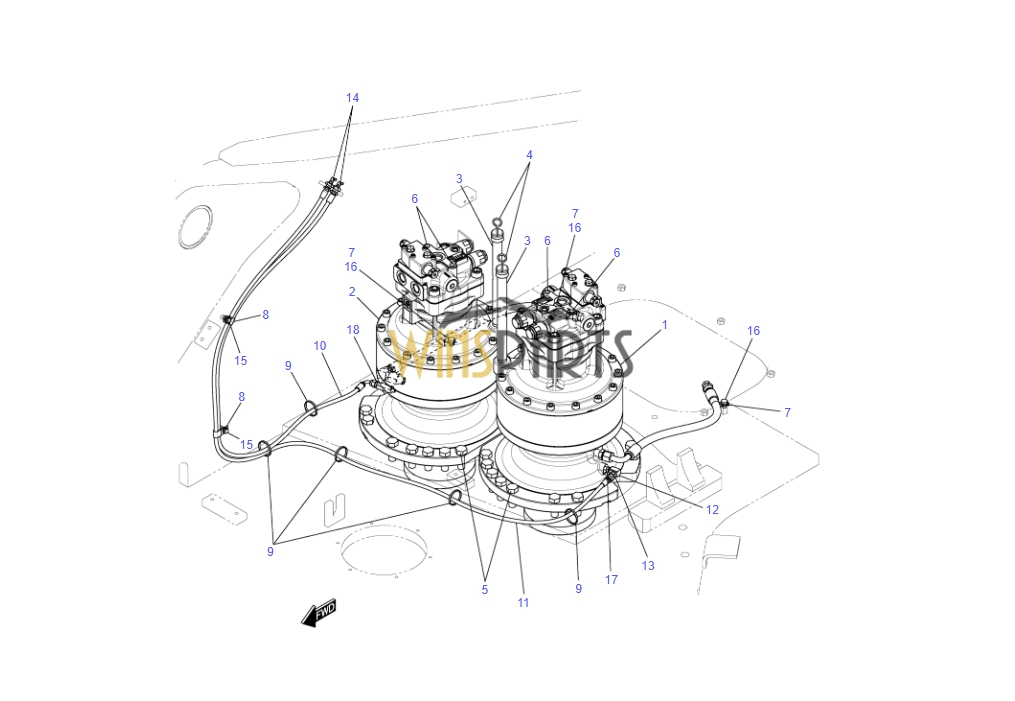

3 LC32W01073D5 TUBE 2
4 YY32W01001D1 GAUGE, LEVEL 2
5 ZS13C20055 CAPSCREW 28
6 YN64H01391D1 CAP 4
7 ZC46X19011 CLIP 3
8 ZC48X10009 CLIP 2
9 PY01P01043D3 CLIP 5
10 YF32W01006D3 HOSE 1
11 2444R1117D240 HOSE 1
12 YT32W01004P1 ELBOW 1
13 2444Z2002 CONNECTOR 1
14 ZG91V02000 NIPPLE, GREASE 2
15 ZM73C08016 SEMS-BOLT 2
16 ZM73C10016 SEMS-BOLT 3
17 ZG22E02000 CONNECTOR 1
18 LS32W01029P1 CONNECTOR 1
LS32W00021F1 MOTOR INSTAL, SWING Not Service
.
HC090-00-A_LS15V00037F1_KCMU_D0002346069_1 1 LS15V00037F1 MOTOR ASSY, SWING 1 HC 090-00-A
HC090-00-B_LS15V00038F1_KCMU_D0002346068_1 2 LS15V00038F1 MOTOR ASSY, SWING 1 HC 090-00-B
3 LC32W01073D5 TUBE 2
4 YY32W01001D1 GAUGE, LEVEL 2
5 ZS13C20055 CAPSCREW 28
6 YN64H01391D1 CAP 4
7 ZC46X19011 CLIP 3
8 ZC48X10009 CLIP 2
9 PY01P01043D3 CLIP 5
10 YF32W01006D3 HOSE 1
11 2444R1117D252 HOSE 1
12 YT32W01004P1 ELBOW 1
13 2444Z2002 CONNECTOR 1
14 ZG91V02000 NIPPLE, GREASE 2
15 ZM73C08016 SEMS-BOLT 3
16 ZM73C10016 SEMS-BOLT 3
17 ZG22E02000 CONNECTOR 1
18 LS32W01029P1 CONNECTOR 1
19 ZC46X10009 CLIP 1

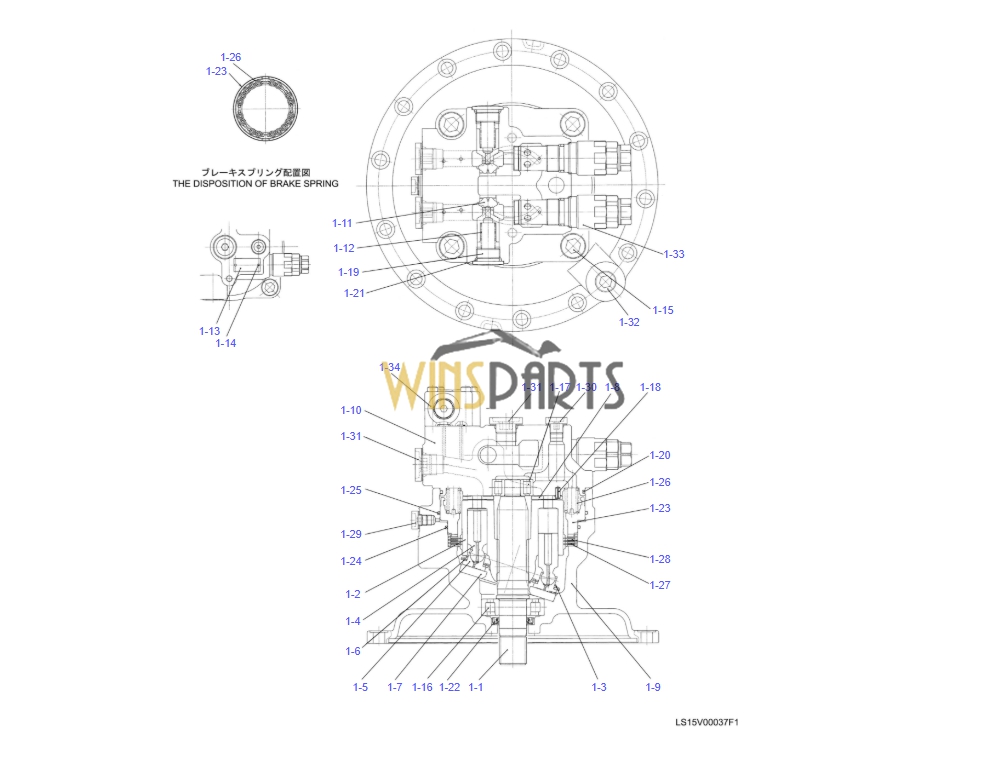

1-1 YN15V00025S101 SHAFT 1
1-2 YN15V00025S111 CYLINDER 1
1-3 YN15V00025S114 SPRING 1
1-4 NO P/No PISTON 9 R1
1-5 NO P/No SHOE 9 R1
1-6 YN15V00025S123 PLATE 1
1-7 YN15V00025S124 PLATE 1
1-8 YN15V00025S131 PLATE 1
1-9 LQ15V00037S301 CASE 1
1-10 NO P/No CASE 1 R2
1-11 YN15V00025S351 SPOOL 2
1-12 YN15V00002S355 SPRING 2
1-13 NO P/No NAME PLATE 1
1-14 2437U407S983 RIVET 2
1-15 ZS23C20045 CAPSCREW 4
1-16 YN15V00002S011 BEARING 1
1-17 LQ15V00037S444 BEARING, ROLLER 1
1-18 NO P/No PIN 2 R2
1-19 YN15V00002S012 PLUG 2
1-20 YN15V00025S489 O-RING 1 R3
1-21 ZD12P02800 O-RING 2 R3
1-22 YN15V00035S491 OIL SEAL 1 R3
1-23 YN15V00002S014 PISTON 1
1-24 2441U736S706 O-RING 1 R3
1-25 2415U188S707 O-RING 1 R3
1-26 YN15V00025S712 SPRING 18
1-27 YN15V00025S742 PLATE 3
1-28 YN15V00025S743 PLATE 4
1-29 YN15V00035S980 PLUG 1
1-30 YN15V00035S984 PLUG 1
1-31 YN15V00035S985 PLUG 3
1-32 ZE82T12000 PLUG 1
1-33 YN22V00028F2 VALVE, RELIEF 2
1-33Z161 ZD12G03000 O-RING 1
1-34 YN20V00004F6 VALVE ASSY, HYD 1
1-34Z100 LQ15V00001S100 CASE 1
1-34Z151 YW30V00001S157 PLUG 2
1-34Z161 ZD12P01100 O-RING 2
1-34Z164 YT10V00003S711 O-RING 2
1-34Z165 YN10V01006S011 O-RING 2
1-34Z171 ZS23C08055 CAPSCREW 4
1-34Z401 ZD12P02000 O-RING 2
1-34Z403 ZD85P02000 RING, BACK-UP 2
1-34Z407 YN20V00004S407 VALVE ASSY 2

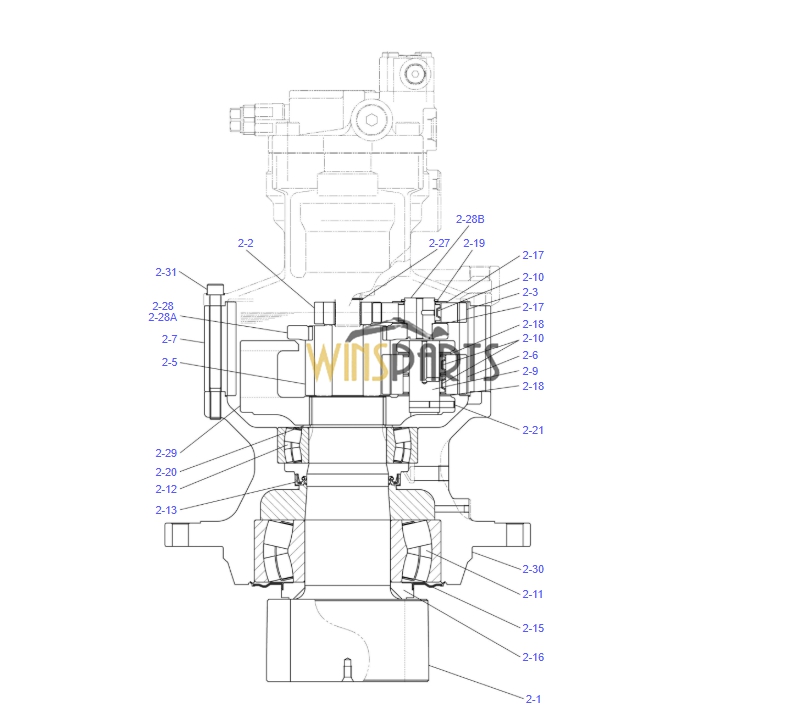

2 LS32W00020F1 REDUCTION ASSY,SWING 1
2-1 LS32W01027P1 SHAFT, PINION 1
2-2 LQ32W01097P1 GEAR, SUN 1
2-3 LQ32W01098P1 PINION 3
2-5 LQ32W01101P1 GEAR, SUN 1
2-6 LQ32W01065P1 PINION 4
2-7 LQ32W01102P1 GEAR, RING 1
2-9 LQ32W01104P1 SHAFT 4
2-10 LQ32W01074P1 BEARING, NEEDLE 11
2-11 LQ32W01016P1 BEARING, SPHERICAL 1
2-12 LQ32W01015P1 BEARING, SPHERICAL 1
2-13 LQ32W01035P1 OIL SEAL 1
2-15 LC32W01033P1 OIL SEAL 1
2-16 LS32W01028P1 SLEEVE 1
2-17 LQ32W01072P1 WASHER, THRUST 6
2-18 LQ32W01075P1 WASHER, THRUST 8
2-19 ZR16X04000 RING, RETAINING 3
2-20 ZR16X10000 RING, SNAP 1
2-21 ZP26D08032 PIN, SPRING 4
2-27 ZR16X03500 RING, SNAP 1
2-28 LQ32W01111F1 SPIDER ASSY 1
2-28A LQ32W01112P1 SPIDER 1
2-28B LQ32W01063P1 SHAFT 3
2-29 LQ32W01113P1 SPIDER 1
2-30 LS32W01026P1 HOUSING 1
2-31 ZS23C14160 CAPSCREW 14
3 ZX32M08060 HOSE 1
4 ZH22Z08000 CONNECTOR 1
5 2444Z2728D3 PLUG 1
.
YN15V00055R100 REPAIR KIT 1 RK1
. (1-4, 1-5)X9
.
YN15V00025R200 REPAIR KIT 1 RK2
. (1-10)X1
. (1-18)X2
.
YM15V00006R100 REPAIR KIT 1 RK3
. (1-20, 1-22, 1-24, 1-25)X1
. (1-21)X2
