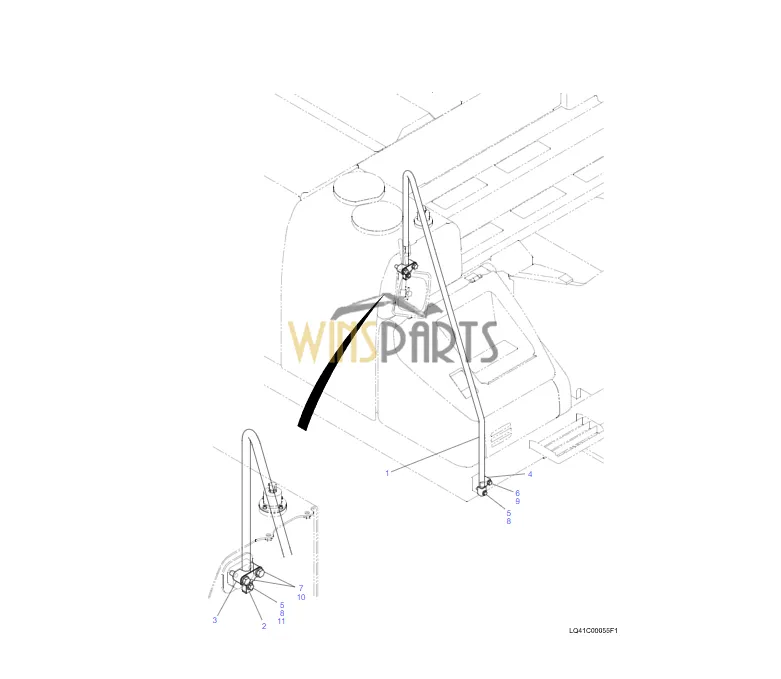

LQ41C00055F1 LQ41C00056P2 HANDRAIL INSTAL KOBELCO

LQ41C00055F1 LQ41C00056P2 HANDRAIL INSTAL KOBELCO
　 .
　 1 LQ41C00056P2 HANDRAIL 1
　 2 LQ21C02995P1 PLATE 1 YN15T17101–20677
　 2 LQ21C04737P1 BRACKET 1 YN15429100-
　 . YQ15405379-
　 3 LQ21C02318P1 CLAMP 1
　 4 LQ21C02997P1 CLAMP 1
　 5 ZS18C10055 CAPSCREW 2 YN15T17101–20677
　 5 ZS18C10055 CAPSCREW 1 YN15429100-
　 . YQ15405379-
　 6 ZS18C12060 CAPSCREW 1
　 7 ZS18C16065 CAPSCREW 2 YN15T17101–20677
　 7 ZS18C16070 CAPSCREW 2 YN15429100-
　 . YQ15405379-
　 8 ZW16H10000 WASHER 2
　 9 ZW16H12000 WASHER 1
　 10 ZW16H16000 WASHER 2 YN15T17101–20677
　 11 ZS18C10060 CAPSCREW 1 YN15429100-

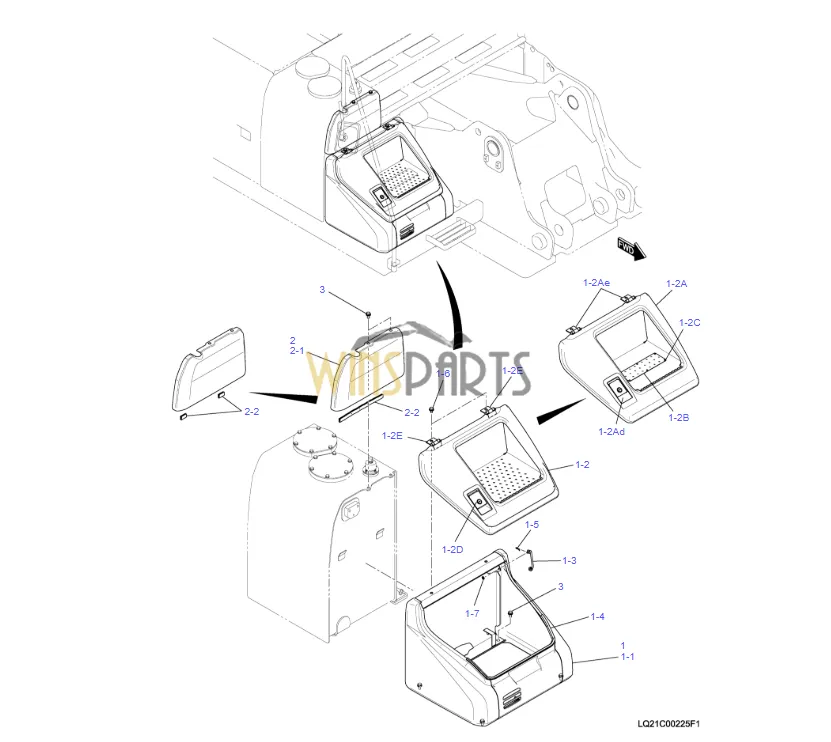

LQ21C00225F1 YN21C06525F1 GUARD COVER ASSY
　 1 YN21C06525F1 COVER ASSY 1
　 1-1 YN21C06526P2 BOX 1 YN15T17101–19345
　 . YQ15-T3101–T3221
　 1-1 YN21C07214P1 BOX 1 YN15T19346-
　 . YQ15-T3222-
　 1-2 YN21C07021F1 COVER ASSY 1
　 1-2A YN21C06478P3 COVER 1
　 1-2Ad YN21C06245P1 LOCK 1
　 1-2Ae YN21C06497P1 HINGE 2
　 1-2B YN21C06508P1 PLATE 1
　 1-2C YN21C03168P1 RIVET 6
　 1-2 LS21C04311F1 COVER ASSY 1 YN15427012-
　 . YQ15405154-
　 1-2A LS21C04380P2 COVER 1
　 1-2Ad YN21C06245P1 LOCK 1
　 1-2Ae YN21C06497P1 HINGE 2
　 1-2B YN21C06508P1 PLATE 1
　 1-2C YN21C03168P1 RIVET 6
　 1-3 LQ21C04573P1 STAY 1
　 1-4 PM21C01091D6 STRIP, WEATHER 1
　 1-5 2419R9D2 PIN 1
　 1-6 ZM73C12020 SEMS-BOLT 2
　 1-7 ZW16P08000 WASHER 1
　 1 YN21C07372F1 COVER ASSY 1
　 1-1 YN21C07214P1 BOX 1
　 1-2 LS21C04849P1 COVER 1
　 1-2D YN21C06245P1 LOCK 1
　 1-2E YN21C06497P1 HINGE 2
　 1-3 LQ21C04573P1 STAY 1
　 1-4 PM21C01091D6 STRIP, WEATHER 1
　 1-5 2419R9D2 PIN 1
　 1-6 ZM73C12020 SEMS-BOLT 2
　 1-7 ZW16P08000 WASHER 1
　 2 YN21C06499F1 COVER ASSY 1
　 2-1 YN21C06477P1 COVER 1 YN15T17101–17987
　 . YQ15-T3101–T3144
　 2-1 WB21C01158P1 COVER 1 YN15T17988-
　 . YQ15-T3145-
　 2-2 LC21C02936D2 STRIP, WEATHER 2
　 2-2 HX83C13035DX STRIP, WEATHER 1 YN15427224-
　 . YQ15405179-
　 3 ZM73C12025 SEMS-BOLT

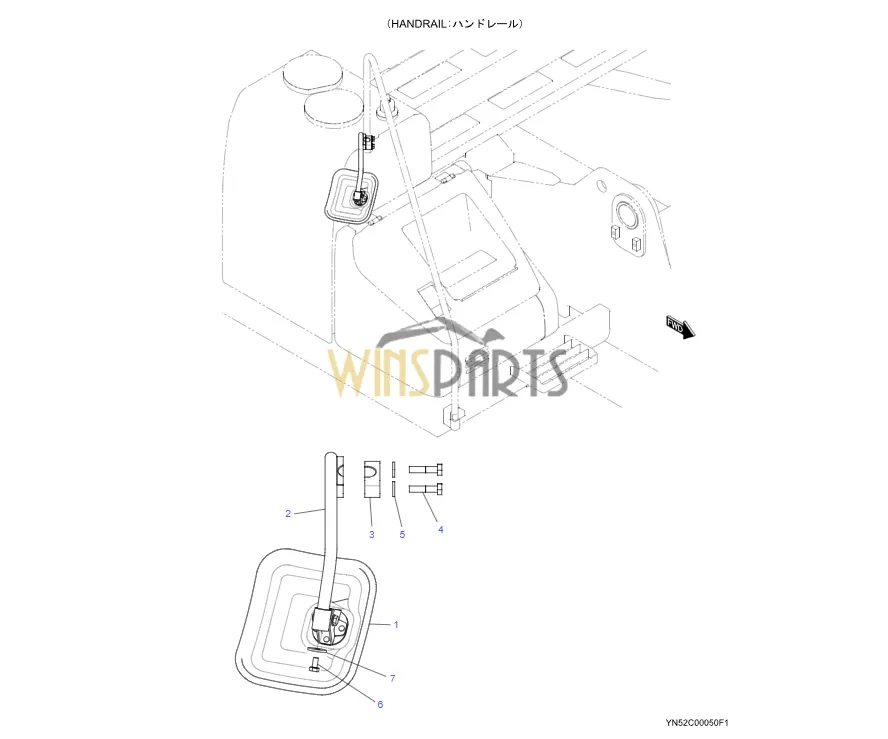

YN52C00050F1 YN52C00053P1 MIRROR KOBELCO SK200XDL-10 SK200XDL-10 SK210LC-10 SK200-10 SK210LC-10 Hydraulic Excavator Spare Parts
　 1 YN52C00053P1 MIRROR 1
　 2 LQ52C01054P1 STAY 1
　 3 LS52C01060P1 CLAMP 1
　 4 ZS18C10045 CAPSCREW 2
　 5 ZW16H10000 WASHER 2
　 6 ZS18C08016 CAPSCREW 1
　 7 2418T12753 WASHER 1

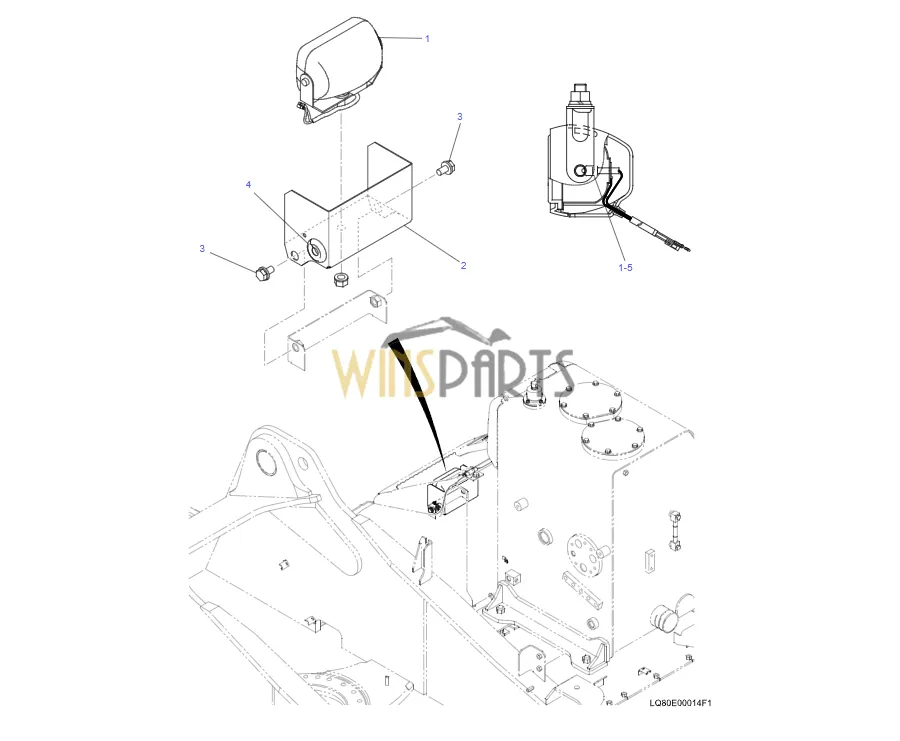

LQ80E00014F1 YT80S00002F2 LIGHT INSTALKOBELCO
　 1 YT80S00002F2 LIGHT 1
　 1-5 YT80S00002S005 BULB 1
　 2 YN80E01034P1 BRACKET 1
　 3 ZM73C10020 SEMS-BOLT 2
　 4 YR02C01645P1 GROMMET

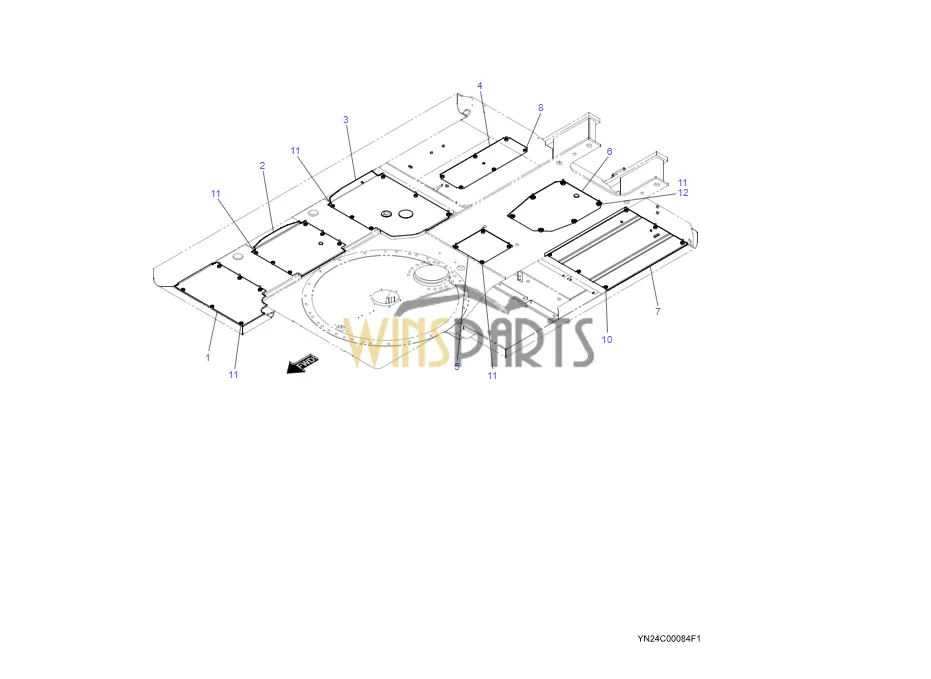

YN24C00084F1 YN24C01512P1 COVER ASSY, UNDER
　 .
　 1 YN24C01512P1 COVER 1
　 2 YN24C01513P1 COVER 1
　 2 YN24C01513P2 COVER 1 YN15429021-
　 . YQ15405358-
　 3 YN24C01514P1 COVER 1
　 4 LQ24C01247P1 COVER 1
　 5 YN24C01462P1 COVER 1
　 6 LQ24C01249P1 COVER 1
　 7 YN24C01504P2 COVER 1
　 8 ZM73C12025 SEMS-BOLT 6
　 10 ZM73C12030 SEMS-BOLT 6
　 11 ZM73C12035 SEMS-BOLT 28
　 12 HY25X12040G1 WASHER 6
