YN12B00907F1 YN12B00908F1 BUCKET CYLINDER INSTAL Kobelco (BUCKET/SHORT) 1 YN12B00908F1 CYLINDER INSTAL 1 1-1 YN12B02413P1 PIN 1 1-2 HS18C16140G2 CAPSCREW 1 …

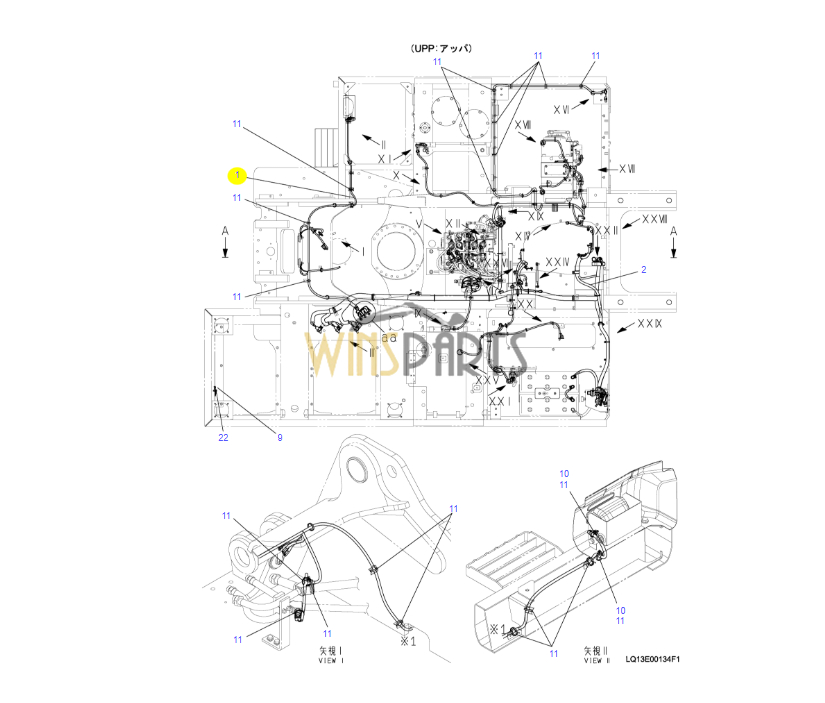

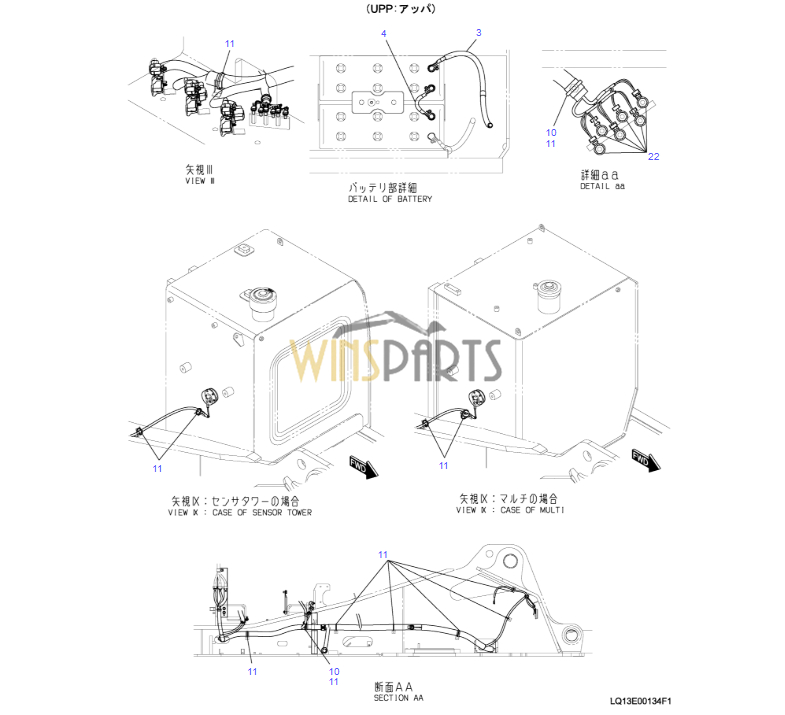

LQ13E00134F1 HARNESS ASSY UPP KOBELCO SK250-10 SK260LC-10
1 LQ13E01313P9 HARNESS 1
1 LQ13E01464P1 HARNESS 1 LL16405013-
. LQ16405001-
2 LQ13E01314P2 CABLE 1
3 LQ13E01315P1 CABLE 1
4 LQ13E01248P1 CABLE 1
7 LQ13E01337P1 CABLE 1
9 LE13E01006P1 CABLE 1
10 YN13E01375P1 CLIP 33
10 YN13E01375P1 CLIP 32 LL16405013-
. LQ16405001-
11 PY01P01043D3 CLIP 100
12 PY01P01043D5 CLIP 3
13 PY01P01043DA CLIP 7
13 PY01P01043DA CLIP 8 LL16405013-
. LQ16405001-
14 EW02E01015D4 CLIP 2
15 EW02E01015D6 CLIP 2
16 EW02E01015D8 CLIP 2
17 EW02E01015DA CLIP 2
19 EW02E01016D4 CLIP 1
20 ZM73C06020 SEMS-BOLT 1
21 ZM73C08016 SEMS-BOLT 1
22 ZM73C08020 SEMS-BOLT 20
23 ZM73C10020 SEMS-BOLT 2
24 ZM73C12020 SEMS-BOLT 1
26 ZN18C08007 NUT 3
27 LQ13E01367P1 INSULATION 1
28 LQ13E01368P1 INSULATION 1
30 ZW16P08000 WASHER 3
31 LQ16E01019P1 BRACKET 1
32 LQ13E01380P1 BRACKET 1
33 LQ13E01324P1 BRACKET 1
34 YN13E01625P1 BRACKET 1
35 LQ13E01329P1 BRACKET 1
36 PX32W01059P1 COLLAR 1
37 ZY26X04010 SPACER 1
38 YF13E01154P1 CAPSCREW 1 LL16405013-
. LQ16405001-
39 YF13E01155P1 LOCK WASHER 1 LL16405013-
. LQ16405001-
40 YF13E01156P1 WASHER 1 LL16405013-
4 LQ13E01248P1 CABLE 1
7 LQ13E01337P1 CABLE 1
9 LE13E01006P1 CABLE 1

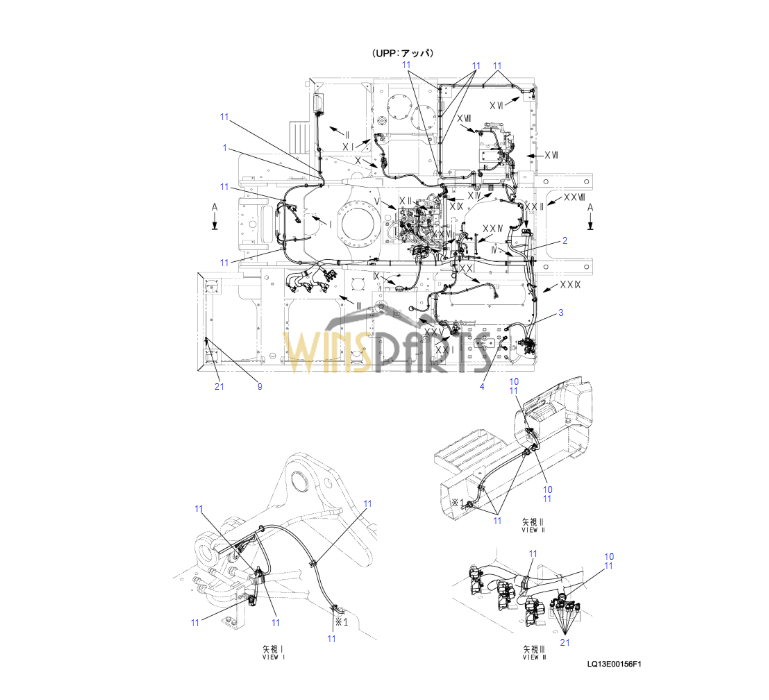

1 LQ13E01465P1 HARNESS 1
2 LQ13E01314P2 CABLE 1
3 LQ13E01315P1 CABLE 1
4 LQ13E01248P1 CABLE 1
5 LQ16E01019P1 BRACKET 1
6 LQ13E01380P1 BRACKET 1
7 LQ13E01337P1 CABLE 1
8 LQ13E01324P1 BRACKET 1
9 LE13E01006P1 CABLE 1
10 YN13E01375P1 CLIP 35
11 PY01P01043D3 CLIP 105
12 PY01P01043D5 CLIP 4
13 PY01P01043DA CLIP 9
14 EW02E01015D4 CLIP 2
15 EW02E01015D8 CLIP 4
16 EW02E01015DA CLIP 2
17 YN13E01625P1 BRACKET 1
18 EW02E01016D4 CLIP 1
19 ZM73C06020 SEMS-BOLT 1
20 ZM73C08016 SEMS-BOLT 1
21 ZM73C08020 SEMS-BOLT 20
22 ZM73C10020 SEMS-BOLT 2
23 ZM73C12020 SEMS-BOLT 1
24 LQ13E01329P1 BRACKET 1
25 ZN18C08007 NUT 3
26 LQ13E01367P1 INSULATION 1
27 LQ13E01368P1 INSULATION 1
28 PX32W01059P1 COLLAR 1
29 ZW16P08000 WASHER 3
30 ZY26X04010 SPACER 1
31 YF13E01154P1 CAPSCREW 1
32 YF13E01155P1 LOCK WASHER 1
33 YF13E01156P1 WASHER 1

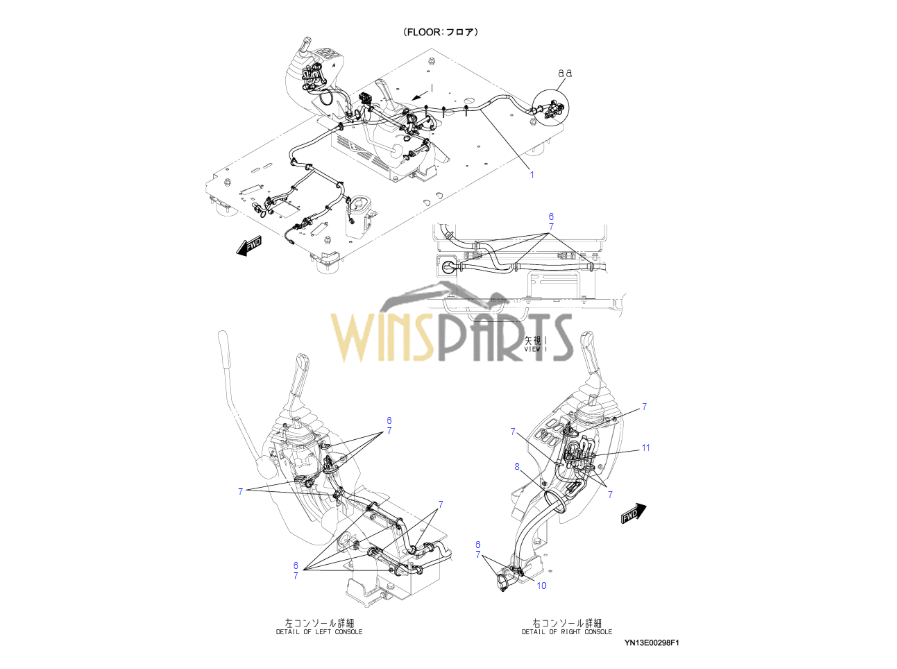

1 YN13E02082P5 HARNESS 1
2 LE13E01005P1 CABLE 1
3 ZW16P08000 WASHER 1
4 ZW26X08000 LOCK WASHER 1
5 ZN18C08007 NUT 1
6 YN13E01375P1 CLIP 25
7 PY01P01043D3 CLIP 37
8 PY01P01043D8 CLIP 1
9 PY01P01043DA CLIP 4
10 PM22C01020DR TRIM 1
11 PY01P01043D5 CLIP 1

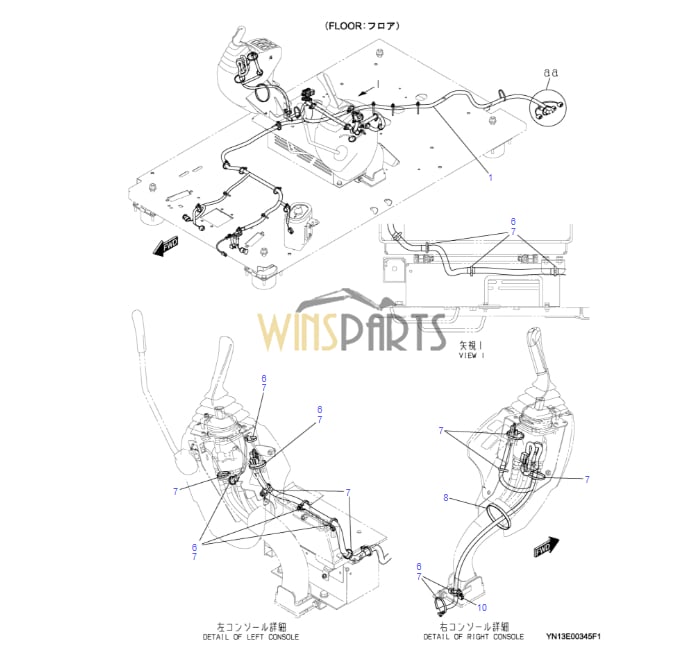

1 YN13E02186P2 HARNESS 1
1 YN13E02186P3 HARNESS 1 LL16405021-
. LQ16405001-
2 LE13E01005P1 CABLE 1
3 ZW16P08000 WASHER 1
4 ZW26X08000 LOCK WASHER 1
5 ZN18C08007 NUT 1
6 YN13E01375P1 CLIP 22
7 PY01P01043D3 CLIP 29
8 PY01P01043D8 CLIP 1
9 PY01P01043DA CLIP 2
10 PM22C01020DR TRIM 1
.

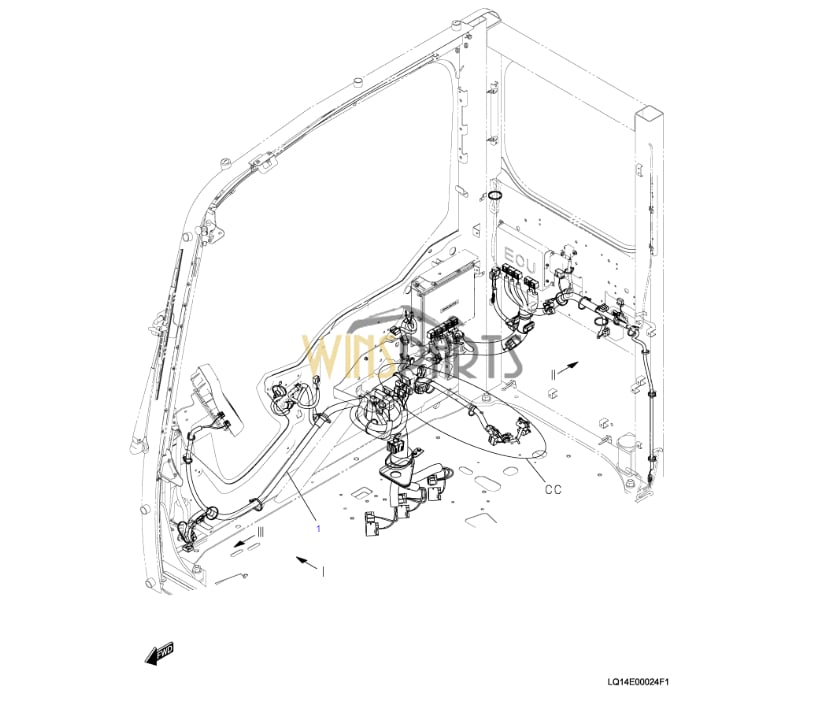

1 LQ14E01036P8 HARNESS 1
1 LQ14E01047P1 HARNESS 1 LL16405023-
. LQ16405001-
2 YN13E01375P1 CLIP 12
3 PY01P01043D3 CLIP 23
4 PY01P01043D5 CLIP 7
5 LC13E01564P1 PLATE 1
6 LQ13E01366P1 GROMMET 1
7 ZM73C06016 SEMS-BOLT 4
9 PY01P01043D8 CLIP 1
10 LQ14E01037P1 HARNESS 1

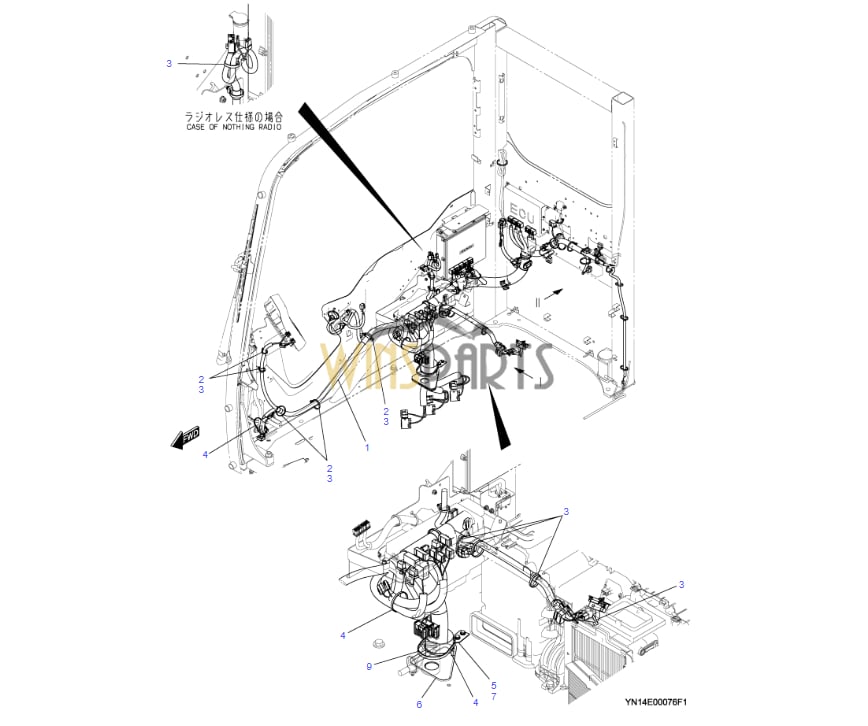

1 YN14E01154P6 HARNESS 1
2 YN13E01375P1 CLIP 13
3 PY01P01043D3 CLIP 25
4 PY01P01043D5 CLIP 7
5 LC13E01564P1 PLATE 1
6 LQ13E01366P1 GROMMET 1
7 ZM73C06016 SEMS-BOLT 4
8 LQ14E01037P1 HARNESS 1
9 PY01P01043D8 CLIP 1
YN11E00136F1 BOOM LIGHT HARNESS ASSY
.
1 YN11E01282P2 HARNESS 1
2 YN11E01283P1 HARNESS 1
3 EN24S00008P1 RELAY 1
4 ZM61C06016 SEMS-BOLT 1
5 PY01P01043D3 CLIP 10
6 PY01P01043D5 CLIP 10
7 PY01P01043D8 CLIP 1
YN11E00182F1 HARNESS ASSY
1 YN22E00643FA CONTROLLER 1
1-1 YN22E00623F1 CONTROLLER 1
1-2 YN22E00643S001 BATTERY 1
2 ZM61C06016 SEMS-BOLT 4
3 YN11E01273P2 HARNESS 1
4 YN54S00072P1 ANTENNA 1
5 YY22C01383P1 INSULATION 1
6 YN02C04710P1 INSULATION 2
7 YN02C04711P1 INSULATION 1
8 PY01P01043D3 CLIP 4
9 PY01P01043D5 CLIP 1
10 PY01P01043DA CLIP 1
