LQ02C01566F1 LQ80E00031F1 LQ11E00074F1 LIGHT HARNESS ASSY

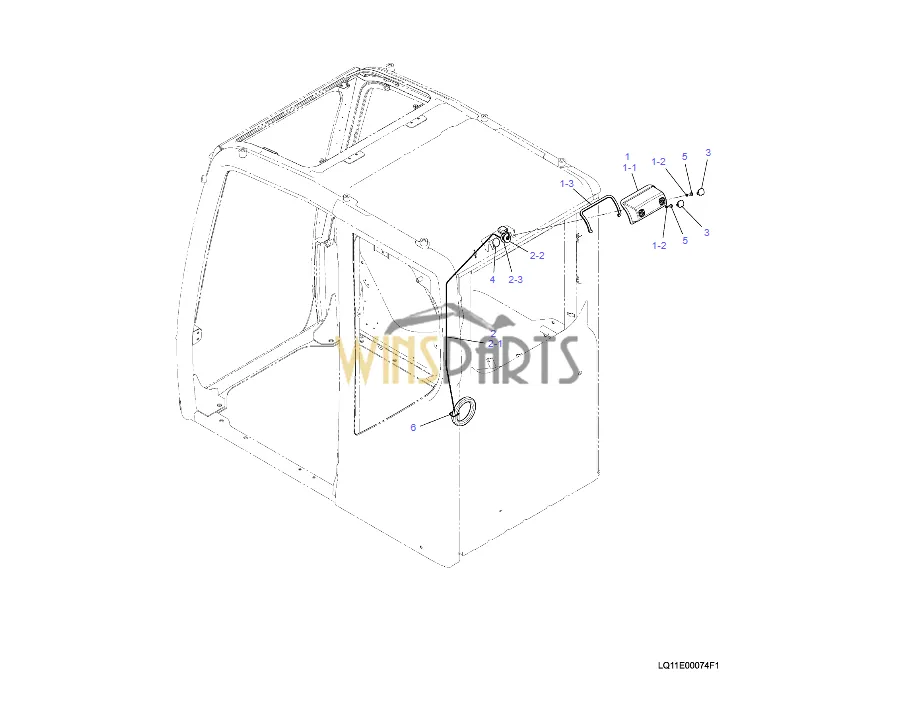

LQ02C01566F1 LQ80E00031F1 LQ11E00074F1 LIGHT HARNESS ASSY INSTAL
　 .
　 1 LQ80E00031S001 SEAL 2 YN15T17101–20677
　 1 YT02C01567D2 PLATE
LQ11E00074F1 HARNESS ASSY
　 .
　 1 LQ02C01566F1 COVER ASSY 1
　 1-1 LQ02C01567P1 COVER 1
　 1-2 YN02C04700P1 COLLAR 2
　 1-3 LQ02C01570P1 INSULATION 1
　 1 LQ02C01793F1 COVER ASSY 1 YN15427906–28890
　 . YQ15405232–05315
　 1-1 LQ02C01794P1 COVER 1
　 1-2 YN02C04700P1 COLLAR 2
　 1-3 LQ02C01570P1 INSULATION 1
　 1 LQ02C01807F1 COVER ASSY 1 YN15428891-
　 . YQ15405316-
　 1-1 LQ02C01808P1 COVER 1
　 1-2 YN02C04700P1 COLLAR 2
　 1-3 LQ02C01570P1 INSULATION 1
　 2 LQ11E01102F1 CONNECTOR ASSY 1
　 2-1 YN54S00052P1 ANTENNA 1
　 2-2 YN11E01236P1 GROMMET 1
　 2-3 YN11E01237P1 SEAL 1
　 3 YN02C04473P1 CAP 2
　 4 YT02C01261D3 PLATE 1
　 5 LQ11E00034S005 SCREW 2
　 6 LQ14E00014S006 CLIP 1

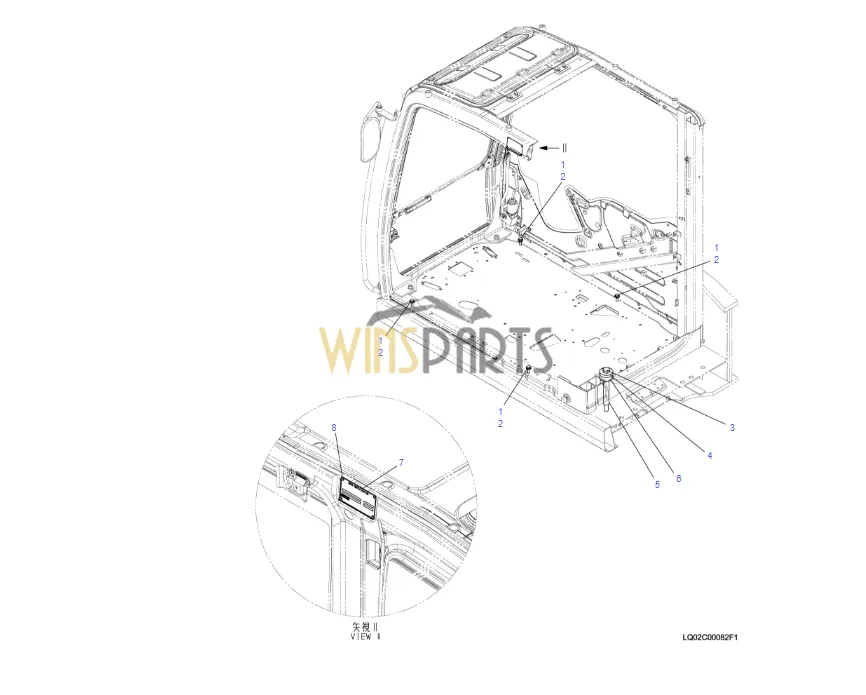

LQ02C00082F1 CAB INSTAL
　 1 ZS18C12035 CAPSCREW 4
　 2 2418T10357 WASHER 4
　 3 HS13C24280G1 CAPSCREW 1
　 4 LQ02C01523P1 PLATE 1
　 5 LQ02C01524P1 COLLAR 1
　 6 LQ02C01525P2 INSULATION 1
　 7 YY20T01398P2 PLATE, NUMBER 1 YN15T17101–20677
　 . YN15425001–27627
　 . YQ15-T3101–T3295
　 . YQ15405001–05215
　 7 YY20T01398P3 PLATE, NUMBER 1 YN15427628–29844
　 . YQ15405216–05503
　 7 YY20T01398P4 PLATE, NUMBER 1 YN15429845-
　 . YQ15405504-
　 8 PB06C01093D1 RIVET 4

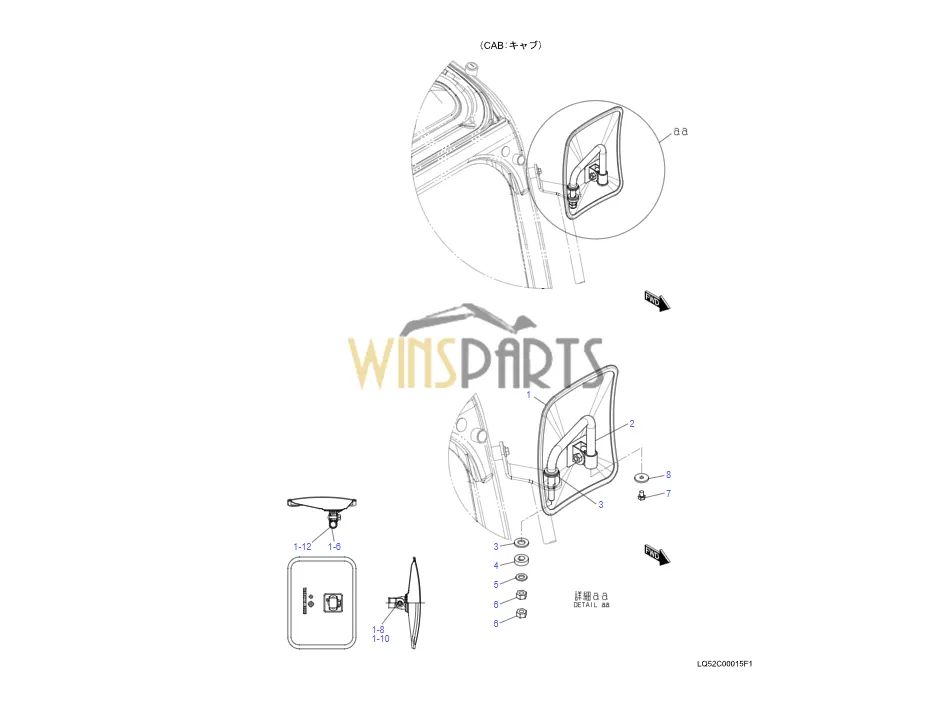

LQ52C00015F1 GB52C00003F1 CAB MIRROR INSTAL
　 1 GB52C00003F1 MIRROR 1
　 1-6 GB52C00003S006 BRACKET 1
　 1-8 GB52C00003S008 BOLT 1
　 1-10 GB52C00003S010 NUT 1
　 1-12 GB52C00003S012 COLLAR 1
　 2 LQ52C01056P1 STAY 1
　 3 LQ52C01021P1 WASHER 2
　 4 LQ52C01025P1 WASHER 1
　 5 ZW16P12000 WASHER 1
　 6 ZN18C12010 NUT 2
　 7 ZS18C08012 CAPSCREW 1
　 8 LQ52C01058P1 WASHER 1 YN15T17101–20677
　 8 2418T12753 WASHER 1 YN15425910-

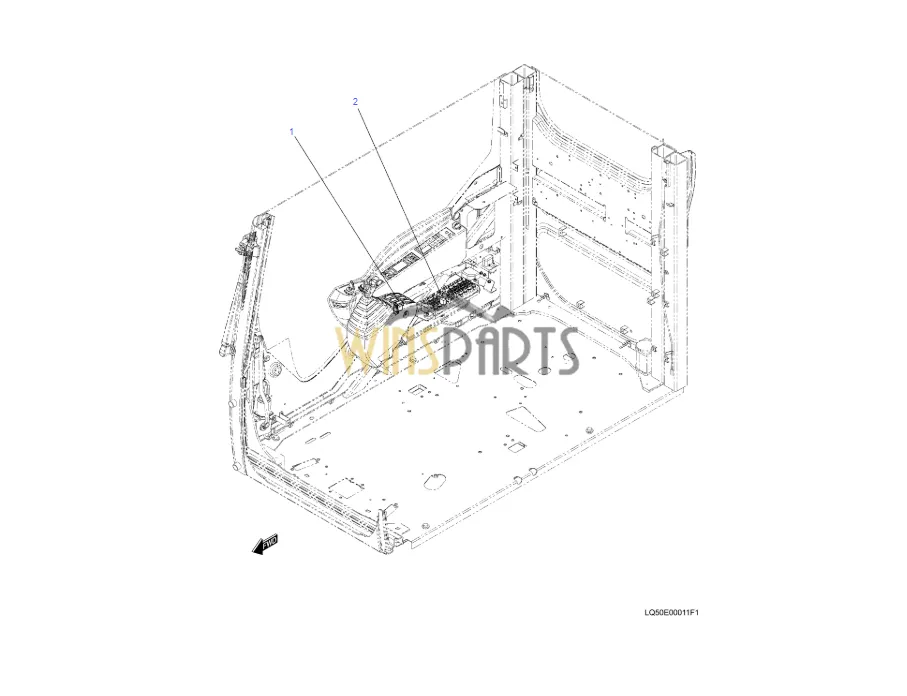

LQ50E00011F1 YN50S00040D4 CAB LIGHT SWITCH INSTAL
　 1 YN50S00040D4 SWITCH 1
　 2 YN24S00010P1 RELAY

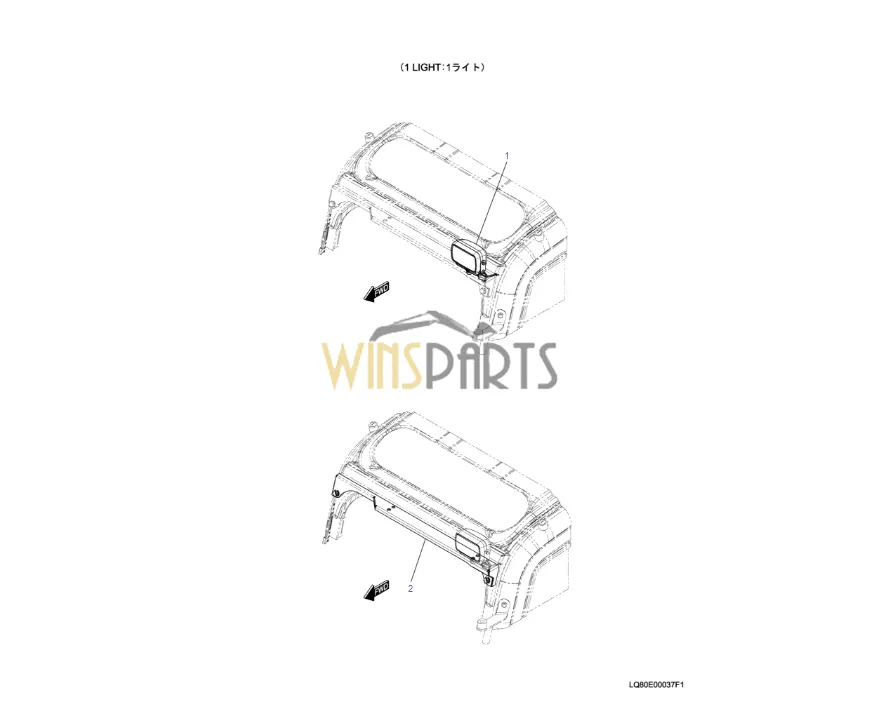

LQ80E00037F1 LQ80E00033F1 LIGHT KOBELCO SK200-10 SK210LC-10
　 .
789-01_LQ80E00033F1_KCM-EUR-02_D0001918791_1 1 LQ80E00033F1 LIGHT INSTAL 1 P.789-01
790-03_LQ80E00034F2_KCMU_D0002395137_1 2 LQ80E00034F2 BRACKET INSTAL 1 P.790-
LQ80E00033F1 YT80S00002F2 LIGHT INSTAL KOBELCO SK200XDL-10 SK200XDL-10 SK210LC-10
　 1 YT80S00002F2 LIGHT 1
　 1-5 YT80S00002S005 BULB 1
　 2 LQ80E01019P2 HARNESS 1
　 3 2420R372D7 GROMMET 1
　 7 YN13E01375P1 CLIP 1 YN15428547–31523
　 7 YN13E01375P1 CLIP 2 YN15431524-
　 8 PY01P01043D3 CLIP 1 YN15428547–31523 YQ15405290–05729
　 8 PY01P01043D3 CLIP 2 YN15431524-
LQ80E00034F2 BRACKET INSTAL X
　 1 LQ80E01025P1 BRACKET 1
　 3 ZM73C12035 SEMS-BOLT 2
　 4 LQ80E01024P1 SPACER 2
