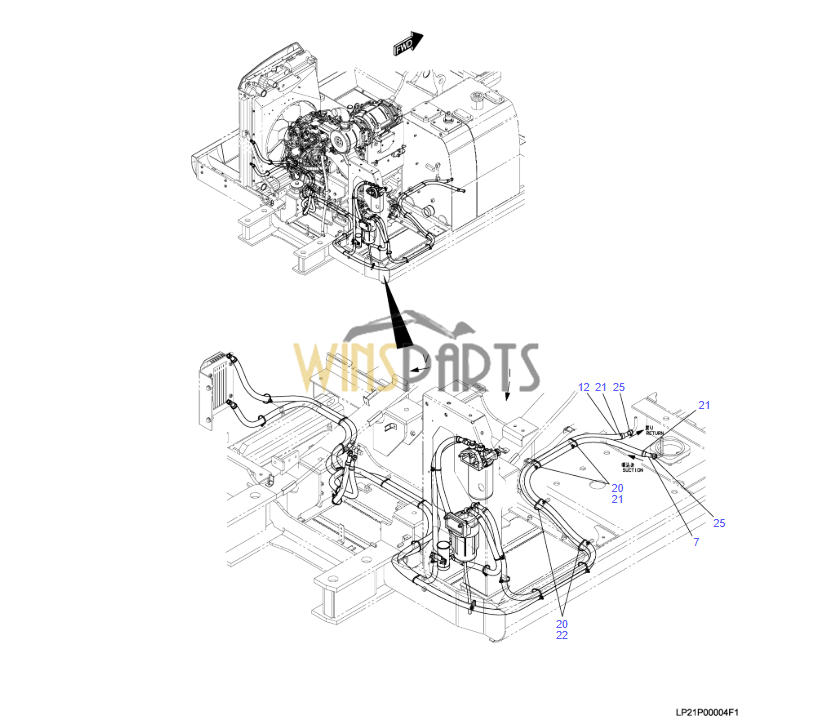

LP21P00004F1 YY21P01085P1 LP21P01023F1 PUMP, FUEL LINES KOBELCO SK130LC-11 SK140LC-11

LP21P00004F1 YY21P01085P1 LP21P01023F1 PUMP, FUEL LINES
　 .
　 1 LP21P01023F1 FILTER, FUEL 1
　 2 YY21P01085P1 TUBE 2
　 3 YY21P01087P1 JOINT 2
　 4 YY21P01086P1 GASKET 4
　 5 YY22P00034P1 PUMP, FUEL 1 LP10030001–30145
　 5 YY22P00034P2 PUMP, FUEL 1 LP10030146-
065-01_YN21P01104F1_KCMU_D0003591579_1 6 YN21P01104F1 FILTER, FUEL 1 P.065-01
　 7 HX11F06240CX HOSE 1
　 8 HX11F06067CX HOSE 1
　 9 HX11F06072CX HOSE 1
　 10 LN21P01008D6 HOSE 1
　 11 HX11F06195CZ HOSE 1
　 12 HX11F06400CX HOSE 1
　 13 HX81X19230DX TUBE 1
　 14 HX81X19056DX TUBE 1
　 15 HX81X19062DX TUBE 1
　 16 HX81X19320DX TUBE 1
　 17 HX81X19185DX TUBE 1
　 18 HX81X19390DX TUBE 1
　 19 HX11Y06034DX HOSE 1
　 20 YN13E01375P1 CLIP 18
　 21 PY01P01043D3 CLIP 30 LP10030001–30009
　 21 PY01P01043D3 CLIP 31 LP10030010-
　 22 PY01P01043D5 CLIP 5 LP10030001–30009
　 22 PY01P01043D5 CLIP 4 LP10030010-
　 25 PH05P01088D8 CLIP 12
　 26 PH05P01088D6 CLIP 1
　 27 ZS18C10075 CAPSCREW 1
　 29 ZS18C06030 CAPSCREW 2
　 30 ZM73C10040 SEMS-BOLT 4
　 31 ZW16P10000 WASHER 1
　 32 ZW16P06000 WASHER 2

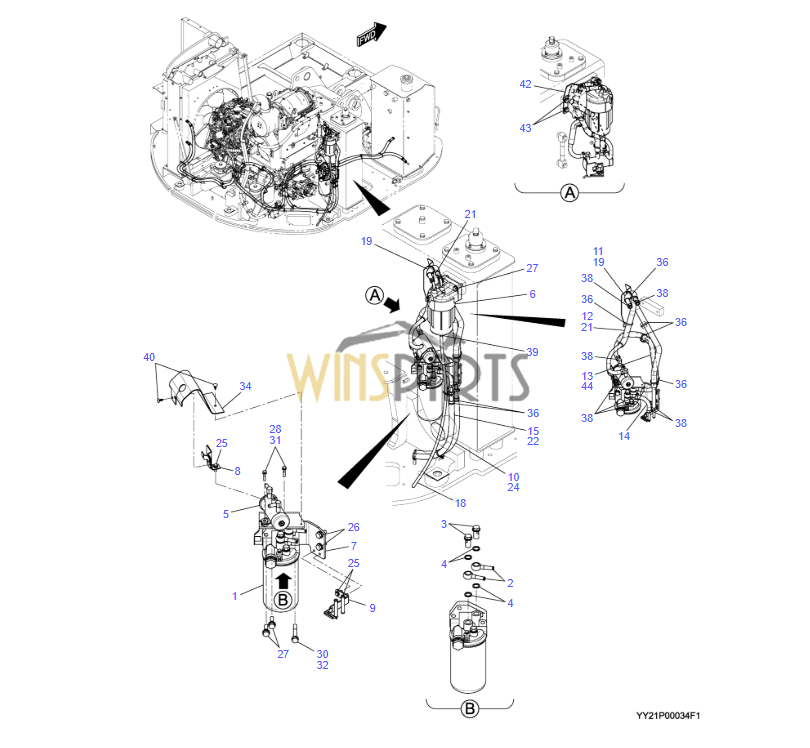

YY22P00034P2 YY21P01085P1 LP21P01023F1 FILTER FUEL LINES
LP21P00004F2 FUEL LINES
　 1 LP21P01023F1 FILTER, FUEL 1
　 2 YY21P01085P1 TUBE 2
　 3 YY21P01087P1 JOINT 2
　 4 YY21P01086P1 GASKET 4
　 5 YY22P00034P2 PUMP, FUEL 1
065-01_YN21P01104F1_KCMU_D0003591579_1 6 YN21P01104F1 FILTER, FUEL
　 1 LP21P01023F1 FILTER, FUEL 1
　 2 YY21P01085P1 TUBE 2
　 3 YY21P01087P1 JOINT 2
　 4 YY21P01086P1 GASKET 4
　 5 YY22P00034P2 PUMP, FUEL 1
065-01_YY21P01119F1_NA_D0003588647_1 6 YY21P01119F1 FILTER, FUEL 1 P.065-01
　 7 YY21P01094P1 BRACKET 1
　 8 YY21P01096P1 BRACKET 1
　 9 YY21P01098P1 CONNECTOR 1
　 10 HX11F06270CX HOSE 1
　 11 YY21P01115P1 HOSE 1
　 12 YY21P01116P1 HOSE 1
　 13 YY21P01117P1 HOSE 1
　 14 YY21P01092P1 HOSE 1
　 15 LN21P01008D8 HOSE 1
　 16 LC21P01081D3 HOSE 1
　 17 YN21P01119D8 HOSE 1
　 18 HX11Y06084DX HOSE 1
　 19 HX81X19056DX TUBE 1
　 21 HX81X19028DX TUBE 1
　 22 HX81X19145DX TUBE 1
　 23 HX81X19140DX TUBE 1
　 24 HX81X19260DX TUBE 1
　 25 ZM73C06020 SEMS-BOLT 3
　 26 ZM73C10025 SEMS-BOLT 2
　 27 ZM73C10040 SEMS-BOLT 4
　 28 ZS18C06030 CAPSCREW 2
　 30 ZS18C10075 CAPSCREW 1
　 31 ZW16P06000 WASHER 2
　 32 ZW16P10000 WASHER 1
　 34 YY21P01069P1 RUBBER 1
　 35 YN13E01375P1 CLIP 11
　 36 PY01P01043D3 CLIP 32
　 37 PY01P01043D5 CLIP 1
　 38 PH05P01088D8 CLIP 16
　 39 PH05P01088D6 CLIP 1
　 40 YY21C01070P1 CLIP 2
　 41 HX81X19430DX TUBE 1
　 42 YY21P01120P2 COVER 1
　 43 ZM73C10016 SEMS-BOLT 2
　 44 HX81X19038DX TUBE 1

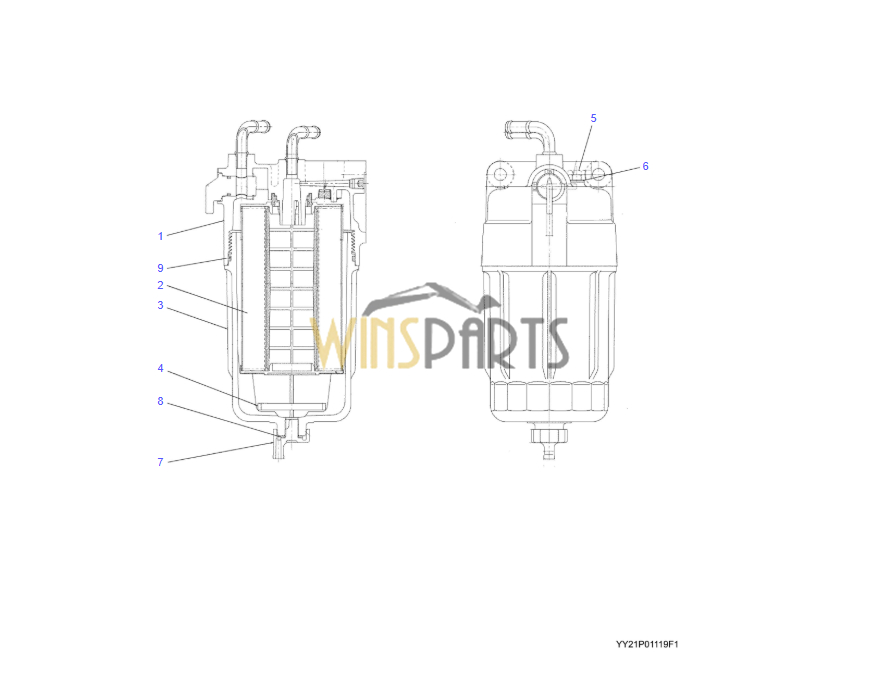

YY21P01119F1 YN21P01068S002 YN21P01068R100 FILTER, FUEL KOBELCO SK130LC-11 SK140LC-11
　 .
　 1 YY21P01119S001 COVER 1
　 2 YN21P01068S002 ELEMENT, FILTER 1 R1
　 3 LS21P01013S003 CASE 1
　 4 LS02P01012S015 RING 1
　 5 YN21P01036S005 PLUG 1
　 6 2446U287S3 GASKET 1
　 7 LS02P01012S010 PLUG 1
　 8 LS02P01012S011 GASKET 1 R1
　 9 YN21P01036S009 O-RING 1 R1
　 .
　 YN21P01068R100 ELEMENT, FILTER 1 RK1

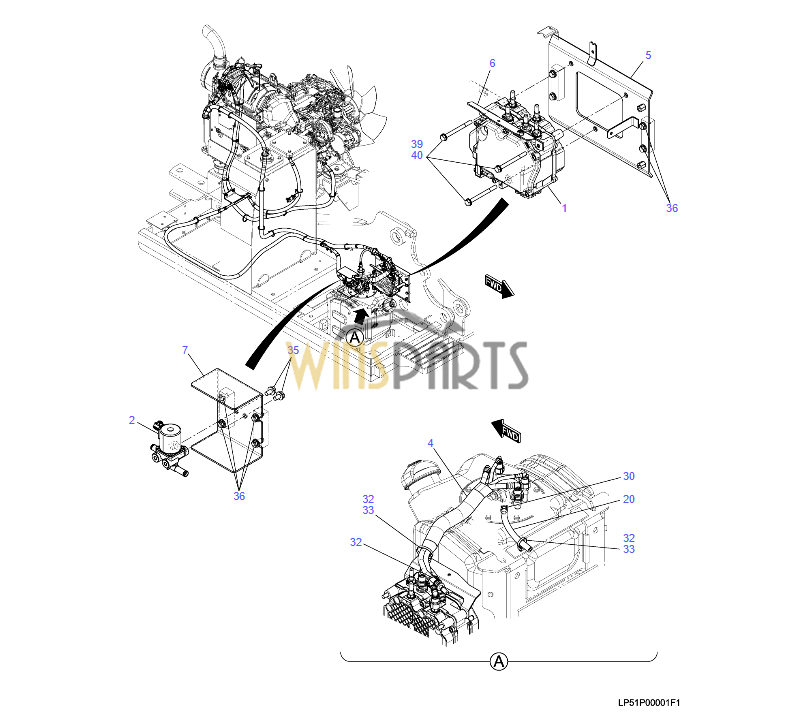

LP51P00001F1 YY51P01089F1 LP51P01028F1 LP51P01010P1 UREA LINES HOSE ASSY KOBELCO SK125SR-5 SK130SR-5
YY51P00004F1 UREA LINES Not Service
　 1 YY51P01089F1 PUMP, UREA 1
　 2 YY02P00040F1 VALVE, SHUT OFF 1
　 3 LP51P01028F1 HOSE ASSY 1
　 3-1 LP51P01027P1 HOSE ASSY 1
　 3-2 YM51P01018P1 INSULATION 1
　 3-3 PY01P01043D3 CLIP 6
　 4 LP51P01010P1 HOSE ASSY 1
　 5 LP51P01001P1 BRACKET 1
　 6 LP51P01002P1 BRACKET 1
　 7 YM51P01020P1 PLATE 1
　 8 YY51P01096P1 PLATE 1
　 9 LC51P01044P1 CONNECTOR 1
　 10 LP51P01025P1 CONNECTOR 1
　 11 LV51P01034P1 CONNECTOR 1
　 12 YY51P01103P1 TUBE 1
　 13 LV51P01011D2 HOSE 1
　 14 LC51P01014DM HOSE 1
　 16 LV51P01011D9 HOSE 2
　 17 LS51P01065D3 HOSE 1
　 18 YM51P01012P1 HOSE 1
　 19 YM51P01013P1 HOSE 1
　 20 YY51P01032P1 HOSE 1 LP10030001–30658
　 20 YY51P01142D1 HOSE 1 LP10030659-
　 21 HX81X19072DX TUBE 1
　 22 HX81X19145DX TUBE 1
　 24 HX81X19210DX TUBE 2
　 27 HX81X19018DX TUBE 2
　 28 PH05P01088DB CLIP 10
　 29 PH05P01088D9 CLIP 4
　 30 PH05P01088D4 CLIP 1
　 31 EW02E01015DF CLIP 1
　 32 PY01P01043D3 CLIP 40
　 33 YN13E01375P1 CLIP 11
　 34 ZM73C12025 SEMS-BOLT 4
　 35 ZM73C08016 SEMS-BOLT 2
　 36 ZM73C08020 SEMS-BOLT 9 LP10030001–30519
　 36 ZM73C08020 SEMS-BOLT 7 LP10030520-
　 37 ZM73C08025 SEMS-BOLT 2
　 39 ZS18C08090 CAPSCREW 3
　 40 ZW16P08000 WASHER 3
　 41 HX81X19012DX TUBE 1
　 42 PY01P01043D5 CLIP 1 LP10030008-

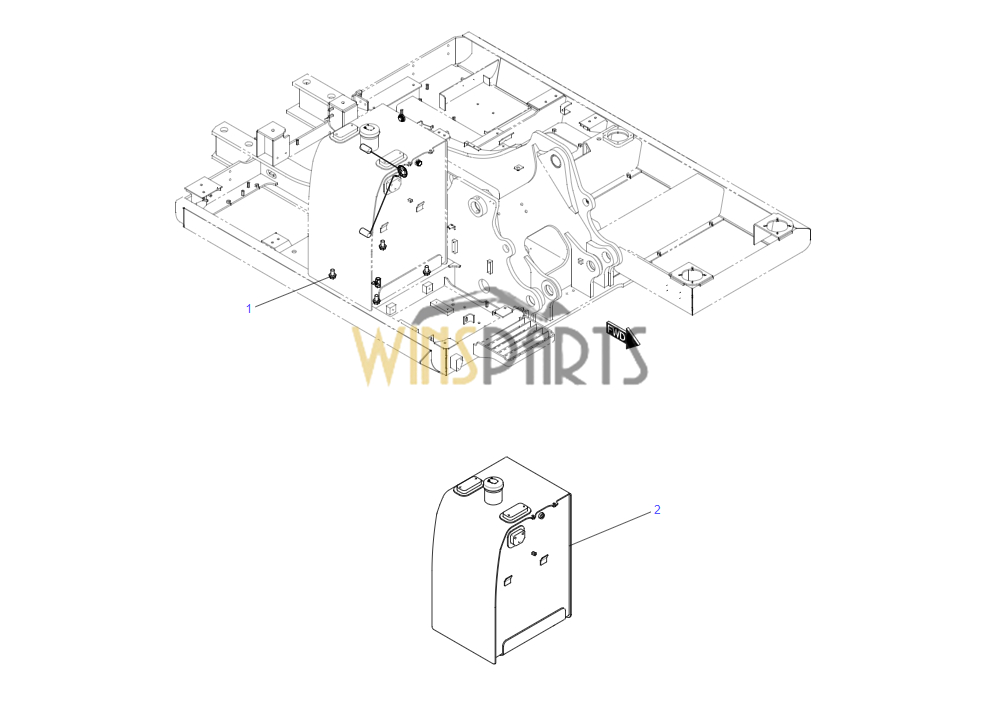

LP20P00029F1 LP20P00038F1 LP20P00039F1 FUEL TANK ASSY KOBELCO SK130LC-11 SK140LC-11
YY20P00131F1 TANK INSTAL, FUEL
070-01_YY20P00136F1_EUR_D0005650912_1 1 YY20P00136F1 TANK INSTAL, FUEL 1 P.070-01
070-02_YY20P00129F1_JP-01_D0005653234_1 2 YY20P00129F1 TANK ASSY, FUEL 1 P.070-02
070-01_LP20P00038F1_NA_D0003591572_1 1 LP20P00038F1 TANK INSTAL, FUEL 1 P.070-01
070-02_LP20P00039F1_NA_D0003591556_1 2 LP20P00039F1 TANK ASSY, FUEL 1 P.070-02
LP20P00071F1 TANK INSTAL, FUEL
070-01_LP20P00072F1_NA_D0006215389_1 1 LP20P00072F1 TANK INSTAL, FUEL 1 P.070-01
070-02_LP20P00067F1_NA_D0006215371_1 2 LP20P00067F1 TANK ASSY, FUEL 1 P.070-02

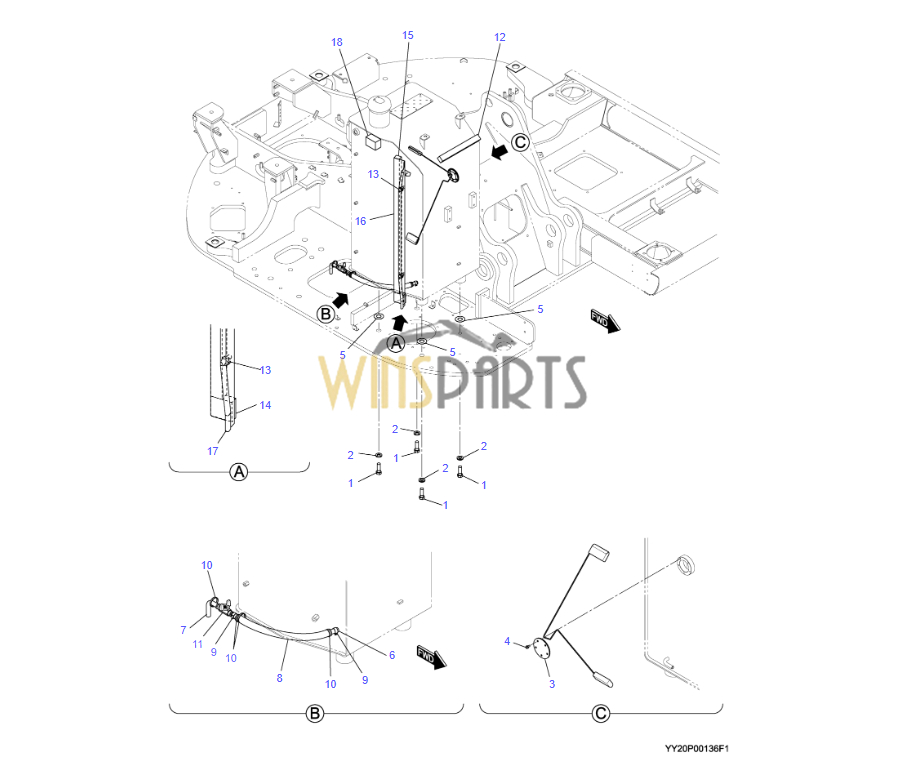

YY20P00136F1 LP20P00038F1 YN52S00094F1 FUEL TANK KOBELCO SK130LC-11 SK125SR-7 SK130SR-7
　 1 ZS18C20040 CAPSCREW 4
　 2 ZW16H20000 WASHER 4
　 3 HY25X24050G1 SHIM (1.0) 3
　 4 HY25X24050G4 SHIM (1.6) 3
　 5 HY25X24050G5 SHIM (2.3) 3
　 6 YN52S00094F1 SENSOR, LEVEL 1
　 6-6 YN52S00045S005 GASKET 1
　 7 ZM41C05012 SEMS-BOLT 5
　 9 YN25V00001P1 VALVE, STOP 1
　 10 YN20P01342P1 PLUG 1
　 11 YN33H01052P1 SEAL 1
　 12 ZE72X08000 PLUG 1
LP20P00072F1 TANK INSTAL, FUEL
　 1 ZS18C20040 CAPSCREW 4
　 2 ZW16H20000 WASHER 4
　 3 HY25X24050G1 SHIM (1.0) 3
　 4 HY25X24050G4 SHIM (1.6) 3
　 5 HY25X24050G5 SHIM (2.3) 3
　 6 YN52S00094F1 SENSOR, LEVEL 1
　 6-6 YN52S00045S005 GASKET 1
　 7 ZM41C05012 SEMS-BOLT 5
　 9 YN25V00001P1 VALVE, STOP 1
YY20P00136F1 TANK INSTAL, FUEL
　 1 ZS18C16050 CAPSCREW 4
　 2 ZW16H16000 WASHER 4
　 3 YY52S00034F1 SENSOR, LEVEL 1
　 4 ZM41C05012 SEMS-BOLT 5
　 5 HY25X24050G1 SHIM (1.0) 3
　 6 HX11F06042DX HOSE 1
　 7 YY20P01349P1 HOSE 1
　 8 HX81X19036DX TUBE 1
　 9 PH05P01088D8 CLIP 2
　 10 PY01P01043D3 CLIP 4
　 11 YN25V00004P1 VALVE, STOP 1
　 12 YT21C02783P1 RUBBER 1
　 13 ZM73C10020 SEMS-BOLT 2
　 14 YY20P01384P1 RUBBER 1
　 15 YY20P01383P1 RUBBER 1
　 16 YY20P01382P1 PLATE 1
　 17 LQ21C01041D3 TRIM 1
　 18 LV21C05430P1 RUBBER 1
