YN12B00907F1 YN12B00908F1 BUCKET CYLINDER INSTAL Kobelco (BUCKET/SHORT) 1 YN12B00908F1 CYLINDER INSTAL 1 1-1 YN12B02413P1 PIN 1 1-2 HS18C16140G2 CAPSCREW 1 …
LP21C00053F1 LP21C00040F1 GUARD KOBELCO SK130LC-11 SK140LC-11 SK125SR-5
.
360-01_LP21C00040F1_NA-04_D0003591514_1 1 LP21C00040F1 GUARD INSTAL 1 P.360-01
360-02_LP21C00041F1_NA-01_D0003591529_1 2 LP21C00041F1 GUARD INSTAL 1 P.360-02
360-03_LP21C00051F1_NA-01_D0003591530_1 3 LP21C00051F1 GUARD INSTAL 1 P.360-03
360-04_LP21C00054F1_NA-04_D0003591531_1 4 LP21C00054F1 GUARD INSTAL 1 P.360-04
360-06_LP21C00050F1_NA-01_D0003591532_1 5 LP21C00050F1 GUARD INSTAL 1 P.360-06
360-05_LQ41C00055F1_CKCM_D0003591574_1 6 LQ41C00055F1 HANDRAIL INSTAL 1 P.360-05
360-07_YM41C00003F1_KCMU_D0003591580_1 7 YM41C00003F1 HANDRAIL INSTAL 1 P.360-07
.

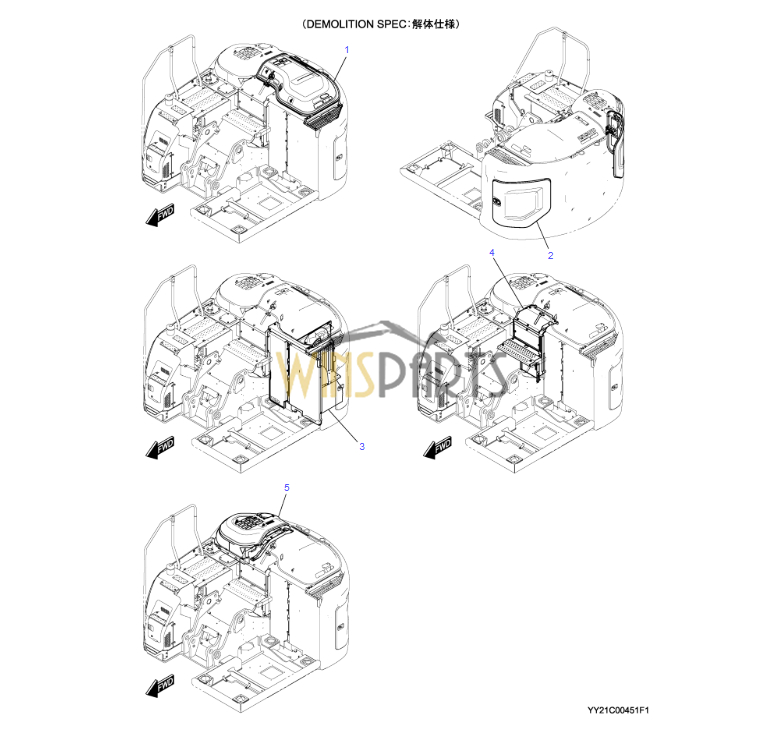

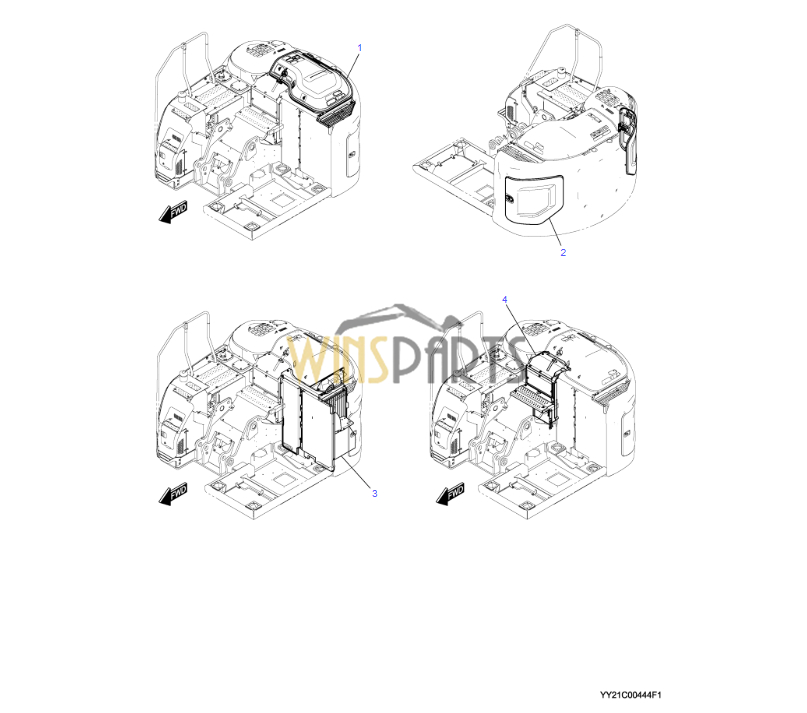

360-01_YY21C00351F1_NA-09_D0003588654_1 1 YY21C00351F1 GUARD INSTAL 1 P.360-01
360-02_YY21C00354F1_JP-03_D0003588969_1 2 YY21C00354F1 GUARD INSTAL 1 P.360-02 YV09020003–20040
. YY09046038–46751
360-02_YY21C00445F1_JP-01_D0006112569_1 2 YY21C00445F1 GUARD INSTAL 1 P.360-02 YV09020041-
. YY09046752-
360-03_YY21C00442F1_EUR_D0005650902_1 3 YY21C00442F1 GUARD INSTAL 1 P.360-03
360-04_YY21C00441F1_EUR-03_D0005650903_1 4 YY21C00441F1 GUARD INSTAL 1 P.360-04
360-05_YY21C00365F1_NA-04_D0003588658_1 5 YY21C00365F1 GUARD INSTAL 1 P.360-05

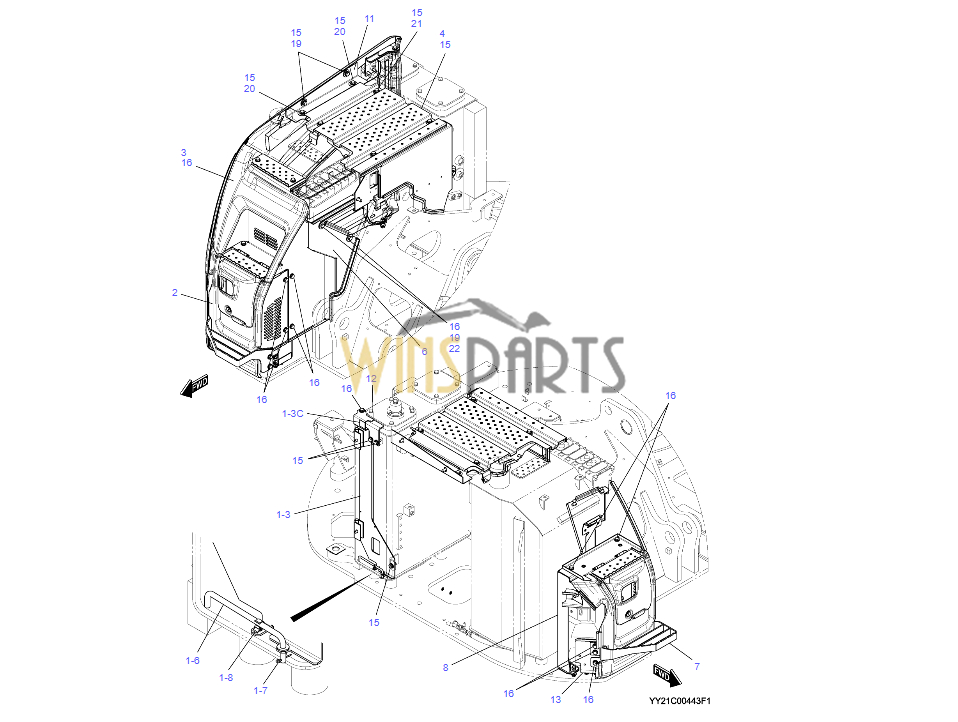

360-06_YY21C00443F1_EUR-03_D0005650904_1 6 YY21C00443F1 GUARD INSTAL 1 P.360-06
360-07_YY41C00059F1_NA-04_D0003588672_1 7 YY41C00059F1 HANDRAIL INSTAL 1 P.360-07
360-08_YY21C00362F1_NA_D0003588660_1 8 YY21C00362F1 GUARD INSTAL 1 P.360-08
.

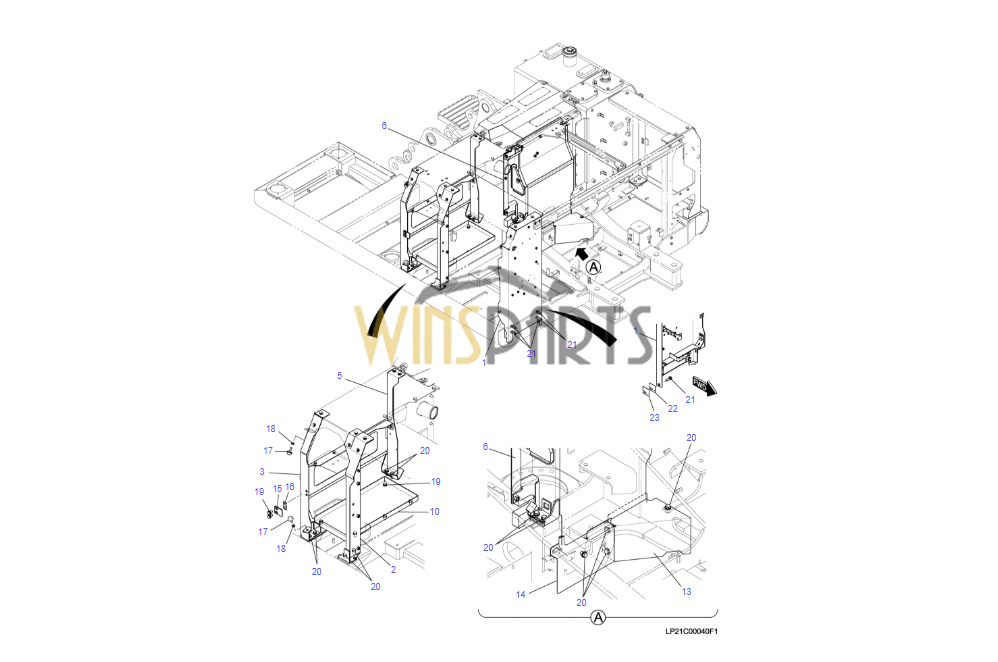

1 LP21C02023F1 GUARD ASSY 1
1-1 LP21C01905P1 PILLAR 1 LP10030001–30002
1-1 LP21C01905P2 PILLAR 1 LP10030003–30519
1-1 LP21C03019P1 PILLAR 1 LP10030520-
1-2 2420R372D19 GROMMET 1
1-3 LP21C03024P1 BRACKET 1 LP10030520-
1-4 ZM73C08020 SEMS-BOLT 2 LP10030520-
2 LP21C01660P1 PILLAR 1
3 LP21C01546P1 PILLAR 1
5 LP21C01935P1 PILLAR 1 LP10030001–30002
6 LP21C01907F1 GUARD ASSY 1
6-1 LP21C02030P1 GUARD 1
6-2 LP21C01931P1 RUBBER 1 LP10030001–30009
6-2 LP21C02201P1 RUBBER 1 LP10030010-
6-3 LP21C01932P1 RUBBER 1 LP10030001–30007
6-3 LP21C02124P1 RUBBER 1 LP10030008–30009
6-3 LP21C02202P1 RUBBER 1 LP10030010-
6-4 LV21C04375P1 RUBBER 1
6-5 LP21C01963P1 INSULATION 1
6-6 HX83H33004DX STRIP, WEATHER 1
6-7 LP21C02203P1 RUBBER 1 LP10030010-
7 LP21C01937F1 BRACKET ASSY 1
7-1 LP21C01952P1 BRACKET 1
7-2 HX85B10078DX TRIM 1
10 LP21C01566P1 GUARD 1
11 LP21C01929F1 GUARD ASSY 1
11-1 LP21C01995P1 GUARD 1
11-2 HX83C13124DX STRIP, WEATHER 1
12 LP21C01938F1 GUARD ASSY 1
12-1 LP21C01687P1 GUARD 1
12-2 HX83C13055DX STRIP, WEATHER 1
13 LP21C01908P1 COVER 1
14 LP21C01910P1 COVER 1
15 YN21C04515P1 STRIKER 1
16 LQ21C02996P1 SHIM (1.0) 1
17 YN21C03212P1 STOPPER 2
18 ZN18F10008 NUT 2
19 ZM73C12025 SEMS-BOLT 16
20 ZM73C12035 SEMS-BOLT 12 LP10030001–30002
20 ZM73C12035 SEMS-BOLT 10 LP10030003-
21 ZM73C12040 SEMS-BOLT 5
22 LP21C02405P1 SHIM (0.5) 1 LP10030134-
23 LP21C02406P1 SHIM (1.0) 1 LP10030134-
.

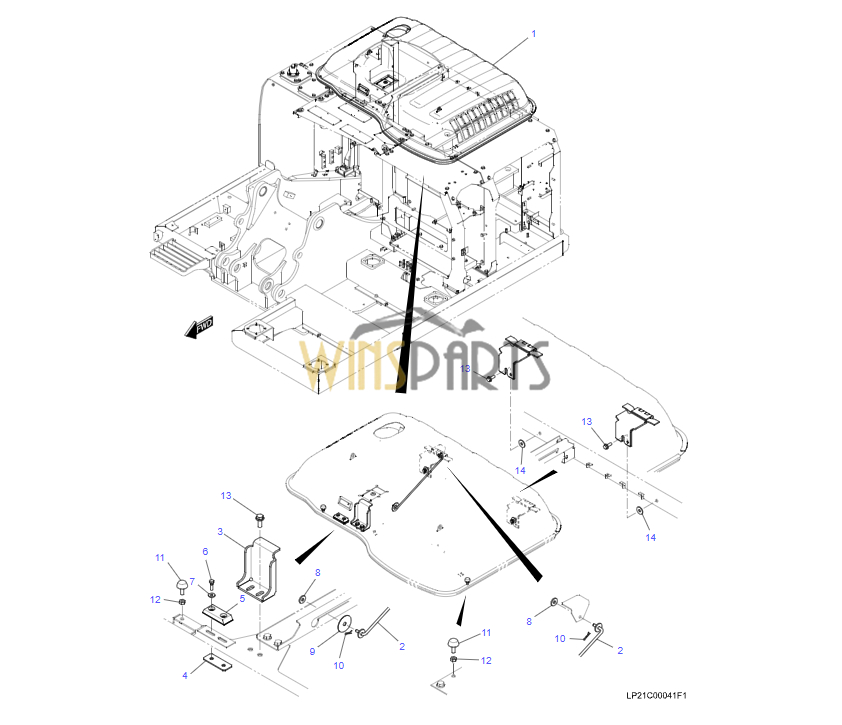

1 LP22C00007F1 BONNET ASSY 1
1-1 LP22C01073P1 BONNET 1 LP10030001–30001
1-1M LP22C01069P1 HINGE 2
1-1 LP22C01073P2 BONNET 1 LP10030002-
1-1M LP22C01069P1 HINGE 2
1-2 LP22C01038P1 INSULATION 1
1-3 LP22C01039P1 RUBBER 1
1-4 HX84E16350DX STRIP, WEATHER 1
1-5 HX84E16028DX STRIP, WEATHER 2
1-6 HX84E16014DX STRIP, WEATHER 1
1-7 2406Z304 HANDLE 1
1-8 LP22C01078P1 INSULATION 2
1-9 LC21C04458P1 LOCK 1
1-10 LP22C01082P1 PLATE 1
1-11 PH22C01023P1 BOLT 6
1-12 ZN18C05004 NUT 6
1-13 ZW26X05000 LOCK WASHER 6
1-15 LP22C01084P1 RUBBER 1
1-16 LP22C01090P1 RUBBER 2 LP10030002-
2 LQ21C04457P1 STAY 1
3 LQ21C03996P1 STRIKER 1
4 LQ21C04350P1 PLATE 1
5 2416T28650 RUBBER, CUSHION 1
6 ZS18C08030 CAPSCREW 2
7 2418T23178 WASHER 2
8 HY25X10027G1 WASHER 2
9 LQ21C04452P1 WASHER 1
10 2419R9D2 PIN 2
11 YN21C03212P1 STOPPER 2 LP10030001–30002
11 YN21C03212P1 STOPPER 1 LP10030003-
12 ZN18F10008 NUT 2 LP10030001–30002
12 ZN18F10008 NUT 1 LP10030003-
13 ZM73C12035 SEMS-BOLT 4
14 LQ22C01352P2 SHIM (2.3) 2
.
1 YY22C00068F1 BONNET ASSY 1
1-1 YY22C00067F1 BONNET ASSY 1
1-1A YY22C02869P1 BONNET 1
1-1Ag YY22C01510P1 HINGE 2
1-1B 2406Z304 HANDLE 1 LK09006001–06005
. YV09020003–20008
. YY09045001–46459
1-1B YY21C06467P1 HANDLE 1 LK09006006-
. YV09020009–20494
. YY09046460–49950
1-1B YY21C06468P1 HANDLE 1 YV09020495-
. YY09049951-
1-1C 2416T13435 RUBBER, CUSHION 2
1-1D YY22C02557P1 INSULATION 1
1-1E YT22C01196P1 INSULATION 2
1-1F HX84E16324DX STRIP, WEATHER 1
1-1G HX84A12042DX STRIP, WEATHER 1
1-1H YY22C02387P1 RUBBER 2
1-1J YY22C02669P1 INSULATION 1
1-1K YY22C02670P1 INSULATION 1
1-1L YY22C02671P1 INSULATION 1
1-2 YY22C02732F1 DUCT 1
1-2A YY22C02646P1 DUCT 1
1-2B YF22C01376P1 INSULATION 1
1-2C YY22C01383P1 INSULATION 1
1-2D YT22C01266P1 INSULATION 2
1-2E YY22C02645P1 INSULATION 2
1-2F HX83C13055DX STRIP, WEATHER 1
1-2G HX83C13025DX STRIP, WEATHER 1
1-2H HX83C13046DX STRIP, WEATHER 1
1-2J HX85A00007DX TRIM 1
1-2K YY22C02668P1 INSULATION 1
1-3 YY22C02733F1 DUCT 1
1-3A YY22C02722P1 DUCT 1
1-3B YY22C02560P1 INSULATION 1
1-3C YY22C02649P1 INSULATION 2
1-3D YY22C02667P1 INSULATION 1
1-3E HX83C13014DX STRIP, WEATHER 1
1-4 ZM73C12025 SEMS-BOLT 10
2 YY22C02774F1 COVER ASSY 1 LK09006001–06003
. YY09045001–46037
2-1 YY22C02775P1 COVER 1
2-2 HX85C20006DX TRIM 1
2-3 YY22C02672P1 INSULATION 1
2 YY22C03034F1 COVER ASSY 1 LK09006004-
. YV09020003-
. YY09046038-
2-1 YY22C02775P1 COVER 1
2-2 HX85C20006DX TRIM 1
3 YY22C02239P1 BRACKET 1
4 YY21C05306P1 BRACKET 1
5 YY22C02734F1 STAY ASSY 1
5-1 YY22C02720P1 STAY 1
5-2 YY21C05001P1 WASHER 1
6 YY21C05004P1 CYLINDER, GAS 1 LK09006001–06005
. YV09020003–20011
. YY09045001–46540
6 YY21C06488P1 CYLINDER, GAS 1 LK09006006–06008
. YV09020012-
. YV09020012–20122
. YY09046541–47327
6 YY21C06492P1 CYLINDER, GAS 1 LK09006009-
. YV09020123-
. YY09047328-
7 LC21C01811P2 CATCH 1
8 ZM73C12025 SEMS-BOLT 5
9 ZM73C08020 SEMS-BOLT 4 LK09006001–06008
. YV09020003–20122
. YY09045001–47327
10 ZS18C12035 CAPSCREW 1
11 2419R9D2 PIN 4
12 YY22C02769P1 WASHER 1
13 YY22C02588P1 WASHER 1
14 YY21C05035P1 WASHER 1
15 ZW16P08000 WASHER 2
16 YR21C01161P1 WASHER 1
17 ZM73C08025 SEMS-BOLT 4 LK09006009-
.
1 YY21C05727F2 PANEL ASSY 1
1-1 YY21C05728P3 PANEL 1
1-1F YF21C01331P1 HINGE 2
1-2 YY21C04162F1 LOCK 1
1-2A YY21C04077P1 CASE 1
1-2B YY21C04078P1 HANDLE 1
1-2C YY21C04169P1 PLATE 1
1-2D YY21C03567P1 LOCK 1
1-2E YY21C03803P1 SPRING 1
1-2F YY21C03467P1 PIN 1
1-2G YY21C03767P1 SPRING 1
1-2H YY21C06142P1 RING 1
1-2J YY21C04159P1 PLATE 1
1-3 PH22C01023P1 BOLT 4
1-4 ZW16H05000 WASHER 4
1-5 ZW26X05000 LOCK WASHER 4
1-6 ZN18C05004 NUT 4
1-7 HX83D02351DX STRIP, WEATHER 1
1-13 LV21C03742P1 INSULATION 1
1-14 YB21C01584P1 INSULATION 1
1-15 LE21C01530P1 INSULATION 2

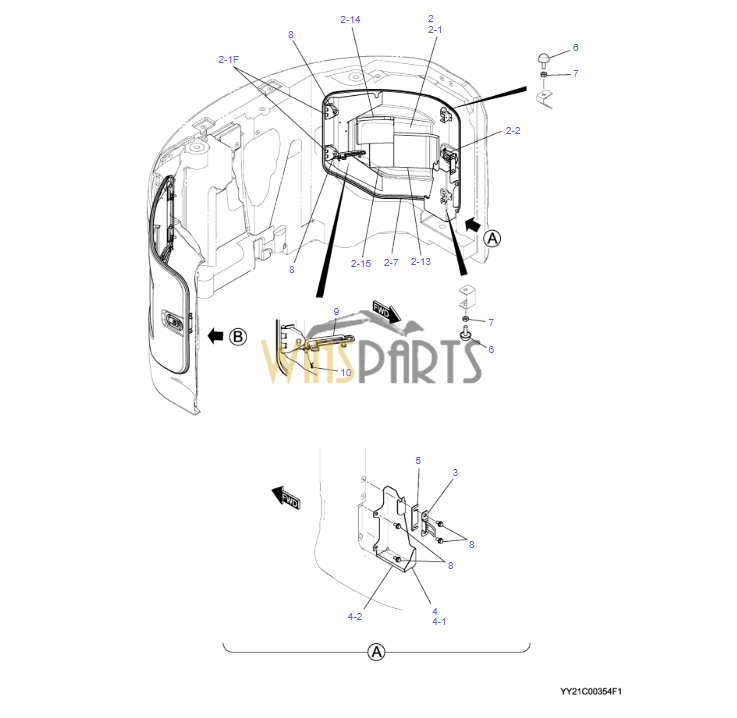

2 YY21C05723F2 PANEL ASSY 1
2-1 YY21C05724P1 PANEL 1
2-1F YF21C01331P1 HINGE 2
2-2 YY21C04162F1 LOCK 1
2-2A YY21C04077P1 CASE 1
2-2B YY21C04078P1 HANDLE 1
2-2C YY21C04169P1 PLATE 1
2-2D YY21C03567P1 LOCK 1
2-2E YY21C03803P1 SPRING 1
2-2F YY21C03467P1 PIN 1
2-2G YY21C03767P1 SPRING 1
2-2H YY21C06142P1 RING 1
2-2J YY21C04159P1 PLATE 1
2-3 PH22C01023P1 BOLT 4
2-4 ZW16H05000 WASHER 4
2-5 ZW26X05000 LOCK WASHER 4
2-6 ZN18C05004 NUT 4
2-7 HX83D02309DX STRIP, WEATHER 1
2-13 YB21C01585P1 INSULATION 1
2-14 YZ22C01115P1 INSULATION 1
2-15 YY22C01055P1 INSULATION 1
3 YT21C02728P1 STRIKER 2
4 YY21C05733F1 BRACKET ASSY 1
4-1 YY21C05732P1 BRACKET 1
4-2 HX85C20019DX TRIM 1
5 YF21C01782D1 SHIM (2.3) 2
6 YN21C03212P1 STOPPER 4
7 ZN18F10008 NUT 4
8 ZM73C12025 SEMS-BOLT 10
9 PM22C01087P2 STAY 2
10 2419R9D2 PIN 2
.

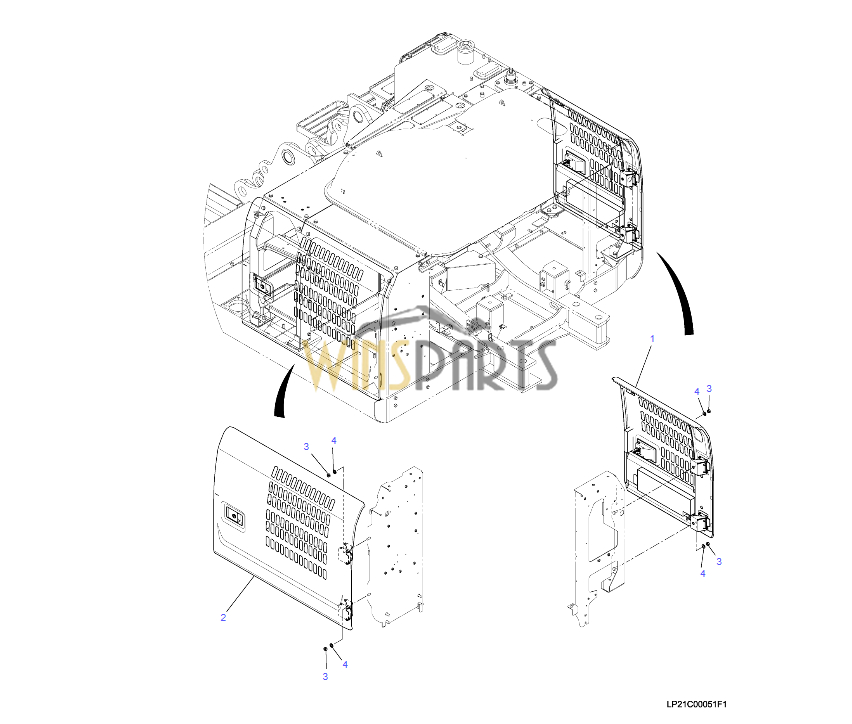

1 LP21C01815F1 PANEL ASSY 1 LP10030001–30002
1-1 LP21C01964P1 PANEL ASSY 1
1-1C LQ21C03662P3 HINGE 2
1-1D YN21C06245P1 LOCK 1
1-2 LQ21C03670P1 RUBBER 1
1-3 YR21C01123P1 CLIP 1
1-4 LQ21C03677P1 STAY 1
1-5 LP21C01535P1 INSULATION 1
1-6 LP21C01826P1 INSULATION 1
1 LP21C02138F1 PANEL ASSY 1 LP10030003-
1-1 LP21C02140P1 PANEL 1
1-1C LQ21C03662P3 HINGE 2
1-1D YN21C06245P1 LOCK 1
1-2 LQ21C03670P1 RUBBER 1
1-3 YR21C01123P1 CLIP 1
1-4 LQ21C03677P1 STAY 1
1-5 LP21C02143P1 INSULATION 1
2 LP21C01718F1 PANEL ASSY 1 LP10030001–30002
2-1 LP21C01965P1 PANEL 1
2-1C LQ21C03662P3 HINGE 2
2-1G YN21C06245P1 LOCK 1
2-2 LP21C01997P1 RUBBER 1
2-3 LP21C02036P1 RUBBER 1
2-4 LP21C02037P1 RUBBER 1
2-5 LQ21C03670P1 RUBBER 1
2-6 YR21C01123P1 CLIP 1
2-7 LQ21C03677P1 STAY 1
2-8 LP21C01537P1 INSULATION 1
2-9 YM21C01697P1 INSULATION 1
2 LP21C02139F1 PANEL ASSY 1 LP10-030003-
2-1 LP21C02136P1 PANEL 1
2-1C LQ21C03662P3 HINGE 2
2-1G YN21C06245P1 LOCK 1
2-2 LP21C01997P2 RUBBER 1
2-3 LP21C02036P2 RUBBER 1
2-4 LP21C02141P1 RUBBER 1
2-5 LQ21C03670P1 RUBBER 1
2-6 LQ21C03677P1 STAY 1
2-7 LP21C02085P1 INSULATION 1
2-8 YR21C01123P1 CLIP 1
3 ZN18C12010 NUT 4
4 ZW16H12000 WASHER 4
.

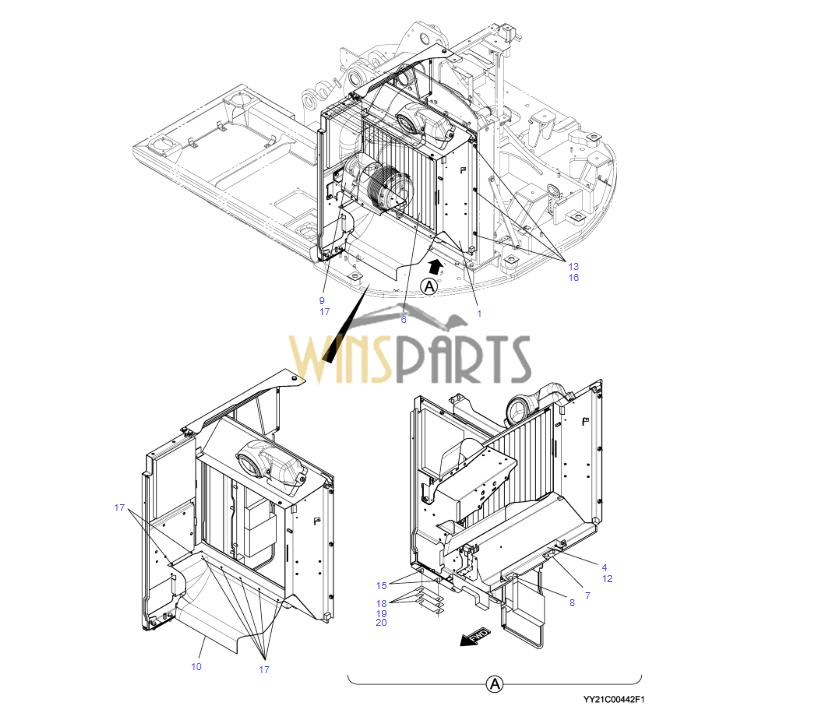

1 YY22C03037F1 DUCT 1
1-1 YY22C03010P1 DUCT 1
1-2 YY22C02742P1 BRACKET 1
1-3 YY22C01850P1 DUCT 1
1-4 YY22C01629P1 GROMMET 1
1-5 YY22C02615P1 RUBBER 1
1-6 YY22C02616P1 RUBBER 1
1-7 YY22C02617P1 RUBBER 1
1-8 YY22C02618P1 RUBBER 1
1-9 YY22C02619P1 RUBBER 1
1-10 YY22C02706P1 INSULATION 1
1-11 YY22C02628P1 RUBBER 1
1-12 YY22C02629P1 RUBBER 1
1-13 YJ21C01869P1 RUBBER 1
1-14 YY22C02756P1 RUBBER 1
1-15 HX83C13097DX STRIP, WEATHER 1
1-16 ZM73C12025 SEMS-BOLT 4
1-17 HS18C08035G3 CAPSCREW 3
1-18 PV01P01007P1 WASHER 3
1-19 YY22C01637D1 SPACER 3
1-20 YA22C01034P1 INSULATION 1
1-21 YY22C02677P1 INSULATION 1
1-22 YY22C02678P1 INSULATION 1
1-23 PX05P01170P1 INSULATION 2
1-24 YY22C03013P1 BRACKET 1
1-25 ZM73C08020 SEMS-BOLT 2
2 YY22C02737F1 BRACKET ASSY 1
2-1 YY22C02758P1 BRACKET 1
2-2 LS22C02028P1 RUBBER 1
2-3 HX84C14011DX STRIP, WEATHER 1
2-4 HX83C13077DX STRIP, WEATHER 1
2-5 YY22C02679P1 INSULATION 1
2-6 YY22C02680P1 INSULATION 1
2-7 YY22C02681P1 INSULATION 1
2-8 YY22C02682P1 INSULATION 1
3 YY22C02736F1 PLATE ASSY 1
3-1 YY22C02631P1 PLATE 1
3-2 HX83C13071DX STRIP, WEATHER 1
4 YY22C02942P1 PLATE 1
6 YY50V01030P1 FILTER 1
7 YY22C02654P1 RUBBER 1
8 YY22C02653P1 RUBBER 1
9 YY22C02705P1 RUBBER 1
10 YY22C03019P1 RUBBER 1
12 ZM73C08020 SEMS-BOLT 2
13 ZS18C08020 CAPSCREW 3
14 ZM73C12025 SEMS-BOLT 11
15 ZM73C12035 SEMS-BOLT 2
16 YN43H01151P1 WASHER 3
17 YY21C01070P1 CLIP 11
18 YY22C02886P1 SHIM (1.0) 1
19 YY22C02887P1 SHIM (2.0) 1
20 YY22C02888P1 SHIM (3.0) 1
LP21C00054F1 GUARD INSTAL Not Service
.
1 LP21C02044P1 GUARD 1 LP10030001–30002
1 LP21C02044P2 GUARD 1 LP10030003-
2 LP21C01943F1 GUARD ASSY 1
2-1 LP21C01944P1 GUARD 1 LP10030001–30002
2-1 LP21C01944P2 GUARD 1 LP10030003-
2-2 LP21C02034P1 RUBBER 1
2-3 LP21C02035P1 RUBBER 1
3 LP21C01947F1 GUARD ASSY 1
3-1 LP21C01948P1 GUARD 1 LP10030001–30193
3-1 LP21C01948P2 GUARD 1 LP10030194-
3-2 LP21C01845P1 INSULATION 1
3-3 LP21C01604P1 INSULATION 1
3-4 HX83C13054DX STRIP, WEATHER 1
3-5 HX83C13011DX STRIP, WEATHER 1
3-6 HX83C13009DX STRIP, WEATHER 2
3-7 LP21C02004P1 INSULATION 1
4 LP21C01957F1 COVER ASSY 1
4-1 LP21C01875P1 COVER 1 LP10030001–30193
4-1 LP21C01875P2 COVER 1 LP10030194-
4-2 YN21C06508P1 PLATE 3
4-3 YN21C03168P1 RIVET 18
5 LP21C02049P1 BRACKET 1
6 LP21C02051P1 BRACKET 1
7 LP21C02038P1 BEAM 1
8 LP21C01567P1 BEAM 1
9 LP21C01999F1 BRACKET ASSY 1
9-1 LP21C02000P1 BEAM 1 LP10030001–30193
9-1 LP21C02000P2 BEAM 1 LP10030194–30519
9-1 LP21C02964P1 BEAM 1 LP10030520-
9-2 LP21C01593P1 INSULATION 1
9-3 LP21C01594P1 INSULATION 1
10 LP21C01848P1 PILLAR 1 LP10030001–30002
10 LP21C02128F1 GUARD ASSY 1 LP10030003-
10-1 LP21C01848P1 PILLAR 1 LP10030003–30519
10-1 LP21C02826P1 PILLAR 1 LP10030520-
10-2 2420R372D19 GROMMET 1
11 LP21C01636P1 PILLAR 1
12 LP21C01941P1 GUARD 1
13 LP21C01958F1 GUARD ASSY 1
13-1 LP21C01959P1 PILLAR 1
13-2 LV21C04375P1 RUBBER 1
14 LP21C01681P1 BRACKET 1
15 YN21C04515P1 STRIKER 1
16 LQ21C02996P1 SHIM (1.0) 1
17 YN21C03212P1 STOPPER 2
18 ZN18F10008 NUT 2
19 ZM73C12040 SEMS-BOLT 4
20 ZM73C12030 SEMS-BOLT 14
21 ZM73C12025 SEMS-BOLT 39
22 ZM73C12035 SEMS-BOLT 5 LP10030001–30002
22 ZM73C12035 SEMS-BOLT 7 LP10030003-
23 YY21C05687P1 WASHER 5
24 HY25X12040G1 WASHER 2
25 YN21C07035P1 WASHER 2
26 LP21C01935P1 PILLAR 1 LP10030003-
YY21C00441F1 GUARD INSTAL Not Service
.
1 YY21C05606F1 BRACKET ASSY 1
1-1 YY21C06228P1 BRACKET 1
1-2 PX21C01196P1 RUBBER 1
1-3 HX83C13030DX STRIP, WEATHER 1
2 YY21C06357F1 BRACKET ASSY 1
2-1 YY21C06202P1 BRACKET 1
2-2 YY21C05702P1 INSULATION 1
3 YY21C06358F1 COVER ASSY 1
3-1 YY21C06355P1 BRACKET 1 LH04006053–06060
. LK09006003–06005
. YV09020003–20008
. YY09045820–46459
3-1 YY21C06355P2 BRACKET 1 LH04006061-
. LK09006006-
. YV09020009-
. YY09046460-
3-2 HX83C13037DX STRIP, WEATHER 1
3-3 YY21C05452P1 INSULATION 1
3-4 YY21C05952P1 LABEL 1
3-5 YY21C06465P1 RUBBER 1 LH04006061-
. LK09006006-
. YV09020009-
. YY09046460-
4 YY21C05603F1 COVER ASSY 1
4-1 YY21C05312P1 PLATE 1
4-2 HX83B13024DX STRIP, WEATHER 1
4-3 HX83B13050DX STRIP, WEATHER 1
5 YY21C06227P1 PLATE 1
6 YY21C05601F1 COVER ASSY 1
6-1 YY21C05722P1 COVER 1
6-2 YY21C05332P1 INSULATION 1
6-3 HX83B13046DX STRIP, WEATHER 2
7 YY21C05600F1 COVER ASSY 1
7-1 YY21C05315P1 COVER 1
7-2 YY21C05446P1 INSULATION 1
7-3 YY21C05416P1 INSULATION 1
7-4 HX83C13045DX STRIP, WEATHER 2
8 YY21C06359F1 COVER ASSY 1
8-1 YY21C06206P1 BRACKET 1
8-2 YY21C05844P1 INSULATION 1
9 ZM73C12030 SEMS-BOLT 6
10 ZM73C12025 SEMS-BOLT 21
LP21C00050F1 GUARD INSTAL Not Service
.
1 LP21C01912F1 COVER ASSY 1 LP10030001–30519
1-1 LP21C01960P1 BOX 1
1-2 YM21C01665F1 COVER ASSY 1
1-2A YM21C01666P2 COVER 1
1-2Ah YN21C06245P1 LOCK 1
1-2Aj YN21C06497P1 HINGE 2
1-2B YM21C01484P1 PLATE 1
1-2C YN21C03168P1 RIVET 5
1-3 LQ21C04574P1 STAY 1
1-4 YM21C01667P1 RUBBER 1
1-5 HX84A12077DX STRIP, WEATHER 1
1-6 ZW16P08000 WASHER 1
1-7 2419R9D2 PIN 1
1-8 ZM73C12020 SEMS-BOLT 2
1-9 YM21C01710P1 STRIKER 1
1-10 ZM73C12030 SEMS-BOLT 2
1-11 PA12B01031P1 WASHER 2
1-12 HX83B13055DX STRIP, WEATHER 1
1-13 HX84C14019DX STRIP, WEATHER 1
1 LP21C03087F1 COVER ASSY 1 LP10030520-
1-1 LP21C01960P1 BOX 1
1-2 YM21C01740P1 COVER 1
1-2H YN21C06245P1 LOCK 1
1-2J YN21C06497P1 HINGE 2
1-3 LQ21C04574P1 STAY 1
1-4 YM21C01667P1 RUBBER 1
1-5 HX84A12077DX STRIP, WEATHER 1
1-6 ZW16P08000 WASHER 1
1-7 2419R9D2 PIN 1
1-8 ZM73C12020 SEMS-BOLT 2
1-9 YM21C01710P1 STRIKER 1
1-10 ZM73C12030 SEMS-BOLT 2
1-11 PA12B01031P1 WASHER 2
1-12 HX83B13055DX STRIP, WEATHER 1
1-13 HX84C14019DX STRIP, WEATHER 1
2 LP21C02039F1 COVER ASSY 1
2-1 YM21C01633P1 COVER 1
2-2 HX83C13005DX STRIP, WEATHER 1
2-3 HX83C13010DX STRIP, WEATHER 1
3 YM21C01681P2 BRACKET 1
4 YM21C01634F1 PLATE ASSY 1 LP10030001–30519
4-1 YM21C01635P1 PLATE 1
4-2 YN21C06508P1 PLATE 1
4-3 YN21C03168P1 RIVET 6
4 YM21C01728P1 PLATE 1 LP10030520-
5 YN21C01681P1 BUSHING 1
6 ZM73C12030 SEMS-BOLT 10
7 HY26Y13037G1 WASHER 2
8 ZM73C12035 SEMS-BOLT 2
9 LE60C01028P1 PLATE 2
LQ41C00055F1 HANDRAIL INSTAL Not Service
.
1 LQ41C00056P2 HANDRAIL 1
2 LQ21C02995P1 PLATE 1
3 LQ21C02318P1 CLAMP 1
4 LQ21C02997P1 CLAMP 1
5 ZS18C10055 CAPSCREW 2
6 ZS18C12060 CAPSCREW 1
7 ZS18C16065 CAPSCREW 2
8 ZW16H10000 WASHER 2
9 ZW16H12000 WASHER 1
10 ZW16H16000 WASHER 2
.
1 YY21C06390F1 PANEL ASSY 1
1-1 YY21C06391F1 PANEL ASSY 1
1-1A YY21C06423P1 PANEL 1
1-1Ar YF22C01290P1 HINGE 2
1-1B YF52F01564P1 INSULATION 1
1-1C LC60C01038P1 INSULATION 1
1-1D YZ22C01084P1 INSULATION 1
1-1E HX83C13105DX STRIP, WEATHER 1
1-1F HX84A12050DX STRIP, WEATHER 2
1-1G HX85B10009DX TRIM 1
1-1H YY21C05406P1 RUBBER 2
1-1J YY21C06421P1 RUBBER 1
1-1K YT21C03256P1 RUBBER 2
1-1L YY21C06427P1 RUBBER 2
1-1M YY21C06315P1 RUBBER 1
1-1N YY21C06317P1 RUBBER 1
1-2 YY21C06418F1 PANEL ASSY 1
1-2A YT21C03222P1 PANEL 1
1-2B YY21C06422P1 INSULATION 1
1-2C YT21C03179F1 LOCK ASSY 1
1-2Ca YY21C05783P1 BRACKET 1
1-2Cb YY21C05752P1 BRACKET 1
1-2Cc YY21C05782P1 BAR 1
1-2Cd PA21C01097P1 LOCK 1
1-2Ce PX02C01239D1 SCREW, TAPPING 2
1-2Cf YY21C05703P1 SPRING 1
1-2Cg ZR36X00500 RING, SNAP 1
1-2Ch YT21P01001P1 WASHER 2
1-2D ZM73C06016 SEMS-BOLT 2
1-2E YT21C02958P1 GRIP 1
1-2F ZS18C05010 CAPSCREW 2
1-2G ZW16H05000 WASHER 2
1-2H LC21C04270P1 RUBBER 2
1-3 YY21C06392F1 BRACKET ASSY 1
1-3A YY21C06347P1 BRACKET 1
1-3Ad YY21C05505P1 HINGE 1
1-3Ae YY21C05507P1 HINGE 1
1-3B YY21C05548P1 INSULATION 1
1-3C YN72E01278P1 RUBBER 2
1-4 YT21C03239P1 STRIKER 1
1-5 ZM73C12020 SEMS-BOLT 6
1-6 2416T6289D2 STAY 1
1-7 2419R9D2 PIN 1
1-8 YT21C01330P1 CLIP 1
1-9 YT21C03241P1 SHIM (1.0) 1
1-10 YT21C03255P1 SHIM (0.5) 1
2 YY21C06224F1 PANEL ASSY 1
2-1 YY21C06308P1 PANEL 1
2-1Ag YF22C01290P1 HINGE 2
2-2 YY21C06217P1 STAY 1
2-3 HX84C14011DX STRIP, WEATHER 1
2-4 HX84B34013DX STRIP, WEATHER 1
2-5 HX83H33010DX STRIP, WEATHER 2
2-6 YY21C05035P1 WASHER 1
2-7 2419R9D2 PIN 1
2-10 HX85A20006DX TRIM 2
2-11 YN21C01438F6 LOCK 1
2-11A YR22C01025P2 LOCK 1
2-11G YA21C01095P1 PLATE 1
2-12 YT21C02958P1 GRIP 1
2-13 ZS18C05010 CAPSCREW 2
2-14 ZW16H05000 WASHER 2
2-15 HX85B10004DX TRIM 1
2-16 ZM73C06016 SEMS-BOLT 2
2-17 YY21C05645P1 BRACKET 1
2-17B YY21C05593P1 LOCK 1
3 YY21C06225F1 PANEL ASSY 1
3-1 YY21C06313P1 PANEL 1
3-4 HX84B34046DX STRIP, WEATHER 1
3-5 HX83C13010DX STRIP, WEATHER 1
3-6 HX85B10009DX TRIM 1
3-7 YT05P01434P1 RUBBER 1
4 YY21C06419F1 GUARD ASSY 1
4-1 YY21C06425P1 GUARD 1
4-2 HX83B13063DX STRIP, WEATHER 1
4-3 HX83B13033DX STRIP, WEATHER 1
5 YY21C06420F1 COVER ASSY 1
5-1 YY21C06426P1 COVER 1
5-2 YF22C01696P1 INSULATION 1
5-3 HX83B13062DX STRIP, WEATHER 1
5-4 HX83B13040DX STRIP, WEATHER 1
5-5 HX84A12014DX STRIP, WEATHER 1
6 YY21C06393F1 COVER ASSY 1
6-1 YY21C06394P1 COVER 1
6-2 HX84C14050DX STRIP, WEATHER 1
6-3 HX83C13040DX STRIP, WEATHER 1
6-4 HX83C13022DX STRIP, WEATHER 1
6-5 HX84C14017DX STRIP, WEATHER 1
6-6 PS11E01031P1 RUBBER 1
7 YY21C05635P2 BRACKET 1
8 YY21C06362P1 BRACKET 1
9 YY21C06432P1 BRACKET 1
10 YY21C06434P1 BRACKET 1
11 YY21C06296P1 BRACKET 1
12 YY21C05496P1 BRACKET 1
13 YY21C05584F1 BRACKET ASSY 1
13-1 YY21C05583P1 BRACKET 1
13-2 YY21C05418P1 RUBBER 1
14 ZM73C12045 SEMS-BOLT 5
15 ZM73C12030 SEMS-BOLT 15
16 ZM73C12025 SEMS-BOLT 22 LH04006053–06070
. LK09006003–06007
. YV09020003–20040
. YY09045820–46751
16 ZM73C12025 SEMS-BOLT 20 LH04006071-
. LK09006008-
. YV09020041-
. YY09046752-
17 ZS18C12050 CAPSCREW 4
18 ZW16H12000 WASHER 4
19 2418T17912D1 WASHER 2 LH04006053–06070
. LK09006003–06007
. YV09020003–20040
. YY09045820–46751
19 2418T17912D1 WASHER 4 LH04006071-
. LK09006008-
. YV09020041-
. YY09046752-
20 YY21C05687P1 WASHER 4
21 LS21C04785P1 WASHER 5
22 ZS18C12025 CAPSCREW 2
.
360-01_YY21C00351F1_NA-09_D0003588654_1 1 YY21C00351F1 GUARD INSTAL 1 P.360-01
360-02_YY21C00354F1_JP-03_D0003588969_1 2 YY21C00354F1 GUARD INSTAL 1 P.360-02
360-03_YY21C00442F1_EUR_D0005650902_1 3 YY21C00442F1 GUARD INSTAL 1 P.360-03
360-04_YY21C00441F1_EUR-03_D0005650903_1 4 YY21C00441F1 GUARD INSTAL 1 P.360-04
360-05_YY21C00365F1_NA-04_D0003588658_1 5 YY21C00365F1 GUARD INSTAL 1 P.360-05
360-06_YY21C00443F1_EUR-03_D0005650904_1 6 YY21C00443F1 GUARD INSTAL 1 P.360-06
360-07_YY41C00059F1_NA-04_D0003588672_1 7 YY41C00059F1 HANDRAIL INSTAL 1 P.360-07
360-08_YY21C00375F1_JP_D0003895065_1 8 YY21C00375F1 GUARD INSTAL 1 P.360-08
360-09_YY21C00374F1_JP-01_D0003895064_1 9 YY21C00374F1 GUARD INSTAL 1 P.360-09
YY24C00035F1 COVER ASSY, UNDER Not Service
.
1 YY24C01169P1 COVER 1
2 YY24C01172P1 COVER 1
3 YY24C01173P1 COVER 1
4 YY24C01177P1 COVER 1 LK09006001–06005
. YV09020001–20006
. YY09045001–46361
4 YY24C01177P2 COVER 1 LK09006006-
. YV09020007-
. YY09046362-
5 YY24C01175P1 COVER 1
6 YY24C01176P1 COVER 1
7 YY24C01134P1 COVER 1
8 LQ24C01254P1 COVER 1
9 ZM73C12030 SEMS-BOLT 31
10 ZM73C12025 SEMS-BOLT 2
.

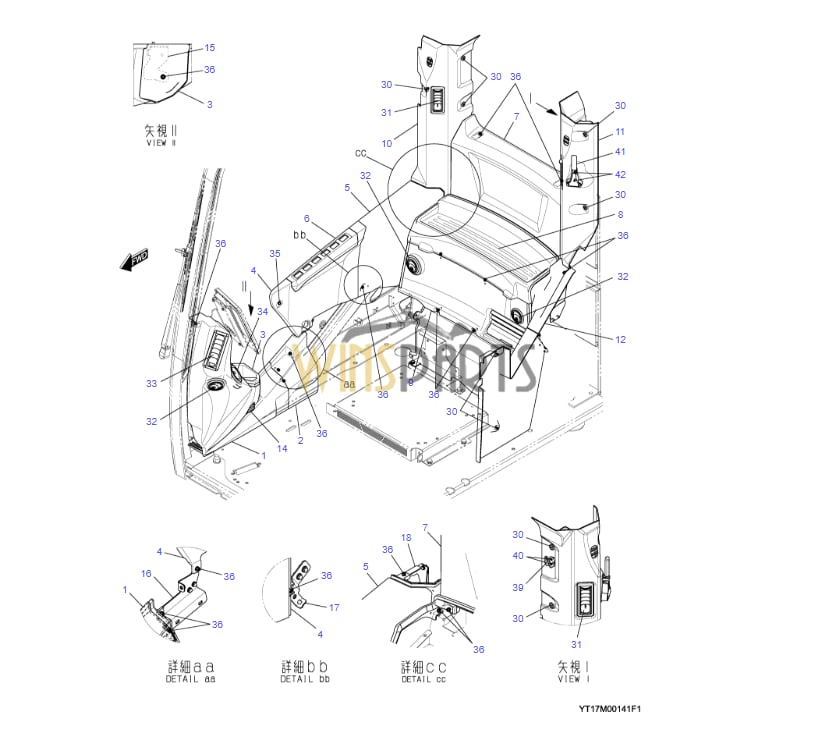

1 YT17M01182F1 COVER ASSY 1
1-1 YT17M01183F1 COVER ASSY 1
1-1A YT17M01184P1 COVER 1
1-1B YN17M01296P1 COLLAR 3
1-2 YN17M01663P1 CLIP 1
1-3 YT20M01289P1 INSULATION 1
1-4 YN20M01806P1 INSULATION 1
1-5 YN20M01809P1 INSULATION 1
2 YT17M01185F1 COVER ASSY 1 YY09045001–45002
2-1 YT17M01186P1 COVER 1
2-2 YN17M01296P1 COLLAR 1
2-3 YN03M02440P1 CLIP 2
2 YT17M01254F1 COVER ASSY 1 LH04006001-
. LK09006001-
. YV09020001-
. YY09045003-
2-1 YT17M01186P2 COVER 1
2-2 YN17M01296P1 COLLAR 1
2-3 YN03M02440P1 CLIP 2
3 YT17M01247F1 HOLDER ASSY 1
3-1 YT17M01248F1 HOLDER ASSY 1
3-1A YT17M01189P2 HOLDER 1
3-1B YT17M01190P1 COVER 1
3-1C YN17M01296P1 COLLAR 1
3-2 YT17M01191P1 RUBBER 1
4 YT17M01253F1 COVER ASSY 1
4-1 YT17M01252F1 COVER ASSY 1
4-1A YT17M01193P3 COVER 1
4-1B YN17M01296P1 COLLAR 3
4-1C YT03M01641P1 NUT 2
4-2 YT17M01246P1 PLATE 1
4-3 ZM41C04012 SEMS-BOLT 2
5 YT17M01194F1 COVER ASSY 1
5-1 YT17M01195F1 COVER ASSY 1
5-1A YT17M01196P1 COVER 1
5-1B YN17M01296P1 COLLAR 3
5-1C YN03M02440P1 CLIP 1
5-2 YT17M01197P1 RUBBER 1
5-3 YT17M01198P1 RUBBER 1
6 YT17M01251F1 COVER ASSY 1
6-1 YT17M01200P2 COVER 1
6-2 YN03M02440P1 CLIP 1
7 YT17M01201F1 COVER ASSY 1
7-1 YT17M01202F1 COVER ASSY 1
7-1A YT17M01203P1 COVER 1
7-1B YN17M01296P1 COLLAR 4
7-2 YT17M01204P1 RUBBER 1 LH04006001–06084
. LK09006001–06008
. YV09020001–20102
. YY09045001–47128
7-2 YT17M01204P2 RUBBER 1 LH04006085-
. LK09006009-
. YV09020103-
. YY09047129-
8 YT17M01205F1 COVER ASSY 1
8-1 YT17M01206P1 COVER 1
8-2 YY20M01397P1 CATCH 2
8-3 YT17M01207P1 SCREW, TAPPING 4
8-4 YT17M01231P1 PLATE 2
9 YT17M01208F1 COVER ASSY 1
9-1 YT17M01210F1 COVER ASSY 1
9-1A YT17M01209P1 COVER 1
9-1B YN17M01296P1 COLLAR 4
9-2 YT17M01232P1 PLATE 2
9-3 YT20M01324P1 INSULATION 1
9-4 YN20M01809P1 INSULATION 1
9-5 ZS32T30014 CROSS TAPPING SCREW 4
10 YT17M01212F1 COVER ASSY 1
10-1 YT17M01213P1 COVER 1
10-2 YN20M01892P1 INSULATION 1
10-3 YT17M01214P1 RUBBER 1
11 YT17M01215F1 COVER ASSY 1
11-1 YT17M01216P1 COVER 1
11-2 YN20M01892P1 INSULATION 1
11-3 YT17M01214P1 RUBBER 1
12 YT17M01218F1 COVER ASSY 1
12-1 YT17M01219F1 COVER ASSY 1
12-1A YT17M01220P1 COVER 1
12-1B YT17M01223P1 COVER 1
12-1C YN17M01296P1 COLLAR 2
12-1D ZS32T30014 CROSS TAPPING SCREW 2
12-1E YT17M01233P1 RIVET 2
12-2 YT17M01221P1 RUBBER 1
12-3 YT17M01222P1 RUBBER 1
13 YT17M01178P1 COVER ASSY 1 YV09020001–20002
. YY09045001–45014
13 YT17M01178P2 COVER ASSY 1 LH04006001-
. LK09006001-
. YV09020003-
. YY09045015-
14 YN58S00012P1 METER, HOUR 1
15 YT17M01229P1 BRACKET 1 LH04006001–06047
. LK09006001–06003
. YV09020001–20002
. YY09045001–46037
15 YT17M01229P2 BRACKET 1 LH04006048-
. LK09006004-
. YV09020003-
. YY09046038-
16 LP17M01034P1 BRACKET 1 LH04006001–06075
. LK09006001–06007
. YV09020001–20068
. YY09045001–46956
16 LP17M01034P2 BRACKET 1 LH04006076-
. LK09006008-
. YV09020069-
. YY09046957-
17 YT17M01180P2 BRACKET 1
18 YT17M01227P1 BRACKET 1
19 LP17M01003P1 BRACKET 1
20 LP17M01039P1 BRACKET 1
21 LP17M01037P1 BRACKET 1
22 LP17M01009P1 PLATE 1
23 YT17M01225P1 BRACKET 1
24 YY20M01370F1 DUCT ASSY 1
24-1 YY20M01371P1 DUCT 1
24-2 YY20M01391P1 INSULATION 1
25 YY20M01372F1 DUCT ASSY 1
25-1 YY20M01373P1 DUCT 1
25-2 YY20M01390P1 INSULATION 1
25-3 YY20M01389P1 PLATE 1
25-4 YY20M01399P1 RIVET 2
26 YY20M01400F1 DUCT ASSY 1
26-1 YY20M01374P1 DUCT 1
26-2 YY20M01401P1 INSULATION 1
27 YY20M01375F1 DUCT ASSY 1
27-1 YY20M01376P1 DUCT 1
27-2 YY20M01401P1 INSULATION 2
28 YY20M01409F1 DUCT ASSY 1 LH04006001–06030
. LK09006001–06002
. YV09020001–20002
. YY09045001–45756
28-1 YY20M01378P2 DUCT 1
28-2 YY20M01393P1 INSULATION 1
28-3 YY20M01394P1 INSULATION 1
28-4 YY20M01408P1 INSULATION 1
28 YY20M01409F2 DUCT ASSY 1 LH04006031-
. LK09006003-
. YV09020003-
. YY09045757-
28-1 YY20M01378P2 DUCT 1
28-2 YY20M01393P1 INSULATION 1
28-3 YY20M01394P1 INSULATION 1
28-4 YY20M01408P2 INSULATION 1
29 YY20M01395F1 DUCT ASSY 1
29-1 YY20M01379P1 DUCT 1
29-2 YY20M01396P1 PLATE 1
29-3 YY20M01399P1 RIVET 2
30 YN17M01714P1 CLIP 15
31 PS20M01020P1 GRILLE 2
32 YY20M01386P1 GRILLE 3
33 YT20M01288P1 GRILLE 1
34 YY20M01385P1 GRILLE 1
35 YN17M01162D2 SEMS-BOLT 1
36 ZM66C06020 SEMS-BOLT 21
37 ZM73C06016 SEMS-BOLT 10
38 ZM73C08016 SEMS-BOLT 10 LH04006001–06028
. LK09006001–06002
. YV09020001–20002
. YY09045001–45713
38 ZM73C08016 SEMS-BOLT 8 LH04006029-
. LK09006003-
. YV09020003-
. YY09045714-
39 LQ02C00031S019 HOOK 1
40 ZS31C04012 MACHINESCREW 2
41 LQ02C00031S021 HAMMER 1
42 ZS32T50014 CROSS TAPPING SCREW 2
44 YT02C01515D4 TRIM 1
45 YT02C01515D6 TRIM 1
46 YT02C01515DB TRIM 1
47 ZM73C08020 SEMS-BOLT 2 LH04006029–06070
. LK09006003–06007
. YV09020003–20040
. YY09045714–46751
47 ZM73C08025 SEMS-BOLT 2 LH04006071-
YT17M00140F1 PANEL ASSY, INSTRUM Not Service
.
385-01_YT17M00141F1_NA-10_D0003588686_1 1 YT17M00141F1 PANEL ASSY, INSTRUM 1 P.385-01

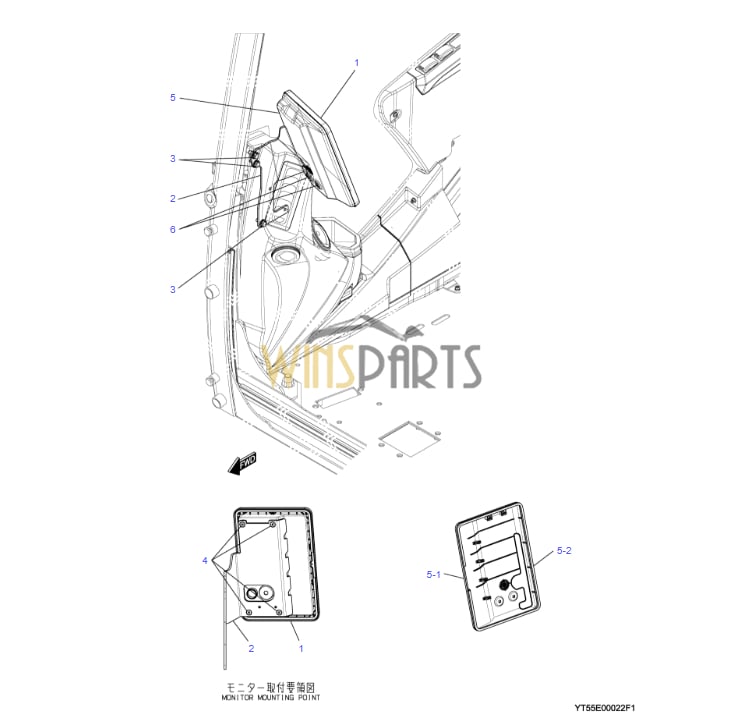

385-02_YT55E00022F1_KCM-EUR-08_D0003588792_1 2 YT55E00022F1 MONITOR INSTAL 1 P.385-02
385-03_LP50E00004F1_KCM-EUR_D0003588796_1 3 LP50E00004F1 SWITCH INSTAL 1 P.385-03
1 YT55S00002F1 TELEVISION, MONITOR 1
1 YT55S00002F2 TELEVISION, MONITOR 1
1 YT55S00002F3 TELEVISION, MONITOR 1
. YY09048421-
2 YY17M01109P1 BRACKET 1 YV09020001–20002
. YY09045001–45014
2 YT17M01258P1 BRACKET 1 LH04006001-
. LK09006001-
. YV09020003-
. YY09045015-
3 ZM73C08020 SEMS-BOLT 3
4 ZS68C06012 CAPSCREW 4
5 YT17M01239F1 COVER ASSY 1
5-1 YT17M01240P1 COVER 1
5-2 YT17M01241P1 RUBBER 1
6 ZM46C06012 SEMS-BOLT 2
