Product Description

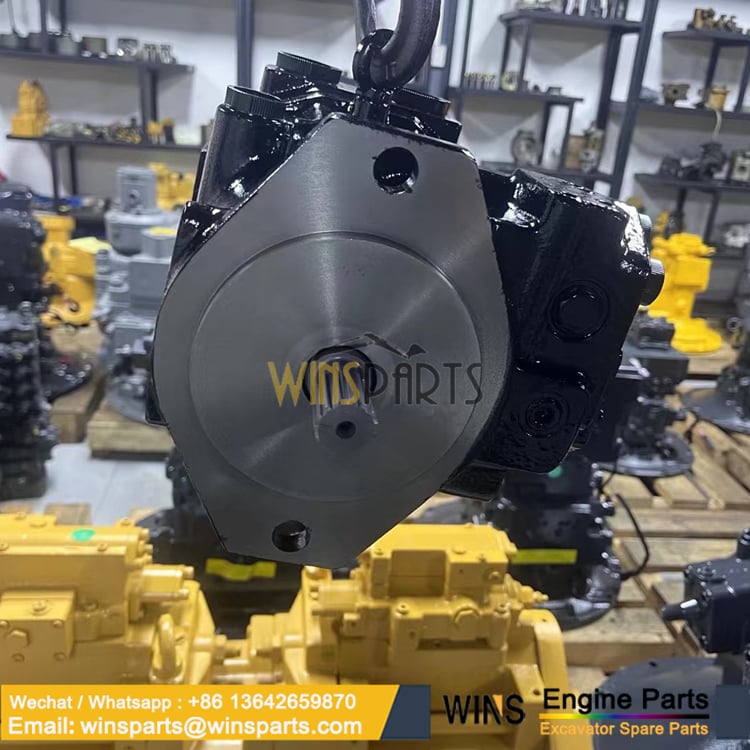

YT10V00002F1 YT10V00002F2 YT10V00002F3 Genuine Main Pump Hydraulic Pump Kobelco SK80CS-1E 80MSR-1E 70SR 80MSR 70SR-1E SK80CS Excavator Spare Parts
Number :YT10V00002F1 YT10V00002F2 YT10V00002F3Type :Main Pump Hydraulic Pump KobelcoUtend :Kobelco SK80CS-1E 80MSR-1E 70SR 80MSR 70SR-1E SK80CSPlace of Origin :China/JapanPacking : Fumigate Seaworthy PackingEngine Brand : ISUZU/HINO/MISTUBISHIExcavator Brand : New.Holland/KOBELCO/HITACHI

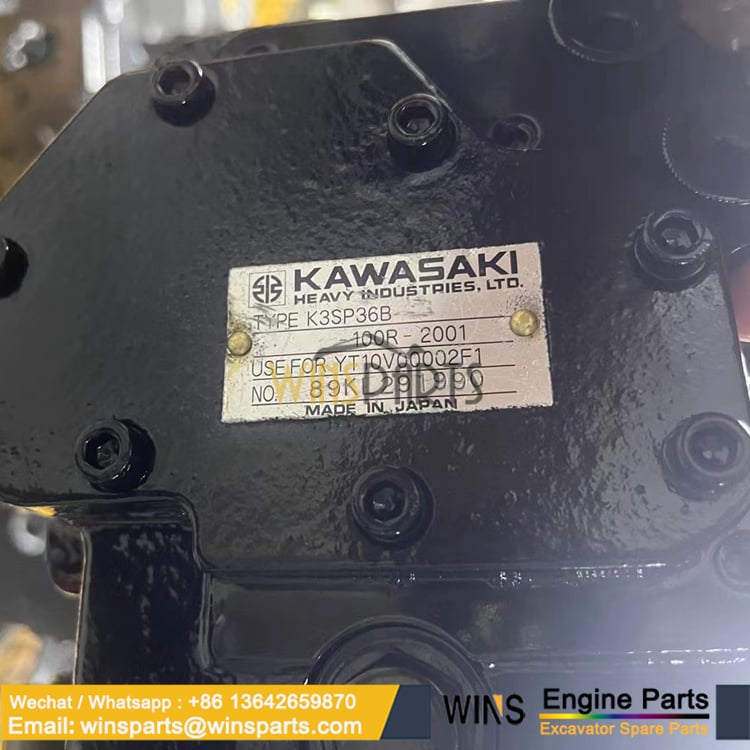

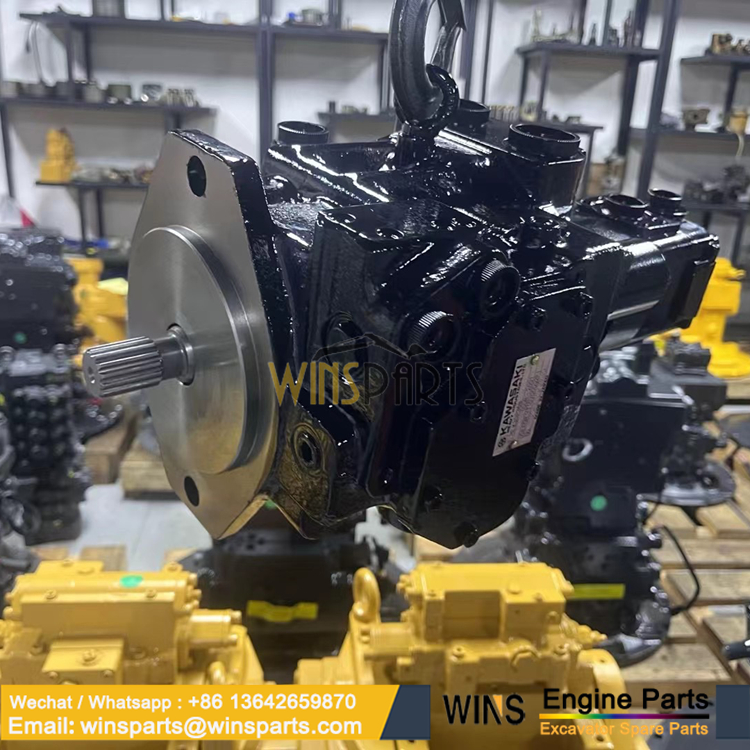

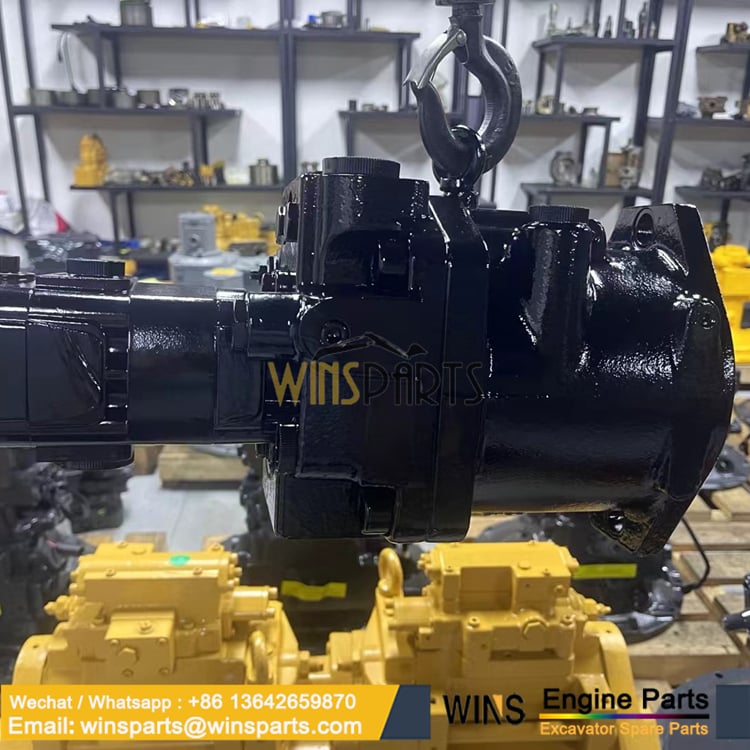

YT10V00002F1 Hydraulic Pump Kobelco New Holland EH70 EH80 E80 E70 YT10V00002F1 KAWASAKI K3SP36B SK70 SK80 Main Pump Hydraulic Pump YT10V00002F1 PUMP Kobelco SK80CS-1E 80MSR-1E 70SR 80MSR 70SR-1E SK80CS parts YT10V00002F1 YT10V00002F2 YT10V00002F3 Genuine Main Pump Hydraulic Pump Kobelco . . YT10V00002F1 Kobelco PUMP KOB PUMP ASSY Superseded by part number:
YT10V00002F3
. . YT10V00002F2 Kobelco HYDRAULIC PUMP KOB PUMP ASSY Superseded by part number:
YT10V00002F3
1. YT10V00003F2 Kobelco HYDRAULIC PUMP KOB PUMP ASSY SEE FIG 08-029 (F1 ONLY) (NOT
IN SERVICE)
Pos. Part No Qty Parts name Comments
2. YT10V00005F1 Kobelco PUMP KOB PUMP ASSY, GEAR SEE FIG 08-030
3. YT10V00003F4 Kobelco PUMP ASSY SEE FIG 08-029 (F2 ONLY) (NOT
1YT10V00003R500REPAIR KIT REPAIR KIT
1YT10V00003R400REPAIR KIT REPAIR KIT
1YT10V00003R300REPAIR KIT REPAIR KIT
1YT10V00003R200REPAIR KIT REPAIR KIT
1YT10V00003R100REPAIR KIT REPAIR KIT
1PY10V00003R100REPAIR KIT REPAIR KIT
12437U219S41REPAIR KIT REPAIR KIT
983 2 2437U407S983 RIVET PIN
981 1 NSS NOT SERVICED SEPARATELY NAME PLATE, F1, F2 & F3 ONLY
924 1 2441U691S923 SCREW SETSCREW
901 1 PY10V00003S901 BOLT BOLT, EYE
885 2 ZP26D06012 PIN Spring
825 1 ZR26X06200 SNAP RING RING, RETAINING
824 1 2441U398S820 RING RING
803 1 YT10V00003S803 NUT NUT
801 1 ZN12C08005 NUT M08x1.25mm
789 2 YT10V00003S789 BACK-UP RING RING, BACK UP
787 1 YT10V00003S787 RING RING, BACK UP
774 1 YT10V00003S774 OIL SEAL OIL SEAL
751 1 YT10V00003S751 GASKET GASKET
710 1 YT10V00003S710 O-RING O-RING
709 1 ZD12P02600 O-RING ID 25.70 ± 0.26 x OD 32mm
708 1 YT10V00003S708 O-RING O-RING
707 1 ZD12P01800 O-RING ID 17.80 ± 0.21 x OD 22mm
706 7 ZD12P01100 O-RING ID 10.80 ± 0.18 x OD 15mm
706 8 ZD12P01100 O-RING ID 10.80 ± 0.18 x OD 15mm
706 9 ZD12P01100 O-RING ID 10.80 ± 0.18 x OD 15mm
706 10 ZD12P01100 O-RING ID 10.80 ± 0.18 x OD 15mm
705 2 ZD12P01600 O-RING ID 15.80 ± 0.20 x OD 20mm
702 1 ZD12G13500 O-RING ID 134.40 ± 1.08 x OD 140mm
701 1 ZD12G05500 RING O — ID 54.40 ± 0.49 x OD 60mm
700 1 ZD12G03500 O-RING ID 34.40 ± 0.33 x OD 40mm
665 1 YT10V00003S665 SEAT SEAT
664 1 YN10V00006S307 POPPET POPPET
663 1 YN10V00006S310 SPRING SPRING
662 1 YN10V00006S309 SPRING SEAT, SPRING
661 1 YN10V00006S312 LOCK NUT M14x1.50mm
660 1 YT10V00003S660 SCREW SCREW, ADJUST
656 1 YT10V00003S656 PIN PIN
655 1 YT10V00003S655 PIN PIN
641 1 YT10V00003S641 COVER COVER, SPRING
630 1 2436U1378S630 NUT NUT
628 1 2436U2455S628 ADJUSTMENT SCREW SCREW, ADJUST
627 1 2450U45S627 STEP PLUNGER
626 1 YT10V00003S626 SPRING SPRING
625 1 YT10V00003S625 SPRING SPRING
624 1 PY10V00003S624 SPRING SEAT SEAT, SPRING
621 1 YT10V00003S621 PISTON PISTON
611 1 NSS NOT SERVICED SEPARATELY LEVER, FEEDBACK
548 1 NSS NOT SERVICED SEPARATELY PIN, FEEDBACK
545 2 NSS NOT SERVICED SEPARATELY BALL
543 2 NSS NOT SERVICED SEPARATELY STOPPER
541 2 NSS NOT SERVICED SEPARATELY SEAT
535 1 YT10V00003S535 STOP STOPPER
534 1 YT10V00003S534 SCREW SETSCREW
532 1 YT10V00003S532 PISTON PISTON
531 1 NSS NOT SERVICED SEPARATELY PIN
508 4 YT10V00003S508 BATTERY ORIFICE
494 1 2436U483S251 PLUG PLUG, F1 & F2 ONLY
493 1 2436U749S151 PLUG PLUG
492 1 2436U1165S152 PLUG PLUG
490 14 2441U722S490 PLUG 1/16″ NPTF
468 1 2441U667S466 PLUG 1/4″ PF
468 2 2441U667S466 PLUG 1/4″ PF
468 3 2441U667S466 PLUG 1/4″ PF
468 4 2441U667S466 PLUG 1/4″ PF
467 1 2441U436S468 PLUG PLUG
404 9 ZS23C06020 SCREW M06x1.0x20mm
403 1 ZS23C16070 SCREW M16x2.0x70mm
402 2 YT10V00003S402 SCREW CAPSCREW
401 4 ZS23C16040 SCREW M16x2.0x40mm
313 1 NSS NOT SERVICED SEPARATELY PLATE, VALVE
312 1 YT10V00003S312 COVER COVER, VALVE, F1 & F2 ONLY
273 1 YT10V00003S273 COVER COVER
271 1 YT10V00003S271 CASE CASE
216 1 YT10V00003S216 BALL BALL
215 1 YT10V00003S215 BALL BALL
157 10 YT10V00003S157 SPRING SPRING
156 1 YW10V00005S156 BUSHING BUSHING
153 1 YT10V00003S153 PLATE PLATE
152 10 NSS NOT SERVICED SEPARATELY SHOE
151 10 NSS NOT SERVICED SEPARATELY PISTON
141 1 NSS NOT SERVICED SEPARATELY BLOCK, CYLINDER
127 1 2441U398S127 SPACER SPACER
124 1 PY10V00003S124 BEARING BEARING, NEEDLE
123 1 YT10V00003S123 BEARING BEARING, ROLLER
115 1 YT10V00003S115 COLLAR COLLAR
114 1 YT10V00003S114 COUPLING COUPLING
111 1 YT10V00003S111 SHAFT SHAFT
11 1 YT10V00003S011 LABEL NAME PLATE, F4 ONLY
10 1 YT10V00003S010 VALVE COVER, VALVE, F1, F3 & F4 ONLY
ARYT10V00003F4PUMP ASSY
ARYT10V00003F3PUMP ASSY
ARYT10V00003F2PUMP ASSY
ARYT10V00003F1PUMP ASSY
