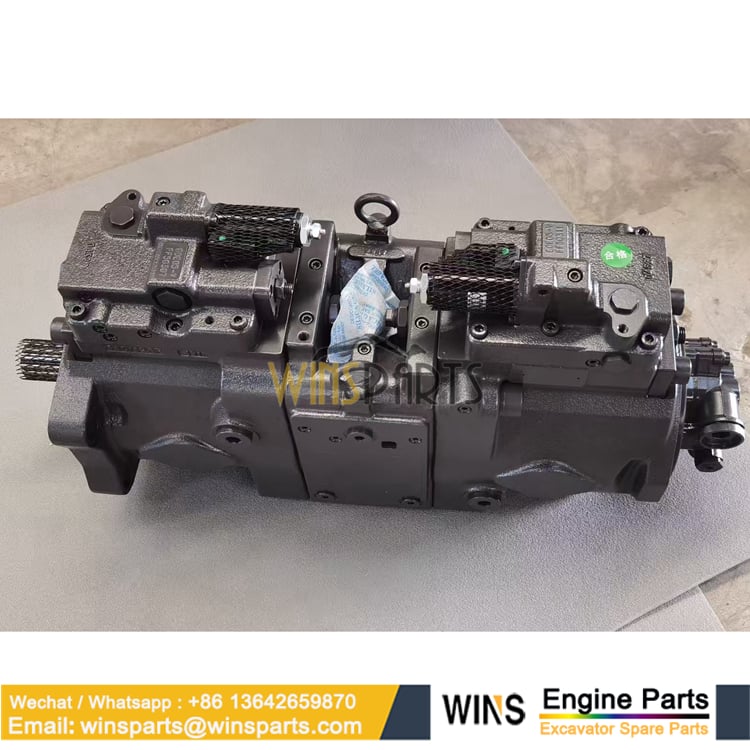

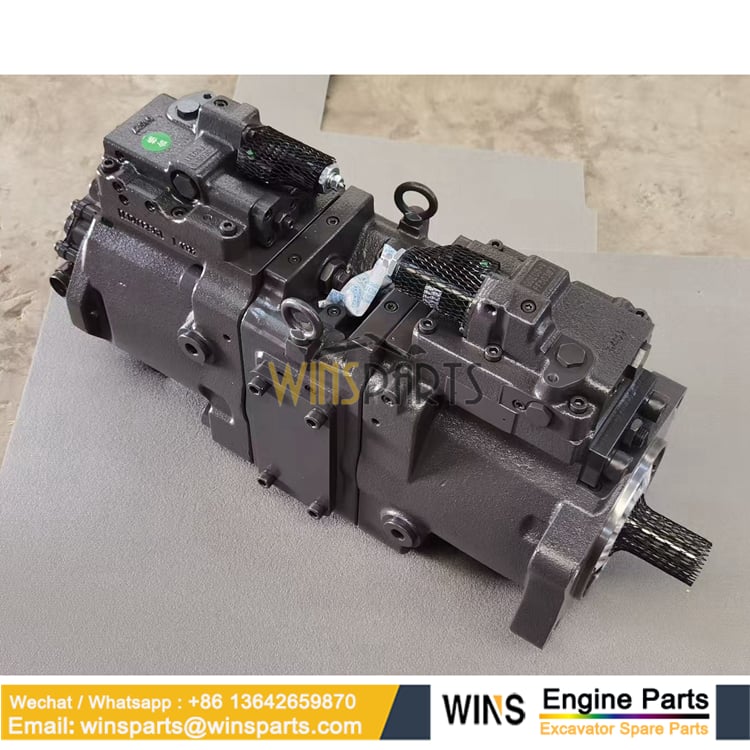

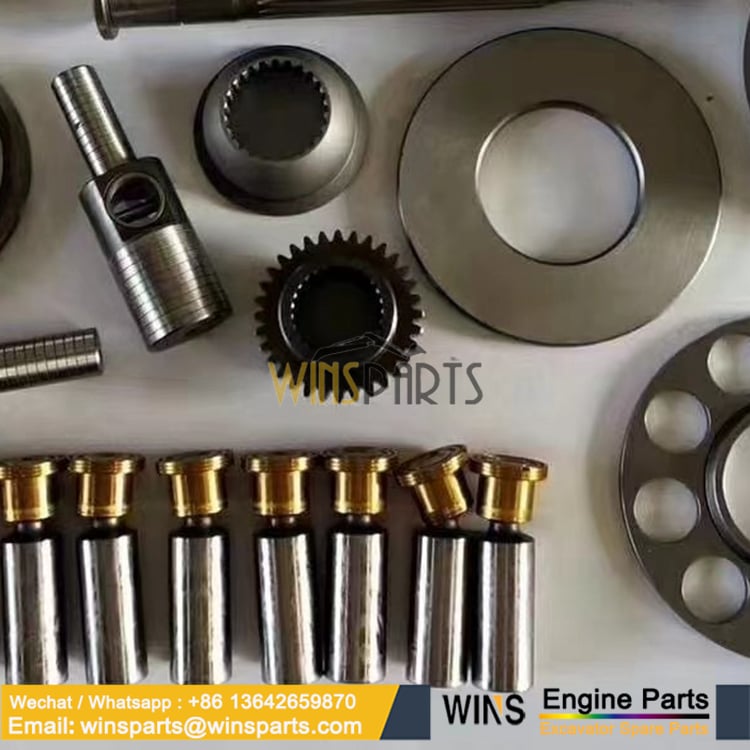

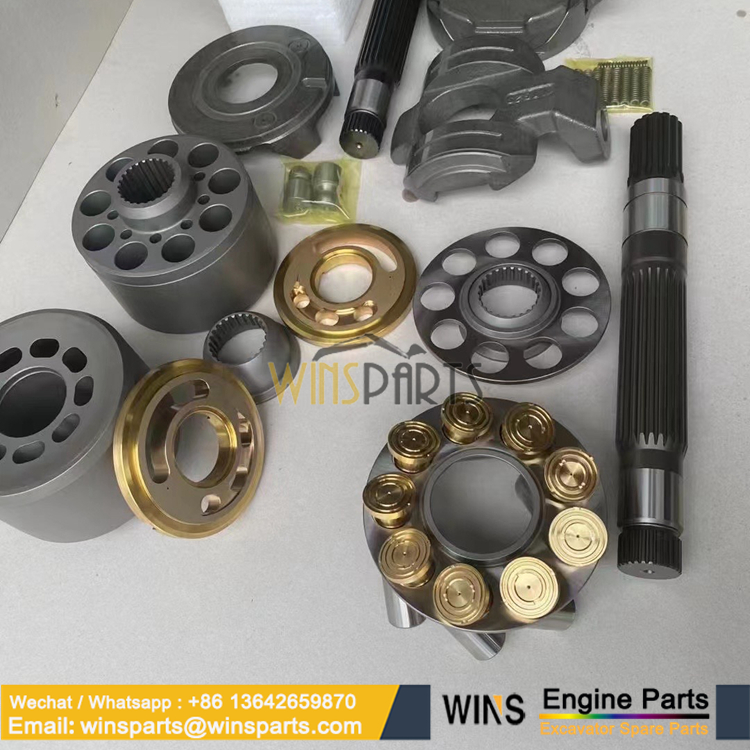

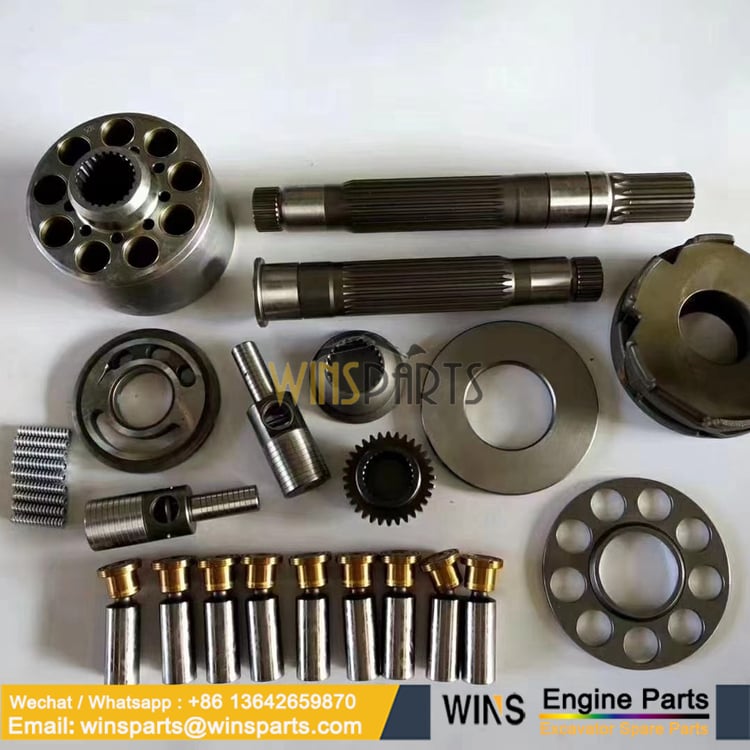

YN10V00070F1 K7V125DTP Hydraulic Main Pump Assy Kobelco







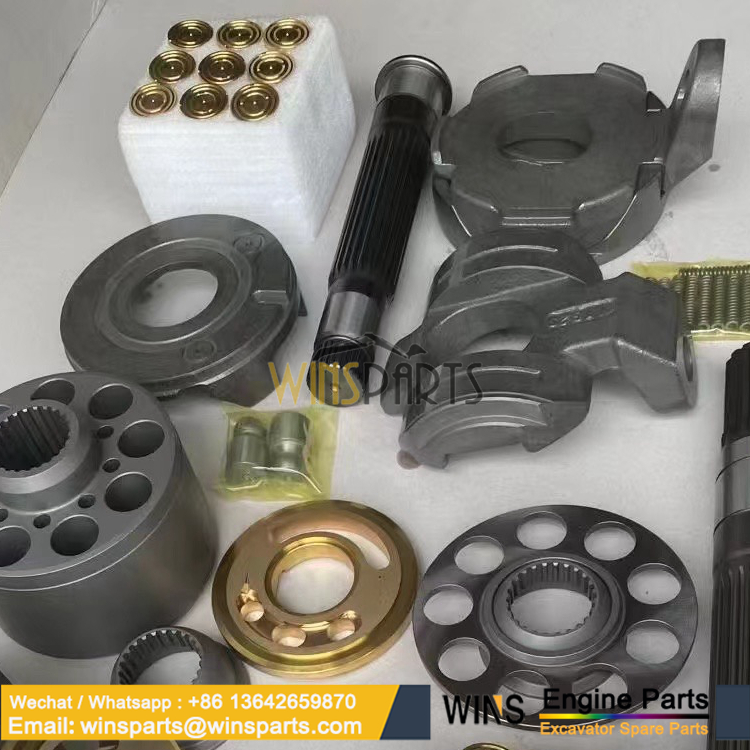

YN10V00070F1 HYD PUMP ASSY

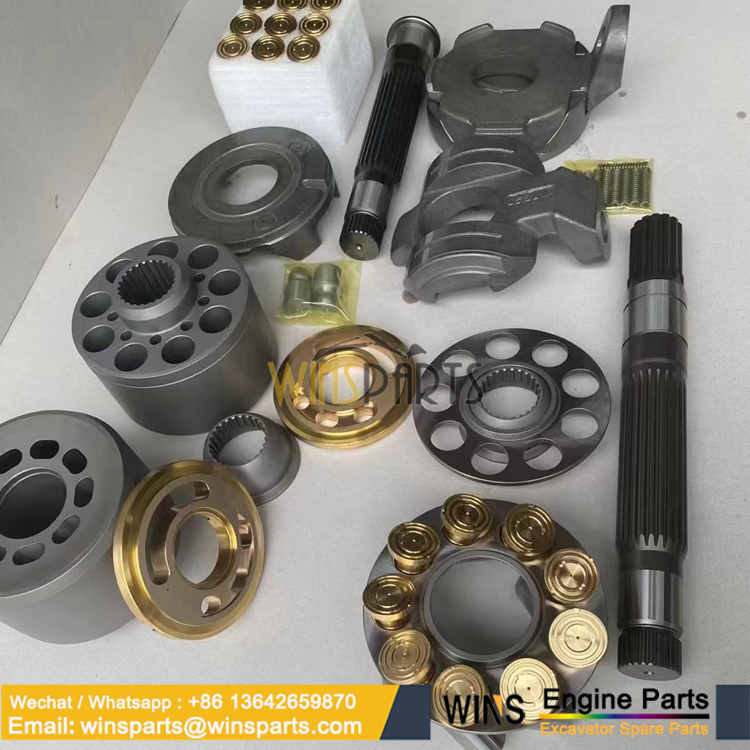

1 YN10V00072F1 PUMP, HYD

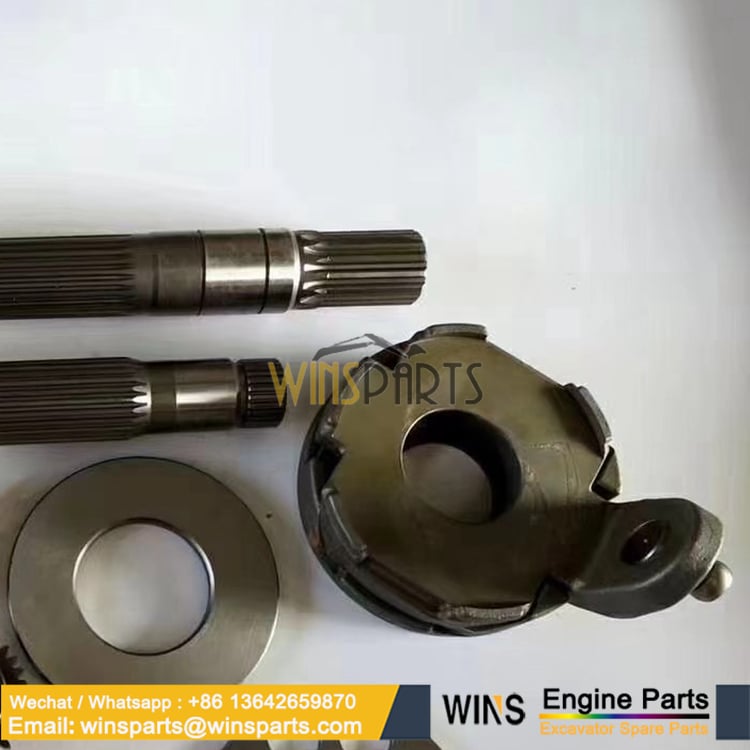

1-1 LQ10V00035S111 SHAFT 1
1-2 LQ10V00035S113 SHAFT 1
1-3 LQ10V00035S116 GEAR 1
1-4 2437U534S123 BEARING, ROLLER 2
1-5 LQ10V00035S124 BEARING 2
1-6 LQ10V00035S127 SPACER 2

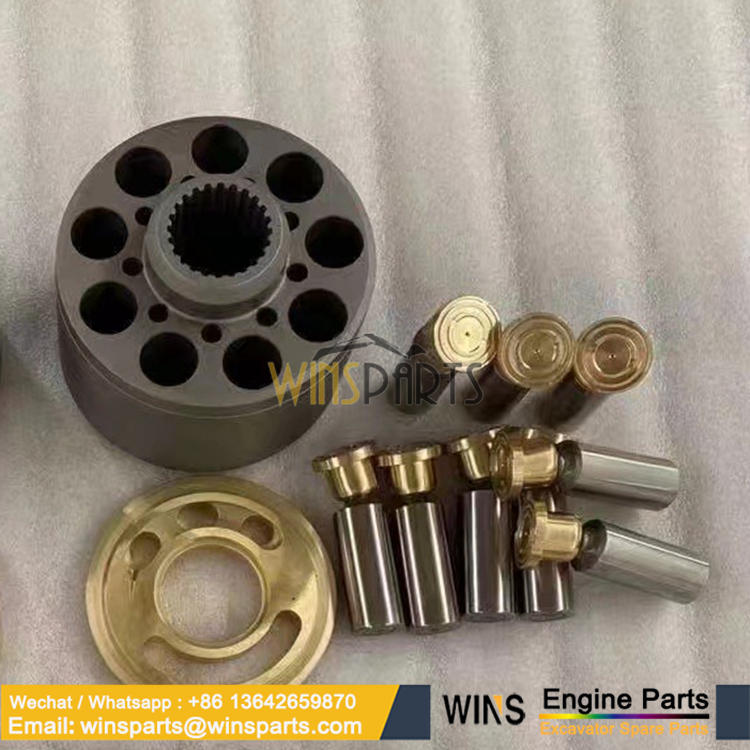

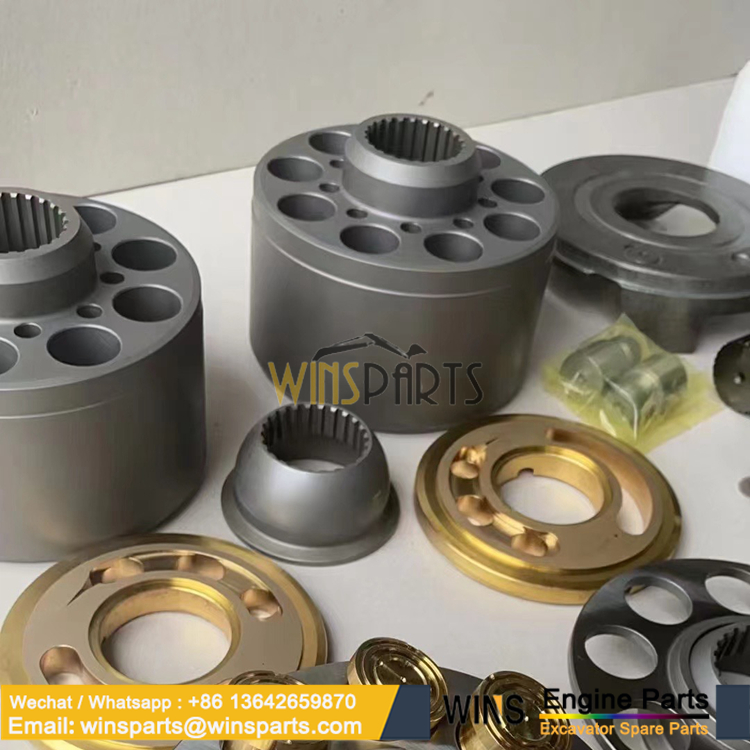

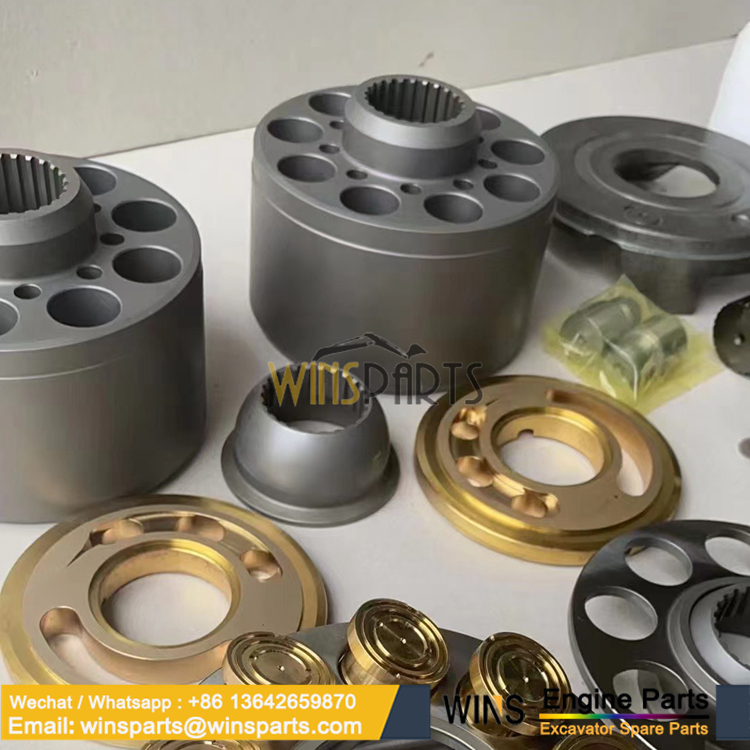

1-7 NO P/No BLOCK 2 R2, R3

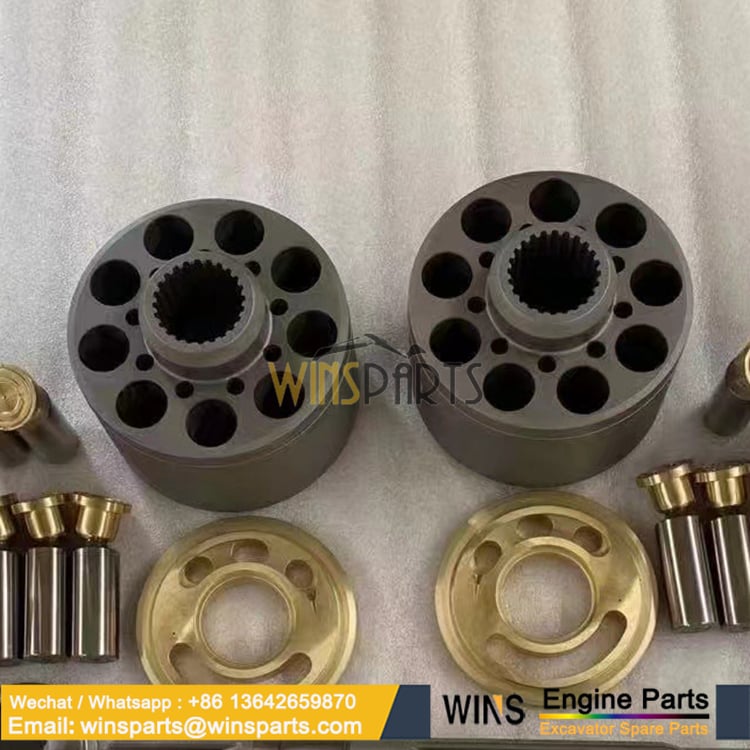

1-8 NO P/No PISTON 18 R1
1-9 NO P/No SHOE 18 R1

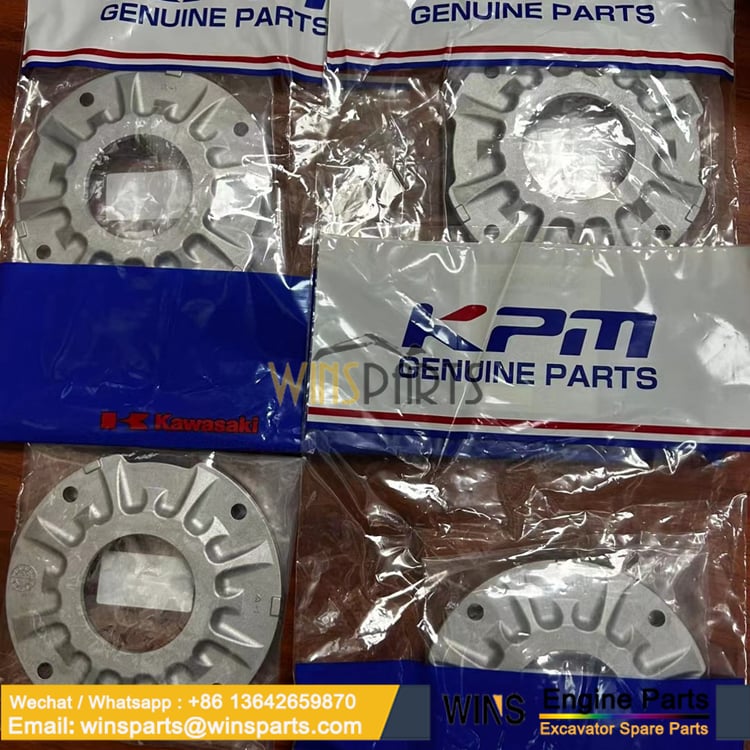

1-10 LQ10V00035S153 PLATE 2

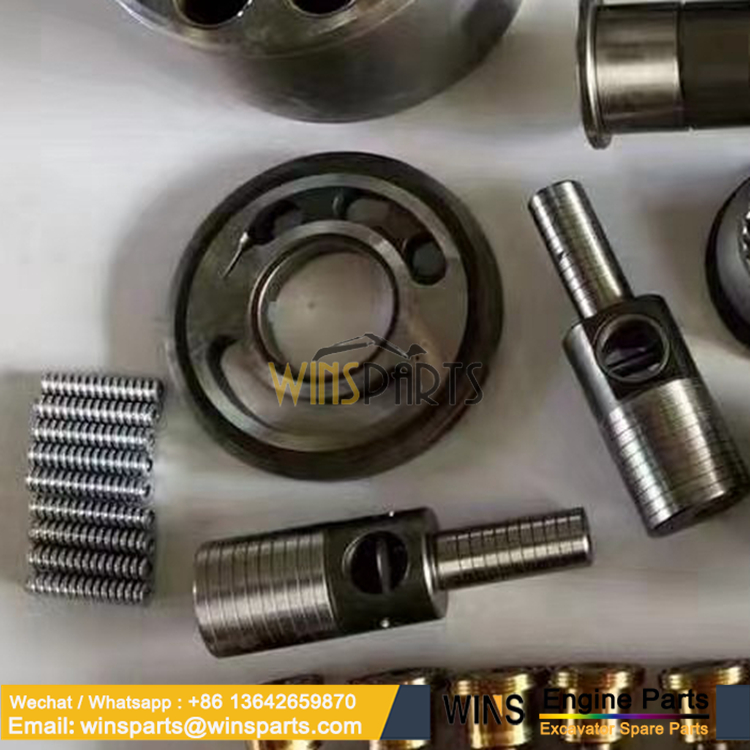

1-11 LQ10V00035S156 BUSHING 2
1-12 2437U219S157 SPRING 18
1-13 LQ10V00035S211 PLATE 2
1-14 NO P/No PLATE 2 R4
1-15 NO P/No BUSHING 2 R6
1-16 LQ10V00035S251 PLATE 2
1-17 LQ10V00035S261 COVER 1

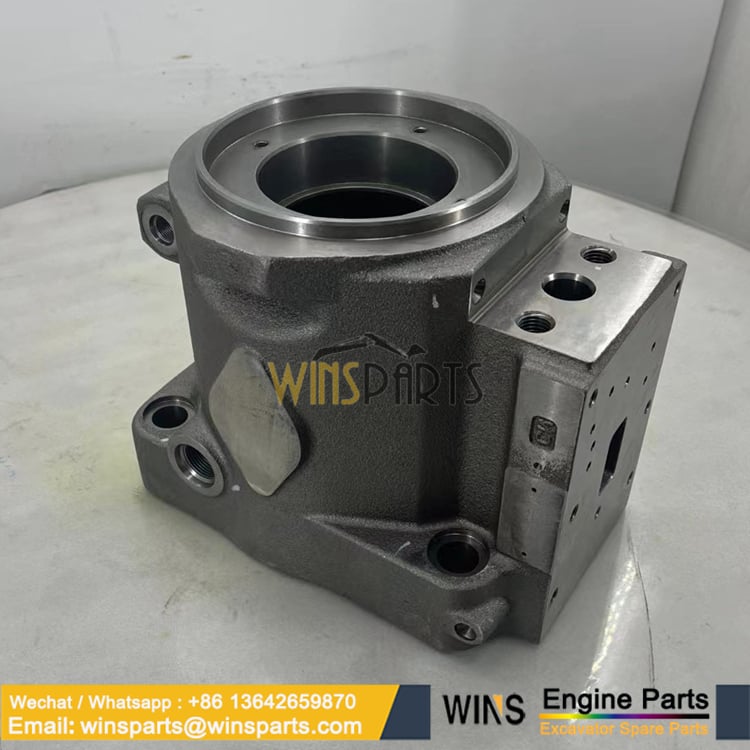

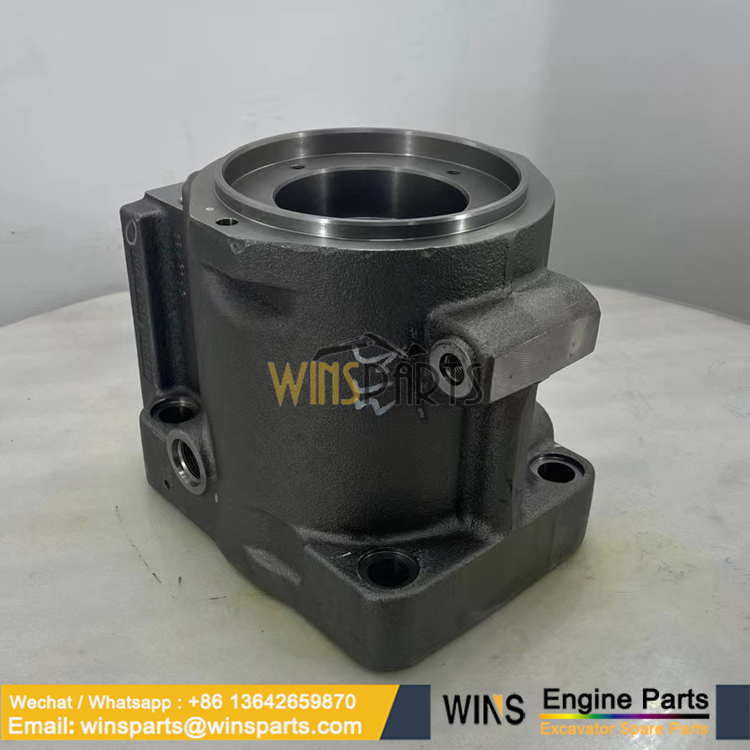

1-18 LQ10V00035S271 HOUSING 1
1-19 LQ10V00035S272 HOUSING 1

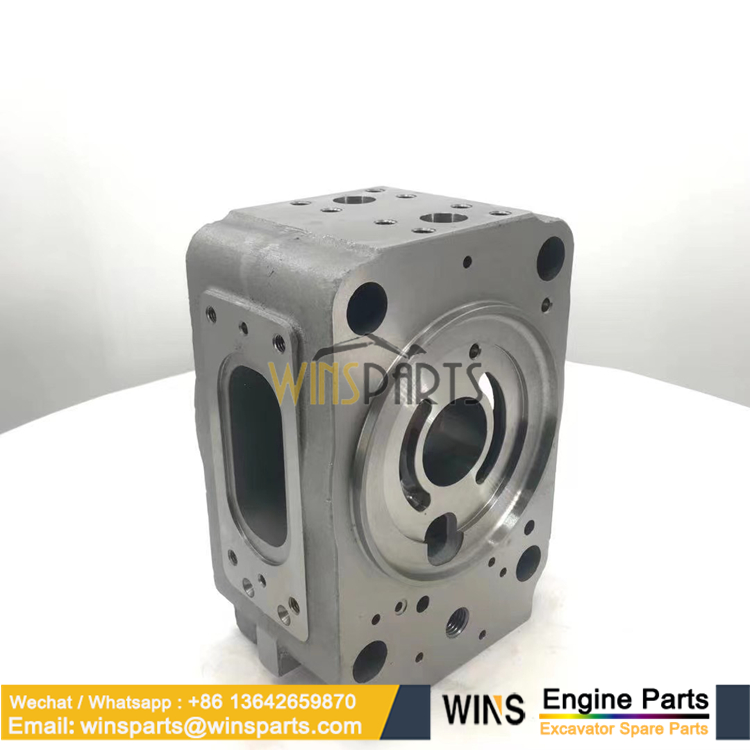

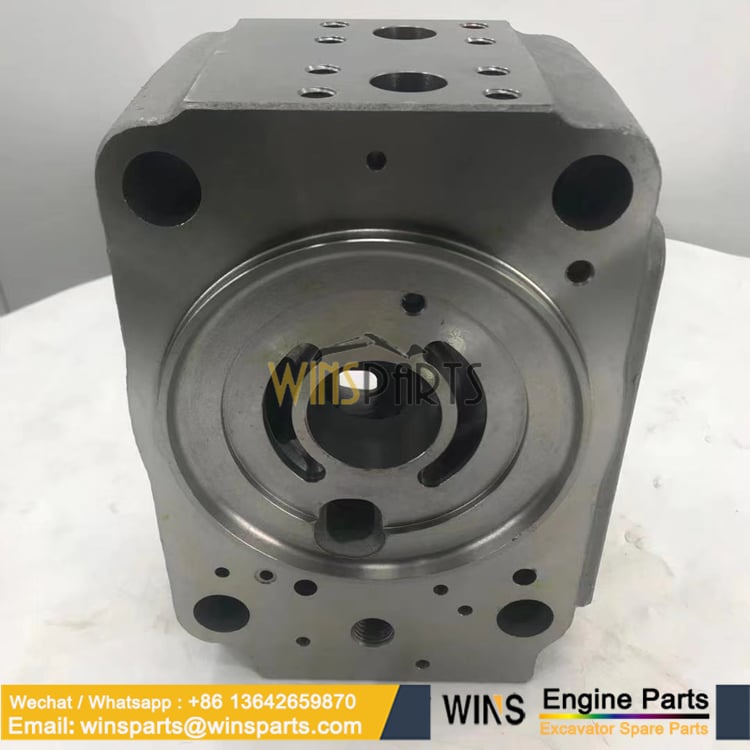

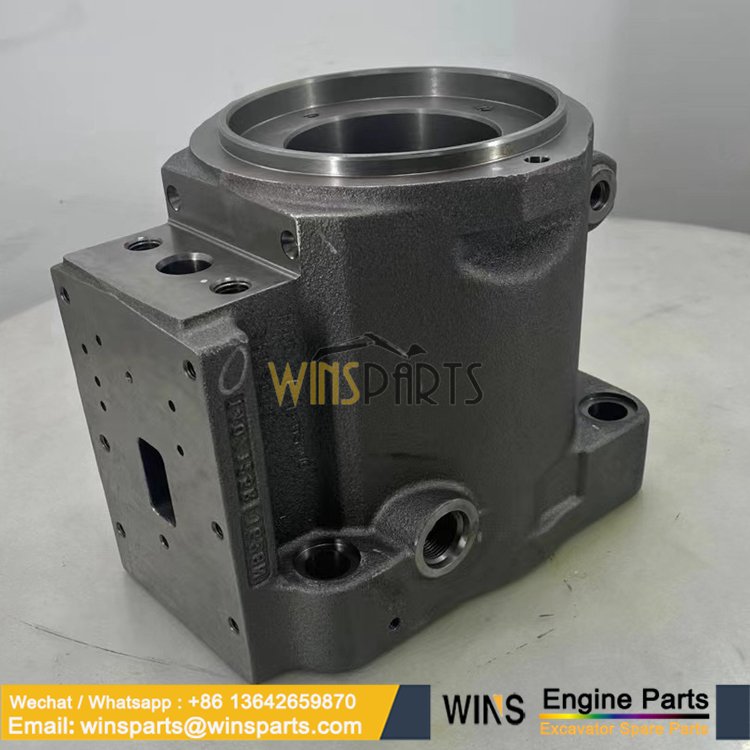

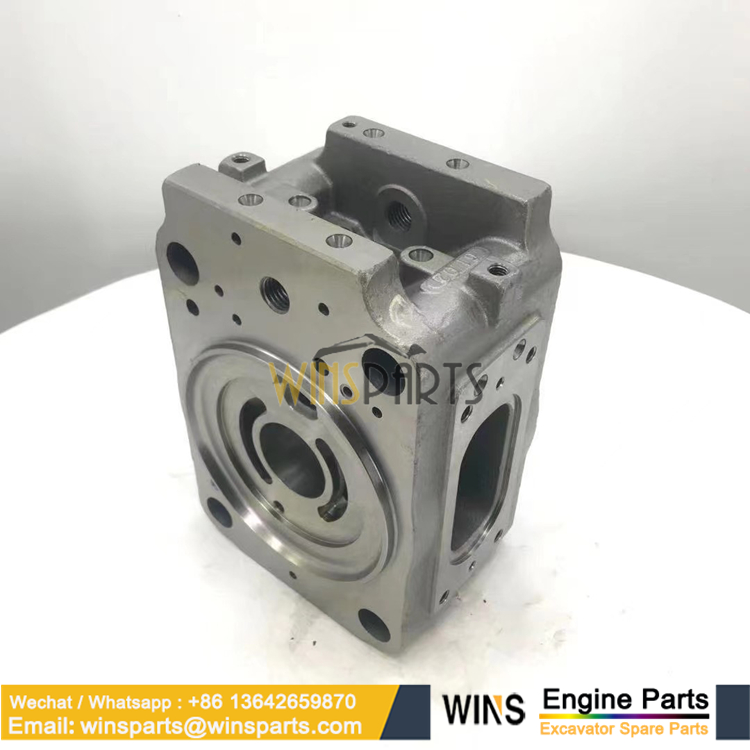

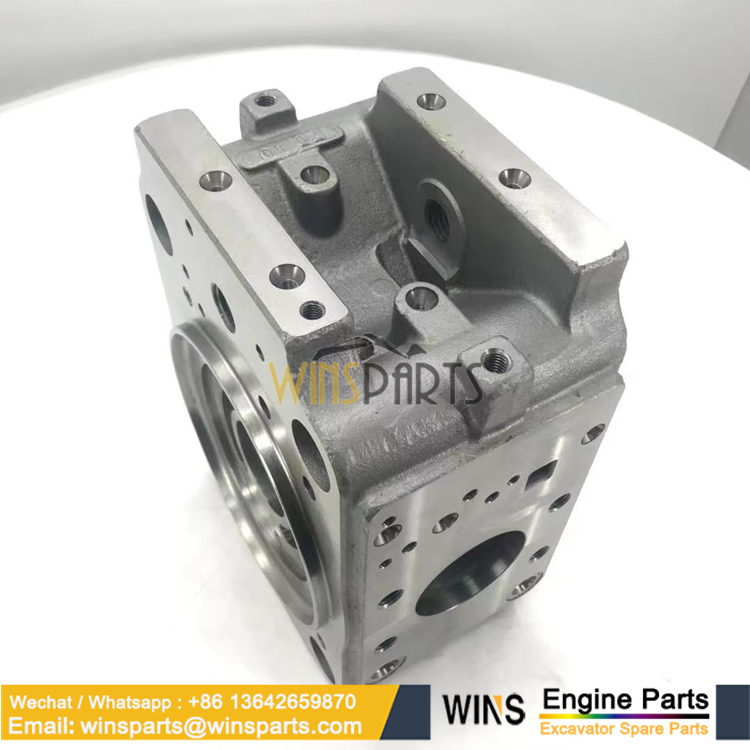

1-20 LQ10V00035S312 BLOCK 1
1-21 NO P/No PLATE 1 R2
1-22 NO P/No PLATE 1 R3
1-23 YN10V00023S009 COVER 1
1-24 2437U213S401 CAPSCREW 4
1-25 ZS23C08016 CAPSCREW 4
1-26 ZS23C10020 CAPSCREW 4
1-27 ZS23C16035 CAPSCREW 4
1-28 YW30V00001S157 PLUG 2
1-29 YN30V00001S154 PLUG 4
1-30 LV10V00006S059 PLUG 18
1-31 NO P/No PIN 2 R4
1-32 NO P/No PISTON 2 R6
1-33 2437U213S534 STOPPER 2
1-34 2437U213S535 STOPPER 2
1-35 LQ10V00035S537 COVER 2
1-36 NO P/No SEAT 4 R5
1-37 NO P/No STOPPER 4 R5
1-38 NO P/No BALL 4 R5
1-39 NO P/No PIN 2 R6

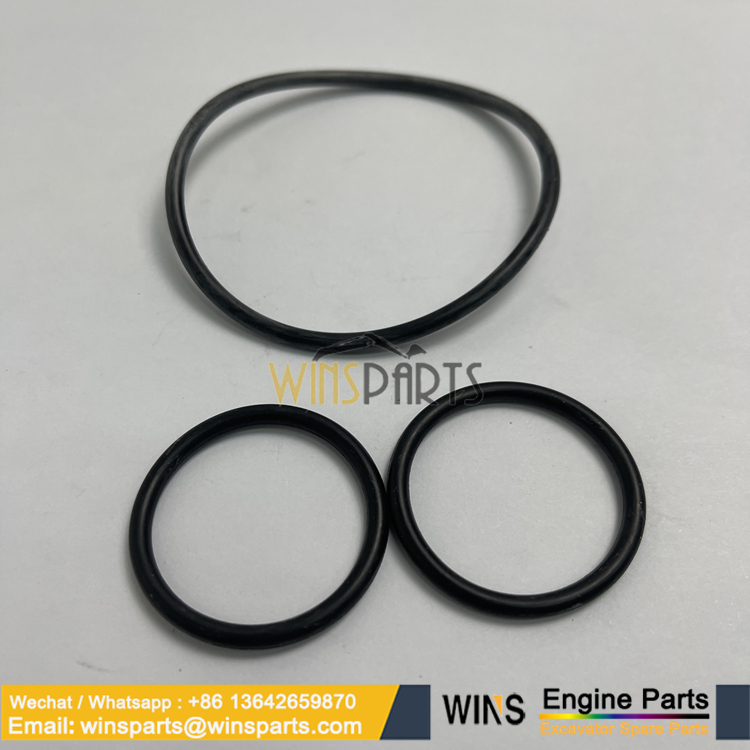

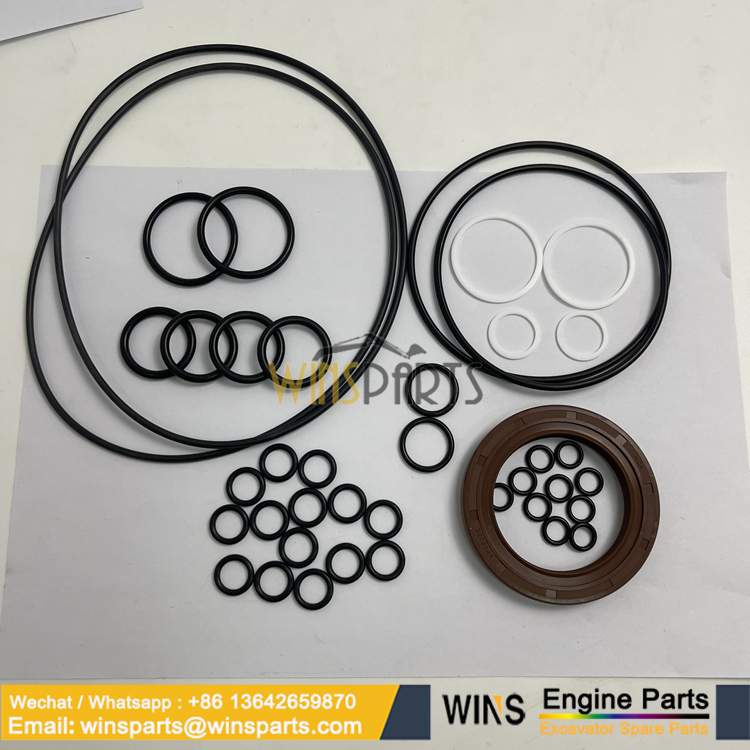

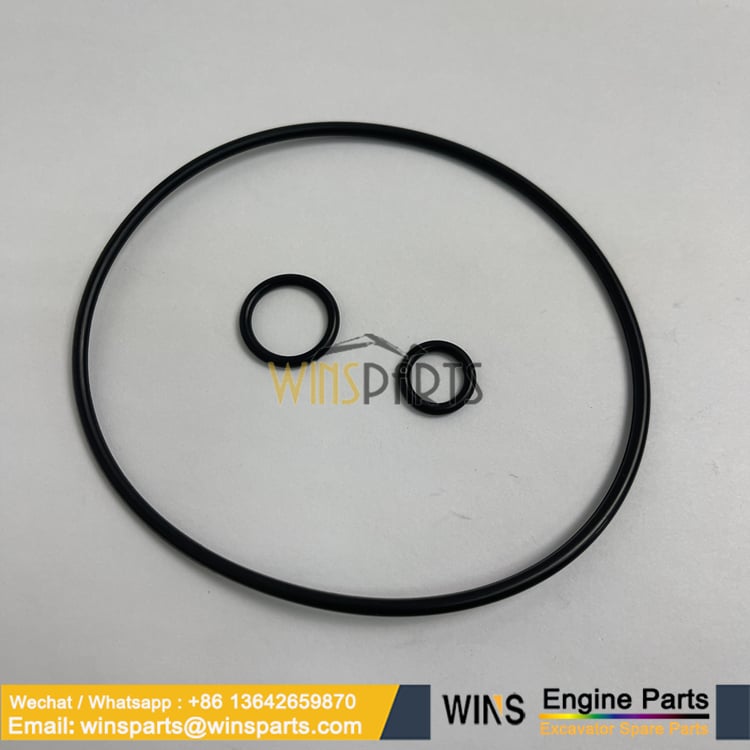

1-40 YN10V00003S702 O-RING 2
1-41 LS10V00002S012 O-RING 1
1-42 YX10V00003S012 O-RING 1
1-43 YN10V00067S718 O-RING 2
1-44 YT10V00003S710 O-RING 14
1-45 YY10V00014S724 RING 10
1-46 YN10V00020S015 O-RING 4
1-47 YT10V00003S708 O-RING 2

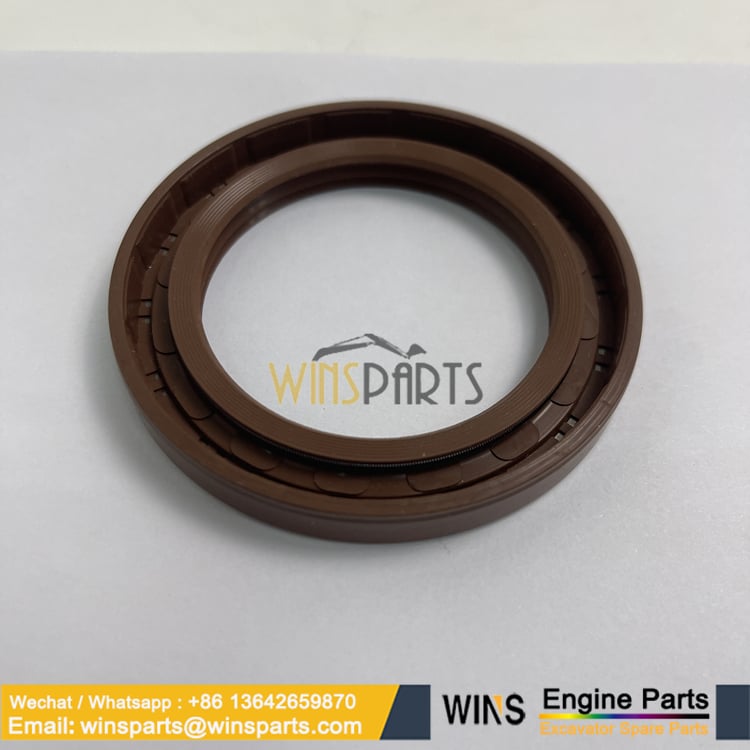

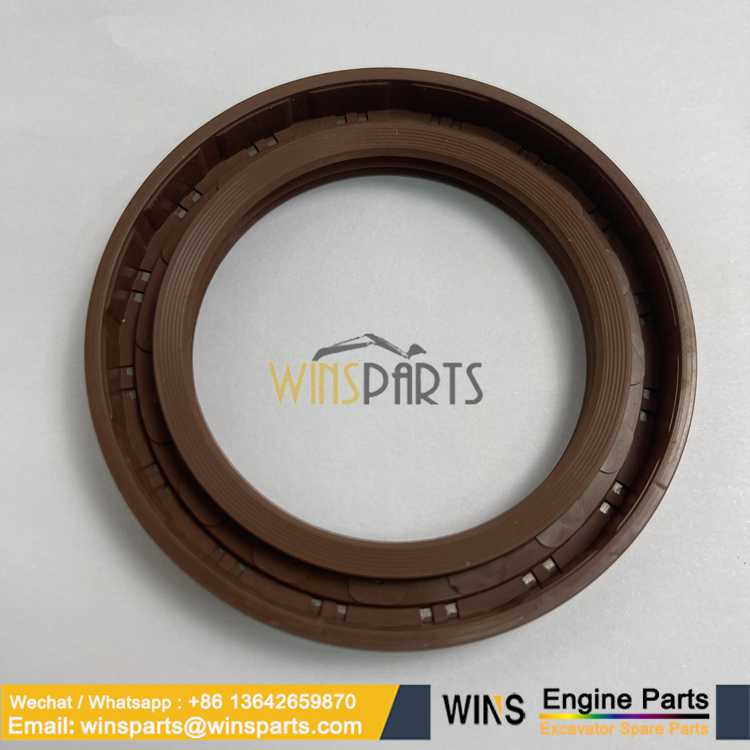

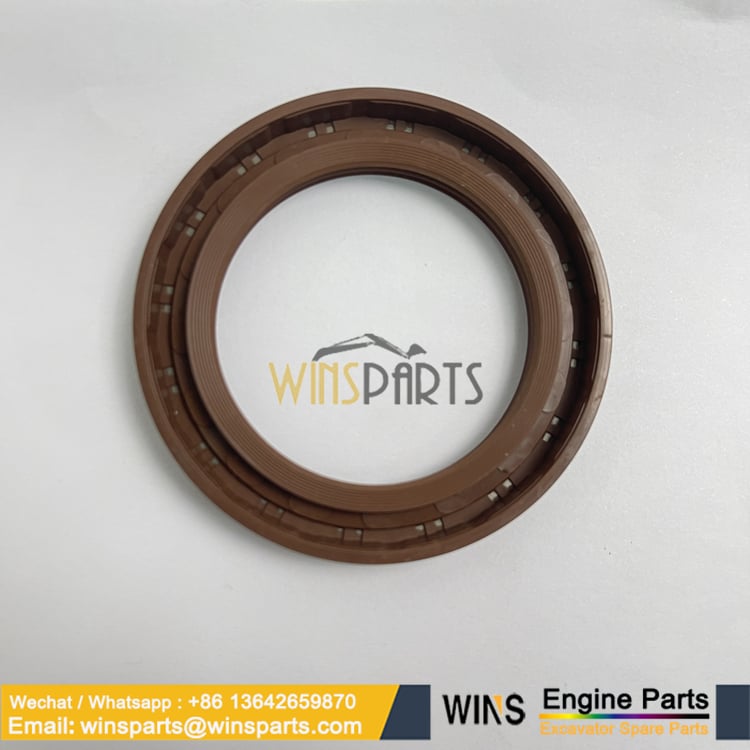

1-48 LC10V00033S774 OIL SEAL 1

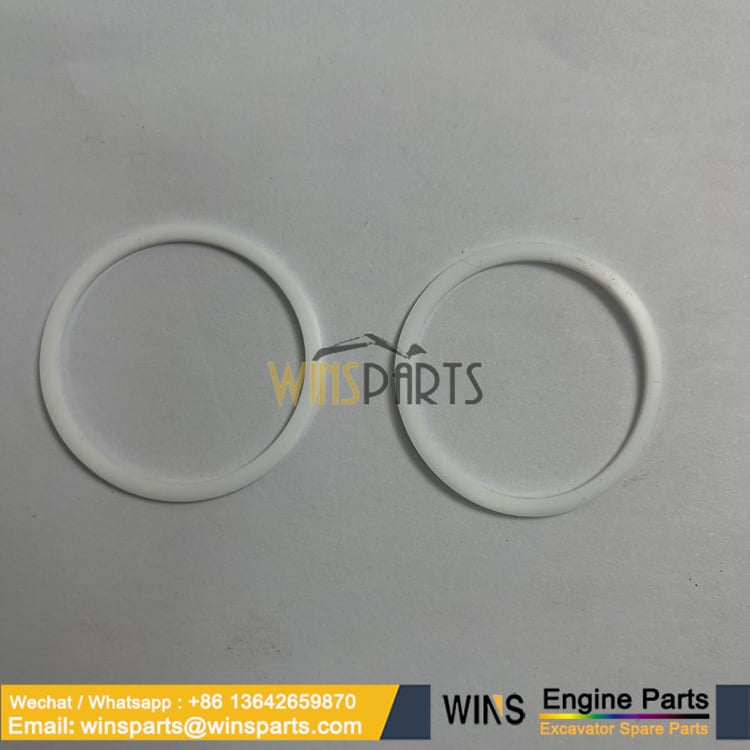

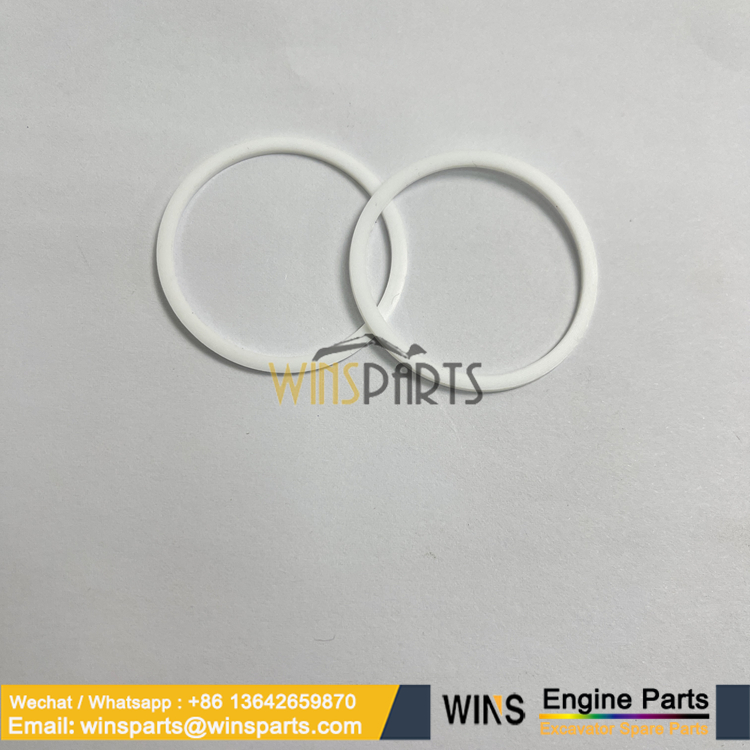

1-49 ZD85P01800 RING, BACK-UP 2
1-50 ZD85G03500 RING, BACK-UP 2
1-51 ZN11C16010 NUT 2
1-52 ZN18C20012 NUT 2
1-53 ZR16X04500 RING, SNAP 2
1-54 LQ10V00035S885 PIN 4
1-55 2441U474S888 PIN 2
1-56 ZS91C01000 BOLT, EYE 2
1-57 2437U188S953 CAPSCREW 2
1-58 2437U213S954 SCREW 2
1-59 NO P/No NAME PLATE 1
1-60 NO P/No NAME PLATE 1
1-61 NO P/No RIVET 2
2 YN10V01011F1 REGULATOR 2
2-1 ZS28C06016 CAPSCREW 3
2-2 ZS23C08040 CAPSCREW 5
2-3 ZS23C08025 CAPSCREW 1
2-4 ZS23C05012 CAPSCREW 2
2-5 YW30V00001S157 PLUG 2
2-6 YW30V00001S155 PLUG 1
2-7 YN30V00001S158 PLUG 1
2-8 LV10V00006S059 PLUG 9
2-10 NO P/No LEVER 1 R8
2-13 NO P/No SPOOL 1 R7
2-14 NO P/No SLEEVE 1 R7
2-20 YM10V01002S708 O-RING 1
2-21 YN10V01001S727 O-RING 1
2-22 YT10V00003S708 O-RING 3
2-23 YX10V00003S015 O-RING 1
2-24 YT10V00003S710 O-RING 3
2-25 LQ10V01006S758 RING 10
2-26 ZN18C10008 NUT 1
2-28 NO P/No PIN 1 R8
2-30 LQ10V01006S898 PISTON 1 YN15430370-
. YQ15405595-
2-31 EB15V01001S801 SETSCREW 1
2-32 YN35V00054F1 VALVE, SOLENOID 1
2-32F YN35V00004S361 O-RING 1
2-32G YN35V00004S362 O-RING 1
2-32H YN35V00004S363 O-RING 1
2-32K YN35V00018S802 NUT 1
2-32L ZD12P02000 O-RING 1
3 LQ10V00036F1 PUMP, GEAR 1
3-1 YN10V00012S010 POPPET 1 R9
3-2 YN10V00012S011 SEAT 1 R9
3-3 YN10V00014S012 RING 1
3-4 YN10V00014S013 SPRING 1
3-5 YN10V00014S014 SCREW 1
3-6 YN10V00006S312 LOCK NUT 1
3-7 NO P/No CASE 1
3-8 NO P/No GEAR 1
3-9 NO P/No GEAR 1
3-10 YN10V00006S355 FILTER 1
3-11 NO P/No CASE 1
3-12 LQ10V00036S433 BOLT 2
3-13 LS10V00003S433 BOLT 2
3-14 YN10V00014S435 BOLT 4
3-15 2441U667S466 PLUG 1
3-16 YN10V00006S700 RING 1
3-17 ZD12G10500 O-RING 1
3-18 ZD12P01100 O-RING 1
3-19 ZD12P01600 O-RING 1
3-20 ZR26X01800 RING, SNAP 1
3-21 LS10V00018S887 PIN 2
.

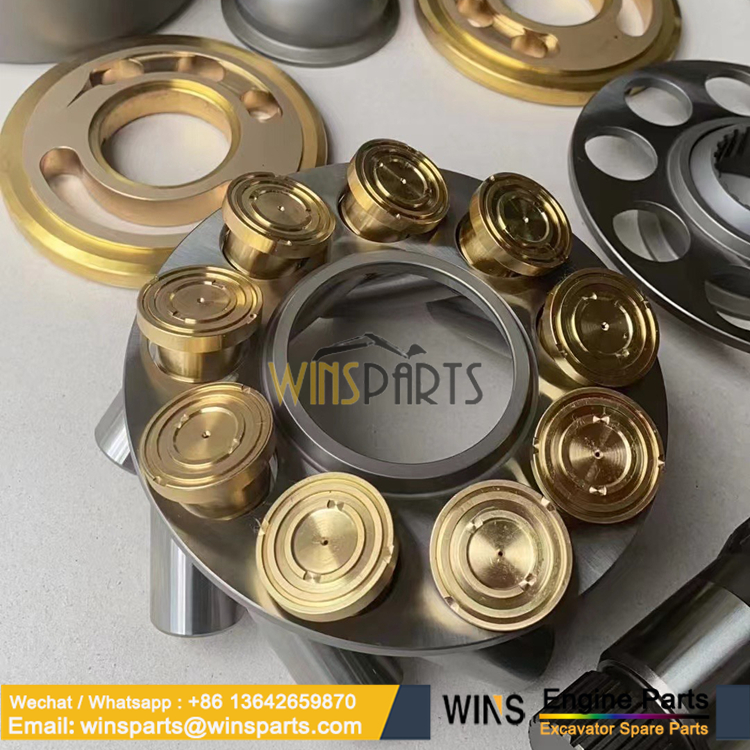

LQ10V00035R100 REPAIR KIT 1 RK1
. (1-8, 1-9)X9
.
LQ10V00035R200 REPAIR KIT 1 RK2
. (1-7, 1-21)X1
.
LQ10V00035R300 REPAIR KIT 1 RK3
. (1-7, 1-22)X1
.
LQ10V00035R400 REPAIR KIT 1 RK4
. (1-14, 1-31)X1
.

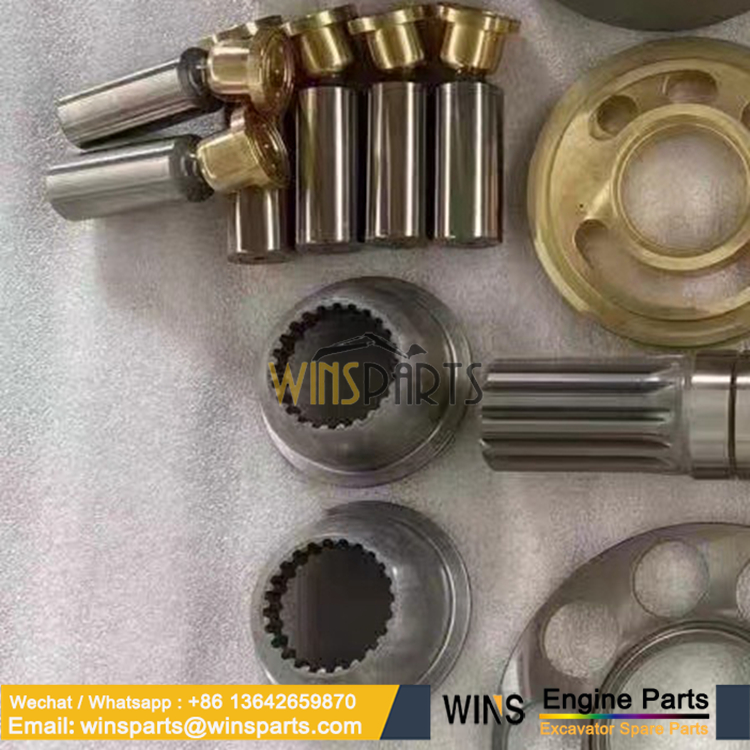

WA10V01001R100 REPAIR KIT 1 RK5
. (1-36, 1-37, 1-38)X1
.
LQ10V00035R600 REPAIR KIT 1 RK6
. (1-15, 1-32, 1-39)X1
.
LQ10V01006R100 SPOOL KIT 1 RK7 YN15430370-
. (2-13, 2-14)X1 YQ15405595-
.
LQ10V01006R200 LEVER KIT 1 RK8 YN15430370-
. (2-10, 2-28)X1 YQ15405595-
.
YY10V00015R300 REPAIR KIT 1 RK9
. (3-1, 3-2)X1 Excavator Engine Spare Parts
