SK140/SK130/SK135

01-052(00) LAMP INSTALLATION-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 10 9 YN13E01375P1 CLIP 9 9 PY01P01043D3 CLIP 8 4 ZW26X05000 WASHER Lock 6 4 ZN18C05004 NUT 5 4 PH22C01023P1 BOLT 4 2 YY80S00001F1 LAMP 3 2 YY21C02749P1…

01-051(08) CONTROLS, OPERATORS (NIBBLER & BREAKER)-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 7 5 ZM27C08020 BOLT Sems 6 4 ZS68C08018 SCREW Cap 4 1 YN25M01184P2 ARMREST 3 1 YN25M01234P1 BRACKET 2 1 YN25M01235P1 BRACKET 1 1 YN25M01233F1…

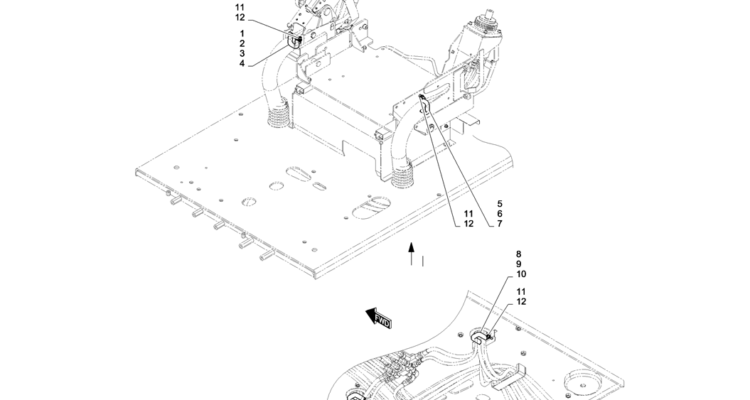

01-051(07) CONTROLS, OPERATORS (NIBBLER & BREAKER)-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 12 4 ZW26K06000 LOCK WASHER 11 4 ZS28C06020 SCREW Cap 9 1 YN12P01165P1 PLATE 8 2 YN12P01164F1 BRACKET Clamp 7 1 YN12P01175P1 FLEXIBLE HOSE Rubber…

01-051(06) CONTROLS, OPERATORS (NIBBLER & BREAKER)-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 12 2 ZM66C06016 BOLT Sems 11 3 PY01P01043D3 CLIP 10 1 YN17M01072P1 CABLE 9 1 YN54E01029P1 BRACKET 8 4 YN17M01468P1 SELF-TAP SCREW 7 4 2420R1089D1…

01-051(05) CONTROLS, OPERATORS (NIBBLER & BREAKER)-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 16 4 ZM22C08025 BOLT Sems 15 4 ZM73C10025 BOLT Sems 14 4 ZM73C08016 BOLT Sems 13 1 YN55M01011P1 PEDAL 12 1 YN55M01010P1 PEDAL 11 1…

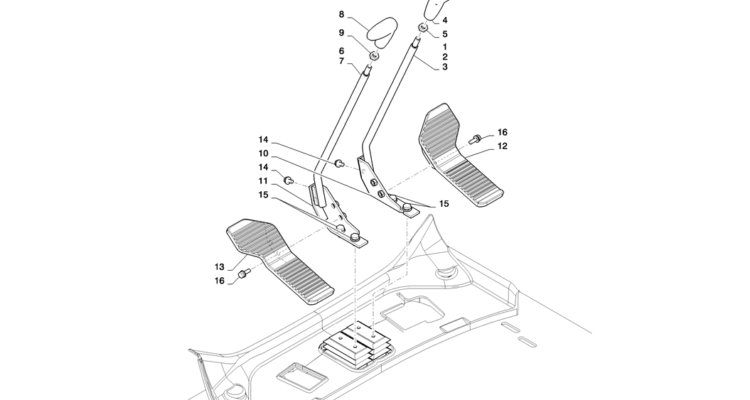

01-051(04) CONTROLS, OPERATORS (NIBBLER & BREAKER)-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 16 4 ZM22C08025 BOLT Sems 15 4 ZM73C10025 BOLT Sems 14 4 ZM73C08016 BOLT Sems 13 1 YN55M01011P1 PEDAL 12 1 YN55M01010P1 PEDAL 11 1…

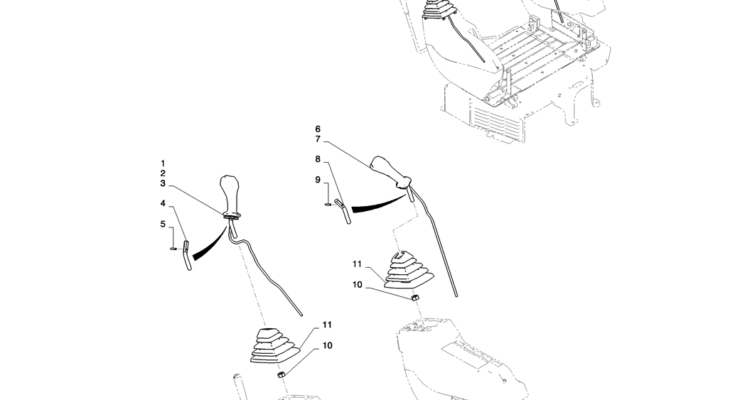

01-051(03) CONTROLS, OPERATORS (NIBBLER & BREAKER)-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 11 2 YN03M02114P1 BELLOWS Boot 10 2 ZN18C14011 NUT 9 1 ZP26D05028 PIN Spring 8 1 YN03M02124P1 LEVER 6 1 YT03M01291F1 HANDLE GRIP Assy. 5…

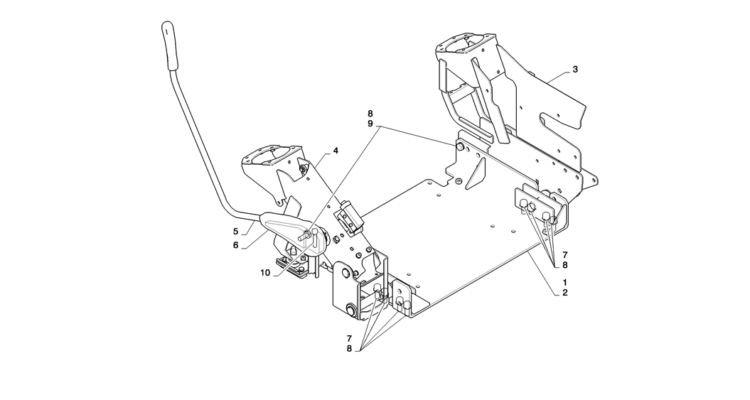

01-051(02) CONTROLS, OPERATORS (NIBBLER & BREAKER)-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 10 1 YN03M02203P1 CAPTIVE WASHER SCREW 9 2 YN03M02205P1 SCREW 8 10 YN03M02204P1 LOCK WASHER 6 1 YN03M02169P1 COVER 5 1 YN03M02168P1 LEVER ASSY &…

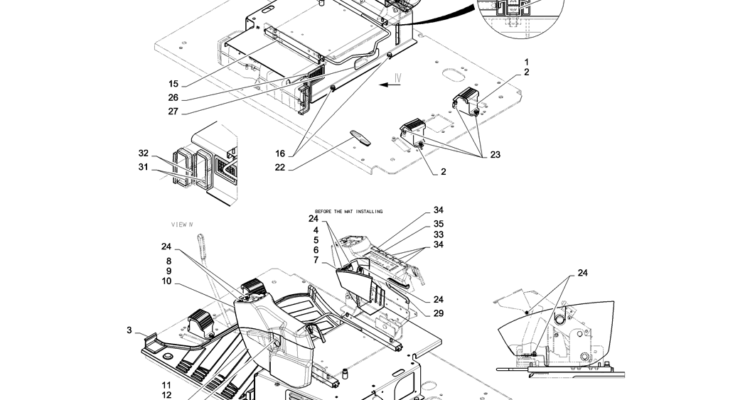

01-051(01) CONTROLS, OPERATORS (NIBBLER & BREAKER)-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 35 1 LV50S00003D5 TOGGLE SWITCH 34 4 YN17M01282P1 CAP 33 1 YN50E00059F1 32 2 YY20M01289P1 INSULATION 31 2 YY20M01288P1 INSULATION 30 1 ZW16K12000 WASHER 29…

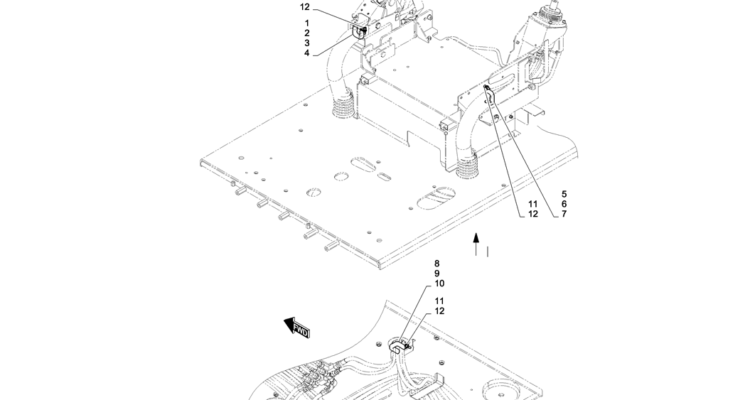

01-050(09) CONTROLS, OPERATORS-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 12 4 ZW26K06000 LOCK WASHER 10 1 YN12P01166P1 RUBBER SEAL 9 1 YN12P01165P1 PLATE 8 2 YN12P01164F1 BRACKET Clamp 7 1 YN12P01175P1 FLEXIBLE HOSE Rubber 6 1 YN12P01177P1…
