SK140/SK130/SK135

01-062(05) CAB INSTALLATION-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 8 1 LQ14E00014S007 RUBBER RING Grommet 7 5 LQ14E00014S006 COLLAR 5 2 LQ14E00014S004 RUBBER RING Grommet 4 1 LQ14E00014S003 WIRE HARNESS 3 1 LQ14E00014S002 WIRE HARNESS 2 1…

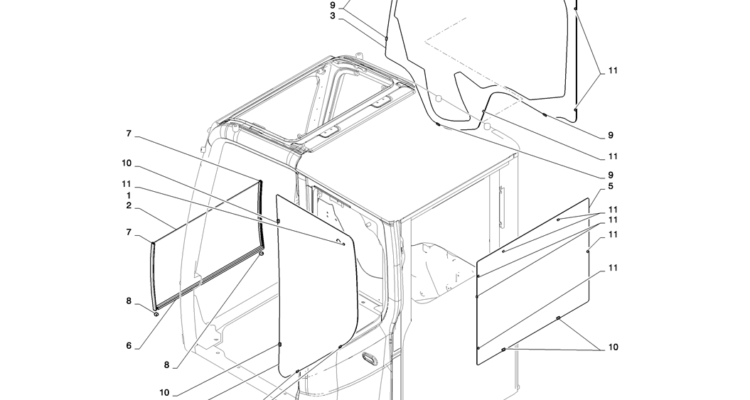

01-062(04) CAB INSTALLATION-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 11 12 LQ02C01301S010 SPACER 10 6 LQ02C01301S009 SPACER 9 4 LQ02C01301S008 SPACER 8 2 LQ02C01301S007 PLUG Stopper 7 2 LQ02C01301S006 GASKET 6 1 LQ02C01301S005 GASKET Strip, Weather 4…

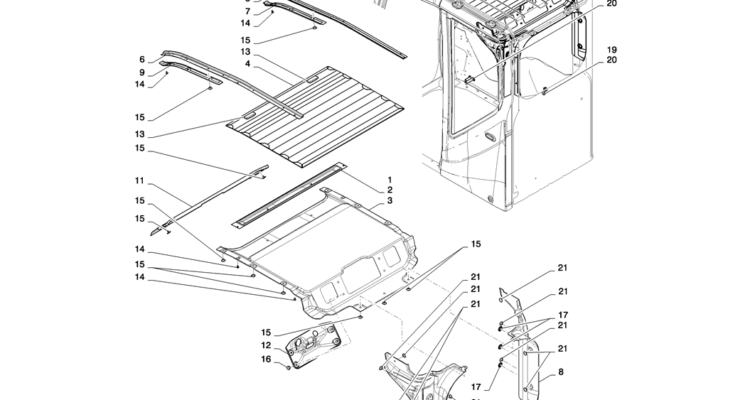

01-062(03) CAB INSTALLATION-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 21 11 LQ02C00032S020 CLIP 20 4 LQ02C00031S031 BOLT 19 1 LQ02C00032S018 INLET MANIFOLD Bracket 18 1 LQ02C00032S017 INLET MANIFOLD Bracket 16 4 LQ02C00032S015 CLIP 15 19 LQ02C00032S014 CLIP…

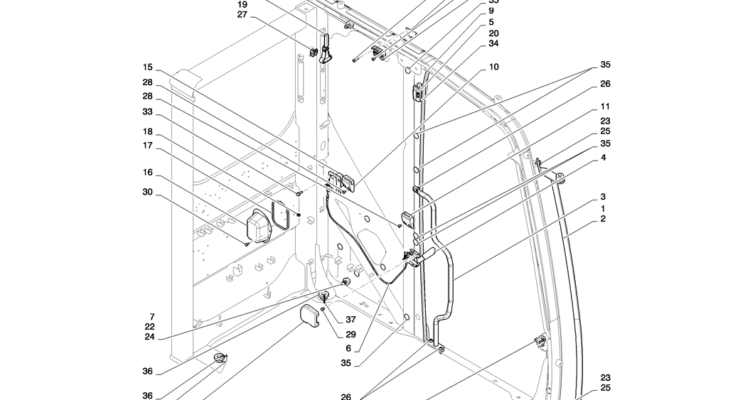

01-062(02) CAB INSTALLATION-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 37 2 YY02C00064S042 36 2 YY02C00064S041 SPACER Cab Assy. 35 12 LQ02C00031S038 COVER 34 4 LQ02C00031S037 SCREW Tapping 33 4 LQ02C00031S035 BOLT 32 2 LQ02C00031S034 SCREW 31 2…

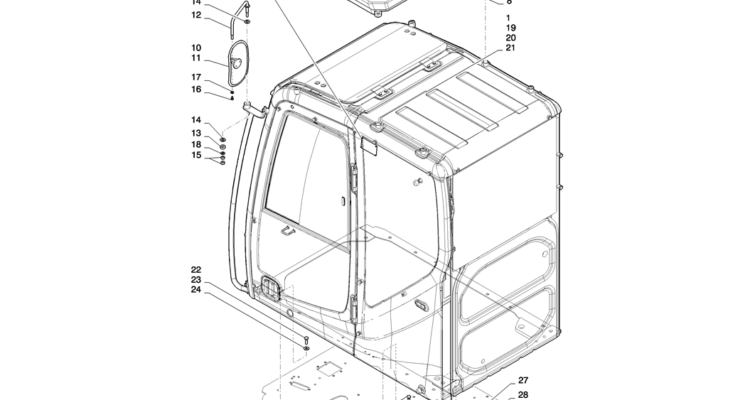

01-062(01) CAB INSTALLATION-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 28 1 ZW16H20000 WASHER 27 1 ZS18C20045 SCREW Cap 26 4 PB06C01093D1 RIVET 25 1 LQ20T01258P1 PLATE Number 24 4 2418T10357 WASHER 23 4 ZS18C12035 SCREW Cap 22…

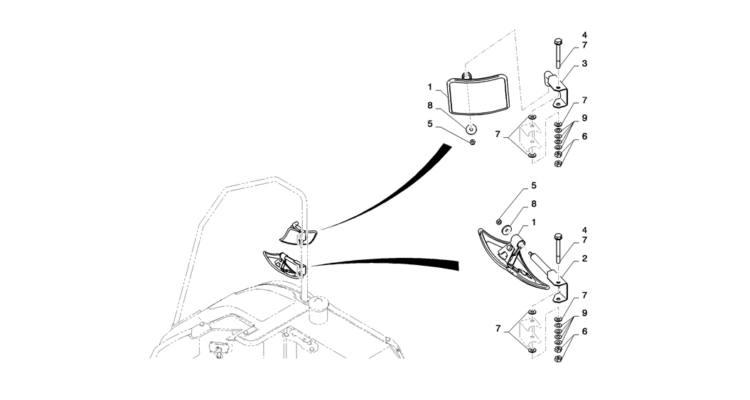

01-060(00) MIRROR INSTALLATION-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 9 8 R16T0137D3 WASHER 8 2 2418T12753 WASHER 6 4 ZN18C10008 NUT 5 2 ZN18C08007 NUT 4 2 ZS18C10090 SCREW Cap 3 1 YY52C01042P2 BRACKET 2 1 YY52C01041P1…

01-058(00) PLATE INSTALLATION, FLOOR-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 7 1 ZW16P12000 WASHER 5 3 ZM73C12030 BOLT Sems 4 1 ZM73C12025 BOLT Sems 3 1 YY52C01037P1 BRACKET 2 1 YY52C01036P2 STAY 1 1 YN52C00024P1 MIRROR AR…

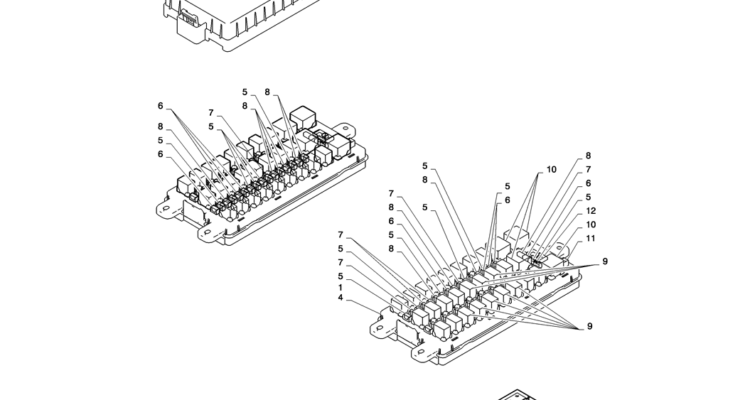

01-054(03) CONTROLLER INSTALLATION-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 13 3 YN24E00016S013 WIRE CONNECTOR 12 1 YN24E00016S012 WIRE CONNECTOR 11 1 YN24E00016S011 HANDLE 10 4 YN24S00012P2 RELAY 9 8 YN24S00010P1 RELAY 7 3 YN24E00016S007 FUSE 6 10…

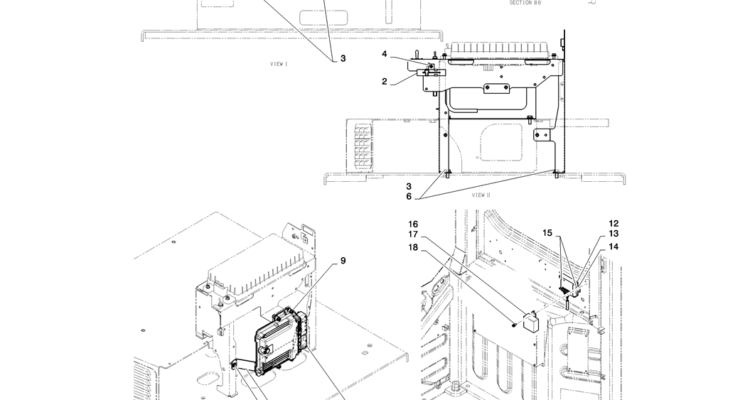

01-054(02) CONTROLLER INSTALLATION-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 18 1 ZM61C06016 BOLT Sems, ASN YH06-08016 17 1 YY24S00001P2 RELAY Flasher, ASN YH06-08016 16 1 YT24E00013F1 , ASN YH06-08016 15 2 ZM61C06020 BOLT Sems 14 2 YT77S01001P1…

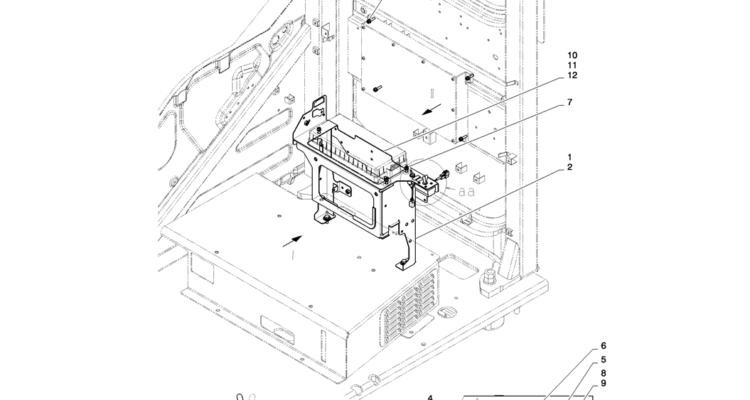

01-054(01) CONTROLLER INSTALLATION-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 12 1 YY73E01009P2 LABEL 10 1 YY24E00009F1 FUSE BOX 9 4 ZW16P03000 WASHER 8 4 ZS31C03006 SCREW Machine 7 7 ZM61C06025 BOLT Sems 6 1 YV22E01002P1 LABEL 5…
