SK140/SK130/SK135

01-069(07) GUARD INSTALLATION-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 21 3 ZS18C12030 SCREW Cap 20 3 YN01C01010P1 WASHER 19 3 ZM73C12025 BOLT Sems 18 1 YY21C02433P2 BOX 17 1 YY21C02688P1 BRACKET 16 1 YY21C00105F1 15 1 YY21C02678D1…

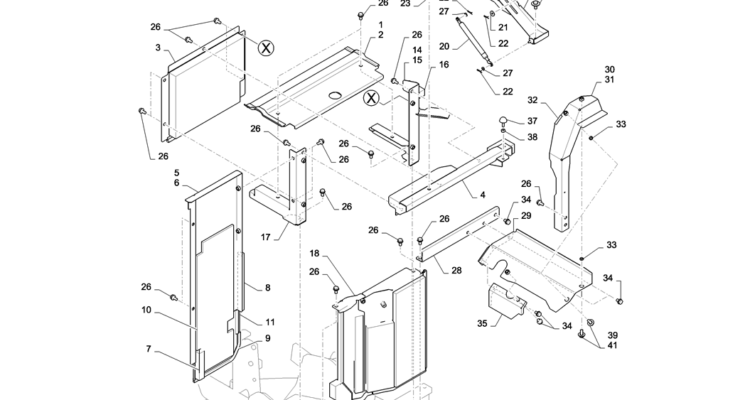

01-069(06) GUARD INSTALLATION-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 41 2 ZM73C12030 BOLT Sems 40 1 YY21C02786P1 WASHER 39 2 YN21C02138P1 WASHER 38 2 ZN18F10008 NUT 37 2 YN21C03212P1 STOP 36 1 HY25X12040G1 WASHER 35 1 YY21C02303P1…

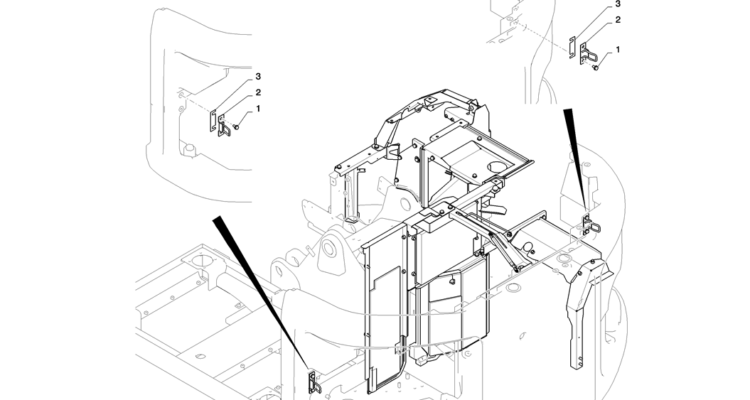

01-069(05) GUARD INSTALLATION-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 3 2 YF21C01782D1 SHIM 2.3 2 2 YF21C01802P1 STRIKER PLATE 1 39 ZM73C12025 BOLT Sems         Kobelco Part Number Information parts manager pro is the…

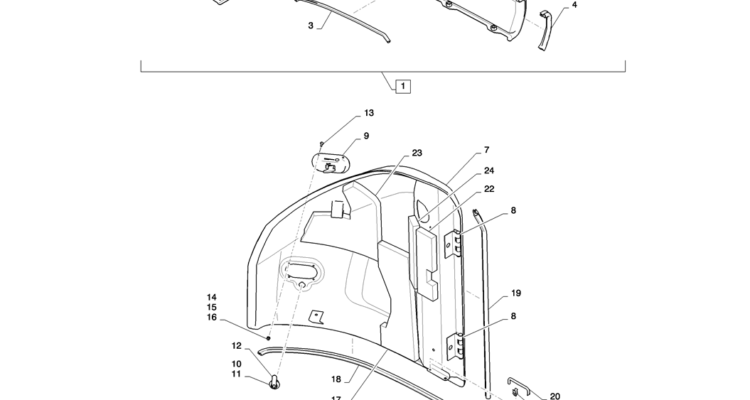

01-069(04) GUARD INSTALLATION-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 24 1 YY21C02965P1 INSULATION 23 1 YY21C02681P1 FOAM INSULATION 22 1 YY21C02964P1 INSULATION 21 1 YR21C01123P1 COLLAR 20 1 YY21C02346P3 STAY 19 1 YT21C01164DJ RUBBER WEATHERSTRIP 18 1…

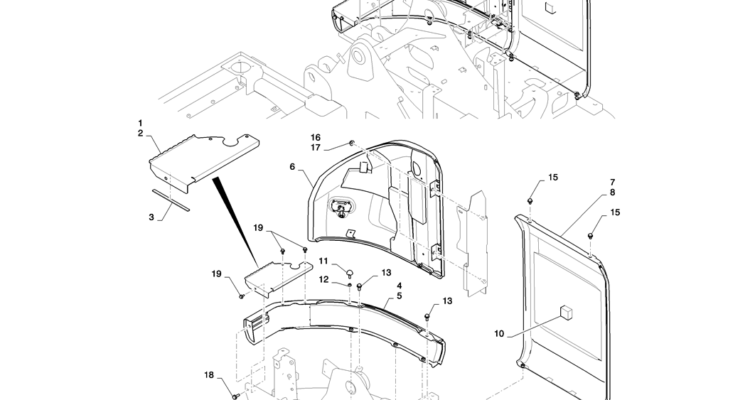

01-069(03) GUARD INSTALLATION-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 19 3 PM21C01142P1 BOLT Sems 18 1 ZM73C12035 BOLT Sems 17 2 ZN18C12010 NUT 16 2 2418T10357 WASHER 15 2 ZM73C12020 BOLT Sems 14 5 ZM73C12040 BOLT Sems…

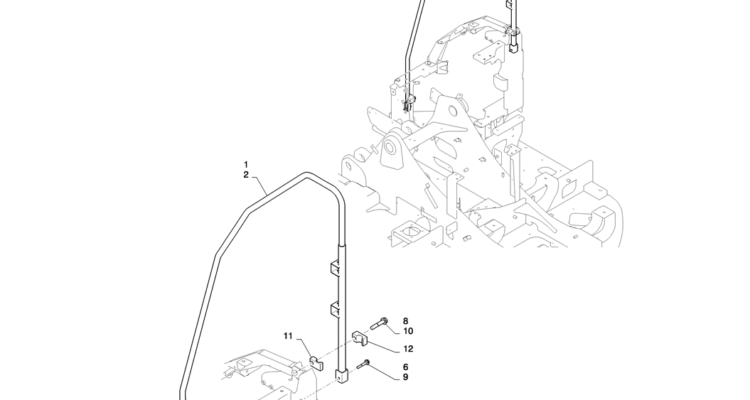

01-069(02) GUARD INSTALLATION-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 12 1 YY21C02390P1 BLOCK 11 1 YY21C02402P1 BLOCK 10 1 ZS18C16085 SCREW Cap 9 1 ZS18C10065 SCREW Cap 7 1 ZW16H12000 WASHER 6 2 ZW16H10000 WASHER 5 1…

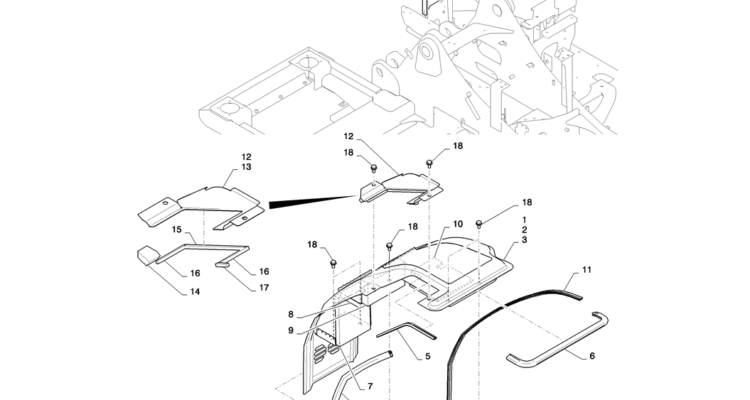

01-069(01) GUARD INSTALLATION-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 18 7 ZM73C12025 BOLT Sems 17 1 YY21C02557D3 RUBBER 16 2 YY21C02557D2 RUBBER 15 1 YY21C02557D1 RUBBER 14 1 YY21C02777P1 SUCTION BOWL Rubber 13 1 YY21C02776P1 COVER 12…

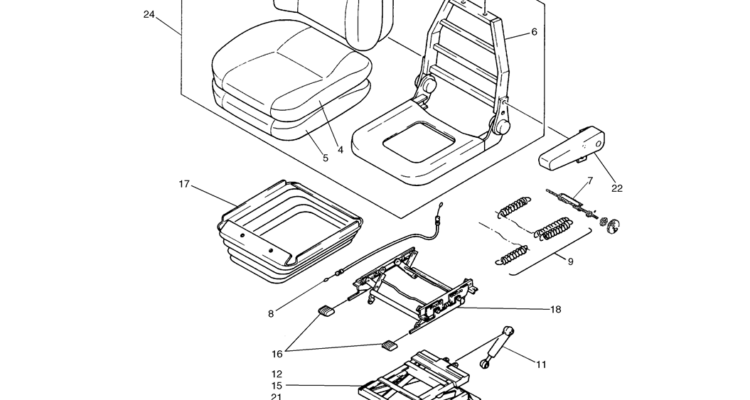

01-068(01) SEAT ASSEMBLY, (YN25M00059F1)-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 25 1 YN25M00059S002 COVER 24 1 YN25M00059S001 SEAT Includes Ref 3 - 6 & 25 23 1 YN25M00015S011 ARMREST Right Hand 22 1 YN25M00015S010 ARMREST Left Hand…

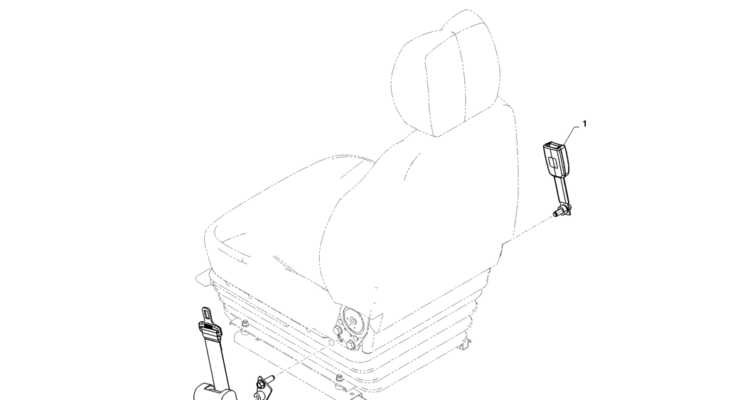

01-068(00) SEAT BELT ASSEMBLY (ROPS CAB)-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 3 1 ZM73C10020 BOLT Sems 2 1 YN25M01242P1 BRACKET AR YN25M00080F1 Seat, (Rops Cab) 1 1 YN25M00081F1 SEAT BELT Assy.         Kobelco…

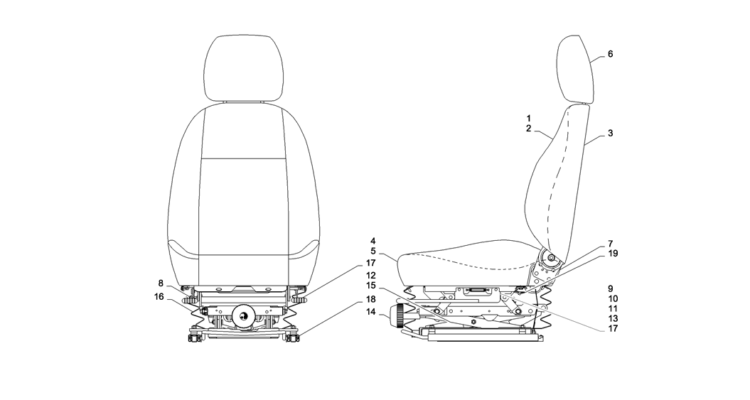

01-067(02) SEAT INSTALLATION-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 19 1 YN25M00059S020 CLAMP 18 1 YN25M00059S019 RAIL ASSY. 17 1 YN25M00059S018 HANDLE 16 1 YN25M00059S017 COVER 15 1 2448U167S18 KIT Bearing 14 1 2448U167S12 ADJUSTER 13 1…
