SK140/SK130/SK135

01-039(04) CONTROL LINES, MULTI-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 6 2 ZW16P06000 WASHER 5 2 ZP26D06020 PIN Spring 4 2 YN30V01027P1 PLUG 2 1 YN30V01039P1 BOLT 1 1 YF30V01015P1 LEVER 3 6 ZS28C06016 SCREW Cap  …

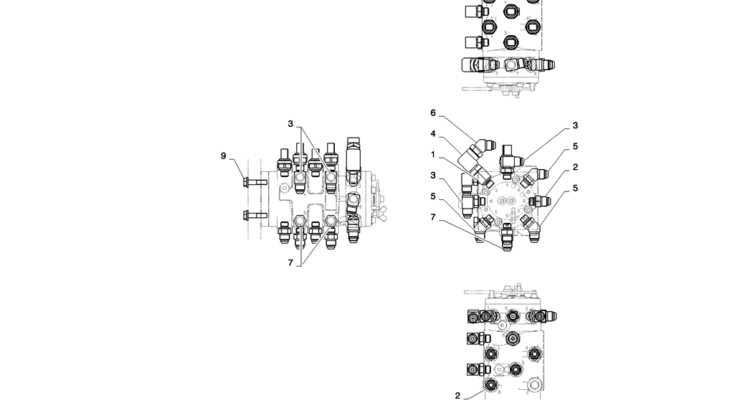

01-039(03) CONTROL LINES, MULTI-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 9 4 ZM73C08035 BOLT Sems 7 2 ZE72X04000 PLUG 6 1 ZH42X06000 ELBOW 5 3 HH45X06004G1 45 ELBOW 4 1 2444Z3155 ELBOW 3 4 2444Z2338 ELBOW 2…

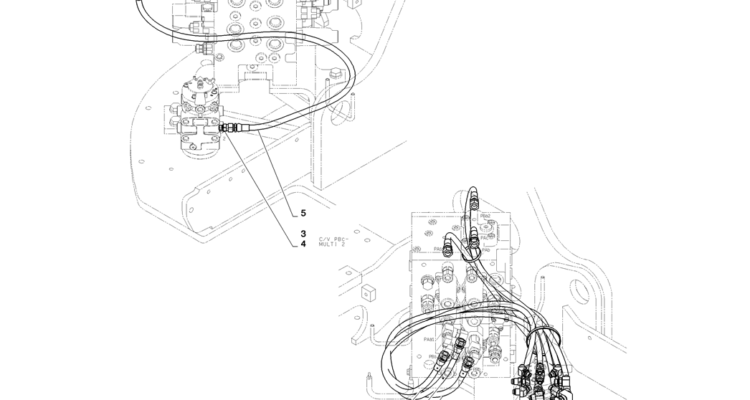

01-039(02) CONTROL LINES, MULTI-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 4 1 2444Z2337 ELEC CONNECTOR 3 1 YY64H00155F1 Multi 2 1 2420R537D145 HOSE 1 2 2420R537D130 HOSE 1300.00 mm 5 1 2420R537D150 FLEXIBLE HOSE Assy.   Kobelco…

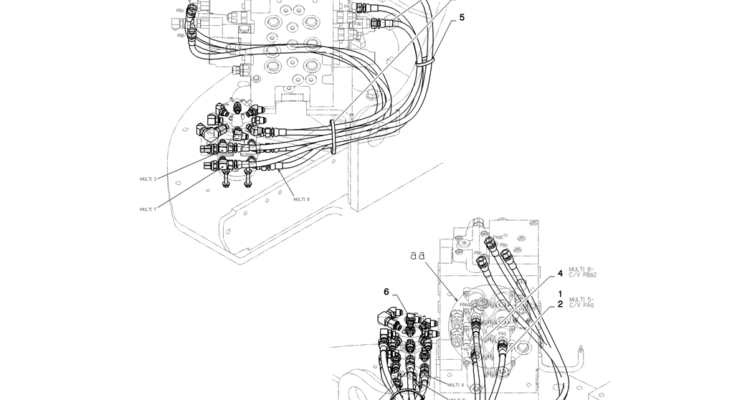

01-039(01) CONTROL LINES, MULTI-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 6 1 YF30V00013F1 CONTROL VALVE 5 2 PY01P01043D8 CLIP 4 1 2420R537D096 HOSE ASSY. 3 1 2420R537D090 FLEXIBLE HOSE Assy. 2 1 2420R537D080 HOSE 800.00 mm, Assembly…

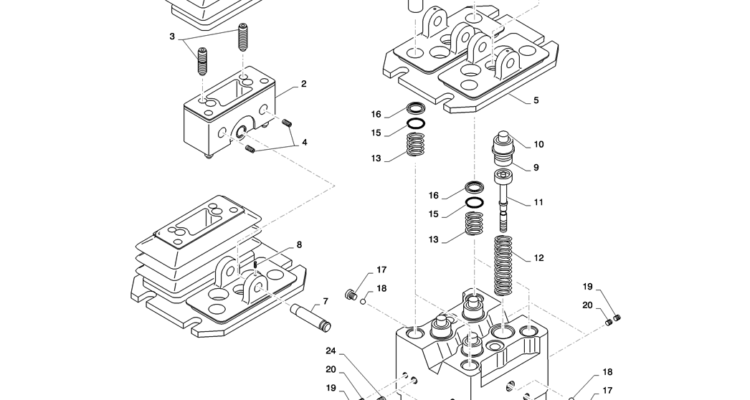

01-038(02) CONTROL LINES, PROPEL-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 1 YN30V00105R180 KIT Repair, Consists Of Item: 21(3), 22(3), 23(3) 1 YN30V00105R170 KIT Repair, Consists Of Item: 19(4), 20(4) 1 YN30V00105R160 KIT Repair, Consists Of Item: 17(2),…

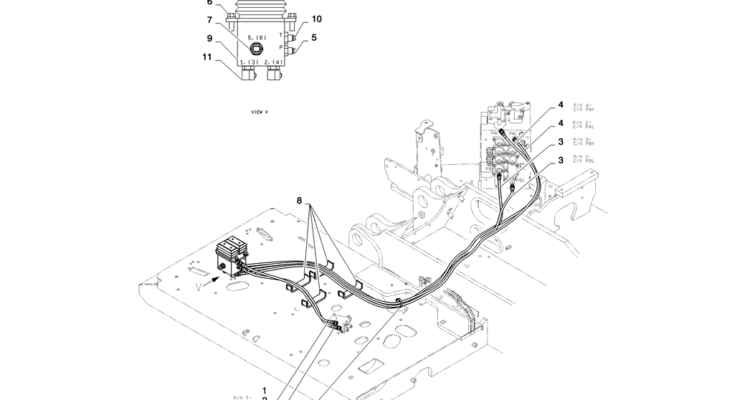

01-038(01) CONTROL LINES, PROPEL-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 13 1 YN13E01375P1 CLIP 12 1 PY01P01043D8 CLIP 11 4 ZH32X04006 ELBOW 10 1 ZH22X04006 HYD CONNECTOR 9 1 YN30V00105F1 VALVE Pilot 8 4 YF62H01001P1 RUBBER BAND…

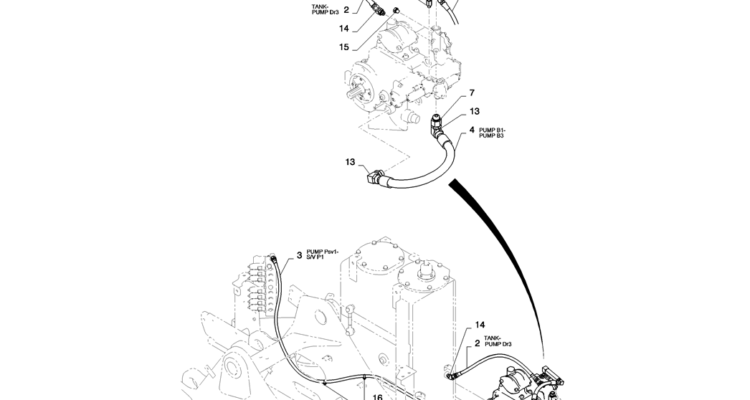

01-037(00) CONTROL LINES, PUMP-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 17 2 YN13E01375P1 CLIP 16 2 PY01P01043D8 CLIP 15 1 ZE72X04000 PLUG 14 2 ZH42X06000 ELBOW 13 2 ZH32X12000 HYD CONNECTOR 90 12 1 ZH32X06000 HYD CONNECTOR…

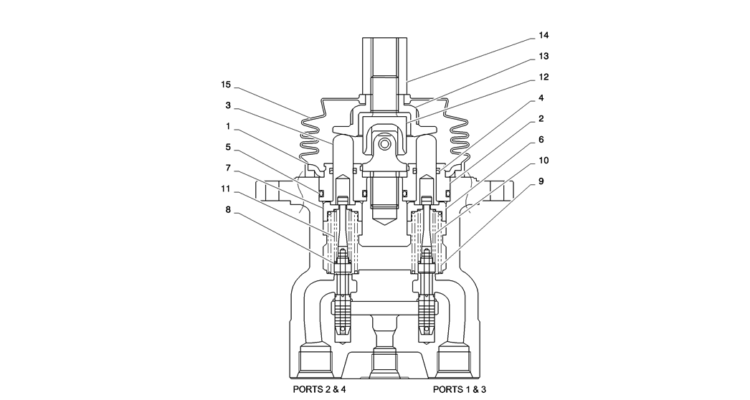

01-036(02) CONTROL LINES, REMOTE-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 15 1 YT30V00008S501 BOOT Cover 14 1 YT30V00008S312 NUT 13 1 YT30V00008S302 PLATE 12 1 2436U2581S301 FLEXIBLE JOINT 11 2 YN30V00069S242 SPRING 9 4 PX30V00043S221 SPRING 8…

01-036(01) CONTROL LINES, REMOTE-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 15 1 YT30V00008S501 BOOT Cover 14 1 YT30V00008S312 NUT 12 1 2436U2581S301 FLEXIBLE JOINT 11 2 YN30V00069S242 SPRING 10 2 YN30V00069S241 SPRING 9 4 PX30V00043S221 SPRING 8…

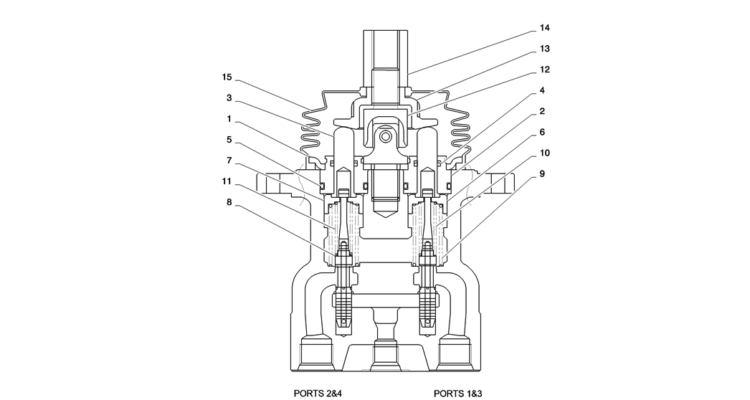

01-035(03) CONTROL LINES, REMOTE-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 15 1 YT30V00008S501 BOOT Cover 14 1 YT30V00008S312 NUT 12 1 2436U2581S301 FLEXIBLE JOINT 11 2 YN30V00069S242 SPRING 10 2 YN30V00069S241 SPRING 9 4 PX30V00043S221 SPRING 8…
