SK140/SK130/SK135

01-035(02) CONTROL LINES, REMOTE-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 9 3 PY01P01043D8 CLIP , ASN YH06-08019 8 1 PY01P01043D4 CLIP , BTW YH06-08001 & YH06-08018 7 2 YN68H01106P1 COVER 6 1 PH03M01250P1 BOOT 5 8 ZW16P06000…

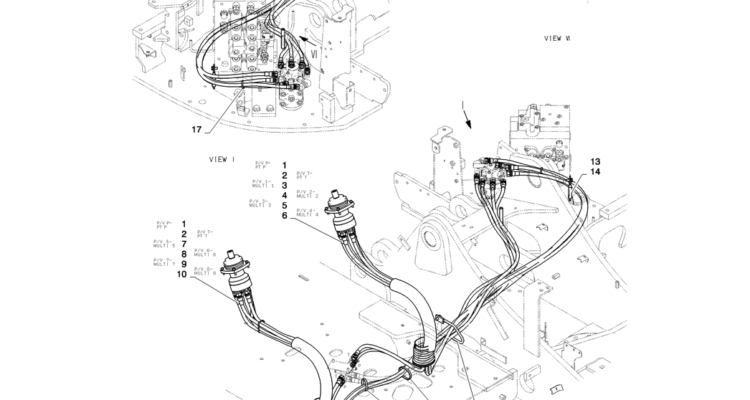

01-035(01) CONTROL LINES, REMOTE-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 17 3 PY01P01043D8 CLIP 16 2 PY01P01043D5 CLIP 15 1 LF64H01004D2 HOSE 14 1 ZM73C08020 BOLT Sems 13 1 YY68H01056P1 GUIDE 11 1 YY68H01041P1 GUIDE 10 1…

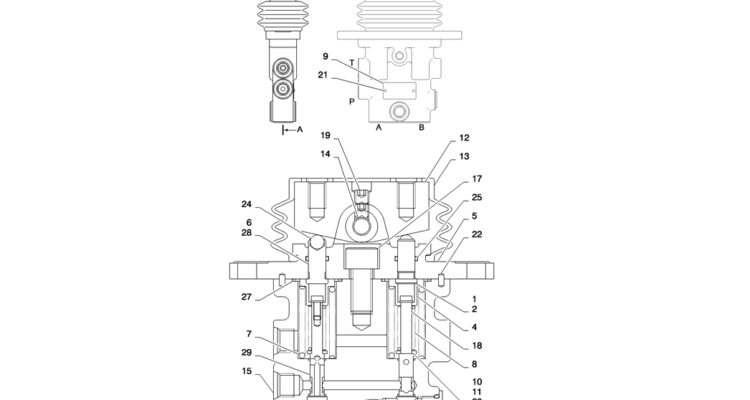

01-034(02) CONTROL LINES, REMOTE (NIBBLER & BREAKER)-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 1 YN30V00080R200 REPAIR KIT Consists Of Item: 15(1), 23(1), 29(2) 29 2 NSS NOT SERVICED SEPARATELY Spool 28 2 2436U1354S26 REPAIR KIT Piston Assy…

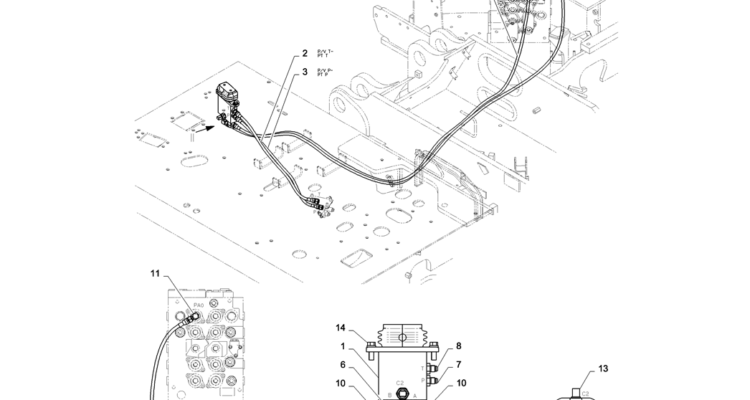

01-034(01) CONTROL LINES, REMOTE (NIBBLER & BREAKER)-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 14 2 HM83C10030G1 BOLT Sems 13 1 YX52S00013P1 SENSOR Press 12 1 ZE72X04000 PLUG 11 1 ZH32X04006 ELBOW 10 2 ZH32X04000 HYD CONNECTOR 90…

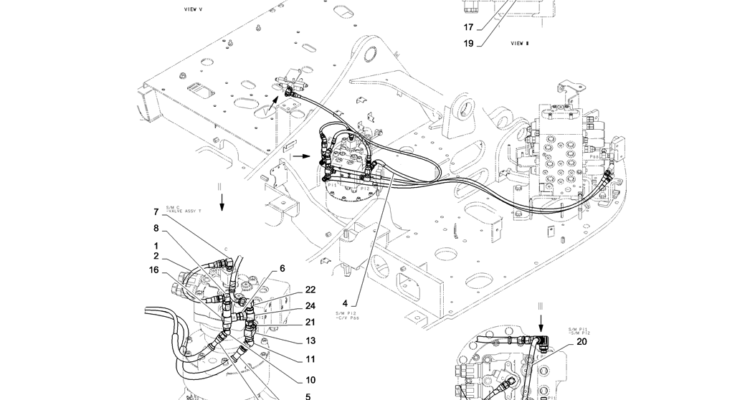

01-031(07) CONTROL LINES, VALVE (NIBBLER & BREAKER)-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 24 1 YX64H01009P1 TEE 23 1 HH55Q06006G1 TEE 22 1 2444Z2338 ELBOW 21 2 YN21V00005FA CHECK VALVE 20 1 HX33L06040DX HOSE 19 1 PU13E01002D6…

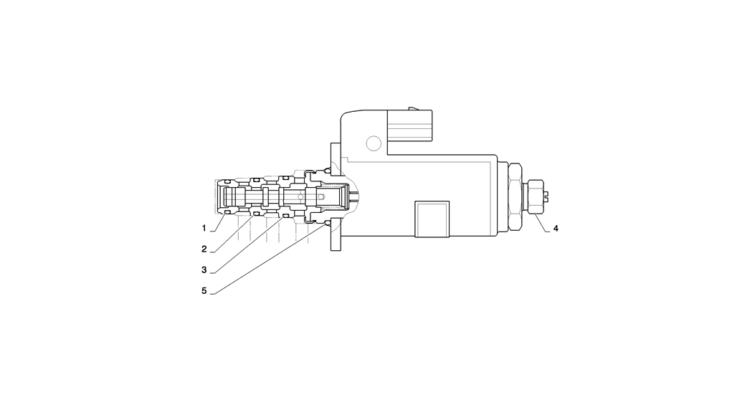

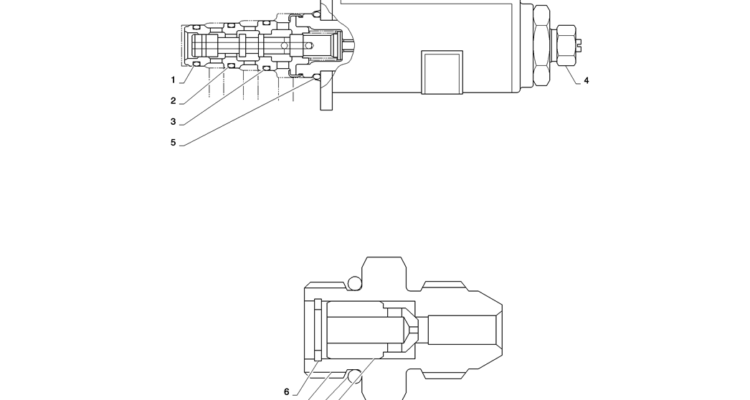

01-031(06) CONTROL LINES, VALVE (NIBBLER & BREAKER)-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 5 1 ZD12P02000 O-RING 4 1 YN35V00018S802 NUT 2 1 YN35V00004S362 O-RING 1 1 YN35V00004S361 O-RING 3 1 YN35V00004S363 O-RING   Kobelco Part Number…

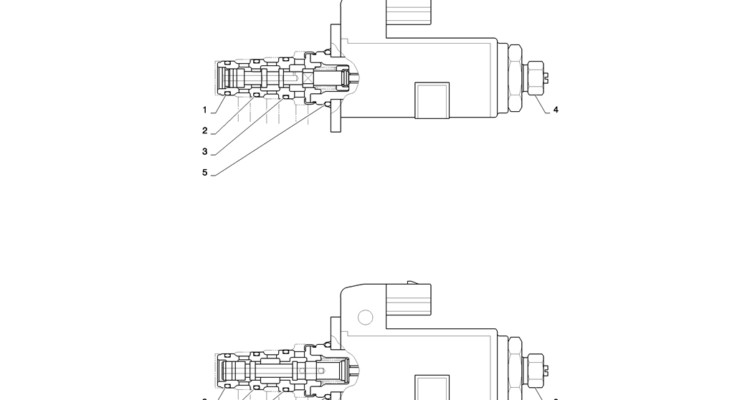

01-031(05) CONTROL LINES, VALVE (NIBBLER & BREAKER)-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 10 1 ZD12P02000 O-RING 9 1 YN35V00018S802 NUT 7 1 YN35V00004S362 O-RING 6 1 YN35V00004S361 O-RING 5 1 ZD12P02000 O-RING 4 1 YN35V00018S802 NUT…

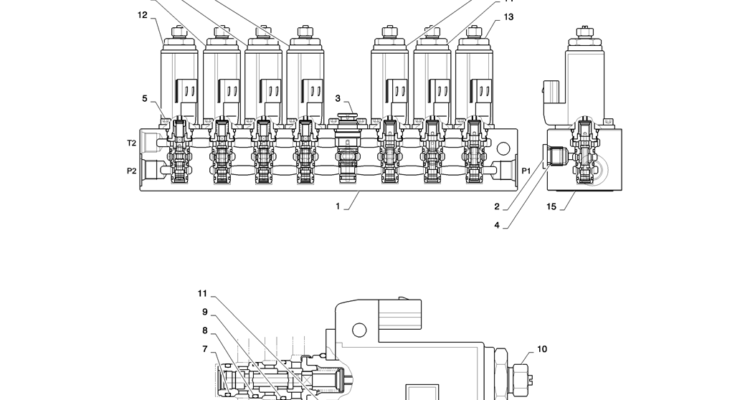

01-031(03) CONTROL LINES, VALVE (NIBBLER & BREAKER)-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 15 1 YY35V00007S901 14 1 YN35V00051F1 VALVE Solenoid 13 2 YN35V00050F1 VALVE Solenoid 12 1 YN35V00049F1 VALVE Solenoid 11 1 ZD12P02000 O-RING 9 1…

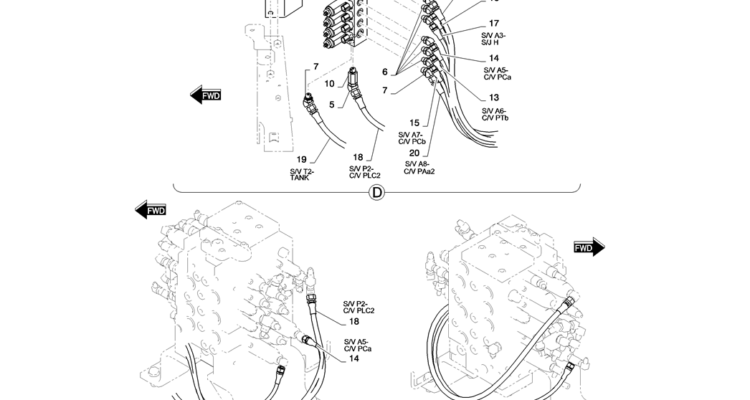

01-031(02) CONTROL LINES, VALVE (NIBBLER & BREAKER)-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 23 1 ZH42X06000 ELBOW 22 1 YY64H00134F1 Valve 21 1 2420R537D210 HOSE 9.60 mm ID x 2100.00 mm, Assembly 20 1 2420R537D145 HOSE 19…

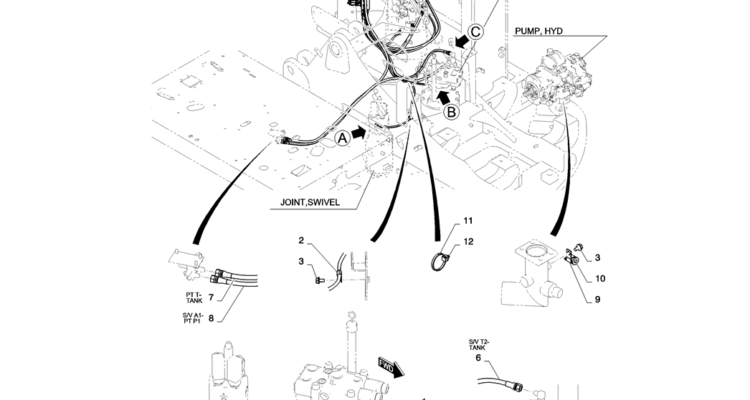

01-031(01) CONTROL LINES, VALVE (NIBBLER & BREAKER)-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 12 1 YN13E01375P1 CLIP 11 1 PY01P01043D8 CLIP 10 1 YN64H01175P1 BUSHING 9 1 ZC46X22011 CLIP 8 1 2420R537D210 HOSE 9.60 mm ID x…
