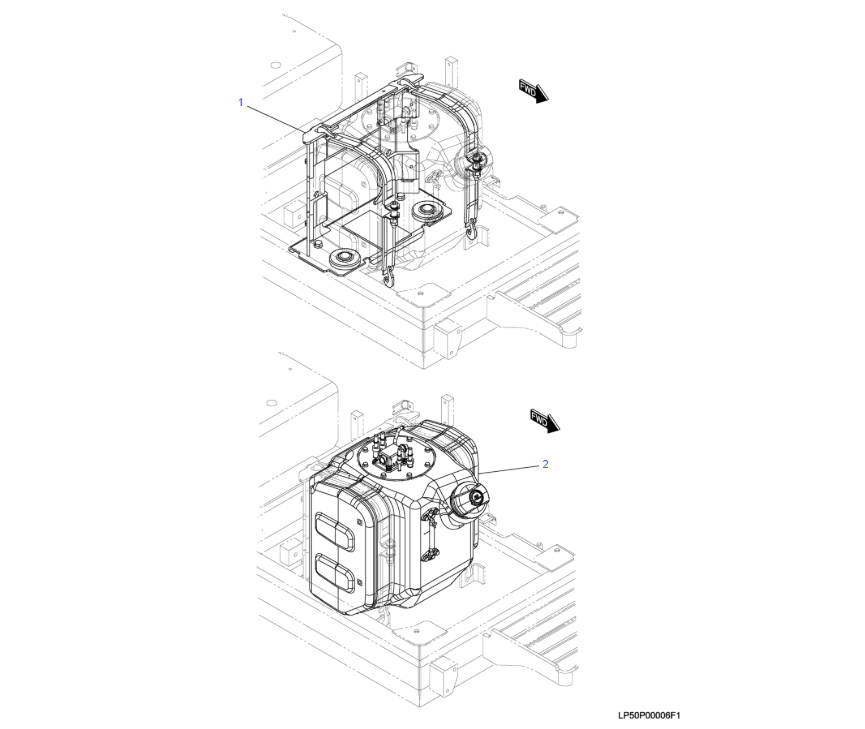

YM50P00001F1 LP50P00005F1 LP50P00006F1 YY50P00002F6 UREA TANK

YM50P00001F1 LP50P00005F1 LP50P00006F1 YY50P00002F6 UREA TANK
　 .
080-01_YM50P00002F1_KCM-EUR_D0003591575_1 1 YM50P00002F1 TANK INSTAL, UREA 1 P.080-01
077-04_YY50P00002F6_ANZ_X_D0003591578_1 2 YY50P00002F6 TANK ASSY, UREA 1 P.077-04 LP10030001–30013
077-05_YY50P00002F7_JP_X_D0003933053_1 2 YY50P00002F7 TANK ASSY, UREA 1 P.077-05 LP10030014-
YM50P00006F1 TANK INSTAL, UREA Not Service
　 .
080-01_YM50P00002F1_KCM-EUR_D0003591575_1 1 YM50P00002F1 TANK INSTAL, UREA 1 P.080-01
080-02_YY50P00002F8_ANZ_D0005573837_1 2 YY50P00002F8 TANK ASSY, UREA 1 P.080-02
LP50P00006F1 TANK INSTAL, UREA Not Service
　 .
081-01_LP50P00005F1_EUR_D0006215516_1 1 LP50P00005F1 TANK INSTAL, UREA 1 P.081-01
080-02_YY50P00002F8_ANZ_D0005573837_1 2 YY50P00002F8 TANK ASSY, UREA 1 P.080-02 LP10030520–30658
077-02_YY50P00002F9_JP_D0006309335_1 2 YY50P00002F9 TANK ASSY, UREA 1 P.077-02 LP10030659-
YY50P00002F6 LP50P00005F1 YY50P00003P1 UREA TANK KOBELCO SK125SR-5 SK130SR-5
　 1 LP50P01027P1 BRACKET 1
　 2 YY50P01018P1 BAND ASSY 2
　 3 YY50P01037P1 BAND ASSY 2
　 4 LC50P01107P1 CAPSCREW 2
　 5 LC50P01036P1 COLLAR 2
　 6 ZW16P10000 WASHER 6
　 7 ZN18C10008 NUT 2
　 8 YY50P01020P1 RUBBER 4
　 9 YY50P01021P1 RUBBER 2
　 10 YY50P01022P1 RUBBER 1
　 11 ZM73C10025 SEMS-BOLT 4

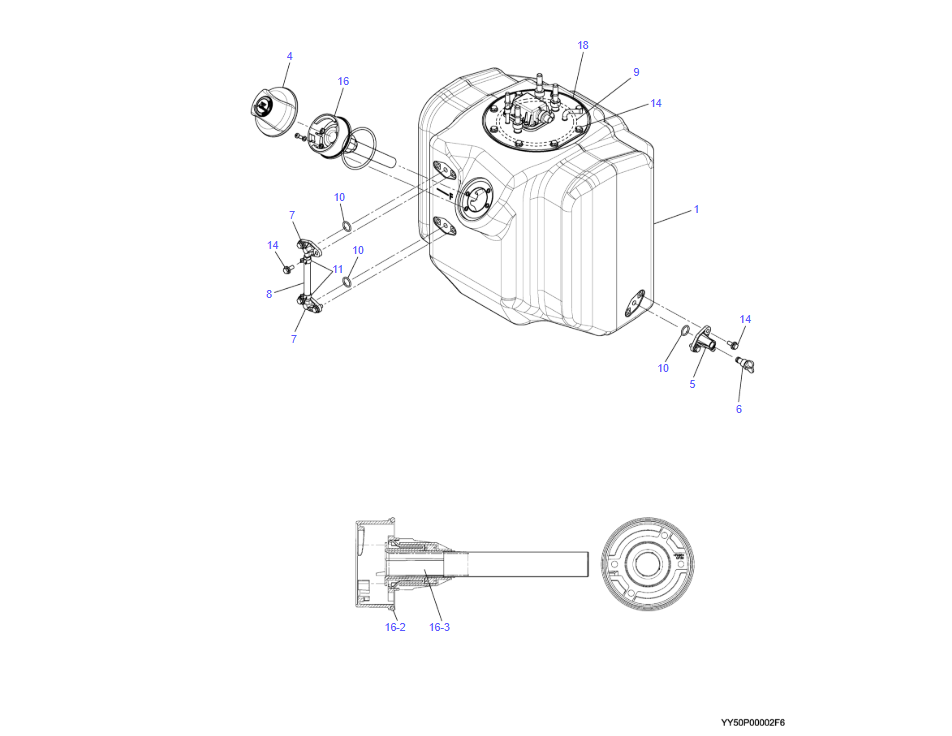

YY50P00002F6 TANK ASSY, UREA Not Service
　 .
　 1 YY50P00003P1 TANK, UREA 1
　 4 YY50P01030F1 CAP 1
　 5 YY50P01002P1 BOSS 1
　 6 YY50P01003F1 COCK, DRAIN 1
　 7 YN50P01027P1 FLANGE 2
　 8 YN50P01028P1 HOSE 1
　 9 YN50P01030P1 O-RING 1
　 10 YN50P01029P1 O-RING 3
　 11 PH05P01088D5 CLIP 2
　 14 ZM73C06016 SEMS-BOLT 14
　 16 YN50P01038F1 NECK, FILLER 1
　 16-2 YN50P01038S002 NECK, FILLER 1
　 16-3 YN50P01038S003 NECK, FILLER 1
　 18 YY50P01029F4 SENSOR ASSY, UREA 1
YY50P00002F8 TANK ASSY, UREA
　 .
　 1 YY50P00003P1 TANK, UREA 1
　 4 YY50P01030F1 CAP 1
　 5 YY50P01002P1 BOSS 1
　 6 YY50P01003F1 COCK, DRAIN 1
　 7 YN50P01027P1 FLANGE 2
　 8 YN50P01028P1 HOSE 1
　 9 YN50P01030P1 O-RING 1
　 10 YN50P01029P1 O-RING 3
　 11 PH05P01088D5 CLIP 2
　 14 ZM73C06016 SEMS-BOLT 14
　 19 YN50P01040F1 NECK, FILLER 1
　 19-2 YN50P01038S002 NECK, FILLER 1
　 19-3 YN50P01040S003 NECK, FILLER 1
　 20 YY50P01029F5 SENSOR ASSY, UREA 1
YY50P00002F9 TANK ASSY, UREA
　 1 YY50P00003P1 TANK, UREA 1
　 4 YY50P01030F1 CAP 1
　 5 YY50P01002P1 BOSS 1
　 6 YY50P01003F1 COCK, DRAIN 1
　 7 YN50P01027P1 FLANGE 2
　 8 YN50P01028P1 HOSE 1
　 9 YN50P01030P1 O-RING 1
　 10 YN50P01029P1 O-RING 3
　 11 PH05P01088D5 CLIP 2
　 14 ZM73C06016 SEMS-BOLT 14
　 19 YN50P01040F1 NECK, FILLER 1
　 19-2 YN50P01038S002 NECK, FILLER 1
　 19-3 YN50P01040S003 NECK, FILLER 1
　 21 YY50P01029F6 SENSOR ASSY, UREA 1

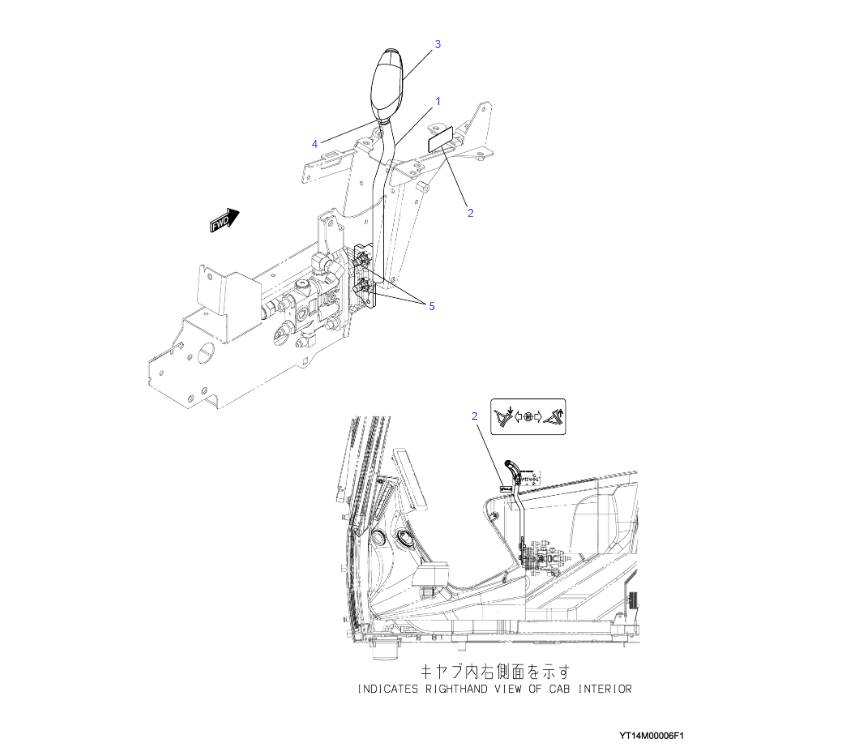

YT14M00006F1 YY14M01015F3 GRIP LEVER CONTROL ASSY KOBELCO SK130LC-11 SK140LC-11 SK125SR-5
　 .
　 1 YT14M01024P3 LEVER 1 LP10030001–30175
　 1 YT14M01024P4 LEVER 1 LP10030176–30508
　 1 YT14M01024P5 LEVER 1 LP10030509-
　 2 YY20T01616P1 LABEL 1
　 3 YY14M01015F3 GRIP ASSY 1
　 4 2420Z1232 NUT 1
　 5 ZM73C10020 SEMS-BOLT 2
YY50P00016F1 TANK INSTAL, UREA
　 1 YY50P01053P1 PLATE 1
　 2 YY50P01051P1 BRACKET 1
　 3 ZM73C10025 SEMS-BOLT 6
　 4 YY50P01020P1 RUBBER 2
　 5 YY50P01044P1 RUBBER 1
　 6 YY50P01045P1 RUBBER 1
　 7 YY50P01046P1 RUBBER 1
　 8 PW20P01115P1 RUBBER 2
　 9 PY20P01054P1 RUBBER 3
　 10 PY20P01051P1 PLATE 3
　 11 ZS18C10020 CAPSCREW 3
