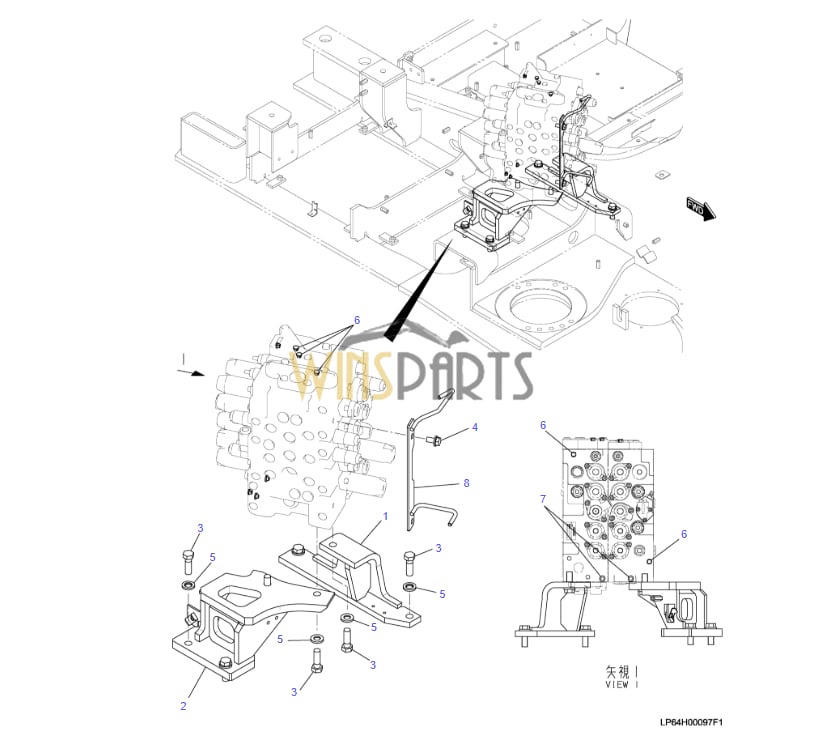

YY30V00097F1 LP64H00097F1 CONTROL VALVE ASSY KOBELCO SK125SR-5 SK130SR-5 SK130UR-5

YY30V00097F1 LP64H00097F1 CONTROL VALVE ASSY KOBELCO SK125SR-5 SK130SR-5 SK130UR-5
LP64H00073F1 VALVE INSTAL Not Service
YY64H00825F1 VALVE INSTAL Not Service
LP64H00105F1 VALVE INSTAL Not Service
100-01_LP64H00062F1_NA-01_X_D0003591568_1 1 LP64H00062F1 VALVE INSTAL 1 P.100-01
HC100-00_YY30V00097F1_NA_D0003591611_1 2 YY30V00097F1 VALVE ASSY, CONTROL 1
HC100-00_YY30V00097F1_NA_D0003588703_1 1 YY30V00097F1 VALVE ASSY, CONTROL 1 HC 100-00
100-01_LP64H00097F1_NA_D0005555018_1 1 LP64H00097F1 VALVE INSTAL 1 P.100-01
HC100-00_YY30V00097F1_NA_D0003591611_1 2 YY30V00097F1 VALVE ASSY, CONTROL 1 HC 100-00
　 2 YY64H01465P1 BRACKET 1
　 3 YY64H01450P1 BRACKET 1
　 4 YY64H01403P1 BRACKET 1
　 7 ZM73C08020 SEMS-BOLT 4
　 8 ZS18C16045 CAPSCREW 3
　 9 ZS18C20065 CAPSCREW 4
　 10 ZW16H16000 WASHER 3
　 11 ZW16H20000 WASHER 4
　 12 YN64H01391D1 CAP 4
　 14 YY64H01467P1 BRACKET 1
　 14 YY64H11012P1 BRACKET 1
LP64H00097F1 VALVE INSTAL Not Service
　 .
　 1 LP64H01104P1 BRACKET 1
　 2 LP64H01108P1 BRACKET 1
　 3 ZS18C16050 CAPSCREW 7
　 4 ZM73C12030 SEMS-BOLT 2
　 5 ZW16H16000 WASHER 7
　 6 YN64H01391D1 CAP 5
　 7 YN64H01393D1 CAP 2
　 8 LP64H01112P1 GUIDE 1

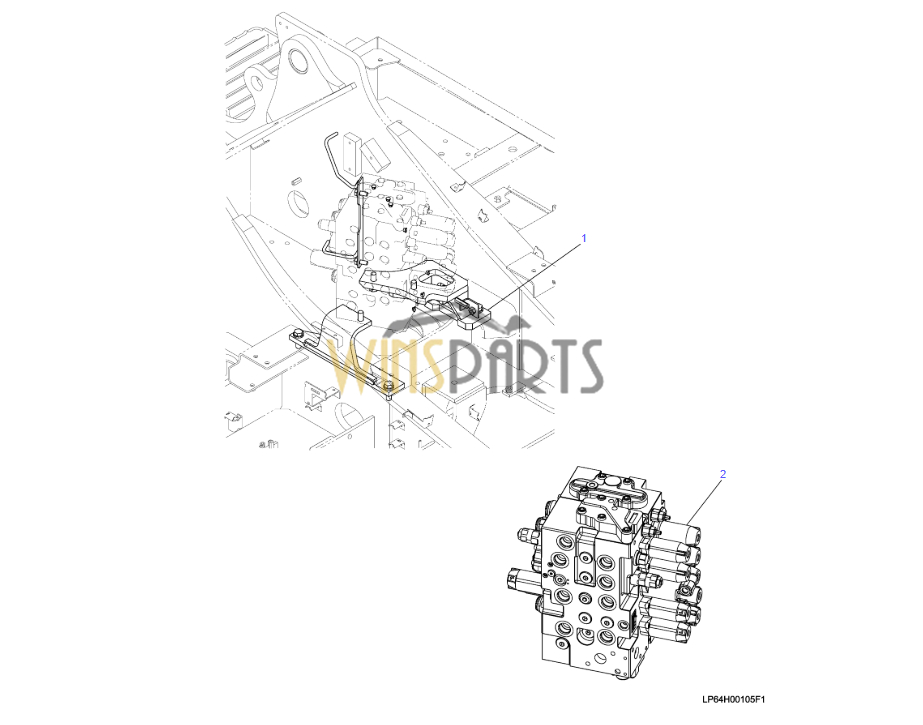

YY30V00097F1 CONTROL VALVE ASSY KOBELCO SK130LC-11 SK125SR-7 SK130SR-7 SK140SRD-7
　 .
　 1 NO P/No BODY 1
　 2 NO P/No BODY 1
　 3 YT30V00009S153 PLUG 1
　 4 YN30V00001S154 PLUG 2
　 5 YW30V00001S155 PLUG 2
　 6 YN30V00001S158 PLUG 1
　 7 NO P/No PLUG 1
　 8 YW30V00001S157 PLUG 1
　 9 NO P/No PLUG 2
　 10 ZD12G03000 O-RING 13
　 11 ZD12G02500 O-RING 6
　 12 ZD12P01800 O-RING 2
　 13 ZD12P01500 O-RING 4
　 14 ZD12P01000 O-RING 7
　 15 ZD12P00800 O-RING 1
　 16 ZD12P01100 O-RING 1
　 17 LV10V00006S059 PLUG 3
　 18 YY30V00058S084 COVER 4
　 19 YY30V00058S085 COVER 6
　 20 YY30V00058S086 COVER 1
　 21 YY30V00058S087 COVER 1
　 22 YM30V00008S205 COVER 7
　 23 YM30V00008S206 COVER 1
　 24 YM30V00008S207 COVER 1

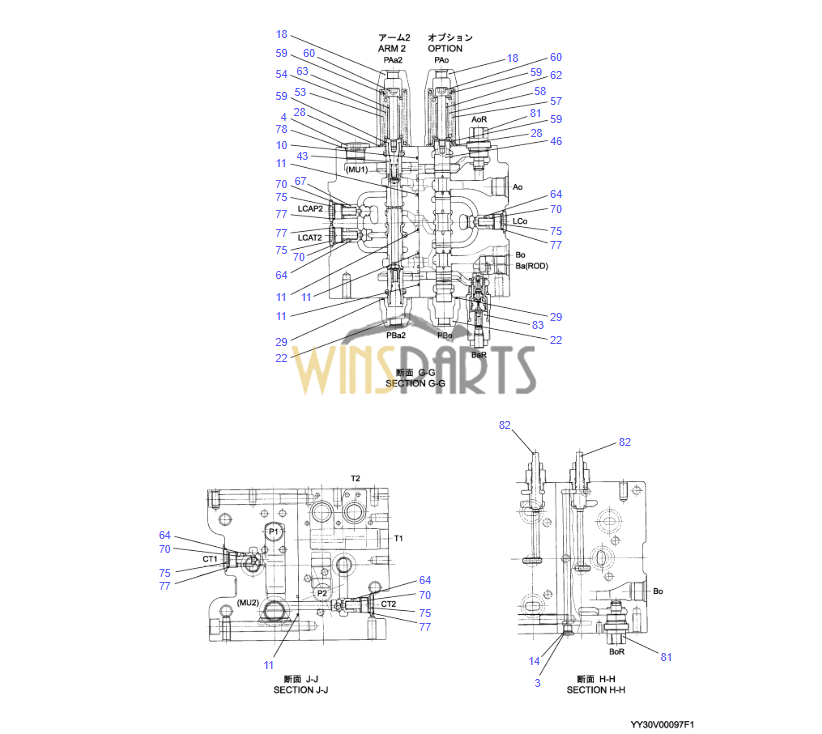

YN30V00119F1 YY30V00097F1 CONTROL VALVE ASSY KOBELCO SK125SR-5 SK130SR-5 SK130UR-5 SK135SRD-5
　 25 YN30V00119F1 VALVE, CONTROL 2
　 25-2 ZD12P00700 O-RING 4
　 25-6 ZS23C06035 CAPSCREW 3
　 26 YY30V00058S088 PLATE 1
　 27 YY30V00058S089 PLATE 1
　 28 YN30V00101S264 RING 12
　 29 ZD12G03500 O-RING 8
　 30 YN30V00101S266 RING 4
　 31 ZD12P03200 O-RING 2
　 32 ZS23C08025 CAPSCREW 40
　 33 ZS23C12025 CAPSCREW 4
　 34 ZS23C12035 CAPSCREW 4
　 35 ZS23C06030 CAPSCREW 5
　 36 NO P/No SPOOL 1 R1
　 37 NO P/No SPOOL 1 R2
　 38 NO P/No SPOOL 1 R3
　 39 NO P/No SPOOL 1 R4
　 40 NO P/No SPOOL 1 R5
　 41 NO P/No SPOOL 2 R6
　 42 NO P/No SPOOL 1 R7
　 43 NO P/No SPOOL 1 R8
　 44 NO P/No SPOOL 1 R9
　 45 NO P/No SPOOL 1 R10
　 46 NO P/No SPOOL 1 R11
　 47 YM30V00008S319 SPRING 1 R4
　 48 YM30V00008S320 SPRING 1 R4
　 49 YM30V00008S321 SPRING 4 R1, R2, R3, R5
　 50 YM30V00008S322 SPRING 1 R5
　 51 YY30V00097S323 SPRING 2 R2, R3
　 52 YY30V00097S324 SPRING 1 R1
　 53 YM30V00008S325 SPRING 6 R6, R7, R8, R9, R10
　 54 YM30V00008S326 SPRING 1 R8
　 55 YM30V00008S327 SPRING 2 R6
　 56 YM30V00008S328 SPRING 3 R7, R9, R10
　 57 YM30V00008S329 SPRING 1 R11
　 58 YM30V00008S330 SPRING 1 R11
　 59 2436U1265S332 SEAT, SPRING 24 R1, R2, R3, R4, R5, R6, R7, R8, R9, R10, R11
　 60 2436U1265S336 BOLT 12 R1, R2, R3, R4, R5, R6, R7, R8, R9, R10, R11
　 61 YM30V00008S336 STOPPER 6 R2, R3, R5, R7, R9, R10
　 62 YM30V00008S337 STOPPER 1 R11
　 63 YM30V00008S339 STOPPER 5 R1, R4, R6, R8
　 64 2436U1265S511 POPPET 11
　 65 YW30V00001S513 POPPET 2
　 66 YW30V00001S514 POPPET 2
　 67 YM30V00008S515 POPPET 1
　 68 YM30V00008S517 POPPET 1
　 69 YM30V00008S518 POPPET 1
　 70 2436U1265S521 SPRING 11
　 71 YN30V00101S522 SPRING 2
　 72 YW30V00001S524 SPRING 3
　 73 YY30V00058S527 SPRING 1
　 74 YY30V00058S528 SPRING 1
　 75 YN30V00021S552 PLUG 12
　 76 YW30V00001S556 PLUG 5
　 77 ZD12P02000 O-RING 17
　 78 ZD12P02400 O-RING 2

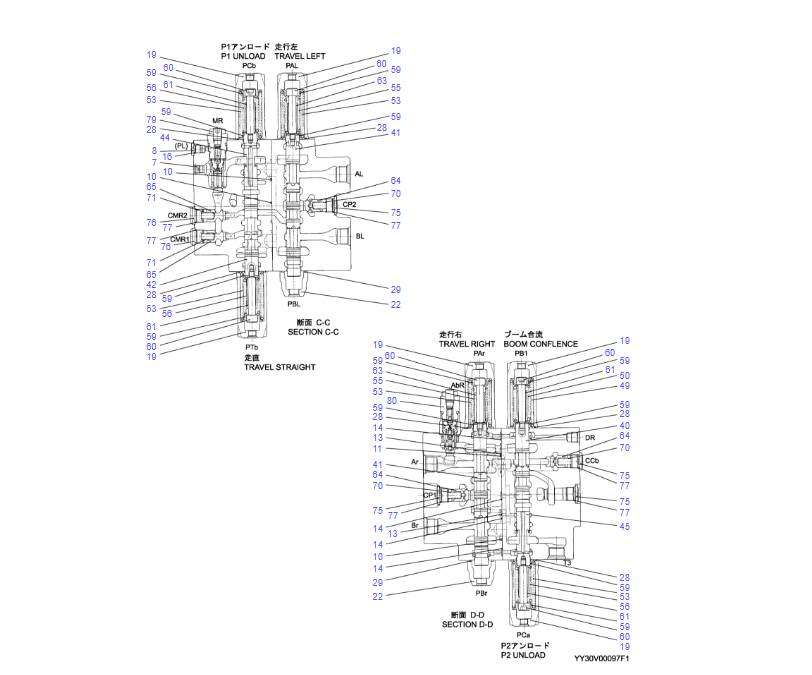

LP22V00001F1 YY30V00097F2 YY30V00097F1 RELIEF VALVE ASSY
　 79 LP22V00001F1 VALVE ASSY, RELIEF 1
　 79-121 YN22V00001S121 RING 1
　 79-122 YN22V00001S122 SPACER 1
　 79-163 ZD12P02500 O-RING 1
　 79-521 YN22V00001S521 SPRING 1
　 79-561 YN22V00001S561 O-RING 1
　 79-562 YN22V00001S562 RING, BACK UP 1
　 79-612 YN22V00002S612 SPRING 1
　 79-621 2436R750S512 SPRING 1
　 79-651 YN22V00002S651 SCREW 1
　 79-661 ZD12P00800 O-RING 1
　 79-671 YN22V00001S671 LOCK NUT 1
　 80 YN22V00002F1 VALVE ASSY, OVERLOAD 5
　 80-161 ZD12P02400 O-RING 1
　 80-162 ZD12P02240 O-RING 1
　 80-521 YN22V00001S521 SPRING 1
　 80-522 YN22V00002S522 SPRING 1
　 80-561 YN22V00001S561 O-RING 1
　 80-562 YN22V00001S562 RING, BACK UP 1
　 80-563 YN22V00002S563 O-RING 1
　 80-564 YN22V00002S564 RING, BACK UP 1
　 80-612 YN22V00002S612 SPRING 1
　 80-621 2436R750S512 SPRING 1
　 80-651 YN22V00002S651 SCREW 1
　 80-661 ZD12P00800 O-RING 1
　 80-671 YN22V00001S671 LOCK NUT 1
　 81 YN30V01062P1 PLUG ASSY 2
　 82 LB30V00015F1 VALVE, CONTROL 2
　 82-2 ZD12P01000 O-RING 1
　 82-4 ZD12P02000 O-RING 1
　 82-5 ZN11C12010 NUT 1
　 83 YN22V00029F1 VALVE ASSY, OVERLOAD 1
　 83-161 ZD12P02400 O-RING 1
　 84 ZS23C14130 CAPSCREW 9
　 85 NO P/No NAME PLATE 1
　 86 NO P/No PIN 2
　 .
　 YY30V00097R100 SPOOL KIT 1 RK1
　 . (36, 49, 52, 60, 63)X1
　 . (59)X2
　 .
　 YY30V00097R110 SPOOL KIT 1 RK2
　 . (37, 49, 51, 60, 61)X1
　 . (59)X2
　 .
　 YY30V00097R120 SPOOL KIT 1 RK3
　 . (38, 49, 51, 60, 61)X1
　 . (59)X2
　 .
　 YY30V00097R130 SPOOL KIT 1 RK4
　 . (39, 47, 48, 60, 63)X1
　 . (59)X2
　 .
　 YM30V00008R140 REPAIR KIT 1 RK5
　 . (40, 49, 50, 60, 61)X1
　 . (59)X2
　 .
　 YM30V00011R150 REPAIR KIT 1 RK6
　 . (41, 53, 55, 60, 63)X1
　 . (59)X2
　 .
　 YY30V00058R160 SPOOL KIT 1 RK7
　 . (42, 53, 56, 60, 61)X1
　 . (59)X2
　 .
　 YY30V00097R170 SPOOL KIT 1 RK8
　 . (43, 53, 54, 60, 63)X1
　 . (59)X2
　 .
　 YY30V00077R210 REPAIR KIT 1 RK9
　 . (44, 53, 56, 60, 61)X1
　 . (59)X2
　 .
　 YY30V00077R220 REPAIR KIT 1 RK10
　 . (45, 53, 56, 60, 61)X1
　 . (59)X2
　 .
　 YY30V00097R200 SPOOL KIT 1 RK11
　 . (46, 57, 58, 60, 62)X1
　 . (59)X2

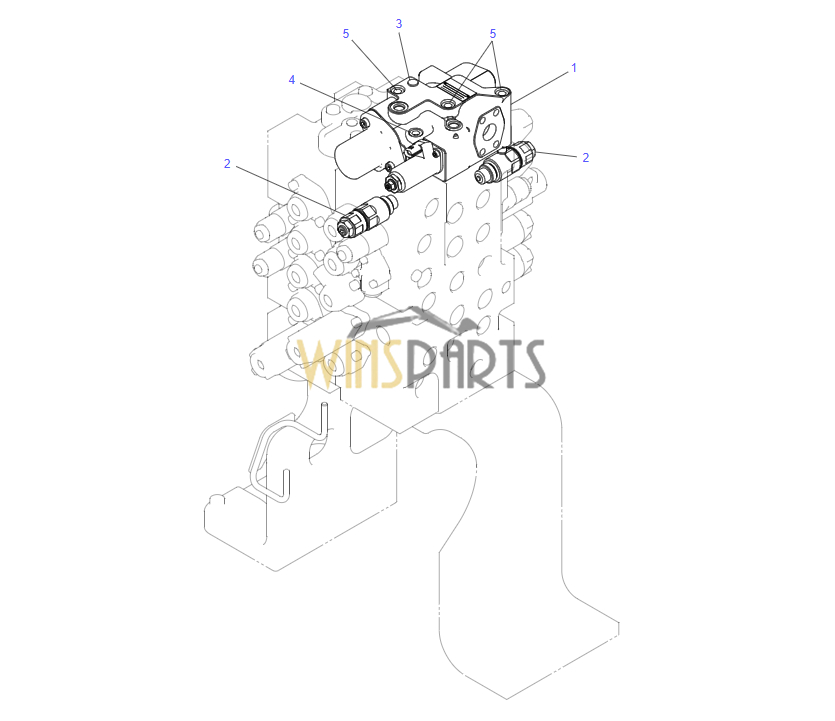

YN22V00002F1 YY64H00833F1 OVERLOAD VALVE ASSY KOBELCO SK140SRD-7 SK140SRLC-7 SK140LC-11 ED460BR-7
　 .
1 YY30V00107F1 VALVE, SELECTOR 1 HC 104-00
2 YN22V00002F1 VALVE ASSY, OVERLOAD 2 HC 101-00
　 3 YN64H01391D1 CAP 1
　 4 ZS28C12060 CAPSCREW 1
　 5 ZS28C12085 CAPSCREW 3
LP64H00136F1 VALVE INSTAL Not Service
　 . (NIBBLER & BREAKER)
　 .
HC104-00_YY30V00107F1_NA_D0003591603_1 1 YY30V00107F1 VALVE, SELECTOR 1 HC 104-00
HC100-00_YY22V00034F1_JP_D0005989557_1 2 YY22V00034F1 VALVE ASSY, RELIEF 2 HC 100-00
　 3 YN64H01391D1 CAP 1
　 4 YY64H01452P1 RUBBER 2
　 5 PY01P01043D5 CLIP 2
　 6 ZS28C12060 CAPSCREW 1
　 7 ZS28C12085 CAPSCREW 3
YY22V00034F1 RELIEF VALVE ASSY
　 2 ZD12P02400 O-RING 1
　 22 YY22V00034S802 CAP 1
YY64H00105F2 VALVE INSTAL
　 2 YY30V00059F2 VALVE, CONTROL 1 LP10030001–30009
HC100-00_YY30V00103F2_JP_D0003933054_1 2 YY30V00103F2 VALVE, CONTROL 1 HC 100-00 LP10030010-
　 3 ZS28C08080 CAPSCREW 4
　 4 ZS28C12025 CAPSCREW 4
YN22V00002F1 VALVE ASSY, OVERLOAD
　 161 ZD12P02400 O-RING 1
　 162 ZD12P02240 O-RING 1
　 521 YN22V00001S521 SPRING 1
　 522 YN22V00002S522 SPRING 1
　 561 YN22V00001S561 O-RING 1
　 562 YN22V00001S562 RING, BACK UP 1
　 563 YN22V00002S563 O-RING 1
　 564 YN22V00002S564 RING, BACK UP 1
　 612 YN22V00002S612 SPRING 1
　 621 2436R750S512 SPRING 1
　 651 YN22V00002S651 SCREW 1
　 661 ZD12P00800 O-RING 1
　 671 YN22V00001S671 LOCK NUT 1
YN64H00196F1 VALVE INSTAL
HC102-00_YN30V00108F1_KCMU_X_D0005523991_1 1 YN30V00108F1 VALVE ASSY, CONTROL 1 HC 102-00 LP10030001–30185
HC102-00_YN30V00172F1_HKCM_X_D0005555024_1 1 YN30V00172F1 VALVE ASSY, CONTROL 1 HC 102-00 LP10030186-
　 2 ZS28C08080 CAPSCREW 4 LP10030186-
　 3 ZS28C12025 CAPSCREW 4 LP10030186-

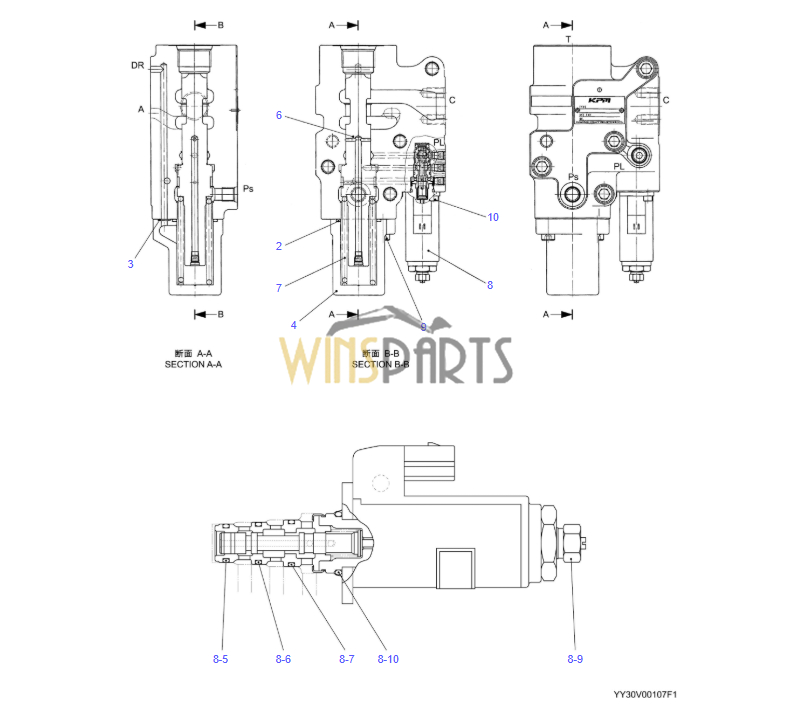

YY30V00107F1 YN35V00050F1 SELECTOR VALVE KOBELCO SK130SR-7 SK140SRLC-7 SK135SRLC-5
　 .
　 2 ZD12G04000 O-RING 1
　 3 ZD12P00900 O-RING 1
　 4 YB30V00018S201 COVER 1
　 6 YY30V00098S301 SPOOL 1
　 7 YY30V00098S321 SPRING 1
　 8 YN35V00050F1 VALVE, SOLENOID 1
　 8-5 YN35V00004S361 O-RING 1
　 8-6 YN35V00004S362 O-RING 1
　 8-7 YN35V00004S363 O-RING 1
　 8-9 YN35V00018S802 NUT 1
　 8-10 ZD12P02000 O-RING 1
　 9 ZS23C08025 CAPSCREW 2
　 10 YN35V00047S171 CAPSCREW 2

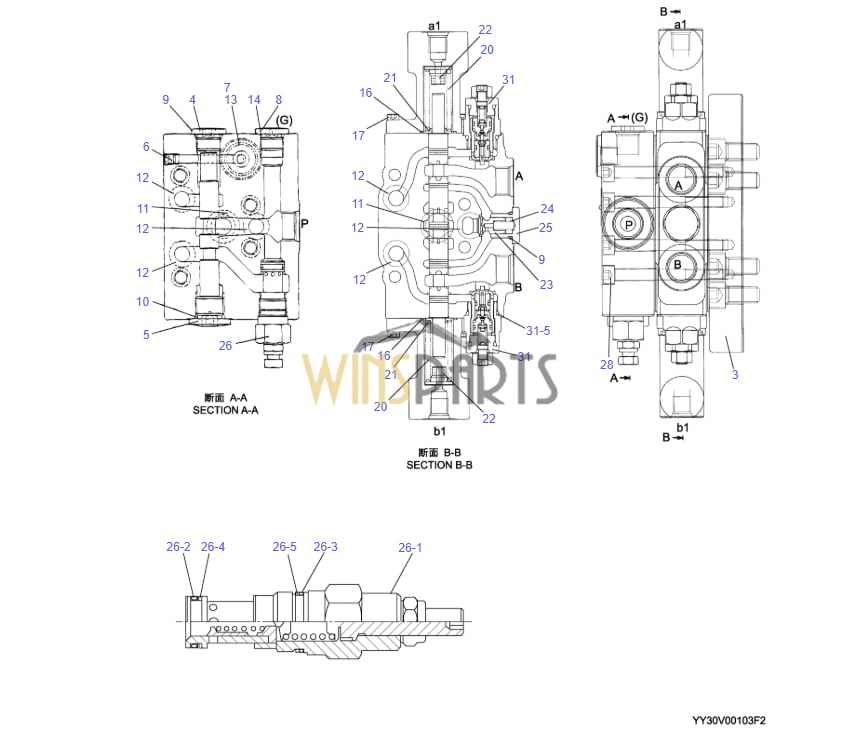

YY30V00103F2 YN22V00040F3 CONTROL VALVE RELIEF VALVE ASSY
　 3 YN30V00108S121 PLATE 1
　 4 2436U1832S651 PLUG 1
　 5 YW30V00001S155 PLUG 1
　 6 2441U722S490 PLUG 1
　 7 YW30V00001S157 PLUG 1
　 8 YN30V00001S156 PLUG 1
　 9 ZD12P01600 O-RING 2
　 10 ZD12P01800 O-RING 1
　 11 ZD12P02000 O-RING 2
　 12 ZD12P01500 O-RING 6
　 13 ZD12P01100 O-RING 1
　 14 ZD12P01400 O-RING 1
　 16 YN30V00108S261 O-RING 2
　 17 YN35V00017S171 CAPSCREW 8
　 20 EM30V00001S321 SPRING 2
　 21 YA30V00002S331 SEAT 2
　 22 YA30V00002S332 SEAT 2
　 23 YA30V00002S511 POPPET 1
　 24 YA30V00002S521 SPRING 1
　 25 YA30V00002S551 PLUG 1
　 26 YN22V00040F3 VALVE ASSY, RELIEF 1
　 26-1 NO P/No VALVE, RELIEF 1
　 26-2 PY22V00007S013 O-RING 1 R1
　 26-3 PY22V00007S012 O-RING 1 R1
　 26-4 PY22V00007S017 RING, BACK UP 1 R1
　 26-5 PY22V00007S016 RING, BACK UP 1 R1
　 28 ZS23C08080 CAPSCREW 4
　 31 YN22V00041F7 VALVE ASSY, RELIEF 2
　 31-5 ZD12P02000 O-RING 1
　 .
　 PY22V00007R100 REPAIR KIT 1 RK1
　 . (26-2, 26-3, 26-4, 26-5)X1
YY30V00102F2 YN22V00040F3 CONTROL VALVE ASSY KOBELCO SK125SR-5 SK130SR-5 SK130UR-5 SK135SRD-5
　 .
　 3 YN30V00108S121 PLATE 1
　 4 2436U1832S651 PLUG 1
　 5 YN30V00107S152 PLUG 1
　 6 2441U722S490 PLUG 1
　 7 ZD12P01600 O-RING 3
　 8 ZD12P01800 O-RING 1
　 9 ZD12P02000 O-RING 3
　 10 ZD12P01500 O-RING 9
　 12 YN30V00108S261 O-RING 4
　 13 YN35V00017S171 CAPSCREW 16
　 17 YN30V00107S321 SPRING 1
　 18 EM30V00001S321 SPRING 4
　 19 YA30V00002S331 SEAT 4
　 20 YA30V00002S332 SEAT 4
　 21 YA30V00002S511 POPPET 2
　 22 YA30V00002S521 SPRING 2
　 23 YA30V00002S551 PLUG 2
　 24 YN22V00040F3 VALVE ASSY, RELIEF 1
　 24-1 NO P/No VALVE, RELIEF 1
　 24-2 PY22V00007S013 O-RING 1 R1
　 24-3 PY22V00007S012 O-RING 1 R1
　 24-4 PY22V00007S017 RING, BACK UP 1 R1
　 24-5 PY22V00007S016 RING, BACK UP 1 R1
　 25 YN22V00041F1 VALVE ASSY, RELIEF 2
　 25-5 ZD12P02000 O-RING 1
　 27 YF30V00017S702 CAPSCREW 4
　 30 YN22V00041F7 VALVE ASSY, RELIEF 2
　 30-5 ZD12P02000 O-RING 1
　 .
　 PY22V00007R100 REPAIR KIT 1 RK1
　 . (24-2, 24-3, 24-4, 24-5)X1
