YY15V00039F1 LP32W00004F1 SWING MOTOR ASSY KOBELCO SK130LC-11 SK140LC-11 SK125SR-5

YY15V00039F1 LP32W00004F1 SWING MOTOR ASSY KOBELCO SK130LC-11 SK140LC-11 SK125SR-5
YY32W00013F1 MOTOR INSTAL, SWING
HC090-00_YY15V00039F1_EUR_D0003894312_1 1 YY15V00039F1 MOTOR ASSY, SWING 1 HC 090-00
　 2 YY32W01001D1 GAUGE, LEVEL 1
　 3 LC32W01071D3 TUBE 1
　 5 ZS13C20055 CAPSCREW 9
　 6 ZM73C08020 SEMS-BOLT 1 LP10030001–30014
　 6 ZM73C10020 SEMS-BOLT 1 LP10030015-
　 7 YN64H01391D1 CAP 2
　 8 ZH22Z04000 CONNECTOR 1
　 9 2444R1117D076 HOSE 1
　 10 ZG91S02000 NIPPLE, GREASE 1
　 11 PY01P01043D3 CLIP 2
　 12 YN13E01375P1 CLIP 2
　 13 ZC46X25011 CLIP 1

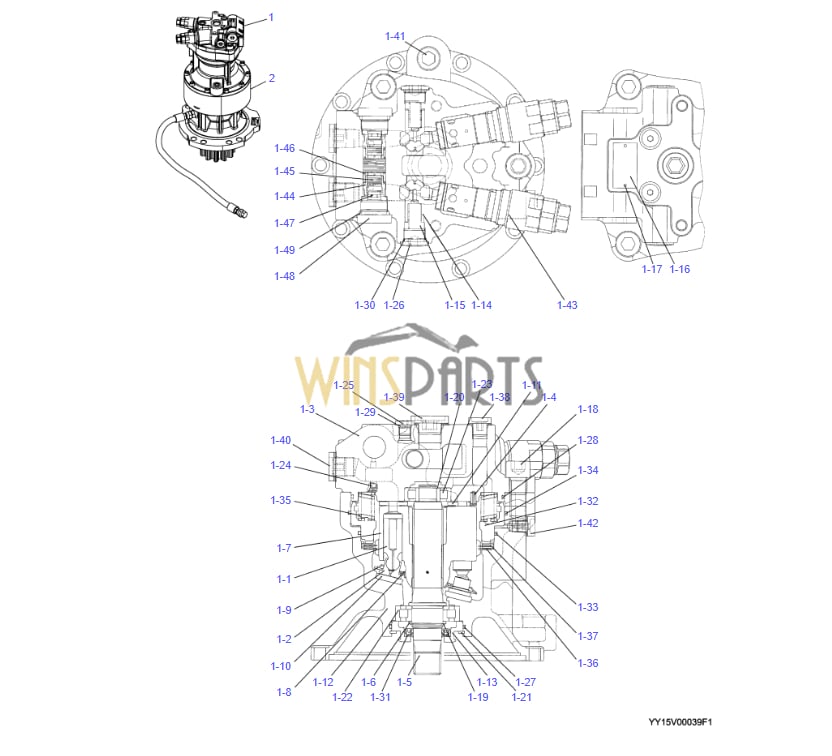

YY15V00039F1 YY15V00048F1 SWING MOTOR ASSY KOBELCO SK125SR-5 SK130SR-5 SK130UR-5 SK135SRD-5
　 .
　 1 YY15V00048F1 MOTOR ASSY, HYD 1
　 1-1 NO P/No PISTON 9 R1
　 1-2 NO P/No SHOE 9 R1
　 1-3 NO P/No BODY 1 R2
　 1-4 NO P/No PIN 2 R2
　 1-5 YY15V00048S101 SHAFT 1
　 1-6 2441U789S106 SPACER 1
　 1-7 YY15V00048S111 CYLINDER 1
　 1-8 YY15V00048S114 SPRING 1
　 1-9 YY15V00048S123 PLATE 1
　 1-10 YY15V00048S124 PLATE 1
　 1-11 YY15V00048S131 PLATE 1
　 1-12 YY15V00048S301 BODY 1
　 1-13 YY15V00019S304 COVER 1
　 1-14 YY15V00048S351 SPOOL 2
　 1-15 YY15V00048S355 SPRING 2
　 1-16 NO P/No NAME PLATE 1
　 1-17 2437U407S983 RIVET 2
　 1-18 ZS23C18045 CAPSCREW 3
　 1-19 ZR16X03500 RING, SNAP 1
　 1-20 2436U1318S836 CLIP 1
　 1-21 ZR26X08000 RING, SNAP 1
　 1-22 YY15V00048S443 BEARING, ROLLER 1
　 1-23 YY15V00048S444 BEARING, ROLLER 1
　 1-24 LV10V00006S059 PLUG 2
　 1-25 YW30V00001S157 PLUG 2
　 1-26 YM28V00001S205 PLUG 2
　 1-27 ZD12G08000 O-RING 1
　 1-28 YY15V00048S472 O-RING 1
　 1-29 ZD12P01100 O-RING 2
　 1-30 ZD12P02200 O-RING 2
　 1-31 YY15V00019S491 OIL SEAL 1
　 1-32 YY15V00048S702 PISTON 1
　 1-33 YY15V00048S706 O-RING 1
　 1-34 2441U934S707 O-RING 1
　 1-35 YN15V00025S712 SPRING 14
　 1-36 YY15V00048S742 PLATE 2
　 1-37 YY15V00048S743 PLATE 2
　 1-38 YN15V00035S984 PLUG 1
　 1-39 YN15V00035S985 PLUG 1
　 1-40 LC15V00022S984 PLUG 2
　 1-41 ZE82T12000 PLUG 1
　 1-42 YN15V00035S980 PLUG 1
　 1-43 YY22V00007F3 VALVE ASSY, RELIEF 2
　 1-43B ZD12G03000 O-RING 1
　 1-44 NO P/No SEAT 2 R3
　 1-45 NO P/No PISTON 1 R3
　 1-46 NO P/No SPRING 2 R3
　 1-47 NO P/No PLUG 2 R3
　 1-48 NO P/No PLUG 2 R3
　 1-49 ZD12P02800 O-RING 2 R3

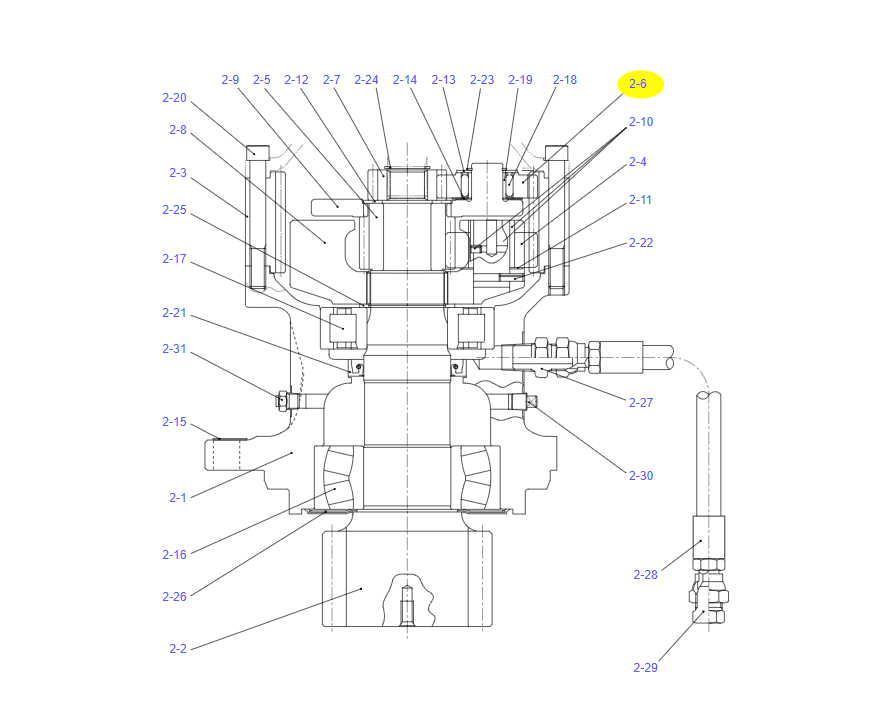

YY32W00015F1 SWING REDUCTION ASSY GEARBOX GEAR SUN KOBELCO SK130LC-11 SK125SR-7 SK130SR-7 SK140SRD-7
　 2 YY32W00015F1 REDUCTION ASSY,SWING 1
　 2-1 YY32W00015S102 BODY 1
　 2-2 YY32W00004S201 SHAFT 1
　 2-3 YX32W00002S202 GEAR, RING 1
　 2-4 YX32W00002S203 GEAR 4
　 2-5 YX32W00002S204 GEAR, SUN 1
　 2-6 YX32W00002S210 GEAR 3
　 2-7 YY32W00015S211 GEAR, SUN 1
　 2-8 YX32W00002S230 SPIDER 1
　 2-9 YY32W00015S231 GEAR 1
　 2-10 YX32W00002S282 PIN 4
　 2-11 YX32W00002S285 PLATE 4
　 2-12 YX32W00002S286 WASHER 1
　 2-13 YY32W00015S287 PLATE 3
　 2-14 YY32W00015S288 PLATE 3
　 2-16 YX32W00002S401 BEARING 1
　 2-17 YX32W00002S402 BEARING 1
　 2-18 YX32W00002S403 BEARING, NEEDLE 3
　 2-19 YY32W00015S405 RACE, INNER 3
　 2-20 ZS23C12100 CAPSCREW 10
　 2-21 YX32W00002S801 OIL SEAL 1
　 2-22 2453U276S287 PIN, SPRING 4
　 2-23 ZR16X02500 RING, SNAP 3
　 2-24 ZR16X03000 RING, SNAP 1
　 2-25 ZR16X06500 RING, SNAP 1
　 2-26 YX32W00002S915 SEAL 1
　 2-27 YX32W00002S920 ADAPTER 1
　 2-28 YY32W00004S921 HOSE 1
　 2-29 YX32W00002S922 PLUG 1
　 2-30 YY32W00015S923 PLUG 1
　 2-31 YX32W00002S925 BREATHER 1
　 .
　 YY15V00048R100 PISTON KIT 1 RK1
　 . (1-1, 1-2)X9
　 .
　 YY15V00048R200 CASE KIT 1 RK2
　 . (1-3)X1
　 . (1-4)X2
　 .
　 YY15V00048R300 VALVE KIT 1 RK3
　 . (1-45)X1
　 . (1-44, 1-46, 1-47, 1-48, 1-49)X2
