YT15V00022F1 PROPEL MOTOR ASSY KOBELCO SK75SR-7 SK75SR-7F SK85CS-7 SK85MSR-7

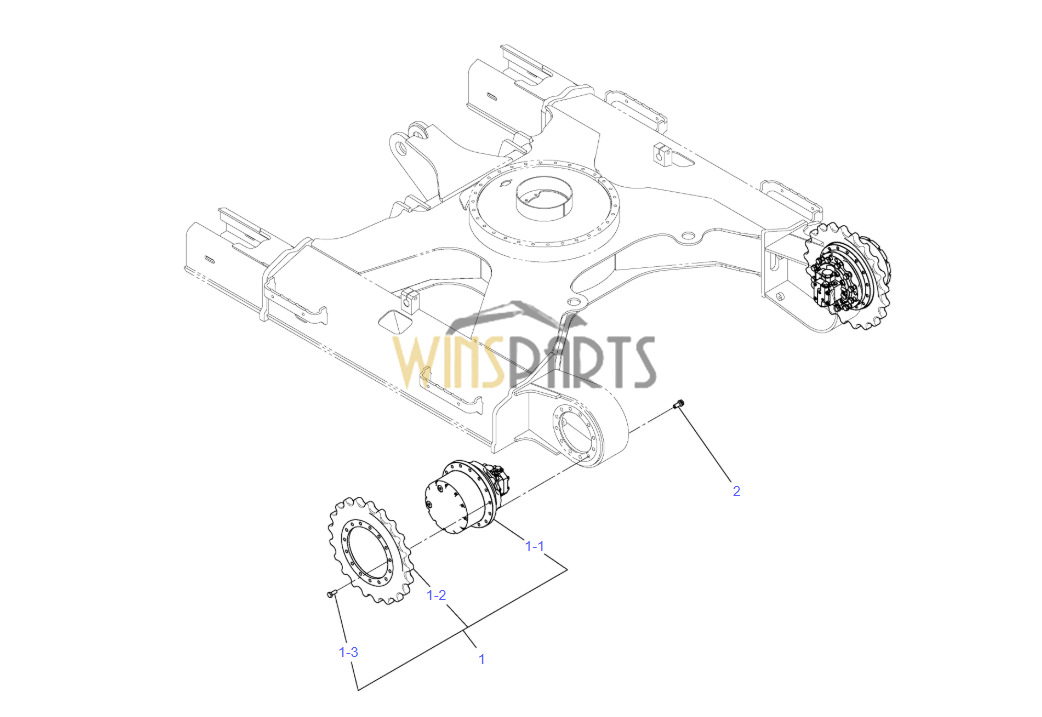

YT53D00010F1 YT53D00009F1 MOTOR INSTAL, PROPEL KOBELCO
　 .
　 1 YT53D00009F1 MOTOR ASSY, PROPEL 2 Not Service
HC545-00_YT15V00022F1_JP-01_D0003611971_1 1-1 YT15V00022F1 MOTOR ASSY, PROPEL 1 HC 545-00
　 1-2 YT51D01001P1 SPROCKET 1
　 1-3 ZS13C14035 CAPSCREW 15
　 2 YT53D01003P1 CAPSCREW 24

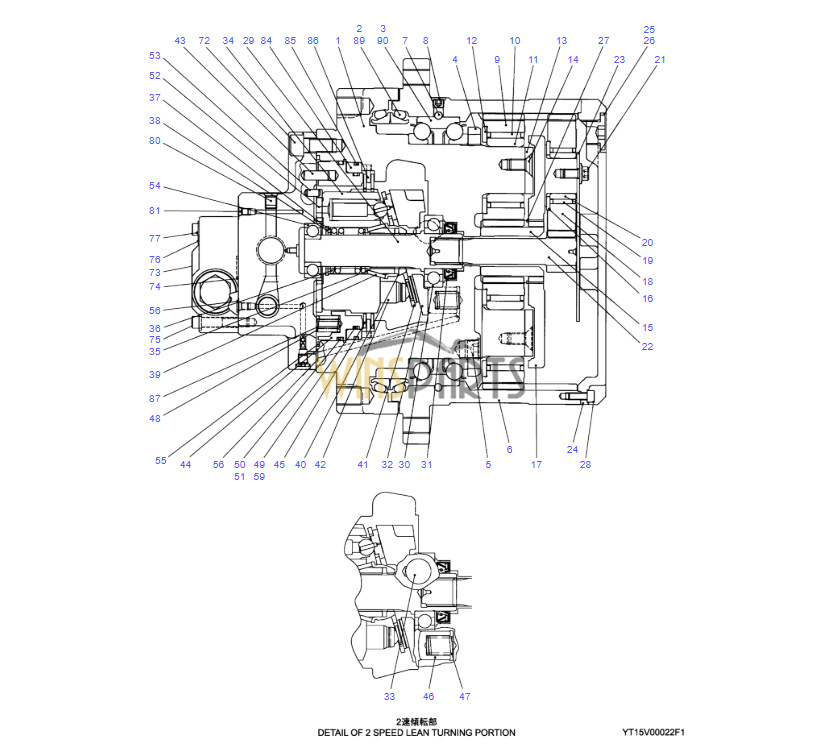

YT15V00022F1 PROPEL MOTOR ASSY KOBELCO SK75SR-7 SK75SR-7F SK85CS-7 SK85MSR-7 Excavator Spare Parts
　 .
　 1 NO P/No HOLDER FLANGE 1 R2
　 2 YT15V00021S002 SEAL, FLOATING 2 YT09-40001–40251
　 . YT09045001–47772
　 3 YT15V00021S003 BEARING 1 YT09-40001–40251
　 . YT09045001–47772
　 4 YT15V00021S004 RING 1
　 5 LP15V00006S005 PLUG 2
　 6 NO P/No HOUSING 1
　 7 2436U281S37 BALL 105
　 8 ZE82T02000 PLUG 2
　 9 YT15V00021S009 GEAR 4
　 10 YT15V00021S010 BEARING, NEEDLE 4
　 11 YT15V00021S011 RACE, INNER 4
　 12 YT15V00021S012 WASHER, THRUST 4
　 13 YT15V00021S013 PLATE 1
　 14 LQ15V00007S098 CAPSCREW 4
　 15 YT15V00021S015 GEAR, SUN 1
　 16 YT15V00021S016 WASHER, THRUST 3
　 17 YT15V00021S017 HOLDER 1
　 18 YT15V00021S018 GEAR 3
　 19 YT15V00021S019 BEARING, NEEDLE 3
　 20 YT15V00021S020 RACE, INNER 3
　 21 YT15V00021S021 BOLT 3
　 22 YT15V00021S022 GEAR 1
　 23 NO P/No PLATE, THRUST 1 R3
　 24 YT15V00021S024 COVER 1
　 25 YT15V00021S025 PLUG 2
　 26 ZD12P01800 O-RING 2
　 27 YT15V00021S027 RING 1
　 28 ZS28C06016 CAPSCREW 12
　 29 YT15V00021S029 SHAFT 1
　 30 YT15V00021S030 BEARING, BALL 1
　 31 YT15V00021S031 OIL SEAL 1 R1
　 32 YT15V00021S032 PLATE 1
　 33 YT15V00021S033 BALL 2
　 34 NO P/No BLOCK, CYLINDER 1 R4
　 35 NO P/No COLLAR 1 R4
　 36 NO P/No SPRING 1 R4
　 37 NO P/No COLLAR 1 R4
　 38 NO P/No RING, SNAP 1 R4
　 39 NO P/No PIN 3 R4
　 40 NO P/No HOLDER, RETAINER 1 R4
　 41 NO P/No PLATE, RETAINER 1 R4
　 42 NO P/No PISTON 1 R4
　 43 2441U942S70 PIN 4
　 44 YT15V00021S044 PISTON 1
　 45 YT15V00021S045 PLATE 2
　 46 NO P/No PISTON 2 R2
　 47 YT15V00021S047 SPRING 2
　 48 YT15V00021S048 SPRING 10
　 49 ZD12G13000 O-RING 1 R1
　 50 YT15V00021S050 RING, BACK UP 1 R1
　 51 YT15V00021S051 O-RING 1 R1
　 52 YT15V00021S052 PLATE, VALVE 1
　 53 YT15V00021S053 PIN 1
　 54 YT15V00021S054 BEARING, BALL 1
　 55 PX15V00005S027 O-RING 1 R1
　 56 ZD12P00700 O-RING 7 R1
　 57 NO P/No PLATE, BASE 1 R5
　 58 NO P/No SPOOL ASSY 1 R5
　 59 YT15V00021S059 RING, BACK UP 1 R1
　 60 YT15V00021S060 SEAT, SPRING 2
　 61 YT15V00021S061 SPRING 2
　 62 YT15V00021S062 CAP 2
　 63 2436U388S18 O-RING 2 R1
　 64 NO P/No ORIFICE 2 R5
　 65 NO P/No SPOOL 1 R5
　 66 YT15V00022S066 SPRING 1
　 67 2441U802S58 PLUG 2
　 68 ZD12P01400 O-RING 4 R1
　 69 YT15V00021S069 PLUG ASSY 3 R5
　 70 YT15V00021S070 PLUG 1
　 71 NO P/No ORIFICE 4 R5
　 72 2441U910S204 BOLT, SOCKET 8
　 73 YT22V00028F1 VALVE ASSY, RELIEF 1
　 74 ZD12P01600 O-RING 2 R1
　 75 2441U942S88 BOLT, SOCKET 4
　 76 NO P/No NAME PLATE 1
　 77 NO P/No SCREW, DRIVE 2
　 78 NO P/No PLUG, SHIPPING 2
　 79 NO P/No PLUG, SHIPPING 1
　 80 NO P/No PLUG 1 R5
　 81 NO P/No PLUG 3 R5
　 82 YT15V00022S082 PLUG 1
　 83 YT15V00022S083 SEAT, SPRING 1 R1
　 84 YT15V00021S084 COLLAR 1
　 85 ZD12G14500 O-RING 1
　 86 YT15V00021S086 PLATE 1
　 87 YT15V00021S087 SPRING 4
　 88 NO P/No ORIFICE 1 R5
　 89 NO P/No SEAL, FLOATING 2 R6 YT09047773-
　 90 YT15V00021S088 BEARING 1 YT09047773-
　 .
　 YT15V00021R100 REPAIR KIT 1 RK1
　 . (31, 49, 50, 51, 55, 59, 83)X1
　 . (63, 74)X2
　 . (68)X4
　 . (56)X7
　 .
　 YT15V00021R200 REPAIR KIT 1 RK2
　 . (1)X1
　 . (46)X2
　 .
　 YT15V00021R300 REPAIR KIT 1 RK3
　 . (23)X1
　 .
　 YT15V00022R400 ROTARY KIT 1 RK4
　 . (34, 35, 36, 37, 38, 40, 41)X1
　 . (39)X3
　 . (42)X9
　 .
　 YT15V00022R500 PLATE KIT 1 RK5
　 . (57, 58, 65, 80, 88)X1
　 . (64)X2
　 . (69, 81)X3
　 . (71)X4
　 .
　 YT15V00021R600 SEAL KIT 1 RK6 YT09047773-
　 . (89)X2
