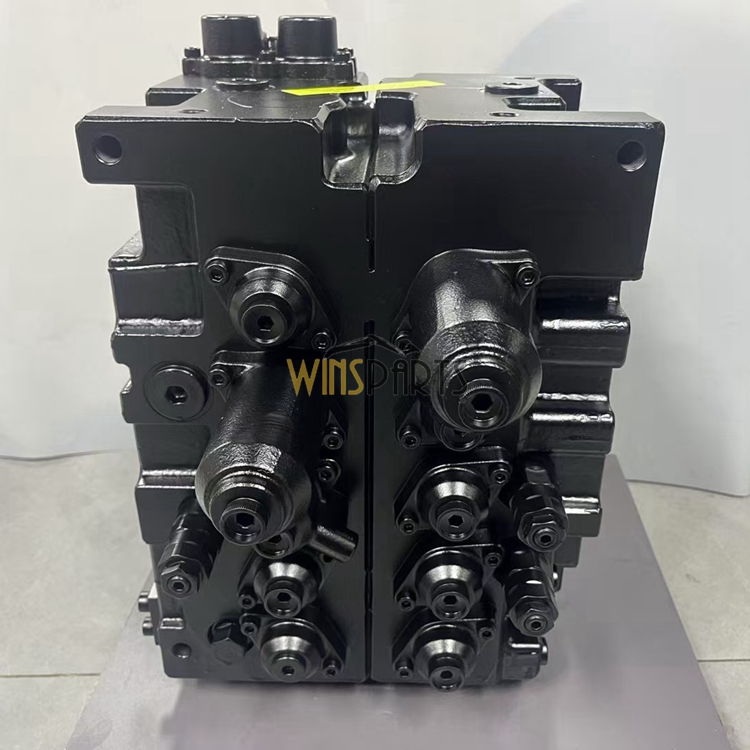

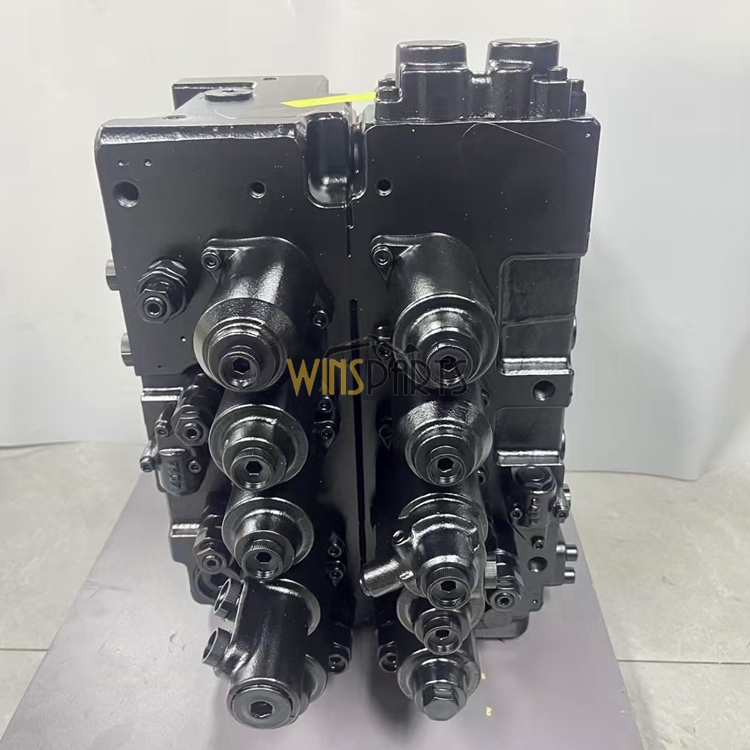

YN64H00229F1 YN30V00101F6 CONTROL VALVE ASSY Kobelco SK210-8 SK210LC-8

YN64H00229F1 YN30V00101F6 CONTROL VALVE ASSY Kobelco SK210-8 SK210LC-8
　 .
　 1 YN30V00101F6 VALVE ASSY, CONTROL 1
　 1-1 NO P/No BODY 1
　 1-2 NO P/No BODY 1
　 1-3 YN30V00001S154 PLUG 3
　 1-5 NO P/No PLUG 1
　 1-6 NO P/No PLUG 5
　 1-7 ZD12P03800 O-RING 7
　 1-8 ZD12G03000 O-RING 15
　 1-9 ZD12P01500 O-RING 11
　 1-10 ZD12P02400 O-RING 19
　 1-12 YN30V00101S201 COVER 5
　 1-14 YN30V00101S203 COVER 1
　 1-15 YN30V00101S204 COVER 1
　 1-16 YN30V00001S205 COVER 6
　 1-17 YN30V00101S206 COVER 1
　 1-19 YN30V00101S209 COVER 1
　 1-20 YN30V00119F1 VALVE, CONTROL 2
　 1-20B ZD12P00700 O-RING 4
　 1-20F ZS23C06035 CAPSCREW 3
　 1-23 YN30V00101S216 PISTON 1
　 1-24 ZD12G05000 O-RING 12
　 1-27 ZS23C08025 CAPSCREW 40
　 1-28 ZS23C12025 CAPSCREW 4
　 1-29 ZS23C12035 CAPSCREW 4
　 1-30 ZS23C08035 CAPSCREW 5
　 1-32 YN30V00116S302 SPOOL 1
　 1-33 YN30V00101S303 SPOOL 1
　 1-35 YN30V00101S305 SPOOL 1
　 1-36 YN30V00101S306 SPOOL 2
　 1-37 YN30V00101S307 SPOOL 1
　 1-39 YN30V00101S309 SPOOL 1
　 1-40 YN30V00101S310 SPOOL 1
　 1-41 YN30V00101S311 SPOOL 1
　 1-42 YN30V00079S321 SPRING 5
　 1-43 YN30V00079S322 SPRING 4
　 1-44 2436U1165S371 SPRING 3
　 1-45 2436U1165S372 SPRING 3
　 1-46 YN30V00079S323 SPRING 1
　 1-47 YN30V00101S326 SPRING 1
　 1-48 YN30V00101S327 SPRING 3
　 1-49 YN30V00101S328 SPRING 1
　 1-50 YN30V00101S329 SPRING 3
　 1-51 2436U1443S332 SEAT, SPRING 24
　 1-52 2436U1165S336 BOLT 12
　 1-53 2436U1165S335 STOPPER 10
　 1-54 YN30V00001S339 STOPPER 1
　 1-55 YN30V00101S340 STOPPER 1
　 1-56 YN30V00101S341 POPPET 11
　 1-57 YW30V00001S513 POPPET 2
　 1-58 YN30V00101S514 POPPET 2
　 1-59 2436U1231S513 POPPET 1
　 1-60 YN30V00101S517 POPPET 1
　 1-61 YN30V00101S518 POPPET 1
　 1-62 2436U1165S521 SPRING 11
　 1-63 YN30V00101S522 SPRING 2
　 1-64 YN30V00089S523 SPRING 1
　 1-65 YN30V00001S524 SPRING 2
　 1-66 YN30V00101S527 SPRING 1
　 1-67 YN30V00101S528 SPRING 1
　 1-68 YN30V00001S551 PLUG 13
　 1-69 YW30V00001S556 PLUG 2
　 1-70 YN30V00001S556 PLUG 3
　 1-71 ZD12P02000 O-RING 2
　 1-72 YN22V00001F8 VALVE ASSY, RELIEF 1
　 1-72Z121 YN22V00001S121 RING 1
　 1-72Z122 YN22V00001S122 SPACER 1
　 1-72Z163 ZD12P02500 O-RING 1
　 1-72Z521 YN22V00001S521 SPRING 1
　 1-72Z561 YN22V00001S561 O-RING 1
　 1-72Z562 YN22V00001S562 RING, BACK UP 1
　 1-72Z613 YN22V00001S613 STOPPER 1
　 1-72Z621 2436R750S512 SPRING 1
　 1-72Z652 YN22V00001S652 PLUG 1
　 1-72Z661 ZD12P00800 O-RING 1
　 1-72Z663 ZD12P01400 O-RING 1
　 1-72Z664 ZD12P01600 O-RING 1
　 1-72Z671 YN22V00001S671 LOCK NUT 1
　 1-72Z673 2436U1281S612 NUT, LOCK 1
　 1-73 YN22V00002F1 VALVE ASSY, OVERLOAD 2
　 1-73Z161 ZD12P02400 O-RING 1
　 1-73Z162 ZD12P02240 O-RING 1
　 1-73Z521 YN22V00001S521 SPRING 1
　 1-73Z522 YN22V00002S522 SPRING 1
　 1-73Z561 YN22V00001S561 O-RING 1
　 1-73Z562 YN22V00001S562 RING, BACK UP 1
　 1-73Z563 YN22V00002S563 O-RING 1
　 1-73Z564 YN22V00002S564 RING, BACK UP 1
　 1-73Z612 YN22V00002S612 SPRING 1
　 1-73Z621 2436R750S512 SPRING 1
　 1-73Z651 YN22V00002S651 SCREW 1
　 1-73Z661 ZD12P00800 O-RING 1
　 1-73Z671 YN22V00001S671 LOCK NUT 1
　 1-74 YN22V00002F9 VALVE ASSY, OVERLOAD 3
　 1-74Z161 ZD12P02400 O-RING 1
　 1-74Z162 ZD12P02240 O-RING 1
　 1-74Z521 YN22V00001S521 SPRING 1
　 1-74Z522 YN22V00002S522 SPRING 1
　 1-74Z561 YN22V00001S561 O-RING 1
　 1-74Z562 YN22V00001S562 RING, BACK UP 1
　 1-74Z563 YN22V00002S563 O-RING 1
　 1-74Z564 YN22V00002S564 RING, BACK UP 1
　 1-74Z612 YN22V00002S612 SPRING 1
　 1-74Z621 2436R750S512 SPRING 1
　 1-74Z651 YN22V00002S651 SCREW 1
　 1-74Z661 ZD12P00800 O-RING 1
　 1-74Z671 YN22V00001S671 LOCK NUT 1
　 1-75 YN30V01062P1 PLUG ASSY 2
　 1-76 YN22V00029F1 VALVE ASSY, OVERLOAD 1
　 1-76Z161 ZD12P02400 O-RING 1
　 1-81 NO P/No PIN 2
　 1-82 YN30V00120F2 VALVE, CONTROL 2
　 1-82A YN30V00120S101 PLUG 1
　 1-82B ZD12P02000 O-RING 1
　 1-82C YN30V00120S201 POPPET 1
　 1-82D YN30V00120S202 SPRING 1
　 1-82E YN30V00120S301 POPPET 1
　 1-82F YN30V00120S302 SPRING 1
　 1-82G YN30V00120S401 PLUG 1
　 1-82H NO P/No PLUG 1
　 1-82J ZD12P01800 O-RING 1
　 1-83 YN30V00101S010 SPOOL 1
　 1-84 YF30V00011S202 COVER 4
　 1-85 YF30V00011S212 PLATE 1
　 1-86 YF30V00011S213 PLATE 1
　 1-87 YF30V00011S304 SPOOL 1
　 1-88 LC30V00036S973 CAPSCREW 8
　 1-89 LC30V00036S974 CAPSCREW 2
　 1-90 LC30V00034S979 COVER 1
　 1-91 YN30V00101S091 SPOOL 1
　 1-92 LC30V00034S981 PLUG 1
　 1-93 ZD12P00800 O-RING 1
　 1-94 YN30V00101S094 COVER 1
　 1-95 YN30V00101S264 RING 10
　 1-96 YN30V00101S266 RING 4
　 1-97 NO P/No NAME PLATE 1
　 2 YN64H01261P1 BRACKET 1
　 3 YN64H01316P1 BRACKET 1
　 4 ZS18C16045 CAPSCREW 7
　 5 ZW16H16000 WASHER 7
　 6 YN64H01392D1 CAP 8
　 7 YN64H01393D1 CAP 2
　 8 YN64H01391D1 CAP 3
　 .
　 YN30V00120R100 REPAIR KIT 1
　 (1-82E, 1-82H, 1-82J)X1
　 .
　 YN30V00116R110 REPAIR KIT 1
　 (1-32, 1-42, 1-43, 1-52, 1-53)X1
　 (1-51)X2
　 .
　 YN30V00101R120 REPAIR KIT 1
　 (1-33, 1-42, 1-43, 1-52, 1-53)X1
　 (1-51)X2
　 .
　 YN30V00101R140 REPAIR KIT 1
　 (1-35, 1-46, 1-47, 1-52, 1-54)X1
　 (1-51)X2
　 .
　 YN30V00101R150 REPAIR KIT 1
　 (1-36, 1-44, 1-45, 1-52, 1-53)X1
　 (1-51)X2
　 .
　 YN30V00101R170 REPAIR KIT 1
　 (1-37, 1-48, 1-50, 1-52, 1-53)X1
　 (1-51)X2
　 .
　 YN30V00101R190 REPAIR KIT 1
　 (1-39, 1-48, 1-50, 1-52, 1-53)X1
　 (1-51)X2
　 .
　 YN30V00101R200 REPAIR KIT 1
　 (1-40, 1-48, 1-50, 1-52, 1-53)X1
　 (1-51)X2
　 .
　 YN30V00101R210 REPAIR KIT 1
　 (1-41, 1-44, 1-45, 1-52, 1-53)X1
　 (1-51)X2
　 .
　 YN30V00101R220 REPAIR KIT 1
　 (1-42, 1-43, 1-52, 1-53, 1-83)X1
　 (1-51)X2
　 .
　 YF30V00011R210 REPAIR KIT 1
　 (1-42, 1-43, 1-52, 1-53, 1-87)X1
　 (1-51)X2
　 .
　 YN30V00101R230 REPAIR KIT 1
　 (1-42, 1-49, 1-52, 1-55, 1-91)X1
　 (1-51)X2
YN64H00190F1 YN30V00104F1 VALVE, SELECTOR Kobelco SK210-8 SK210LC-8
　 .
　 1 YN30V00104F1 VALVE, SELECTOR 1
　 1-2 ZD12G05500 O-RING 1
　 1-3 ZD12P00900 O-RING 1
　 1-4 YN30V00104S201 COVER 1
　 1-6 YN30V00104S301 SPOOL 1
　 1-7 YN30V00104S321 SPRING 1
　 1-8 YN35V00050F1 VALVE, SOLENOID 1
　 1-8E YN35V00004S361 O-RING 1
　 1-8F YN35V00004S362 O-RING 1
　 1-8G YN35V00004S363 O-RING 1
　 1-8J YN35V00018S802 NUT 1
　 1-8K ZD12P02000 O-RING 1
　 1-9 ZS23C10025 CAPSCREW 2
　 1-10 YX35V00002S171 CAPSCREW 2
　 1-11 ZS23C12105 CAPSCREW 3
　 1-12 ZS23C12080 CAPSCREW 1
　 2 YN22V00002F1 VALVE ASSY, OVERLOAD 2
　 2-161 ZD12P02400 O-RING 1
　 2-162 ZD12P02240 O-RING 1
　 2-521 YN22V00001S521 SPRING 1
　 2-522 YN22V00002S522 SPRING 1
　 2-561 YN22V00001S561 O-RING 1
　 2-562 YN22V00001S562 RING, BACK UP 1
　 2-563 YN22V00002S563 O-RING 1
　 2-564 YN22V00002S564 RING, BACK UP 1
　 2-612 YN22V00002S612 SPRING 1
　 2-621 2436R750S512 SPRING 1
　 2-651 YN22V00002S651 SCREW 1
　 2-661 ZD12P00800 O-RING 1
　 2-671 YN22V00001S671 LOCK NUT 1
　 3 YN64H01392D1 CAP 1
