YN52D00094F1 YN52D00104F1 YN52D00099F1 CRAWLER IDLER ASSY KOBELCO SK200XDL-10 SK210LC-10

YN52D00094F1 YN52D00104F1 YN52D00099F1 CRAWLER IDLER ASSY KOBELCO SK200XDL-10 SK210LC-10
　 1 YN52D00104F1 IDLER ASSY, CRAWLER 2
　 1-1 YN52D00099F1 IDLER ASSY 1
　 1-1A YN52D01006P1 IDLER 1
　 1-1B 2405P482 BUSHING 2
　 1-1C YN52D01054P1 COLLAR 2
　 1-1D 2445R442F1 SEAL, FLOATING 2
　 1-1Da 2445R442S1 SEAL 2
　 1-1Db 2445R442S2 O-RING 2
　 1-1E YN52D01008P1 PIN 2
　 1-1F YN52D01001P1 SHAFT 1
　 1-1G ZD11G07000 O-RING 2
　 1-1H PV52D01007P1 PLUG 2
　 1-2 YN54D00033F1 IDLER ADJUST ASSY 1
　 1-2A YN70V00006P2 CYLINDER, GREASE 1
　 1-2B YN54D01069P1 BRACKET 1
　 1-2C YN54D01038P1 NUT 1
　 1-2D ZP26D08080 SPRING PIN 1
　 1-2E YN54D01072P1 SPRING 1
　 1-2F YN01V01121P1 PISTON 1
　 1-2G YN54D01042P1 COLLAR 1
　 1-2H ZD12G08000 O-RING 1
　 1-2J 2418U130D35 U-PACKING 1
　 1-2K LQ54D01037P1 PIN 2
　 1-3 ZS13C16045 CAPSCREW 2
　 1-4 2444P803 NIPPLE 1

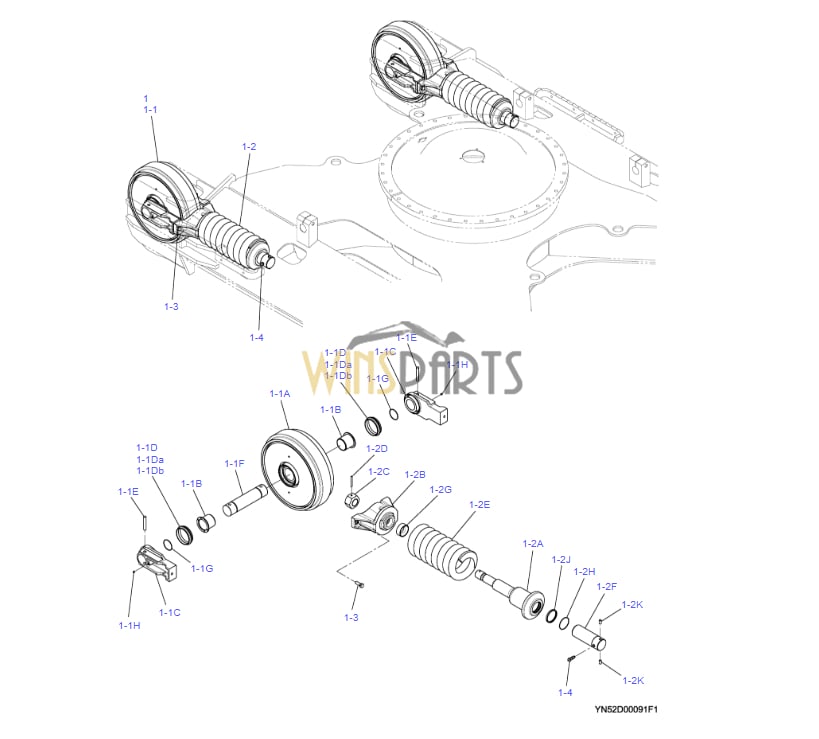

YN52D00091F1 YN52D00102F1 LQ52D00062F1 IDLER ASSY, CRAWLER KOBELCO SK200XDL-10 SK210-10
　 1 YN52D00102F1 IDLER ASSY, CRAWLER 2
　 1-1 LQ52D00062F1 IDLER ASSY 1
　 1-1A LQ52D00045P1 IDLER
YN52D00116F1 YN52D00117F1 YN52D00118F1 IDLER ASSY, CRAWLER
　 .
　 1 YN52D00117F1 IDLER ASSY, CRAWLER 2
　 1-1 YN52D00118F1 IDLER ASSY 1
　 1-1A YN52D00119P1 IDLER 1
LQ64D00066F1 LQ64D00063F1 ROLLER, TRACK, LOW ASSY KOBELCO SK200-10 SK210LC-10
　 1 LQ64D00063F1 ROLLER, TRACK, LOW 16
　 1-1 LQ64D01039P1 ROLLER 1
　 1-2 LQ64D01057P1 SHAFT 1
　 1-3 LQ64D01058P1 COLLAR 1
　 1-4 2405P489 BUSHING 2
　 1-5 LQ64D01036P1 SEAL, FLOATING 2
　 1-6 LQ64D01060P1 PIN 2
　 1-7 ZD11G06000 O-RING 2
　 1-8 YN55V01090P1 PLUG 1
　 1-9 LQ64D01059P1 COLLAR 1
　 2 2420P1580D4 CAPSCREW 64
LQ64D00065F1 LQ64D01061F1 LQ64D01062P1 ROLLER ASSY, UPP KOBELCO SK200XDL-10 SK210-10
　 .
　 1 LQ64D01061F1 ROLLER ASSY 4
　 1-1 LQ64D01062P1 ROLLER 1
　 1-2 LQ64D01066P1 SHAFT 1
　 1-3 YN64D01126P1 COLLAR 1
　 1-4 LQ64D01067P1 PLATE 1
　 1-5 LQ64D01063P1 COVER 1
　 1-6 LQ64D01064P1 BUSHING 1
　 1-7 LQ64D01065P1 BUSHING 1
　 1-8 YN64D01131P1 SEAL, FLOATING 1
　 1-9 YN64D01016P1 BOLT 2
　 1-10 YN55V01090P1 PLUG 1
　 2 ZS13C20120 CAPSCREW 4
　 3 ZN13C20016 NUT 4
　 4 ZW13H20000 WASHER 8

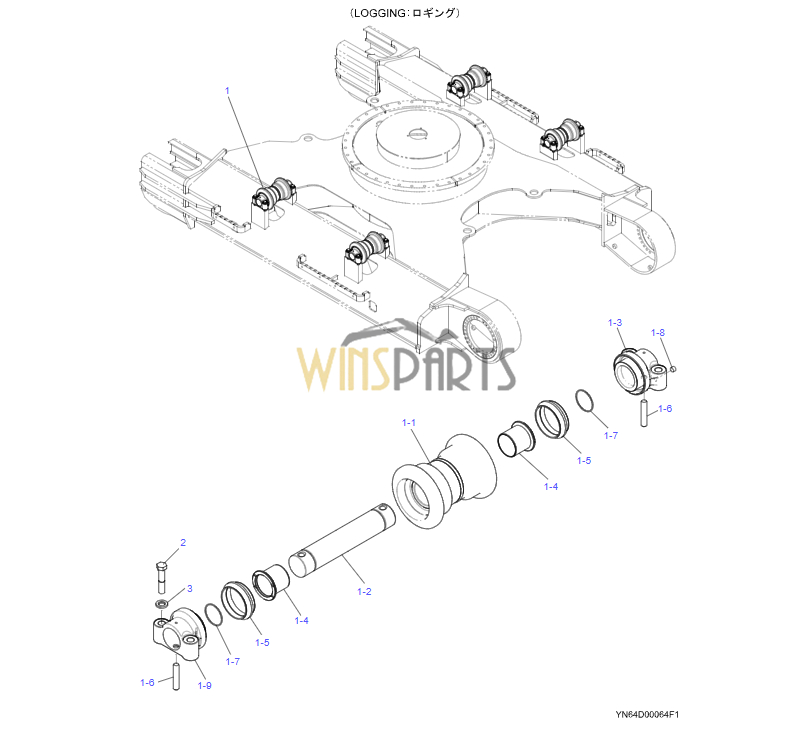

YN64D00064F1 LQ64D00063F1 LQ64D01039P1 ROLLER ASSY, UPP KOBELCO SK200XDL-10 SK210-10
　 1 LQ64D00063F1 ROLLER, TRACK, LOW 4
　 1-1 LQ64D01039P1 ROLLER 1
　 1-2 LQ64D01057P1 SHAFT 1
　 1-3 LQ64D01058P1 COLLAR 1
　 1-4 2405P489 BUSHING 2
　 1-5 LQ64D01036P1 SEAL, FLOATING 2
　 1-6 LQ64D01060P1 PIN 2
　 1-7 ZD11G06000 O-RING 2
　 1-8 YN55V01090P1 PLUG 1
　 1-9 LQ64D01059P1 COLLAR 1
　 2 ZS13C16080 CAPSCREW 16
　 3 ZW13H16000 WASHER 16
