VHS171114661 VH17103E0062 AIR INTAKE AND EXHAUST SYSTEM 11492 VH11492E0011 PLATE, WATER SEAL 1 11499 VH11499E0010 PLUG, CYLINDER BLOCK HOLE 1…

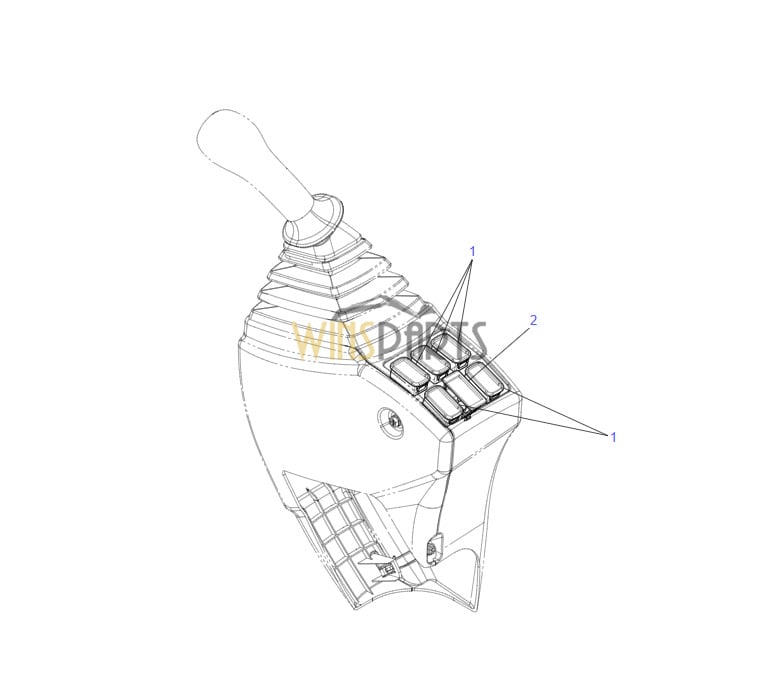

YN50E00079F1 SWITCH INSTAL
.
1 YN17M01282P2 CAP 5
2 PS17M01001P1 CAP

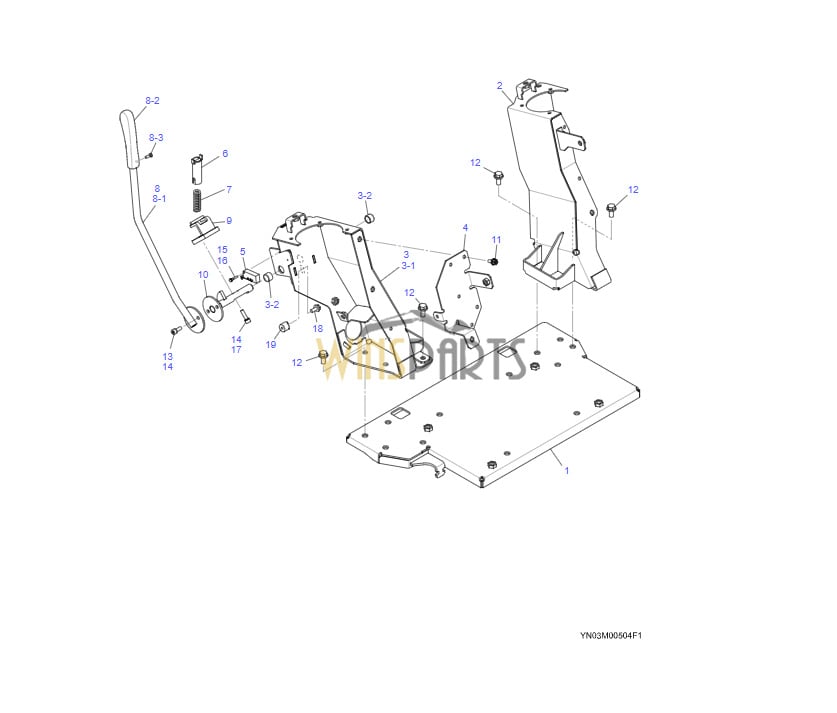

YN03M00532F1 CONTROL BOX ASSY
YN03M00566F1 CONTROL BOX ASSY
1 YN03M02562P2 BRACKET ASSY 1
2 YN03M02626P1 CONTROL BOX 1
3 YN03M02623F1 CONTROL BOX 1
3-1 YN03M02624P2 CONTROL BOX 1
3-2 YN03M02802P1 BUSHING 2
4 YN03M02558P2 BRACKET 1
5 YN50S00058P1 SWITCH, LIMIT 1
6 YN03M02555P1 TUBE 1
7 YN03M02485P1 SPRING 1
8 YN03M02530F1 LEVER ASSY 1
8-1 YN03M02531P1 LEVER 1
8-2 YN03M02482P1 GRIP 1
8-3 ZS41C04014 MACHINESCREW 1
9 YN03M02728P1 PLATE ASSY 1
10 YN03M02764P1 SHAFT 1
11 ZM66C06016 SEMS-BOLT 2
12 ZM73C08020 SEMS-BOLT 8
13 ZS23C06016 CAPSCREW 2
14 ZW26K06000 LOCK WASHER 4
15 ZS16C03018 CAPSCREW 2
16 ZW26X03000 LOCK WASHER 2
17 ZS23C06022 CAPSCREW 2
18 ZM73C06016 SEMS-BOLT 1
19 YN03M02573P1 BLOCK 1
.
1 YN17M01709P1 COVER 1
2 YN17M01466P1 SCREW, TAPPING 4
3 YN17M01072P1 CABLE 1 YN15T17988-
. YQ15-T3145-
4 2432Z478D1 CLIP 1 YN15T17988-
. YQ15-T3145-
5 2432Z478D4 CLIP 1 YN15T17988-
. YQ15-T3145-
6 PY01P01043D3 CLIP

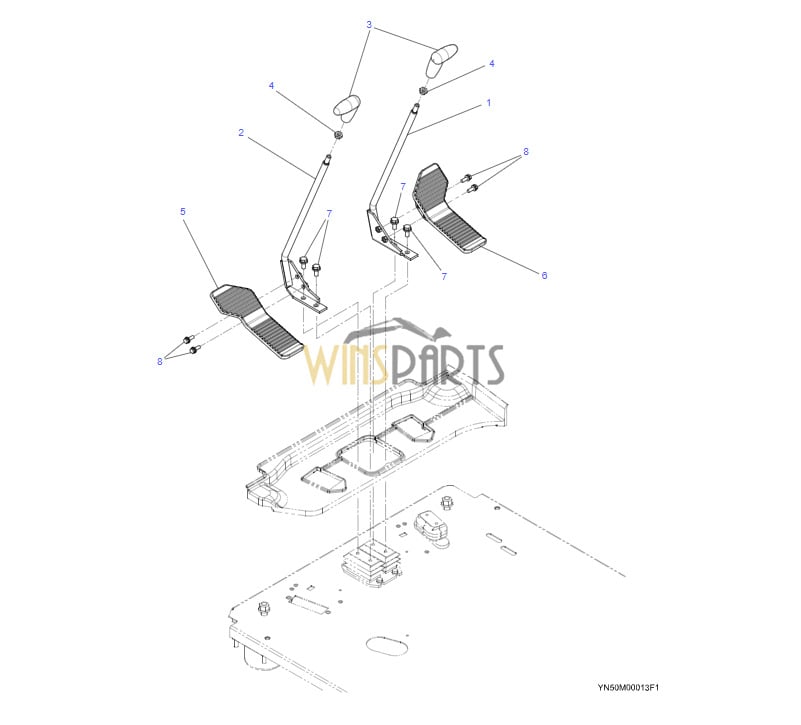

1 YN50M01045P1 LEVER 1
2 YN50M01046P1 LEVER 1
3 YN03M01040P1 GRIP 2
4 2420Z1232 NUT 2
5 YN55M01011P1 PEDAL 1
6 YN55M01010P1 PEDAL 1
7 ZM73C10025 SEMS-BOLT 4
8 ZM22C08025 SEMS-BOLT 4
