YN61B00331F1 YN61B00312F1 0.8M3 BUCKET ASSY Kobelco SK200-8 SK210LC-8 (SIDE TYPE PIN) 1 YN61B00331F1 BUCKET ASSY 1 1-1 YN61B00328P1 BUCKET 1 …

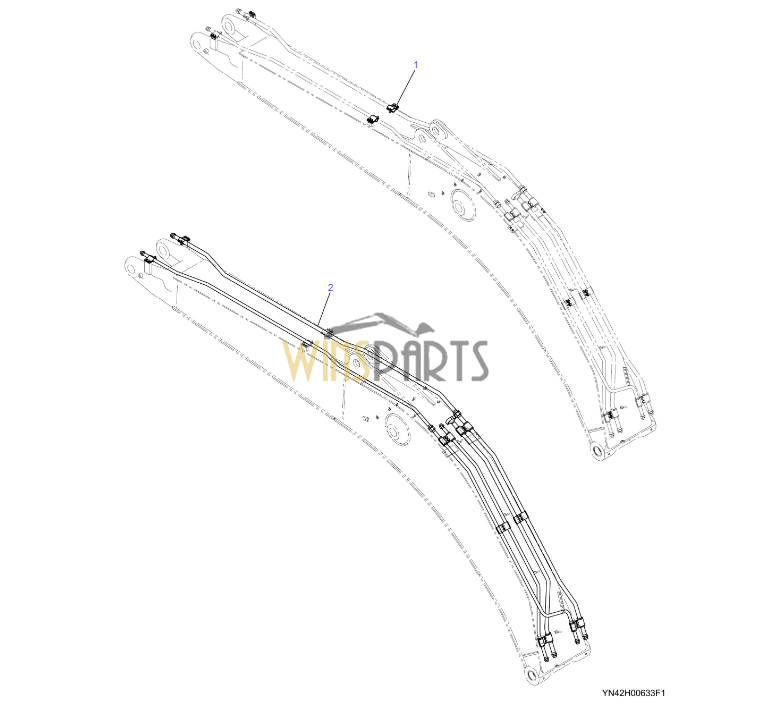

YN42H00633F1 YN42H00634F1 HYD LINES BOOM KOBELCO
.

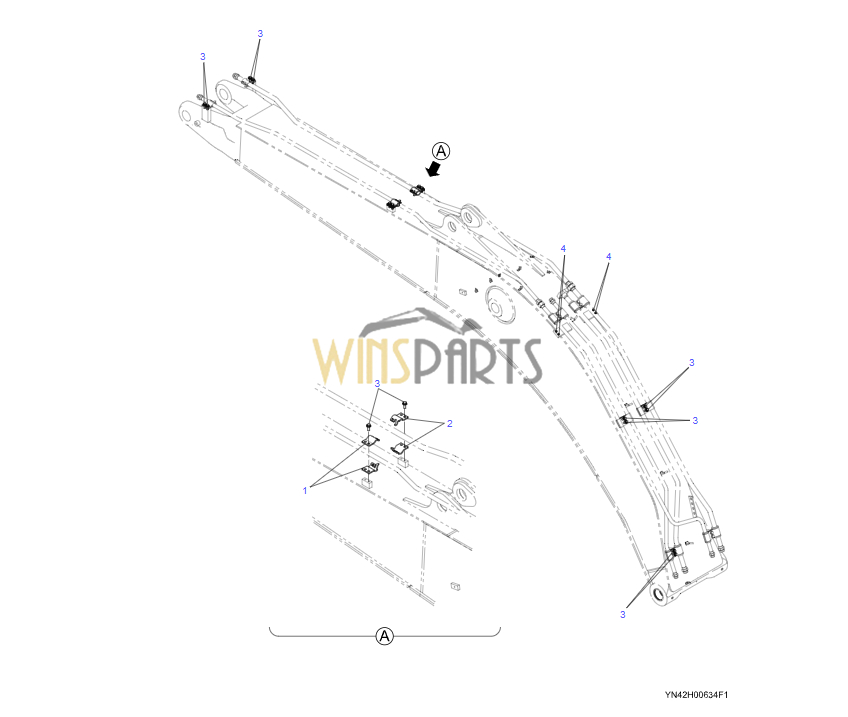

YN42H00634F1 HYD LINES, BOOM 1 P.665-01
YN42H00635F1 HYD LINES, BOOM 1
YN42H00755F1 HYD LINES, BOOM 1 P.665-
YN42H00636F1 HYD LINES, BOOM 5.65M Not Service

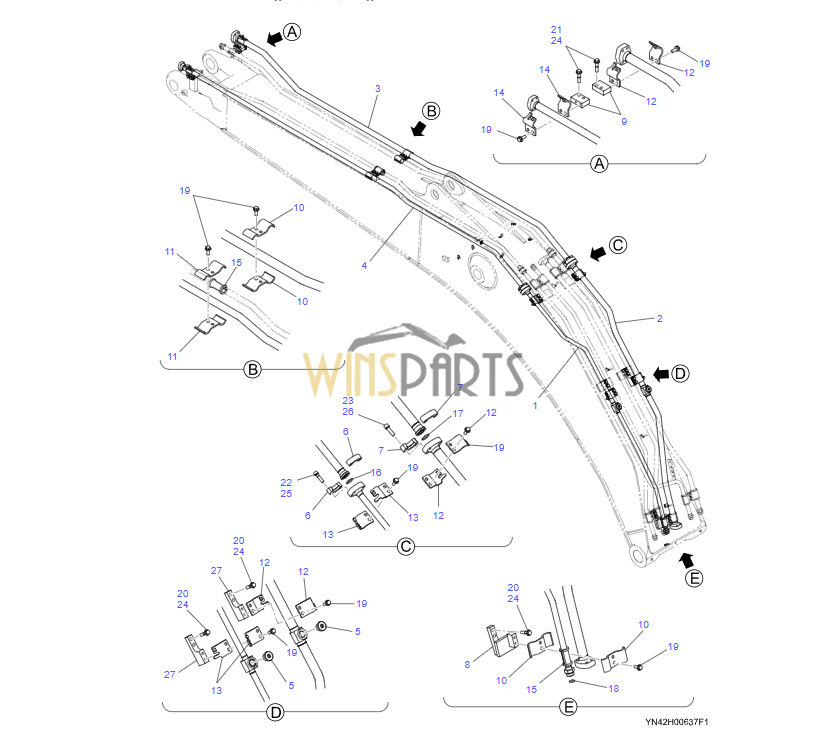

YN42H00637F1 HYD LINES, BOOM 1 P.665-01

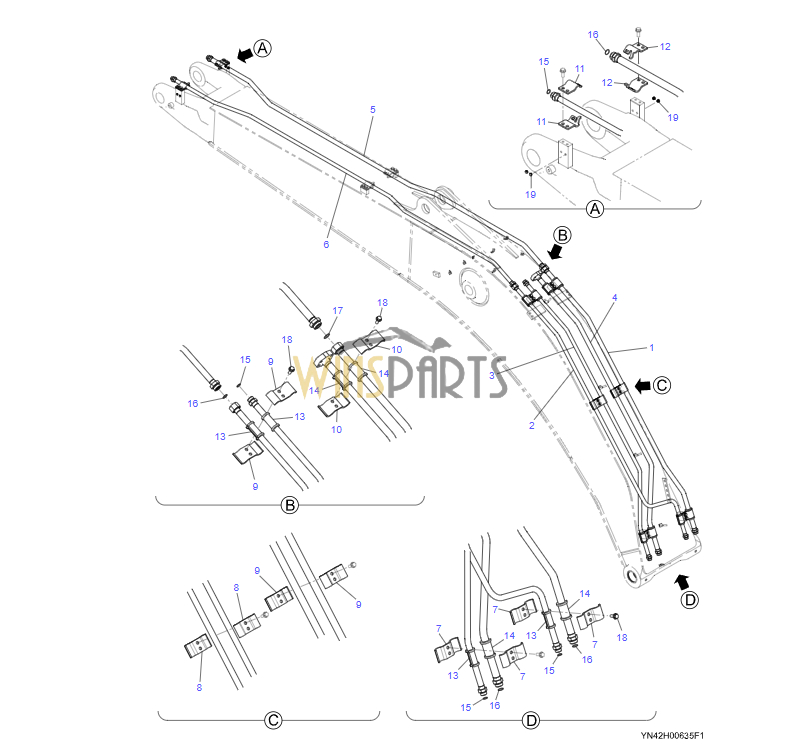

YN42H00635F1 HYD LINES, BOOM 1 P.665-02 YN15T17101–18734
.
1 YN42H02355P1 CLAMP 2
2 YN42H02357P1 CLAMP 2
3 ZM73C12035 SEMS-BOLT 14
4 YN64H01391D1 CAP 4
YN42H00755F1 HYD LINES, BOOM
1 YN42H03264P1 TUBE 1
2 YN42H03265P1 TUBE 1
3 YN42H03266P1 TUBE 1
4 YN42H03267P1 TUBE 1
5 YN42H03268P1 TUBE 1
6 YN42H03269P1 TUBE 1
7 YN42H02348P1 CLAMP 4
8 YN42H02349P1 CLAMP 2
9 YN42H02351P1 CLAMP 4
10 YN42H02353P1 CLAMP 2
11 YN42H02355P1 CLAMP 2
12 YN42H02357P1 CLAMP 2
13 YN42H02319P1 BUSHING 4
14 YN43H01524P1 BUSHING 4
15 ZD12A01800 O-RING 4
16 ZD12A02100 O-RING 4
17 YY42H01313P1 O-RING 1
18 ZM73C12035 SEMS-BOLT 6
19 YN64H01391D1 CAP 4
.
1 YN42H03270P1 TUBE 1
2 YN42H03271P1 TUBE 1
3 YN42H03272P1 TUBE 1
4 YN42H03273P1 TUBE 1
5 YN42H02582P1 PLUG 2
6 ZE13X16000 CLAMP, HALF 2
7 ZE13X20001 CLAMP, HALF 2
8 YN42H03224P1 BRACKET 1
9 YN42H03023P1 PLATE 2
10 YN42H02348P1 CLAMP 4
11 YN42H02351P1 CLAMP 2
12 YN42H02363P1 CLAMP 6
13 YN42H02355P1 CLAMP 4
14 YN42H02357P1 CLAMP 2
15 YN42H02319P1 BUSHING 2
16 ZD12P03400 O-RING 1
17 ZD12P03800 O-RING 1
18 ZD12A02100 O-RING 1
19 ZM73C12035 SEMS-BOLT 18
20 ZS18C12055 CAPSCREW 6
21 ZS18C12060 CAPSCREW 4
22 ZS28C12050 CAPSCREW 4
23 ZS28C14050 CAPSCREW 4
24 ZW16H12000 WASHER 10
25 ZW26K12000 LOCK WASHER 4
26 ZW26K14000 LOCK WASHER 4
27 LQ42H02076P1 BLOCK, TAPPED 2
.

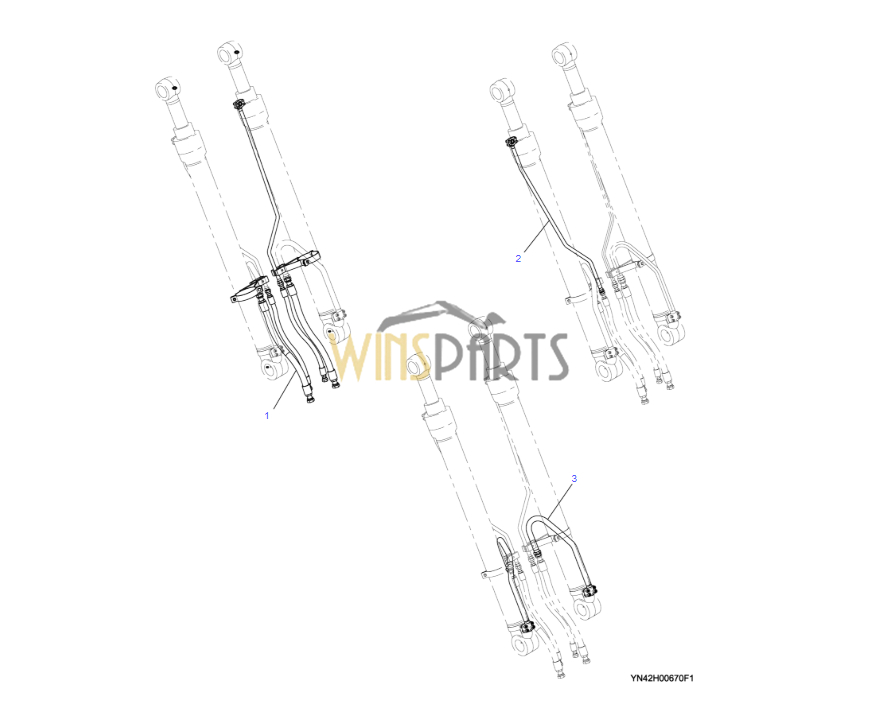

675-01_YN42H00667F1_CKCM-01_D0001921693_1 1 YN42H00667F1 HYD LINES, CYLINDER 1 P.675-01
675-02_YN42H00669F1_CKCM-01_D0001921706_1 2 YN42H00669F1 HYD LINES, CYLINDER 1 P.675-02
675-03_CKCM_D0001921707_1 3 YN42H00671F1 HYD LINES, CYLINDER 1 P.675-03
.
1 YN42H03298P1 TUBE 1
1 YN42H03517P1 TUBE 1
2 ZD12P02600 O-RING 1
3 ZD12A01600 O-RING 1
4 ZS28C10030 CAPSCREW
YN42H00671F1 HYD LINES, CYLINDER
1 YN42H02616P1 TUBE 1
2 YN42H03299P1 TUBE 1
3 ZD12P03400 O-RING 2
4 ZD12A02100 O-RING 2
5 ZS28C12040 CAPSCREW 8

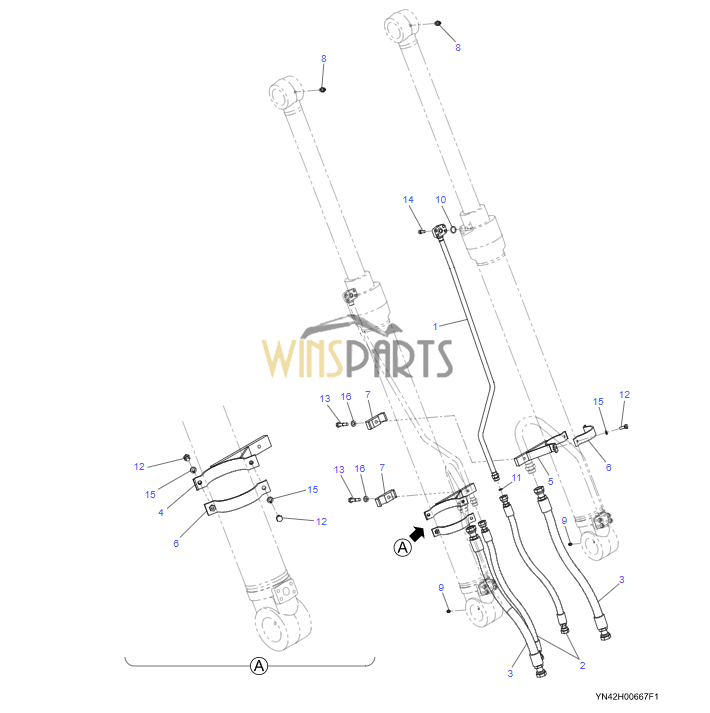

YN42H00667F1 HYD LINES, CYLINDER
1 YN42H03293P1 TUBE 1
1 YN42H03516P1 TUBE 1 YN15427038-
. YQ15405155-
2 ZX20H10072 HOSE 2
3 ZX20H16078 HOSE 2
4 YN42H02615P1 BAND 1
5 YN42H03294P1 BAND 1
6 YX42H01074P2 BAND 2
7 YY42H01184P1 CLAMP 2
8 ZH22Z04000 CONNECTOR 2
9 ZG91S02000 NIPPLE, GREASE 2
10 ZD12P02600 O-RING 1
11 ZD12A01600 O-RING 1
12 ZS18C10030 CAPSCREW 4
13 ZS18C12065 CAPSCREW 2
14 ZS28C10030 CAPSCREW 4
15 ZW26X10000 LOCK WASHER 4
16 ZW16H12000 WASHER 2

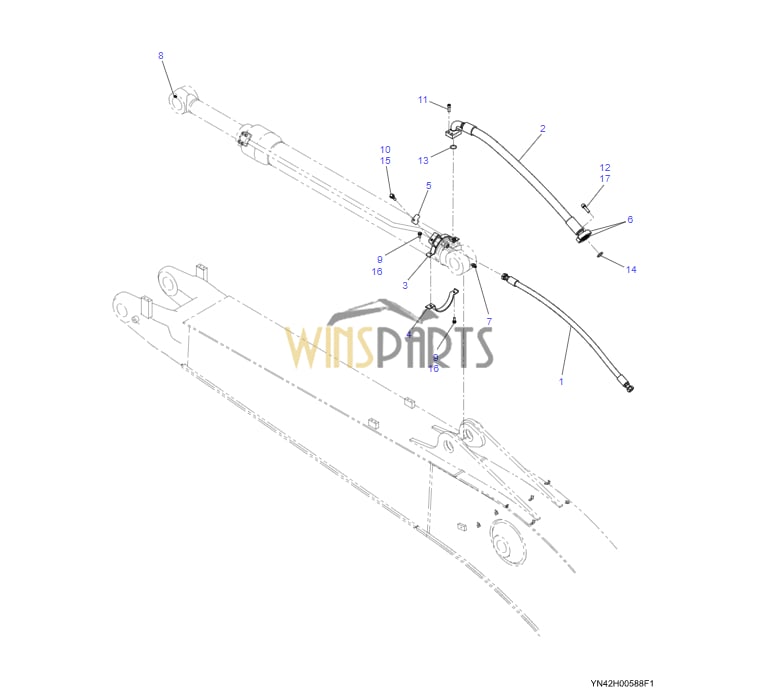

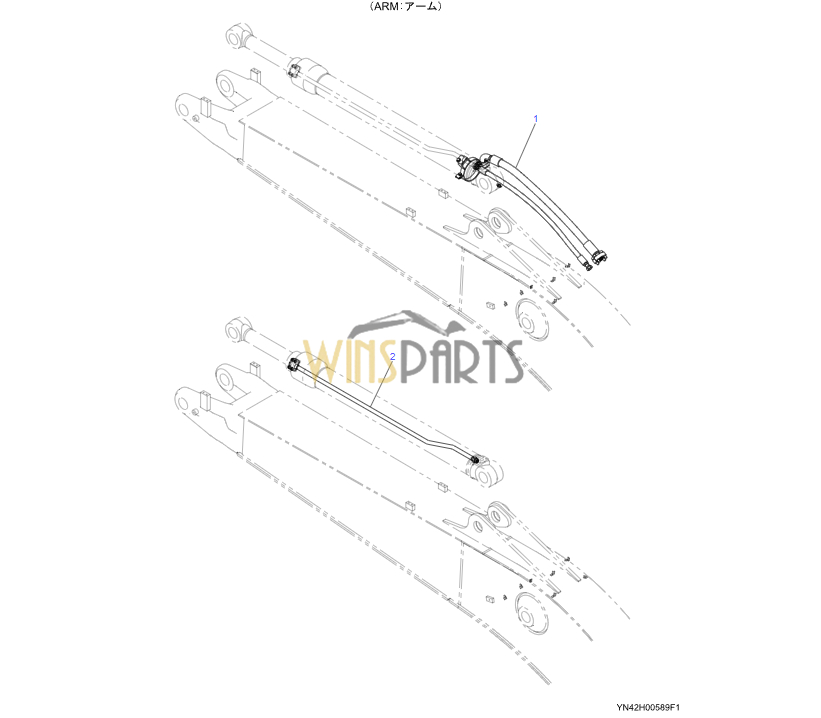

YN42H00588F1 HYD LINES, CYLINDER 1 P.680-01
YN42H00337F1 HYD LINES, CYLINDER 1 P.680-02
.
1 ZX20H12115 HOSE 1
2 YN42H03201D1 HOSE 1 YN15T17101–20677
YN42H00337F1 HYD LINES, CYLINDER
1 YN42H02333P1 TUBE 1
2 ZS28C12040 CAPSCREW 4
3 ZD12P03400 O-RING 1
4 ZD12A01800 O-RING
2 YN42H02683D1 HOSE 1 YN15431524-
. YQ15405730-
3 YN42H02628P1 BAND 1
3 YN42H03534P1 BAND 1 YN15428240-
. YQ15405258-
4 LC42H01750P1 BAND 1
5 YN43H01097P1 CLAMP 1
6 ZE13X20001 CLAMP, HALF 2
7 ZH22Z04000 CONNECTOR 1
8 ZG91S02000 NIPPLE, GREASE 1
9 ZS18C10030 CAPSCREW 2
10 ZS18C12055 CAPSCREW 1
11 ZS28C12040 CAPSCREW 4
12 ZS28C14050 CAPSCREW 4
13 ZD12P03400 O-RING 1
14 ZD12P03800 O-RING 1
15 ZW16H12000 WASHER 1
16 ZW26X10000 LOCK WASHER 2
17 ZW26K14000 LOCK WASHER 4
. (BOOM, 1LIGHT HARNESS)
1 YN15E01088P1 HARNESS 1
2 PY01P01043D3 CLIP

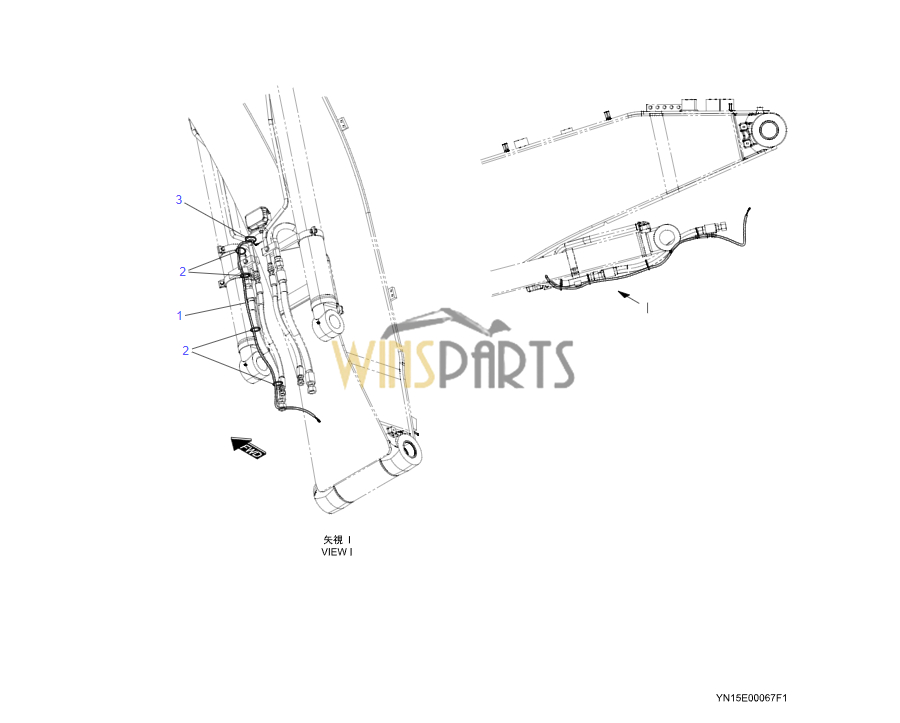

YN15E00067F1 HARNESS ASSY, BOOM
1 YN15E01018D1 HARNESS 1
2 PY01P01043D3 CLIP 4
3 PY01P01043D5 CLIP
YN15E00144F1 HARNESS ASSY, BOOM
1 YN15E01083P1 HARNESS 1
2 PY01P01043D3 CLIP 6
3 YN20M01702P1 WASHER 3
4 ZC46X10009 CLIP 3
5 ZS18C06016 CAPSCREW 3
6 ZW26X06000 LOCK WASHER 3YN80E00094F1 LIGHT INSTAL, BOOM
1 YN80S00012F1 LIGHT 1
1-12 YN80S00012S012 BULB 1
2 2416T13056 BRACKET 1
3 ZS18C10020 CAPSCREW 1
4 2418R323D11 LOCK WASHER 1
5 2418R323D13 LOCK WASHER 1
YN80E00081F1 LIGHT INSTAL
1 YT80S00002F2 LIGHT 1
1-5 YT80S00002S005 BULB 1
2 YX42H01074P2 BAND 1
3 YN80E01039P1 BAND 1
4 ZS18C10030 CAPSCREW 2
5 ZW26X10000 LOCK WASHER
