YN61B00331F1 YN61B00312F1 0.8M3 BUCKET ASSY Kobelco SK200-8 SK210LC-8 (SIDE TYPE PIN) 1 YN61B00331F1 BUCKET ASSY 1 1-1 YN61B00328P1 BUCKET 1 …

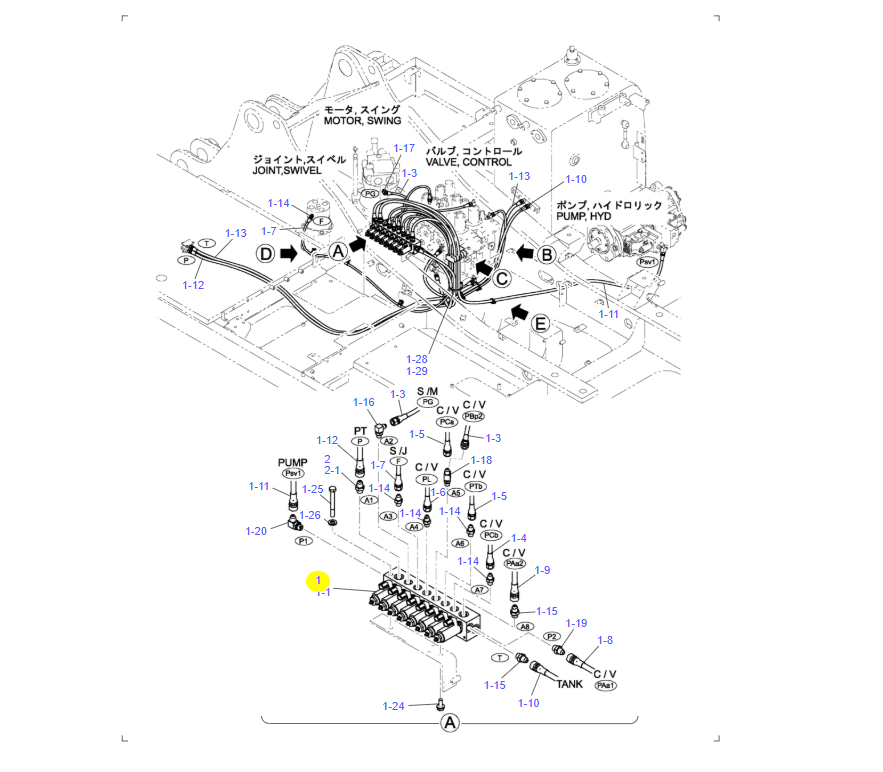

YN35V00047F3 SOLENOID VALVE ASSY YN64H00216F1 CONTROL LINES, VALVE Kobelco SK210-8 SK210LC-8
.
1 YN64H00219F1 CONTROL LINES, VALVE 1
1-1 YN35V00047F1 VALVE ASSY, SOLENOID 1 YQ12T00874–T00939
1-1A YN35V00047S101 BODY 1 YQ12T00874–T00939
1-1B YN35V00047S171 CAPSCREW 16 YQ12T00874–T00939
1-1C YN35V00048F1 VALVE, SOLENOID 3 YQ12T00874–T00939
1-1Ce YN35V00004S361 O-RING 1 YQ12T00874–T00939
1-1Cf YN35V00004S362 O-RING 1 YQ12T00874–T00939
1-1Cg YN35V00004S363 O-RING 1 YQ12T00874–T00939
1-1Cj YN35V00018S802 NUT 1 YQ12T00874–T00939
1-1Ck ZD12P02000 O-RING 1 YQ12T00874–T00939
1-1D YN35V00049F1 VALVE, SOLENOID 1 YQ12T00874–T00939
1-1Dg YN35V00004S361 O-RING 1 YQ12T00874–T00939
1-1Dh YN35V00004S362 O-RING 1 YQ12T00874–T00939
1-1Dj YN35V00004S363 O-RING 1 YQ12T00874–T00939
1-1Dl YN35V00018S802 NUT 1 YQ12T00874–T00939
1-1Dm ZD12P02000 O-RING 1 YQ12T00874–T00939
1-1E YN35V00050F1 VALVE, SOLENOID 3 YQ12T00874–T00939
1-1Ee YN35V00004S361 O-RING 1 YQ12T00874–T00939
1-1Ef YN35V00004S362 O-RING 1 YQ12T00874–T00939
1-1Eg YN35V00004S363 O-RING 1 YQ12T00874–T00939
1-1Ej YN35V00018S802 NUT 1 YQ12T00874–T00939
1-1Ek ZD12P02000 O-RING 1 YQ12T00874–T00939
1-1F YN35V00051F1 VALVE, SOLENOID 1 YQ12T00874–T00939
1-1Fe YN35V00004S361 O-RING 1 YQ12T00874–T00939
1-1Ff YN35V00004S362 O-RING 1 YQ12T00874–T00939
1-1Fg YN35V00004S363 O-RING 1 YQ12T00874–T00939
1-1Fj YN35V00018S802 NUT 1 YQ12T00874–T00939
1-1Fk ZD12P02000 O-RING 1 YQ12T00874–T00939
1-1G NO P/No NAME PLATE 1 YQ12T00874–T00939
1-1 YN35V00047F3 VALVE ASSY, SOLENOID 1 YQ12T00940-
1-1A YN35V00047S101 BODY 1 YQ12T00940-
1-1B YN35V00047S171 CAPSCREW 16 YQ12T00940-
1-1D YN35V00049F1 VALVE, SOLENOID 1 YQ12T00940-
1-1Dg YN35V00004S361 O-RING 1 YQ12T00940-
1-1Dh YN35V00004S362 O-RING 1 YQ12T00940-
1-1Dj YN35V00004S363 O-RING 1 YQ12T00940-
1-1Dl YN35V00018S802 NUT 1 YQ12T00940-
1-1Dm ZD12P02000 O-RING 1 YQ12T00940-
1-1E YN35V00050F1 VALVE, SOLENOID 2 YQ12T00940-
1-1Ee YN35V00004S361 O-RING 1 YQ12T00940-
1-1Ef YN35V00004S362 O-RING 1 YQ12T00940-
1-1Eg YN35V00004S363 O-RING 1 YQ12T00940-
1-1Ej YN35V00018S802 NUT 1 YQ12T00940-
1-1Ek ZD12P02000 O-RING 1 YQ12T00940-
1-1F YN35V00051F1 VALVE, SOLENOID 1 YQ12T00940-
1-1Fe YN35V00004S361 O-RING 1 YQ12T00940-
1-1Ff YN35V00004S362 O-RING 1 YQ12T00940-
1-1Fg YN35V00004S363 O-RING 1 YQ12T00940-
1-1Fj YN35V00018S802 NUT 1 YQ12T00940-
1-1Fk ZD12P02000 O-RING 1 YQ12T00940-
1-1G NO P/No NAME PLATE 1 YQ12T00940-
1-1H YN35V00048F2 VALVE, SOLENOID 3 YQ12T00940-
1-1He YN35V00004S361 O-RING 1 YQ12T00940-
1-1Hf YN35V00004S362 O-RING 1 YQ12T00940-
1-1Hg YN35V00004S363 O-RING 1 YQ12T00940-
1-1Hj YN35V00018S802 NUT 1 YQ12T00940-
1-1Hk ZD12P02000 O-RING 1 YQ12T00940-
1-1J YN35V00061F1 VALVE, SOLENOID 1 YQ12T00940-
1-1Je YN35V00004S361 O-RING 1 YQ12T00940-
1-1Jf YN35V00004S362 O-RING 1 YQ12T00940-
1-1Jg YN35V00004S363 O-RING 1 YQ12T00940-
1-1Jj YN35V00018S802 NUT 1 YQ12T00940-
1-1Jk ZD12P02000 O-RING 1 YQ12T00940-
1-3 2420R349D050 HOSE 2
1-4 2420R349D055 HOSE 1
1-5 2420R349D115 HOSE 2
1-6 2420R349D185 HOSE 1
1-7 2420R349D240 HOSE 1
1-8 2420R537D090 HOSE ASSY 1
1-9 2420R537D140 HOSE 1
1-10 2420R537D150 HOSE ASSY 1
1-11 2420R537D270 HOSE ASSY 1
1-12 2420R537D290 HOSE 1
1-13 2420R537D260 HOSE 1
1-14 ZH22X04000 CONNECTOR 5
1-15 ZH22X06000 CONNECTOR 2
1-16 ZH32X04000 ELBOW, 90 1
1-17 ZH42X04000 ELBOW, 45 1
1-18 2444Z2336 TEE 1
1-19 HH25X06006GA CONNECTOR 1
1-20 HH35X06006G3 ELBOW 1
1-21 LC64H01104P1 CLAMP 1
1-22 ZM73C08030 SEMS-BOLT 2
1-23 ZM73C10020 SEMS-BOLT 3
1-24 ZM73C10025 SEMS-BOLT 1
1-25 ZS18C10090 CAPSCREW 1
1-26 ZW16H10000 WASHER 1
1-27 EW02E01015D4 CLIP 3
1-28 YN13E01375P1 CLIP 4
1-29 PY01P01043D8 CLIP 4
1-30 PU13E01010DK TUBE 1
1-31 PY01P01043D6 CLIP 1
2 YN64H00220F1 CONTROL LINES, VALVE 1
2-1 ZH22X06000 CONNECTOR 1
