YN32W00017F1 YN15V00069F1 YN15V00055F1 SWING MOTOR ASSY Kobelco SK210-8 SK210LC-8

YN32W00017F1 YN15V00069F1 YN15V00055F1 SWING MOTOR ASSY Kobelco SK210-8 SK210LC-8
　 7 YN15V00069F1 Kobelco SK210-8 SK210LC-8SWING MOTOR ASSY, 1
　 7-1 YN15V00055F1 Kobelco SK210-8 SK210LC-8MOTOR ASSY, HYD 1

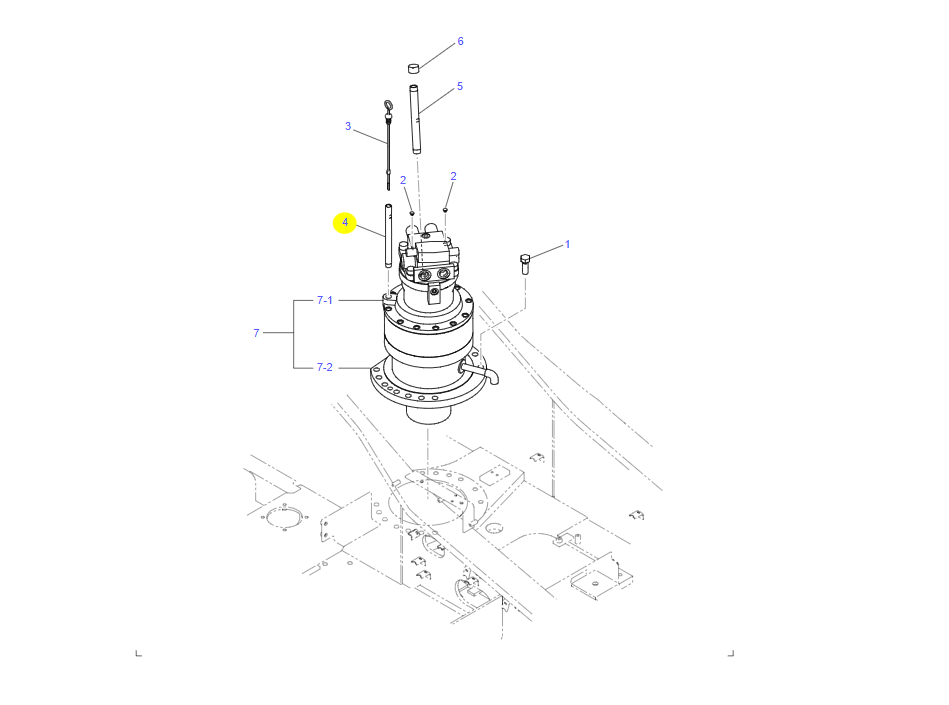

YN32W00017F1 SWING MOTOR Kobelco SK210-8 SK210LC-8 SK210HDLC Excavator
　 .
　 1 ZS13C20055 CAPSCREW 13
　 2 YN64H01391D1 CAP 2
　 3 YN32W01101D1 GAUGE, LEVEL 1
　 4 YN32W01114D1 TUBE 1
　 5 YN32W01122D1 TUBE 1
　 6 ZE91T12000 CAP 1
　 7 YN15V00069F1 Kobelco SK210-8 SK210LC-8MOTOR ASSY, SWING 1
　 7-1 YN15V00055F1 MOTOR ASSY, HYD 1
　 7-1A YN15V00025S101 SHAFT 1
　 7-1B YN15V00025S111 CYLINDER 1
　 7-1C YN15V00025S114 SPRING 1
　 7-1D NO P/No PISTON 9
　 7-1E NO P/No SHOE 9
　 7-1F YN15V00025S123 PLATE 1
　 7-1G YN15V00025S124 PLATE 1
　 7-1H YN15V00025S131 PLATE 1
　 7-1J YN15V00035S301 CASE 1
　 7-1K NO P/No CASE 1
　 7-1L YN15V00025S351 SPOOL 2
　 7-1M YN15V00002S355 SPRING 2
　 7-1N NO P/No NAME PLATE 1
　 7-1P 2437U407S983 RIVET 2
　 7-1R ZS23C20045 CAPSCREW 4
　 7-1S YN15V00002S011 BEARING 1
　 7-1T LQ15V00008S010 BEARING, ROLLER 1
　 7-1U NO P/No PIN 2
　 7-1V YN15V00002S012 PLUG 2
　 7-1W YN15V00025S489 O-RING 1
　 7-1X ZD12P02800 O-RING 2
　 7-1Y YN15V00035S491 OIL SEAL 1
　 7-1Z YN15V00002S014 PISTON 1
　 7-1Z24 2441U736S706 O-RING 1
　 7-1Z25 2415U188S707 O-RING 1
　 7-1Z26 YN15V00025S712 SPRING 18
　 7-1Z27 YN15V00025S742 PLATE 3
　 7-1Z28 YN15V00025S743 PLATE 4
　 7-1Z29 YN15V00035S980 PLUG 1
　 7-1Z30 YN15V00035S984 PLUG 1
　 7-1Z31 YN15V00035S985 PLUG 3
　 7-1Z32 ZE82T08000 PLUG 1
　 7-1Z33 ZE82T12000 PLUG 1
　 7-1Z34 YN22V00042F1 VALVE, RELIEF 2
　 7-1Z34b ZD12G03000 O-RING 1
　 7-1Z35 YN20V00004F4 VALVE ASSY 1
　 7-1Z35z100 LQ15V00001S100 CASE 1
　 7-1Z35z151 YW30V00001S157 PLUG 2
　 7-1Z35z161 ZD12P01100 O-RING 2
　 7-1Z35z164 YT10V00003S711 O-RING 2
　 7-1Z35z165 YN10V01006S011 O-RING 2
　 7-1Z35z171 ZS23C08055 CAPSCREW 4
　 7-1Z35z400 YN20V00004S400 VALVE ASSY 2
　 7-1Z35z401 ZD12P02000 O-RING 2
　 7-1Z35z403 ZD85P02000 RING, BACK-UP 2

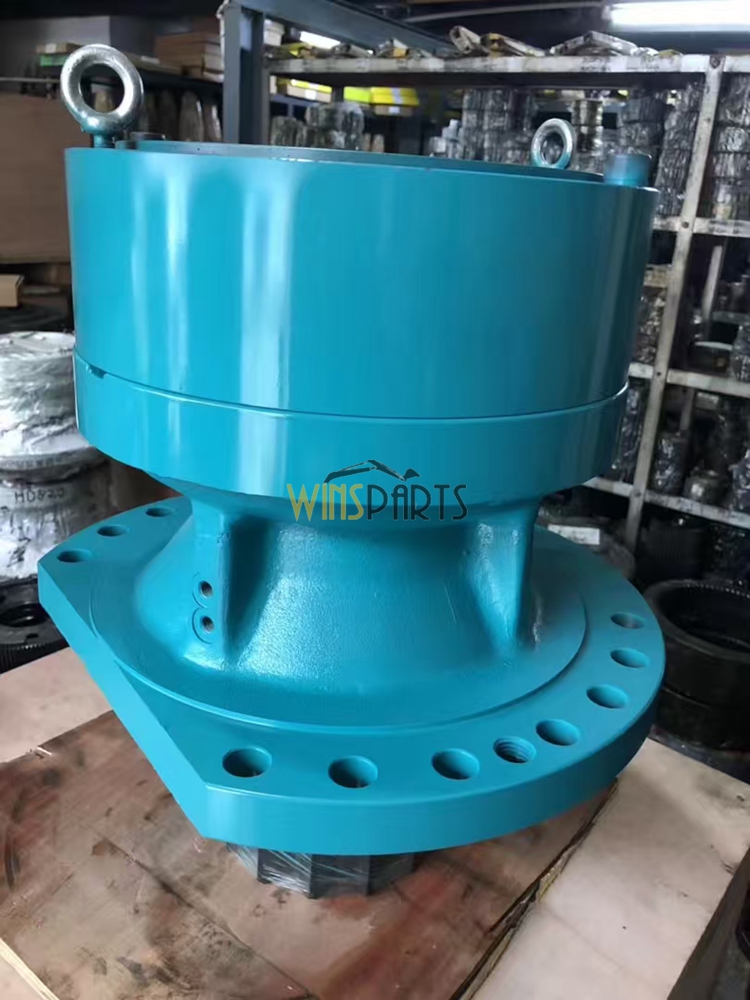

YN32W00022F2 YN32W00022F3 YN32W00022F1 REDUCTION ASSY,SWINGKobelco SK210-8 SK210LC-8
　 7-2 YN32W00022F2 Kobelco SK210-8 SK210LC-8 REDUCTION ASSY,SWING 1
　 7-2A YN32W01051P1 SHAFT, PINION 1
　 7-2B YN32W01052P1 GEAR, SUN 1
　 7-2C YN32W01117P1 PINION 3
　 7-2D YN32W01054P1 GEAR, SUN 1
　 7-2E YN32W01055P1 PINION 4
　 7-2F YN32W01056P1 GEAR, RING 1
　 7-2H YN32W01058P1 SPIDER 1
　 7-2J YN32W01067P1 SHAFT 4
　 7-2K YN32W01030P1 BEARING, SPHERICAL 1
　 7-2L YN32W01029P1 BEARING, SPHERICAL 1
　 7-2M YN32W01060P1 OIL SEAL 1
　 7-2N YN32W01104P1 HOUSING 1
　 7-2P YN32W01026P1 WASHER, THRUST 3
　 7-2R YN32W01028P1 WASHER, THRUST 3
　 7-2S YN32W01022P1 ROLLER 102
　 7-2T YN32W01072P1 BEARING, NEEDLE 4
　 7-2U YN32W01063P1 WASHER, THRUST 8
　 7-2V ZR16X03500 RING, SNAP 1
　 7-2W ZR16X09000 RING, SNAP 1
　 7-2X YN32W01082P1 SLEEVE 1
　 7-2Y ZP26D08025 PIN, SPRING 4
　 7-2Z HS23C14135G1 CAPSCREW 11
　 7-2Z24 PV02B01073DB CAP 2
　 7-2Z25 YN32W01080D1 TUBE 1
　 7-2Z26 ZG31U08000 ELBOW, 90 1
　 7-2Z27 ZE82T08000 PLUG 1
　 7-2Z28 ZR16X04000 RING, RETAINING 3
　 7-2Z29 YN32W01081P1 OIL SEAL 1
　 7-2Z30 ZG91V02000 NIPPLE, GREASE 1
　 7-2Z31 2444Z3305 VALVE, RELIEF 1
　 7-2Z32 YN32W01123F1 SPIDER ASSY 1
　 7-2Z32a YN32W01009P1 SPIDER 1
　 7-2Z32b YN32W01120P1 SHAFT 3
　 .
　 YN15V00055R100 REPAIR KIT 1
　 (7-1D, 7-1E)X9
　 .
　 YN15V00025R200 REPAIR KIT 1
　 (7-1K)X1
　 (7-1U)X2
　 .
　 YM15V00006R100 REPAIR KIT 1
　 (7-1W, 7-1Y, 7-1Z24, 7-1Z25)X1
　 (7-1X)X2
