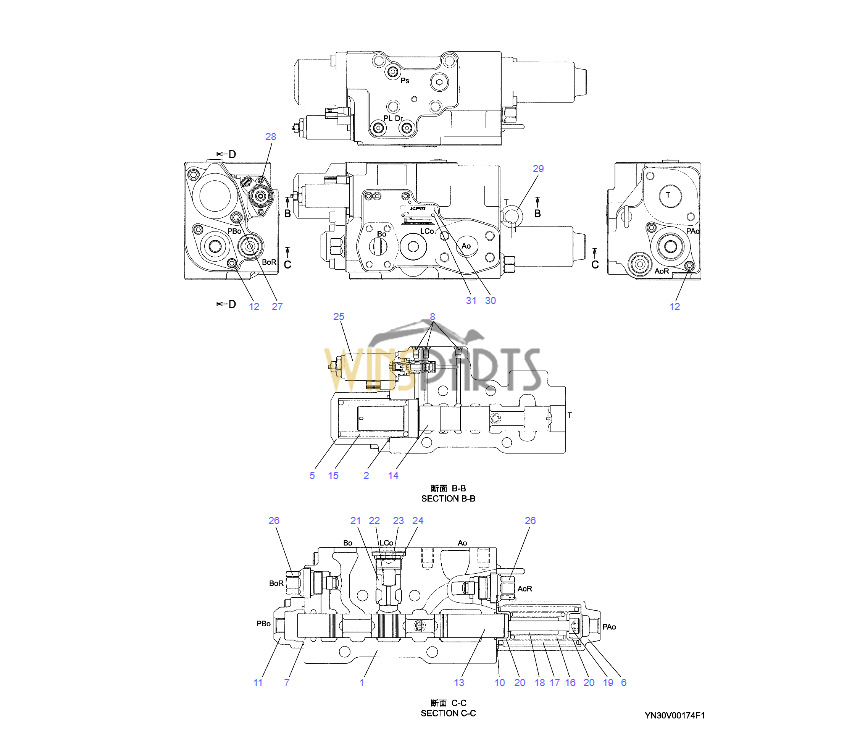

YN30V00174F1 CONTROL VALVE
YN30V00174F1 VALVE, CONTROL.
1 NO P/No BODY 1
2 ZD12G05500 O-RING 1
3 ZD12P00900 O-RING 1
4 ZD12P01400 O-RING 1
5 YN30V00104S201 COVER 1
6 YN30V00101S201 COVER 1
7 YN30V00001S205 COVER 1
8 NO P/No PLUG 3
9 YN30V00001S156 PLUG 1
10 ZD12G05000 O-RING 1
11 YN30V00101S264 RING 1
12 ZS23C08025 CAPSCREW 4
13 LQ30V00046S301 SPOOL 1 R1
14 YN30V00169S302 SPOOL 1
15 YN30V00167S321 SPRING 1
16 2436U1231S323 SPRING 1 R1
17 2436U1165S371 SPRING 1 R1
18 2436U1165S335 STOPPER 1 R1
19 2436U1165S336 BOLT 1 R1
20 2436U1443S332 SEAT, SPRING 2 R1
21 YN30V00084S512 POPPET 1
22 YN30V00084S522 SPRING 1
23 YN15V00002S012 PLUG 1
24 ZD12P02800 O-RING 1
25-5 YN35V00004S361 O-RING 1
25-6 YN35V00004S362 O-RING 1
25-7 YN35V00004S363 O-RING 1
25-9 YN35V00018S802 NUT 1
25-10 ZD12P02000 O-RING 1
26 YN30V01062P1 PLUG ASSY 2
27 ZS28C10025 CAPSCREW 2
28 EC20V00003S171 CAPSCREW 2
29 PY10V00003S901 BOLT 1
30 NO P/No NAME PLATE 1
31 NO P/No PIN 2
.

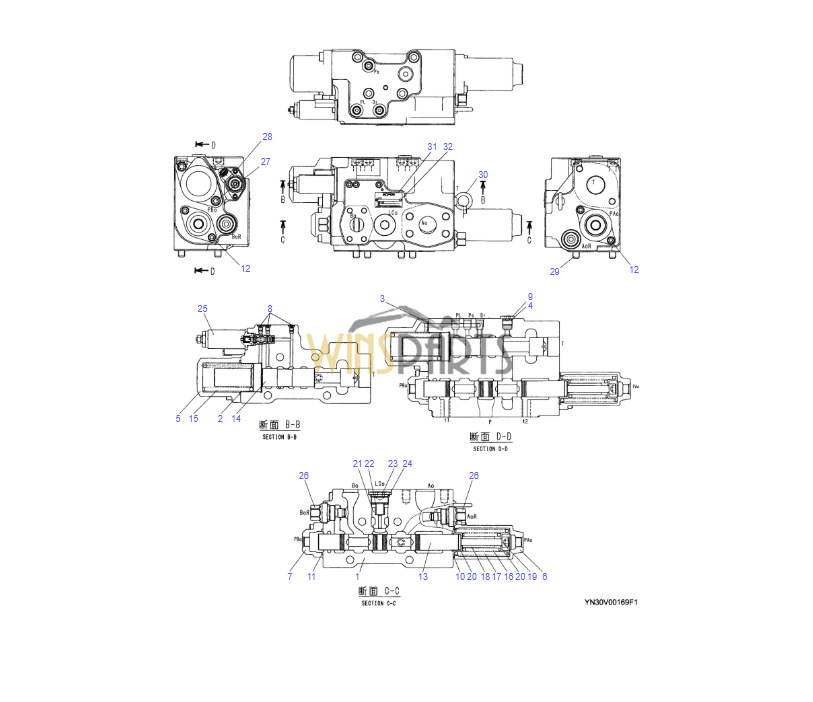

YN30V00169R100 SPOOL KIT 1 RK1
.
1 NO P/No BODY 1
2 ZD12G05500 O-RING 1
3 ZD12P00900 O-RING 1
4 ZD12P01400 O-RING 1
5 YN30V00104S201 COVER 1
6 YN30V00101S201 COVER 1
7 YN30V00001S205 COVER 1
8 NO P/No PLUG 3
9 YW30V00001S156 PLUG 1
10 ZD12G05000 O-RING 1
11 YN30V00101S264 RING 1
12 ZS23C08025 CAPSCREW 4
13 LQ30V00046S301 SPOOL 1 R1
14 YN30V00169S302 SPOOL 1
15 YN30V00167S321 SPRING 1
16 2436U1231S323 SPRING 1 R1
17 2436U1165S371 SPRING 1 R1
18 2436U1165S335 STOPPER 1 R1
19 2436U1165S336 BOLT 1 R1
20 2436U1443S332 SEAT, SPRING 2 R1
21 YN30V00084S512 POPPET 1
22 YN30V00084S522 SPRING 1
23 YN15V00002S012 PLUG 1
24 ZD12P02800 O-RING 1

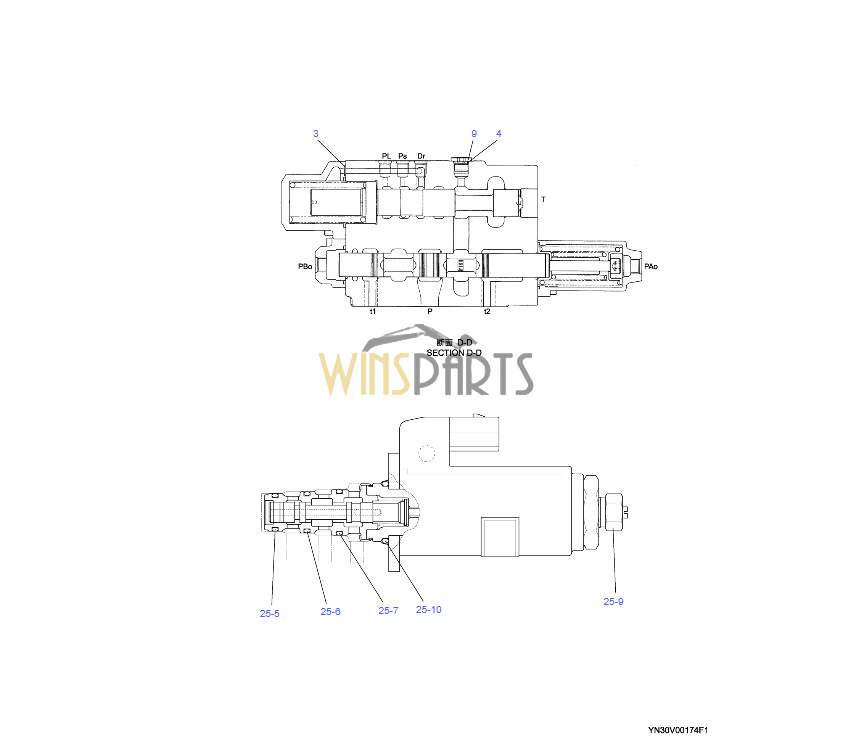

25 YN35V00050F1 VALVE, SOLENOID 1
25-5 YN35V00004S361 O-RING 1
25-6 YN35V00004S362 O-RING 1
25-7 YN35V00004S363 O-RING 1
25-9 YN35V00018S802 NUT 1
25-10 ZD12P02000 O-RING 1
26 YN30V01062P1 PLUG ASSY 2
27 ZS28C10025 CAPSCREW 2
28 EC20V00003S171 CAPSCREW 2
29 LQ30V00046S703 CAPSCREW 4
30 PY10V00003S901 BOLT 1
31 NO P/No NAME PLATE 1
32 NO P/No PIN 2
.
YN30V00169R100 SPOOL KIT 1 RK1
.

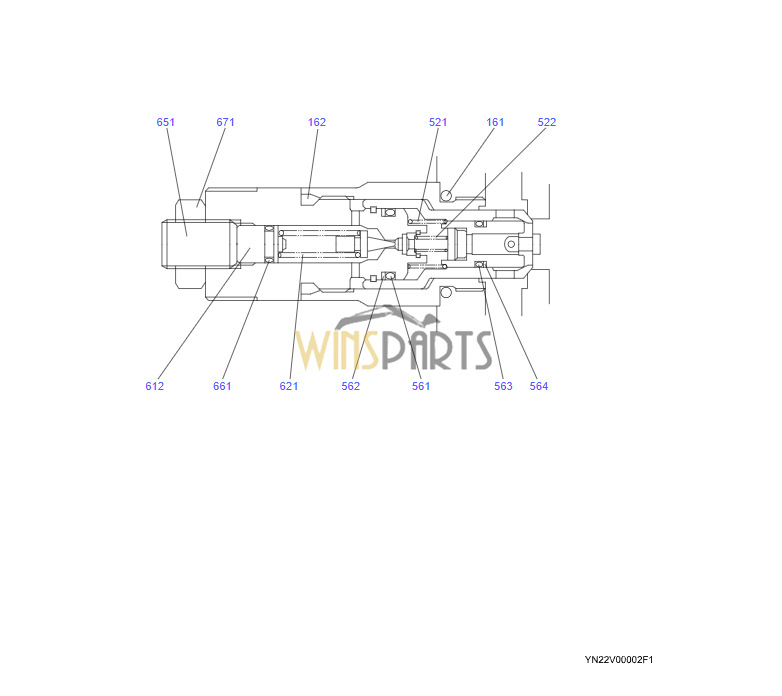

161 ZD12P02400 O-RING 1
162 ZD12P02240 O-RING 1
521 YN22V00001S521 SPRING 1
522 YN22V00002S522 SPRING 1
561 YN22V00001S561 O-RING 1
562 YN22V00001S562 RING, BACK UP 1
563 YN22V00002S563 O-RING 1
564 YN22V00002S564 RING, BACK UP 1
612 YN22V00002S612 SPRING 1
621 2436R750S512 SPRING 1
651 YN22V00002S651 SCREW 1
661 ZD12P00800 O-RING 1
671 YN22V00001S671 LOCK NUT
