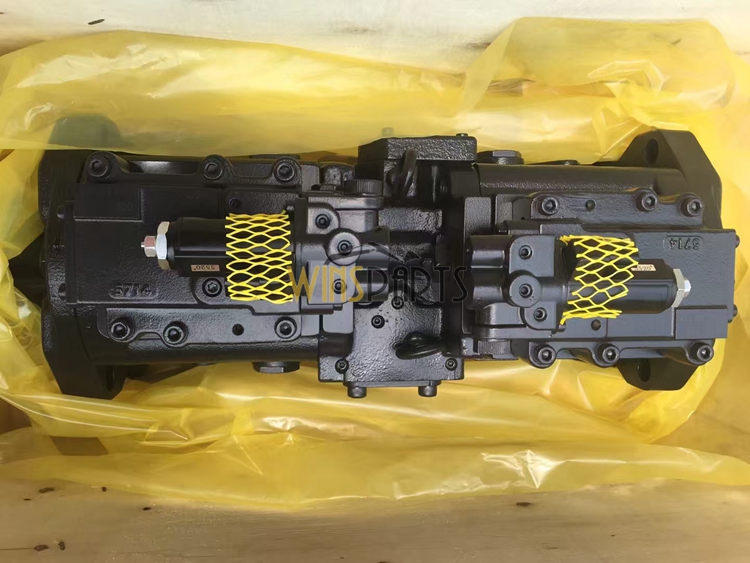

YN30P00020F1 YN30P00017F1 Hydraulic Pump POWER TAKE-OFF ASSY Kobelco SK210-8 SK210LC-8

YN30P00020F1 YN30P00017F1 Hydraulic Pump POWER TAKE-OFF ASSY Kobelco SK210-8 SK210LC-8
1 YN30P00017F1 POWER TAKE-OFF ASSY 1
YN30P01029P1 YN30P01028F2 YN30P01028S002 Hydraulic Pump COUPLING HUB Kobelco SK210-8 SK210LC-8
　 1-1 YN30P01029P1 BRACKET 1
　 1-2 YN30P01028F2 COUPLING 1
　 1-2A LQ30P01003S001 RUBBER 1
　 1-2B YN30P01028S002 HUB 1
　 1-2E LQ30P01003S005 CAPSCREW 8
　 1-2F YN30P01028S006 SETSCREW 2
　 1-2G ZP26D05010 SPRING PIN 4
　 1-2H YN30P01028S008 INSERT 4
　 1-2J YN30P01028S009 INSERT 4
　 1-3 ZS28C20055 CAPSCREW 4
　 1-4 ZS18C10035 CAPSCREW 8

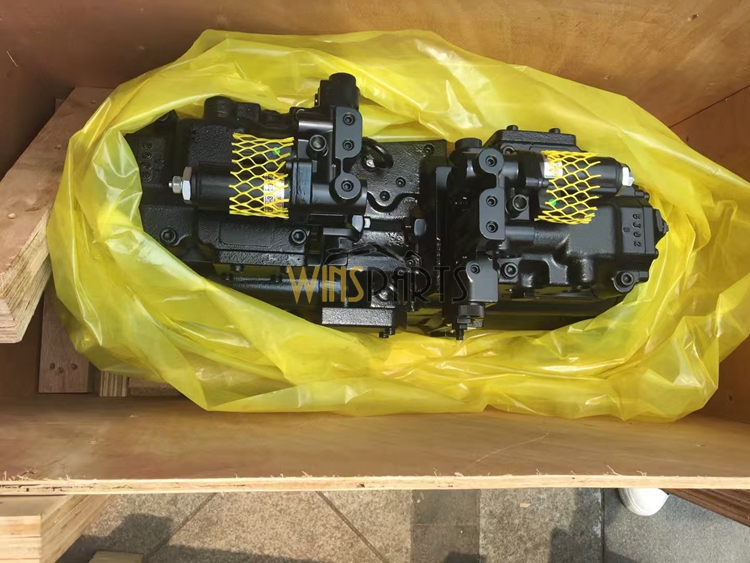

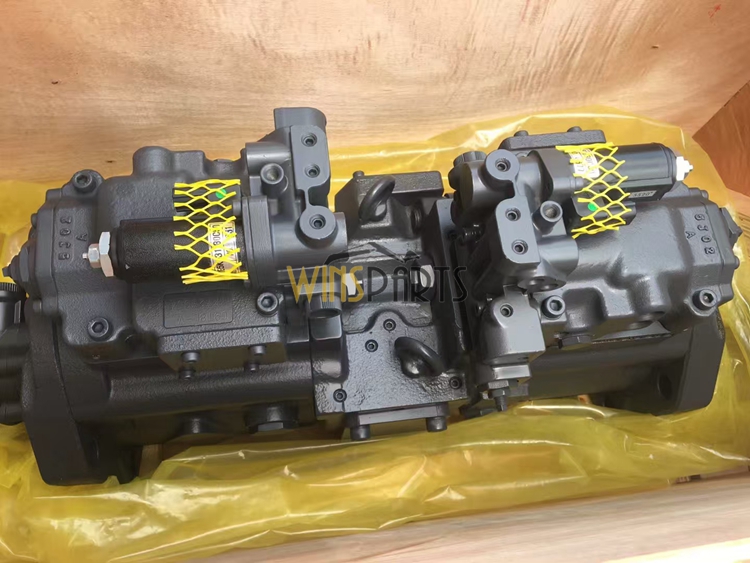

YN10V00036F4 YN10V00043F1 PUMP ASSY, HYD Kobelco SK210-8 SK210LC-8 SK210HDLC Excavator
YN10V00036F4 YN10V00043F1 PUMP ASSY, HYD Kobelco SK210-8 SK210LC-8 SK210HDLC Excavator
YN10V00043R100 YN10V00043R200 EG10V00004R100 2437U213S30 2437U213S530 REPAIR KIT YY10V00015R300 2437U219S41

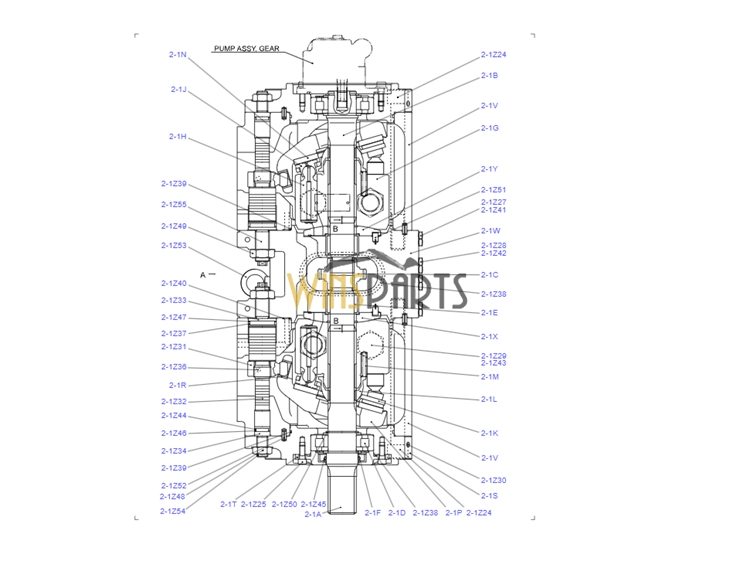

YN10V00043S111 YN10V00013S113 Hydraulic Pump SHAFT
　 2-1A YN10V00043S111 SHAFT 1
　 2-1B YN10V00013S113 SHAFT 1
　 2-1C YN10V00020S116 GEAR 1
　 2-1D LC10V00002S123 BEARING 2
　 2-1E YN10V00011S124 BEARING 2
　 2-1F 2441U723S127 SPACER 4
　 2-1G NO P/No BLOCK 2
　 2-1H NO P/No PISTON 18
　 2-1J NO P/No SHOE 18
　 2-1K LC10V00010S153 PLATE 2
　 2-1L YN10V00005S156 BUSHING 2
　 2-1M 2437U213S157 SPRING 18
　 2-1N 2441U242S211 PLATE 2
　 2-1P NO P/No PLATE 2
　 2-1R NO P/No BUSHING 2
　 2-1S 2437U213S251 PLATE 2
　 2-1T 2437U420S261 COVER 1
　 2-1V YN10V00043S271 CASE 2
　 2-1W LC10V00010S312 BLOCK 1
　 2-1X NO P/No PLATE 1
　 2-1Y NO P/No PLATE 1
　 2-1Z YN10V00043S325 COVER 1
　 2-1Z24 2437U213S401 CAPSCREW 8
　 2-1Z25 ZS23C08020 CAPSCREW 4
　 2-1Z26 ZS23C06055 CAPSCREW 3
　 2-1Z27 2441U667S466 PLUG 2
　 2-1Z28 2441U549S464 PLUG 2
　 2-1Z29 2441U436S469 PLUG 4
　 2-1Z30 2441U722S490 PLUG 33
　 2-1Z31 NO P/No PIN 2
　 2-1Z32 LC10V00010S532 PISTON 2
　 2-1Z33 LQ10V00021S534 STOPPER 2
　 2-1Z34 2437U213S535 STOPPER 2
　 2-1Z35 YN10V00043S546 SPACER 2
　 2-1Z36 NO P/No PIN 2
　 2-1Z37 YN10V00003S702 O-RING 2
　 2-1Z38 YX10V00003S012 O-RING 2
　 2-1Z39 YN10V00020S012 O-RING 4
　 2-1Z40 YX10V00003S015 O-RING 16
　 2-1Z41 YT10V00003S710 O-RING 7
　 2-1Z42 YN10V01001S727 O-RING 3
　 2-1Z43 YN10V00020S015 O-RING 4
　 2-1Z44 YT10V00003S708 O-RING 2
　 2-1Z45 EG10V00004S774 OIL SEAL 1
　 2-1Z46 ZD85P01800 RING, BACK-UP 2
　 2-1Z47 ZD85G03500 RING, BACK-UP 2
　 2-1Z48 ZN18C16010 NUT 2
　 2-1Z49 ZN18C20012 NUT 2
　 2-1Z50 ZR16X04000 RING, RETAINING 2
　 2-1Z51 2441U723S885 PIN 2
　 2-1Z52 ZP26D06014 PIN, SPRING 4
　 2-1Z53 ZS91C01000 BOLT, EYE 2
　 2-1Z54 2437U188S953 CAPSCREW 2
　 2-1Z55 2437U213S954 SCREW 2
　 2-1Z58 YN10V00023S009 COVER 1
　 2-1Z59 ZS23C10020 CAPSCREW 4
　 2-4 YN10V00014F3 PUMP, GEAR 1
　 2-4K NO P/No POPPET 1
　 2-4L NO P/No SEAT 1
　 2-4M YN10V00014S012 RING 1
　 2-4N YN10V00014S013 SPRING 1
　 2-4P YN10V00014S014 SCREW 1
　 2-4R NO P/No CASE 1
　 2-4S LS10V00018S887 PIN 2
　 2-4Z312 YN10V00006S312 LOCK NUT 1
　 2-4Z353 NO P/No GEAR 1
　 2-4Z354 NO P/No GEAR 1
　 2-4Z355 YN10V00006S355 FILTER 1
　 2-4Z361 NO P/No CASE 1
　 2-4Z433 YN10V00006S433 SOCKET 2
　 2-4Z434 YN10V00006S434 SOCKET 2
　 2-4Z435 YN10V00014S435 BOLT 4
　 2-4Z466 2441U667S466 PLUG 1
　 2-4Z700 YN10V00006S700 RING 1
　 2-4Z710 ZD12G09500 O-RING 1
　 2-4Z725 ZD12P01100 O-RING 1
　 2-4Z732 ZD12P01600 O-RING 1
　 2-4Z850 ZR26X01800 RING, SNAP 1
　 2-5 YN10V00023S009 COVER 1
　 2-6 ZS23C10020 CAPSCREW 4
　 2-10 YN10V01009F4 REGULATOR 2
　 2-10A ZS23C08050 CAPSCREW 2
　 2-10B ZS23C08070 CAPSCREW 2
　 2-10C YX35V00002S171 CAPSCREW 2
　 2-10D ZS28C06020 CAPSCREW 8
　 2-10E ZS23C06025 CAPSCREW 5
　 2-10F 2441U667S466 PLUG 3
　 2-10G 2441U722S490 PLUG 14
　 2-10H NO P/No SEAT 2
　 2-10J NO P/No STOPPER 2
　 2-10K NO P/No BALL 2
　 2-10N NO P/No LEVER 1
　 2-10R NO P/No PLUG 1
　 2-10S NO P/No PLUG 1
　 2-10T NO P/No PISTON 1
　 2-10V NO P/No ROD 1
　 2-10W NO P/No SEAT 1
　 2-10X NO P/No SPRING 1
　 2-10Y NO P/No SPRING 1
　 2-10Z NO P/No STEM 1
　 2-10Z24 NO P/No ADJUSTER 1
　 2-10Z25 NO P/No COVER 1
　 2-10Z26 NO P/No NUT 1
　 2-10Z28 NO P/No COVER 1
　 2-10Z29 NO P/No SPOOL 1
　 2-10Z31 NO P/No SEAT 1
　 2-10Z32 NO P/No STEM 1
　 2-10Z33 NO P/No SPRING 1
　 2-10Z34 NO P/No SLEEVE 1
　 2-10Z36 NO P/No SEAT 1
　 2-10Z37 NO P/No SPRING 1
　 2-10Z38 NO P/No SPRING 1
　 2-10Z39 NO P/No COVER 1
　 2-10Z40 NO P/No SPRING 1
　 2-10Z41 YX10V01001S010 O-RING 1
　 2-10Z42 YN10V01006S011 O-RING 3
　 2-10Z43 YX10V00003S015 O-RING 8
　 2-10Z44 YN10V01006S013 O-RING 1
　 2-10Z45 YT10V00003S708 O-RING 1
　 2-10Z46 YZ10V00002S732 O-RING 1
　 2-10Z47 YW10V00003S732 O-RING 1
　 2-10Z48 YN10V01006S018 O-RING 1
　 2-10Z49 YN10V01006S019 O-RING 1
　 2-10Z50 YN10V01006S020 O-RING 1
　 2-10Z51 YT10V00003S710 O-RING 7
　 2-10Z52 YN10V01006S022 O-RING 1
　 2-10Z53 YX10V01001S015 O-RING 1
　 2-10Z54 YN10V00003S702 O-RING 1
　 2-10Z55 ZN18C08005 NUT 1
　 2-10Z56 YY10V01001S802 NUT 1
　 2-10Z57 2436U2455S814 RING 1
　 2-10Z58 NO P/No RING 1
　 2-10Z59 ZR26X01500 RING, SNAP 2
　 2-10Z61 NO P/No PIN 1
　 2-10Z62 NO P/No PIN 1
　 2-10Z63 NO P/No PIN 1
　 2-10Z65 NO P/No PIN 1
　 2-10Z66 2441U722S924 SETSCREW 1
　 2-10Z68 NO P/No CASE 1
　 2-10Z70 LV10V00006S059 PLUG 4
　 2-10Z71 NO P/No CASE 1
　 2-10Z72 NO P/No LEVER 1
　 2-10Z73 NO P/No LEVER 1
　 2-10Z74 NO P/No PISTON 1
　 2-10Z75 NO P/No SPOOL 1
　 2-10Z76 NO P/No PIN 1
　 2-10Z77 NO P/No PIN 1
　 2-10Z78 NO P/No PIN 1
　 2-10Z79 NO P/No PIN 1
　 2-10Z80 YN35V00054F1 VALVE, SOLENOID 1
　 2-10Z80f YN35V00004S361 O-RING 1
　 2-10Z80g YN35V00004S362 O-RING 1
　 2-10Z80h YN35V00004S363 O-RING 1
　 2-10Z80k YN35V00018S802 NUT 1
　 2-10Z80l ZD12P02000 O-RING 1
　 .
　 YN10V00043R100 REPAIR KIT 1
　 (2-1G, 2-1X)X1
　 .
　 YN10V00043R200 REPAIR KIT 1
　 (2-1G, 2-1Y)X1
　 .
　 EG10V00004R100 REPAIR KIT 1
　 (2-1H, 2-1J)X9
　 .
　 2437U213S30 REPAIR KIT 1
　 (2-1P, 2-1R)X1
　 .
　 2437U213S530 REPAIR KIT 1
　 (2-1Z31, 2-1Z36)X1
　 .
　 YY10V00015R300 REPAIR KIT 1
　 (2-4K, 2-4L)X1
　 .
　 2437U219S41 REPAIR KIT 1
　 (2-10H, 2-10J, 2-10K)X1
