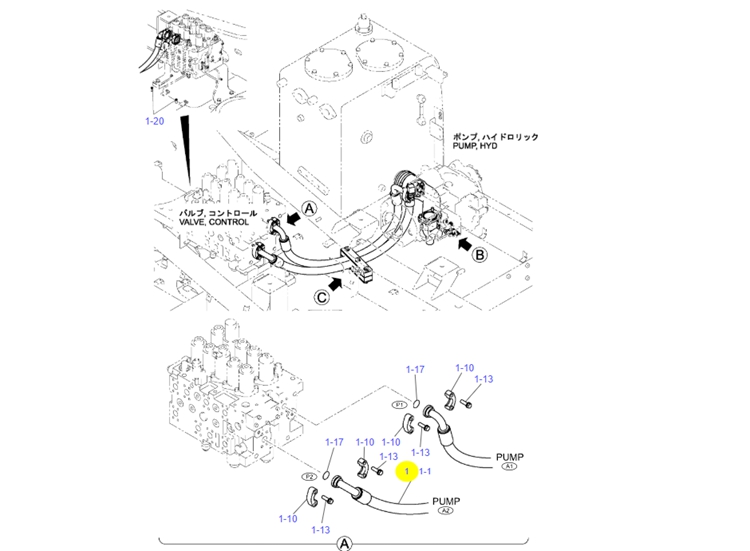

YN30H00041F1 YN30H00043F1 HYD LINES, PUMP Kobelco SK210-8 SK210LC-8

YN30H00041F1 YN30H00043F1 HYD LINES, PUMP Kobelco SK210-8 SK210LC-8
　 YN30H00041F1 HYD LINES, PUMP
　 .
　 1 YN30H00043F1 HYD LINES, PUMP 1
　 1-1 YN30H01247D1 HOSE 1
　 1-2 YN30H01219D1 HOSE 1
　 1-3 YN30H01196P1 HOSE 1
　 1-4 ZH32X12000 ELBOW, 90 1
　 1-5 ZE72X04000 PLUG 2
　 1-6 LS52S00015P1 SENSOR, PRESS 2
　 1-7 YN30H01214P1 RUBBER 2
　 1-8 YN30H01217P1 PLATE 1
　 1-9 YN30H01215P1 PLATE 1
　 1-10 ZE13X16000 CLAMP, HALF 8
　 1-11 ZY26X06056 SPACER 3
　 1-12 ZC16X09100 CLIP 2
　 1-13 HM83C12040G1 SEMS-BOLT 16
　 1-14 ZS18C12090 CAPSCREW 3
　 1-15 ZW16H12000 WASHER 3
　 1-17 ZD12P03400 O-RING 4
　 1-19 ZC16X10000 CLIP 2
　 1-20 PV02B01073D4 CAP 2
　 2 YN30H00044F1 HYD LINES, PUMP 1
　 2-1 YN30H01220P1 ELBOW 1
　 2-2 ZS28C12030 CAPSCREW 4
　 2-3 ZW26K12000 LOCK WASHER 4
　 2-4 45Z91D104 O-RING 1

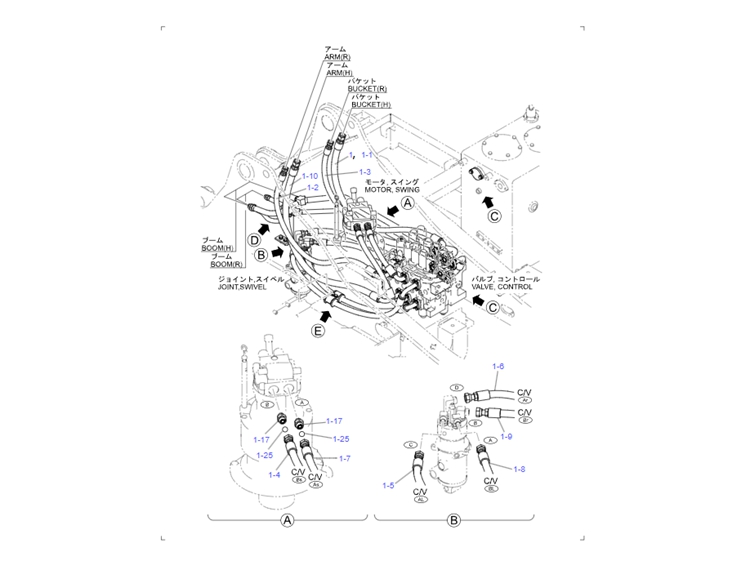

YN03H00122F1 YN03H00125F1 HYD LINES, UPP
　 .
　 1 YN03H00125F1 HYD LINES, UPP 1
　 1-1 YN03H01805D1 HOSE 1
　 1-2 YN03H01886D1 HOSE 1
　 1-3 YN03H01886D2 HOSE 1
　 1-4 YN03H01886D3 HOSE 1
　 1-5 YN03H01886D9 HOSE 1
　 1-6 YN03H01886D5 HOSE 1
　 1-7 YN03H01887D1 HOSE 1
　 1-8 YN03H01887D2 HOSE 1
　 1-9 YN03H01887D3 HOSE 1
　 1-10 YN03H01889D1 HOSE 1
　 1-11 YN03H01851P1 TUBE 1
　 1-12 YN03H01852P1 TUBE 1
　 1-13 YN03H01854P1 SUPPORT 1
　 1-14 YN03H01840P1 CLAMP 1
　 1-15 YN03H01427P1 CLAMP 2
　 1-16 YN03H01432P1 BUSHING 4
　 1-17 ZG23F12012 CONNECTOR 2
　 1-18 ZE12X16000 CLAMP, HALF 20
　 1-19 HM83C10035G1 SEMS-BOLT 48
　 1-20 ZM73C12035 SEMS-BOLT 2
　 1-21 ZS18C10075 CAPSCREW 2
　 1-22 ZS18C10060 CAPSCREW 4
　 1-23 ZW16H10000 WASHER 6
　 1-24 ZD12A01600 O-RING 2
　 1-25 ZD12A01800 O-RING 2
　 1-26 ZD12A02100 O-RING 2
　 1-27 ZD12P03400 O-RING 12
　 2 YN03H00126F1 HYD LINES, UPP 1
　 2-1 YN03H01884P1 PLUG 1
　 2-2 ZE12Q16000 PLUG 2
　 2-3 ZE72X06000 PLUG 2
　 2-4 HM83C10030G1 SEMS-BOLT 8
　 2-5 ZM73C12030 SEMS-BOLT 2
　 2-6 ZD12P04800 O-RING 1
　 2-7 ZD12P03400 O-RING 2

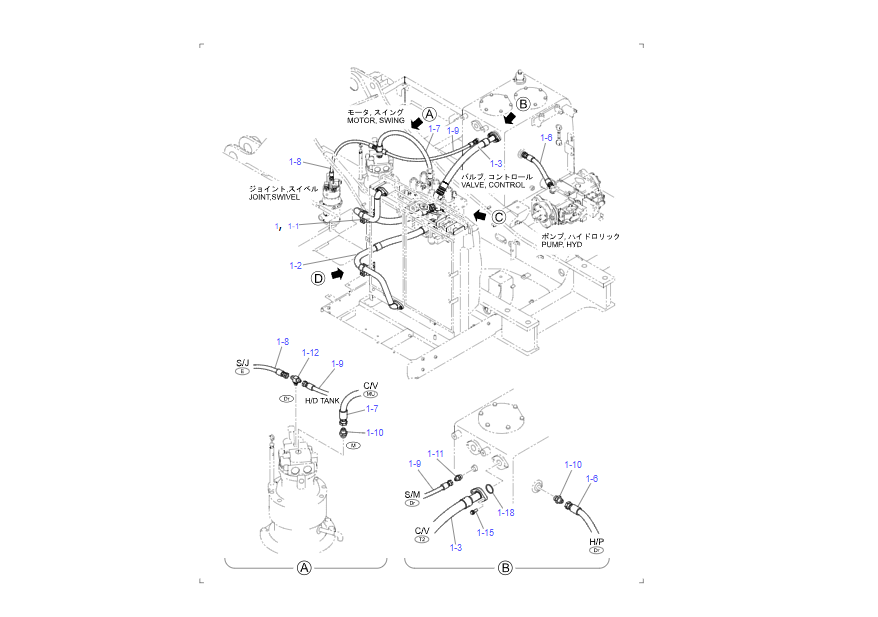

YN32H00049F1 YN32H00043F1 HYD LINES, RETURN Kobelco SK210-8 SK210LC-8
　 .
　 1 YN32H00043F1 HYD LINES, RETURN 1
　 1-1 YN32H01224D1 HOSE 1
　 1-2 YN32H01226D1 HOSE 1
　 1-3 YN32H01211D1 HOSE 1
　 1-4 YN32H01231P1 CONNECTOR ASSY 1
　 1-5 YN32H01218P1 PLATE 2
　 1-6 YN32H01264D2 HOSE 1
　 1-7 ZX22M12088 HOSE 1
　 1-8 ZX22M08070 HOSE 1
　 1-9 ZX22M08084 HOSE 1
　 1-10 ZH22X12000 CONNECTOR 3
　 1-11 ZH22X08000 CONNECTOR 1
　 1-12 2444Z2360 TEE 1
　 1-13 YN32H01066P1 CLAMP 2
　 1-14 ZM73C12030 SEMS-BOLT 4
　 1-15 HM83C12035G1 SEMS-BOLT 10
　 1-16 ZS18C12055 CAPSCREW 2
　 1-17 ZW16H12000 WASHER 2
　 1-18 ZD12P04800 O-RING 3
　 1-20 ZN18C12010 NUT 2
　 YN19H00047F1 HYD LINES, SWIVEL
　 .
　 1 HH25X08008G5 CONNECTOR 1
　 2 ZG33F12012 ELBOW 3
　 3 YN03H01172P1 ELBOW 1
　 4 ZD12A01800 O-RING 4
