YN61B00331F1 YN61B00312F1 0.8M3 BUCKET ASSY Kobelco SK200-8 SK210LC-8 (SIDE TYPE PIN) 1 YN61B00331F1 BUCKET ASSY 1 1-1 YN61B00328P1 BUCKET 1 …

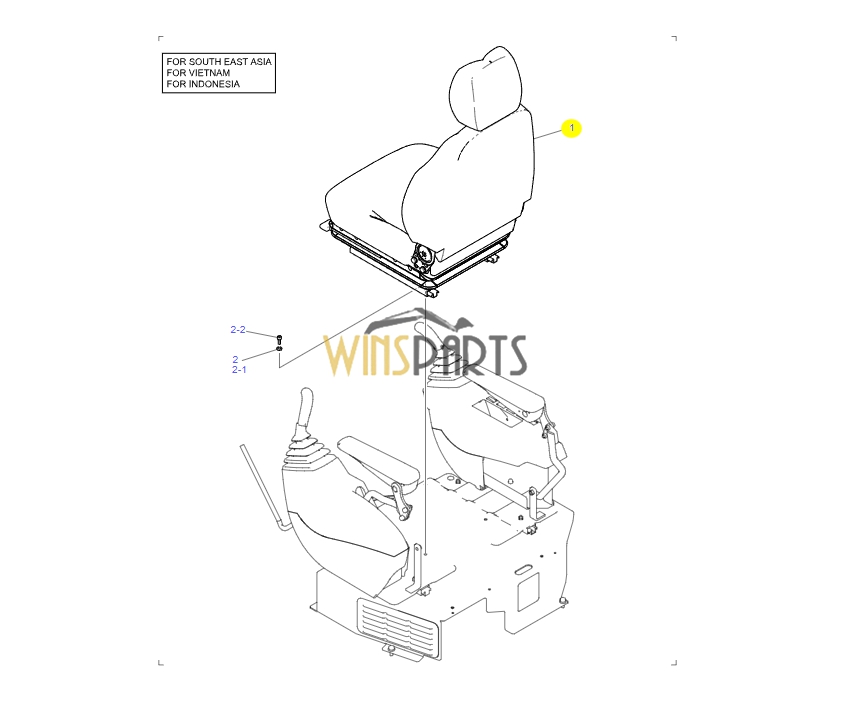

YN25M00060F1 YN25M00058F1 YN25M00058S001 SEAT ASSY Kobelco SK210-8 SK210LC-8
YN25M00061F1 SEAT INSTAL
(LONG RANGE, SUSPENSION AND HEIGHTRISER)
1 YN25M00059F1 SEAT ASSY 1 YQ12T00874–T00980 .
1 YN25M00058F1 SEAT ASSY 1 YQ12T00874–T00935
1-1 YN25M00058S001 SEAT ASSY 1 YQ12T00874–T00935
1-2 YN25M00058S002 COVER 1 YQ12T00874–T00935
1-3 YN25M00058S003 PAD 1 YQ12T00874–T00935
1-4 YN25M00058S004 COVER 1 YQ12T00874–T00935
1-5 YN25M00058S005 SEAT 1 YQ12T00874–T00935
1-6 YN25M00058S006 FRAME 1 YQ12T00874–T00935
1-7 YN25M00058S007 CABLE 1 YQ12T00874–T00935
1-8 YN25M00058S008 SPRING 1 YQ12T00874–T00935
1-9 YN25MU0001S012 RAIL 1 YQ12T00874–T00935
1-10 YN25M00008S013 BRACKET 1 YQ12T00874–T00935
1-11 YN25M00008S014 HANDLE 1 YQ12T00874–T00935
1-12 LC25M00001S018 ADJUSTER 1 YQ12T00874–T00935
1-13 YN25M00008S016 COVER 1 YQ12T00874–T00935
1-14 YN25M00058S014 SUPPORT 1 YQ12T00874–T00935
1 YN25M00137F1 SEAT ASSY 1 YQ12T00936-
1-1 YN25M00058S001 SEAT ASSY 1 YQ12T00936-
1-2 YN25M00125S002 COVER ASSY 1 YQ12T00936-
1-3 YN25M00138S003 PAD 1 YQ12T00936-
1-4 YN25M00125S004 COVER ASSY 1 YQ12T00936-
1-5 YN25M00138S005 SEAT 1 YQ12T00936-
1-6 YN25M00059S007 FRAME 1 YQ12T00936-
1-7 YN25M00125S008 CABLE 1 YQ12T00936-
1-8 YN25M00059S011 SPRING 1 YQ12T00936-
1-9 YN25MU0001S012 RAIL 1 YQ12T00936-
1-10 YN25M00008S013 BRACKET 1 YQ12T00936-
1-11 YN25M00008S014 HANDLE 1 YQ12T00936-
1-12 YN25M00125S009 ADJUSTER 1 YQ12T00936-
1-13 YN25M00008S016 COVER 1 YQ12T00936-
1-14 YN25M00058S014 SUPPORT 1 YQ12T00936-
2 YN25M00062F1 SEAT INSTAL 1
2-1 ZW26K08000 LOCK WASHER 4
2-2 ZS28C08020 CAPSCREW 4
YN25M00053F1 BELT ASSY, SEAT
.
1 YN25M00081F1 BELT ASSY, SEAT 1
2 ZM73C10025 SEMS-BOLT 1
5 ZM73C10040 SEMS-BOLT 1
