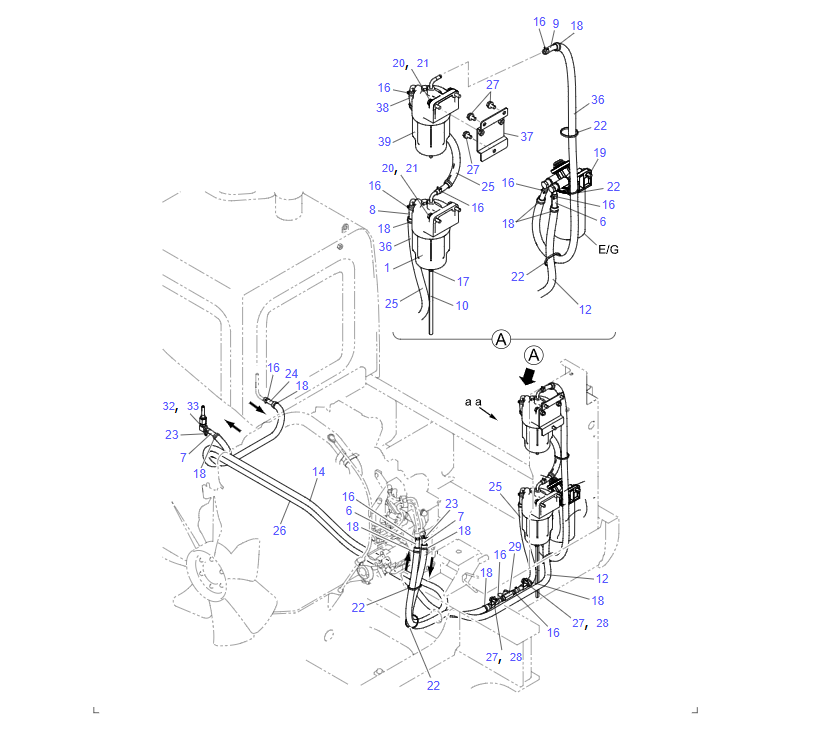

YN21P00030F1 YN21P01068F1 FILTER, FUEL LINES Kobelco SK210-8 SK210LC-8

YN21P00030F1 YN21P01068F1 FILTER, FUEL LINES Kobelco SK210-8 SK210LC-8
　 .
　 1 YN21P01068F1 FILTER, FUEL 1
　 1-1 YN21P01068S001 COVER 1
　 1-2 YN21P01068S002 ELEMENT, FILTER 1
　 1-3 LS21P01013S003 CASE 1
　 1-4 LS02P01012S015 RING 1
　 1-5 YN21P01036S005 PLUG 1
　 1-6 2446U287S3 GASKET 1
　 1-7 LS02P01012S010 PLUG 1
　 1-8 LS02P01012S011 GASKET 1
　 1-9 YN21P01036S009 O-RING 1
　 6 YN21P01041P1 HOSE 1
　 7 HX11F06250DY HOSE 1
　 8 HX11F06052DX HOSE 1
　 9 HX11F06130DX HOSE 1
　 10 HX11Y06026DX HOSE 1
　 12 HX81X19150DX TUBE 1
　 14 HX81X19240DX TUBE 1
　 16 PH05P01088D7 CLIP 10
　 17 PH05P01088D6 CLIP 1
　 18 PY01P01043D2 CLIP 12
　 19 ZM73C10030 SEMS-BOLT 2
　 20 ZS18C10040 CAPSCREW 4
　 21 ZW16P10000 WASHER 4
　 22 PY01P01043D3 CLIP 5
　 23 ZC16X01800 CLIP 2
　 24 HX11F06230DX HOSE 1
　 25 HX81X19040DX TUBE 2
　 26 HX81X19220DX TUBE 1
　 27 ZM73C10020 SEMS-BOLT 5
　 28 ZC46X16011 CLIP 2
　 29 YN25V00004P1 VALVE, STOP 1
　 32 YN21P01078P1 PACKING 1
　 33 LQ21P01026P1 ELBOW 1
　 36 HX81X19120DX TUBE 1
　 37 LC21C02440P1 PLATE 1
　 38 HX11F06050DX HOSE 1
　 39 YN21P01088F1 FILTER, FUEL 1
　 39-1 YN21P01068S001 COVER 1
　 39-2 YN21P01088S002 ELEMENT, FILTER 1
　 39-3 LS21P01013S003 CASE 1
　 39-4 LS02P01012S015 RING 1
　 39-5 YN21P01036S005 PLUG 1
　 39-6 2446U287S3 GASKET 1
　 39-7 LS02P01012S010 PLUG 1
　 39-8 LS02P01012S011 GASKET 1
　 39-9 YN21P01036S009 O-RING 1
　 40 LQ20T01233P1 LABEL 1
　 41 LQ20T01234P1 LABEL 1
　 .
　 YN21P01068R100 REPAIR KIT 1
　 (1-2, 1-8, 1-9)X1
　 .
　 YN21P01088R100 REPAIR KIT 1
　 (39-2, 39-8, 39-9)X1

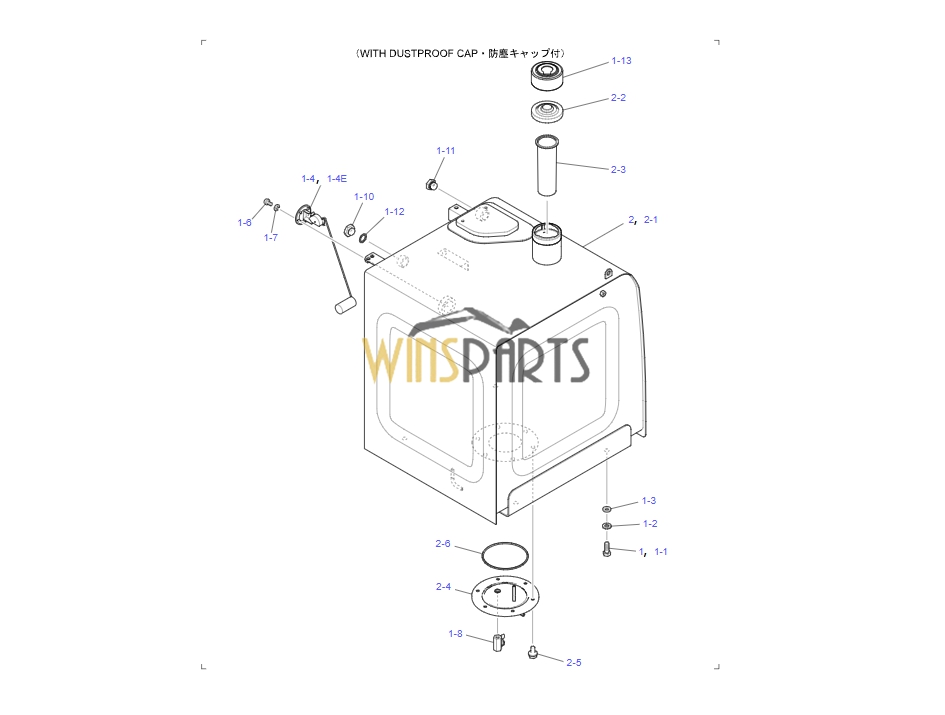

YN20P00179F1 YN20P00120F1 YN20P00129P1 YN20P00178F1 FUEL TANK Kobelco SK210-8 SK210LC-8
　 (WITH DUSTPROOF CAP)
　 1 YN20P00179F1 TANK INSTAL, FUEL 1
　 1-1 ZS13C16040 CAPSCREW 4
　 1-2 ZW13H16000 WASHER 4
　 1-3 LE33H01017D1 SHIM (1.0) 3
　 1-4 YN52S00045F1 SENSOR, LEVEL 1
　 1-4E YN52S00045S005 GASKET 1
　 1-6 ZS31C05012 MACHINE SCREW 5
　 1-7 ZW26X05000 LOCK WASHER 5
　 1-8 YN25V00001P1 VALVE, STOP 1
　 1-10 YN20P01342P1 PLUG 1
　 1-11 ZE72X12000 PLUG 1
　 1-12 YN33H01052P1 SEAL 1
　 1-13 YN20P01361P1 RUBBER 1
　 2 YN20P00120F1 TANK ASSY, FUEL 1
　 2-1 YN20P00129P1 TANK, FUEL 1
　 2-2 YN20P01034P2 CAP 1
　 2-3 YN50V00029P1 STRAINER 1
　 2-4 YN20P01258P1 FLANGE 1
　 2-5 ZM73C10020 SEMS-BOLT 6
　 2-6 ZD11G16000 O-RING 1

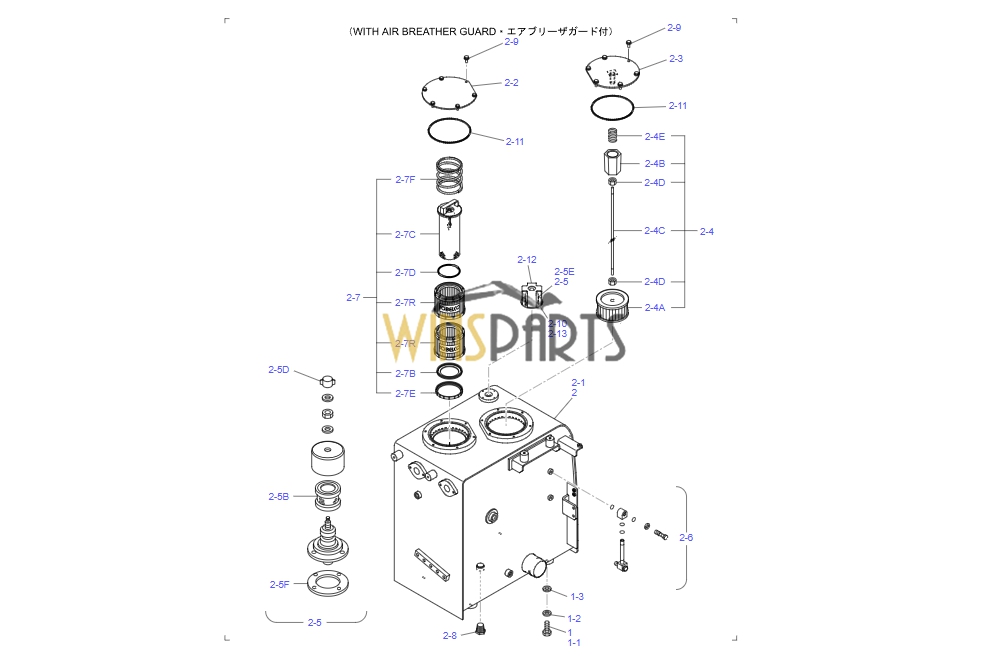

YN33H00121F1 YN33H00058F1 YN33H00122F1 TANK INSTAL, HYD Kobelco SK210-8 SK210LC-8
　 . (WITH AIR BREATHER GUARD)
　 .
　 1 YN33H00058F1 TANK INSTAL, HYD 1
　 1-1 ZS13C16040 CAPSCREW 4
　 1-2 ZW13H16000 WASHER 4
　 1-3 LE33H01017D1 SHIM (1.0) 3
　 2 YN33H00122F1 TANK ASSY, HYD 1
　 2-1 YN33H00123P1 TANK 1
　 2-2 YN33H01259P2 COVER 1
　 2-3 YN33H01283P1 COVER 1
　 2-4 YN50V00025F1 STRAINER, SUCTION 1
　 2-4A YN50V00002S001 STRAINER 1
　 2-4B 2446R110S2 HOLDER 1
　 2-4C LS50V00007S003 BOLT 1
　 2-4D ZN11C10008 NUT 2
　 2-4E 2446R110S6 SPRING 1
　 2-5 YN57V00011F1 BREATHER ASSY 1
　 2-5B YN57V00010S002 ELEMENT, FILTER 1
　 2-5D 2446U260S5 NUT 1
　 2-5E YN57V00002S012 CAP 1
　 2-5F 2446U260S8 PACKING 1
　 2-6 YN58S00009F1 GAUGE, LEVEL, OIL 1
　 2-7 YN52V01016F3 ELEMENT, FILTER 1
　 2-7B YN52V01008S002 PLATE 1
　 2-7C YN21V00015P1 VALVE, CHECK 1
　 2-7D ZD11G09000 O-RING 1
　 2-7E YN52V01008S005 PACKING 1
　 2-7F LC33H01009P1 SPRING 1
　 2-7R YN52V01020P1 ELEMENT, FILTER 2
　 2-8 ZE72X08000 PLUG 1
　 2-9 ZM73C10025 SEMS-BOLT 12
　 2-10 ZS28C06020 CAPSCREW 4
　 2-11 ZD11G19000 O-RING 2
　 2-12 YN33H01344P1 COVER 1
　 2-13 ZW26K06000 LOCK WASHER 4
　 .
　 YN52V01016R610 REPAIR KIT 1
　 . (2-7D, 2-7E, 2-11)X1
　 . (2-7R)X2
