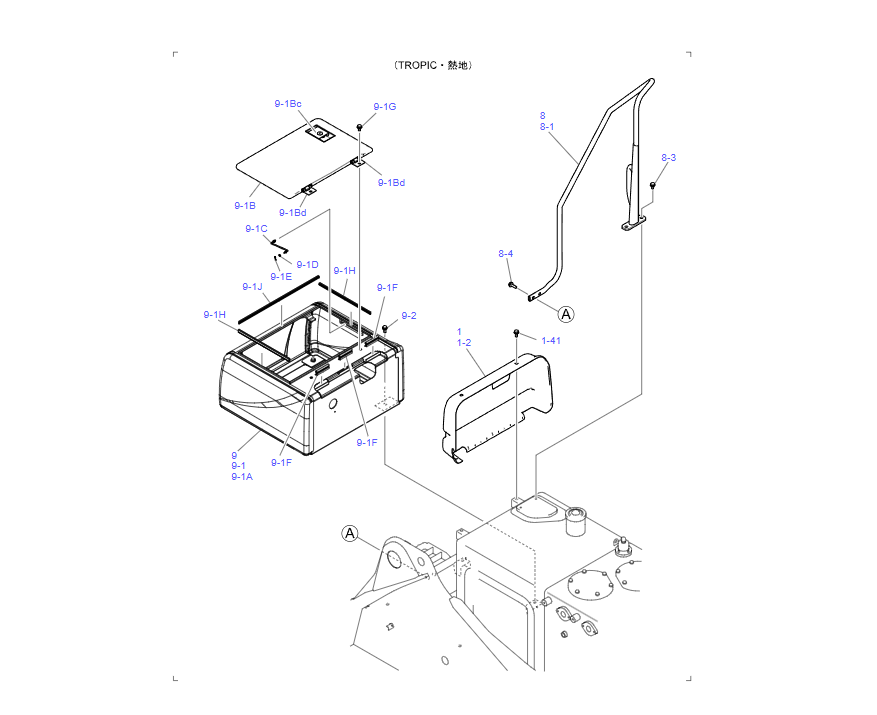

YN21C00164F2 YN21C00162F1 YN21C04619P1 GUARD COVER Kobelco SK210-8 SK210LC-8
YN21C00164F3 GUARD INSTAL
(PRECLEANER)
1 YN21C00162F1 GUARD INSTAL 1
1-2 YN21C04619P1 COVER 1
1-4 YN21C03347P1 BEAM 1
1 YN21C00162F1 GUARD INSTAL 1
1-2 YN21C04619P1 COVER 1
1-4 YN21C03347P1 BEAM 1
1-6 YN21C02864P1 GUARD 1
1-8 YN21C03238P1 PLATE 1
1-10 YN21C03341P2 PILLAR 1
1-12 YN21C03017P2 PILLAR 1
1-13 YN21C03351F1 GUARD ASSY 1
1-13A YN21C03352P1 GUARD 1
1-13B YN21C03340P1 INSULATION 1
1-14 YN21C02953P2 GUARD 1
1-15 YN21C03332P1 GUARD 1
1-16 YN21C02599F2 GUARD ASSY 1
1-16B YN21C02724P1 INSULATION 1
1-16C YN21C04756P1 GUARD 1
1-17 YN21C04661P1 GUARD 1
1-18 YN21C02960F1 COVER ASSY 1
1-18A YN21C02961P1 COVER 1
1-18B YN21C03141P1 RUBBER 1
1-19 YN21C03498F1 COVER ASSY 1
1-19A YN21C02980P3 GUARD 1
1-19B 2420R372D8 GROMMET 2
1-20 YN21C02423P1 PLATE 1
1-21 YN21C02410P1 BRACKET 1
1-22 YN21C01716P1 PLATE 1
1-23 YN21C02747P1 SPRING 1
1-24 YN21C02748P1 SPRING 1
1-25 YN21C02425P1 STAY 2
1-26 YN21C04124P1 STRIKER 1
1-27 YN21C04123P1 STRIKER 1
1-28 YN21C03350P1 STAY 1
1-29 2419R9D6 PIN 1
1-30 ZW16P16000 WASHER 1
1-31 YN21C03212P1 STOPPER 4
1-32 ZN18F10008 NUT 4
1-33 ZS18C12025 CAPSCREW 4
1-34 2418T10357 WASHER 6
1-35 ZM32C12025 SEMS BOLT 4
1-36 YN21C01395P1 WASHER 4
1-37 YN21C01396P1 WASHER 4
1-38 YN21C02138P1 WASHER 2
1-39 YN21C02147P1 WASHER 2
1-40 ZM73C08025 SEMS-BOLT 4
1-41 ZM73C12025 SEMS-BOLT 31
1-42 ZM73C12030 SEMS-BOLT 6
1-43 ZM73C12040 SEMS-BOLT 2
1-46 2416T6289D6 STAY 1
1-47 2419R9D2 PIN 1
1-48 ZN18C10008 NUT 2
1-49 ZW16H10000 WASHER 2
1-50 2418T21942 WASHER 3
1-51 ZM73C12035 SEMS-BOLT 1
1-52 YN21C03776P1 SHIM (1.0) 1
2 YN21C00108F1 GUARD INSTAL 1
2-1 YN22C00030F1 BONNET ASSY 1
2-1A YN22C01301P2 BONNET 1
2-1Aj LC22C01028P1 HINGE 2
2-1Ak ZS12C12030 CAPSCREW 4
2-1B YN22C01368P1 INSULATION 1
2-1C YN22C01225P1 INSULATION 2
2-1D YN22C01283D1 STRIP, WEATHER 1
2-1E YR21C01251D4 STRIP, WEATHER 1
2-1F 2416T13435 RUBBER, CUSHION 2
2-1G 2406Z304 HANDLE 1
2-1H YN22C01297P1 INSULATION 2
2-1J YN22C01287P1 PLATE 1
2-1K ZM73C08020 SEMS-BOLT 4
2-2 LC21C01811P2 CATCH 1
2-3 LC21C01812P2 CATCH 1
2-4 ZN18C08007 NUT 4
2-5 ZW16H08000 WASHER 4
2-6 ZM73C08020 SEMS-BOLT 8
2-7 ZN18C12010 NUT 4
2-8 2418T10357 WASHER 4
2-9 YN21C03749P1 SHIM (1.6) 2
3 YN21C00109F1 GUARD INSTAL 1
3-1 YN21C03299F1 PANEL ASSY 1
3-1A YN21C03406P2 PANEL 1
3-1Ag YN21C02347P1 HINGE 2
3-1Ah YN21C04959P1 LOCK 1
3-1B YN21C02460P1 RUBBER 1
3-2 YN21C03015F1 PANEL ASSY 1
3-2A YN21C03016P3 PANEL 1
3-2Aa YN21C02357P1 PANEL 1
3-2Ag YN21C02347P1 HINGE 2
3-2Ah YN21C04959P1 LOCK 1
3-2B YN21C03028P1 INSULATION 1
3-2C YN21C03346P2 INSULATION 1
3-2D YN21C02048P1 RUBBER 1
3-2E YN21C05040P1 RUBBER 1
3-3 YN21C03296F1 PANEL ASSY 1
3-3A YN21C03297P2 PANEL 1
3-3Ae YN21C02347P1 HINGE 2
3-3B YN21C02462P1 RUBBER 1
3-4 ZN18C10008 NUT 12
3-5 ZW26X10000 LOCK WASHER 12
3-6 2418T12346 WASHER 12
4 YN21C00110F1 GUARD INSTAL 1
4-1 YN21C03307F1 GUARD ASSY 1
4-1A YN21C02977P3 GUARD 1 YQ12T00874–T01147
4-1A YN21C06868P1 GUARD 1 YQ12T01148-
4-1B YN21C03244P2 INSULATION 1
4-2 YN21C03308F1 GUARD ASSY 1
4-2A YN21C02938P1 GUARD 1
4-2B YN21C02898P1 INSULATION 1
4-3 YN21C03309F1 GUARD ASSY 1
4-3A YN21C03034P1 GUARD 1
4-3B YN21C01688D1 STRIP, WEATHER 1
4-4 YN21C02138P1 WASHER 2
4-5 YN21C02147P1 WASHER 2
4-6 ZM73C12025 SEMS-BOLT 12
4-7 ZM73C12030 SEMS-BOLT 6
4-8 YN21C04097P3 PILLAR 1
5 YN21C04142F2 GUARD ASSY 1
5-2 ZM73C12025 SEMS-BOLT 4
5-3 YN21C03871P1 GUARD 1
6 YN21C04141F1 GUARD ASSY 1
6-1 YN21C03104F1 GUARD ASSY 1
6-1A YN21C03247P2 GUARD 1
6-1B LC21C01040P1 INSULATION 1
6-2 ZM73C12025 SEMS-BOLT 5
8 LC21C02482F1 STAY ASSY 1
8-1 YN21C02902P4 STAY 1
8-3 ZM73C12025 SEMS-BOLT 2
8-4 ZM73C12040 SEMS-BOLT 2
9 LQ21C00082F1 GUARD INSTAL 1
9-1 YN21C03817F1 COVER ASSY 1
9-1A YN21C03822P2 BOX 1 YQ12T00874–T01138
9-1A YN21C06861P1 BOX 1 YQ12T01139-
9-1B YN21C03023P2 COVER 1
9-1Bc YN21C04959P1 LOCK 1
9-1Bd YN21C02333P1 HINGE 2
9-1C YN21C02821P1 STAY 1
9-1D ZW16P06000 WASHER 1
9-1E 2419R9D1 PIN 1
9-1F YJ21C01079D1 STRIP, WEATHER 3
9-1G ZM73C12025 SEMS-BOLT 2
9-1H YN21C03253D1 TRIM 2 YQ12T00874–T01170
9-1H LP21C01176D3 TRIM 2 YQ12T01171-
9-1J YN21C03253D2 TRIM 1 YQ12T00874–T01170
9-1J LP21C01176D4 TRIM 1 YQ12T01171-
9-2 ZM73C12025 SEMS-BOLT 4
11 YN21C00299F1 GUARD INSTAL 1
11-1 YN21C05792F1 COVER ASSY 1
11-1A YN21C05795P1 COVER 1
11-1B YN21C05796P1 RUBBER 1
11-2 YN21C05794F1 COVER ASSY 1
11-2A YN21C05797P1 COVER 1
11-2B YN21C05800P1 RUBBER 1
11-2C YN21C05801P1 RUBBER 1
11-3 ZM32C10025 SEMS-BOLT 2
