YN15V00078F1 YN15V00077F1 SWING MOTOR ASSY KOBELCO SK200-10 SK210LC-10
.
HC090-00_YN15V00078F1_CKCM-02_D0001918161_1 1 YN15V00078F1 MOTOR ASSY, SWING 1 HC 090-00
2 YN32W01114D4 TUBE 1
3 YN32W01206D1 GAUGE, LEVEL 1
4 YN64H01391D1 CAP 2
5 ZS13C20055 CAPSCREW 13
6 YN32W01202P1 PLUG 1
9 2444Z2002 CONNECTOR 1
10 2444R1117D120 HOSE 1
11 ZG91S02000 NIPPLE, GREASE 1
12 YN32W01204P1 CAP 1 YN15T17101–20218
. YQ15-T3101–T3257
15 YN13E01375P1 CLIP 4
16 PY01P01043D3 CLIP

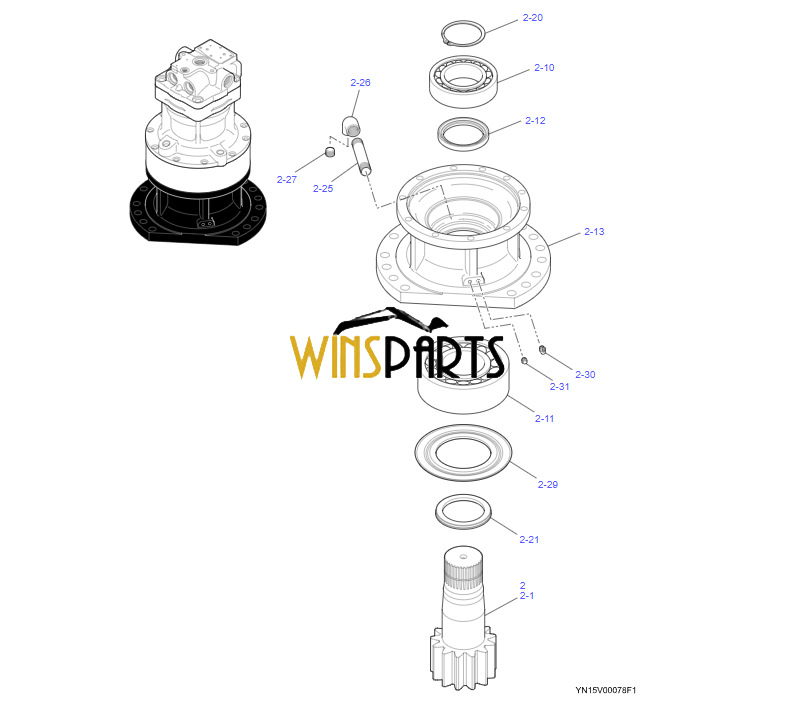

2-1 YN32W01125P1 SHAFT, PINION 1

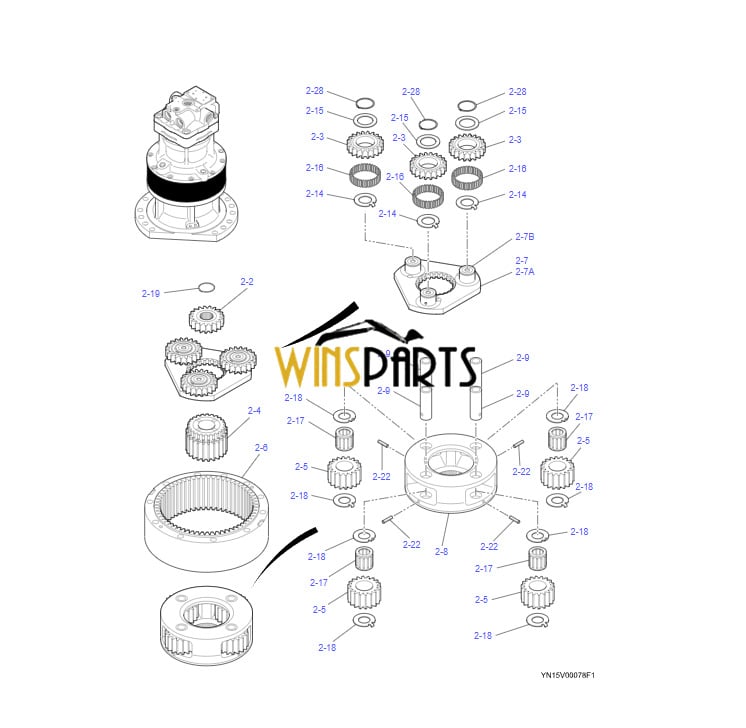

2-2 YN32W01136P1 GEAR, SUN 1
2-3 YN32W01135P1 PINION 3
2-4 YN32W01126P1 GEAR, SUN 1
2-5 YN32W01143P1 PINION 4
2-6 YN32W01127P1 GEAR, RING 1
2-7 YN32W01123F1 SPIDER ASSY 1
2-7A YN32W01009P1 SPIDER 1
2-7B YN32W01120P1 SHAFT 3
2-8 YN32W01130P1 SPIDER 1
2-9 YN32W01131P1 SHAFT 4
2-10 YN32W01030P1 BEARING, SPHERICAL 1
2-11 YN32W01029P1 BEARING, SPHERICAL 1
2-12 YN32W01060P1 OIL SEAL 1
2-13 YN32W01132P1 HOUSING 1
2-14 YN32W01026P1 WASHER, THRUST 3
2-15 YN32W01028P1 WASHER, THRUST 3
2-16 YN32W01022P1 ROLLER 102
2-17 YN32W01072P1 BEARING, NEEDLE 4
2-18 YN32W01063P1 WASHER, THRUST 8
2-19 ZR16X03500 RING, SNAP 1
2-20 ZR16X09000 RING, SNAP 1
2-21 YN32W01133P1 SLEEVE 1
2-22 ZP26D08025 PIN, SPRING 4
2-23 ZS23C14130 CAPSCREW 11
2-25 YN32W01080D5 TUBE 1
2-26 ZG31U08000 ELBOW, 90 1
2-27 ZE82T08000 PLUG 1
2-28 ZR16X04000 RING, RETAINING 3
2-29 YN32W01081P1 OIL SEAL 1
2-30 ZG91V02000 NIPPLE, GREASE 1
2-31 ZE82T02000 PLUG 1
.
YN15V00055R100 REPAIR KIT 1 RK1
. (1-4, 1-5)X9
.
YN15V00025R200 REPAIR KIT 1 RK2
. (1-10)X1
. (1-19)X2
.
YM15V00006R100 REPAIR KIT 1 RK3

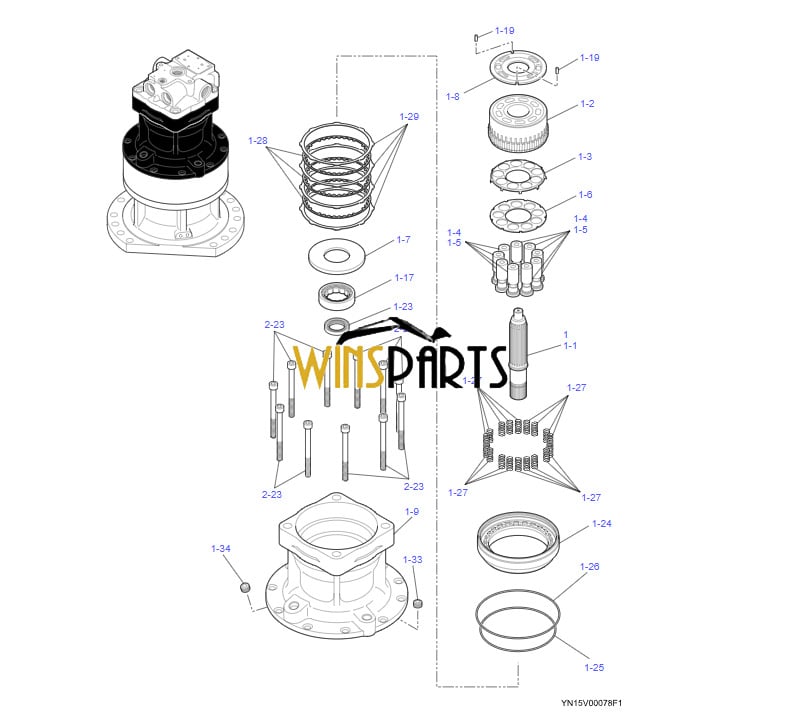

1 YN15V00077F1 MOTOR ASSY, HYD 1
1-1 YN15V00025S101 SHAFT 1
1-2 YN15V00025S111 CYLINDER 1
1-3 YN15V00025S114 SPRING 1
1-4 NO P/No PISTON 9 R1
1-5 NO P/No SHOE 9 R1
1-6 YN15V00025S123 PLATE 1
1-7 YN15V00025S124 PLATE 1
1-8 YN15V00025S131 PLATE 1
1-9 YN15V00035S301 CASE 1
1-10 NO P/No CASE 1 R2
1-11 YN15V00025S351 SPOOL 2
1-12 YN15V00002S355 SPRING 2
1-13 NO P/No NAME PLATE 1
1-14 NO P/No NAME PLATE 1
1-15 2437U407S983 RIVET 2
1-16 ZS23C20045 CAPSCREW 4
1-17 YN15V00002S011 BEARING 1
1-18 LQ15V00008S010 BEARING, ROLLER 1
1-19 NO P/No PIN 2 R2
1-20 YN15V00002S012 PLUG 2
1-21 YN15V00025S489 O-RING 1 R3
1-22 ZD12P02800 O-RING 2 R3
1-23 YN15V00035S491 OIL SEAL 1 R3
1-24 YN15V00002S014 PISTON 1
1-25 2441U736S706 O-RING 1 R3
1-26 2415U188S707 O-RING 1 R3
1-27 YN15V00025S712 SPRING 18
1-28 YN15V00025S742 PLATE 3
1-29 YN15V00025S743 PLATE 4
1-30 YN15V00035S980 PLUG 1
1-31 YN15V00035S984 PLUG 1
1-32 YN15V00035S985 PLUG 3
1-33 ZE82T08000 PLUG 1
1-34 ZE82T12000 PLUG 1
1-35 YN22V00042F3 VALVE, RELIEF 2
1-35B ZD12G03000 O-RING 1
1-35D YN22V00042S004 O-RING 1
1-35L YN22V00042S011 O-RING 1
1-36 YN20V00004F4 VALVE ASSY 1
1-36Z100 LQ15V00001S100 CASE 1
1-36Z151 YW30V00001S157 PLUG 2
1-36Z161 ZD12P01100 O-RING 2
1-36Z164 YT10V00003S711 O-RING 2
1-36Z165 YN10V01006S011 O-RING 2
1-36Z171 ZS23C08055 CAPSCREW 4
1-36Z400 YN20V00004S400 VALVE ASSY 2
1-36Z401 ZD12P02000 O-RING 2
1-36Z403 ZD85P02000 RING, BACK-UP 2
