YN61B00331F1 YN61B00312F1 0.8M3 BUCKET ASSY Kobelco SK200-8 SK210LC-8 (SIDE TYPE PIN) 1 YN61B00331F1 BUCKET ASSY 1 1-1 YN61B00328P1 BUCKET 1 …

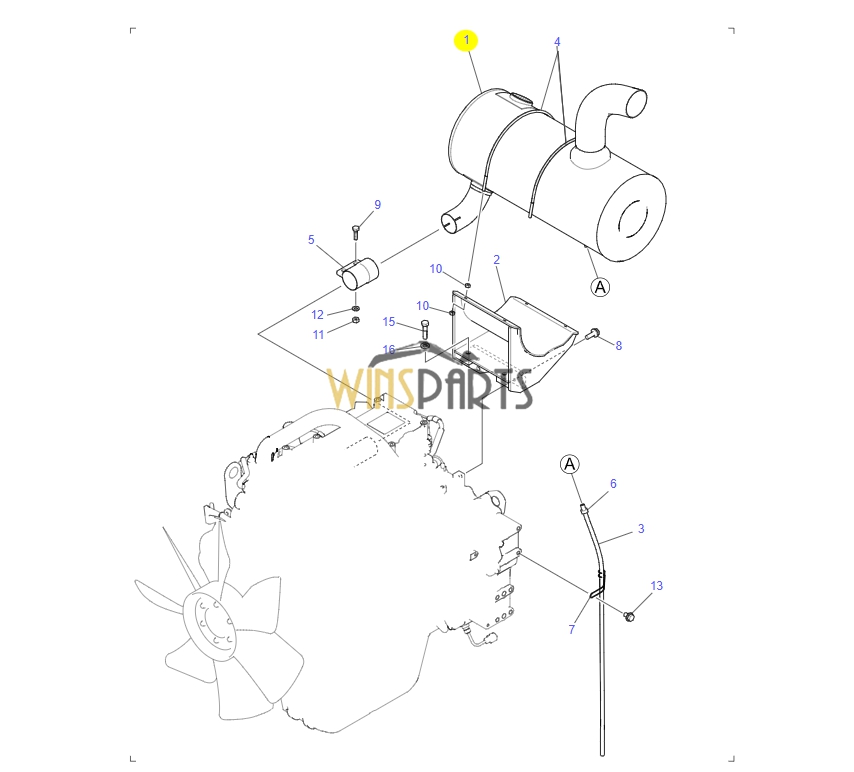

YN12P00050P1 YN12P00051F1 MUFFLER ASSY Kobelco SK210-8 SK210LC-8
.
1 YN12P00050P1 MUFFLER 1
2 LQ12P01082P2 BRACKET 1
3 HX11Y07090DX HOSE 1
4 HR91C08000GM U-BOLT 2
5 YN12P01023P1 CLAMP ASSY 1
6 ZC16X01200 CLIP 1
7 YN12P01159P1 CLIP 1
8 ZM73C12035 SEMS-BOLT 3
9 ZS18C10035 CAPSCREW 2
10 ZN18C08007 NUT 8
11 ZN18C10008 NUT 2
12 ZW16P10000 WASHER 2
13 ZM73C12020 SEMS-BOLT 1
15 ZS18C12050 CAPSCREW 2
16 ZW16H12000 WASHER 2
.

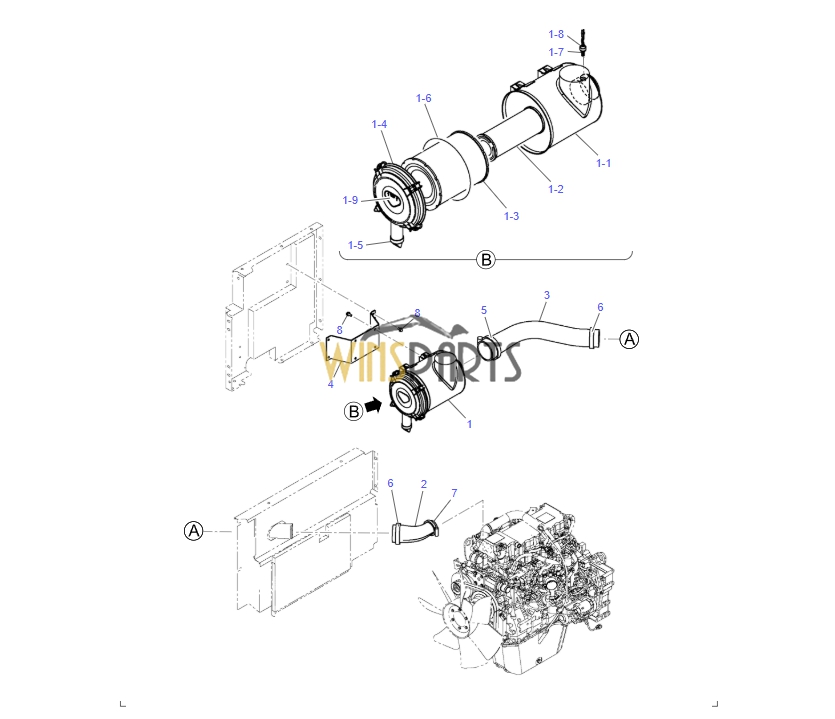

1 YN11P00029F1 CLEANER, AIR 1
1-1 NO P/No BODY ASSY 1
1-2 YN11P00029S002 ELEMENT, FILTER 1
1-3 YN11P00029S003 ELEMENT, FILTER 1
1-4 YN11P00029S004 COVER ASSY 1
1-5 EB11P00001S005 VALVE ASSY 1
1-6 YN11P00029S006 O-RING 1
1-7 EB11P00001S006 FILTER 1
1-8 YR11P00008S005 INDICATOR 1
1-9 EB11P00001S008 LABEL 1
2 YN11P01118P1 HOSE, AIR 1
3 YN11P01120P1 HOSE, AIR 1
4 YN11P01126P1 PLATE 1
5 ZC16X12200 CLIP 1
6 ZC16X10000 CLIP 2
7 ZC16X07000 CLIP 1
8 ZM73C10025 SEMS-BOLT 8
